1. Glacial Processes

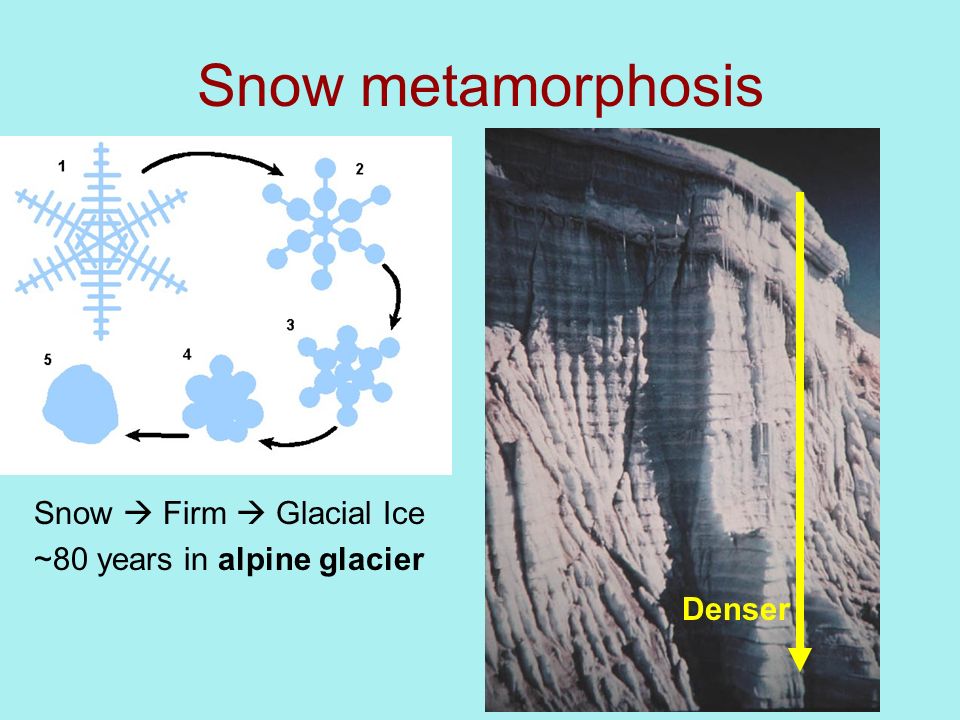

2. Snow metamorphosis Snow  Firm  Glacial Ice ~80 years in alpine glacier Denser

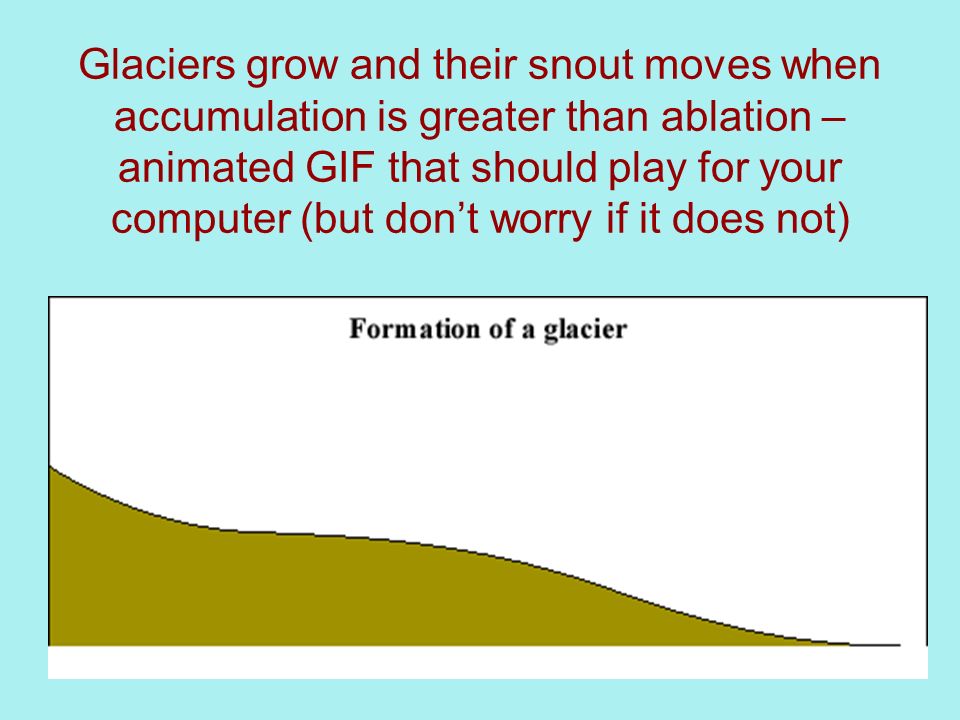

3. Glaciers grow and their snout moves when accumulation is greater than ablation – animated GIF that should play for your computer (but don’t worry if it does not)

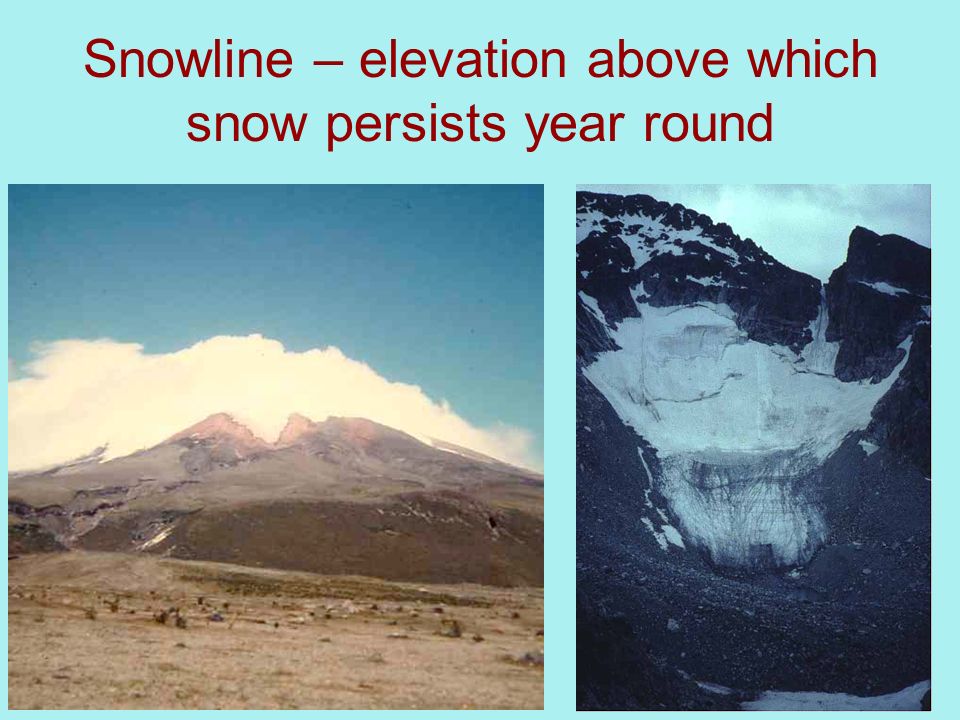

4. Snowline – elevation above which snow persists year round

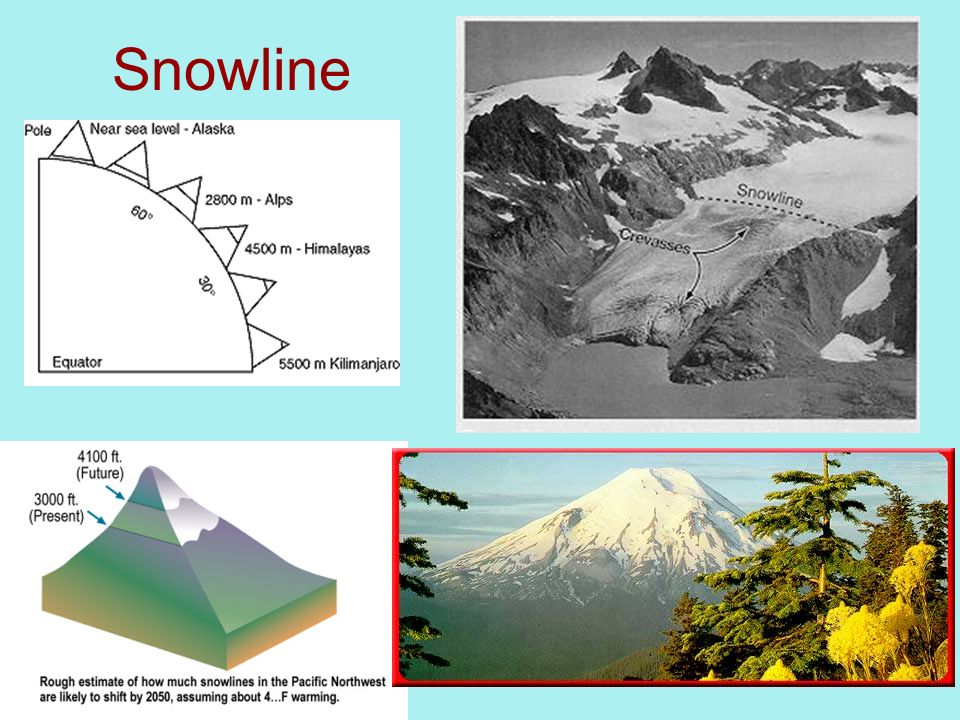

5. Snowline

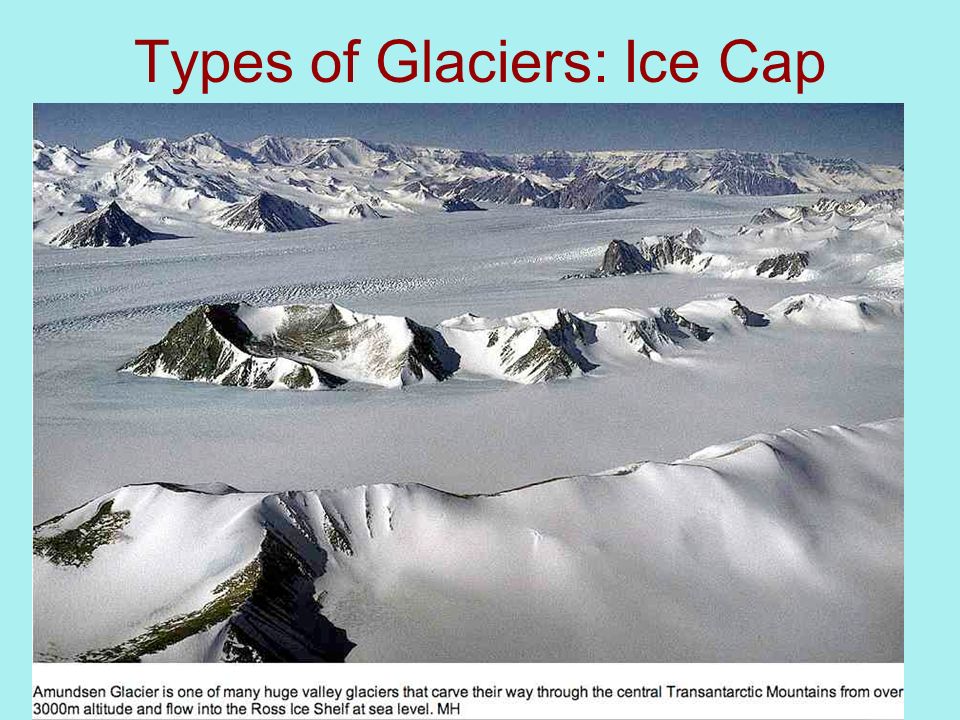

6. Types of Glaciers: Ice Cap

7. Greenland from space

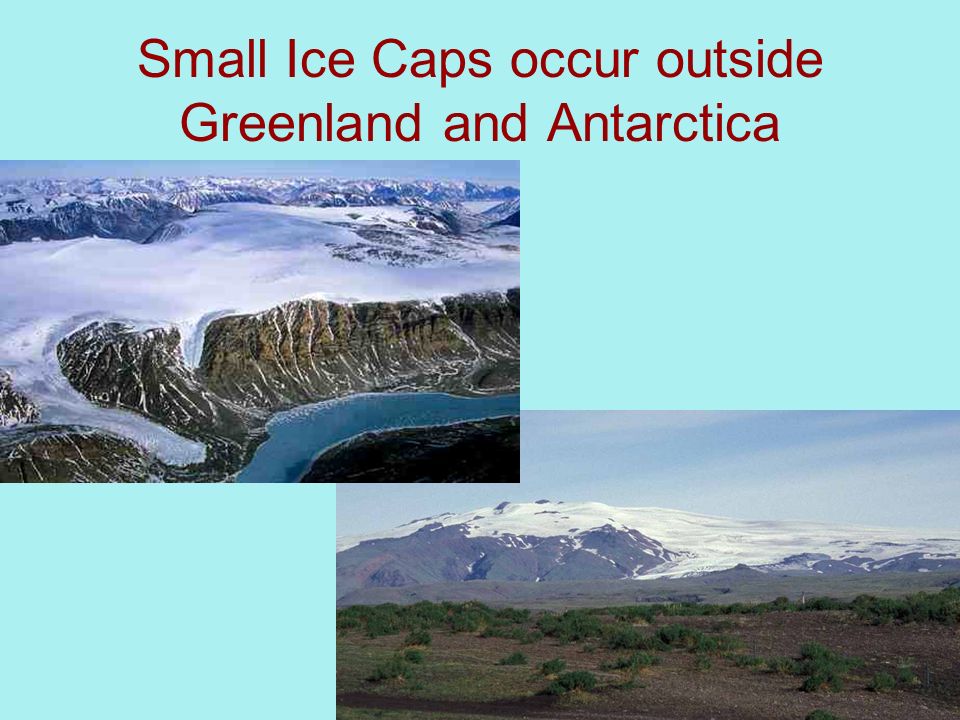

8. Small Ice Caps occur outside Greenland and Antarctica

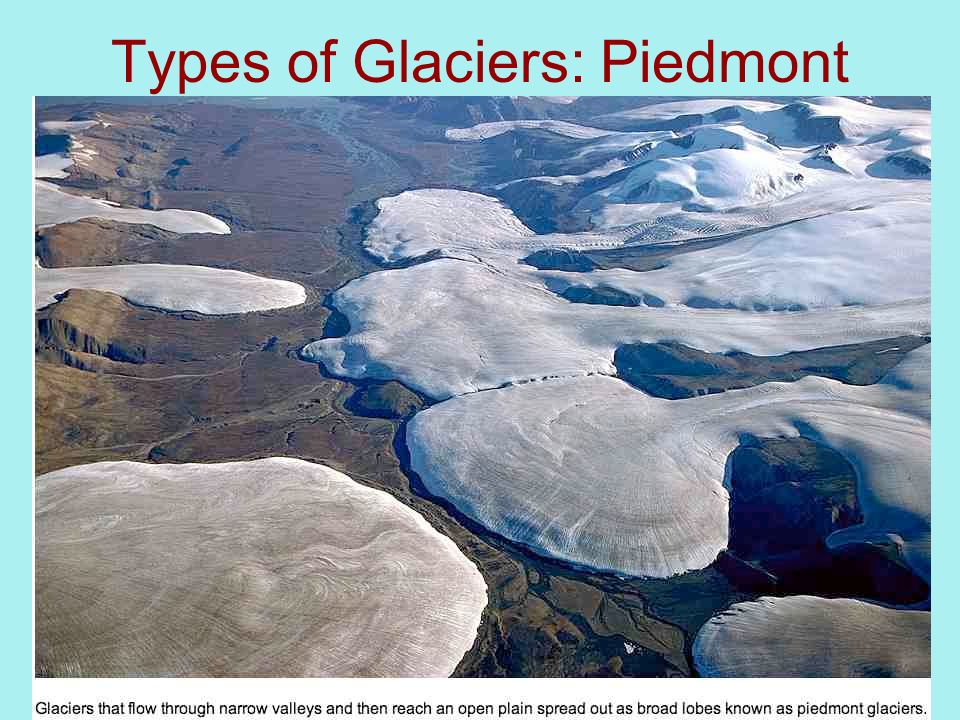

9. Types of Glaciers: Piedmont Piedmont Glacier

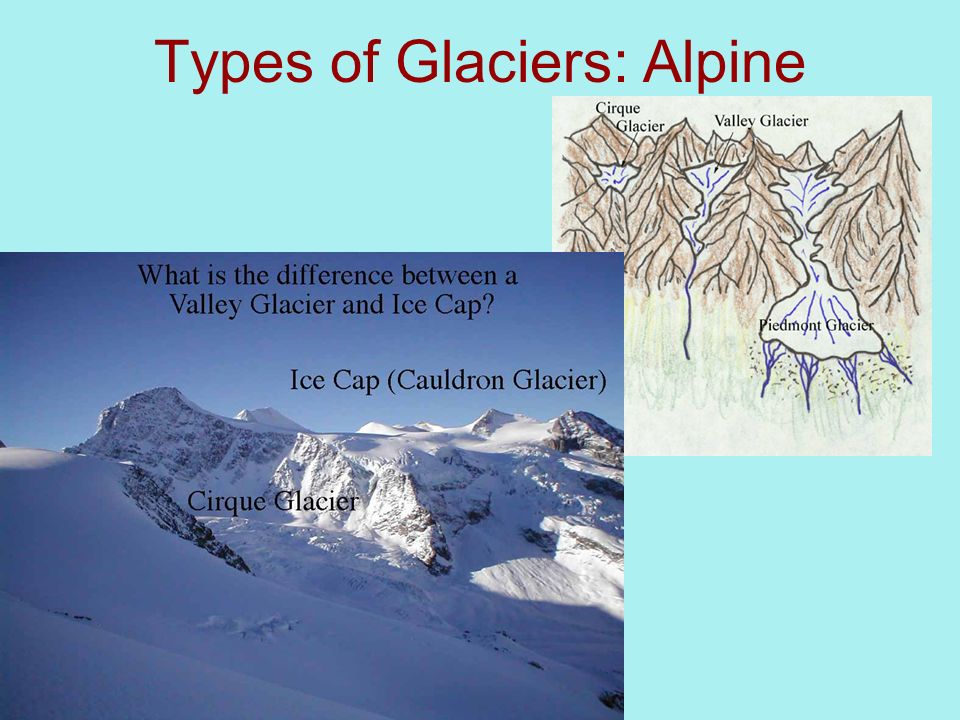

10. Types of Glaciers: Alpine

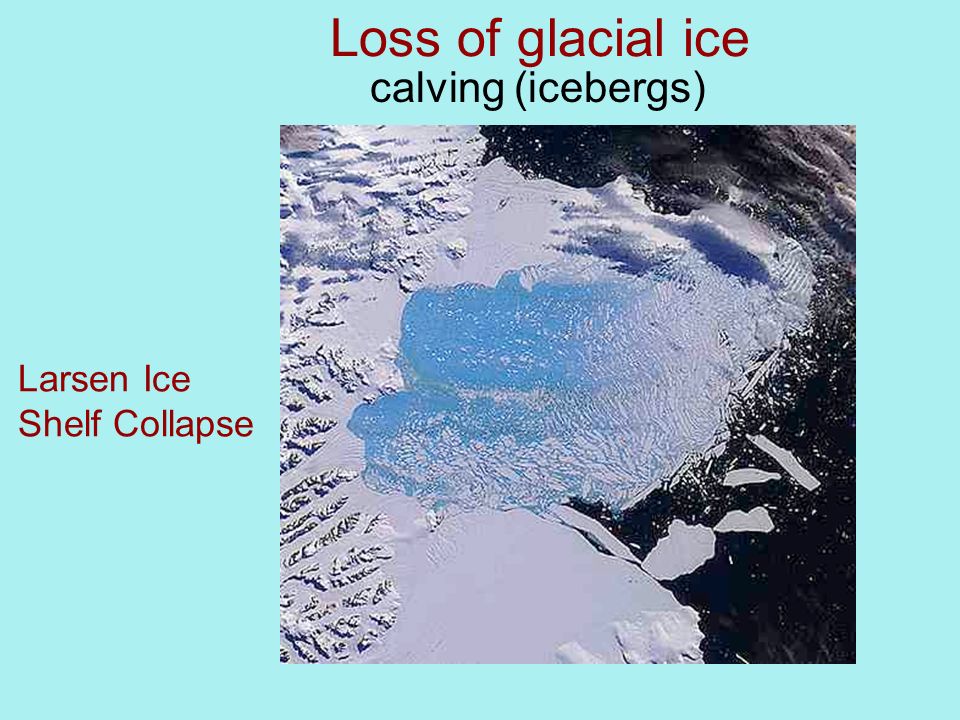

11. Larsen Ice Shelf Collapse calving (icebergs) Loss of glacial ice

14. Ablation by melting

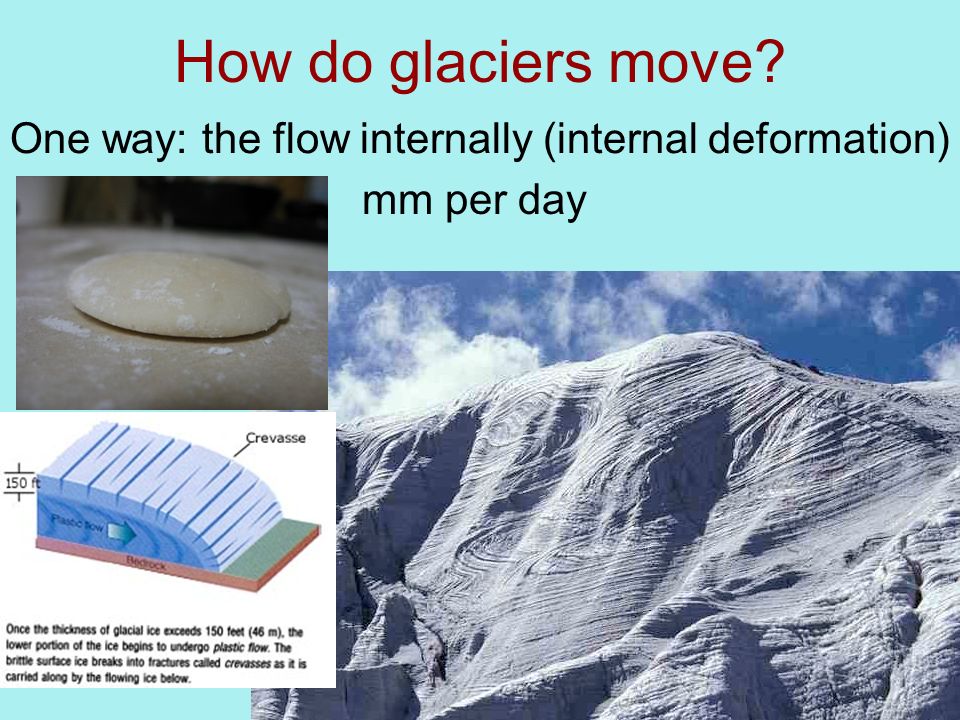

16. How do glaciers move? One way: the flow internally (internal deformation) mm per day

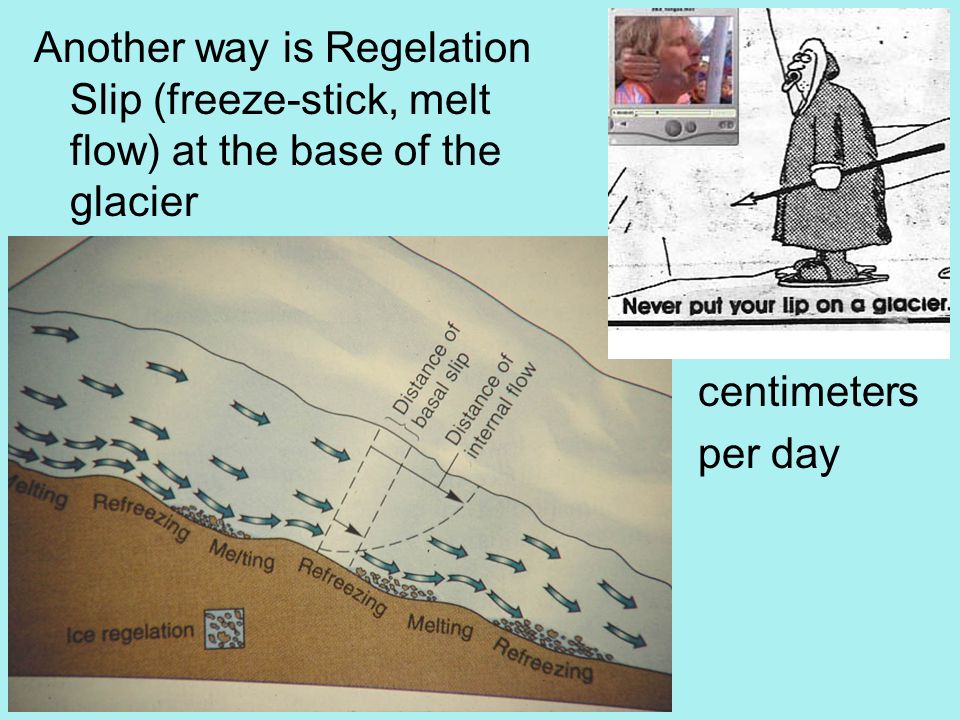

17. Another way is Regelation Slip (freeze-stick, melt flow) at the base of the glacier centimeters per day

18. 3rd: bed deformation (water & sediment act like ball bearings reducing friction) at the base of the glacier – resulting sudden surge Meters per day

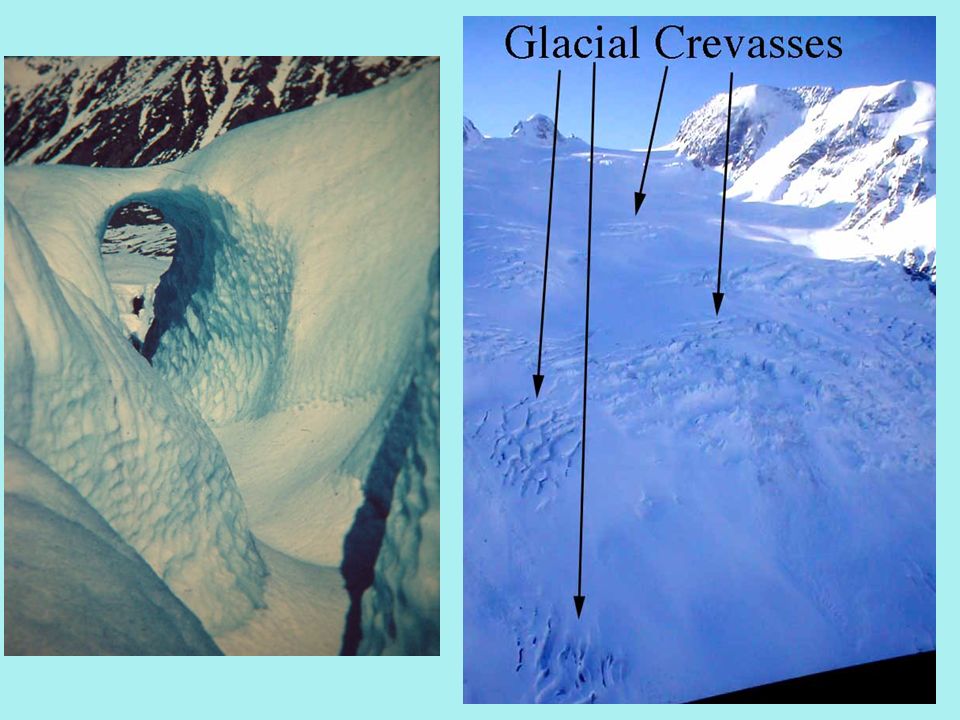

20. Movement can crack glaciers creating crevasses

21. Crevasses can form by compression or extension

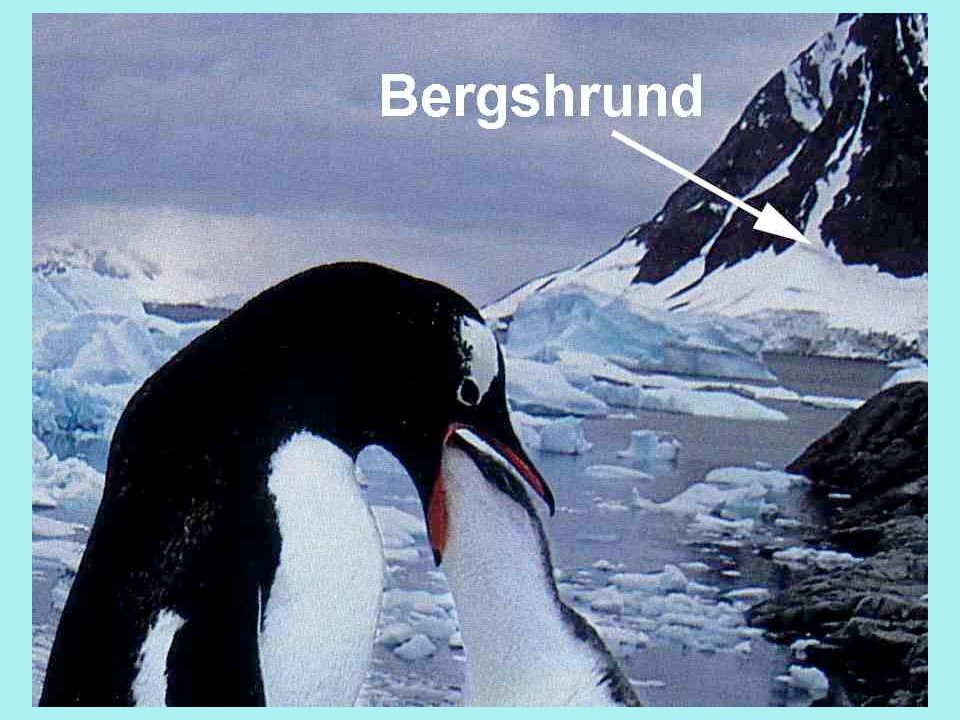

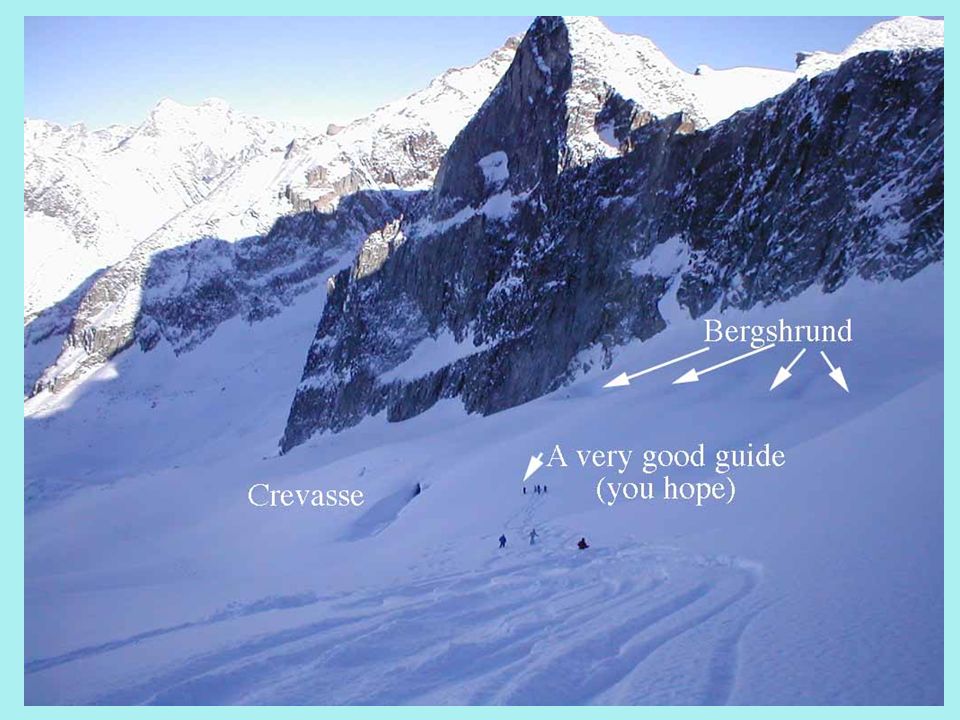

22. The top crevasse separating snow from moving ice is the bergshrund

28. Glaciers and Our Diet

30. Position of snout (belly) reflects balance of accumulation and ablation

32. Is this accumulation or ablation zone?

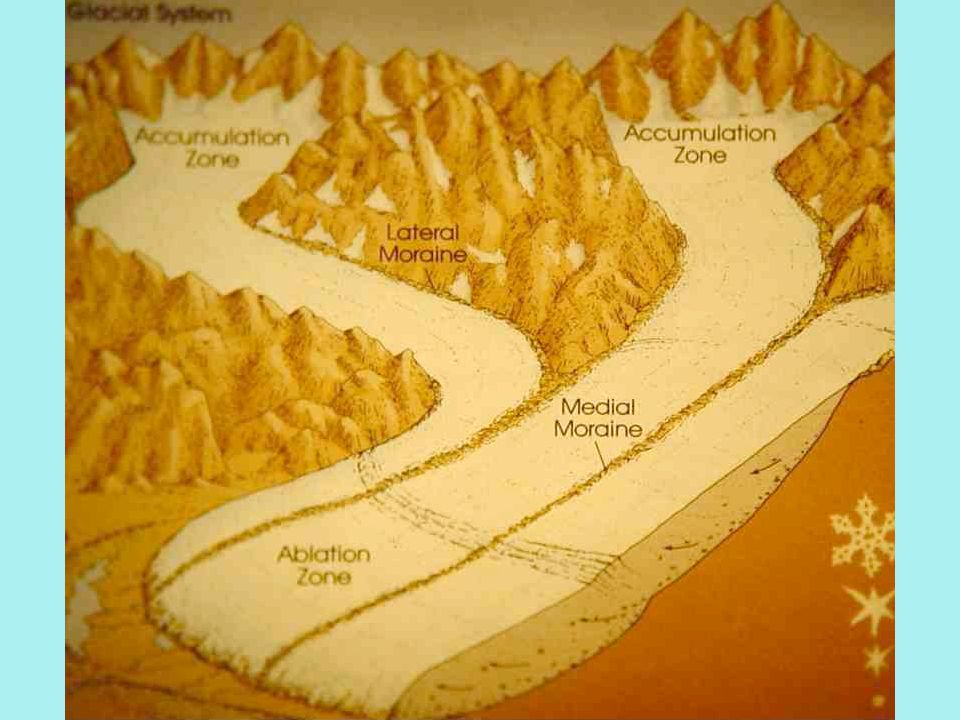

33. Accumulation Zone Ablation Zone
