1 HVAC Wiring diagram 5 channel output (5A relay) Speed: High/Medium/Low Mode: Cooling / Heating /Dehumidifier HVAC is a module specially for Air Conditioner controlling. Coordinate with DLP, it can can completely and smartly run an Air Conditioner. LNLN 485 总线 switch 1,2,3

2 Basic information HVAC Device subnet ID and Device ID Remark Modify subnet ID and Device ID

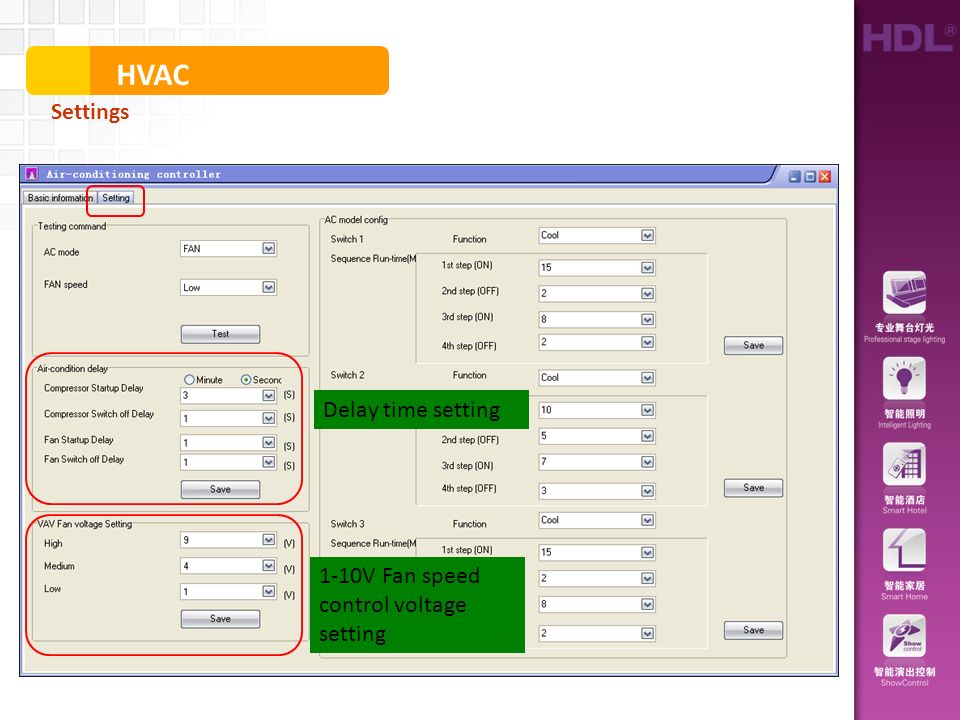

3 HVAC Settings Delay time setting 1-10V Fan speed control voltage setting

4 HVAC Settings Function: Cool / Heat / Dehumidifier / Disable Sequence running : 1.Run Step1 15 minutes ON 2.R un step2 2 minutes OFF 3.R un step3 8 minutes ON 4.R un step4 2 minutes OFF 5.Run Step1 15 minutes ON 6.…..

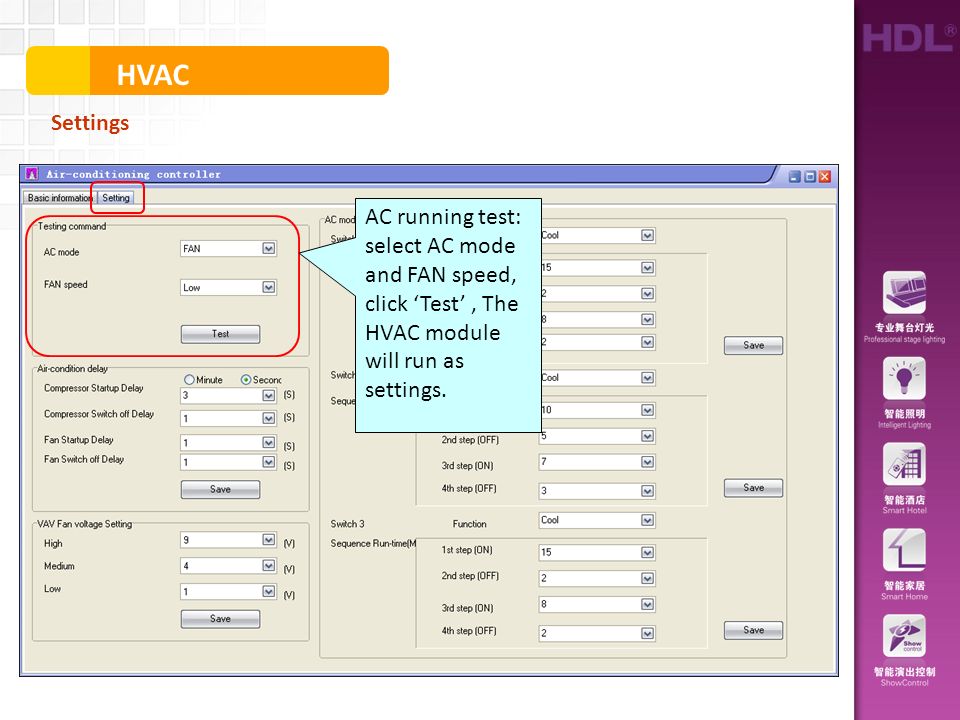

5 HVAC AC running test: select AC mode and FAN speed, click ‘Test’, The HVAC module will run as settings. Settings

6 HVAC DLP has a special page for AC module controlling, so we need a setting before using. Enter HVAC’s subnet ID and Device ID Programming on DLP DLP has a temperature sensor, if enabled, DLP will broadcast detected current temperature to a specific device or to all devices( act as a input condition for logic controlling ). Enable the DLP’s AC function

7 Programming on DLP 1.Click to setup 2. Select to show/hide functions on DLP’s LCD Functions show/hide setting

8 HVAC Select Fan speed and mode
