1 1 LHCb CALO commissioning meeting 15.07.08 Anatoli Konoplyannikov /ITEP/ XCAL commissioning with LED News New LED scan and stability data for ECAL were collected with the aim to make LED intensity scan for ECAL and stability study. 22 files were collected. Two recipes for ECAL-C LED monitoring was created. One based on the run with the initial LED intensity settings and other one with LED intensity settings less by 0.4 V than initial. As expected, the LEDTSB recipe quality is better in case when the PMT response on LED is non saturated. Modification of the HCAL HV boards for both sides has been done with the aim to have identical HV boards for ECAL - HCAL and common spares. Planning XCAL LED monitoring recipe creation and detectors stability tests

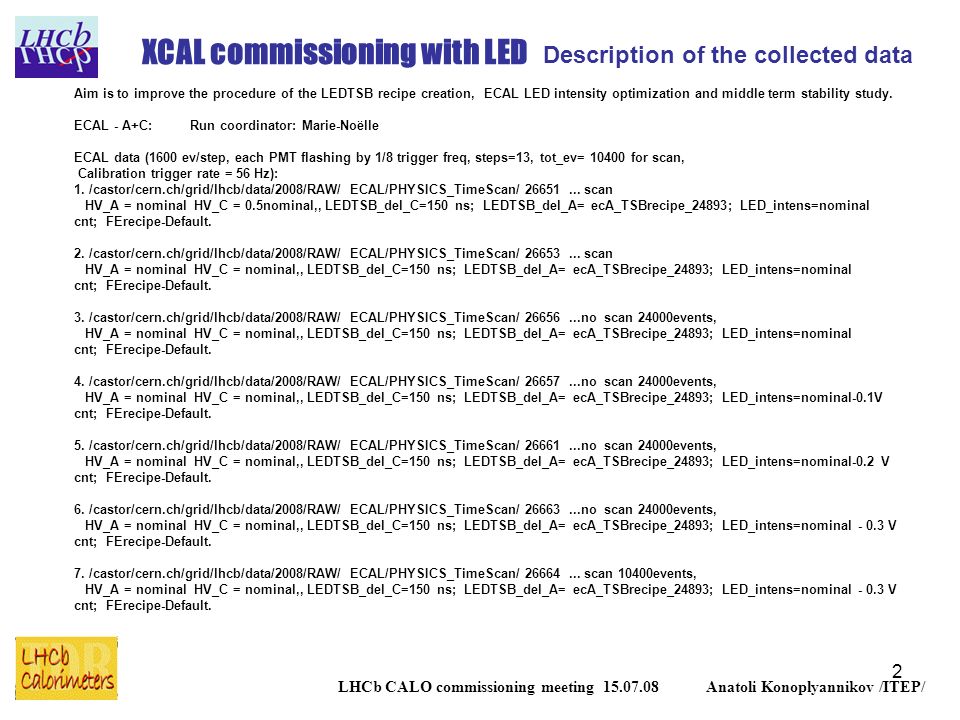

2 2 XCAL commissioning with LED Description of the collected data Aim is to improve the procedure of the LEDTSB recipe creation, ECAL LED intensity optimization and middle term stability study. ECAL - A+C: Run coordinator: Marie-Noëlle ECAL data (1600 ev/step, each PMT flashing by 1/8 trigger freq, steps=13, tot_ev= 10400 for scan, Calibration trigger rate = 56 Hz): 1. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26651... scan HV_A = nominal HV_C = 0.5nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal cnt; FErecipe-Default. 2. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26653... scan HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal cnt; FErecipe-Default. 3. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26656...no scan 24000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal cnt; FErecipe-Default. 4. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26657...no scan 24000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal-0.1V cnt; FErecipe-Default. 5. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26661...no scan 24000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal-0.2 V cnt; FErecipe-Default. 6. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26663...no scan 24000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal - 0.3 V cnt; FErecipe-Default. 7. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26664... scan 10400events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal - 0.3 V cnt; FErecipe-Default. LHCb CALO commissioning meeting 15.07.08 Anatoli Konoplyannikov /ITEP/

3 3 XCAL commissioning with LED Description of the collected data 8. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26665... scan 24000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal - 0.4 V cnt; FErecipe-Default. 9. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26666... scan 24000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal - 0.5 V cnt; FErecipe-Default. 10. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26667... scan 24000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal - 0.6 V cnt; FErecipe-Default. 11. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26668... scan 24000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal - 0.7 V cnt; FErecipe-Default. 12. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26669... scan 10400events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal - 0.7 V cnt; FErecipe-Default. 13. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26670... scan 24000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal - 0.8 V cnt; FErecipe-Default. 14. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26671... scan 24000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal - 0.9 V cnt; FErecipe-Default. 15. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26673... scan 24000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal - 1.0 V cnt; FErecipe-Default. LHCb CALO commissioning meeting 15.07.08 Anatoli Konoplyannikov /ITEP/

4 4 XCAL commissioning with LED Description of the collected data 16. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26674...no scan 2000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_24893; LED_intens=nominal - 0.3 V cnt; FErecipe-Default. 17. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26675...no scan 2000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_23700; LED_intens=nominal - 0.3 V cnt; FErecipe-Default. 18. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26676...no scan 2000events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_23700; LED_intens=nominal - 0.4 V cnt; FErecipe-Default. 19. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26677... scan 10400events, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_23700; LED_intens=nominal - 0.4 V cnt; FErecipe-Default. 20. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26679...no scan 100000events, Trigger Calibration rate is 2 Hz, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=150 ns; LEDTSB_del_A= ecA_TSBrecipe_23700; LED_intens=nominal - 0.4 V cnt; FErecipe-Default. 21. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26680... scan 10400events, Trigger Calibration rate is 56 Hz, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=ecC _TSBrecipe_ 26653 ; LEDTSB_del_A= ecA_TSBrecipe_23700; LED_intens=nominal - 0.4 V cnt; FErecipe-Default. 22. /castor/cern.ch/grid/lhcb/data/2008/RAW/ ECAL/PHYSICS_TimeScan/ 26681... scan 10400events, Trigger Calibration rate is 56 Hz, HV_A = nominal HV_C = nominal,, LEDTSB_del_C=ecC _TSBrecipe_ 26677 ; LEDTSB_del_A= ecA_TSBrecipe_23700; LED_intens=nominal - 0.4 V cnt; FErecipe-Default. LHCb CALO commissioning meeting 15.07.08 Anatoli Konoplyannikov /ITEP/

5 5 LHCb CALO commissioning meeting 7.07.08 Anatoli Konoplyannikov /ITEP/ XCAL commissioning with LED Time and amplitude distributions of the PMT response on LED for HCAL A side. LEDTSB settings are same for all channels (150 ns) ADC (cnt) Time (ns) RMS = 2.707 ns

6 6 LHCb CALO commissioning meeting 7.07.08 Anatoli Konoplyannikov /ITEP/ XCAL commissioning with LED Time and amplitude distributions of the PMT response on LED for HCAL A side. LEDTSB settings are from Recipe hcA_TSBrecipe_26361 ADC (cnt) Time (ns) RMS = 1.16 ns

7 7 XCAL commissioning with LED LHCb CALO commissioning meeting 15.07.08 Anatoli Konoplyannikov /ITEP/ RMS = 14.82 ns Time and amplitude distributions of the PMT response on LED for ECAL A side. LEDTSB settings are same for all channels (150 ns)

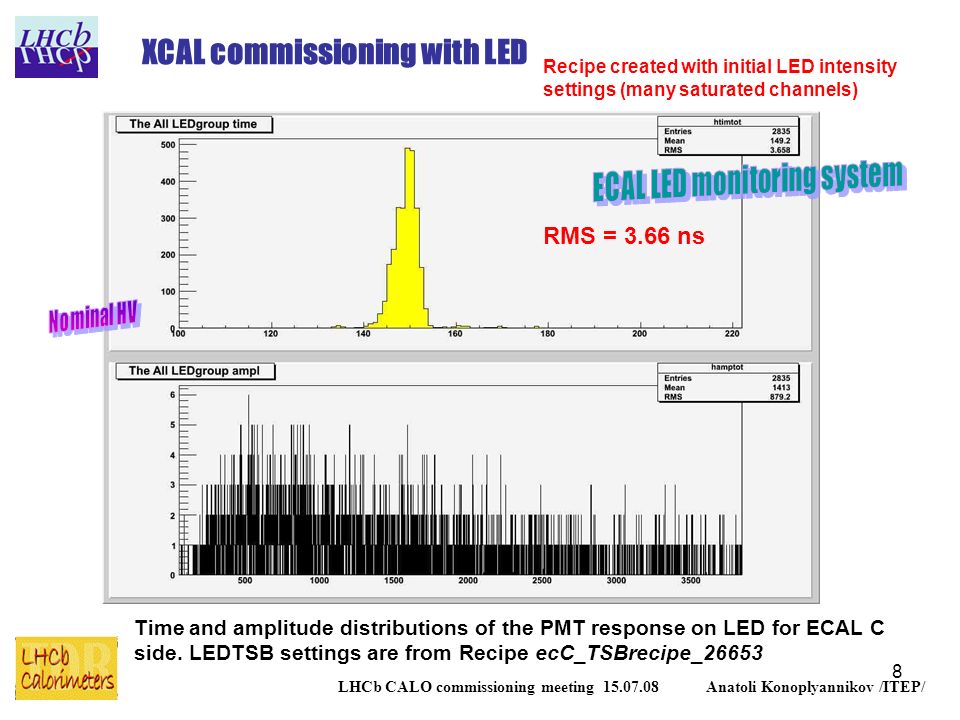

8 8 XCAL commissioning with LED LHCb CALO commissioning meeting 15.07.08 Anatoli Konoplyannikov /ITEP/ RMS = 3.66 ns Time and amplitude distributions of the PMT response on LED for ECAL C side. LEDTSB settings are from Recipe ecC_TSBrecipe_26653 Recipe created with initial LED intensity settings (many saturated channels)

9 9 XCAL commissioning with LED LHCb CALO commissioning meeting 15.07.08 Anatoli Konoplyannikov /ITEP/ RMS = 2.215 ns Recipe created with initial – 0.4 V LED intensity settings (few saturated channels) Time and amplitude distributions of the PMT response on LED for ECAL C side. LEDTSB settings are from Recipe ecC_TSBrecipe_26677
