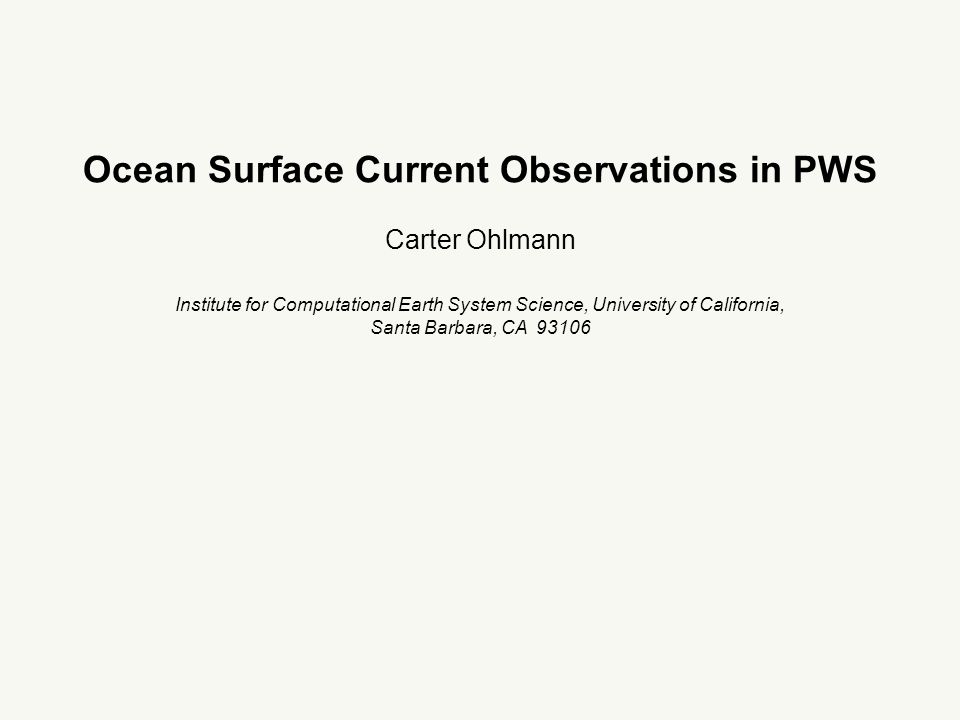

1. Ocean Surface Current Observations in PWS Carter Ohlmann Institute for Computational Earth System Science, University of California, Santa Barbara, CA 93106

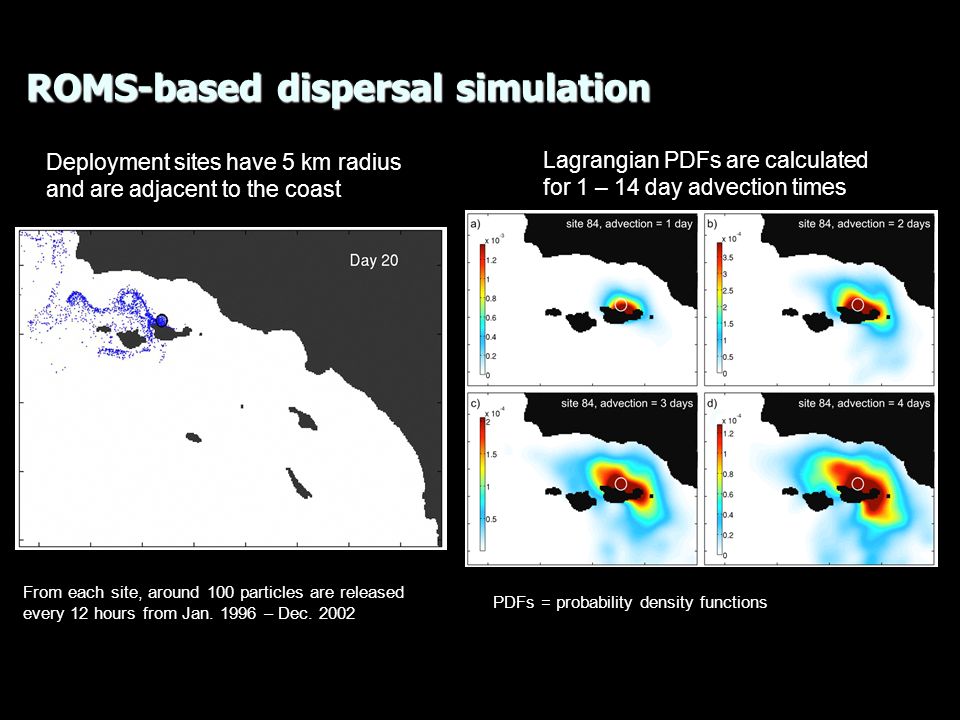

2. ROMS-based dispersal simulation Deployment sites have 5 km radius and are adjacent to the coast From each site, around 100 particles are released every 12 hours from Jan. 1996 – Dec. 2002 Lagrangian PDFs are calculated for 1 – 14 day advection times PDFs = probability density functions

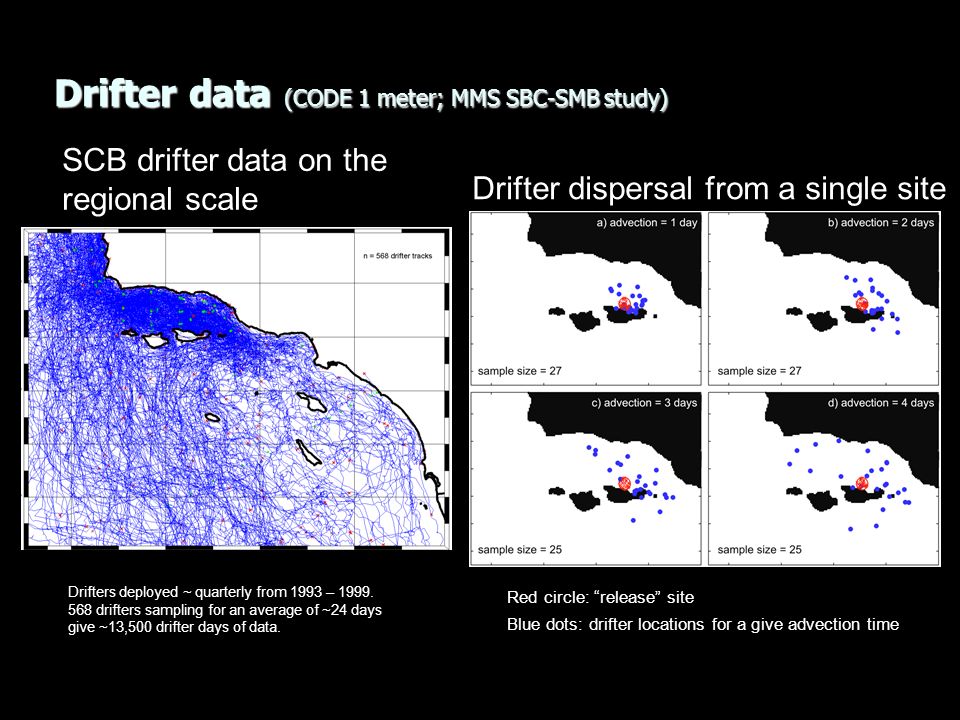

3. Drifter data (CODE 1 meter; MMS SBC-SMB study) SCB drifter data on the regional scale Drifters deployed ~ quarterly from 1993 – 1999. 568 drifters sampling for an average of ~24 days give ~13,500 drifter days of data. Drifter dispersal from a single site Red circle: “release” site Blue dots: drifter locations for a give advection time

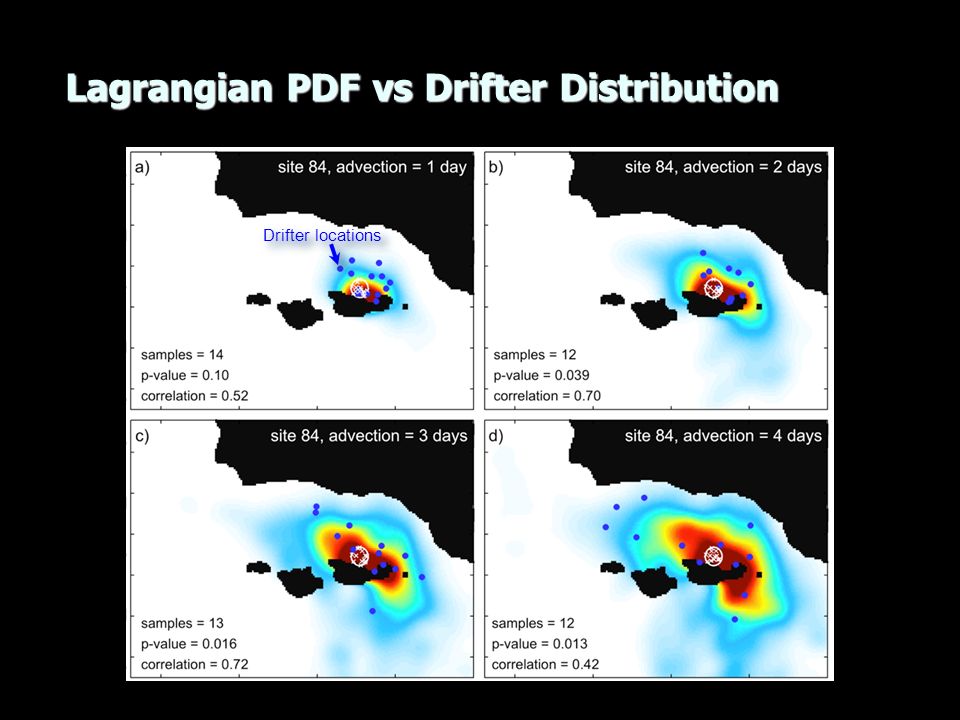

4. Lagrangian PDF vs Drifter Distribution Drifter locations

5. Project Goal: Provide improved real-time ocean current and wind forecasts with error estimates for inclusion in USGC DSTs. Pathway to Project Goal: Benchmark DSTs (year 1) Develop and evaluate improved data assimilating models (year 2)

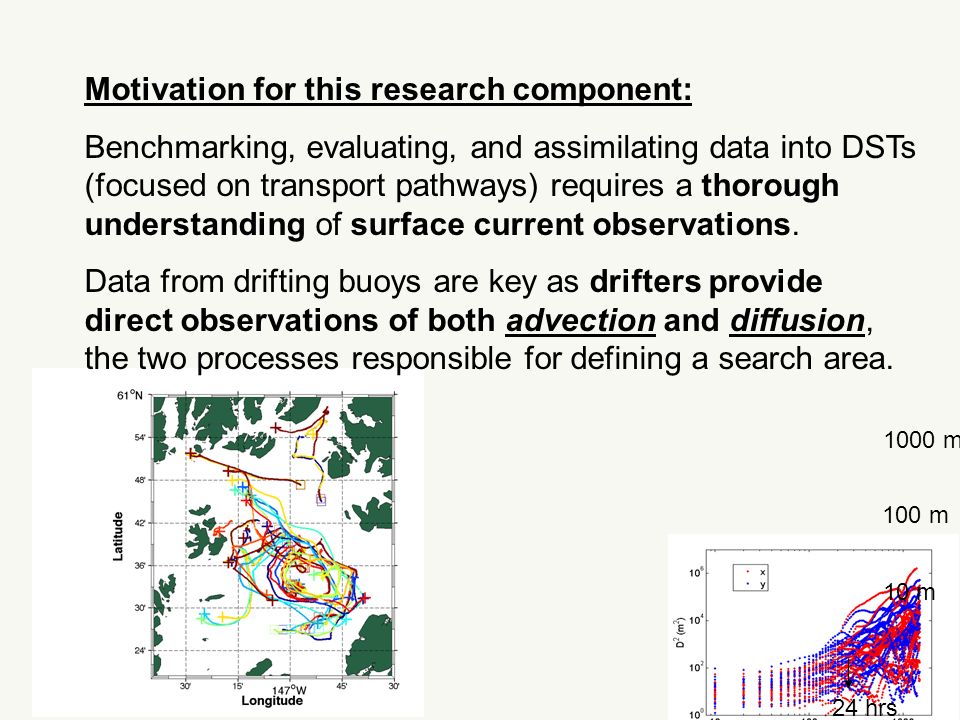

6. 24 hrs 1000 m 100 m 10 m Motivation for this research component: Benchmarking, evaluating, and assimilating data into DSTs (focused on transport pathways) requires a thorough understanding of surface current observations. Data from drifting buoys are key as drifters provide direct observations of both advection and diffusion, the two processes responsible for defining a search area.

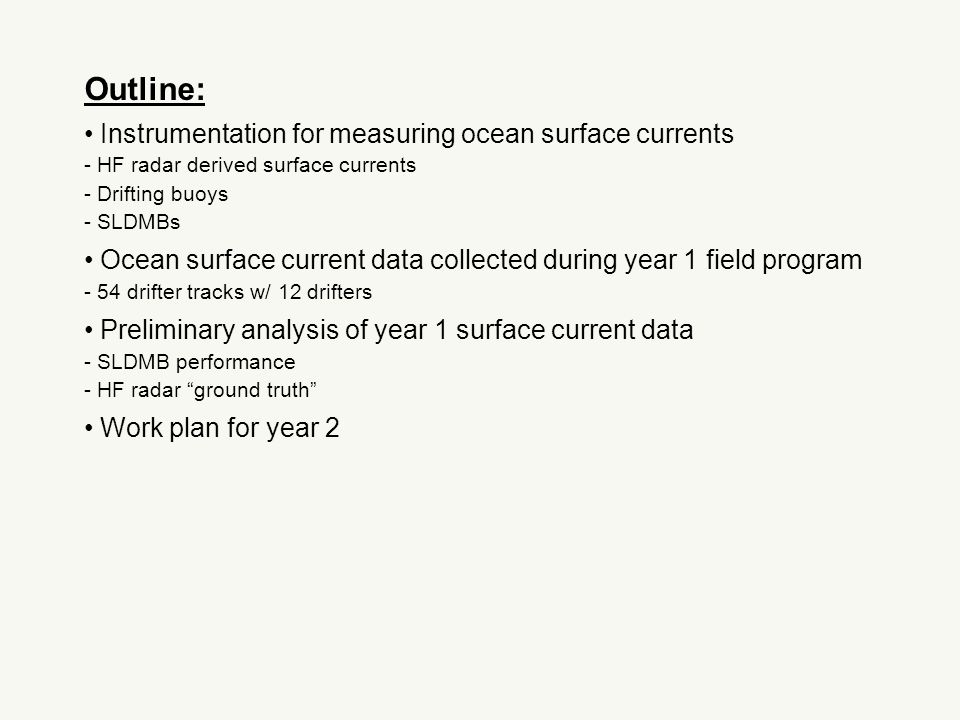

7. Outline: Instrumentation for measuring ocean surface currents - HF radar derived surface currents - Drifting buoys - SLDMBs Ocean surface current data collected during year 1 field program - 54 drifter tracks w/ 12 drifters Preliminary analysis of year 1 surface current data - SLDMB performance - HF radar “ground truth” Work plan for year 2

8. Microstar Drifters: tri-star drogue centered at 1 m depth 10 minute position sampling w/ GPS data transmission through Iridium 1 cm/s slip in 10 m/s wind 7 day life expectancy real time data on web recoverable Ohlmann et al. 2005, and Ohlmann et al. 2007 www.drifterdata.com

9. Microstar drifter data during PWS FE: 12 drifters used; 12 drifters worked; 1 drifter lost 54 drifter trajectories sampled mostly ~2 days in length positions every 10 minutes

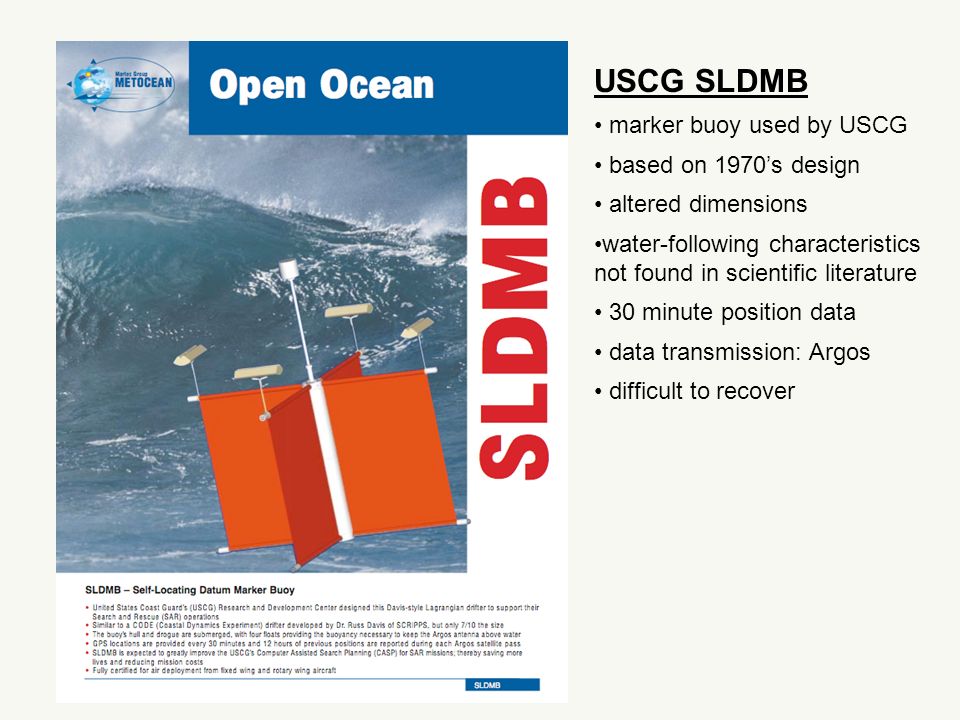

10. USCG SLDMB marker buoy used by USCG based on 1970’s design altered dimensions water-following characteristics not found in scientific literature 30 minute position data data transmission: Argos difficult to recover

11. USCG SLDMB data during PWS FE: 9 drifters used; 8 drifters worked; 9 drifters lost 8 drifter trajectories sampled mostly numerous days in length positions every 30 minutes

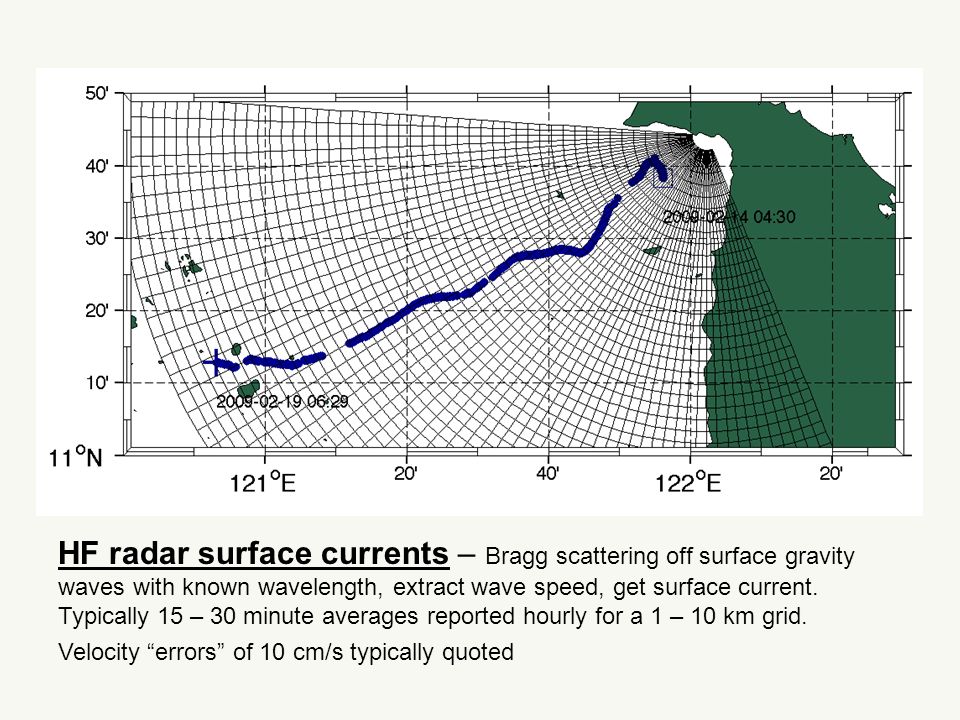

12. HF radar surface currents – Bragg scattering off surface gravity waves with known wavelength, extract wave speed, get surface current. Typically 15 – 30 minute averages reported hourly for a 1 – 10 km grid. Velocity “errors” of 10 cm/s typically quoted

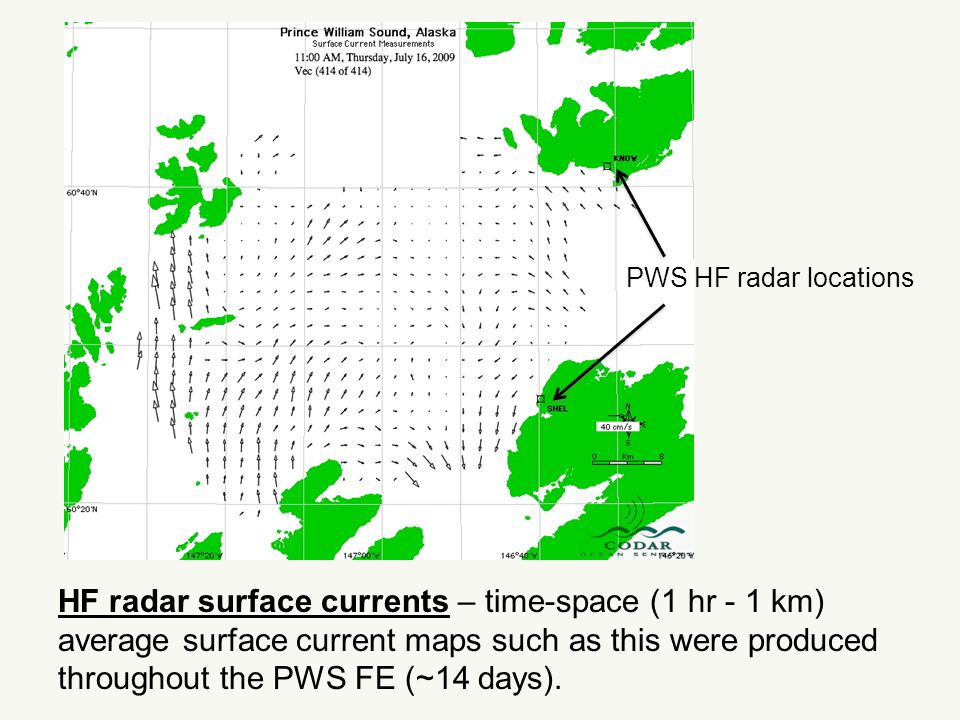

13. HF radar surface currents – time-space (1 hr - 1 km) average surface current maps such as this were produced throughout the PWS FE (~14 days). PWS HF radar locations

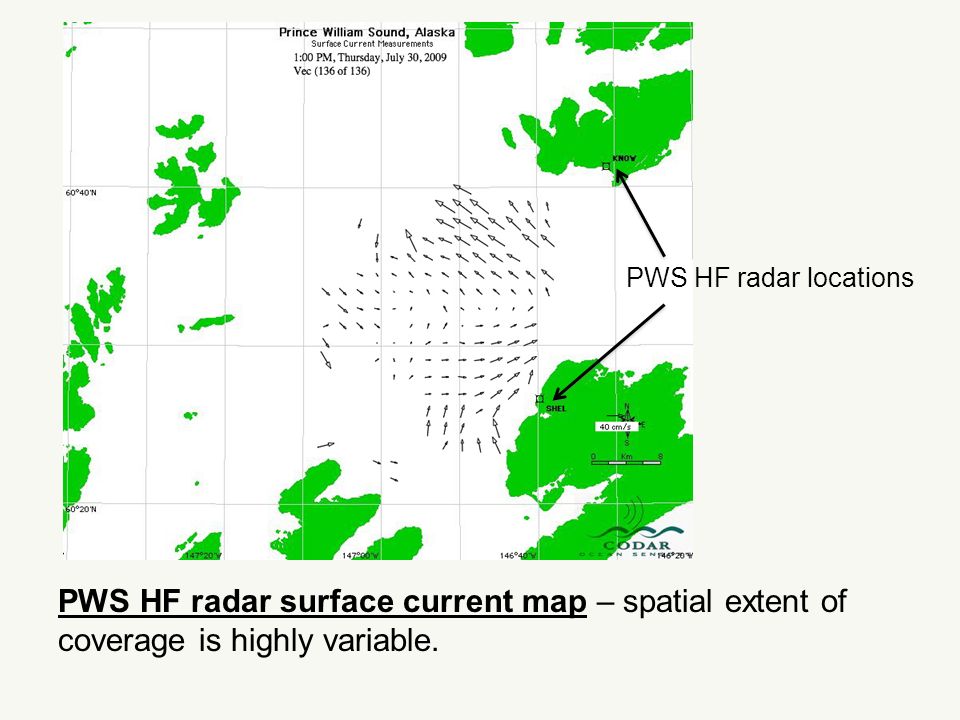

14. PWS HF radar surface current map – spatial extent of coverage is highly variable. PWS HF radar locations

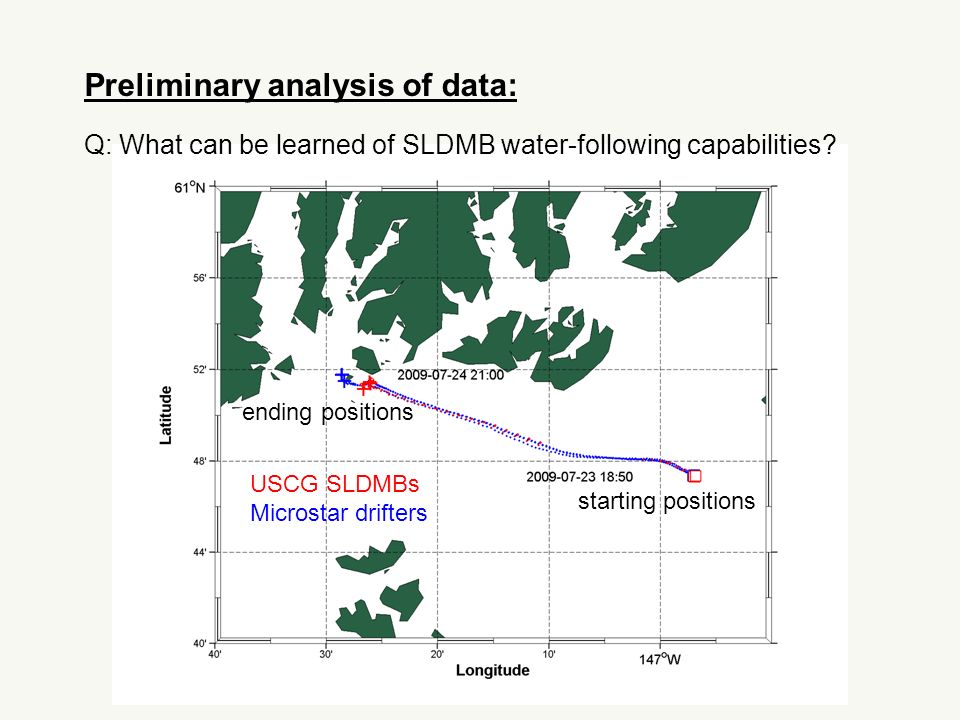

15. starting positions ending positions USCG SLDMBs Microstar drifters Preliminary analysis of data: Q: What can be learned of SLDMB water-following capabilities?

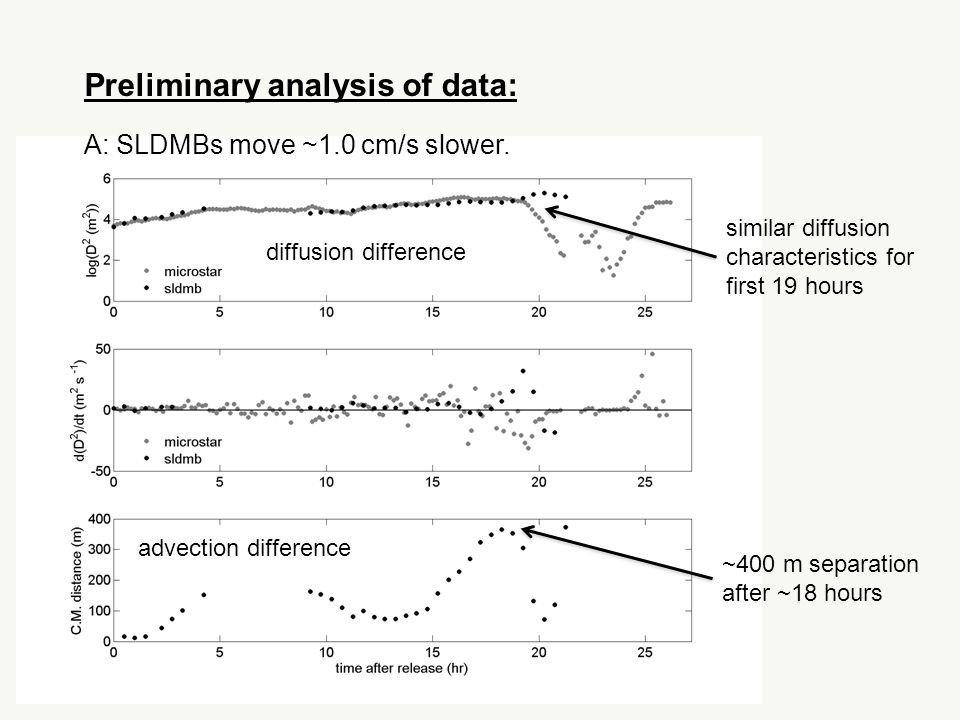

16. Preliminary analysis of data: A: SLDMBs move ~1.0 cm/s slower. ~400 m separation after ~18 hours advection difference diffusion difference similar diffusion characteristics for first 19 hours

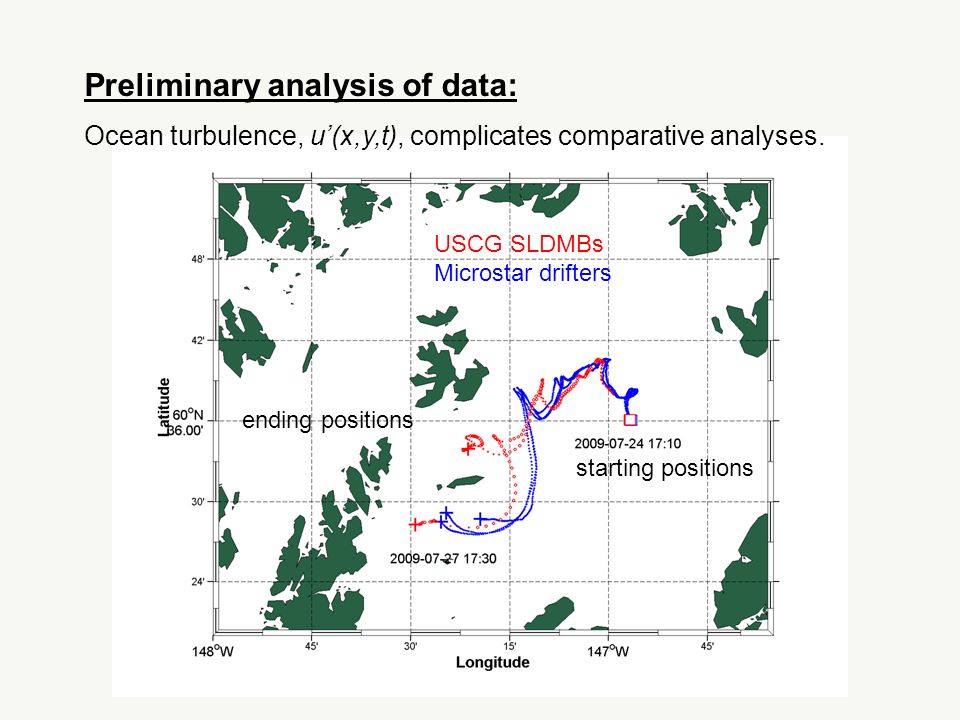

17. Preliminary analysis of data: Ocean turbulence, u’(x,y,t), complicates comparative analyses. starting positions ending positions USCG SLDMBs Microstar drifters

18. Preliminary analysis of data: A: SLDMBs move ~3 – 4 cm/s “differently”. Need to understand why? ~8000 m separation after ~55 hours advection difference diffusion difference similar diffusion characteristics

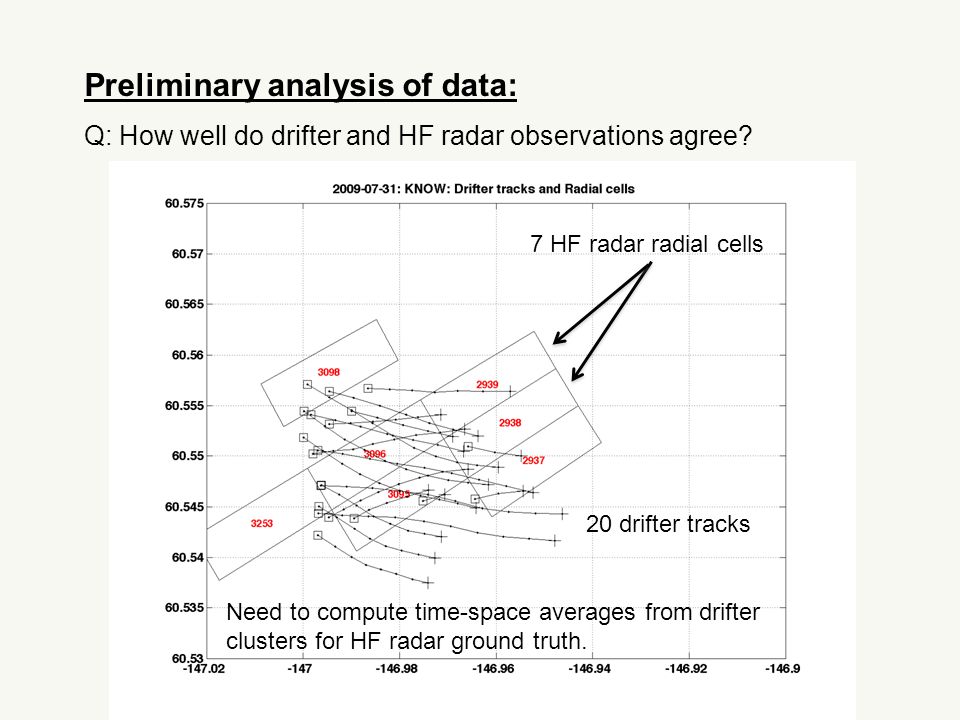

19. Preliminary analysis of data: Q: How well do drifter and HF radar observations agree? 7 HF radar radial cells 20 drifter tracks Need to compute time-space averages from drifter clusters for HF radar ground truth.

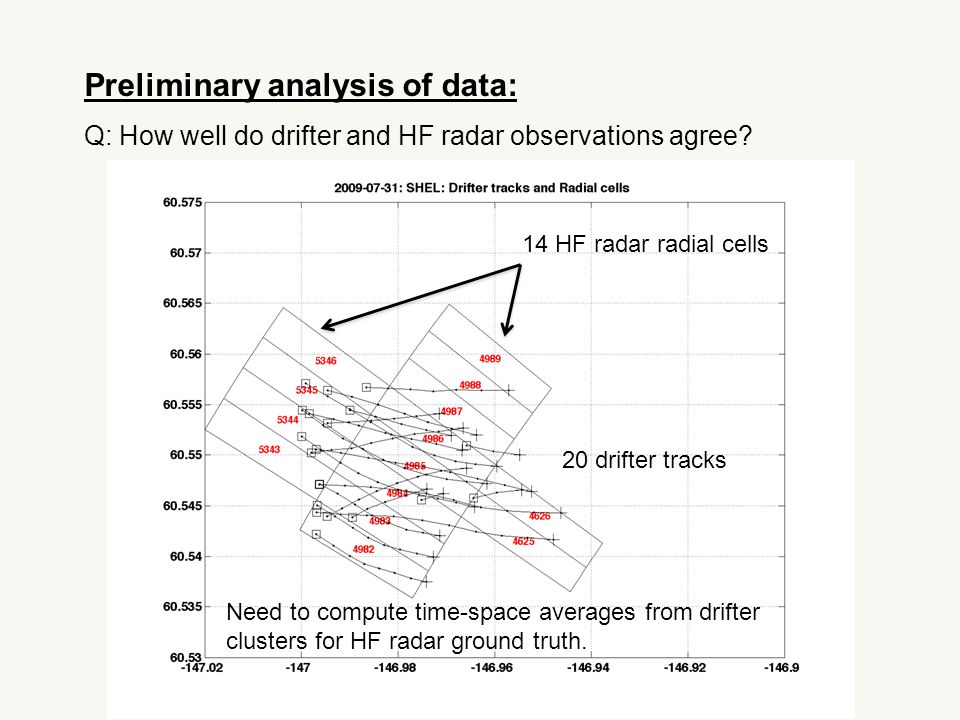

20. Preliminary analysis of data: Q: How well do drifter and HF radar observations agree? 14 HF radar radial cells 20 drifter tracks Need to compute time-space averages from drifter clusters for HF radar ground truth.

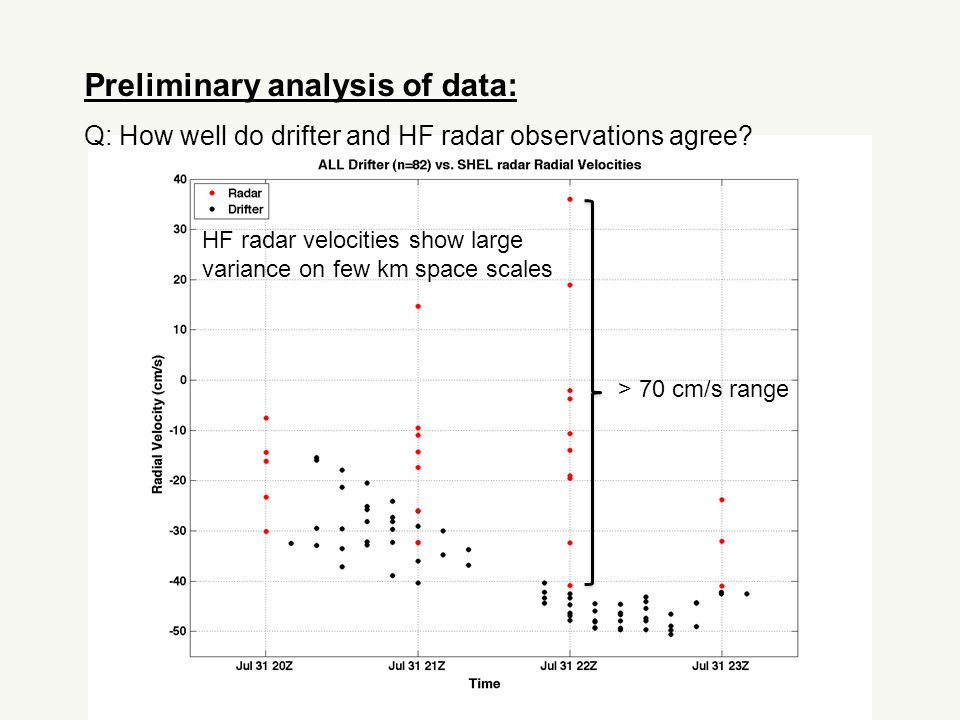

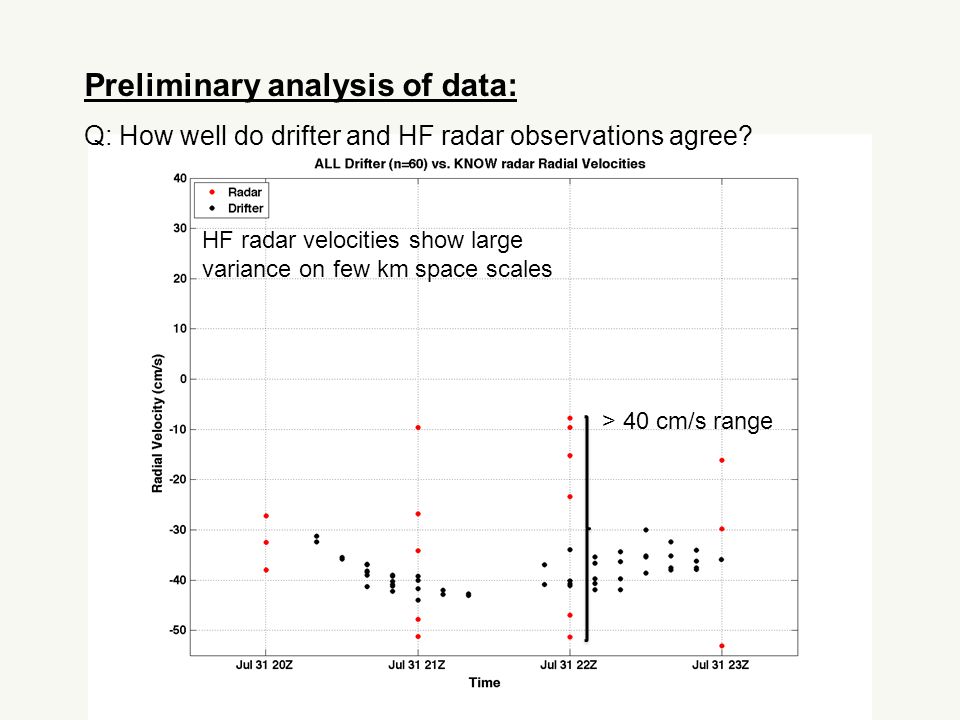

21. Preliminary analysis of data: Q: How well do drifter and HF radar observations agree? HF radar velocities show large variance on few km space scales > 70 cm/s range

22. Preliminary analysis of data: Q: How well do drifter and HF radar observations agree? HF radar velocities show large variance on few km space scales > 40 cm/s range

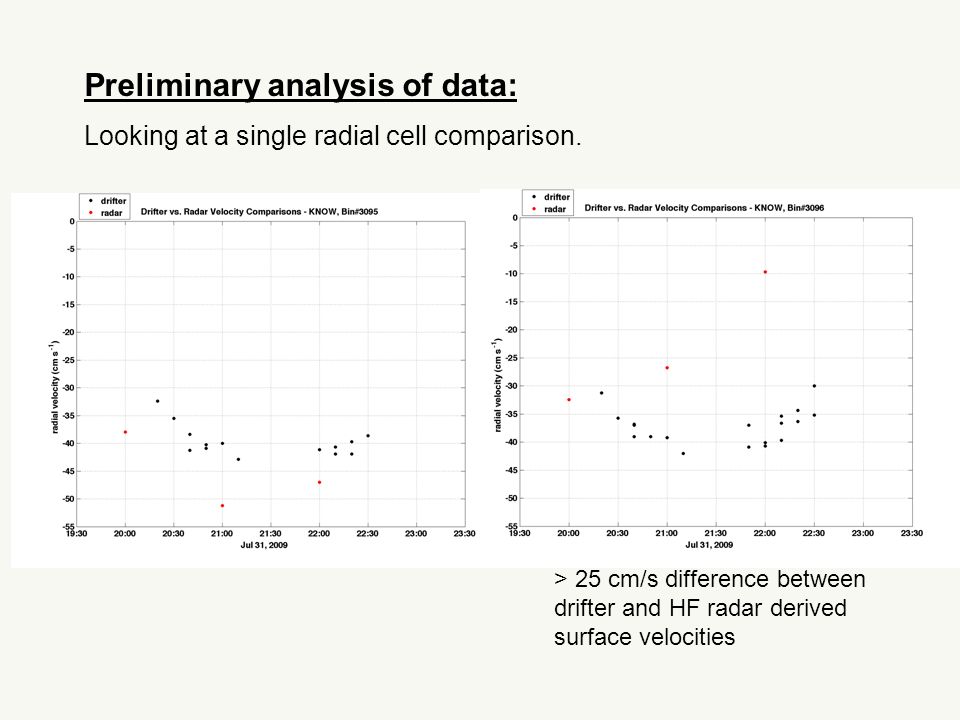

23. Preliminary analysis of data: Looking at a single radial cell comparison. > 25 cm/s difference between drifter and HF radar derived surface velocities

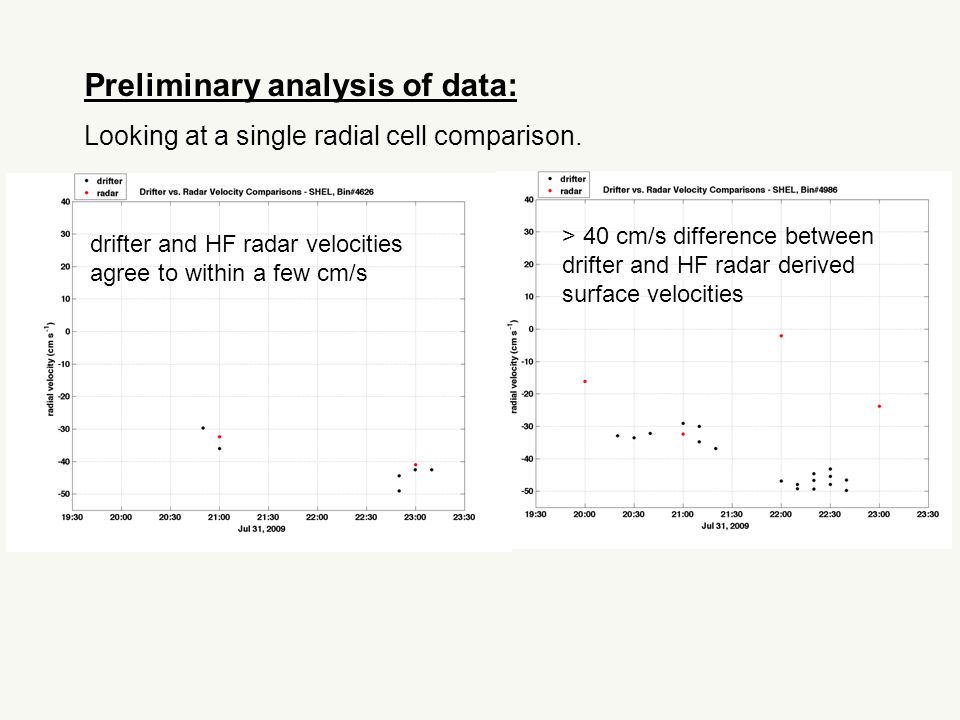

24. Preliminary analysis of data: Looking at a single radial cell comparison. drifter and HF radar velocities agree to within a few cm/s > 40 cm/s difference between drifter and HF radar derived surface velocities

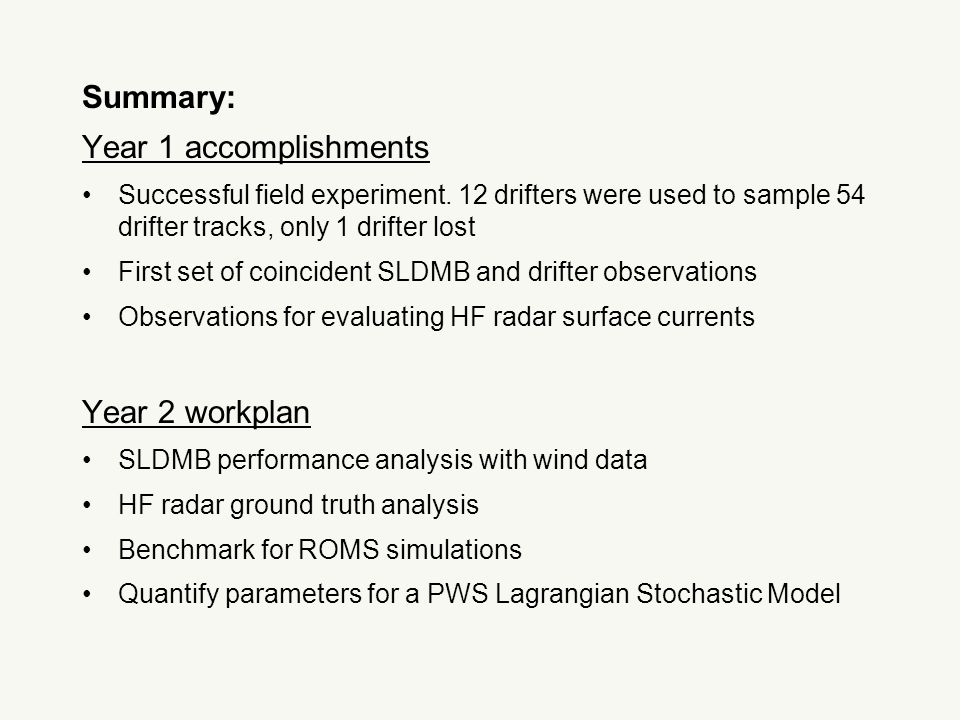

25. Summary: Year 1 accomplishments Successful field experiment. 12 drifters were used to sample 54 drifter tracks, only 1 drifter lost First set of coincident SLDMB and drifter observations Observations for evaluating HF radar surface currents Year 2 workplan SLDMB performance analysis with wind data HF radar ground truth analysis Benchmark for ROMS simulations Quantify parameters for a PWS Lagrangian Stochastic Model

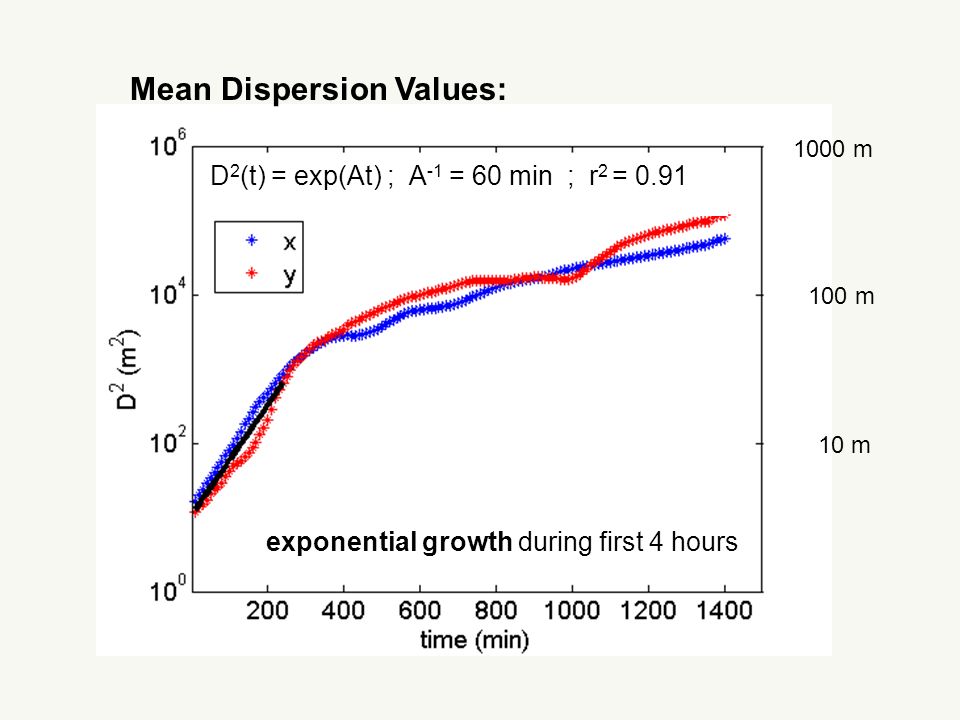

27. exponential growth during first 4 hours Mean Dispersion Values: D 2 (t) = exp(At) ; A -1 = 60 min ; r 2 = 0.91 1000 m 100 m 10 m

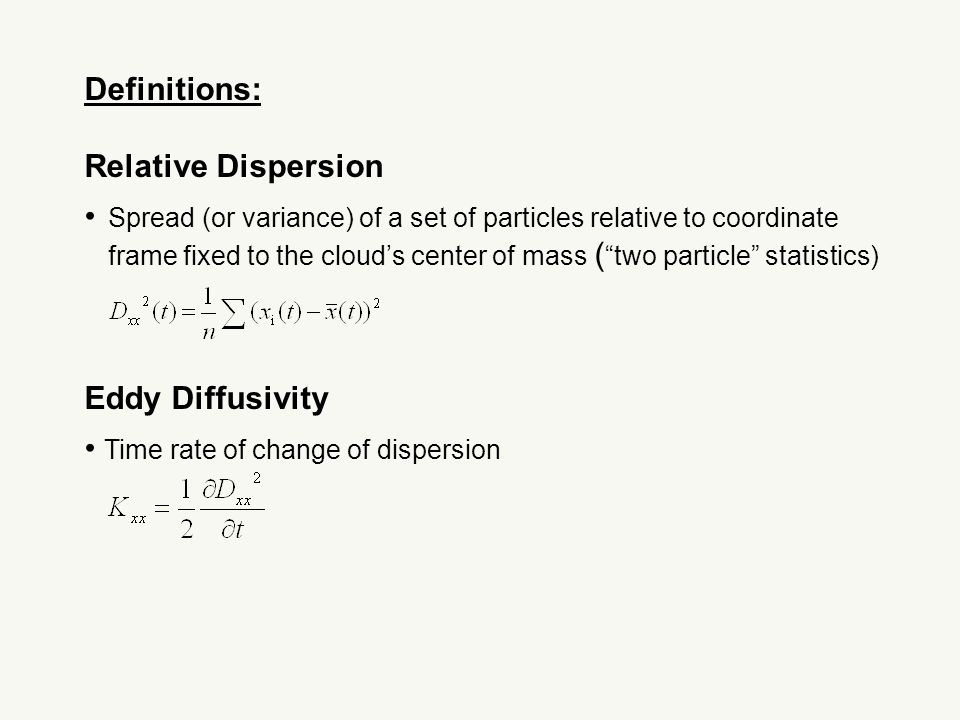

28. Definitions: Relative Dispersion Spread (or variance) of a set of particles relative to coordinate frame fixed to the cloud’s center of mass ( “two particle” statistics) Eddy Diffusivity Time rate of change of dispersion
