Metallic Bonds Metals can only bond to themselves (same element) Don’t transfer or share electrons (need to lose) Do form lattices in solid state 8-12.

Similar presentations


Presentation on theme: "Metallic Bonds Metals can only bond to themselves (same element) Don’t transfer or share electrons (need to lose) Do form lattices in solid state 8-12."— Presentation transcript:

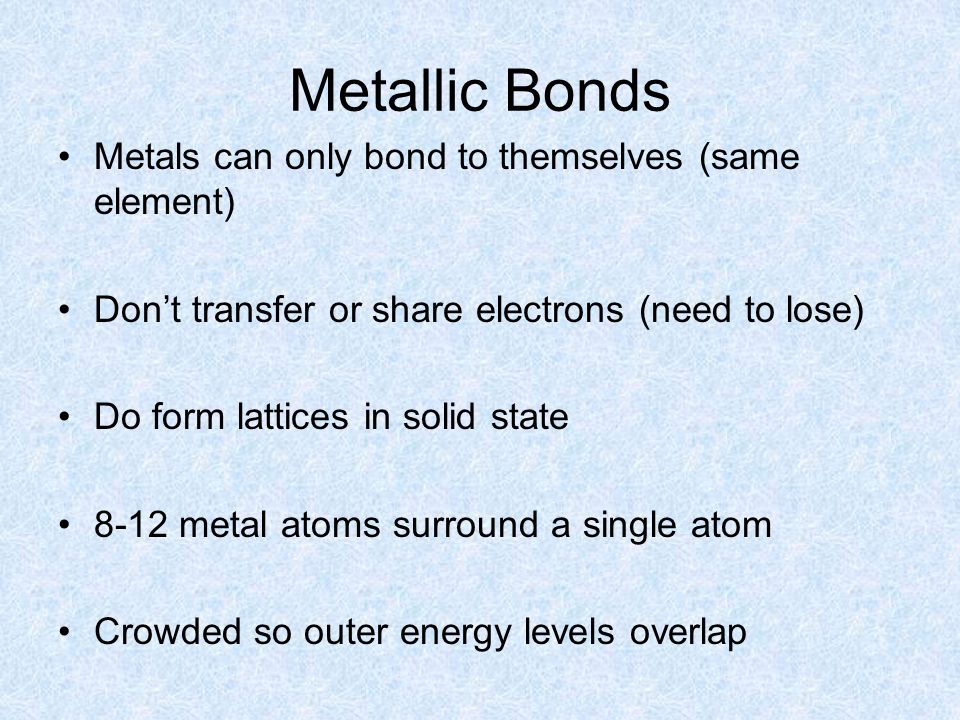

1 Metallic Bonds Metals can only bond to themselves (same element) Don’t transfer or share electrons (need to lose) Do form lattices in solid state 8-12 metal atoms surround a single atom Crowded so outer energy levels overlap

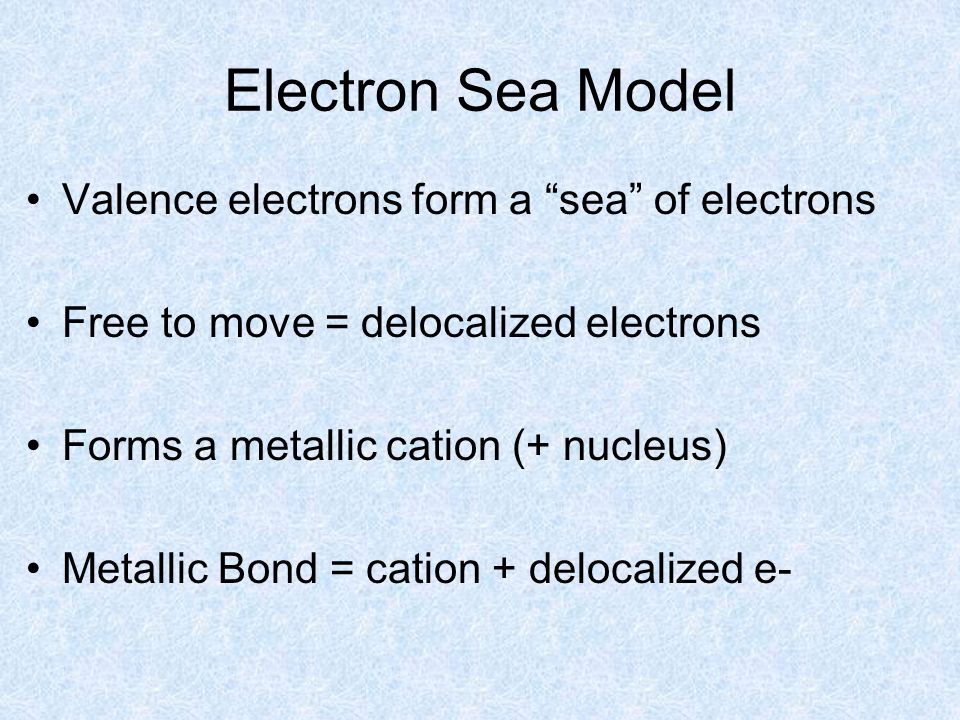

2 Electron Sea Model Valence electrons form a “sea” of electrons Free to move = delocalized electrons Forms a metallic cation (+ nucleus) Metallic Bond = cation + delocalized e-

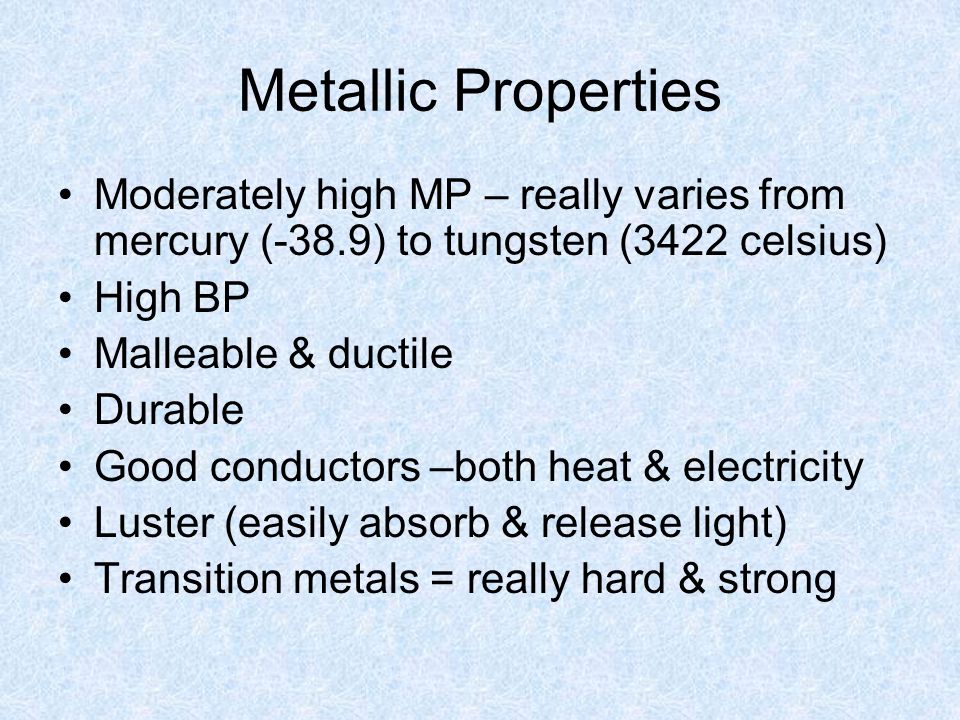

3 Metallic Properties Moderately high MP – really varies from mercury (-38.9) to tungsten (3422 celsius) High BP Malleable & ductile Durable Good conductors –both heat & electricity Luster (easily absorb & release light) Transition metals = really hard & strong

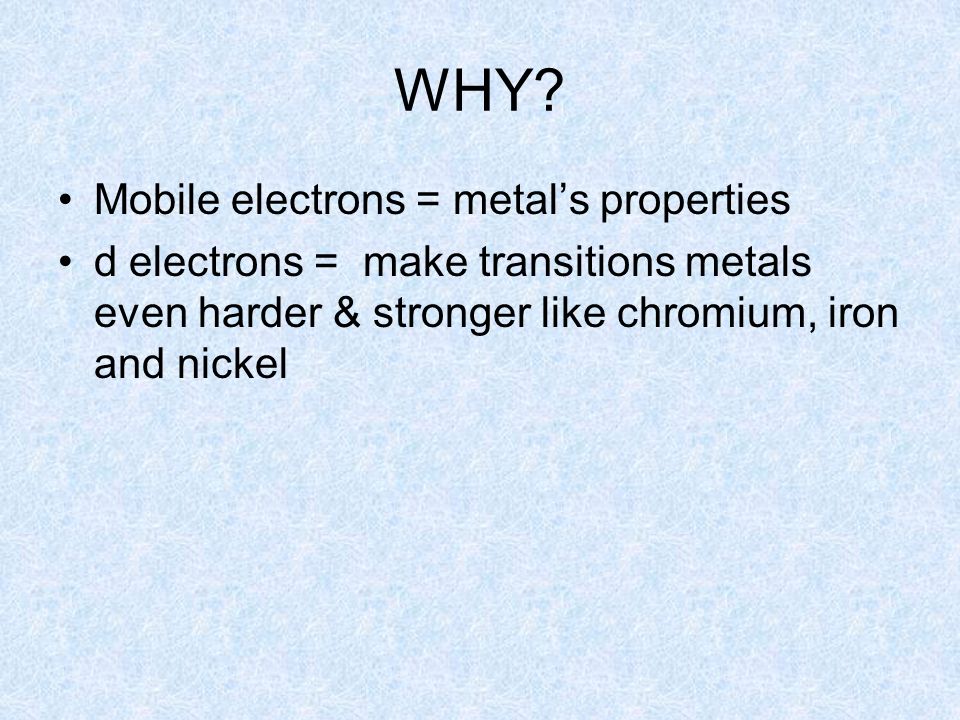

4 WHY? Mobile electrons = metal’s properties d electrons = make transitions metals even harder & stronger like chromium, iron and nickel

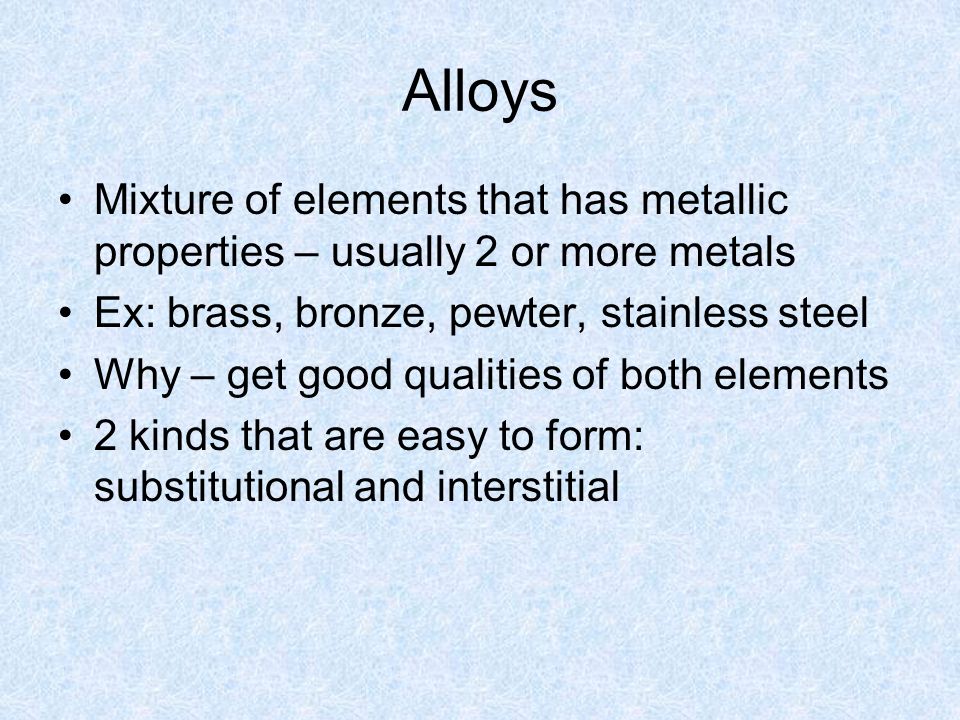

5 Alloys Mixture of elements that has metallic properties – usually 2 or more metals Ex: brass, bronze, pewter, stainless steel Why – get good qualities of both elements 2 kinds that are easy to form: substitutional and interstitial

6 Substitutional Alloys Occur when atoms of different elements are similar in size Atoms of one element are substituted for atoms of another element Ex: copper atoms replace silver atoms to form sterling silver Brass, pewter and 10 carat gold are other examples

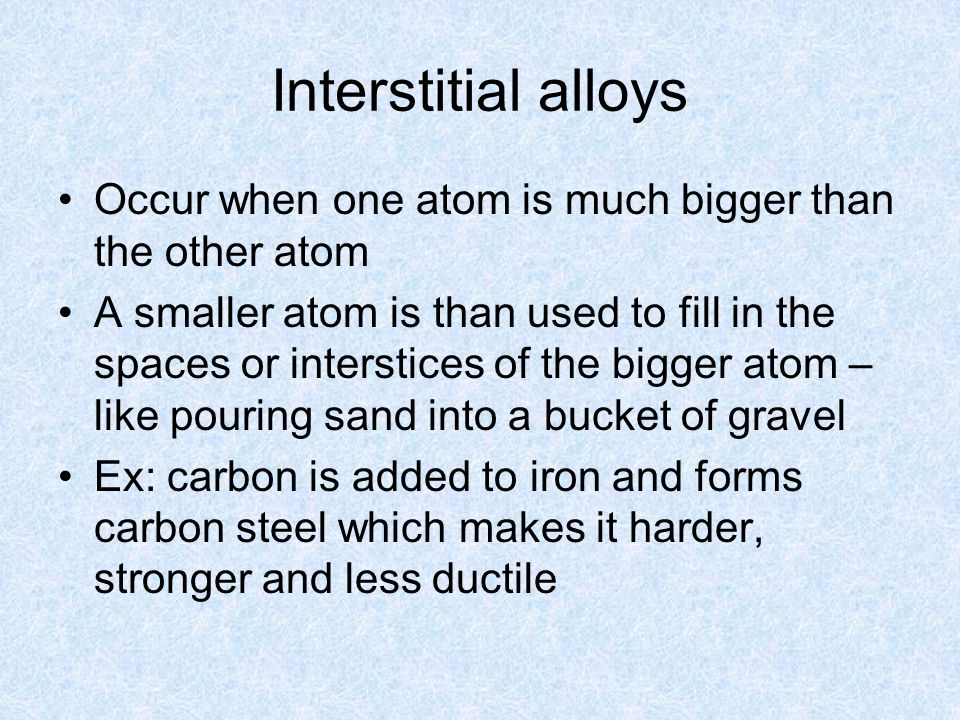

7 Interstitial alloys Occur when one atom is much bigger than the other atom A smaller atom is than used to fill in the spaces or interstices of the bigger atom – like pouring sand into a bucket of gravel Ex: carbon is added to iron and forms carbon steel which makes it harder, stronger and less ductile
