1. Sedimentary Geology Geos 240 – Chapter 6 Facies Analysis Dr. Tark Hamilton Dr. Tark Hamilton Readings from the Holy Book of Tark: (6:1-26) Readings from the Holy Book of Tark: (6:1-26) Camosun College Camosun College

2. Navajo Sandstone, Jurassic Desert

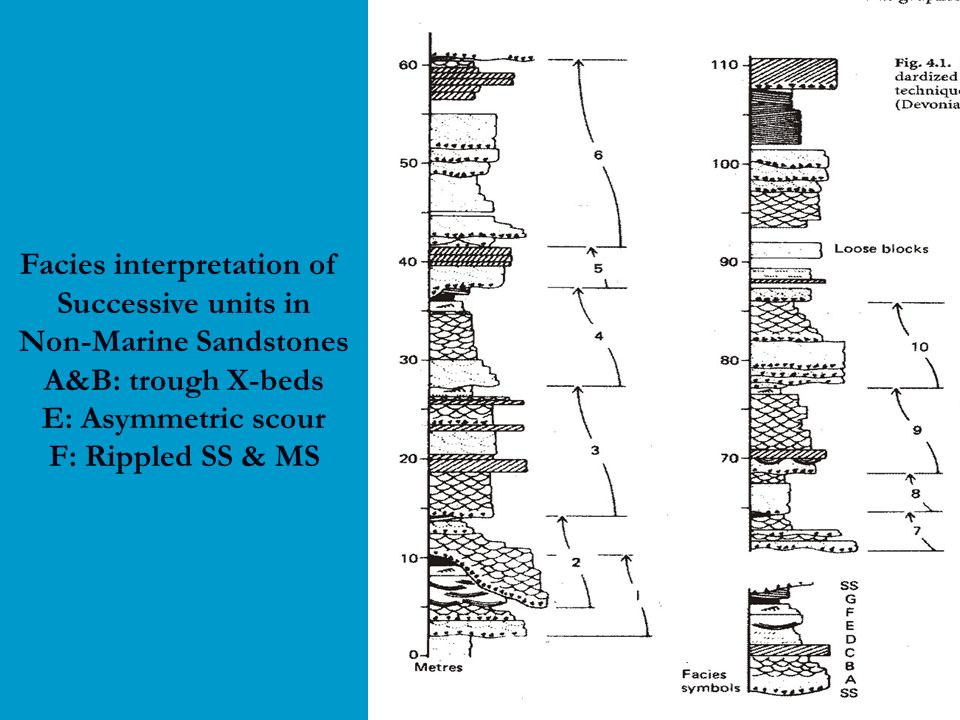

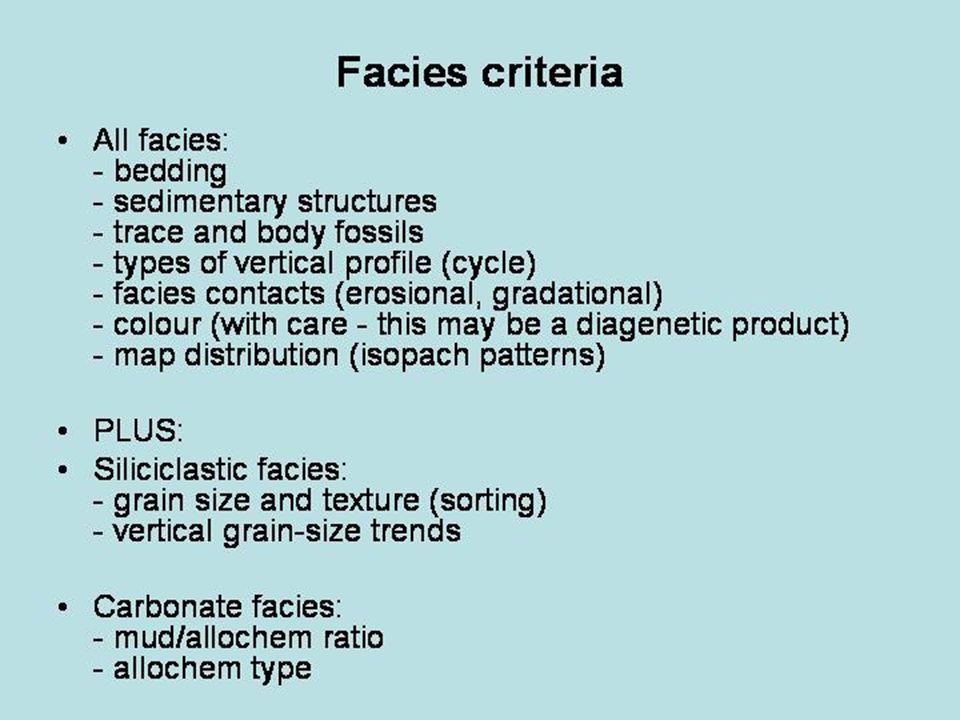

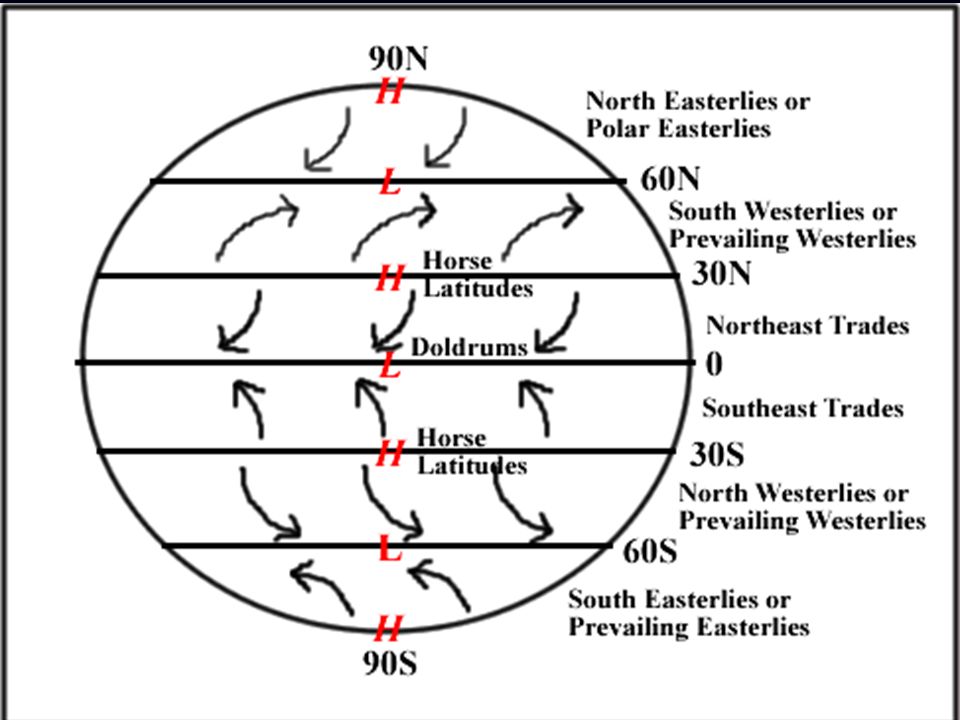

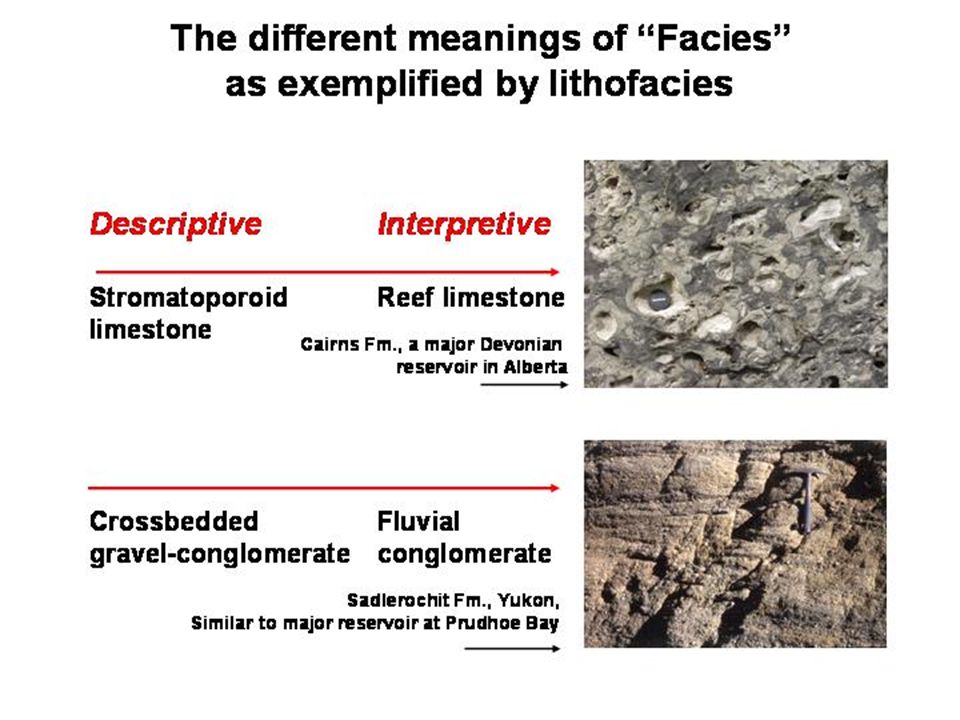

7. Facies interpretation of Successive units in Non-Marine Sandstones A&B: trough X-beds E: Asymmetric scour F: Rippled SS & MS

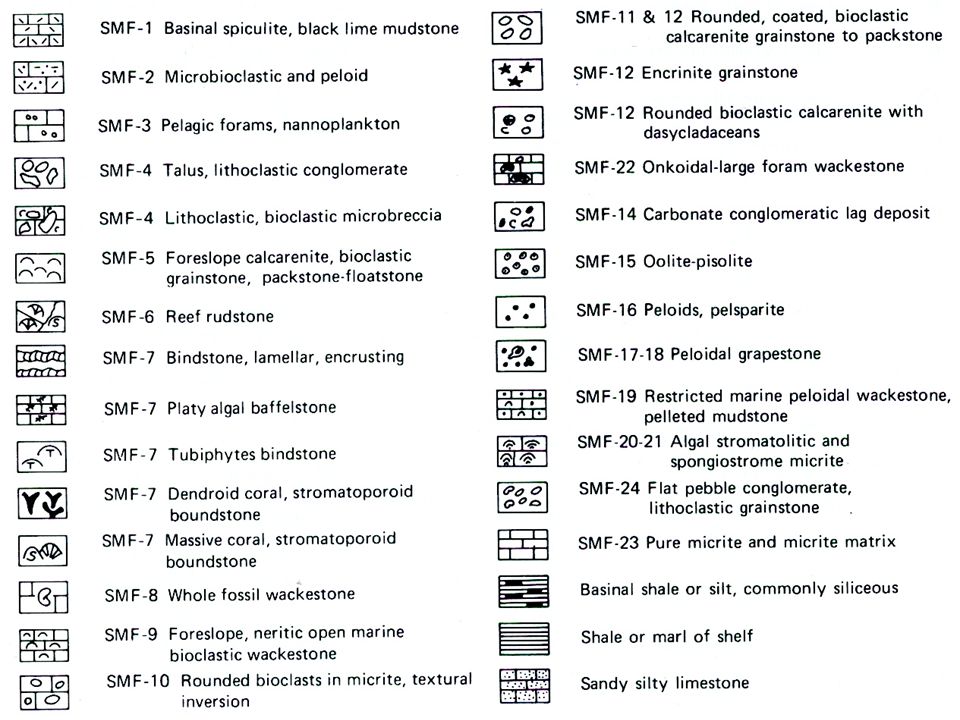

9. Facies interpretation of Successive units in Non-Marine Sandstones (Left) Planar X-beds trough X-beds Asymmetric scour MS Ripple x-stratified & Carbonates (right) Encrinal grainstones Oolite Calcarenites Mudstones

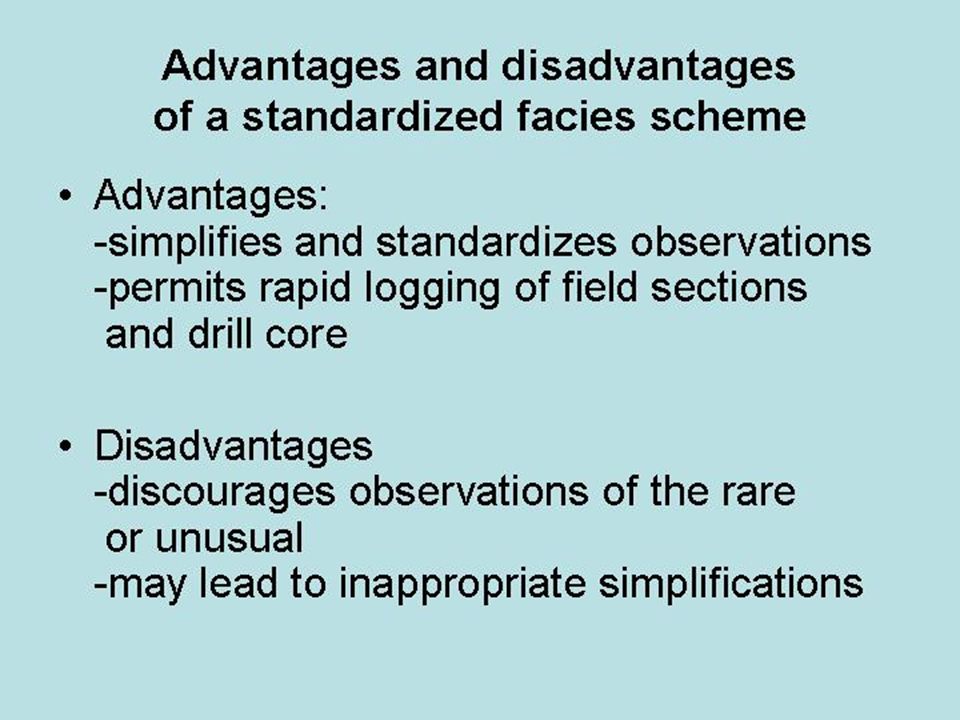

11. Transect: Permian Reef Margin El Capitan, New Mexico Sonnenfeld, 1993, AAPG Memoir 57

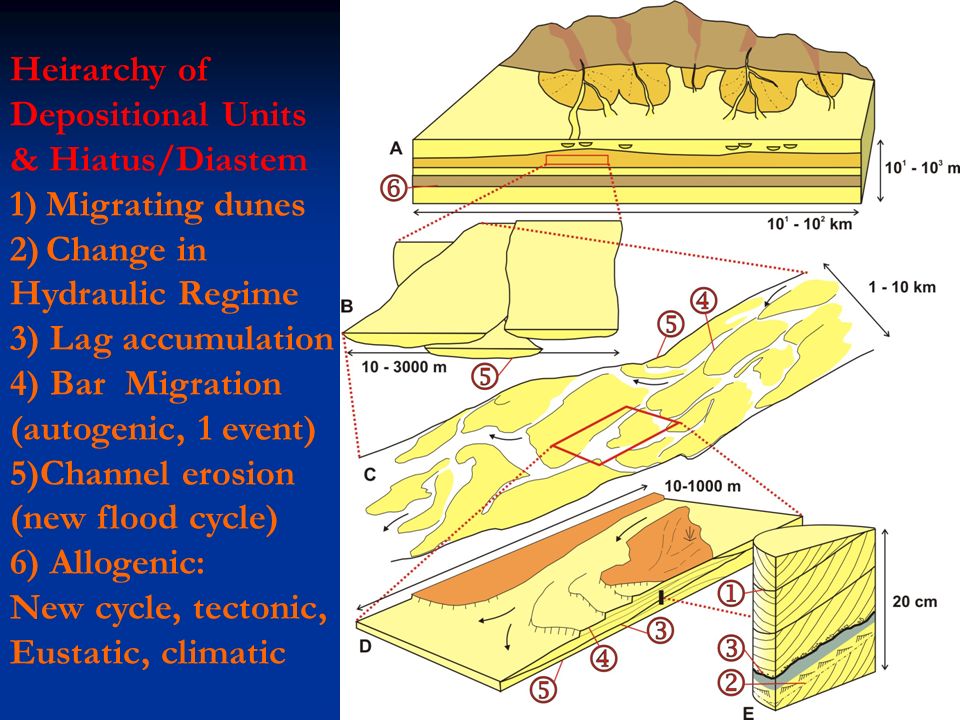

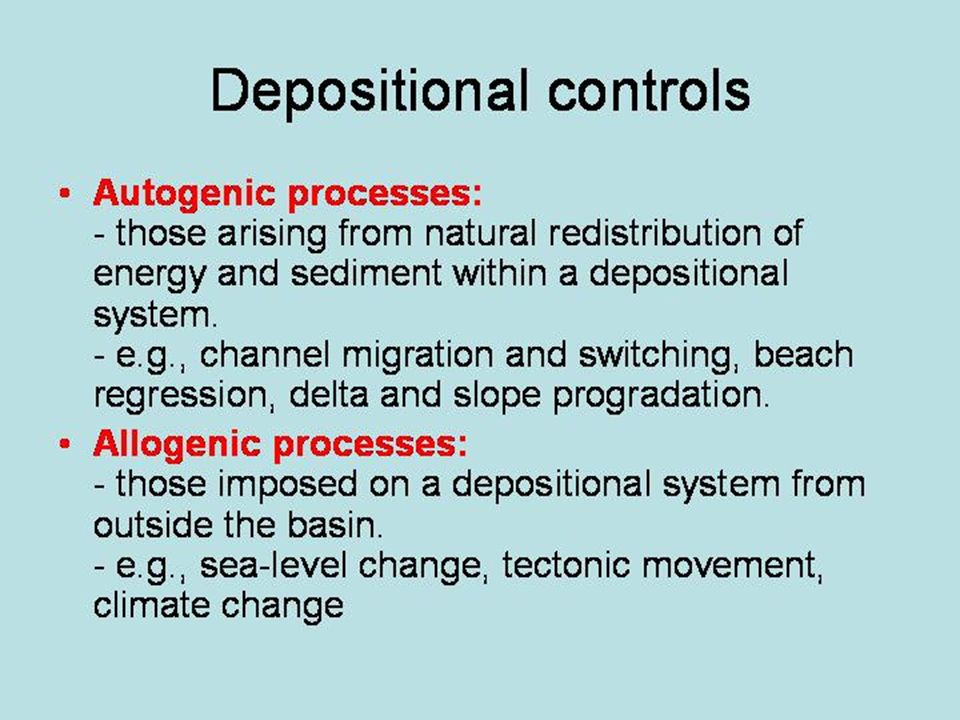

13. Heirarchy of Depositional Units & Hiatus/Diastem 1)Migrating dunes 2)Change in Hydraulic Regime 3) Lag accumulation 4) Bar Migration (autogenic, 1 event) 5)Channel erosion (new flood cycle) 6) Allogenic: New cycle, tectonic, Eustatic, climatic

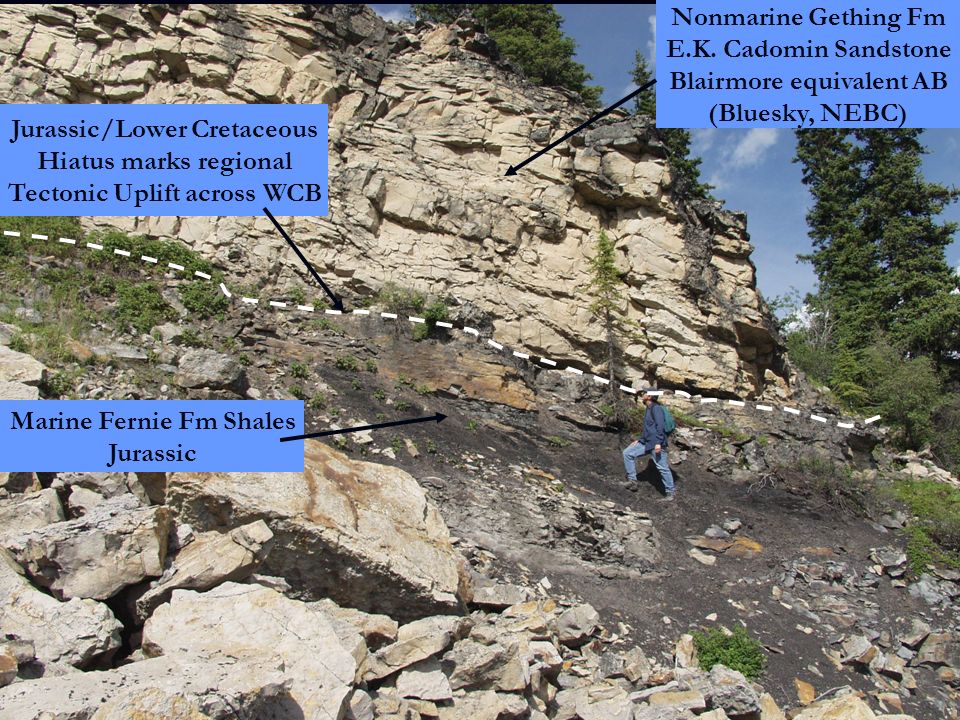

14. Nonmarine Gething Fm E.K. Cadomin Sandstone Blairmore equivalent AB (Bluesky, NEBC) Marine Fernie Fm Shales Jurassic Jurassic/Lower Cretaceous Hiatus marks regional Tectonic Uplift across WCB

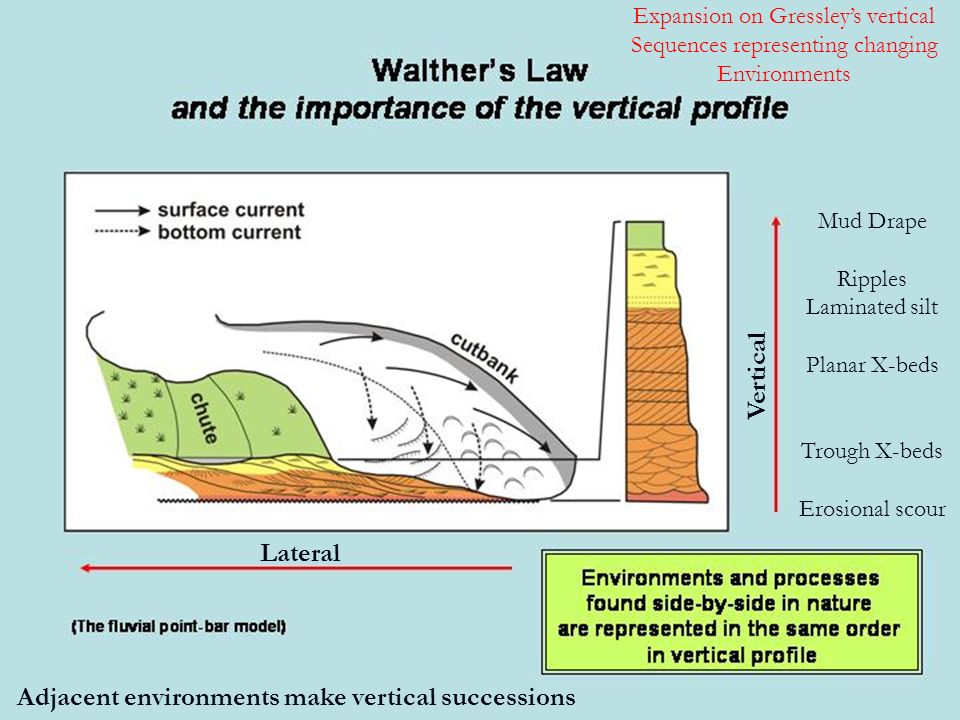

15. Adjacent environments make vertical successions Mud Drape Ripples Laminated silt Planar X-beds Trough X-beds Erosional scour Expansion on Gressley’s vertical Sequences representing changing Environments Vertical Lateral

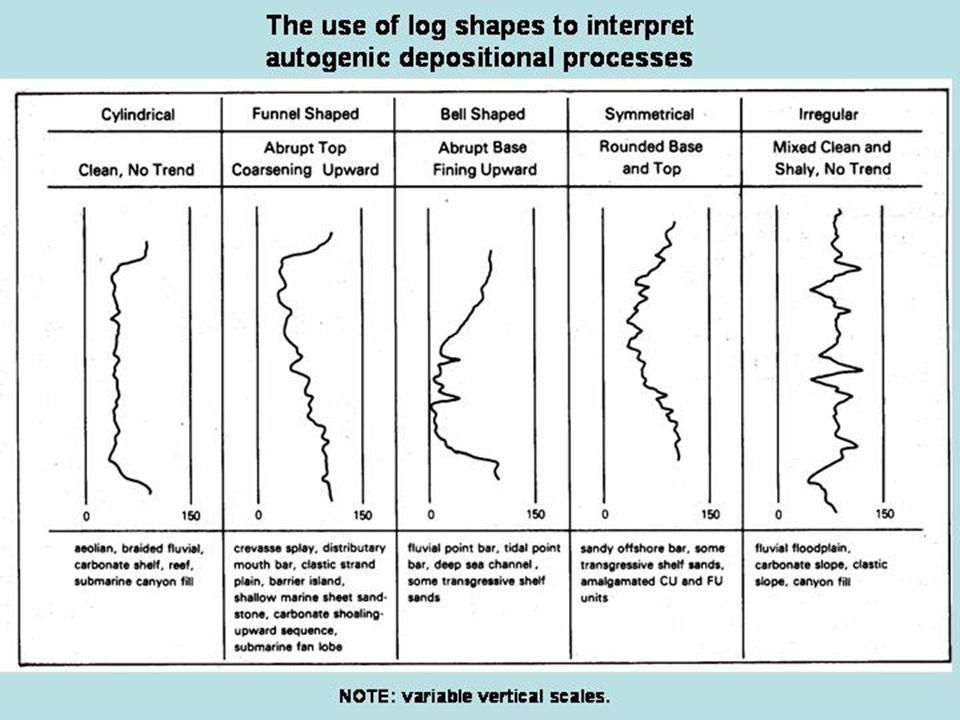

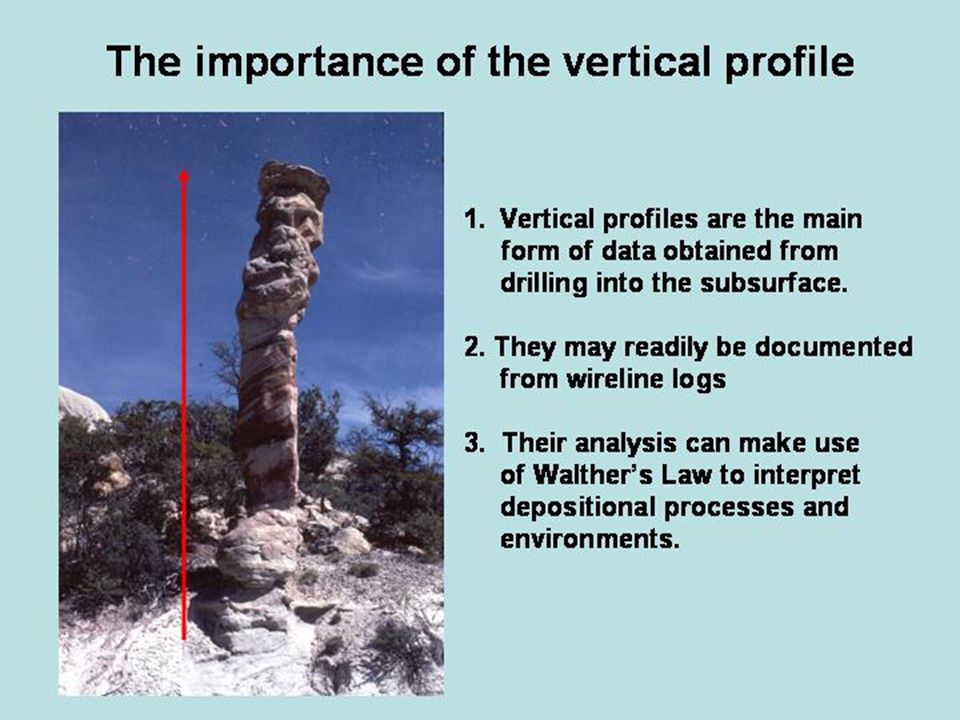

18. Fining upwards Prograding Delta

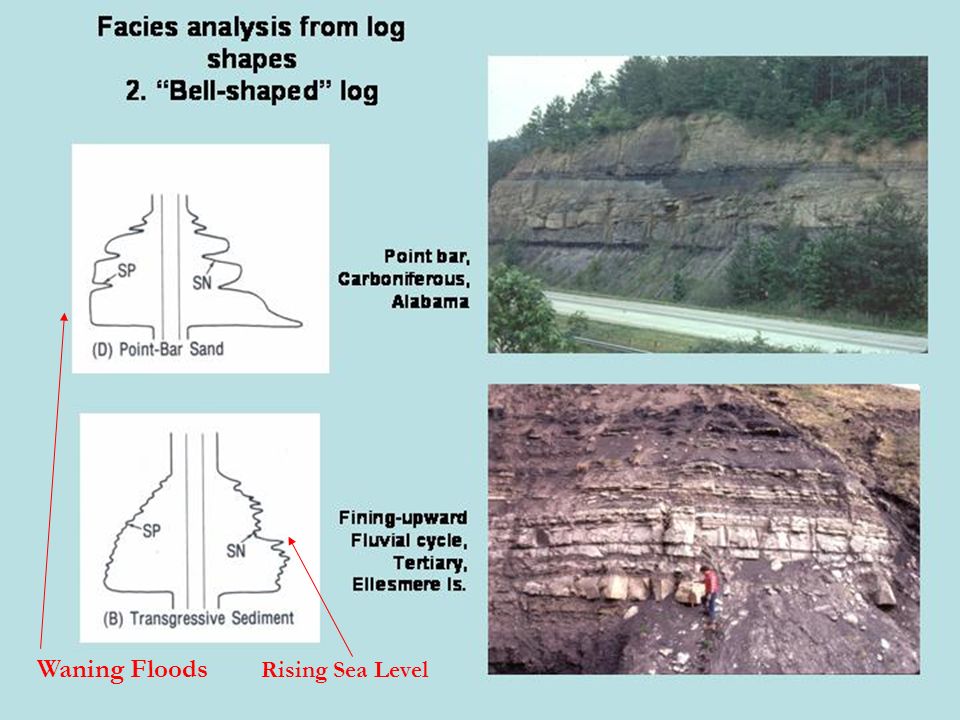

19. Waning Floods Rising Sea Level

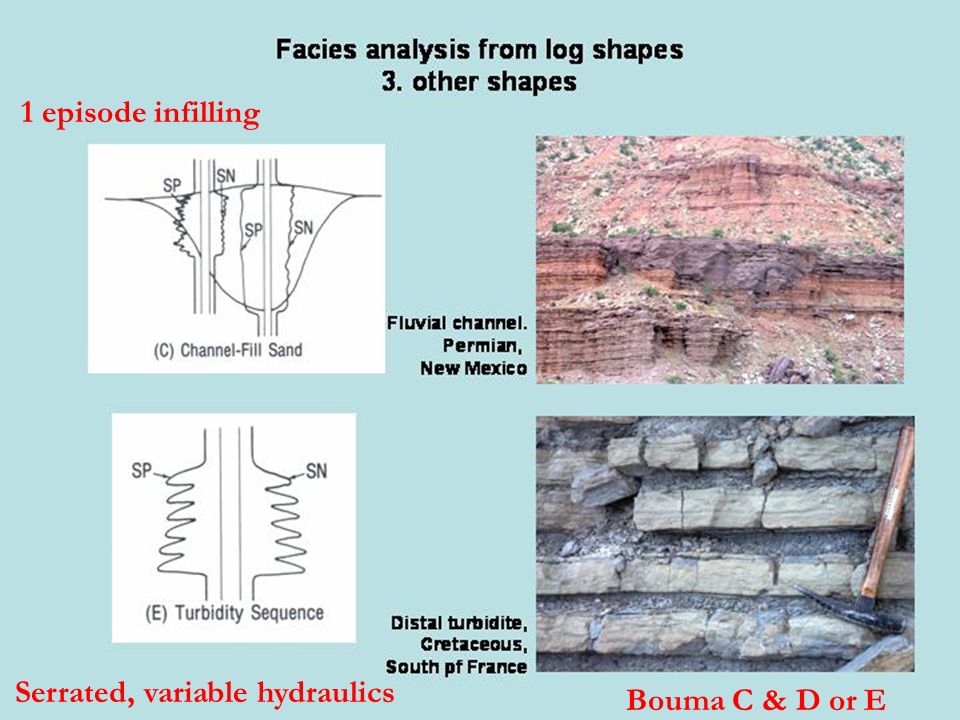

20. 1 episode infilling Serrated, variable hydraulics Bouma C & D or E

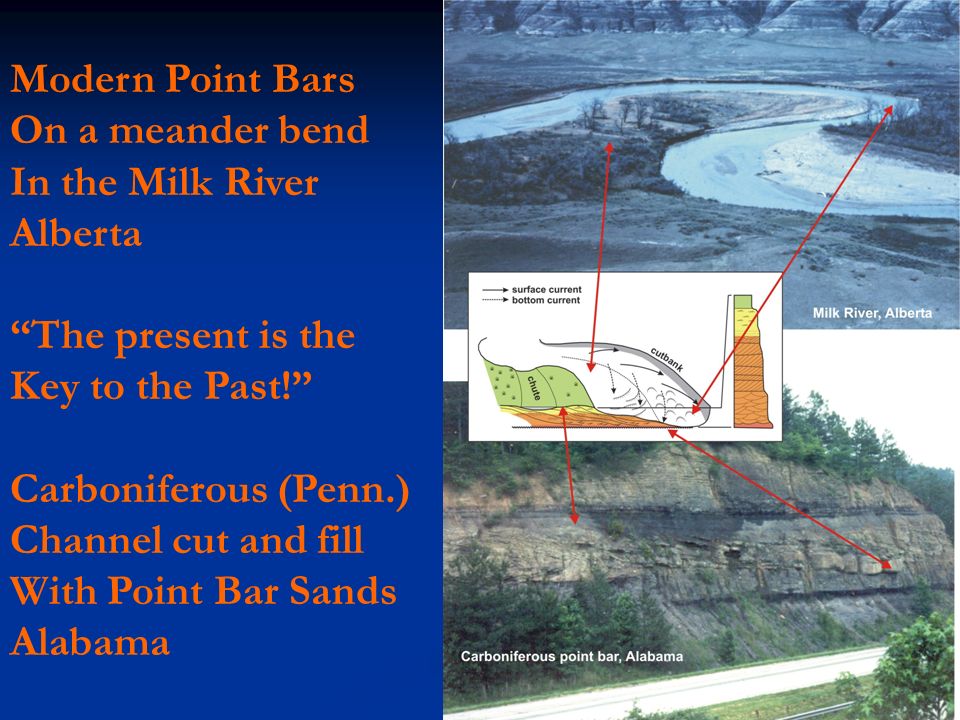

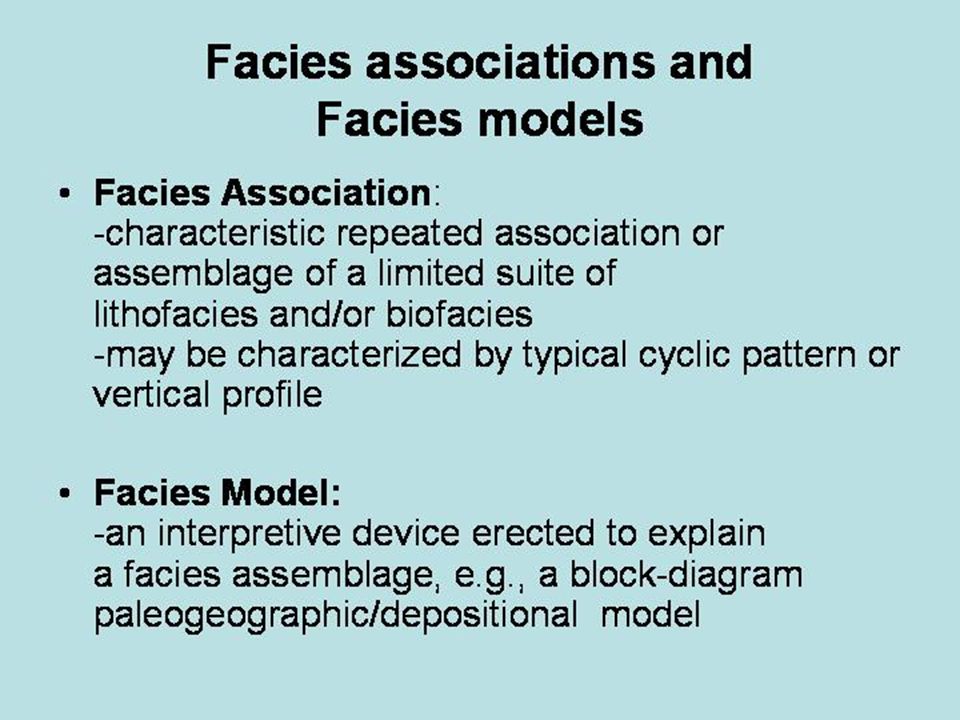

22. Modern Point Bars On a meander bend In the Milk River Alberta “The present is the Key to the Past!” Carboniferous (Penn.) Channel cut and fill With Point Bar Sands Alabama

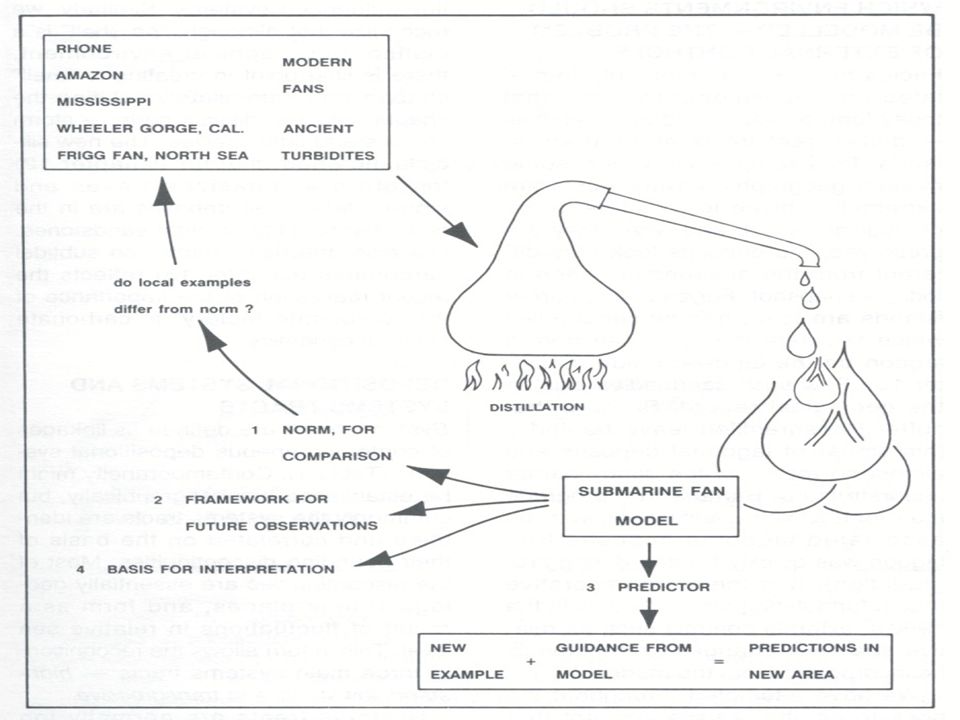

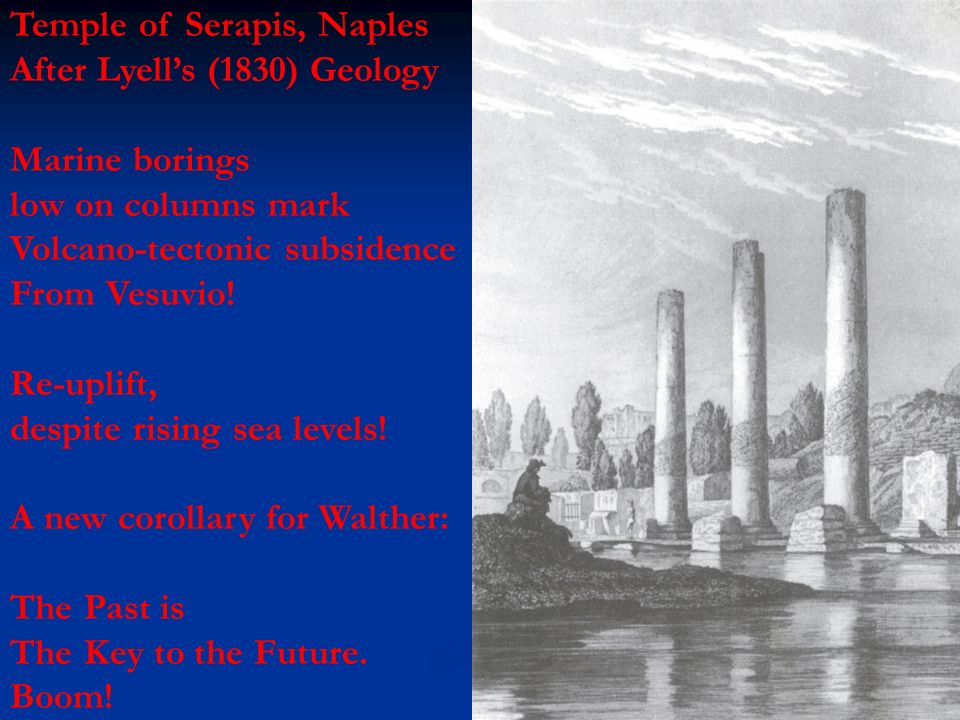

24. Temple of Serapis, Naples After Lyell’s (1830) Geology Marine borings low on columns mark Volcano-tectonic subsidence From Vesuvio! Re-uplift, despite rising sea levels! A new corollary for Walther: The Past is The Key to the Future. Boom!

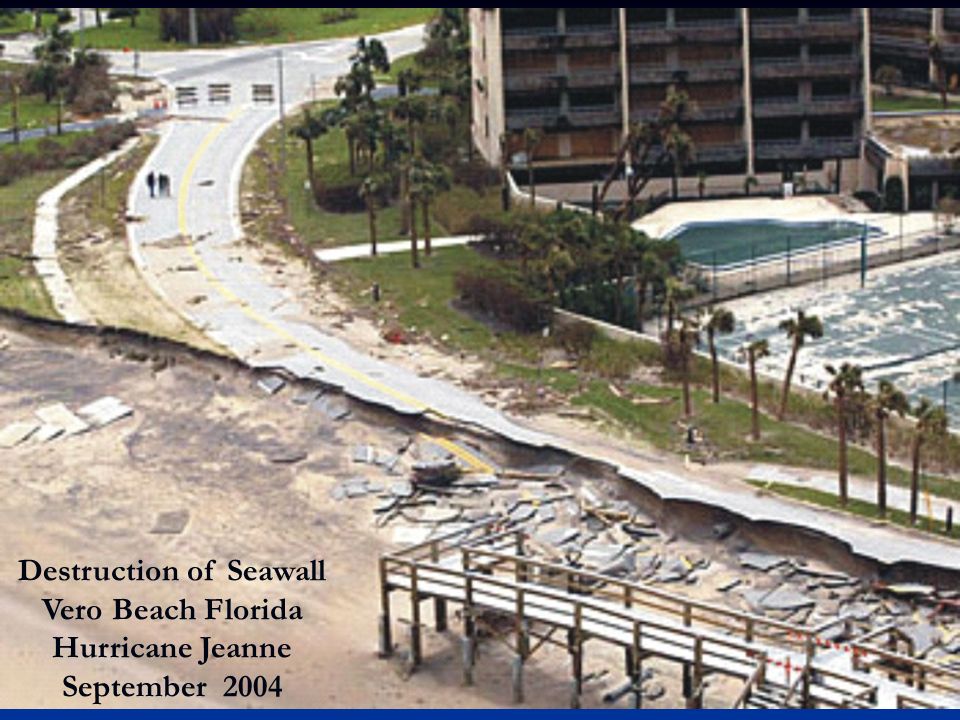

25. Destruction of Seawall Vero Beach Florida Hurricane Jeanne September 2004

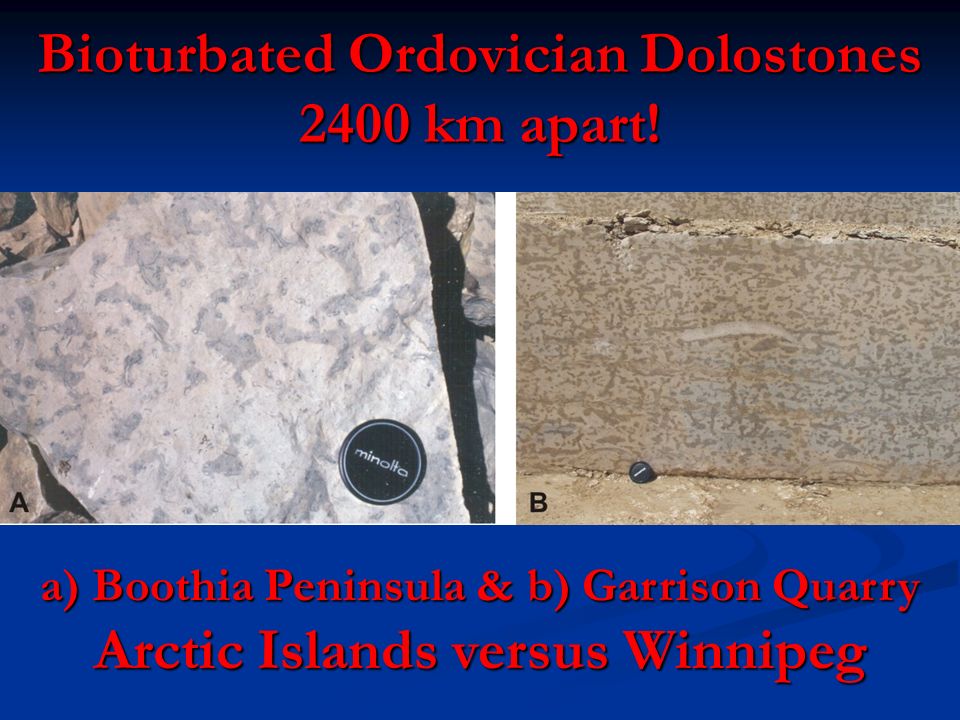

26. Bioturbated Ordovician Dolostones 2400 km apart! a) Boothia Peninsula & b) Garrison Quarry Arctic Islands versus Winnipeg
