1. Isograph Reliability Software HAZOP+ V2.0 What’s New

2. Isograph Reliability Software What’s New in HAZOP V2.0 Improved Interface Hazop+ 2.0 now uses a multiple document interface. The Hazop data is displayed in one window (the Hazop+ window) and reports in one or more report windows. The Hazop+ interface now uses a navigation bar at the left hand side of the Hazop+ window to select the data to be edited. The corresponding input data sheets are displayed at the right hand side of the Hazop+ window. The new interface allows the user to rapidly move from one input data sheet to another. The most common menu options are now replicated on the program toolbar.

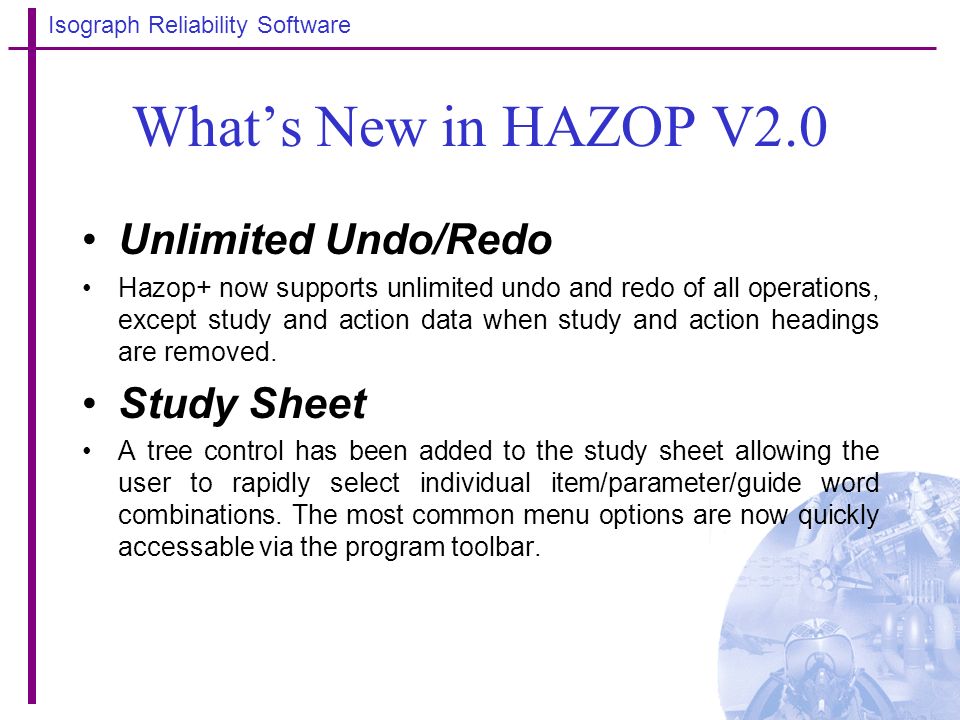

3. Isograph Reliability Software What’s New in HAZOP V2.0 Unlimited Undo/Redo Hazop+ now supports unlimited undo and redo of all operations, except study and action data when study and action headings are removed. Study Sheet A tree control has been added to the study sheet allowing the user to rapidly select individual item/parameter/guide word combinations. The most common menu options are now quickly accessable via the program toolbar.

4. Isograph Reliability Software What’s New in HAZOP V2.0 Library Facility The Hazop+ built-in study headings, action headings, parameters and guide words have been replaced with a library facility. The supplied library contains all the study headings, action headings, parameters and guide words that were previously built-in to the program. These are contained in the ‘Standard’ category. The user may add their own study headings, action headings, parameters and guide words to this category or create their own category and add items to that. In addition to modifying the supplied library the user may create their own libraries. The study headings, action headings, parameters and guide words displayed in the program are dependent on the library and category selected.

5. Isograph Reliability Software What’s New in HAZOP V2.0 Item Parameter Association As well as associating one or more guide words with individual parameters the user may now associate one or more parameters with individual items. New Risk Ranking Features Risk ranking has been enhanced to give the user more feedback about changes to the study sheet when the risk ranking headings and values are modified. Spelling Check A spelling checker may be used to check data in user defined text type fields in the study and action sheets.

6. Isograph Reliability Software What’s New in HAZOP V2.0 Project Wizard The project wizard simplifies the creation of new projects. The wizard allows the user to select study headings, action headings, parameters and guide words from the current library. The wizard prompts the user for the following information: –Company information –Hazop description –Hazop personnel – chairman, secretary and other personnel –Sessions –Session participants –Study Headings –Action headings –Parameters –Guide Words
