1. RAID and RAS CIS 485 SAU SUJA SOLOMON TIFFANY STACIE

2. WHY DO WE NEED RAID? Redundant array of independent disk RAID employs the technique of striping Allow overlapped disk I/O across drives To access information from several disks at the same time

3. Levels of fault tolerance: Level 1 Level 2 Level 3 -also called duplicating the server - One or more disk putting together -concatenation of several hard disk -RAID array drive

4. Levels of RAID RAID 0 RAID 1 RAID 4 RAID 5 RAID 10

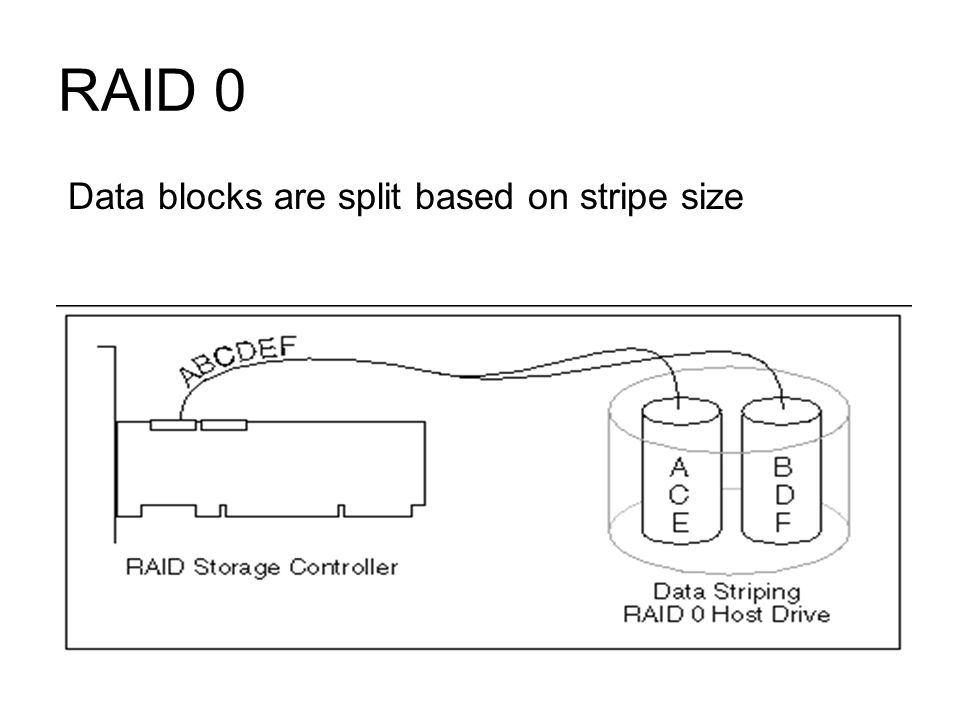

5. RAID 0 Data blocks are split based on stripe size

6. RAID 1 When one hard disk fails, all data is immediately available

7. RAID 1 cont. Disk Duplexing

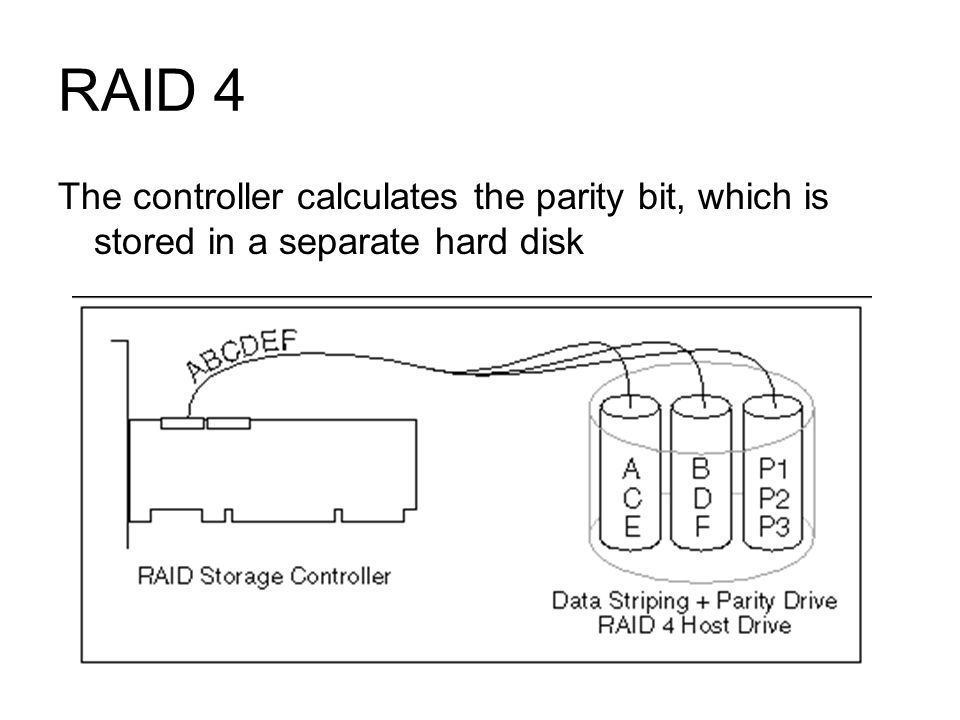

8. RAID 4 The controller calculates the parity bit, which is stored in a separate hard disk

9. RAID 5 RAID 5 is similar to RAID 4. it delivers a balanced throughput.

10. RAID 10 Combination of RAID 0 and 1.

11. Requirements SCSI hard drives RAID Controller board RAID driver

12. Installation procedure Pre Installation: 1.boot the server from the RAID software CDROM 2.Create a system disk for the OS 3.Turn off the sever 4.Disconnect the server from power 5.Remove the server cover

13. Installation procedure cont. Zero-channel RAID controller board:

14. Replace the riser board, with the RAID controller board in it Power on the server and press +

17. Select the host drive type

18. Set the bios boot order: Set up the following boot order: Removable Devices ATAPI CD-ROM Drive Hard Drive Intel (R) Boot Agent

19. RAS What is RAS? RAS= Remote Access Server The ability to get access to a computer or a network from a remote distance

20. RAS Installation Windows NT Server Installation

21. Cont. Install NetBEUI protocol

22. Cont. TCP IP Address

23. Cont. Add RAS Under Service

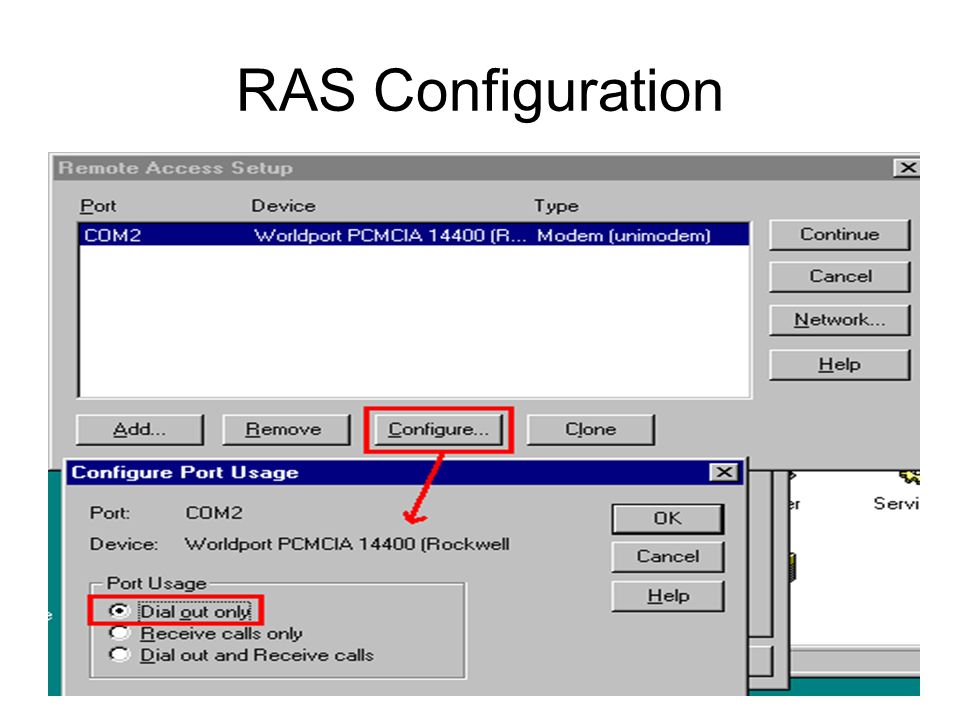

24. RAS Configuration

25. Configure the Network parameters:

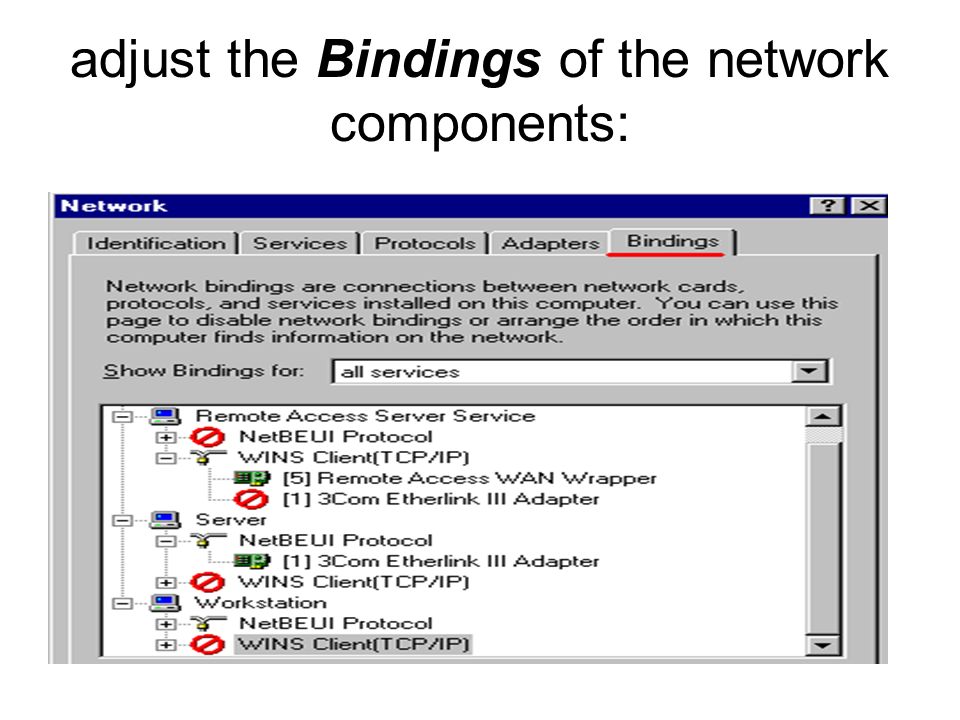

26. adjust the Bindings of the network components:

27. Cont.

28. Dailup-connection needs to be configured:

29. Configure the connection:

30. Cont. Basics Connection

31. Cont. Server network protocol ONLY TCP/IP, TCP/IP

32. Cont. Connection Script

33. Cont. Ready to connect the Internet:

34. Cont. Dialup Networking Monitor

35. Work Cited: www.gnesan.calstatela.edu www.sun.com www.wown.com/j_helmig/vpnrasin.htm
