1. C++ Memory leak detection Nguy ễ n Khánh Duy

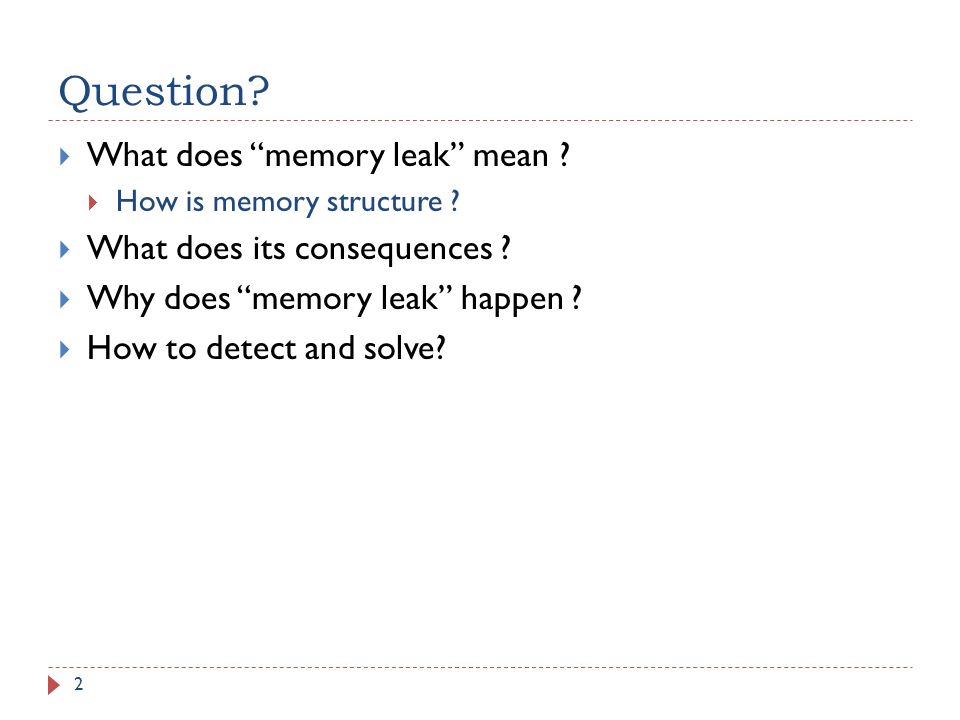

2. Question? 2  What does “memory leak” mean ?  How is memory structure ?  What does its consequences ?  Why does “memory leak” happen ?  How to detect and solve?

3. What does “memory leak” mean ? First, How is memory structure ? 3

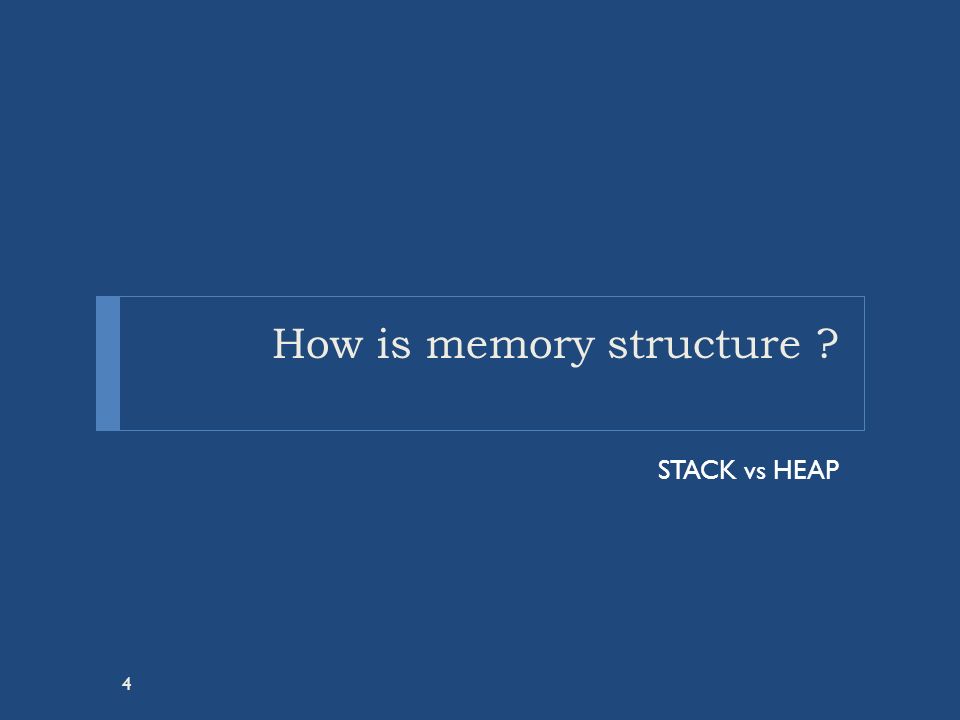

4. How is memory structure ? STACK vs HEAP 4

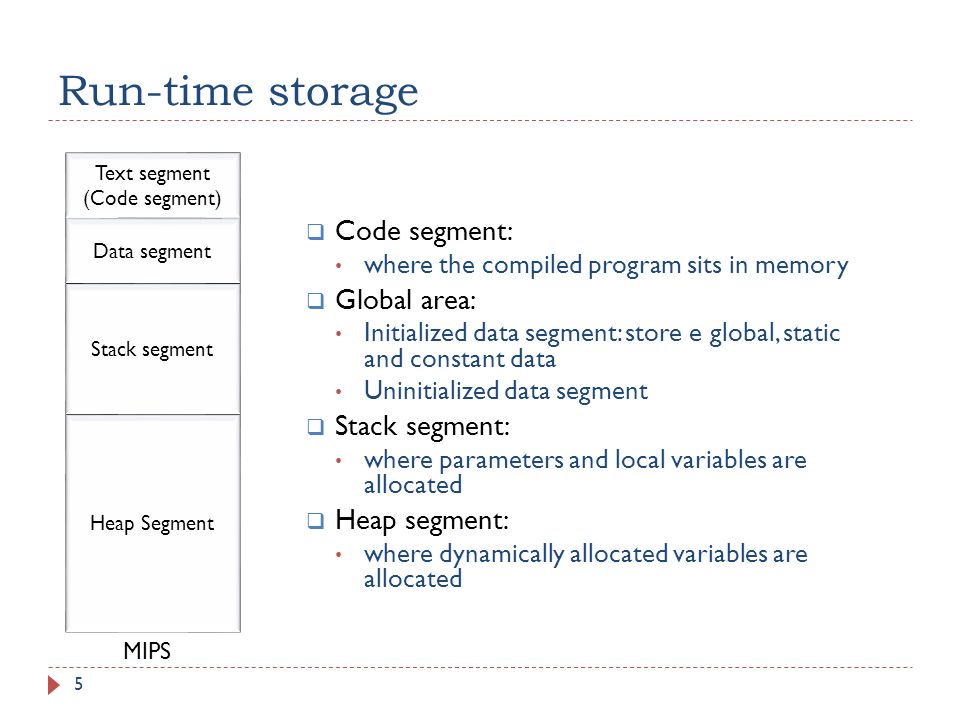

5. Run-time storage 5  Code segment: where the compiled program sits in memory  Global area: Initialized data segment: store e global, static and constant data Uninitialized data segment  Stack segment: where parameters and local variables are allocated  Heap segment: where dynamically allocated variables are allocated Text segment (Code segment) Stack segment Heap Segment Data segment MIPS

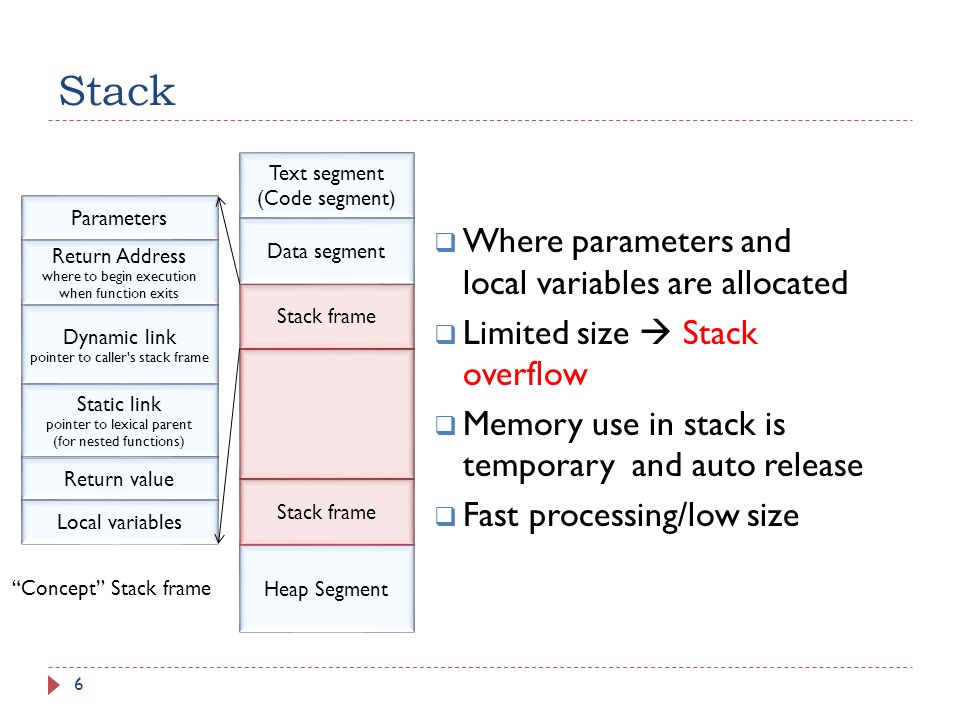

6. Stack 6  Where parameters and local variables are allocated  Limited size  Stack overflow  Memory use in stack is temporary and auto release  Fast processing/low size Parameters Return Address where to begin execution when function exits Dynamic link pointer to caller's stack frame Static link pointer to lexical parent (for nested functions) Return value Local variables “Concept” Stack frame Text segment (Code segment) Stack frame Heap Segment Data segment Stack frame

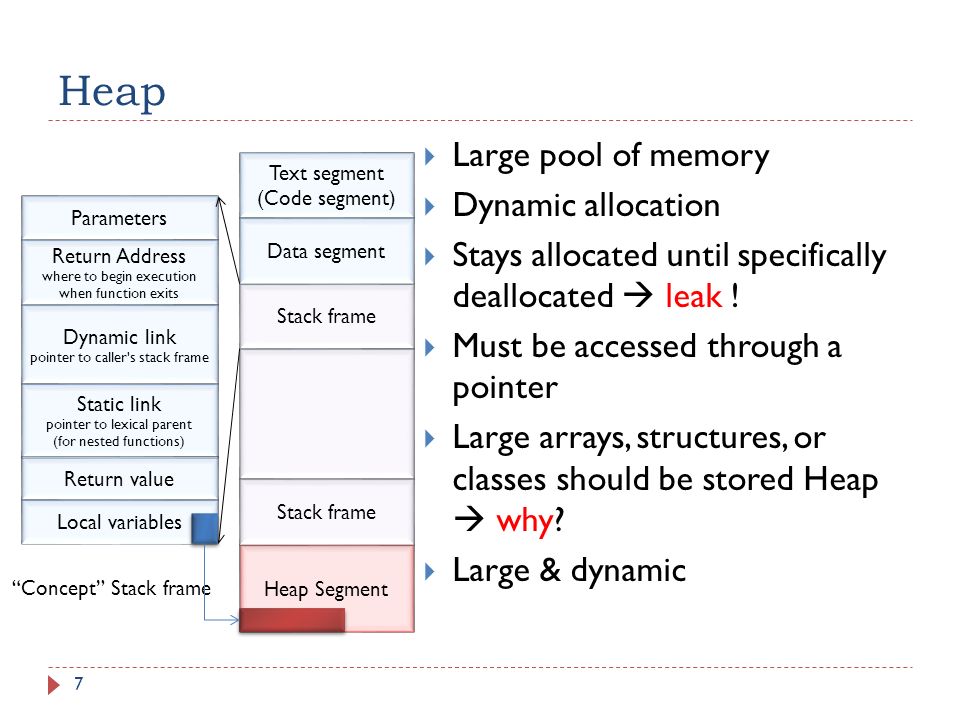

7. Heap 7  Large pool of memory  Dynamic allocation  Stays allocated until specifically deallocated  leak !  Must be accessed through a pointer  Large arrays, structures, or classes should be stored Heap  why?  Large & dynamic Parameters Return Address where to begin execution when function exits Dynamic link pointer to caller's stack frame Static link pointer to lexical parent (for nested functions) Return value Local variables “Concept” Stack frame Text segment (Code segment) Stack frame Heap Segment Data segment Stack frame

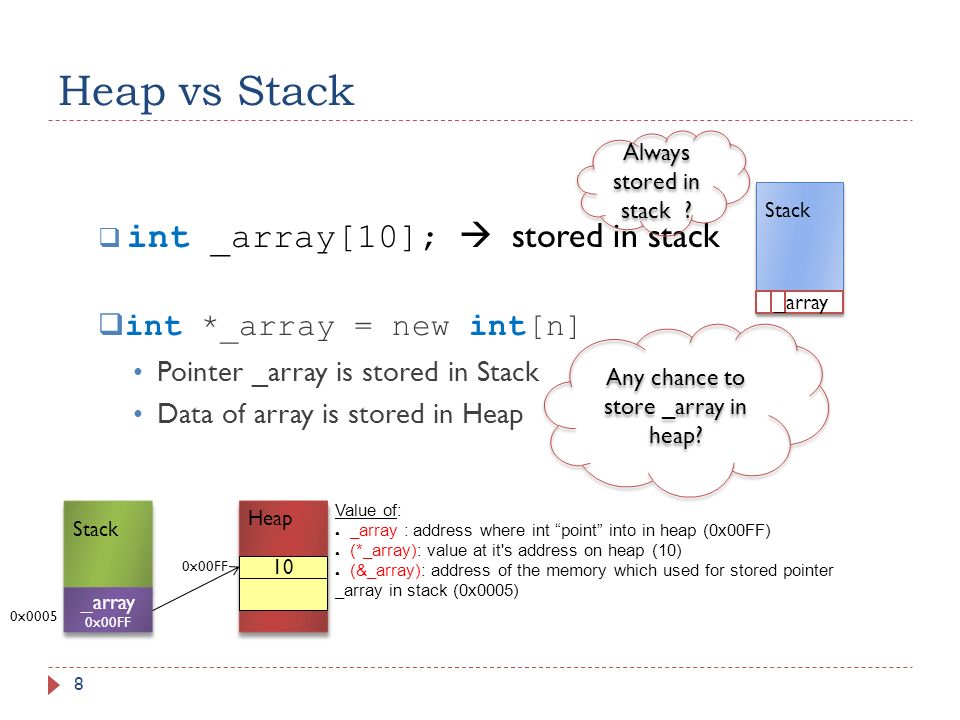

8. Heap vs Stack 8  int _array[10];  stored in stack Stack _array  int *_array = new int[n] Pointer _array is stored in Stack Data of array is stored in Heap _array 0x00FF _array 0x00FF Stack 10 Heap 0x00FF 0x0005 Value of: ● _array : address where int “point” into in heap (0x00FF) ● (*_array): value at it's address on heap (10) ● (&_array): address of the memory which used for stored pointer _array in stack (0x0005) Always stored in stack ? Any chance to store _array in heap?

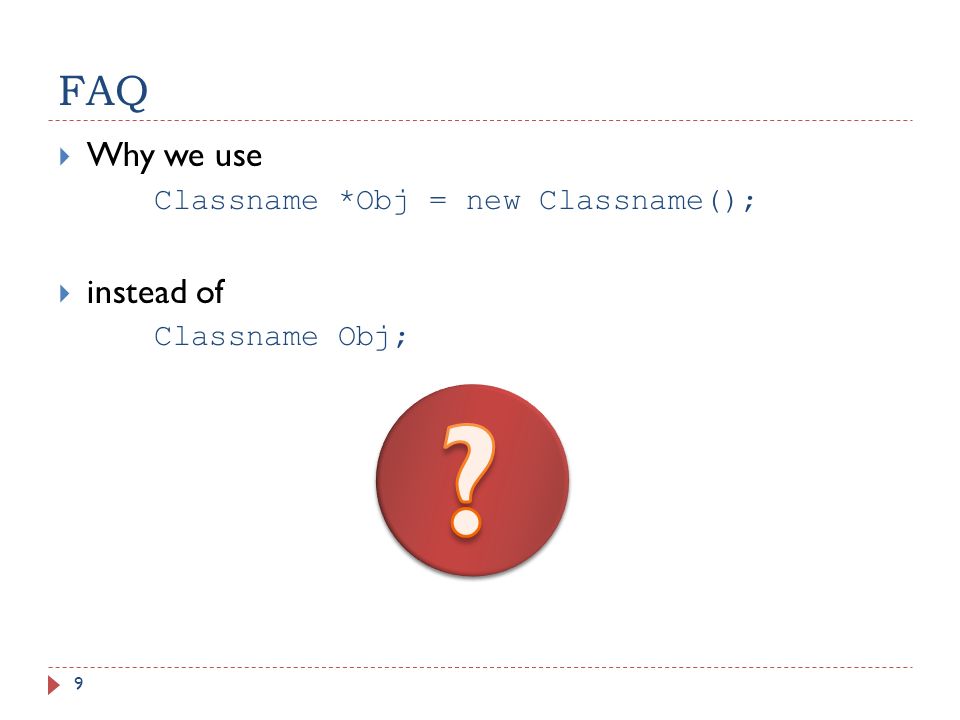

9. FAQ 9  Why we use Classname *Obj = new Classname();  instead of Classname Obj;

10. Memory leak overview 10

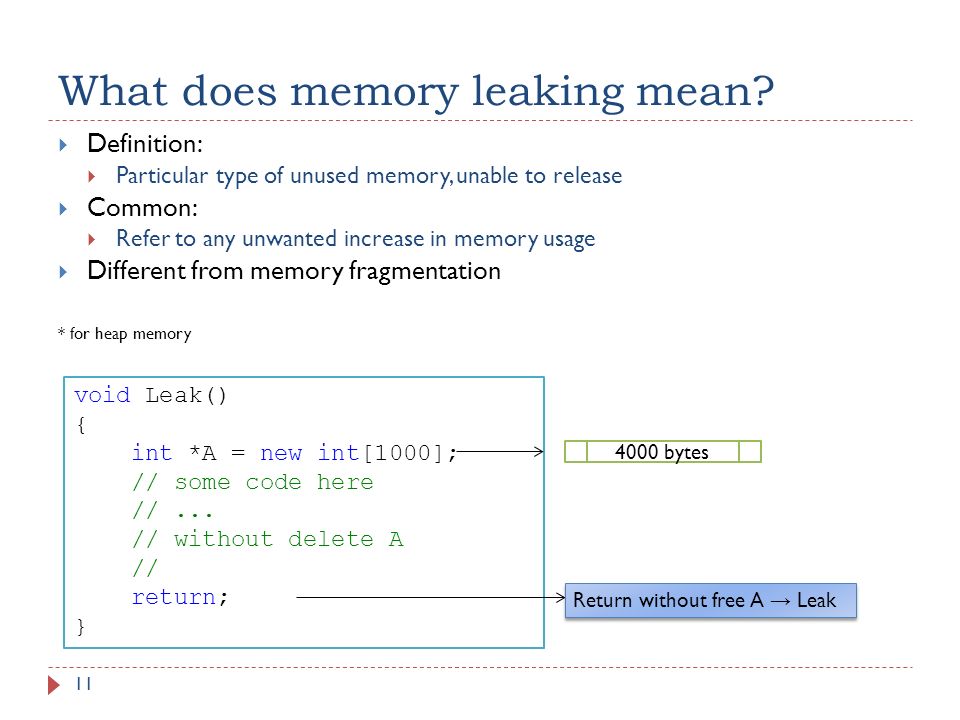

11. What does memory leaking mean? 11  Definition:  Particular type of unused memory, unable to release  Common:  Refer to any unwanted increase in memory usage  Different from memory fragmentation * for heap memory void Leak() { int *A = new int[1000]; // some code here //... // without delete A // return; } 4000 bytes Return without free A → Leak

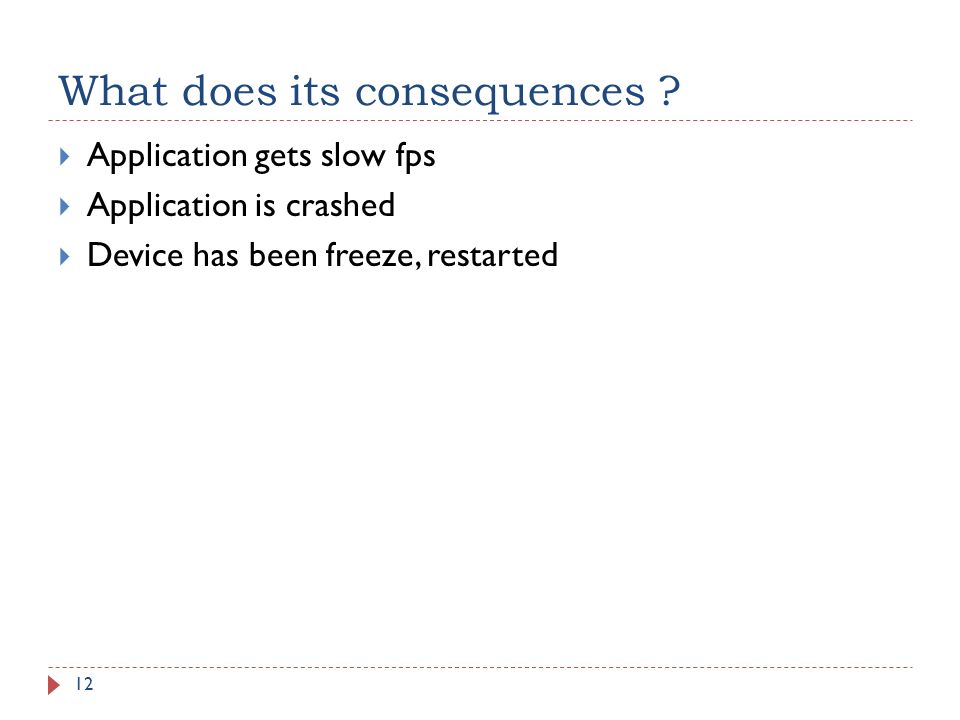

12. What does its consequences ? 12  Application gets slow fps  Application is crashed  Device has been freeze, restarted

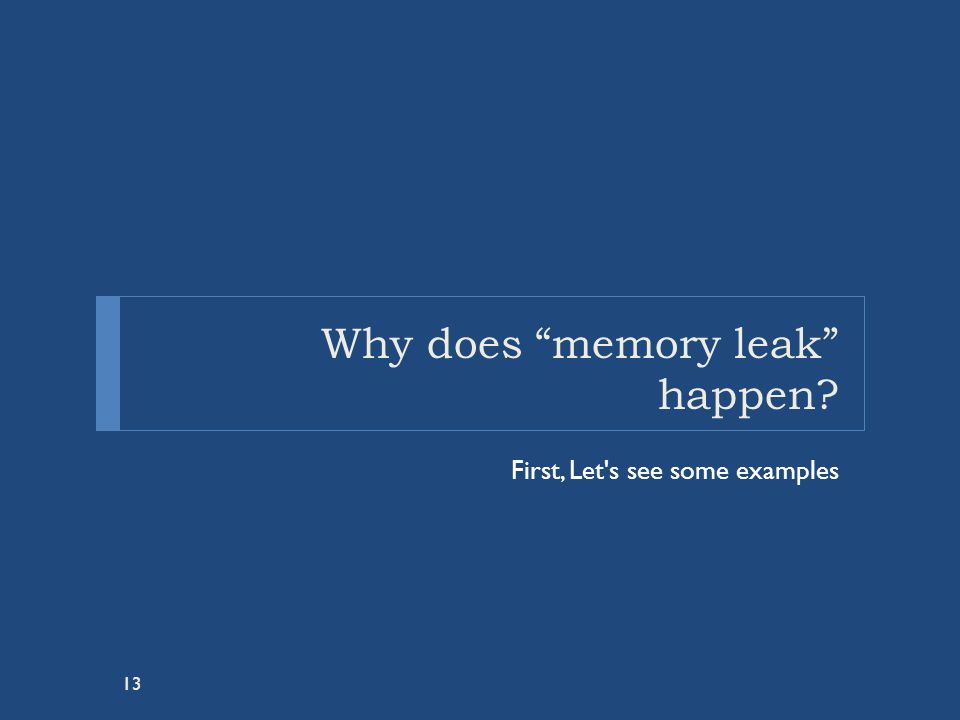

13. Why does “memory leak” happen? First, Let's see some examples 13

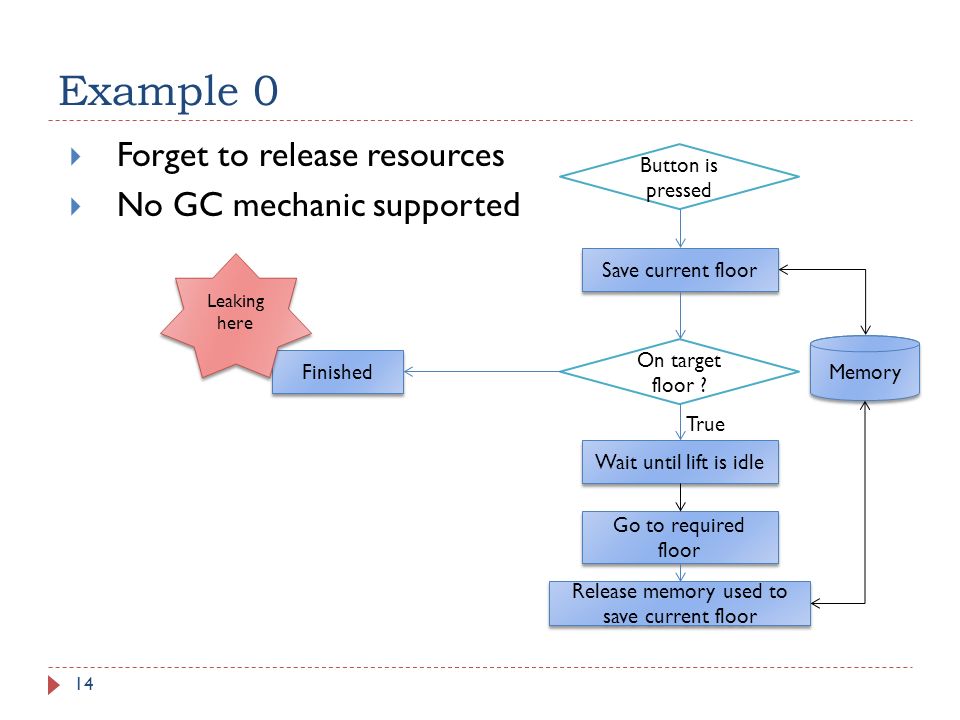

14. Example 0 14  Forget to release resources  No GC mechanic supported Button is pressed Save current floor On target floor ? Wait until lift is idle Go to required floor Release memory used to save current floor Release memory used to save current floor True Finished Memory Leaking here

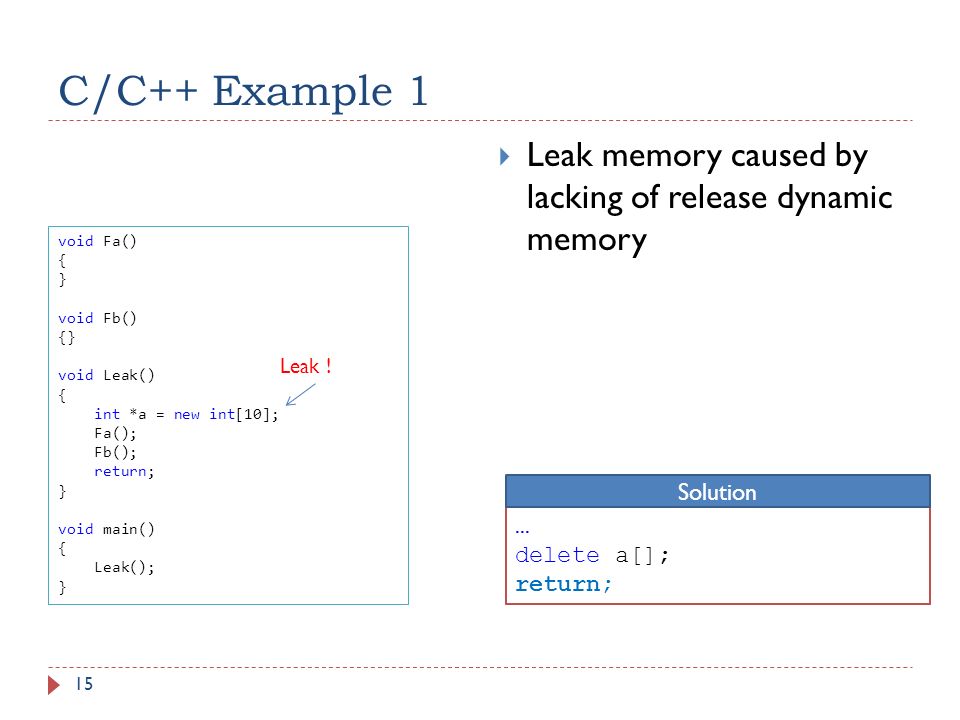

15. void Fa() { } void Fb() {} void Leak() { int *a = new int[10]; Fa(); Fb(); return; } void main() { Leak(); } C/C++ Example 1 15  Leak memory caused by lacking of release dynamic memory … delete a[]; return; Solution Leak !

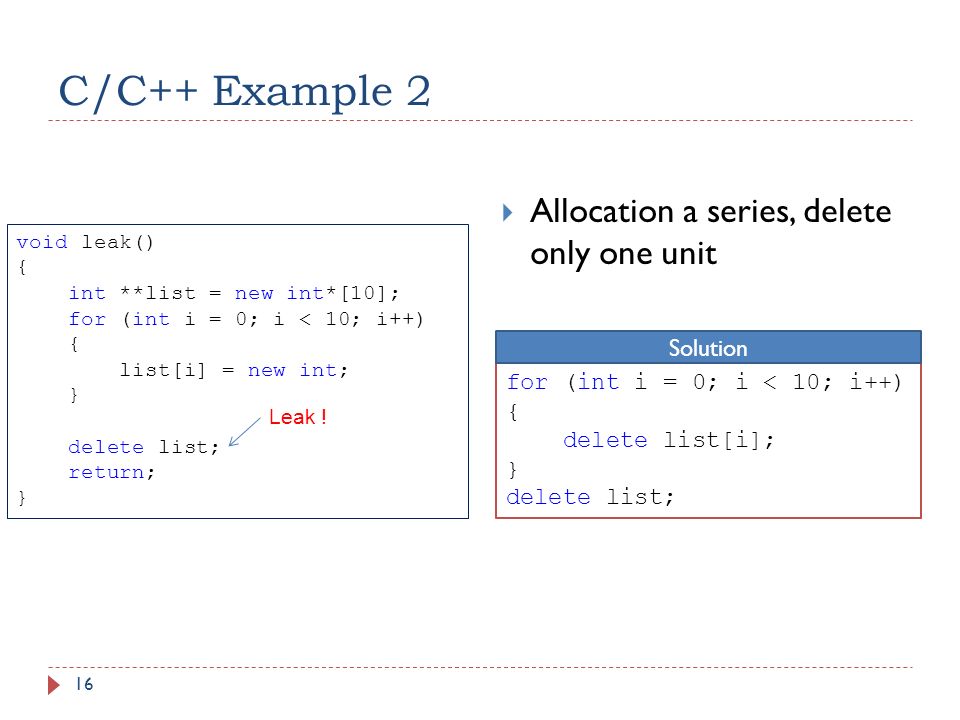

16. C/C++ Example 2 16  Allocation a series, delete only one unit Leak ! for (int i = 0; i < 10; i++) { delete list[i]; } delete list; Solution void leak() { int **list = new int*[10]; for (int i = 0; i < 10; i++) { list[i] = new int; } delete list; return; }

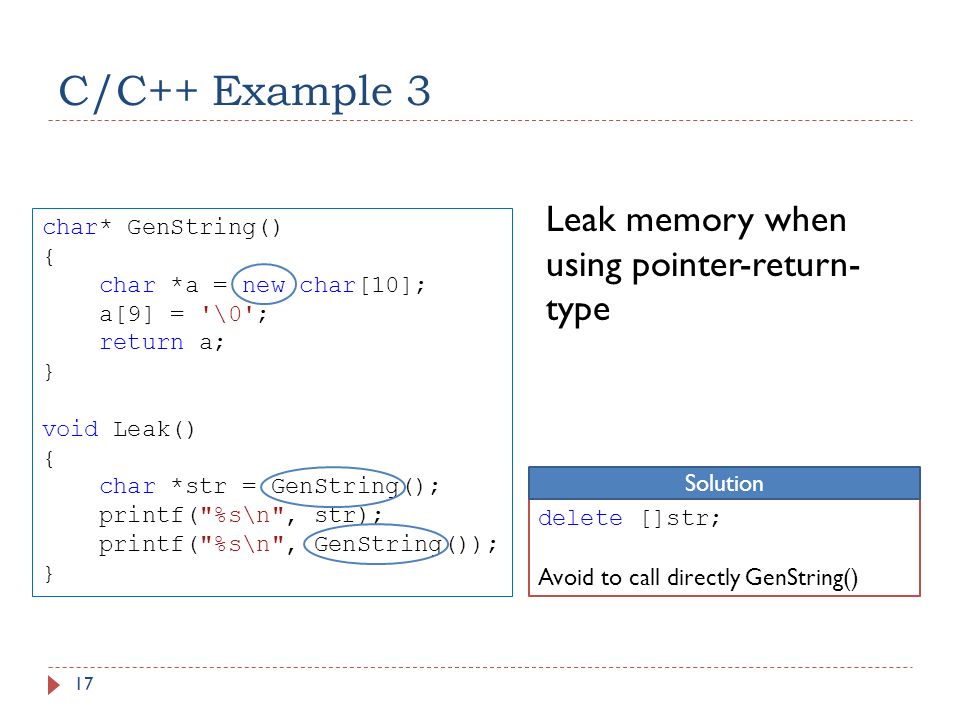

17. C/C++ Example 3 17 Leak memory when using pointer-return- type delete []str; Avoid to call directly GenString() Solution char* GenString() { char *a = new char[10]; a[9] = '\0'; return a; } void Leak() { char *str = GenString(); printf("%s\n", str); printf("%s\n", GenString()); }

18. #include void Foo() { int* a = new int[100]; a = new int[1000]; } void Foo1() { int* a = new int[100]; int* b = new int[1000]; a = b; } C/C++ Example 4 18 Leak memory because of misunderstanding “=” operator in C++ Stack Heap A A LEAK! Leak!

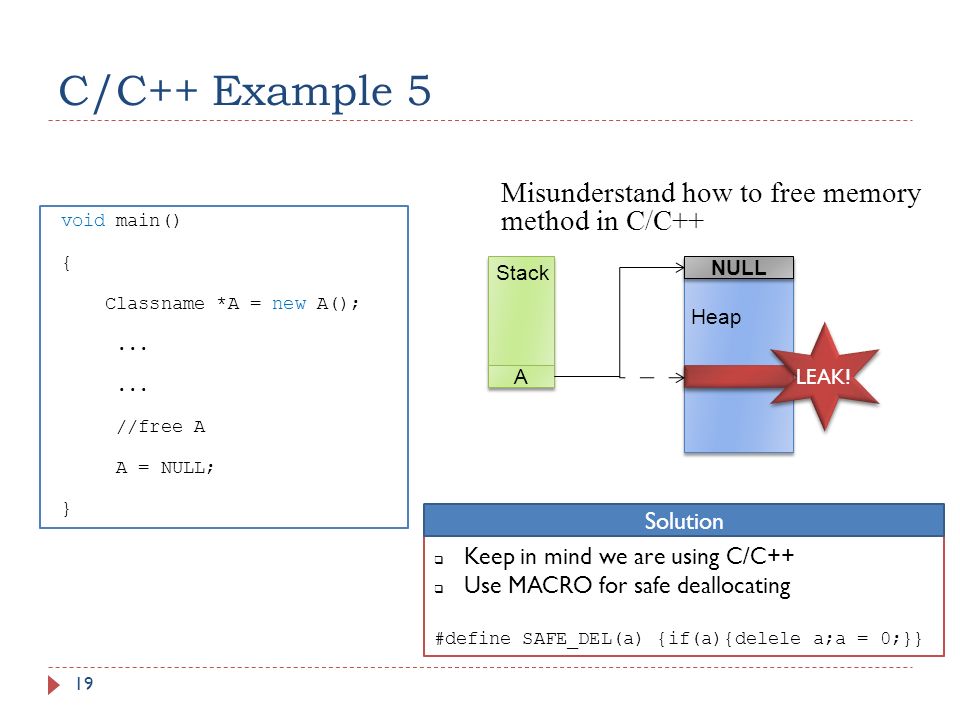

19. C/C++ Example 5 19 void main() { Classname *A = new A();... //free A A = NULL; } Misunderstand how to free memory method in C/C++ Stack Heap A A NULL LEAK !  Keep in mind we are using C/C++  Use MACRO for safe deallocating #define SAFE_DEL(a) {if(a){delele a;a = 0;}} Solution

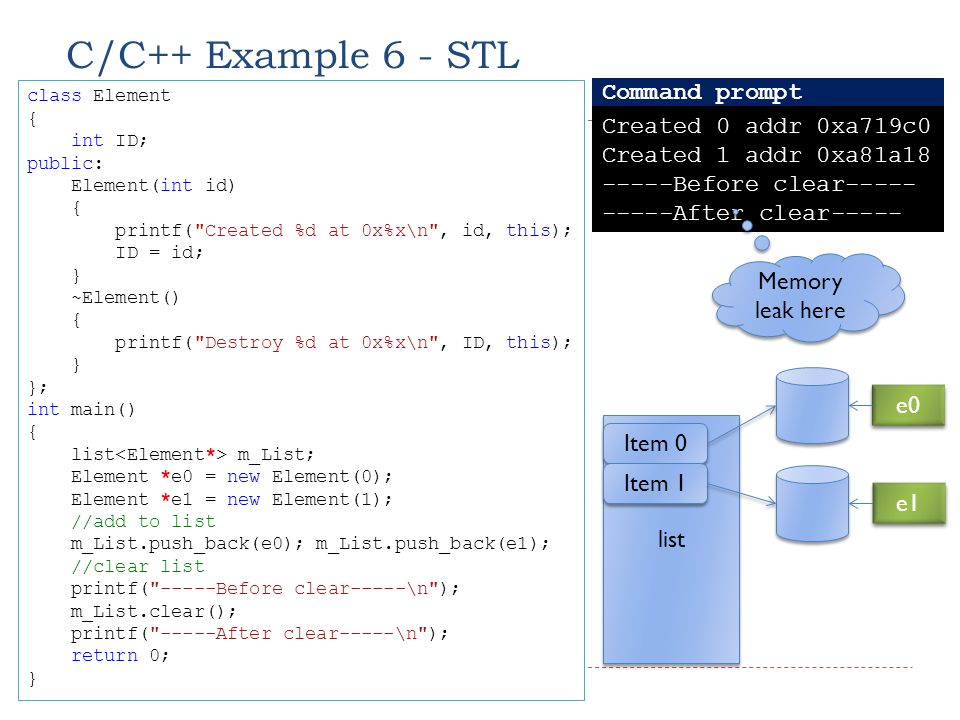

20. C/C++ Example 6 - STL 20 class Element { int ID; public: Element(int id) { printf("Created %d at 0x%x\n", id, this); ID = id; } ~Element() { printf("Destroy %d at 0x%x\n", ID, this); } }; int main() { list m_List; Element *e0 = new Element(0); Element *e1 = new Element(1); //add to list m_List.push_back(e0); m_List.push_back(e1); //clear list printf("-----Before clear-----\n"); m_List.clear(); printf("-----After clear-----\n"); return 0; } Created 0 addr 0xa719c0 Created 1 addr 0xa81a18 -----Before clear----- -----After clear----- Command prompt Memory leak here list Item 0 Item 1 e0 e1

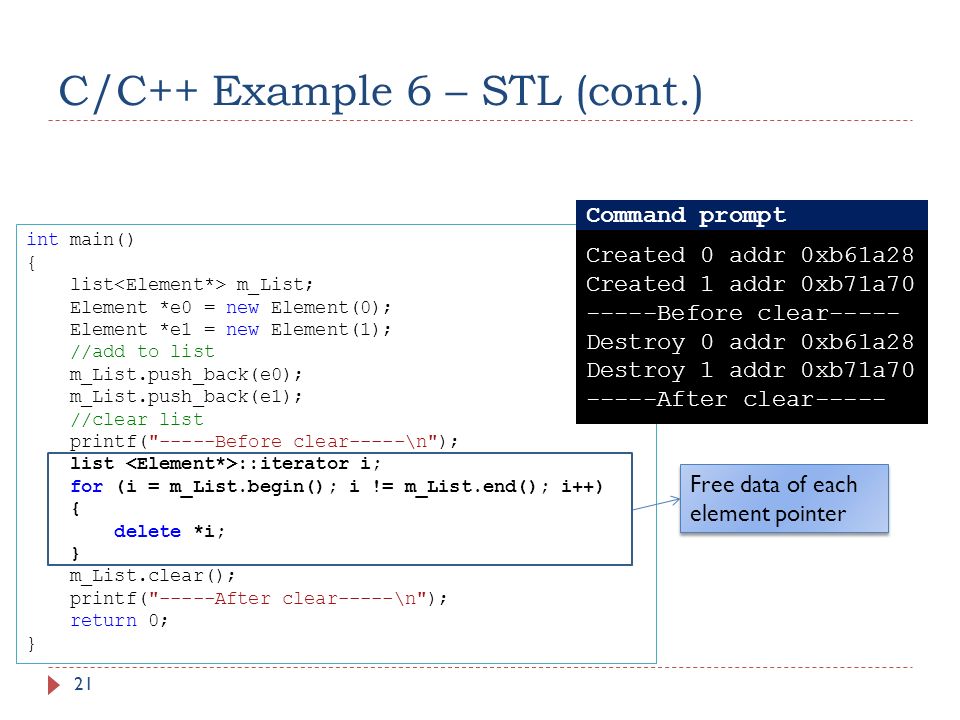

21. C/C++ Example 6 – STL (cont.) 21 int main() { list m_List; Element *e0 = new Element(0); Element *e1 = new Element(1); //add to list m_List.push_back(e0); m_List.push_back(e1); //clear list printf("-----Before clear-----\n"); list ::iterator i; for (i = m_List.begin(); i != m_List.end(); i++) { delete *i; } m_List.clear(); printf("-----After clear-----\n"); return 0; } Free data of each element pointer Created 0 addr 0xb61a28 Created 1 addr 0xb71a70 -----Before clear----- Destroy 0 addr 0xb61a28 Destroy 1 addr 0xb71a70 -----After clear----- Command prompt

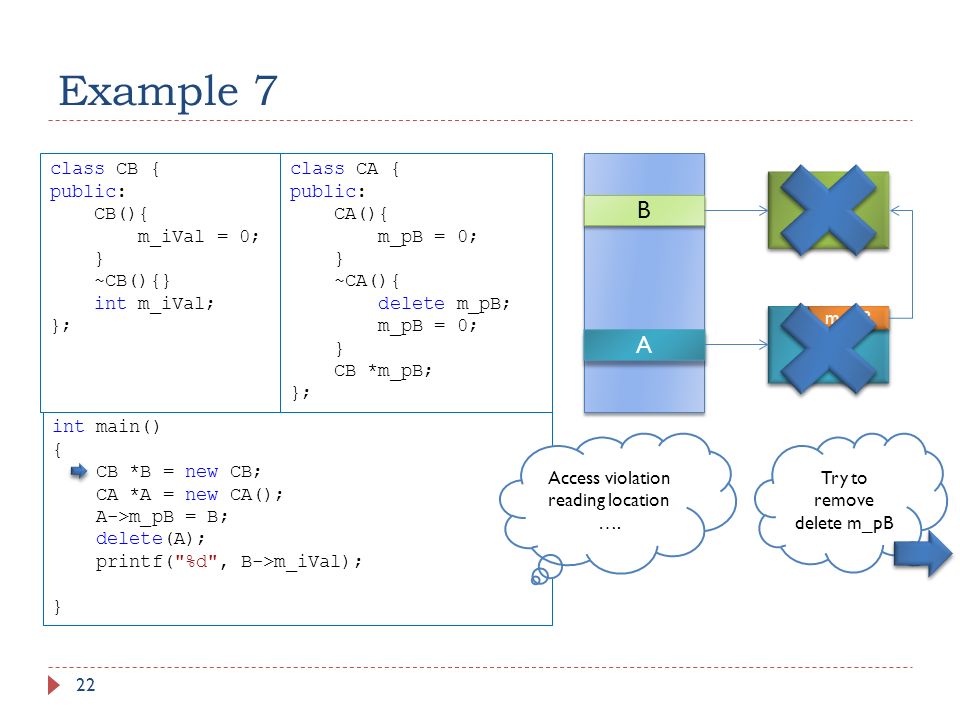

22. Example 7 22 class CB { public: CB(){ m_iVal = 0; } ~CB(){} int m_iVal; }; class CA { public: CA(){ m_pB = 0; } ~CA(){ delete m_pB; m_pB = 0; } CB *m_pB; }; int main() { CB *B = new CB; CA *A = new CA(); A->m_pB = B; delete(A); printf("%d", B->m_iVal); } B B A A m_pB Access violation reading location …. Try to remove delete m_pB

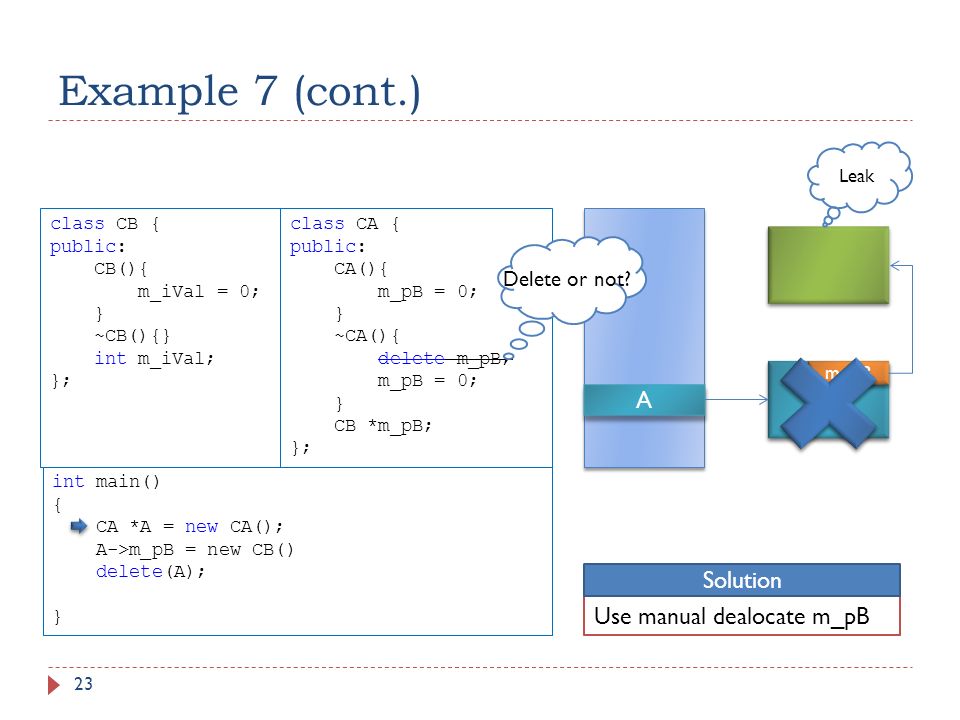

23. Example 7 (cont.) 23 class CB { public: CB(){ m_iVal = 0; } ~CB(){} int m_iVal; }; class CA { public: CA(){ m_pB = 0; } ~CA(){ delete m_pB; m_pB = 0; } CB *m_pB; }; int main() { CA *A = new CA(); A->m_pB = new CB() delete(A); } A A m_pB Leak Delete or not? Use manual dealocate m_pB Solution

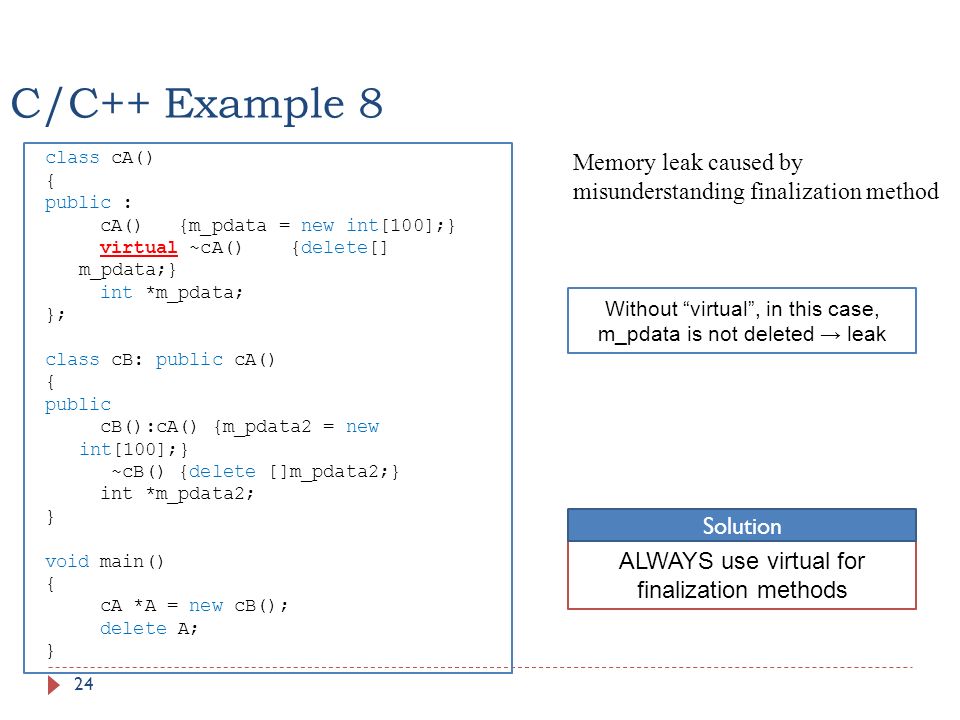

24. 24 C/C++ Example 8 class cA() { public : cA() {m_pdata = new int[100];} virtual ~cA() {delete[] m_pdata;} int *m_pdata; }; class cB: public cA() { public cB():cA() {m_pdata2 = new int[100];} ~cB() {delete []m_pdata2;} int *m_pdata2; } void main() { cA *A = new cB(); delete A; } Memory leak caused by misunderstanding finalization method Without “virtual”, in this case, m_pdata is not deleted → leak ALWAYS use virtual for finalization methods Solution

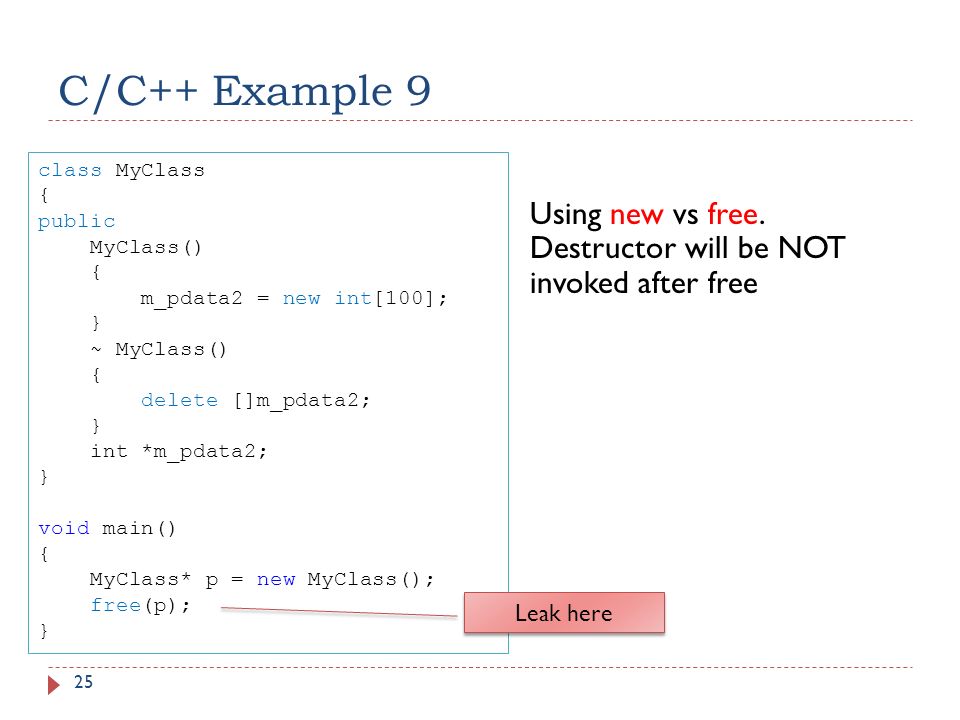

25. C/C++ Example 9 25 Using new vs free. Destructor will be NOT invoked after free class MyClass { public MyClass() { m_pdata2 = new int[100]; } ~ MyClass() { delete []m_pdata2; } int *m_pdata2; } void main() { MyClass* p = new MyClass(); free(p); } Leak here

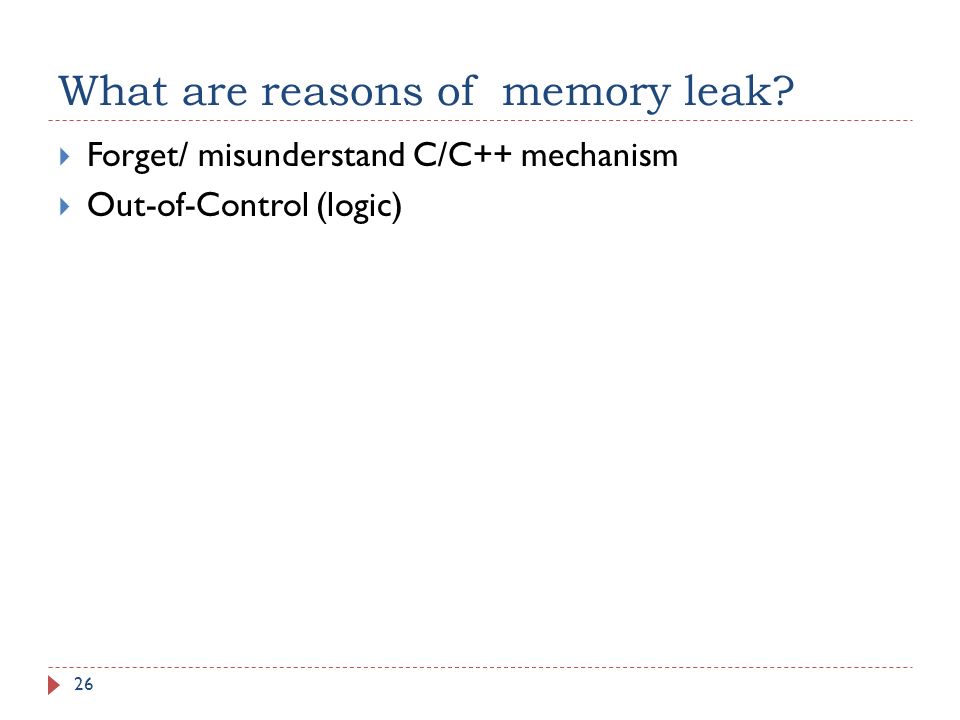

26. What are reasons of memory leak? 26  Forget/ misunderstand C/C++ mechanism  Out-of-Control (logic)

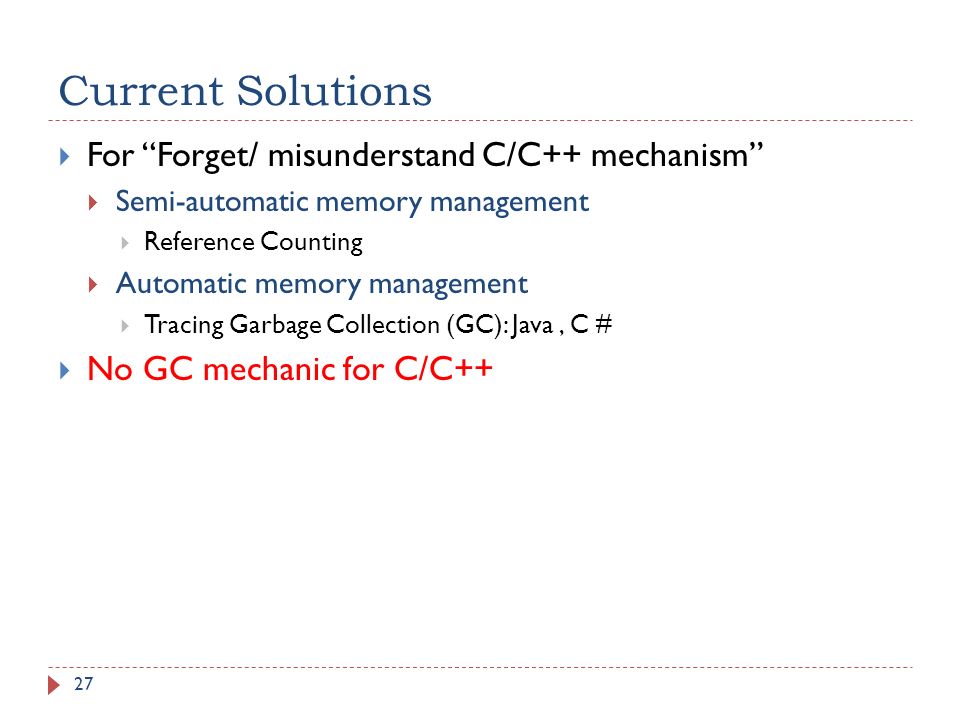

27. Current Solutions 27  For “Forget/ misunderstand C/C++ mechanism”  Semi-automatic memory management  Reference Counting  Automatic memory management  Tracing Garbage Collection (GC): Java, C #  No GC mechanic for C/C++

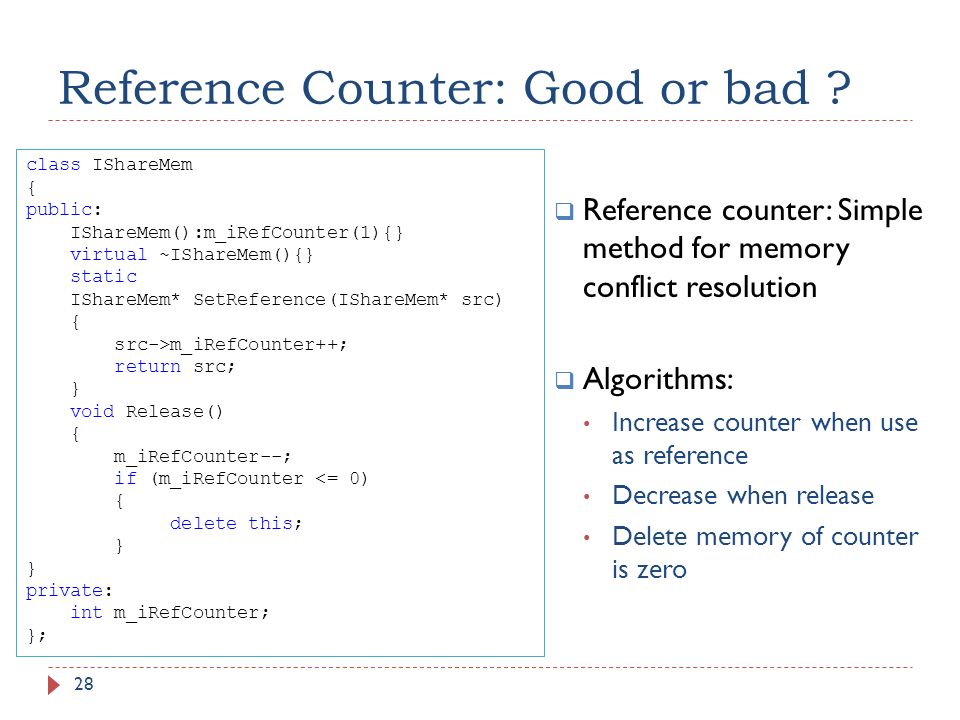

28. Reference Counter: Good or bad ? 28  Reference counter: Simple method for memory conflict resolution  Algorithms: Increase counter when use as reference Decrease when release Delete memory of counter is zero class IShareMem { public: IShareMem():m_iRefCounter(1){} virtual ~IShareMem(){} static IShareMem* SetReference(IShareMem* src) { src->m_iRefCounter++; return src; } void Release() { m_iRefCounter--; if (m_iRefCounter <= 0) { delete this; } private: int m_iRefCounter; };

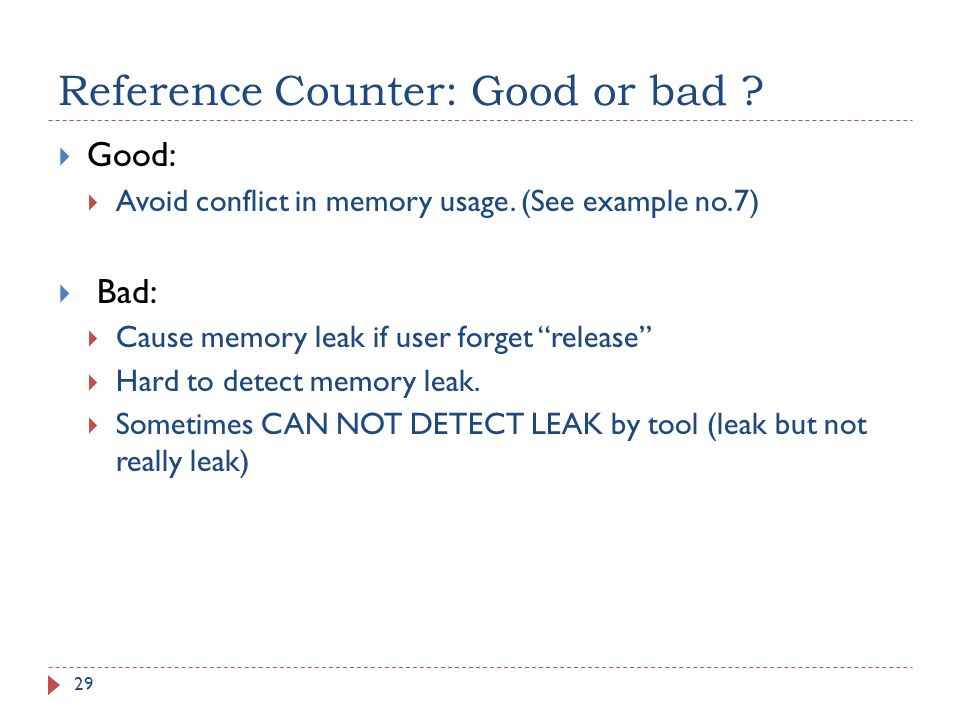

29. Reference Counter: Good or bad ? 29  Good:  Avoid conflict in memory usage. (See example no.7)  Bad:  Cause memory leak if user forget “release”  Hard to detect memory leak.  Sometimes CAN NOT DETECT LEAK by tool (leak but not really leak)

30. Current Solutions - Disadvantage 30  Garbage collectors generally can do nothing about logical memory leaks 0 0 1 1 2 2 n n... Alloc Which is really needed? A A B B D D E E Z Z Do I alloc some- where without release? Somethings else is pointed to an object

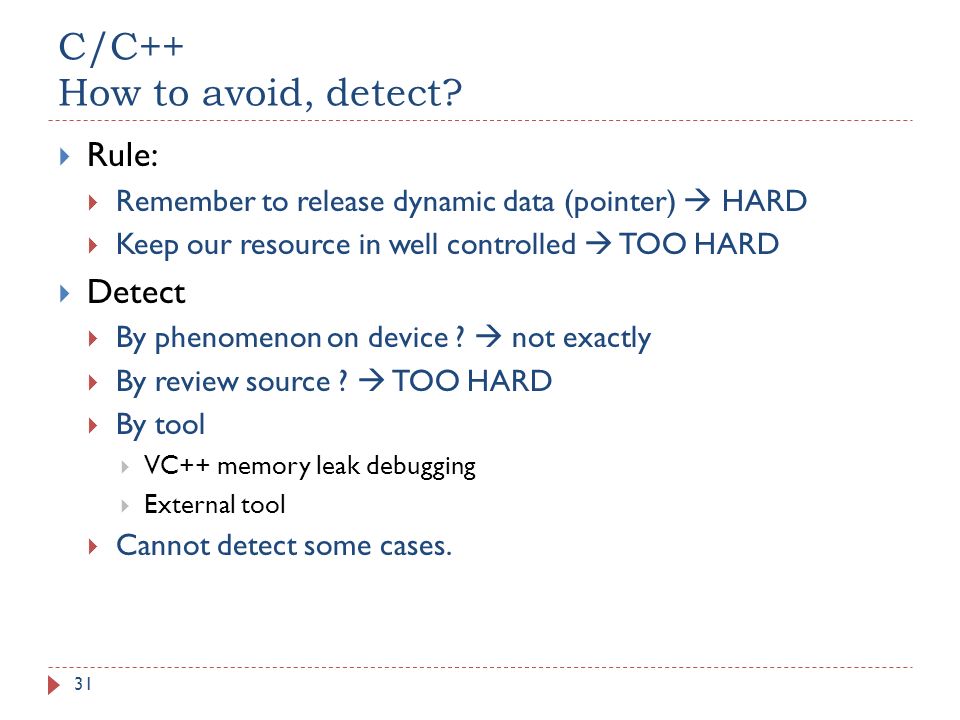

31. C/C++ How to avoid, detect? 31  Rule:  Remember to release dynamic data (pointer)  HARD  Keep our resource in well controlled  TOO HARD  Detect  By phenomenon on device ?  not exactly  By review source ?  TOO HARD  By tool  VC++ memory leak debugging  External tool  Cannot detect some cases.

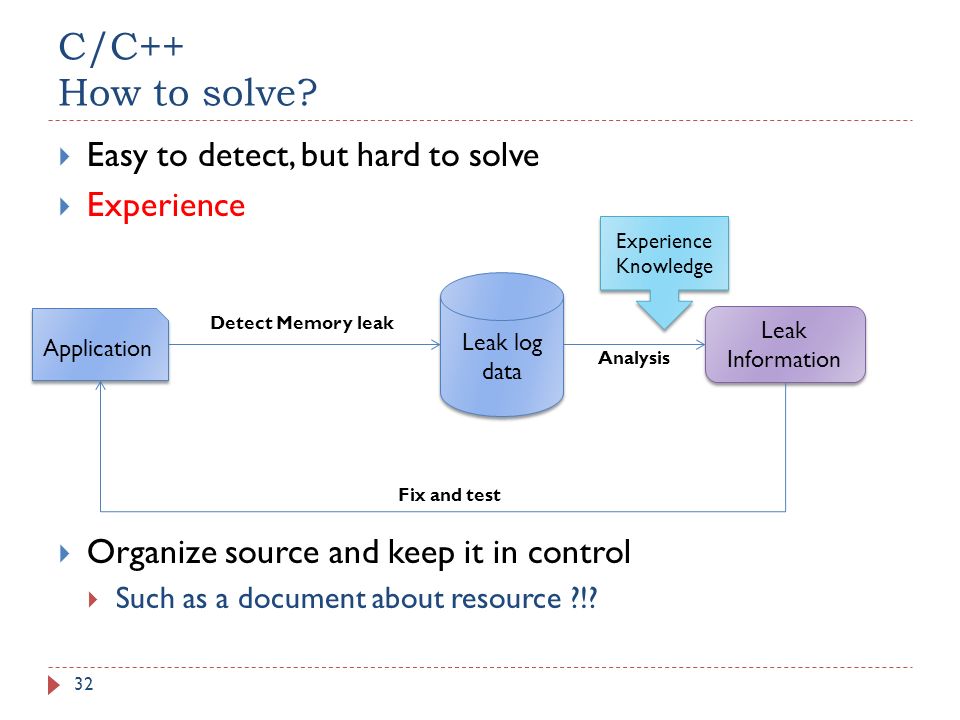

32. C/C++ How to solve? 32  Easy to detect, but hard to solve  Experience  Organize source and keep it in control  Such as a document about resource ?!? Application Leak log data Detect Memory leak Leak Information Leak Information Analysis Experience Knowledge Experience Knowledge Fix and test

33. Detect Memory Leak 33

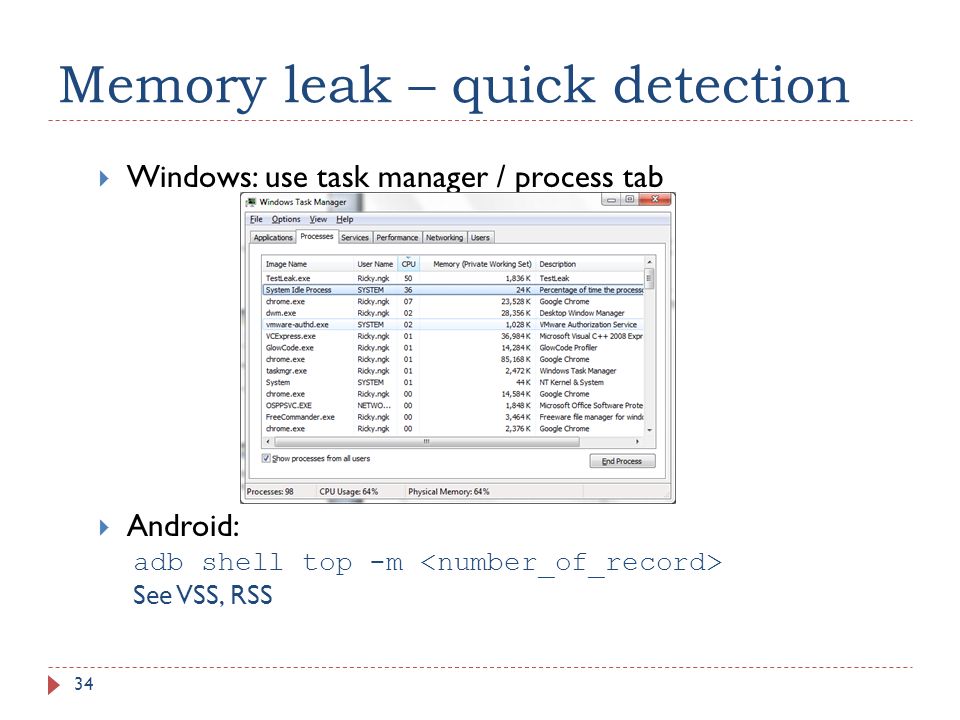

34. Memory leak – quick detection 34  Windows: use task manager / process tab  Android: adb shell top -m See VSS, RSS

35. Use Visual studio supported function 35  Use __CrtDumpMemoryLeaks  Advantage  Easy to use  Fully report about leak when application completed  Free  Disadvantage  Cannot detect run-time  Fail if application Crashed  Presentation:  Manually coding by user  Use some lib such as VLD

36. Debug in Visual studio 36

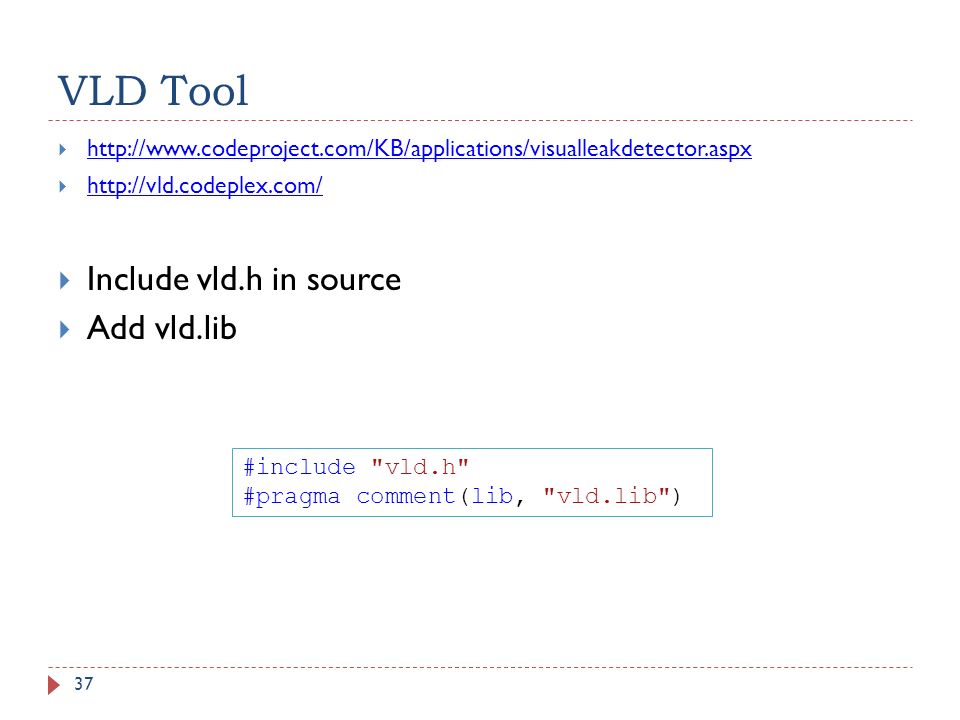

37. VLD Tool 37  http://www.codeproject.com/KB/applications/visualleakdetector.aspx http://www.codeproject.com/KB/applications/visualleakdetector.aspx  http://vld.codeplex.com/ http://vld.codeplex.com/  Include vld.h in source  Add vld.lib #include "vld.h" #pragma comment(lib, "vld.lib")

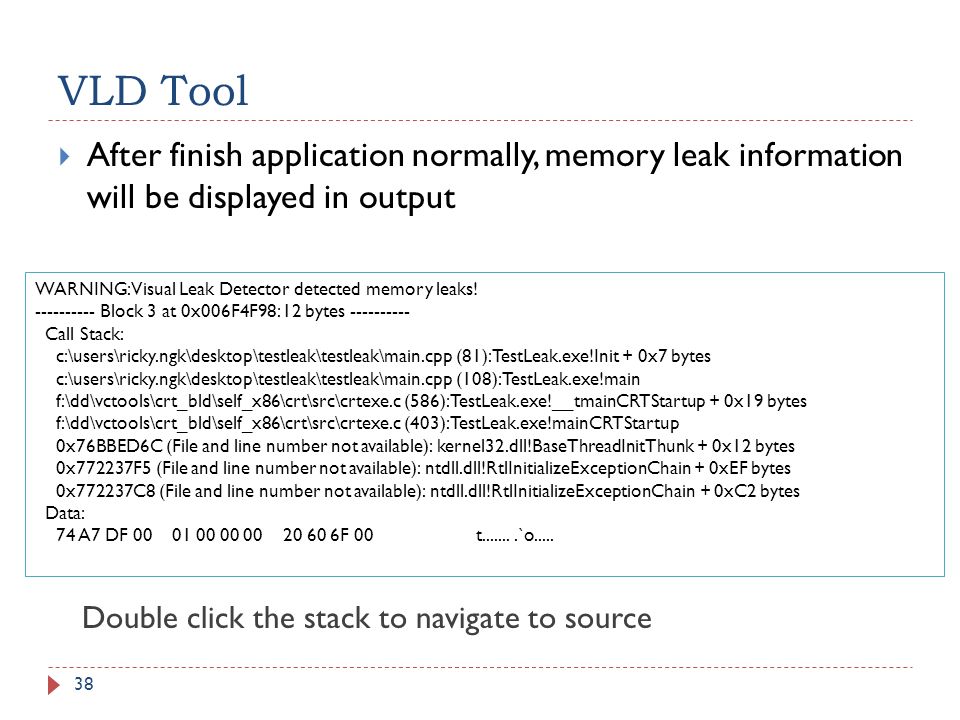

38. VLD Tool 38  After finish application normally, memory leak information will be displayed in output WARNING: Visual Leak Detector detected memory leaks! ---------- Block 3 at 0x006F4F98: 12 bytes ---------- Call Stack: c:\users\ricky.ngk\desktop\testleak\testleak\main.cpp (81): TestLeak.exe!Init + 0x7 bytes c:\users\ricky.ngk\desktop\testleak\testleak\main.cpp (108): TestLeak.exe!main f:\dd\vctools\crt_bld\self_x86\crt\src\crtexe.c (586): TestLeak.exe!__tmainCRTStartup + 0x19 bytes f:\dd\vctools\crt_bld\self_x86\crt\src\crtexe.c (403): TestLeak.exe!mainCRTStartup 0x76BBED6C (File and line number not available): kernel32.dll!BaseThreadInitThunk + 0x12 bytes 0x772237F5 (File and line number not available): ntdll.dll!RtlInitializeExceptionChain + 0xEF bytes 0x772237C8 (File and line number not available): ntdll.dll!RtlInitializeExceptionChain + 0xC2 bytes Data: 74 A7 DF 00 01 00 00 00 20 60 6F 00 t........`o..... Double click the stack to navigate to source

39. VLD Tool  Like any leak detect tools, shows where memory was allocated without free  User have to analyst to find real reason

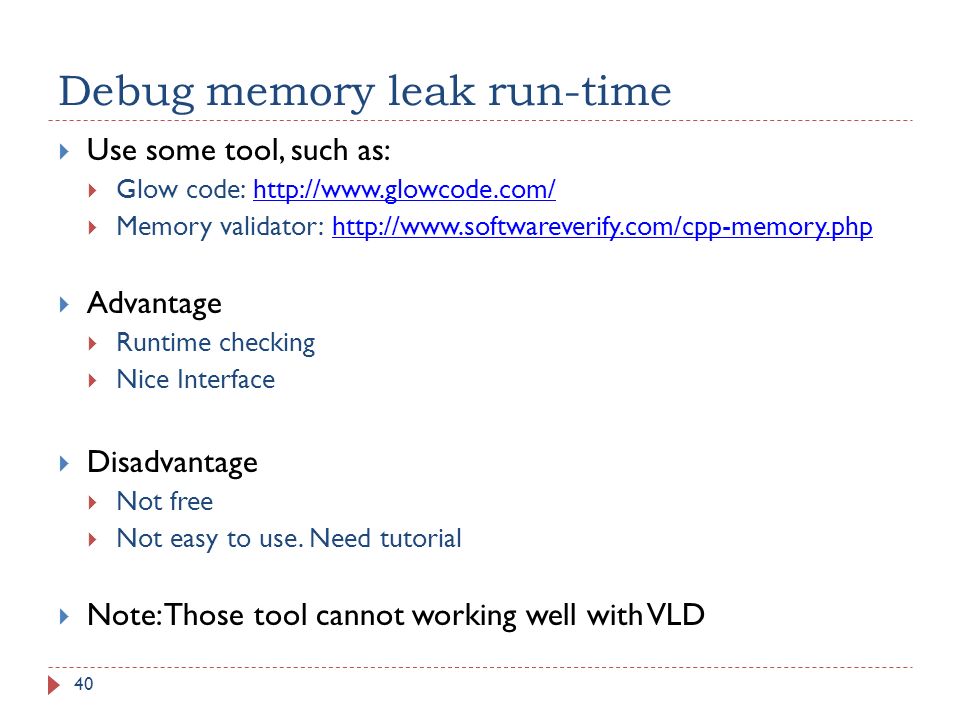

40. Debug memory leak run-time 40  Use some tool, such as:  Glow code: http://www.glowcode.com/http://www.glowcode.com/  Memory validator: http://www.softwareverify.com/cpp-memory.phphttp://www.softwareverify.com/cpp-memory.php  Advantage  Runtime checking  Nice Interface  Disadvantage  Not free  Not easy to use. Need tutorial  Note: Those tool cannot working well with VLD

41. The end! Thanks for your attention

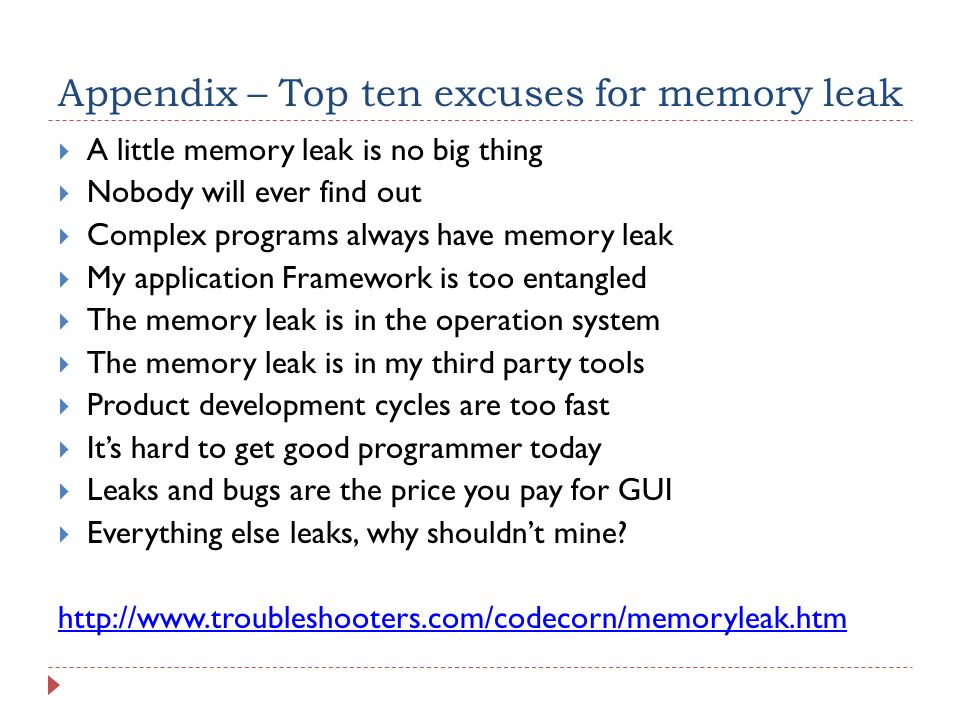

42. Appendix – Top ten excuses for memory leak  A little memory leak is no big thing  Nobody will ever find out  Complex programs always have memory leak  My application Framework is too entangled  The memory leak is in the operation system  The memory leak is in my third party tools  Product development cycles are too fast  It’s hard to get good programmer today  Leaks and bugs are the price you pay for GUI  Everything else leaks, why shouldn’t mine? http://www.troubleshooters.com/codecorn/memoryleak.htm
