18. Application ID Shortcut Jump List Windows Application ID can “fall back” to a larger scope if needed Default computation Process Document Type Registration

19. #include #pragma comment (lib, "shell32.lib") SetCurrentProcessExplicitAppUserModelId( L"Microsoft.Samples.AppId1"); #include #pragma comment (lib, "shell32.lib") SetCurrentProcessExplicitAppUserModelId( L"Microsoft.Samples.AppId1"); TaskbarManager.SetCurrentProcessAppId( "Microsoft.Samples.AppId1"); TaskbarManager.SetCurrentProcessAppId( "Microsoft.Samples.AppId1");

20. PROPVARIANT pv; InitPropVariantFromString( L"Microsoft.Samples.AppId2", &pv); IPropertyStore *pps; HRESULT hr = SHGetPropertyStoreForWindow( hWnd, IID_PPV_ARGS(&pps)); pps->SetValue(PKEY_AppUserModel_ID, pv); PROPVARIANT pv; InitPropVariantFromString( L"Microsoft.Samples.AppId2", &pv); IPropertyStore *pps; HRESULT hr = SHGetPropertyStoreForWindow( hWnd, IID_PPV_ARGS(&pps)); pps->SetValue(PKEY_AppUserModel_ID, pv); WinForms: TaskbarManager. SetApplicationIdForSpecificWindow(IntPtr windowHandle, string appId) WPF: TaskbarManager. SetApplicationIdForSpecificWindow (System.Windows.Window window, string appId) WinForms: TaskbarManager. SetApplicationIdForSpecificWindow(IntPtr windowHandle, string appId) WPF: TaskbarManager. SetApplicationIdForSpecificWindow (System.Windows.Window window, string appId)

26. Destinations (“nouns”) Tasks (“verbs”) Known categories Custom categories User tasks Taskbar tasks Pinned category

28. SHAddToRecentDocs(SHARDW_PATH, "file.ext"); RH.RegisterFileAssociations(...); OpenFileDialog ofd =...; ofd.ShowDialog(); JumpList jl =...; jl.AddToRecent("file.ext"); RH.RegisterFileAssociations(...); OpenFileDialog ofd =...; ofd.ShowDialog(); JumpList jl =...; jl.AddToRecent("file.ext");

31. IObjectCollection* poc =...; IShellLink* task =...; Poc->AddObject(task); ICustomDestinationList* pcdl =...; Pcdl->BeginList(...); IObjectArray* poa =... poc; Pcdl->AddUserTasks(poa); Pcdl->CommitList(); IObjectCollection* poc =...; IShellLink* task =...; Poc->AddObject(task); ICustomDestinationList* pcdl =...; Pcdl->BeginList(...); IObjectArray* poa =... poc; Pcdl->AddUserTasks(poa); Pcdl->CommitList(); JumpList jl =...; jl.AddUserTasks( params IJumpListTask[] tasks); JumpList jl =...; jl.AddUserTasks( params IJumpListTask[] tasks);

33. IObjectCollection* poc =...; IShellItem* item =...; Poc->AddObject(item); ICustomDestinationList* pcdl =...; Pcdl->BeginList(...); IObjectArray* poa =... poc; Pcdl->AppendCategory(L"Sales", poa); Pcdl->CommitList(); IObjectCollection* poc =...; IShellItem* item =...; Poc->AddObject(item); ICustomDestinationList* pcdl =...; Pcdl->BeginList(...); IObjectArray* poa =... poc; Pcdl->AppendCategory(L"Sales", poa); Pcdl->CommitList(); JumpList jl =...; jlm.AddCustomDestination ( params JumpListCustomCategory[] customCategories); JumpList jl =...; jlm.AddCustomDestination ( params JumpListCustomCategory[] customCategories);

36. TasksThumbnail Buttons Entry pointMenu or toolbar Application-wideWindow-specific

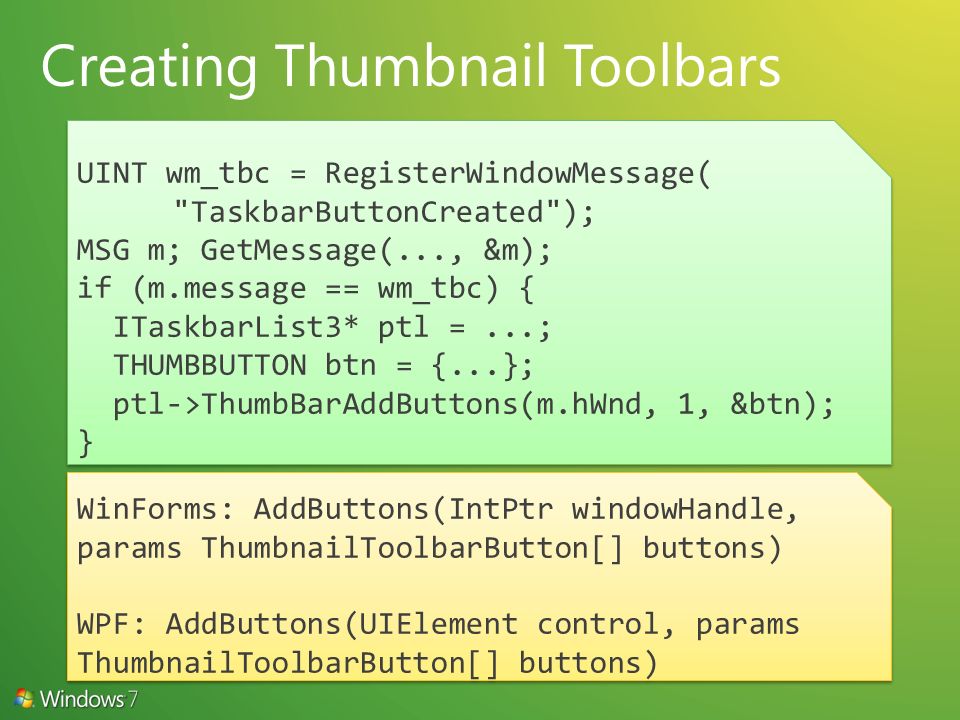

37. UINT wm_tbc = RegisterWindowMessage( "TaskbarButtonCreated"); MSG m; GetMessage(..., &m); if (m.message == wm_tbc) { ITaskbarList3* ptl =...; THUMBBUTTON btn = {...}; ptl->ThumbBarAddButtons(m.hWnd, 1, &btn); } UINT wm_tbc = RegisterWindowMessage( "TaskbarButtonCreated"); MSG m; GetMessage(..., &m); if (m.message == wm_tbc) { ITaskbarList3* ptl =...; THUMBBUTTON btn = {...}; ptl->ThumbBarAddButtons(m.hWnd, 1, &btn); } WinForms: AddButtons(IntPtr windowHandle, params ThumbnailToolbarButton[] buttons) WPF: AddButtons(UIElement control, params ThumbnailToolbarButton[] buttons) WinForms: AddButtons(IntPtr windowHandle, params ThumbnailToolbarButton[] buttons) WPF: AddButtons(UIElement control, params ThumbnailToolbarButton[] buttons)

41. ITaskbarList3* ptl =...; ptl->SetOverlayIcon( hwnd, hicon, L"Accessible Description"); ptl->SetProgressState(hwnd, TBPF_NORMAL); for (int i = 0; i < MAX; ++i) { ptl->SetProgressValue(hwnd, i, MAX); } ITaskbarList3* ptl =...; ptl->SetOverlayIcon( hwnd, hicon, L"Accessible Description"); ptl->SetProgressState(hwnd, TBPF_NORMAL); for (int i = 0; i < MAX; ++i) { ptl->SetProgressValue(hwnd, i, MAX); } myForm.SetTaskbarOverlayIcon(icon, "..."); ProgressBar pb =...; pb.SetTaskbarProgress(); myForm.SetTaskbarOverlayIcon(icon, "..."); ProgressBar pb =...; pb.SetTaskbarProgress();

42. WinForms: TaskbarManager.SetOverlayIcon(IntPtr windowHandle, System.Drawing.Icon icon, string accessibilityText) WPF: TaskbarManager.SetOverlayIcon (System.Windows.Window window, System.Drawing.Icon icon, string accessibilityText) WinForms: TaskbarManager.SetOverlayIcon(IntPtr windowHandle, System.Drawing.Icon icon, string accessibilityText) WPF: TaskbarManager.SetOverlayIcon (System.Windows.Window window, System.Drawing.Icon icon, string accessibilityText)

43. WinForms: TaskbarManager.SetProgressState(TaskbarProgr essBarState state, IntPtr windowHandle) WPF: TaskbarManager.SetProgressState(TaskbarProgr essBarState state, System.Windows.Window window) WinForms: TaskbarManager.SetProgressState(TaskbarProgr essBarState state, IntPtr windowHandle) WPF: TaskbarManager.SetProgressState(TaskbarProgr essBarState state, System.Windows.Window window)

50. DwmSetWindowAttribute(...,DWMWA_HAS_ICONIC_BITMAP,...); DwmSetWindowAttribute(...,DWMWA_FORCE_ICONIC_REPRESENTATION,...); /* in the WndProc */ case WM_DWMSENDICONICTHUMBNAIL: HBITMAP hbm =...; DwmSetIconicThumbnail(hwnd, hbm,...); DwmSetWindowAttribute(...,DWMWA_HAS_ICONIC_BITMAP,...); DwmSetWindowAttribute(...,DWMWA_FORCE_ICONIC_REPRESENTATION,...); /* in the WndProc */ case WM_DWMSENDICONICTHUMBNAIL: HBITMAP hbm =...; DwmSetIconicThumbnail(hwnd, hbm,...); TabbedThumbnailManager ttm =...; ttm. AddThumbnailPreview(TabbedThumbnail preview) TabbedThumbnailManager ttm =...; ttm. AddThumbnailPreview(TabbedThumbnail preview)

54. BOOL truth = TRUE; DwmSetWindowAttribute( hwnd, DWMWA_HAS_ICONIC_BITMAP, &truth, sizeof(truth)); DwmSetWindowAttribute( hwnd, DWMWA_FORCE_ICONIC_REPRESENTATION, &truth, sizeof(truth)); BOOL truth = TRUE; DwmSetWindowAttribute( hwnd, DWMWA_HAS_ICONIC_BITMAP, &truth, sizeof(truth)); DwmSetWindowAttribute( hwnd, DWMWA_FORCE_ICONIC_REPRESENTATION, &truth, sizeof(truth));

55. case WM_DWMSENDICONICTHUMBNAIL: width = HIWORD(lParam); height = LOWORD(lParam); hbm = GetBitmap(..., width, height); DwmSetIconicThumbnail(hwnd, hbm, 0); break; case WM_DWMSENDICONICLIVEPREVIEWBITMAP: hbm = GetBitmap(...); DwmSetIconicLivePreviewBitmap(hwnd,hbm,0); break; case WM_DWMSENDICONICTHUMBNAIL: width = HIWORD(lParam); height = LOWORD(lParam); hbm = GetBitmap(..., width, height); DwmSetIconicThumbnail(hwnd, hbm, 0); break; case WM_DWMSENDICONICLIVEPREVIEWBITMAP: hbm = GetBitmap(...); DwmSetIconicLivePreviewBitmap(hwnd,hbm,0); break;
