1. NCNR and NIST Neutron research and probing matter with cold neutrons OR Neutrons ignored no longer!

2. Why would one use neutrons? Neutrons are well suited to probe at the atomic scale. Neutrons are neutral so they do not interact with electrons. Cold neutrons have energies that are close to that of atomic motions (in the milli electron Volt region). Atomic spacing is very close to that of the wavelength of cold neutrons (0.1 to 100 Angstroms). (1 Angstrom, Å, = 1 x10 -10 m) Neutrons are especially good at investigating hydrogen compounds. Neutron scattering is isotope dependent and can identify isotopes by scattering results. The large difference in scattering length between Hydrogen and Deuterium allows both to be used for labelling and/or contrast. (For instance, the scattering length of Deuterium is extremely close to that of C12. So Deuterium can mask C12 and allow Hydrogen to be analyzed.)

3. The Center for High Resolution Neutron Scattering (CHRNS) is a national user facility that is jointly funded by the National Science Foundation (under Agreement Number DMR-0944772) and by the NIST Center for Neutron Research (NCNR).National Science FoundationNIST Center for Neutron Research (NCNR). CHRNS develops and operates state-of-the-art neutron scattering instrumentation with broad applications in materials research for use by the general scientific community. CHRNS instruments can provide structural information on a length scale of 1 nm to ~10 microns, and dynamical information on energy scales from ~30 neV to ~100 meV.dynamical information These are the widest ranges accessible at any neutron research center in North America. The instruments are used by university, government and industrial researchers in materials science, chemistry, biology and condensed matter physics to investigate materials such as polymers, metals, ceramics, magnetic materials, porous media, fluids and gels, and biological molecules. (Accessed from http://www.ncnr.nist.gov/programs/CHRNS/) The Center For High Resolution Neutron Scattering (CHRNS)

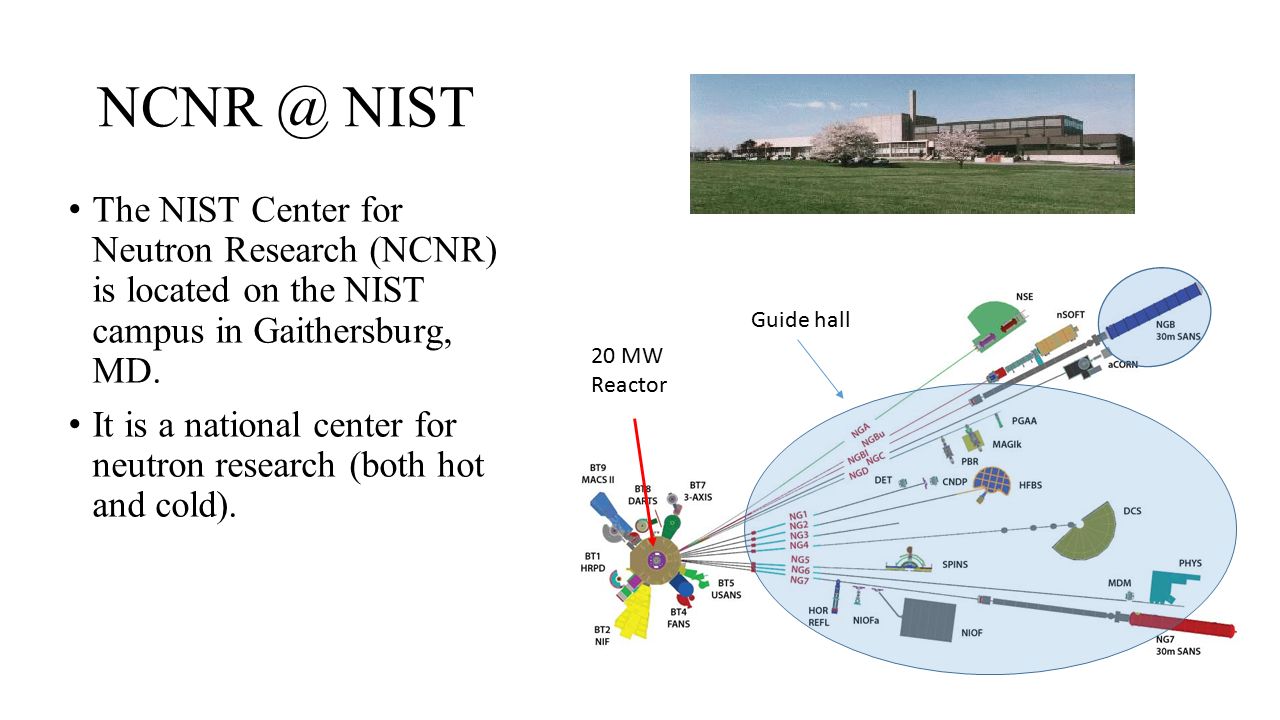

4. NCNR @ NIST The NIST Center for Neutron Research (NCNR) is located on the NIST campus in Gaithersburg, MD. It is a national center for neutron research (both hot and cold). 20 MW Reactor Guide hall

5. NGB SANS 30 m instrument This instrument is installed on a split neutron guide (NG). Designed to cover a wide range of scattering, it is suitable for examining structural features in materials ranging from roughly 1 nm to 500 nm. The neutron wavelength, resolution and effective instrument length are all under user control. Direction of neutron flight

7. Specifications / Capabilities Specifications / Capabilities: Q-Range0.015 nm -1 to 6.0 nm -1 Size Regime1 nm to 500 nm Source Neutron Guide (NG-B), cross-section: 60 mm x 60 mm, providing 4 x 10 14 neutrons/cm 2 sec MonochromatorMechanical velocity selector with variable speed and pitch Wavelength Range5.0 Å to 20.0 Å Wavelength Resolution10% to 30% Δλ/λ Source-to-Sample Distance4 m to 16 m in 1.5m steps via insertion of guide sections CollimationCircular pinhole collimation Sample Size0 mm to 25 mm diameter Sample-to-Detector Distance1.3 m to 13.1 m continuously variable Detector 640 mm x 640 mm 3 He position-sensitive proportional counter with a 5.08 mm x 5.08 mm resolution :

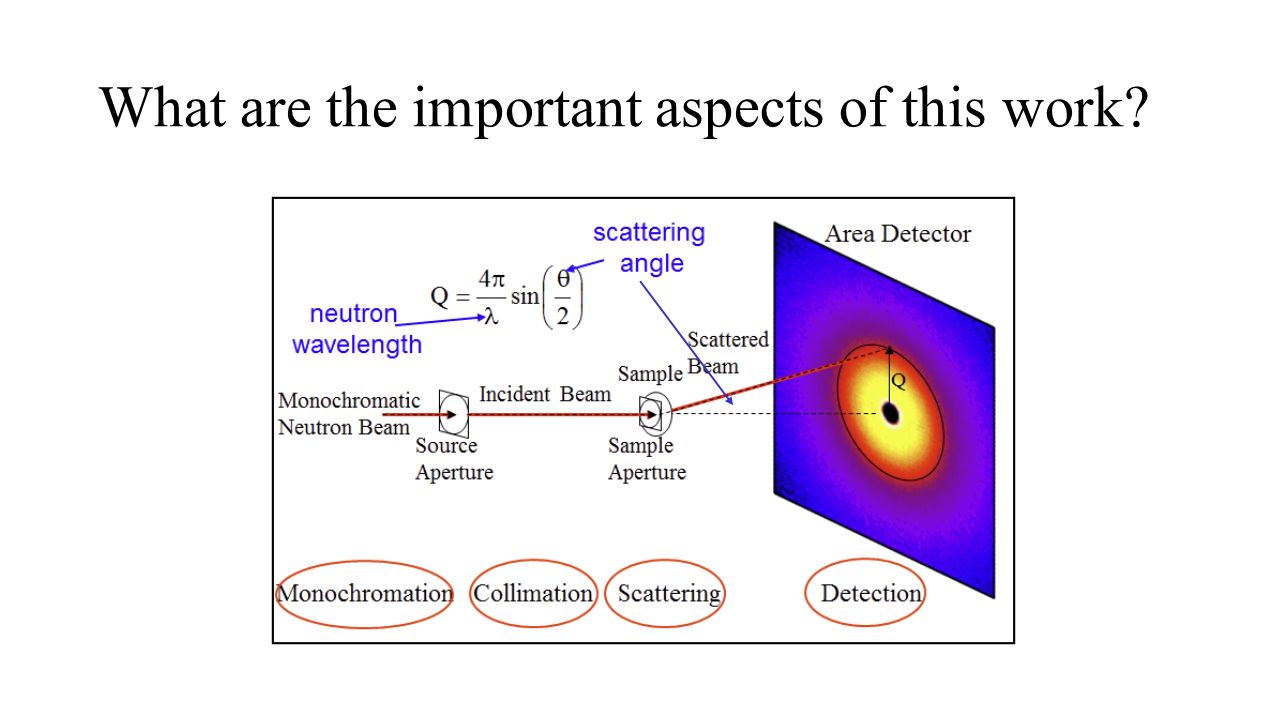

8. What are the important aspects of this work?

9. What is Q? Q (or q) is the scattering vector, and it is related to the change in momentum of the scattered neutron. We can represent the momentum of the neutrons as p, and its relationship to k, with the equation: p = mv = ħk, where m is mass, v is velocity, ħ is Planck’s constant divided by 2π, and k is a wave vector. The change in ħk (or simply k) is represented as Q. (Q = ħk f – ħk i ) Q is inversely proportional to the scattering angle, so the units of Q are inverse length and are often shown as nm -1 or Å -1. credit: http://iramis.cea.fr/scm/lions/techniques/saxs/

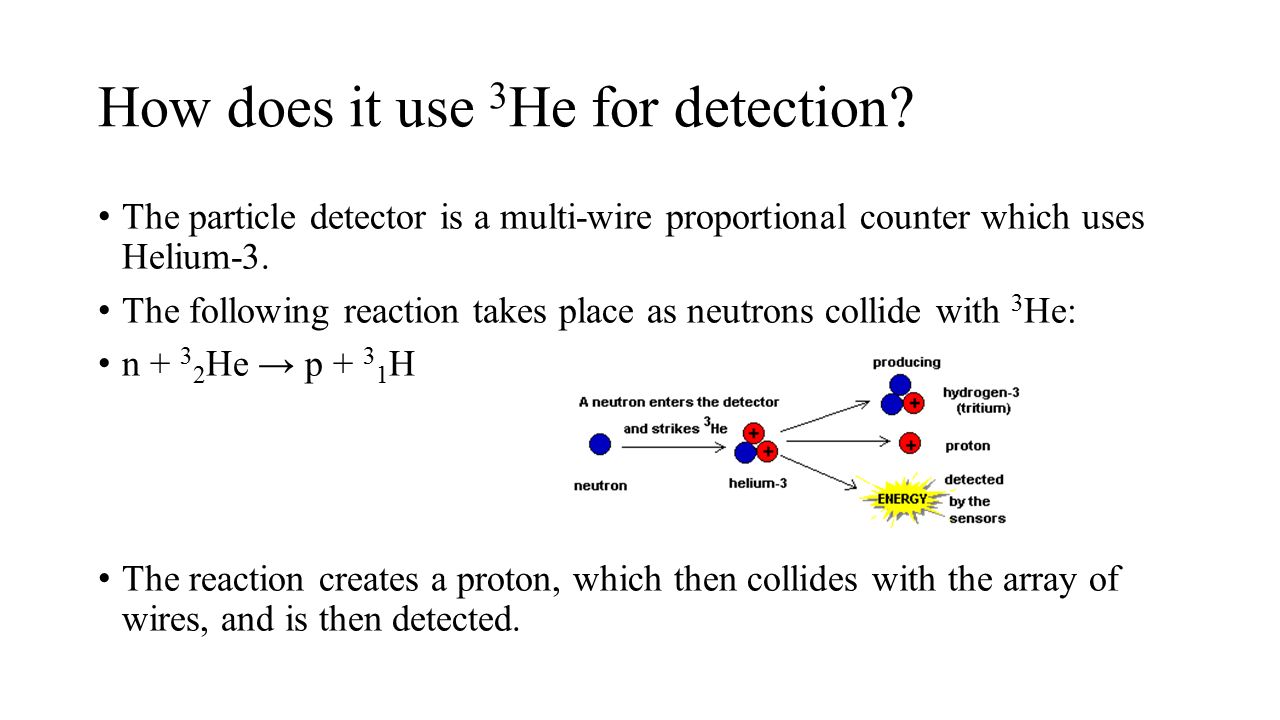

10. How does it use 3 He for detection? The particle detector is a multi-wire proportional counter which uses Helium-3. The following reaction takes place as neutrons collide with 3 He: n + 3 2 He → p + 3 1 H The reaction creates a proton, which then collides with the array of wires, and is then detected.

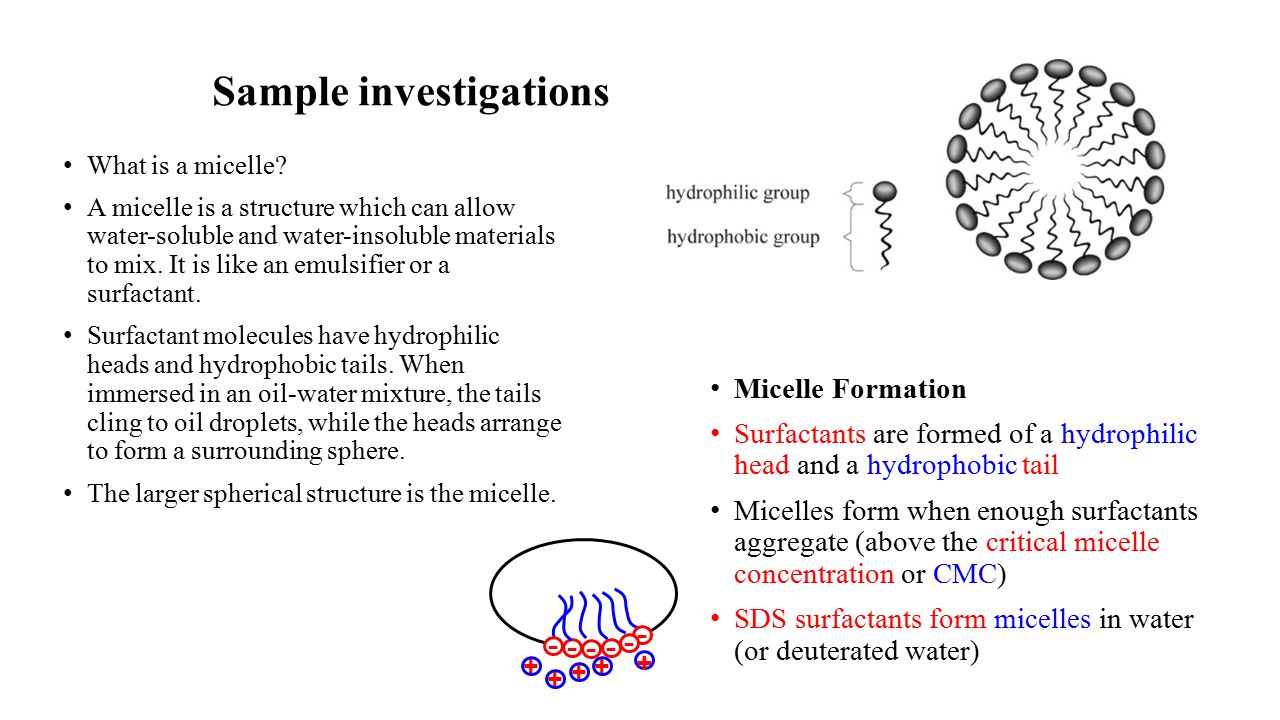

11. Sample investigations - - - - - - + + + + + Micelle Formation Surfactants are formed of a hydrophilic head and a hydrophobic tail Micelles form when enough surfactants aggregate (above the critical micelle concentration or CMC) SDS surfactants form micelles in water (or deuterated water) What is a micelle? A micelle is a structure which can allow water-soluble and water-insoluble materials to mix. It is like an emulsifier or a surfactant. Surfactant molecules have hydrophilic heads and hydrophobic tails. When immersed in an oil-water mixture, the tails cling to oil droplets, while the heads arrange to form a surrounding sphere. The larger spherical structure is the micelle.

12. Diffraction and intensity Picture a (top) shows a diffracted neutron beam (with the center obscured) Picture b (bottom) shows a graph of intensity (y axis) vs Q (x axis). Its not a perfect picture, but it shows how the diffraction patterns can be shown as I vs Q. Most intense along the center Decreasing intensity moving away from the center

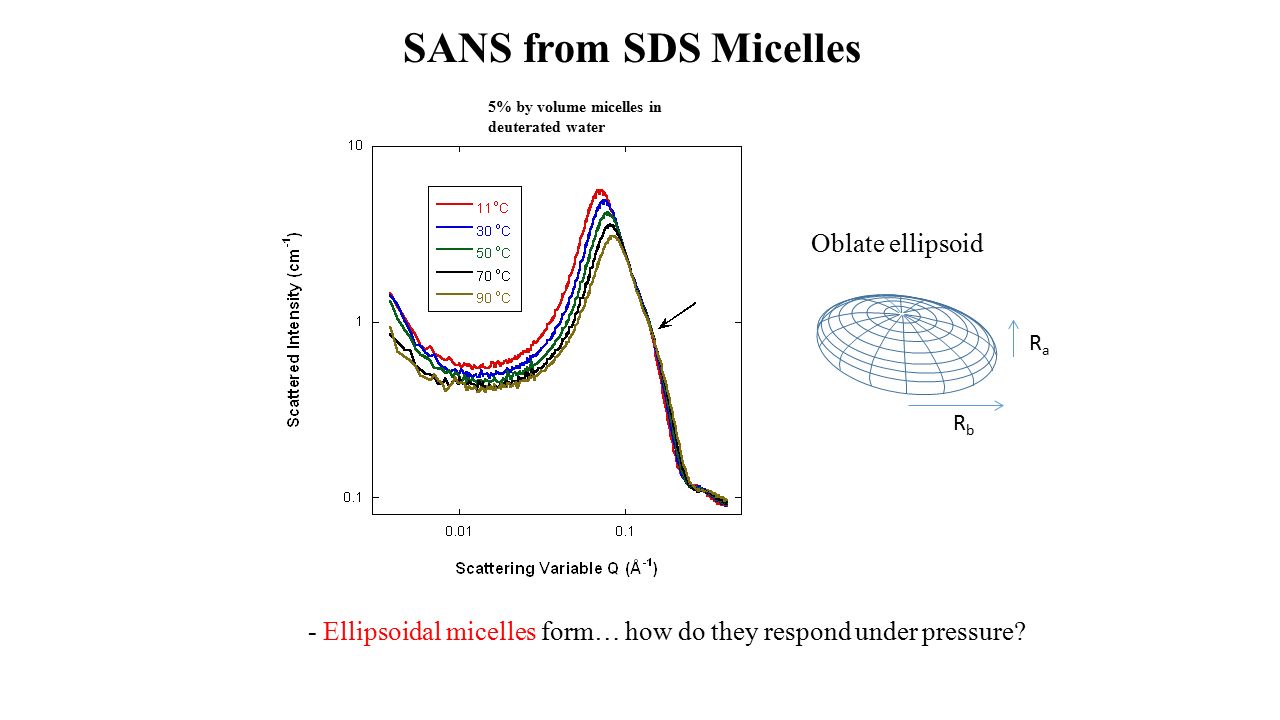

13. SANS from SDS Micelles - Ellipsoidal micelles form… how do they respond under pressure? RaRa RbRb Oblate ellipsoid 5% by volume micelles in deuterated water

14. Ellipsoid Micelles Model Fit - Power law (low-Q) + ellipsoidal micelles (high-Q) model fits well

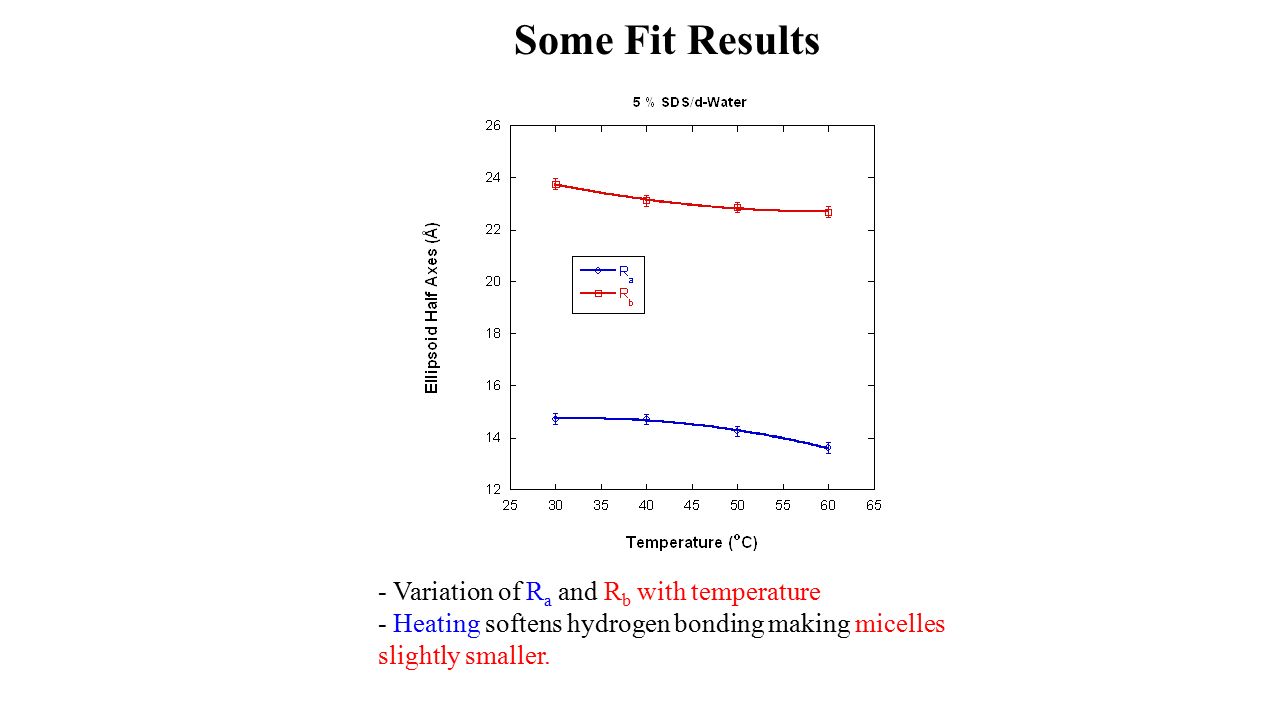

15. - Variation of R a and R b with temperature - Heating softens hydrogen bonding making micelles slightly smaller. Some Fit Results

16. Under Pressure - Ellipsoidal micelles become more spherical under pressure RaRa RbRb

17. Other instruments at NCNR Ultra-High Resolution SANS (USANS) Multi Axis Crystal Spectrometer (MACS) Backscattering Spectrometer (HFBS) Spin-Echo Spectrometer (NSE) And don’t forget about VSANS (very small angle neutron scattering) and TR SANS (time resolved small angle neutron scattering)!!

18. The takeaway Neutrons can act as excellent probes for atomic-level spacing in a wide variety of materials (polymers, ceramics, metals, biological materials). Neutrons only interact with the nuclei and not the electrons. This makes them quite different from X rays (and also allows them to differentiate between isotopes). Neutrons do not damage the samples! Various techniques (contrast matching) can make solvents such as heavy water (or other elements) effectively invisible, allowing a better picture of the sample and not the solvent. A wide variety of research is underway at NIST and NCNR in this field.
