1
Basics Copyright © Software Carpentry 2010 This work is licensed under the Creative Commons Attribution License See http://software-carpentry.org/license.html for more information. Matrix Programming
2

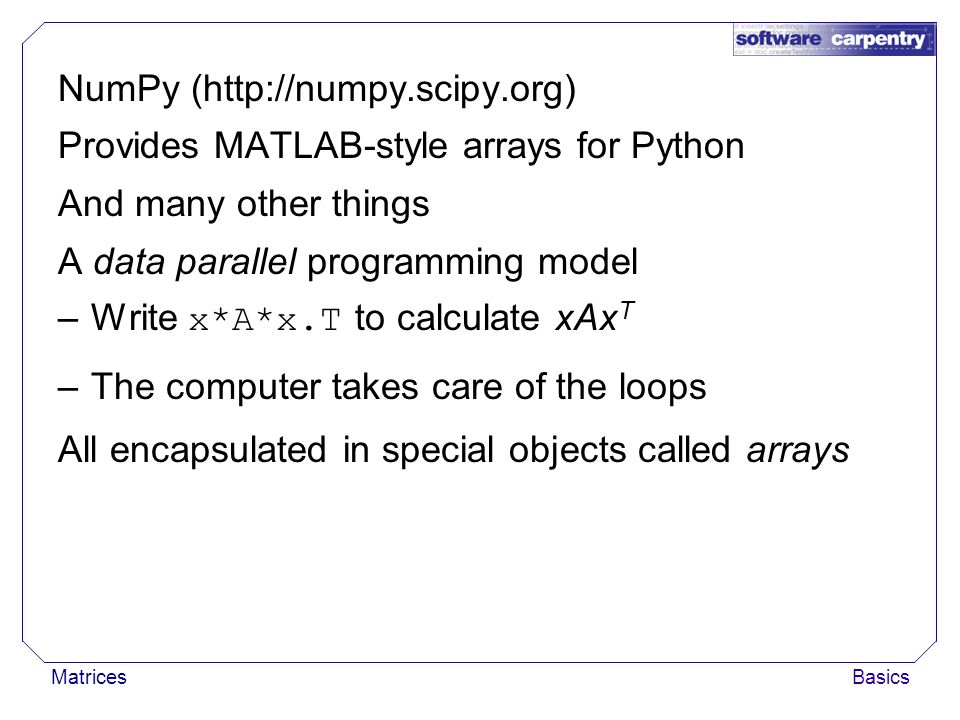

MatricesBasics NumPy (http://numpy.scipy.org) Provides MATLAB-style arrays for Python And many other things A data parallel programming model –Write x*A*x.T to calculate xAx T –The computer takes care of the loops All encapsulated in special objects called arrays
3
MatricesBasics Create an array from a list >>> import numpy >>> vals = [1, 2, 3] >>> arr = numpy.array(vals) >>> arr array([1, 2, 3])
![MatricesBasics Create an array from a list >>> import numpy >>> vals = [1, 2, 3] >>> arr = numpy.array(vals) >>> arr array([1, 2, 3])](http://images.slideplayer.com/27/9064235/slides/slide_3.jpg "MatricesBasics Create an array from a list >>> import numpy >>> vals = [1, 2, 3] >>> arr = numpy.array(vals) >>> arr array([1, 2, 3])")
4

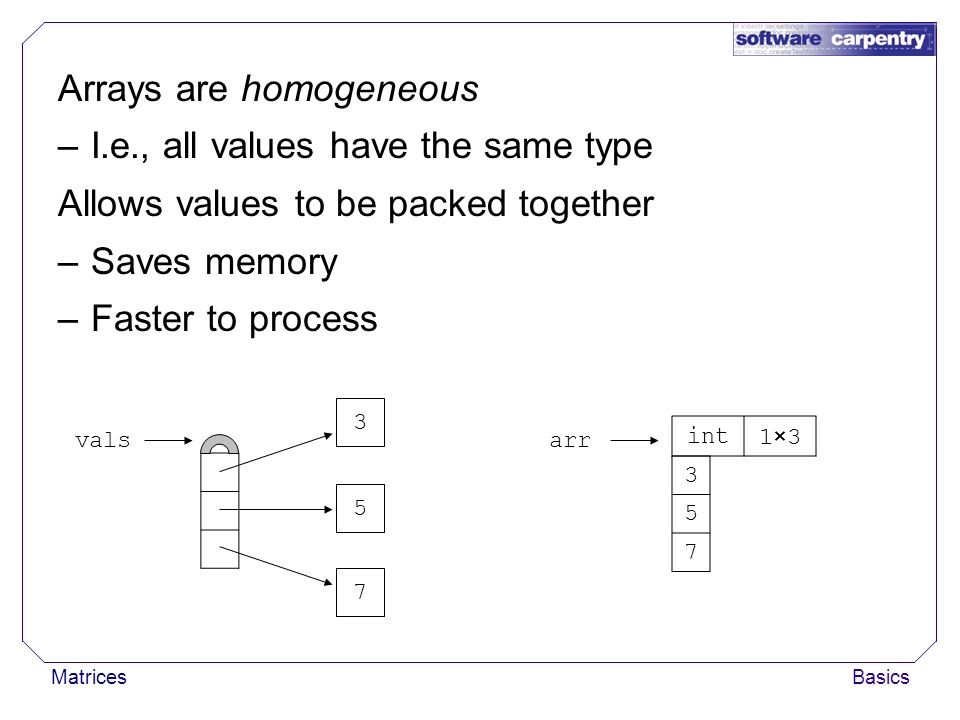

MatricesBasics Arrays are homogeneous –I.e., all values have the same type Allows values to be packed together –Saves memory –Faster to process 7 3 5 valsarr 3 5 7 int1×3
5
MatricesBasics So what does this do? >>> arr = numpy.array([1, 2.3]) >>> arr array([1., 2.3]) A float, not an int
6

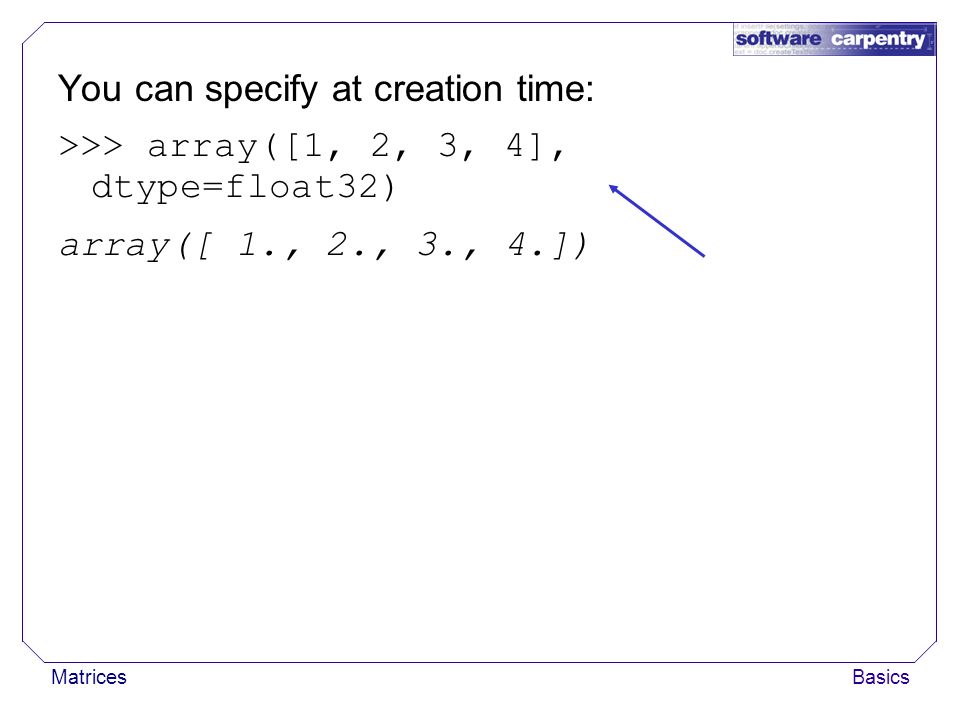

MatricesBasics You can specify at creation time: >>> array([1, 2, 3, 4], dtype=float32) array([ 1., 2., 3., 4.])
![MatricesBasics You can specify at creation time: >>> array([1, 2, 3, 4], dtype=float32) array([ 1., 2., 3., 4.])](http://images.slideplayer.com/27/9064235/slides/slide_6.jpg "MatricesBasics You can specify at creation time: >>> array([1, 2, 3, 4], dtype=float32) array([ 1., 2., 3., 4.])")

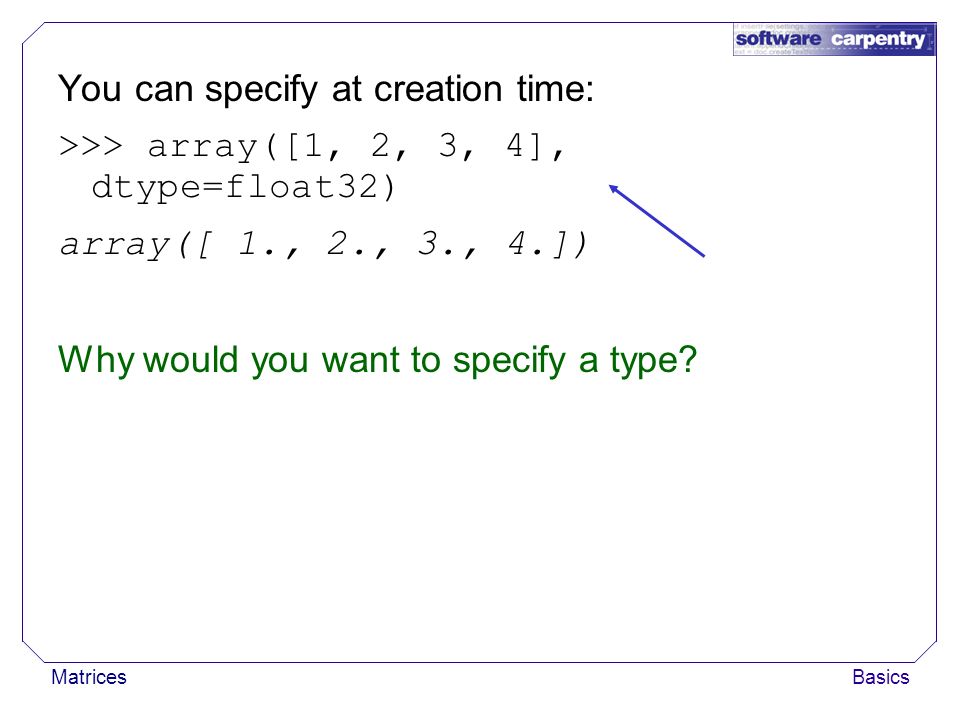

7
MatricesBasics You can specify at creation time: >>> array([1, 2, 3, 4], dtype=float32) array([ 1., 2., 3., 4.]) Why would you want to specify a type?
![MatricesBasics You can specify at creation time: >>> array([1, 2, 3, 4], dtype=float32) array([ 1., 2., 3., 4.]) Why would you want to specify a type](http://images.slideplayer.com/27/9064235/slides/slide_7.jpg "MatricesBasics You can specify at creation time: >>> array([1, 2, 3, 4], dtype=float32) array([ 1., 2., 3., 4.]) Why would you want to specify a type")
8

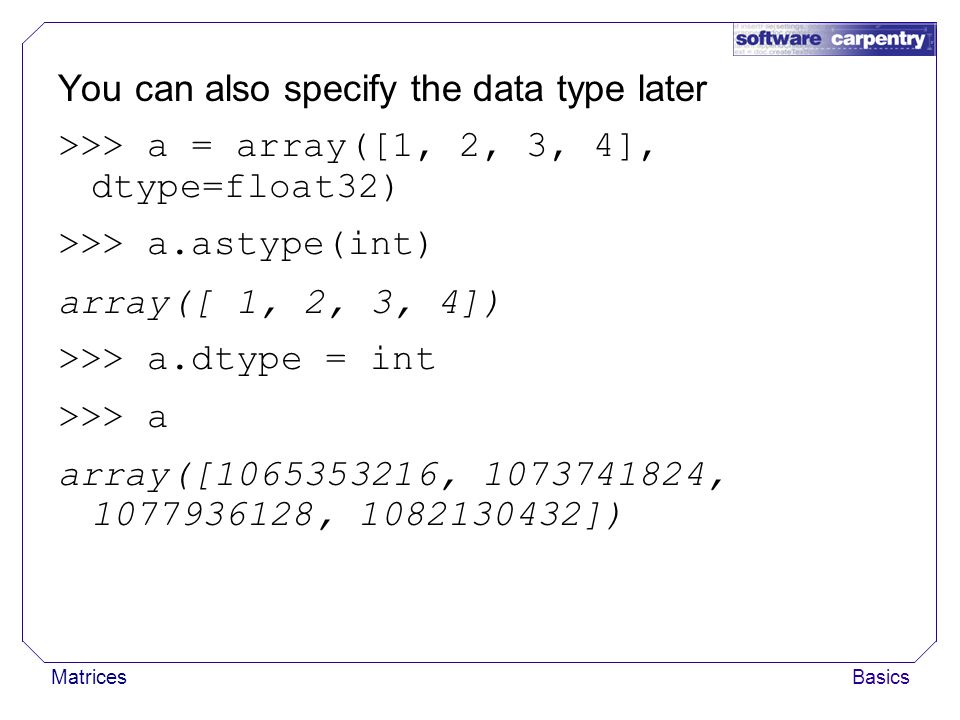

MatricesBasics You can also specify the data type later >>> a = array([1, 2, 3, 4], dtype=float32) >>> a.astype(int) array([ 1, 2, 3, 4]) >>> a.dtype = int >>> a array([1065353216, 1073741824, 1077936128, 1082130432])
![MatricesBasics You can also specify the data type later >>> a = array([1, 2, 3, 4], dtype=float32) >>> a.astype(int) array([ 1, 2, 3, 4]) >>> a.dtype = int >>> a array([ , , , ])](http://images.slideplayer.com/27/9064235/slides/slide_8.jpg "MatricesBasics You can also specify the data type later >>> a = array([1, 2, 3, 4], dtype=float32) >>> a.astype(int) array([ 1, 2, 3, 4]) >>> a.dtype = int >>> a array([ , , , ])")
9

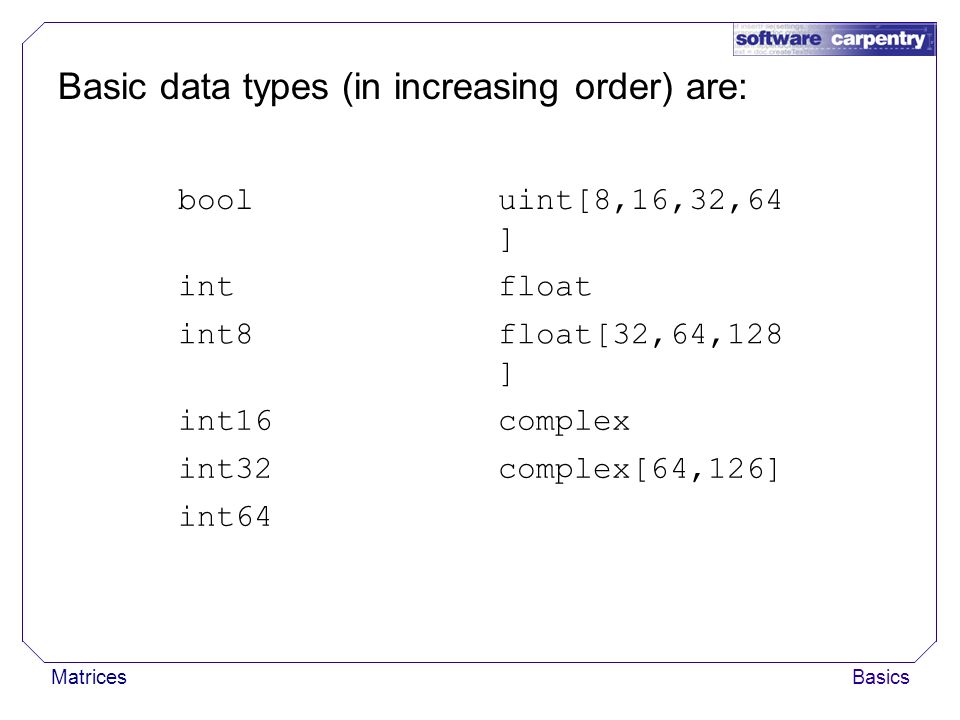

MatricesBasics booluint[8,16,32,64 ] intfloat int8float[32,64,128 ] int16complex int32complex[64,126] int64 Basic data types (in increasing order) are:
![MatricesBasics booluint[8,16,32,64 ] intfloat int8float[32,64,128 ] int16complex int32complex[64,126] int64 Basic data types (in increasing order) are:](http://images.slideplayer.com/27/9064235/slides/slide_9.jpg "MatricesBasics booluint[8,16,32,64 ] intfloat int8float[32,64,128 ] int16complex int32complex[64,126] int64 Basic data types (in increasing order) are:")
10

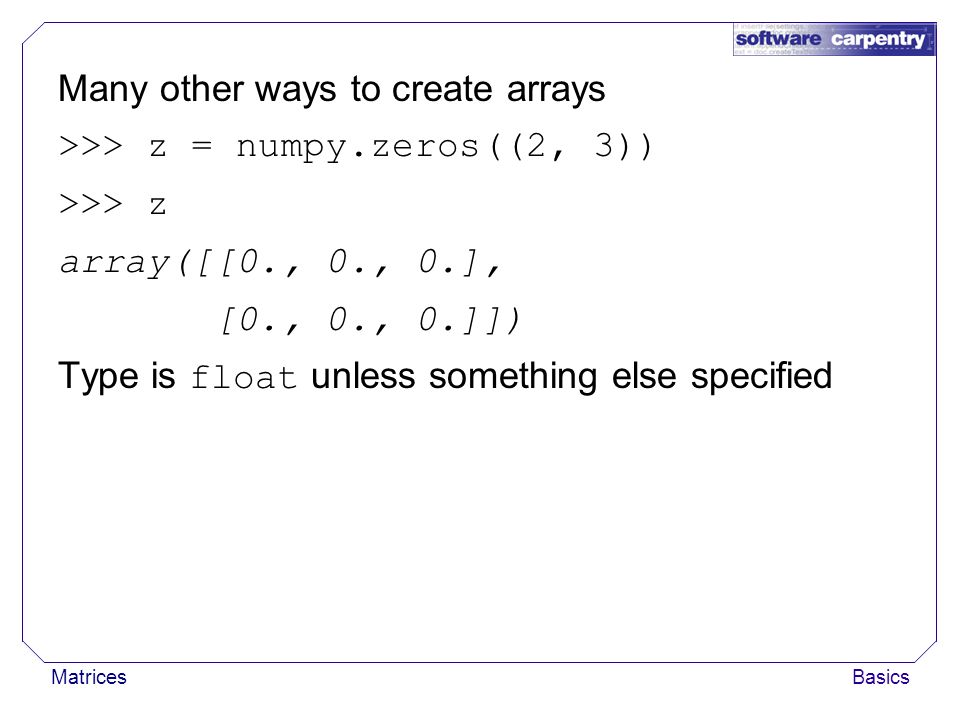

MatricesBasics Many other ways to create arrays >>> z = numpy.zeros((2, 3)) >>> z array([[0., 0., 0.], [0., 0., 0.]]) Type is float unless something else specified
![MatricesBasics Many other ways to create arrays >>> z = numpy.zeros((2, 3)) >>> z array([[0., 0., 0.], [0., 0., 0.]]) Type is float unless something else specified](http://images.slideplayer.com/27/9064235/slides/slide_10.jpg "MatricesBasics Many other ways to create arrays >>> z = numpy.zeros((2, 3)) >>> z array([[0., 0., 0.], [0., 0., 0.]]) Type is float unless something else specified")

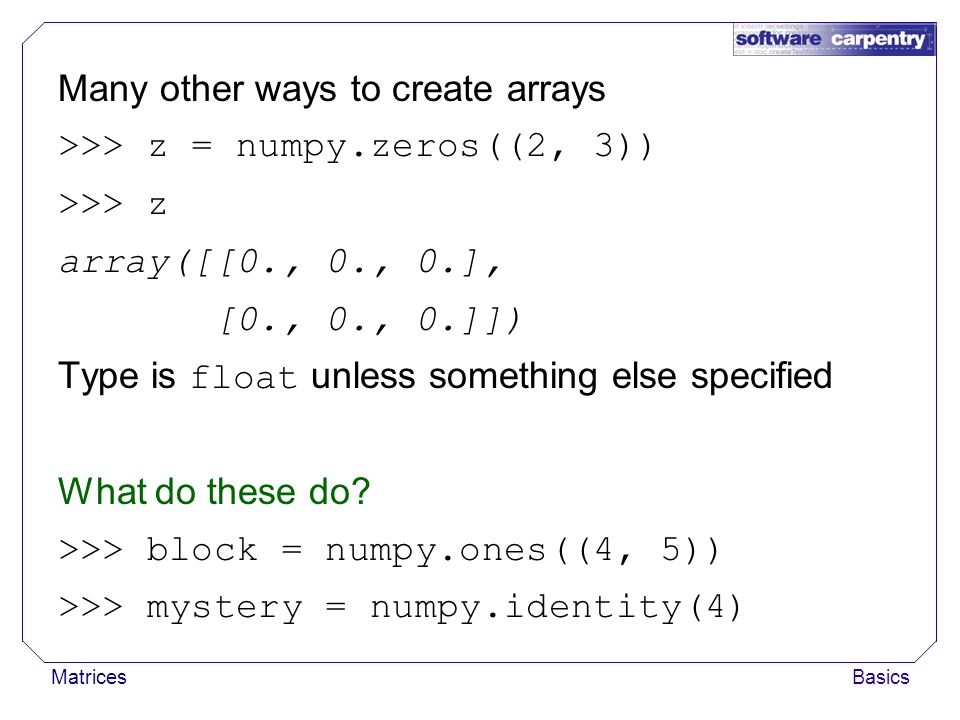

11
MatricesBasics Many other ways to create arrays >>> z = numpy.zeros((2, 3)) >>> z array([[0., 0., 0.], [0., 0., 0.]]) Type is float unless something else specified What do these do? >>> block = numpy.ones((4, 5)) >>> mystery = numpy.identity(4)
![MatricesBasics Many other ways to create arrays >>> z = numpy.zeros((2, 3)) >>> z array([[0., 0., 0.], [0., 0., 0.]]) Type is float unless something else specified What do these do.](http://images.slideplayer.com/27/9064235/slides/slide_11.jpg ">>> block = numpy.ones((4, 5)) >>> mystery = numpy.identity(4).")

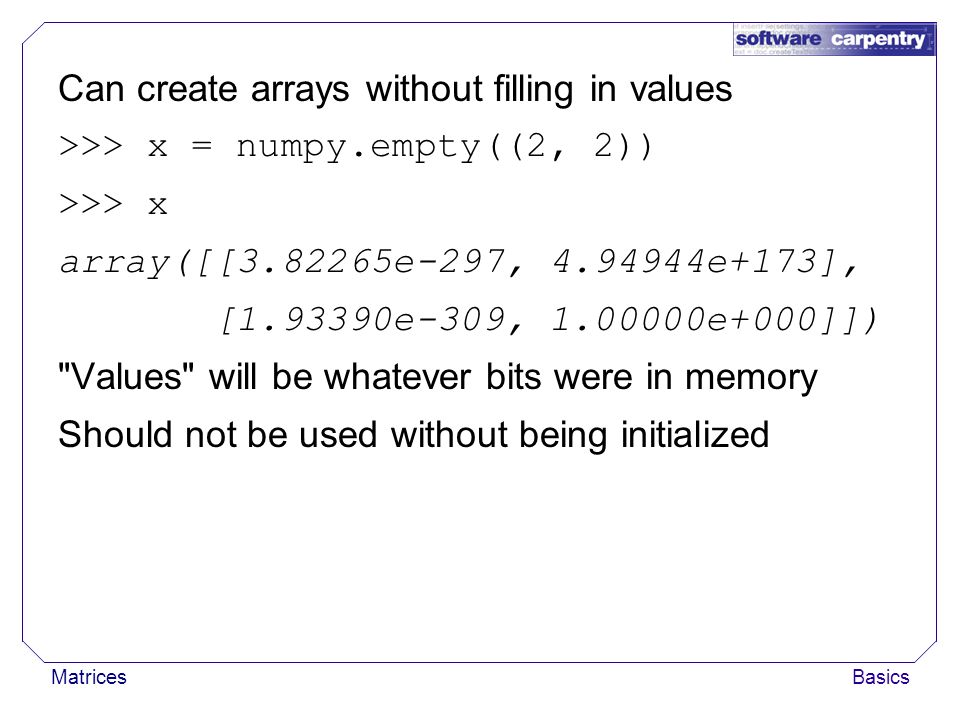

12
MatricesBasics Can create arrays without filling in values >>> x = numpy.empty((2, 2)) >>> x array([[3.82265e-297, 4.94944e+173], [1.93390e-309, 1.00000e+000]]) "Values" will be whatever bits were in memory Should not be used without being initialized
![MatricesBasics Can create arrays without filling in values >>> x = numpy.empty((2, 2)) >>> x array([[ e-297, e+173], [ e-309, e+000]]) Values will be whatever bits were in memory Should not be used without being initialized](http://images.slideplayer.com/27/9064235/slides/slide_12.jpg "MatricesBasics Can create arrays without filling in values >>> x = numpy.empty((2, 2)) >>> x array([[ e-297, e+173], [ e-309, e+000]]) Values will be whatever bits were in memory Should not be used without being initialized")
13

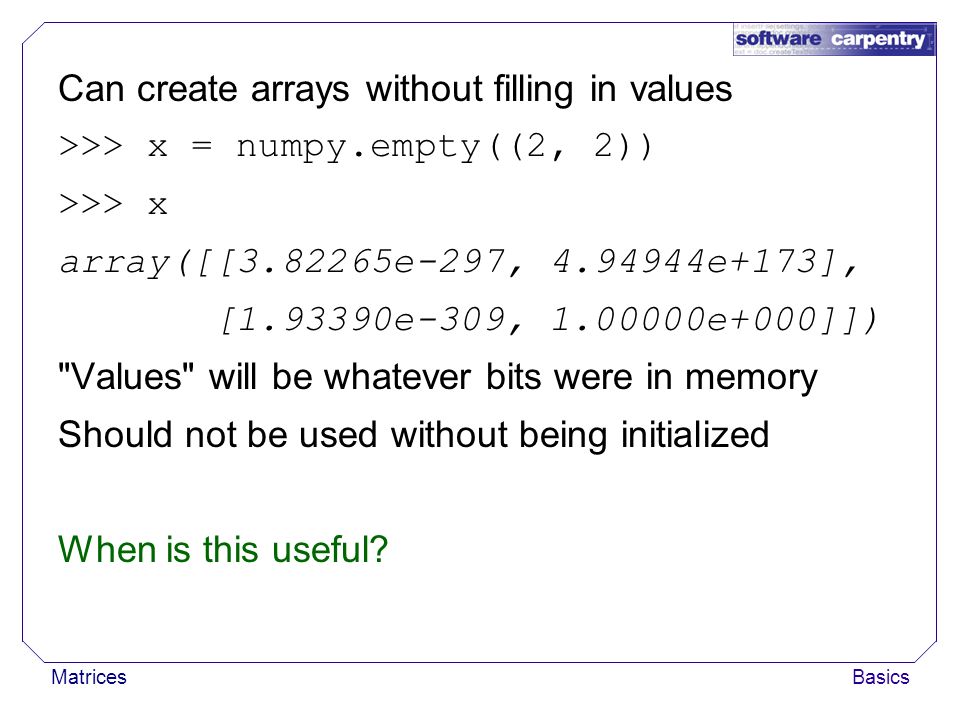

MatricesBasics Can create arrays without filling in values >>> x = numpy.empty((2, 2)) >>> x array([[3.82265e-297, 4.94944e+173], [1.93390e-309, 1.00000e+000]]) "Values" will be whatever bits were in memory Should not be used without being initialized When is this useful?
![MatricesBasics Can create arrays without filling in values >>> x = numpy.empty((2, 2)) >>> x array([[ e-297, e+173], [ e-309, e+000]]) Values will be whatever bits were in memory Should not be used without being initialized When is this useful](http://images.slideplayer.com/27/9064235/slides/slide_13.jpg "MatricesBasics Can create arrays without filling in values >>> x = numpy.empty((2, 2)) >>> x array([[ e-297, e+173], [ e-309, e+000]]) Values will be whatever bits were in memory Should not be used without being initialized When is this useful")
14

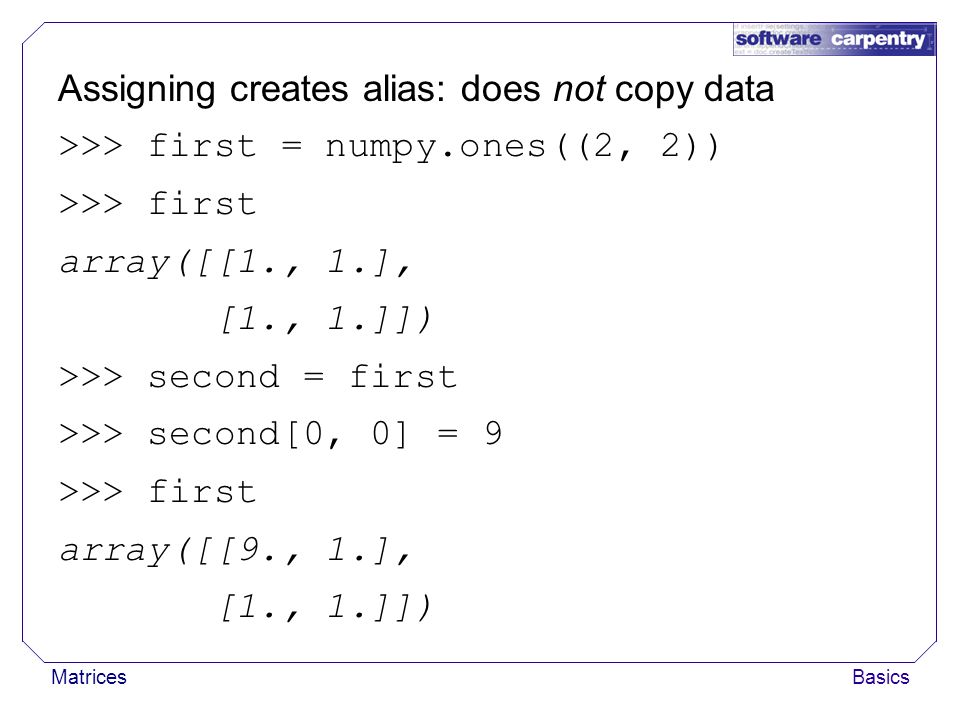

MatricesBasics Assigning creates alias: does not copy data >>> first = numpy.ones((2, 2)) >>> first array([[1., 1.], [1., 1.]]) >>> second = first >>> second[0, 0] = 9 >>> first array([[9., 1.], [1., 1.]])
![MatricesBasics Assigning creates alias: does not copy data >>> first = numpy.ones((2, 2)) >>> first array([[1., 1.], [1., 1.]]) >>> second = first >>> second[0, 0] = 9 >>> first array([[9., 1.], [1., 1.]])](http://images.slideplayer.com/27/9064235/slides/slide_14.jpg "MatricesBasics Assigning creates alias: does not copy data >>> first = numpy.ones((2, 2)) >>> first array([[1., 1.], [1., 1.]]) >>> second = first >>> second[0, 0] = 9 >>> first array([[9., 1.], [1., 1.]])")
15

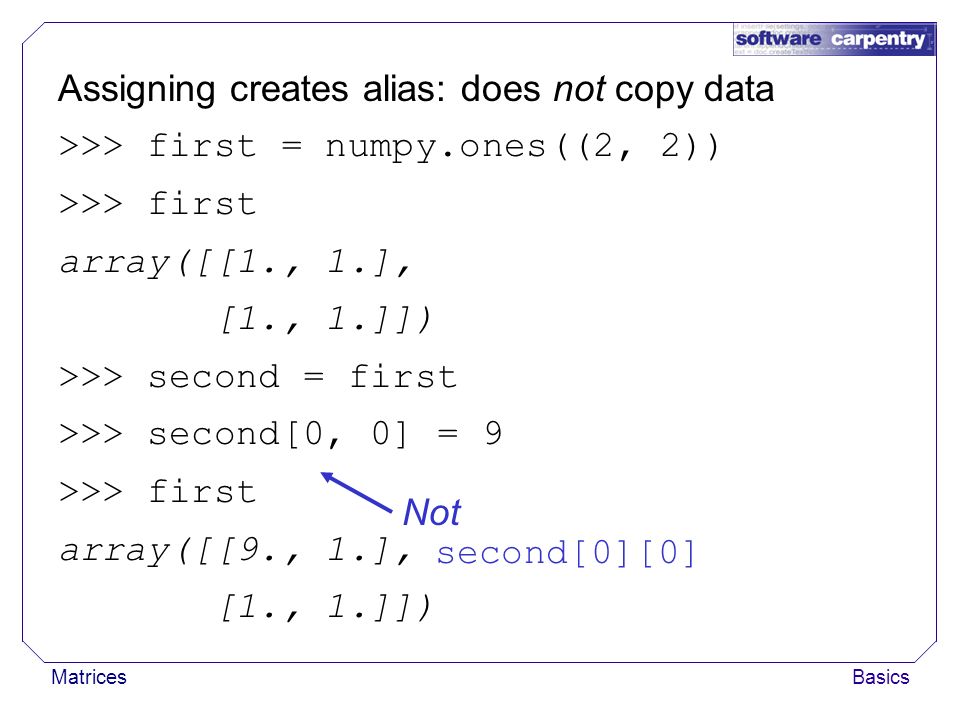

MatricesBasics Assigning creates alias: does not copy data >>> first = numpy.ones((2, 2)) >>> first array([[1., 1.], [1., 1.]]) >>> second = first >>> second[0, 0] = 9 >>> first array([[9., 1.], [1., 1.]]) Not second[0][0]
![MatricesBasics Assigning creates alias: does not copy data >>> first = numpy.ones((2, 2)) >>> first array([[1., 1.], [1., 1.]]) >>> second = first >>> second[0, 0] = 9 >>> first array([[9., 1.], [1., 1.]]) Not second[0][0]](http://images.slideplayer.com/27/9064235/slides/slide_15.jpg "MatricesBasics Assigning creates alias: does not copy data >>> first = numpy.ones((2, 2)) >>> first array([[1., 1.], [1., 1.]]) >>> second = first >>> second[0, 0] = 9 >>> first array([[9., 1.], [1., 1.]]) Not second[0][0]")

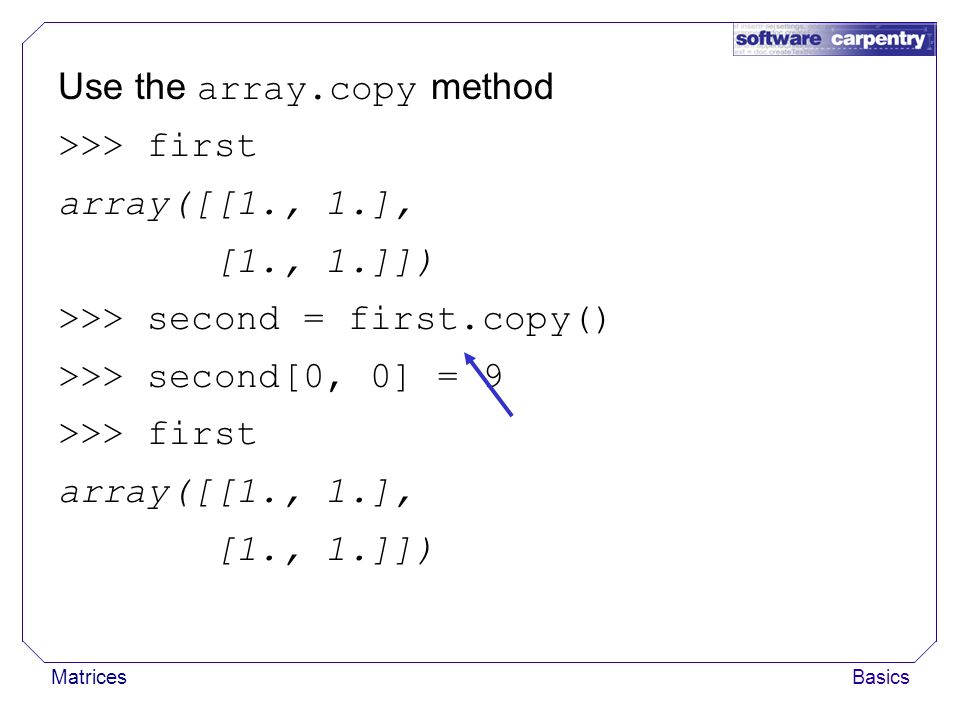

16
MatricesBasics Use the array.copy method >>> first array([[1., 1.], [1., 1.]]) >>> second = first.copy() >>> second[0, 0] = 9 >>> first array([[1., 1.], [1., 1.]])
![MatricesBasics Use the array.copy method >>> first array([[1., 1.], [1., 1.]]) >>> second = first.copy() >>> second[0, 0] = 9 >>> first array([[1., 1.], [1., 1.]])](http://images.slideplayer.com/27/9064235/slides/slide_16.jpg "MatricesBasics Use the array.copy method >>> first array([[1., 1.], [1., 1.]]) >>> second = first.copy() >>> second[0, 0] = 9 >>> first array([[1., 1.], [1., 1.]])")

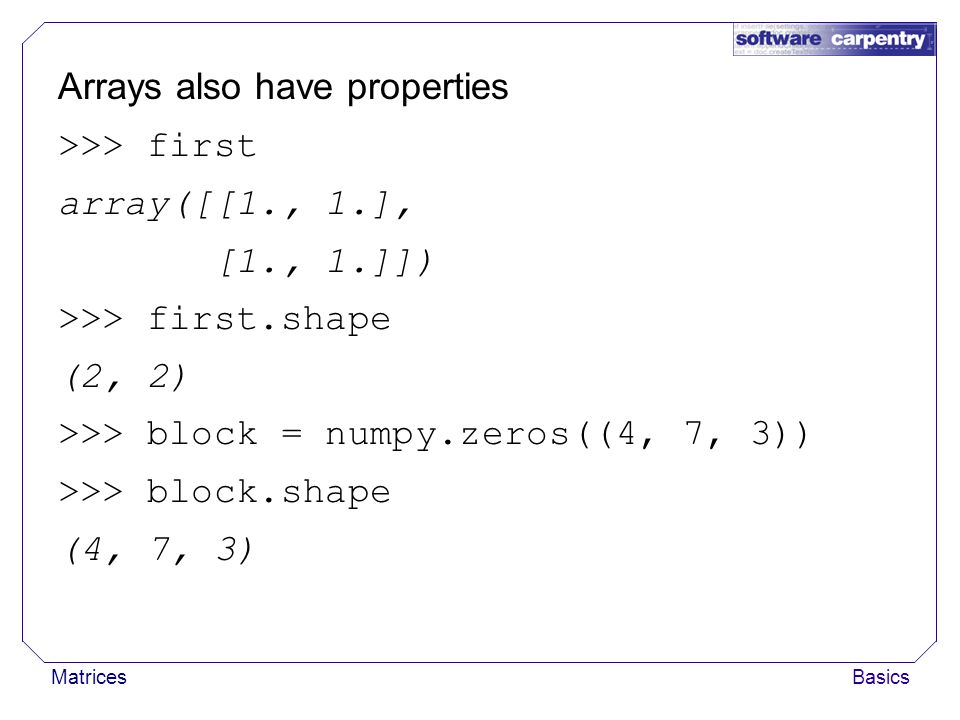

17
MatricesBasics Arrays also have properties >>> first array([[1., 1.], [1., 1.]]) >>> first.shape (2, 2) >>> block = numpy.zeros((4, 7, 3)) >>> block.shape (4, 7, 3)
![MatricesBasics Arrays also have properties >>> first array([[1., 1.], [1., 1.]]) >>> first.shape (2, 2) >>> block = numpy.zeros((4, 7, 3)) >>> block.shape (4, 7, 3)](http://images.slideplayer.com/27/9064235/slides/slide_17.jpg "MatricesBasics Arrays also have properties >>> first array([[1., 1.], [1., 1.]]) >>> first.shape (2, 2) >>> block = numpy.zeros((4, 7, 3)) >>> block.shape (4, 7, 3)")
18
MatricesBasics Arrays also have properties >>> first array([[1., 1.], [1., 1.]]) >>> first.shape (2, 2) >>> block = numpy.zeros((4, 7, 3)) >>> block.shape (4, 7, 3) Not a method
![MatricesBasics Arrays also have properties >>> first array([[1., 1.], [1., 1.]]) >>> first.shape (2, 2) >>> block = numpy.zeros((4, 7, 3)) >>> block.shape (4, 7, 3) Not a method](http://images.slideplayer.com/27/9064235/slides/slide_18.jpg "MatricesBasics Arrays also have properties >>> first array([[1., 1.], [1., 1.]]) >>> first.shape (2, 2) >>> block = numpy.zeros((4, 7, 3)) >>> block.shape (4, 7, 3) Not a method")
19

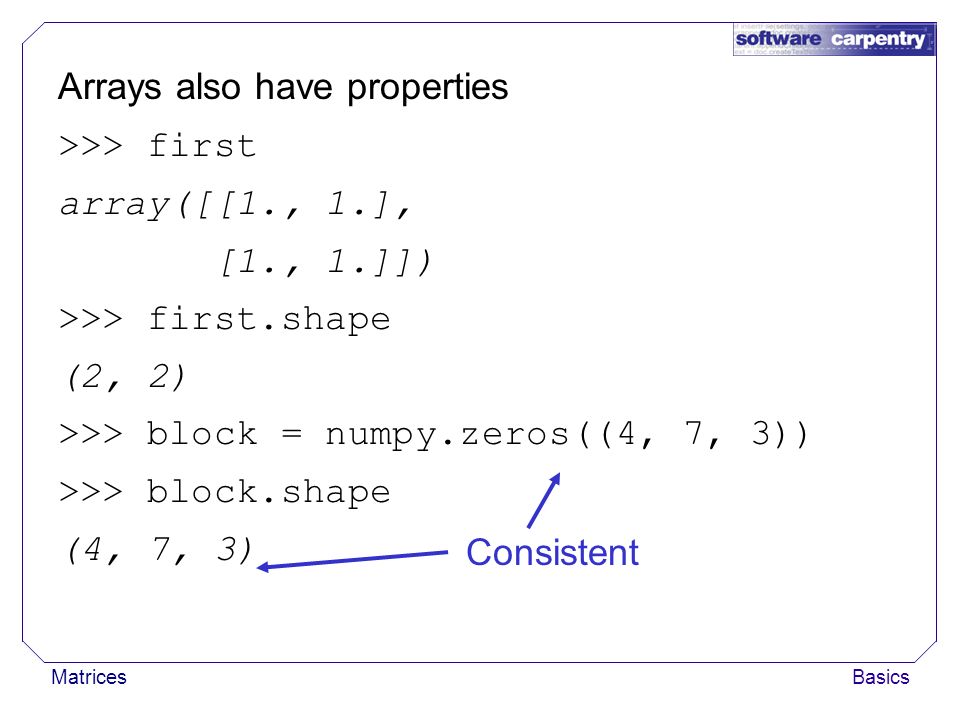

MatricesBasics Arrays also have properties >>> first array([[1., 1.], [1., 1.]]) >>> first.shape (2, 2) >>> block = numpy.zeros((4, 7, 3)) >>> block.shape (4, 7, 3) Consistent
![MatricesBasics Arrays also have properties >>> first array([[1., 1.], [1., 1.]]) >>> first.shape (2, 2) >>> block = numpy.zeros((4, 7, 3)) >>> block.shape (4, 7, 3) Consistent](http://images.slideplayer.com/27/9064235/slides/slide_19.jpg "MatricesBasics Arrays also have properties >>> first array([[1., 1.], [1., 1.]]) >>> first.shape (2, 2) >>> block = numpy.zeros((4, 7, 3)) >>> block.shape (4, 7, 3) Consistent")

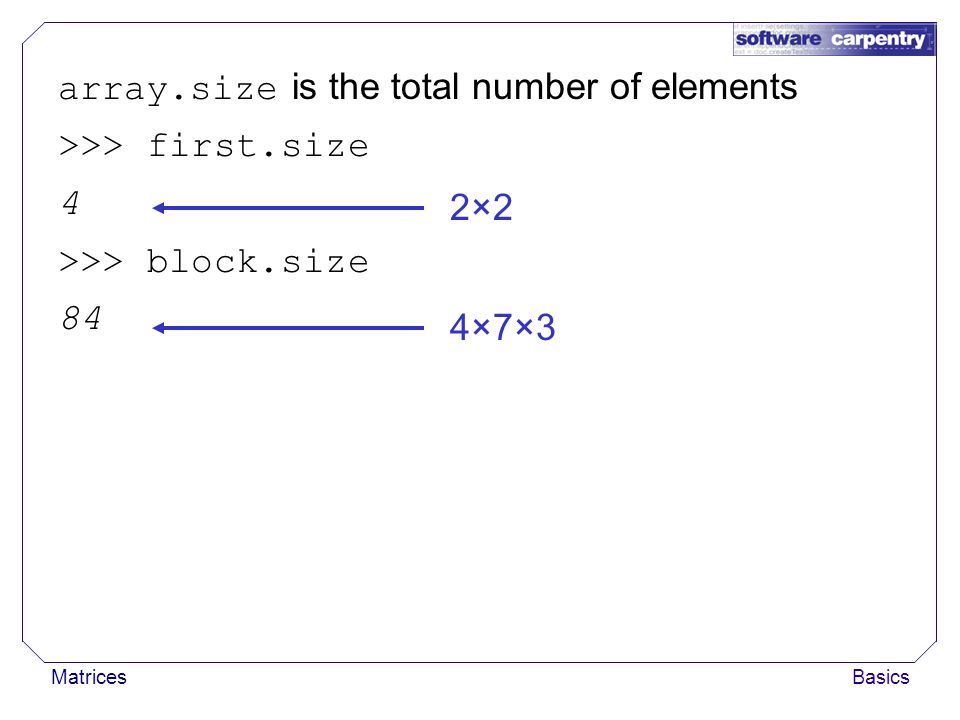

20
MatricesBasics array.size is the total number of elements >>> first.size 4 >>> block.size 84 2×2 4×7×3

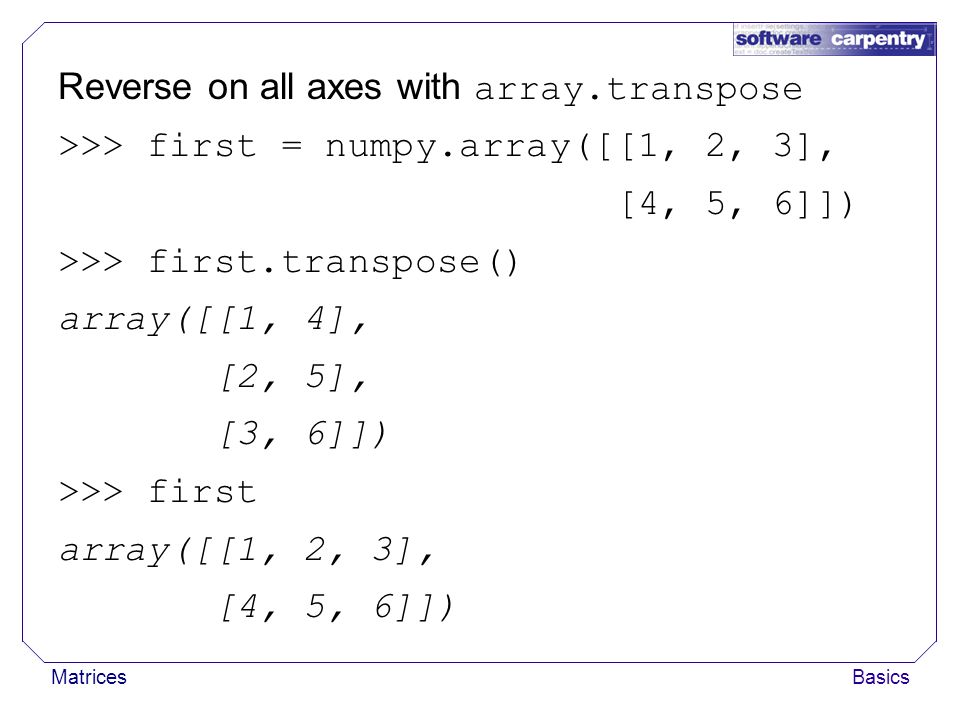

21
MatricesBasics Reverse on all axes with array.transpose >>> first = numpy.array([[1, 2, 3], [4, 5, 6]]) >>> first.transpose() array([[1, 4], [2, 5], [3, 6]]) >>> first array([[1, 2, 3], [4, 5, 6]])
![MatricesBasics Reverse on all axes with array.transpose >>> first = numpy.array([[1, 2, 3], [4, 5, 6]]) >>> first.transpose() array([[1, 4], [2, 5], [3, 6]]) >>> first array([[1, 2, 3], [4, 5, 6]])](http://images.slideplayer.com/27/9064235/slides/slide_21.jpg "MatricesBasics Reverse on all axes with array.transpose >>> first = numpy.array([[1, 2, 3], [4, 5, 6]]) >>> first.transpose() array([[1, 4], [2, 5], [3, 6]]) >>> first array([[1, 2, 3], [4, 5, 6]])")
22

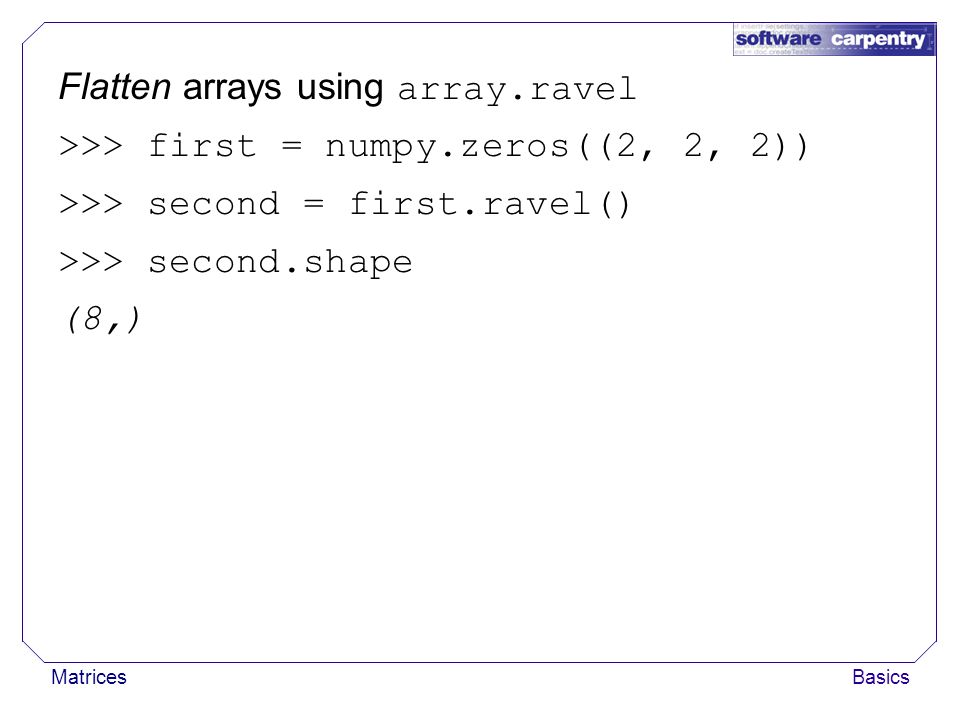

MatricesBasics Flatten arrays using array.ravel >>> first = numpy.zeros((2, 2, 2)) >>> second = first.ravel() >>> second.shape (8,)
23

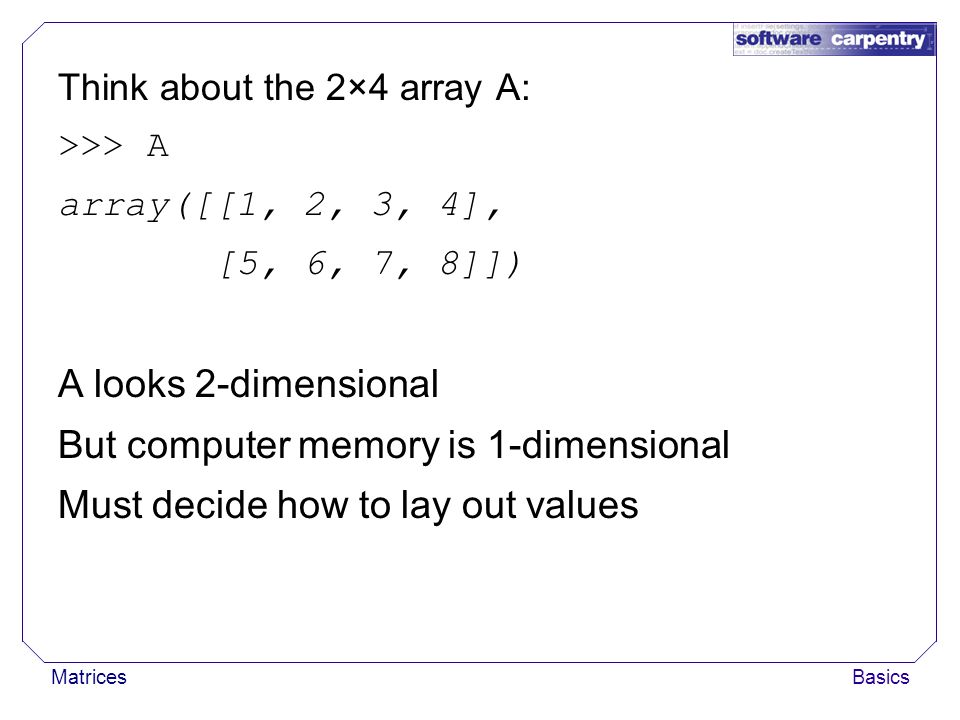

MatricesBasics Think about the 2×4 array A: >>> A array([[1, 2, 3, 4], [5, 6, 7, 8]]) A looks 2-dimensional But computer memory is 1-dimensional Must decide how to lay out values
![MatricesBasics Think about the 2×4 array A: >>> A array([[1, 2, 3, 4], [5, 6, 7, 8]]) A looks 2-dimensional But computer memory is 1-dimensional Must decide how to lay out values](http://images.slideplayer.com/27/9064235/slides/slide_23.jpg "MatricesBasics Think about the 2×4 array A: >>> A array([[1, 2, 3, 4], [5, 6, 7, 8]]) A looks 2-dimensional But computer memory is 1-dimensional Must decide how to lay out values")
24
MatricesBasics 12345678 1234 5678 Logical Physical Row-major order concatenates the rows Used by C and Python
25

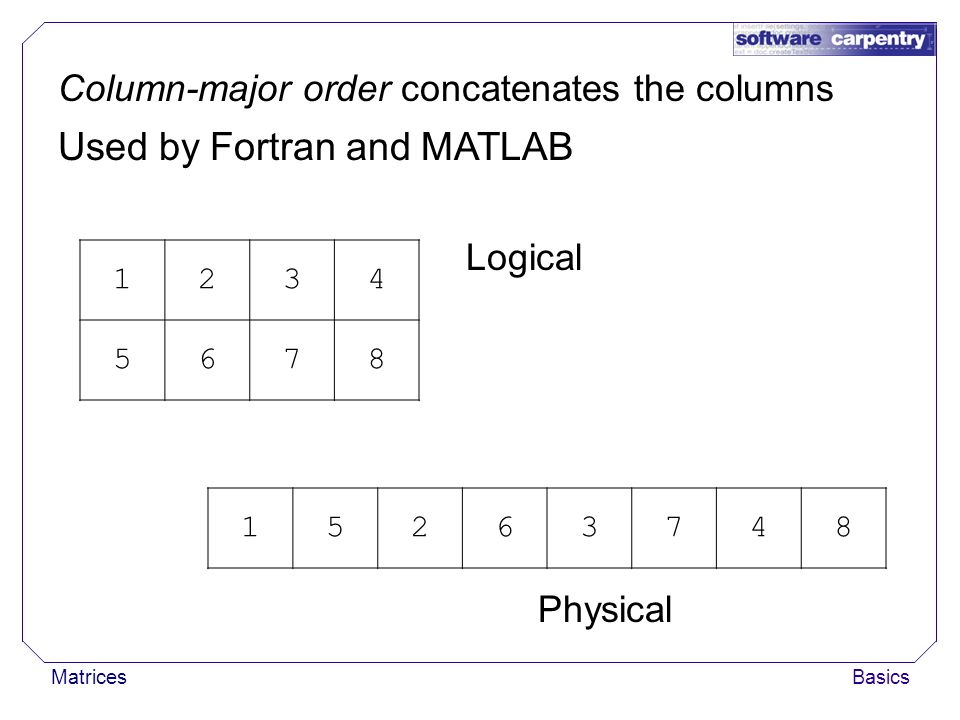

MatricesBasics 15263748 1234 5678 Logical Physical Column-major order concatenates the columns Used by Fortran and MATLAB
26

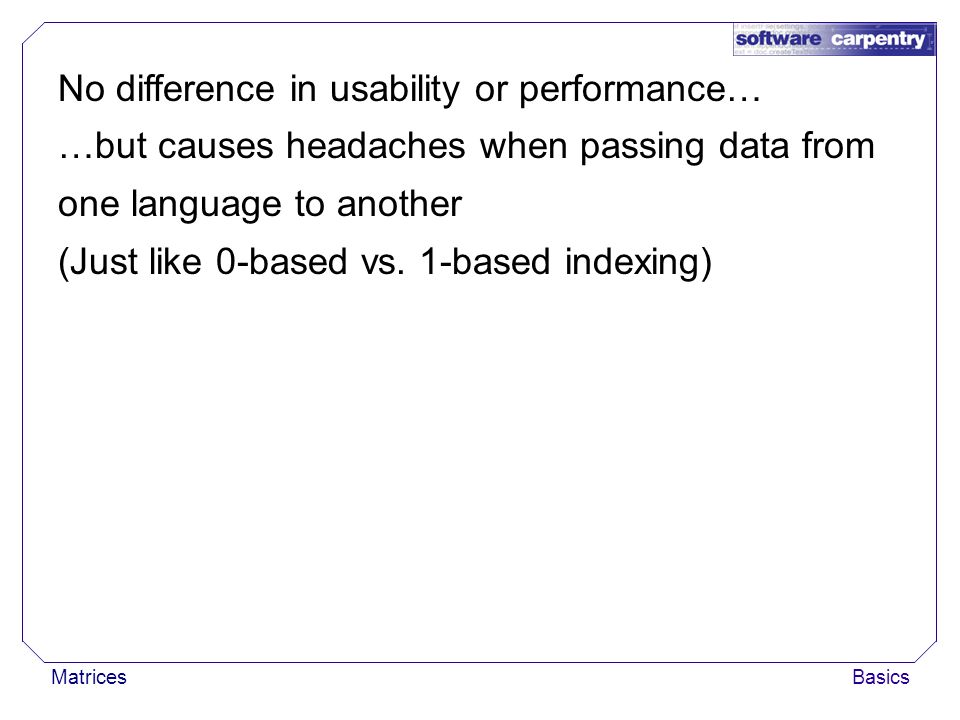

MatricesBasics No difference in usability or performance… …but causes headaches when passing data from one language to another (Just like 0-based vs. 1-based indexing)
27

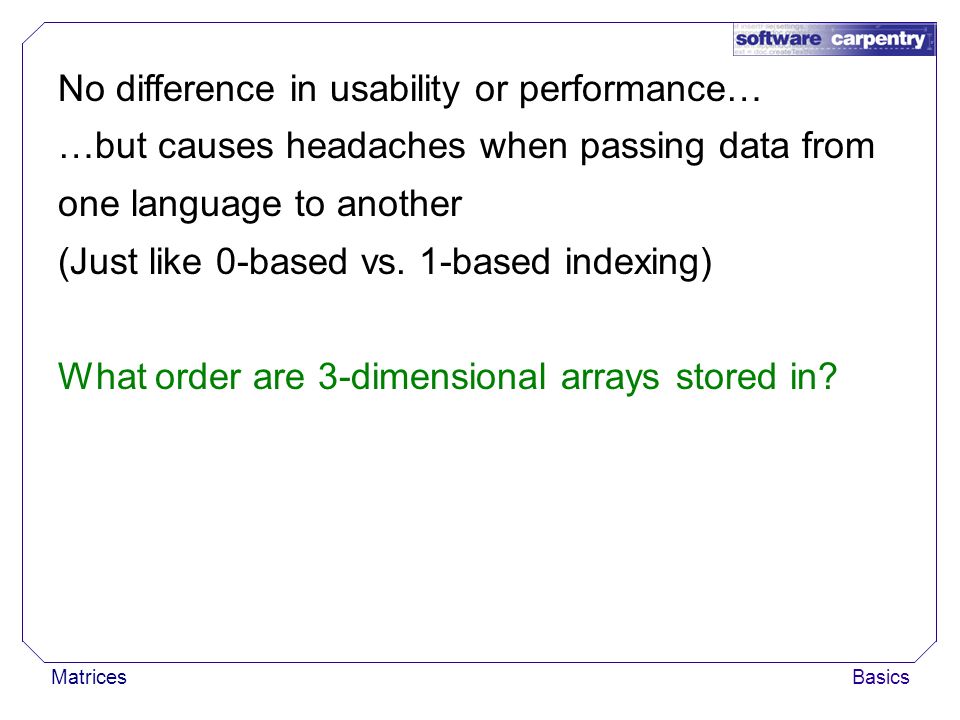

MatricesBasics No difference in usability or performance… …but causes headaches when passing data from one language to another (Just like 0-based vs. 1-based indexing) What order are 3-dimensional arrays stored in?
28

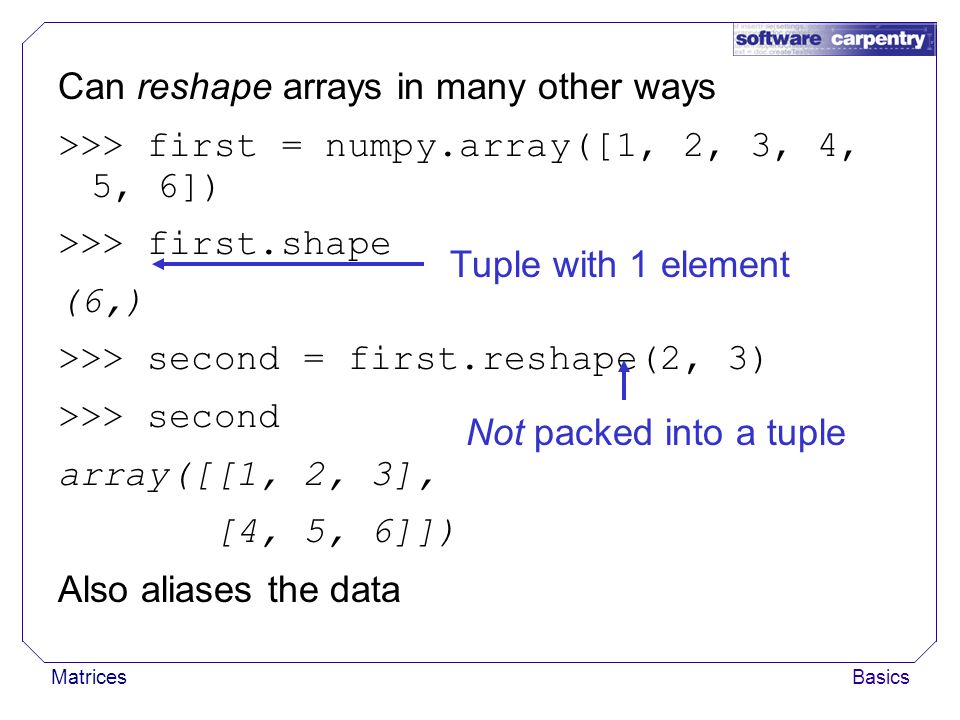

MatricesBasics Can reshape arrays in many other ways >>> first = numpy.array([1, 2, 3, 4, 5, 6]) >>> first.shape (6,) >>> second = first.reshape(2, 3) >>> second array([[1, 2, 3], [4, 5, 6]]) Also aliases the data Tuple with 1 element Not packed into a tuple
![MatricesBasics Can reshape arrays in many other ways >>> first = numpy.array([1, 2, 3, 4, 5, 6]) >>> first.shape (6,) >>> second = first.reshape(2, 3) >>> second array([[1, 2, 3], [4, 5, 6]]) Also aliases the data Tuple with 1 element Not packed into a tuple](http://images.slideplayer.com/27/9064235/slides/slide_28.jpg "MatricesBasics Can reshape arrays in many other ways >>> first = numpy.array([1, 2, 3, 4, 5, 6]) >>> first.shape (6,) >>> second = first.reshape(2, 3) >>> second array([[1, 2, 3], [4, 5, 6]]) Also aliases the data Tuple with 1 element Not packed into a tuple")
29

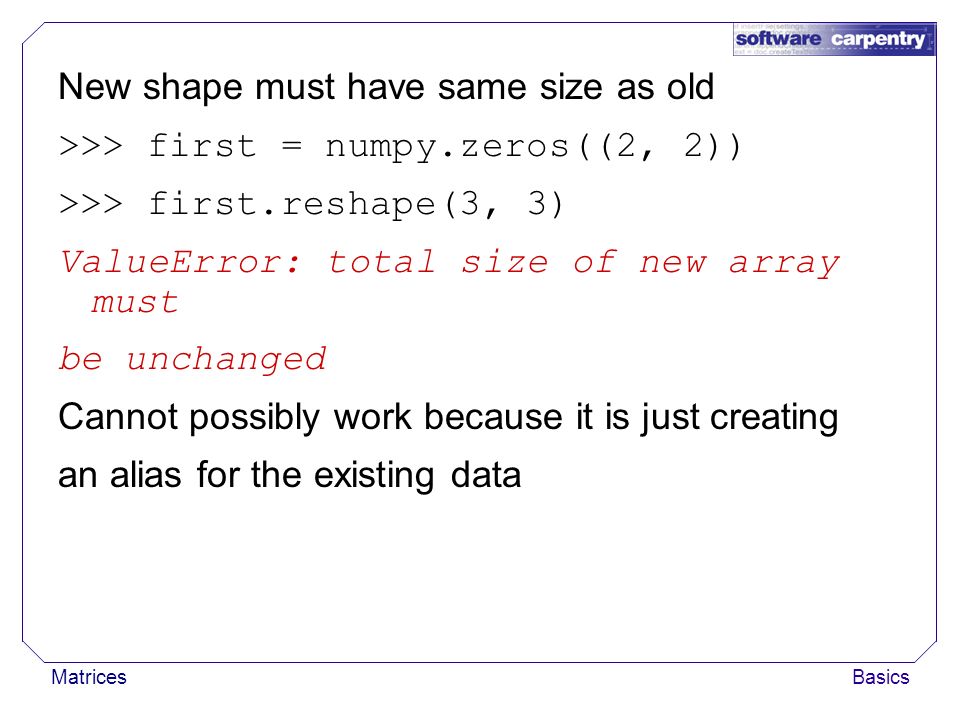

MatricesBasics New shape must have same size as old >>> first = numpy.zeros((2, 2)) >>> first.reshape(3, 3) ValueError: total size of new array must be unchanged Cannot possibly work because it is just creating an alias for the existing data
30
MatricesBasics Change physical size using array.resize >>> block array([[ 10, 20, 30], [110, 120, 130], [210, 220, 230]]) >>> block.resize(2, 2) >>> block array([[ 10, 20], [110, 120]])
![MatricesBasics Change physical size using array.resize >>> block array([[ 10, 20, 30], [110, 120, 130], [210, 220, 230]]) >>> block.resize(2, 2) >>> block array([[ 10, 20], [110, 120]])](http://images.slideplayer.com/27/9064235/slides/slide_30.jpg "MatricesBasics Change physical size using array.resize >>> block array([[ 10, 20, 30], [110, 120, 130], [210, 220, 230]]) >>> block.resize(2, 2) >>> block array([[ 10, 20], [110, 120]])")
31

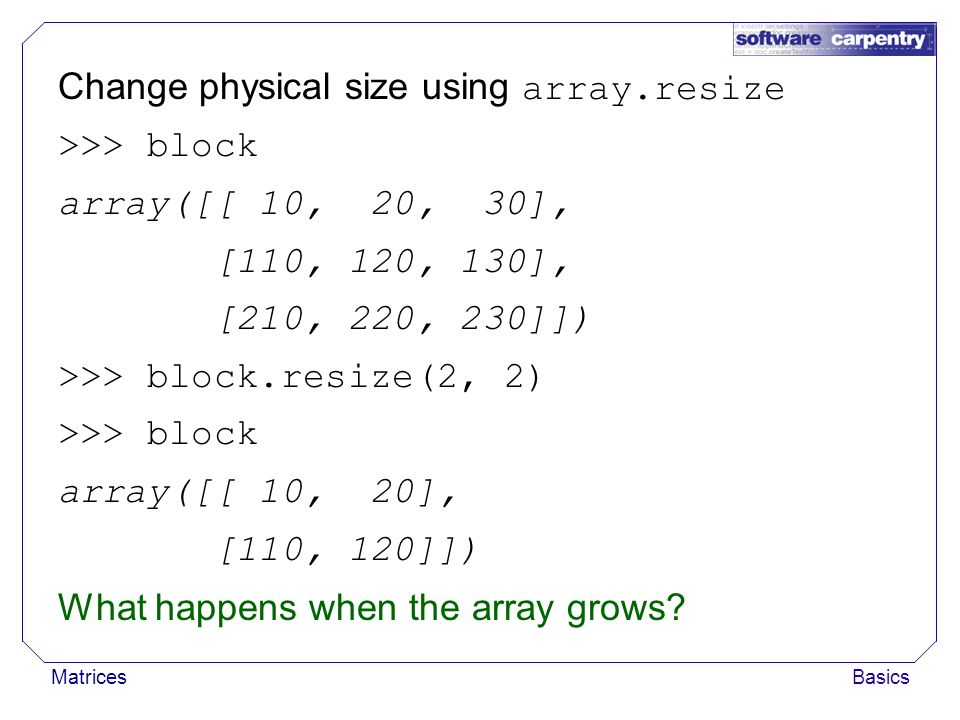

MatricesBasics Change physical size using array.resize >>> block array([[ 10, 20, 30], [110, 120, 130], [210, 220, 230]]) >>> block.resize(2, 2) >>> block array([[ 10, 20], [110, 120]]) What happens when the array grows?
![MatricesBasics Change physical size using array.resize >>> block array([[ 10, 20, 30], [110, 120, 130], [210, 220, 230]]) >>> block.resize(2, 2) >>> block array([[ 10, 20], [110, 120]]) What happens when the array grows](http://images.slideplayer.com/27/9064235/slides/slide_31.jpg "MatricesBasics Change physical size using array.resize >>> block array([[ 10, 20, 30], [110, 120, 130], [210, 220, 230]]) >>> block.resize(2, 2) >>> block array([[ 10, 20], [110, 120]]) What happens when the array grows")

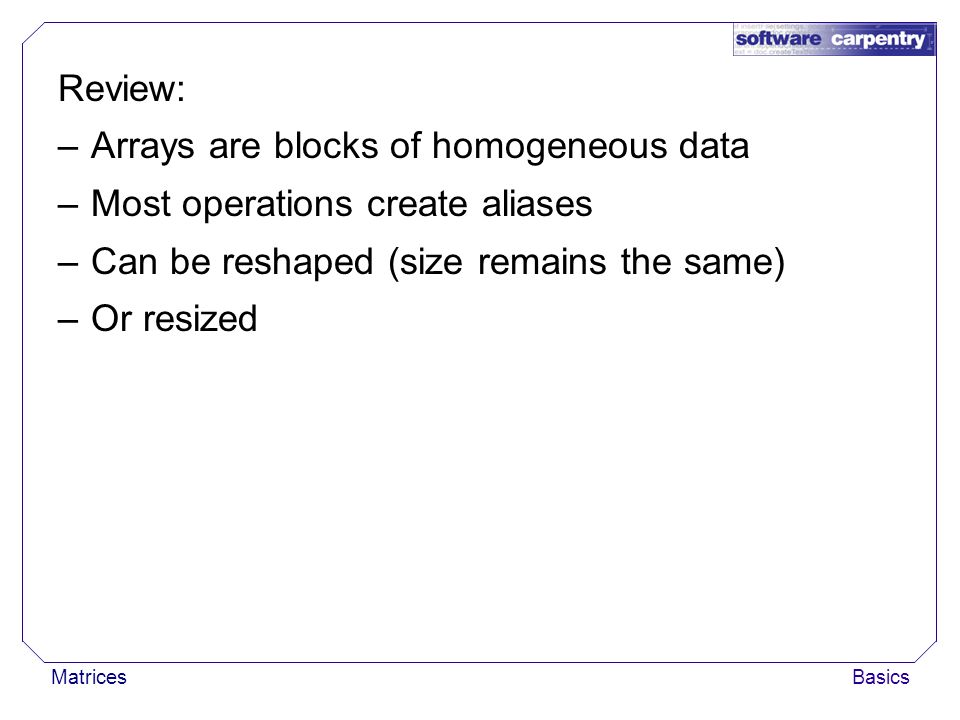

32
MatricesBasics Review: –Arrays are blocks of homogeneous data –Most operations create aliases –Can be reshaped (size remains the same) –Or resized
33
November 2010 created by Richard T. Guy Copyright © Software Carpentry 2010 This work is licensed under the Creative Commons Attribution License See http://software-carpentry.org/license.html for more information.
