1. JavaScript Modules and Patterns Private Fields, Module, Revealing Module, Revealing Prototype, … Software University http://softuni.bg Technical Trainers SoftUni Team

2. 2 1.Why we need modules and patterns 2."Prototype" Pattern 3."Module" Pattern 4."Revealing Module" Pattern 5."Revealing Prototype" Pattern 6.Method Chaining Table of Contents

3. 3  Modularity  Easy maintenance  No duplicate function names  Don't pollute the global scope Why we need modules and patterns?

4. The Prototype Pattern

5. 5  Pros:  “Modularize” code into re-useable objects  Variables / functions are NOT in the global scope  Functions loaded into memory once  Possible to "override" functions through prototyping  Cons:  "this" can be tricky  Constructor separate from prototype definition Prototype Pattern – Pros and Cons

6. Prototype Pattern - Example var Calculator = function(name) { this.name = name; this.name = name;}; Calculator.prototype = { add: function (x, y) { add: function (x, y) { return (x + y); return (x + y); }} var calc = new Calculator("SoftUniCalc"); calc.add(2, 4);

7. 7  Prototype pattern leverages intrinsic JavaScript functionality  Comprised of a constructor and a prototype  Provides extension capabilities Prototype Pattern – Summary

8. The "Module" Pattern Hiding Members

9. 9  Pros:  “Modularize” code into re-useable objects  Variables / functions are NOT in the global scope  Expose only public members  Hide internal data and functions  Cons:  Not easy to extend  Some complain about debugging Module Pattern – Pros and Cons

10. 10 Module Pattern: Structure var c alculator = function() { // private variables // private variables // private functions // private functions return { return { // public members // public members }; };};

11. 11 Module Pattern: Example var calculator = function () { function logAction(action) { … } function logAction(action) { … } return { return { add: function (x, y) { add: function (x, y) { logAction('add'); logAction('add'); return (x + y); return (x + y); }, }, multiply: function (x, y) { multiply: function (x, y) { return (x * y); return (x * y); } }; };}; var calc = calculator('First'); calc.add(3, 3); calc.multiply(7, 8); Private members Public members You can call without new

12. 12 Module Pattern: with IIFE var calculator = (function () { function logAction(action) { … } function logAction(action) { … } return { return { add: function (x, y) { add: function (x, y) { logAction('add'); logAction('add'); return (x + y); return (x + y); }, }, multiply: function (x, y) { multiply: function (x, y) { return (x * y); return (x * y); } }; };}()); calculator.add(3, 3); calculator.multiply(7, 8); The visible members create a closure with the private members Private members Public members

13. 13  Module pattern provides encapsulation of variables and functions  Provides a way to add visibility to members  Public versus private members  Each object instance creates new copies of functions in memory Module Pattern – Summary

14. Module Pattern Live Demo

15. The Revealing Module Pattern Reveal the Most Interesting Members

16. 16  Pros:  "Modularize" code into re-useable objects  Variables / functions taken out of the global namespace  Expose only visible members  "Cleaner" way to expose public members  Easy to change members privacy  Cons:  Not easy to extend  Some complain about debugging  Hard to mock hidden objects for testing Revealing Module Pattern – Pros and Cons

17. 17 Revealing Module Pattern: Structure var module = sfunction() { // private variables // private variables // private functions // private functions return { return { // public members // public members }; };}; Give only reference to exposed function

18. 18 Revealing Module Pattern – Example var calculator = function () { function logAction(action) { … }; function logAction(action) { … }; function add(x, y) { function add(x, y) { logAction('add'); logAction('add'); return (x + y); return (x + y); } function multiply(x, y) { function multiply(x, y) { return (x * y); return (x * y); } return { return { add: add, add: add, multiply: multiply multiply: multiply }; };}; var calc = calculator(); calc.add(3, 3); Create a function constructor hidden Hidden function Expose (reveal) only public members

19. 19 Revealing Module Pattern – Example var calculator = (function () { function logAction(action) { … }; function logAction(action) { … }; function add(x, y) { function add(x, y) { logAction('add'); logAction('add'); return (x + y); return (x + y); } function multiply(x, y) { function multiply(x, y) { return (x * y); return (x * y); } return { return { add: add, add: add, multiply: multiply multiply: multiply }; };}()); calculator.add(3, 3); calculator.multiply(3, 5); Create a function constructor hidden Hidden function Expose (reveal) only public members

20. 20  Revealing Module Pattern provides encapsulation of variables and functions  Provides a way to add visibility  Public versus private members  Cleaner way to expose public members  Cleaner than Module pattern  Extending objects can be difficult since no prototyping is used Revealing Module Pattern - Summary

21. Revealing Module Pattern Live Demo

22. The Revealing Prototype Pattern Reveal the Most Interesting Members through the Object Prototype

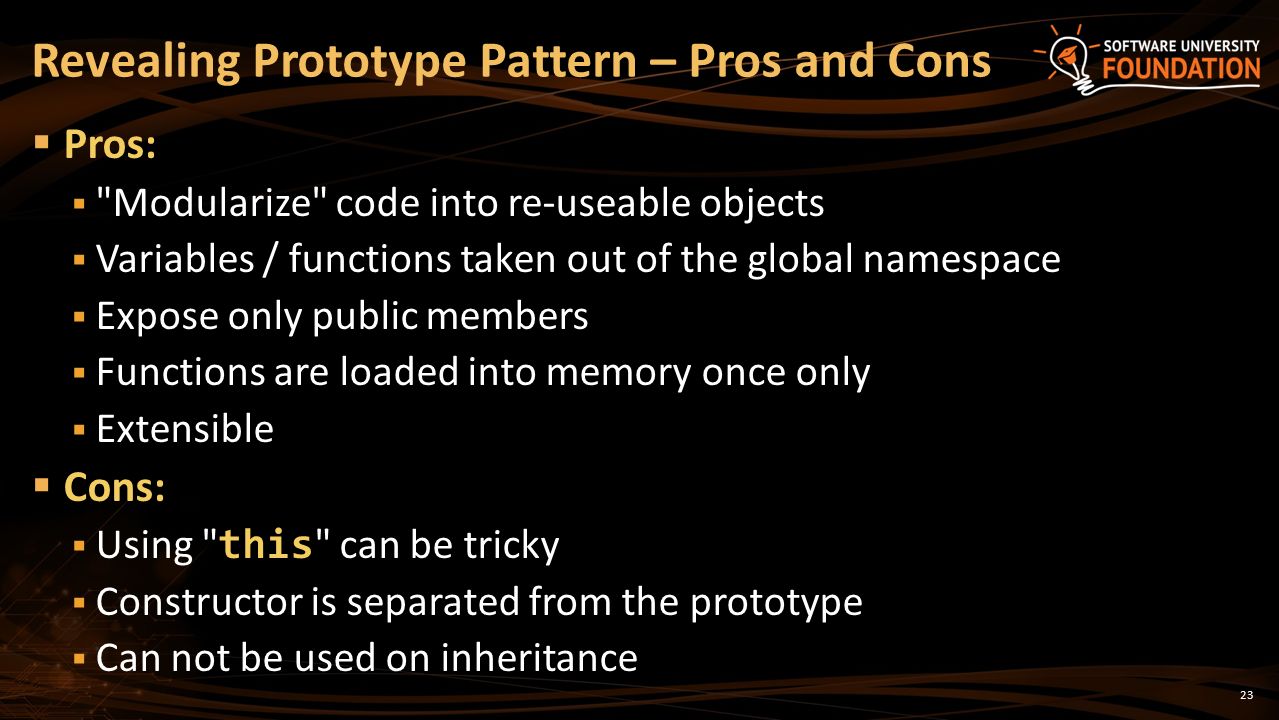

23. 23  Pros:  "Modularize" code into re-useable objects  Variables / functions taken out of the global namespace  Expose only public members  Functions are loaded into memory once only  Extensible  Cons:  Using " this " can be tricky  Constructor is separated from the prototype  Can not be used on inheritance Revealing Prototype Pattern – Pros and Cons

24. 24 Revealing Prototype Pattern: Structure var Constructor = function () { // constructor defined here // constructor defined here} Constructor.prototype = (function() { var privateFunc = 5; // hidden variables var privateFunc = 5; // hidden variables function privateFunc() { … } // hidden functions function privateFunc() { … } // hidden functions return { return { someFunc: pointerToSomeFunc someFunc: pointerToSomeFunc anotherFunc: pointerToAnotherFunc anotherFunc: pointerToAnotherFunc }; };}()); Create IIFE for the prototype

25. 25 Revealing Prototype Pattern – Example var Calculator = function (name) { … }; Calculator.prototype = (function () { var add, subtract, showResult, formatResult; var add, subtract, showResult, formatResult; add = function (x) { … }; add = function (x) { … }; subtract = function (x) { … }; subtract = function (x) { … }; showResult = function () { … }; showResult = function () { … }; return { return { add: add, add: add, subtract: subtract, subtract: subtract, showResult: showResult showResult: showResult }; };}()); var calc = new Calculator('First'); We can have hidden data in the prototype Expose only public methods for the prototype

26. 26  Revealing Prototype Pattern provides encapsulation of variables and functions  Provides a way to add visibility  Exposed versus hidden members  Provides extension capabilities Revealing Prototype Pattern – Summary

27. Revealing Prototype Pattern Live Demo

28. Augmenting Modules Live Demo

29. Method Chaining

30. 30  Method chaining is a technique (pattern) that involve calling multiple functions on the same object consecutively  Much cleaner code  The code is easier to understand  No need of temporary variables to save each step of the process JavaScript Method Chaining var doggy = new Dog().setName("Fluffy").setName("Fluffy").setColor("purple").setColor("purple").setGender("male");.setGender("male"); var doggy = new Dog(); doggy.setName("Fluffy");doggy.setColor("purple");doggy.setGender("male");

31. 31 JavaScript Method Chaining – Example var Dog = function() { this._name = 'Fluffy'; this._name = 'Fluffy'; this._color = 'purple'; this._color = 'purple';} Dog.prototype.setName = function(name) { this._name = name; this._name = name; return this; return this;} Dog.prototype.setColor = function(color) { this._color = color; this._color = color; return this; return this;} var doggy = new Dog().setName('Fluffy').setColor('purple'); console.log(doggy); // { _name: 'Fluffy', _color: 'purple' }

32. Method Chaining Live Demo

33. ? ? ? ? ? ? ? ? ? https://softuni.bg/courses/javascript-oop/ JavaScript Modules and Patterns
