1. 1 Digital Signal Processing Digital Signal Processing  IIR digital filter structures  Filter design

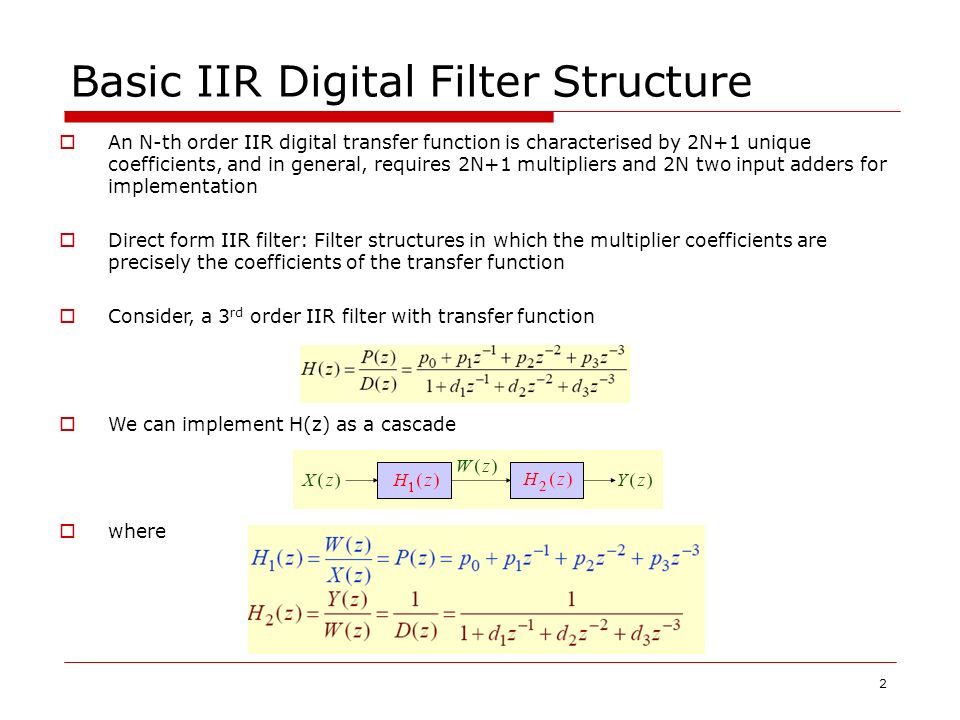

2. 2 Basic IIR Digital Filter Structure  An N-th order IIR digital transfer function is characterised by 2N+1 unique coefficients, and in general, requires 2N+1 multipliers and 2N two input adders for implementation  Direct form IIR filter: Filter structures in which the multiplier coefficients are precisely the coefficients of the transfer function  Consider, a 3 rd order IIR filter with transfer function  We can implement H(z) as a cascade  where

3. 3 Basic IIR Digital Filter Structure  The filter section H 1 (z) can be seen to be an FIR filter and can be realised:  Time domain representation of H 2 (z) is given by

4. 4 Direct Form IIR Digital Filter Structure  Cascade of the two structures leads to H(z) and is known as direct form I structure  It is noncanonic as it uses 6 delays to realise 3 rd order transfer function  Its transpose (direct form I t )

5. 5 Direct Form IIR Digital Filter Structure  Various other noncanonic direct form structures can be derived by simple block diagram manipulations  Observe in the direct form structure (on the right), signal variables in nodes 1 and 1’ are the same, so the two top delays can be shared  Likewise, the middle and bottom two delays can be shared  We get direct form II and its transpose (direct form II t ) is also shown  Now, it is canonic

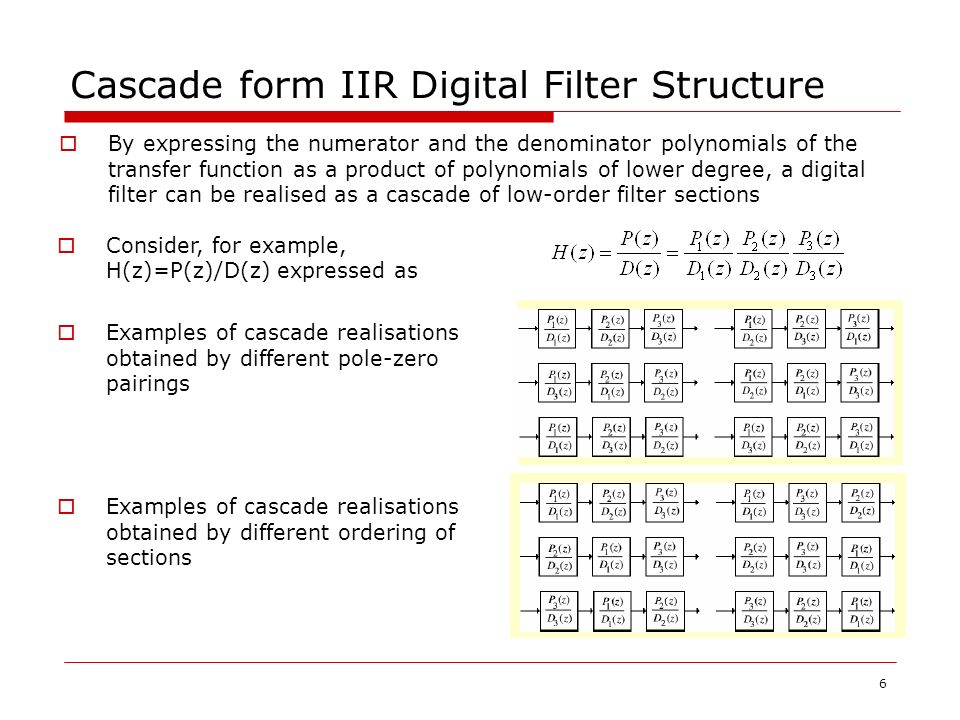

6. 6 Cascade form IIR Digital Filter Structure  By expressing the numerator and the denominator polynomials of the transfer function as a product of polynomials of lower degree, a digital filter can be realised as a cascade of low-order filter sections  Consider, for example, H(z)=P(z)/D(z) expressed as  Examples of cascade realisations obtained by different pole-zero pairings  Examples of cascade realisations obtained by different ordering of sections

7. 7 Cascade form IIR Digital Filter Structure  There are altogether a total of 36 different cascade realisations of H(z) based on pole-zero pairings and orderings  Due to finite wordlength effects, each such realisation behaves differently  Usually, the polynomials are factored into a product of 1 st order and 2 nd order polynomials:  For a first order,

8. 8  Consider an example:  The direct form II and cascade realisations are Cascade form IIR Digital Filter Structure How? Hint: try to remember a general form for direct form II and then reuse it!

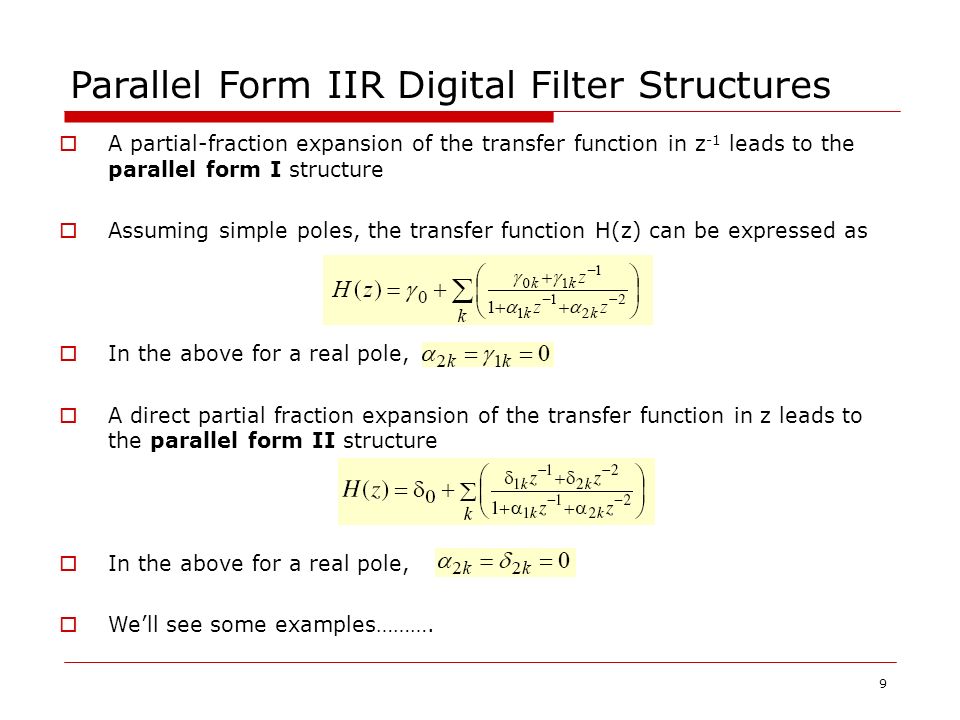

9. 9 Parallel Form IIR Digital Filter Structures  A partial-fraction expansion of the transfer function in z -1 leads to the parallel form I structure  Assuming simple poles, the transfer function H(z) can be expressed as  In the above for a real pole,  A direct partial fraction expansion of the transfer function in z leads to the parallel form II structure  In the above for a real pole,  We’ll see some examples……….

10. 10  A partial fraction expansion of  in z -1 yields Parallel Form IIR Digital Filter Structures Parallel form I

11. 11  A partial fraction expansion of  in z yields Parallel Form IIR Digital Filter Structures Parallel form II

12. FIR filter design  We have briefly explored the design of FIR filters in Lecture 5  We’ll look at it again here using MATLAB  We’ll use the window method to design FIR filters 12

13. 13 Ideal filter and impulse response  An ideal LPFIts impulse  What is the problem – we can’t have infinite coefficient length  So, we need to truncate 13 Inverse DFT Similar to 

14. 14  Let us use a rectangular window  We can see that the shape of the LPF has changed  This is know as Gibbs phenomenon – oscillatory behaviour in the magnitude responses caused by truncating the ideal impulse response function (i.e. the rectangular window has an abrupt transition to zero)  Gibbs phenomenon can be reduced by  Using a window that tapers smoothly at each end  Providing a smooth transition from passband to stopband in the magnitude specifications 14 Ideal filter and impulse response DFT

15. 15 Filter length  The filter length (i.e. order) affects the magnitude response  Length increase, number of ripples in both passband and stopband increases but with a corresponding decrease in the ripple widths  That is as N increase, it gets closer to the ideal LPF  But height of largest ripples remain the same independent of length  Similar oscillatory behaviour could be observed in the magnitude responses of the truncated versions of other types of ideal filters 15 Infinite N N=25 N=13

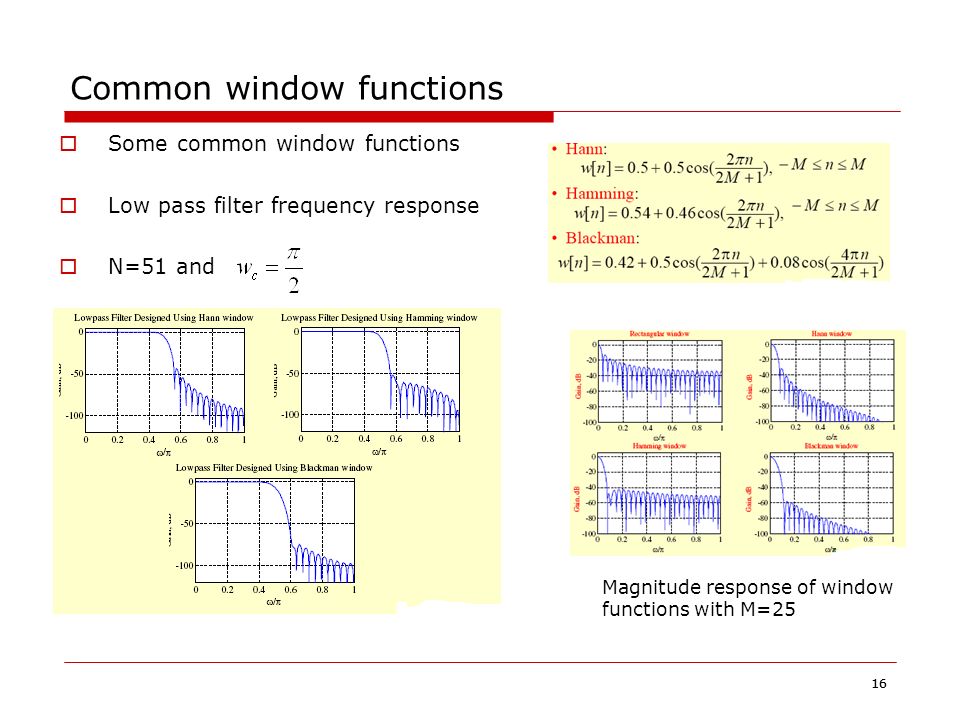

16. 16 Common window functions  Some common window functions  Low pass filter frequency response  N=51 and Magnitude response of window functions with M=25

17. 17 FIR filter design  Step 1 - Specify the ideal or required frequency response, H D (w)  Step 2 - Obtain impulse response, h D (n) of the desired filter by evaluating the inverse Fourier transform  Important note: we’ll look at h D (n) for standard filter designs in the next slide  Step 3 - Select a window function and then the number of filter coefficients  Step 4 - Obtain values of w(n) for the chosen window function and the values of the actual FIR coefficients, h(n), by multiplying h D (n) with w(n) h(n)=h D (n) w(n)

18. FIR filter design (Steps 1 and 2) 18 We can make use of available h D (n)

19. 19 FIR filter design (step 3) – window?  First problem in step 3 - which window function?  The ratio of the main lobe/side lobe can be used  Example, the frequency response of Hamming and Blackman windows  Main lobe centred at ω=0  Other ripples are called side lobes

20. FIR filter design (step 3) – window?  To ensure a fast transition from passband to stopband, window should have a very small main lobe width  To reduce the passband and stopband ripple , the area under the sidelobes should be small  so to increase the stopband attenuation, we need to decrease the sidelobe amplitude  Most of the time, these two requirements are contradictory  Example: LPF with length=51 and cut-off at /2 20

21. 21 FIR filter design (step 3) – length?  Second problem in step 3 – number of filter coefficients?  To obtain good (i.e. sharper) transition band  reduce main lobe width  increase the filter length  But increased filter length means increased computational complexity  Eg: Frequency response of Hamming window with length 101 and 201 are shown below 21

22. FIR filter design (step 3) – length?  Using the same window as in the previous slide  LPF with Hamming window, with normalised cut-off=0.3 22

23. 23  To select the ‘suitable’ order i.e. the length  The lowest order that can meet the requirements  There are several methods:  Kaiser, Bellanger, Hermann  Kaiser’s formula:  Actual location of transition band is immaterial  Bellanger’s formula:  Hermann’s formula is more complex so we will not consider here (but generally it gives slightly more accurate value for the order) 23 FIR filter design (step 3) – order selection

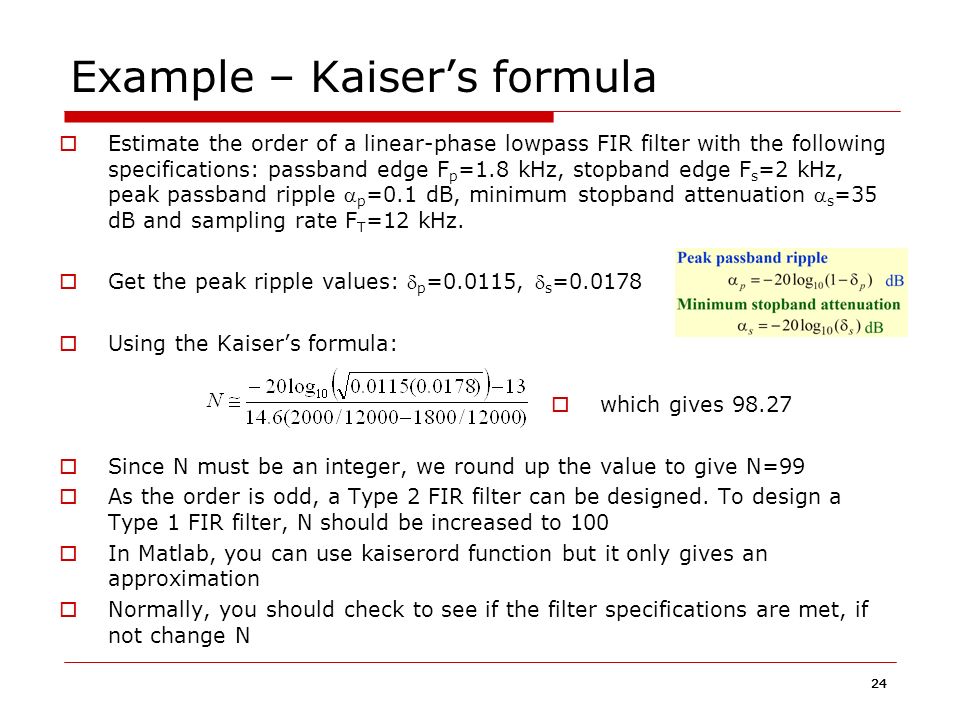

24. 24 Example – Kaiser’s formula  Estimate the order of a linear-phase lowpass FIR filter with the following specifications: passband edge F p =1.8 kHz, stopband edge F s =2 kHz, peak passband ripple  p =0.1 dB, minimum stopband attenuation  s =35 dB and sampling rate F T =12 kHz.  Get the peak ripple values:  p =0.0115,  s =0.0178  Using the Kaiser’s formula:  which gives 98.27  Since N must be an integer, we round up the value to give N=99  As the order is odd, a Type 2 FIR filter can be designed. To design a Type 1 FIR filter, N should be increased to 100  In Matlab, you can use kaiserord function but it only gives an approximation  Normally, you should check to see if the filter specifications are met, if not change N 24

25. 25 Another example  A requirement exists for an FIR digital filter to meet the following specifications:  Passband: 150-250 Hz  Transition width: 50 Hz  Passband ripple: 0.1 dB  Stopband attenuation: 60 dB  Sampling frequency: 1 kHz  Obtain the filter coefficients  Solution - The peak ripple values are  p =0.0115,  s =0.001  Using Kaiser’s formula:  which give N=49.85. So, we could take N=50 (type 1, odd length)  Note that the passband information is not used to obtain N, so it will be the same even if we shift the passband or even if we use it for highpass, stopband etc  If the transition bands are not same then we use the smaller transition band  bigger transition band requires smaller N, so the smaller transition band requires a higher order and is more important for the order selection

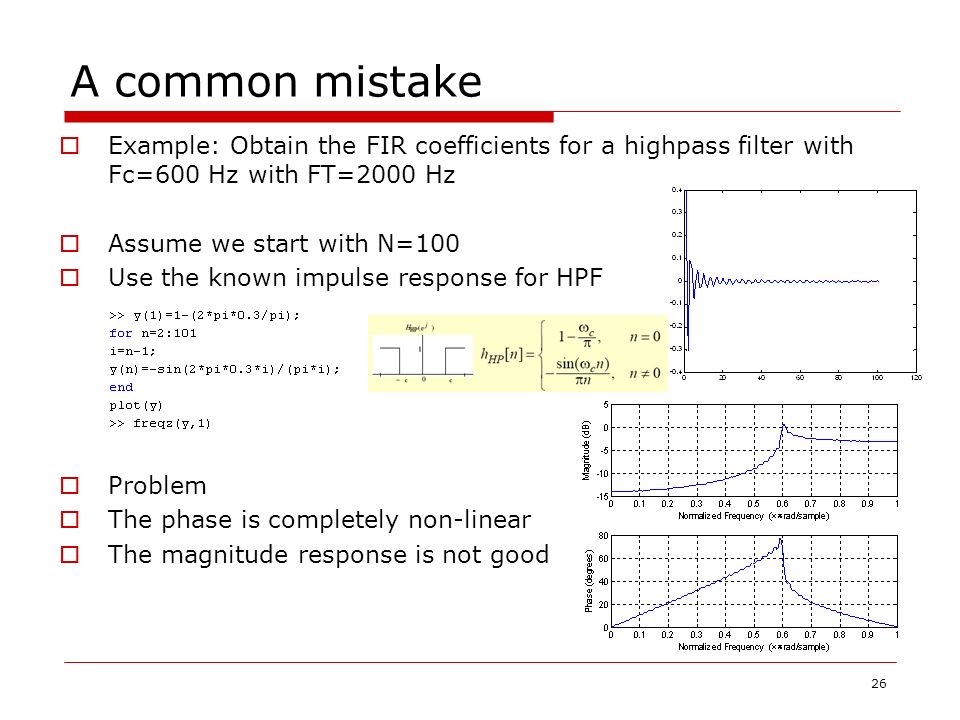

26. A common mistake  Example: Obtain the FIR coefficients for a highpass filter with Fc=600 Hz with FT=2000 Hz  Assume we start with N=100  Use the known impulse response for HPF  Problem  The phase is completely non-linear  The magnitude response is not good 26

27. 27  To obtain linear phase response  Coefficients must be symmetry/antisymmetry  So say, change N=201  Linear phase response achieved  But there are still ripples (Gibbs phenomenon) A common mistake – solution 1

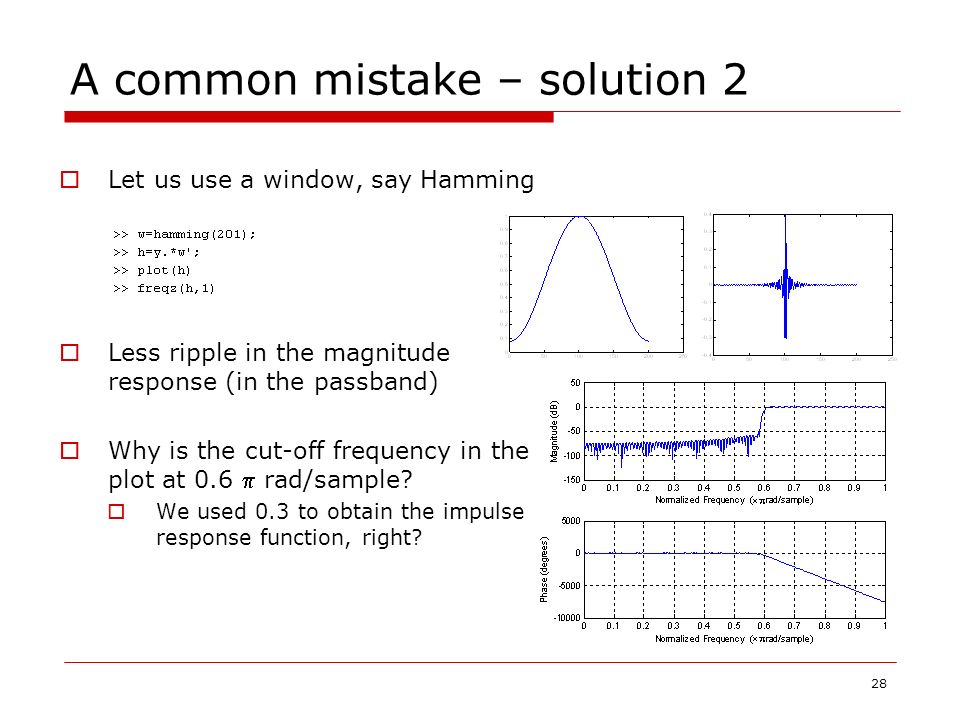

28. 28  Let us use a window, say Hamming  Less ripple in the magnitude response (in the passband)  Why is the cut-off frequency in the plot at 0.6  rad/sample?  We used 0.3 to obtain the impulse response function, right? A common mistake – solution 2

29. Taking the example further 29  Let us actually use the filter after designing it!  It could be improved – using higher N and improved window such as Kaiser window

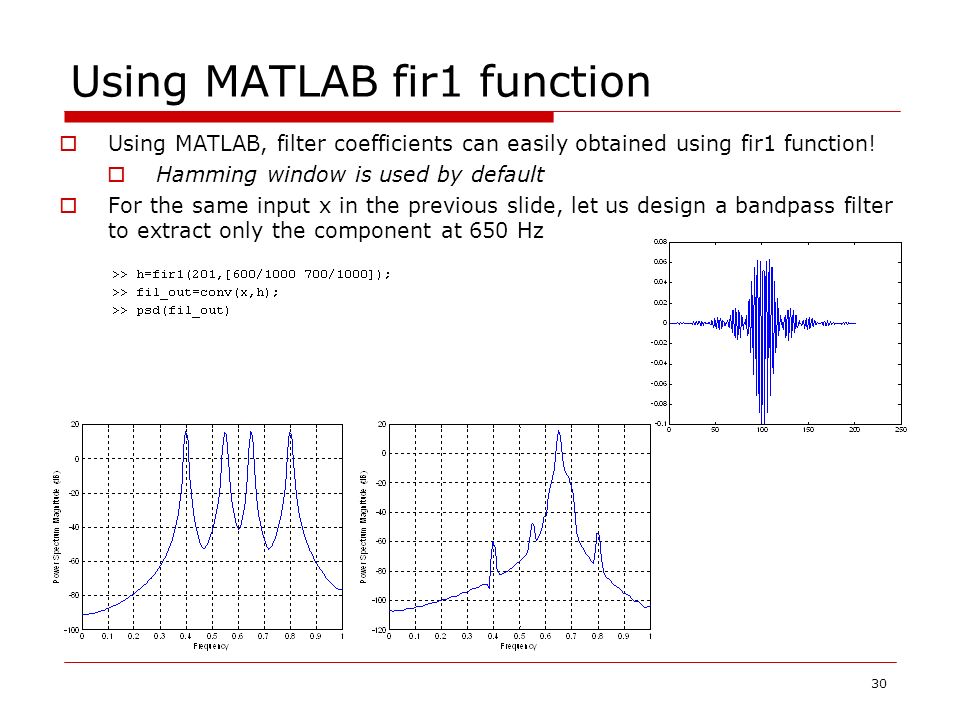

30. Using MATLAB fir1 function 30  Using MATLAB, filter coefficients can easily obtained using fir1 function!  Hamming window is used by default  For the same input x in the previous slide, let us design a bandpass filter to extract only the component at 650 Hz

31. Improved FIR filter design 31  The windows such as Hanning, Hamming etc are known as fixed window designs as the  ripple values are fixed)  FIR filter design can also be improved using adjustable window functions such as Dolph-Chebyshev and Kaiser that provide control over  by means of an additional parameter characterising the window  The basis of FIR filter design is to obtain the set of minimal number of coefficients for the required response  So, computer based optimisation methods have been invented  Parks-McClellan algorithm can be used to obtain the FIR coefficients (in MATLAB, we can design this filter using ‘remez’ function)  Normally, improved design over the standard window based method  Known as computer based FIR filter design  The only other FIR design method is frequency sampling method  But knowledge of the window based method is sufficient for this course  Note: Kaiser order and Kaiser window are two different matters, though we normally use them together

32. 32 IIR filter design 32  The most common approach to IIR filter design:  Convert the digital filter specifications into an analogue prototype low-pass filter specifications  Determine the analogue low-pass filter transfer function, H a (s)  Transform H a (s) in the desired digital transfer function G(z)  The most widely used transformation is the bilinear transformation that maps the imaginary axis in the s-plane (j) onto the unit circle of the z- plane  So, relation between G(z) and H a (s)  However, this design requires some knowledge of analogue low-pass filters and also s-plane and therefore, we will skip this method and straightaway utilise IIR filter design using MATLAB

33. 33 IIR filter design using MATLAB 33  We have done IIR filter design using MATLAB in Lecture 5  There are several classical IIR filters  Butterworth, Chebyshev Types I and II, Elliptic  MATLAB functions  butter – Butterworth filter with flat passband (no ripples)  ellip – Elliptic filter with ripples (but normally requiring lower order than Butterworth for same transition band)  cheby1 - Chebyshev filter controlling peak-to-peak ripple in the passband  cheby2 - Chebyshev filter controlling the amount of stopband ripple  First step is to estimate the order of the filter given the specifications – using functions: buttord, cheb1ord, cheb2ord, ellipord etc  Next, obtain the coefficients, B and A using functions: buttord, besself, cheby1, cheby2, ellip, etc  Finally, do the filtering using filtfilt function  The frequency response of the filter can be obtained using function freqz(B,A)

34. 34 IIR filter design using MATLAB -example  Design an elliptic IIR low-pass filter with the specifications: F p =0.8 kHz, F s =1 kHz, F T =4 kHz,  p =0.5 dB,  s =40 dB  MATLAB code:  [N,Wn]=ellipord(0.4,0.5,0.5,40)  [B,A]=ellip(N,0.5,40,Wn)

35. 35 IIR filter design using MATLAB -example  To filter a signal, use filtfilt function
