1

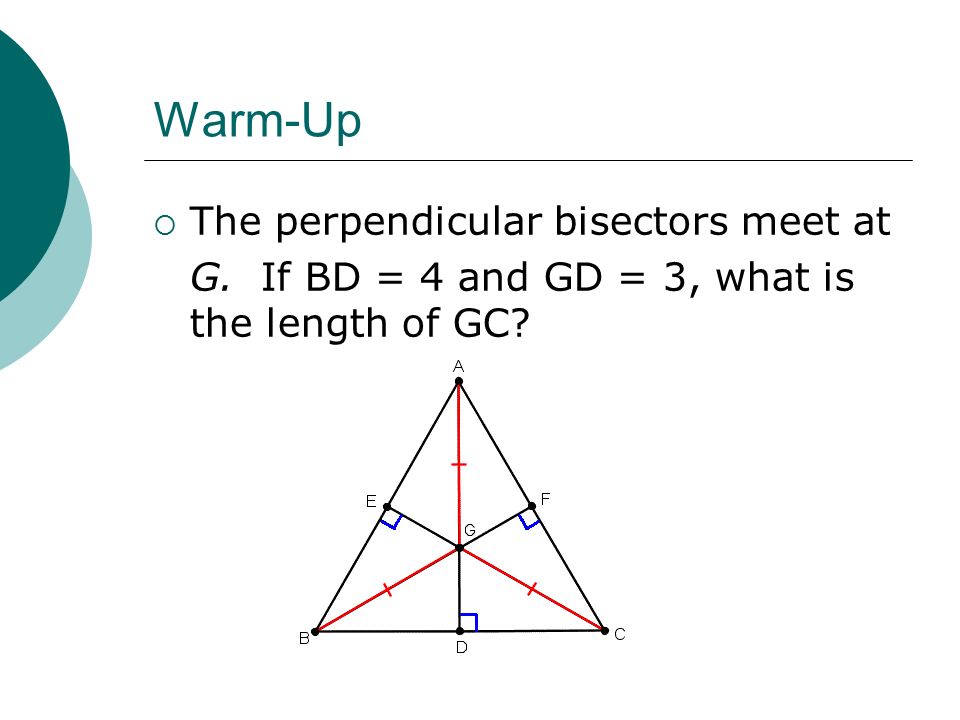

Warm-Up The perpendicular bisectors meet at G. If BD = 4 and GD = 3, what is the length of GC?
2

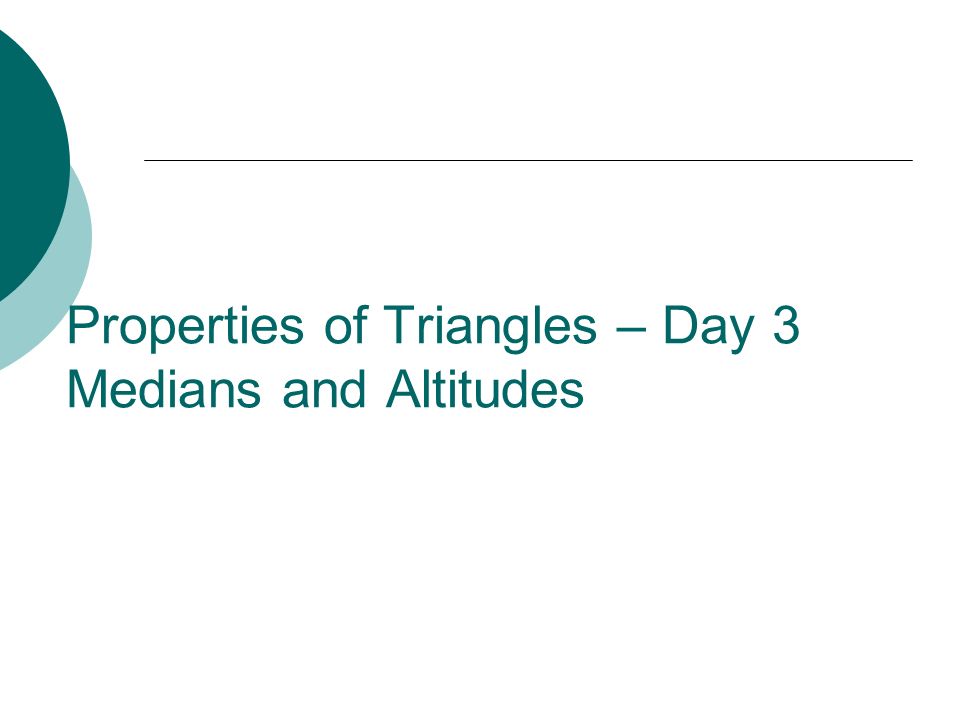

Properties of Triangles – Day 3 Medians and Altitudes
3

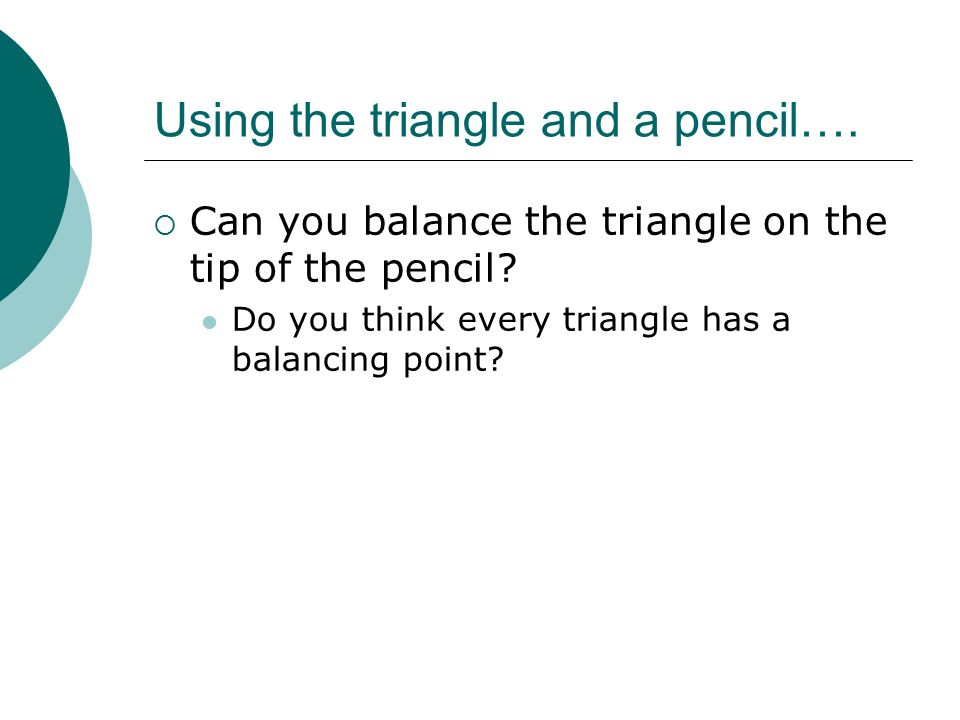

Using the triangle and a pencil…. Can you balance the triangle on the tip of the pencil? Do you think every triangle has a balancing point?
4

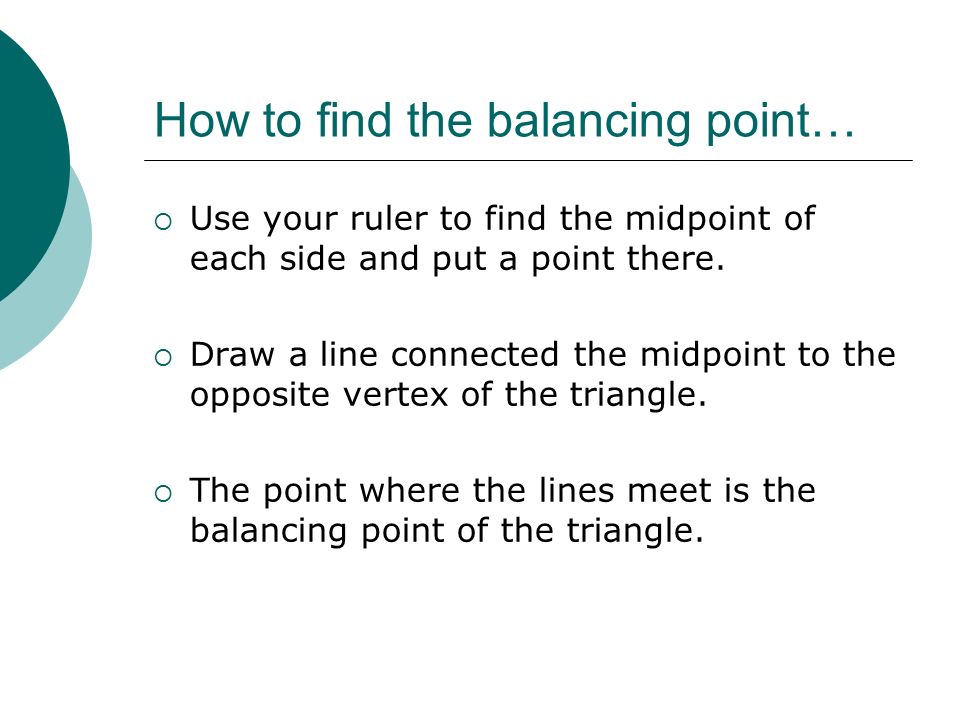

How to find the balancing point… Use your ruler to find the midpoint of each side and put a point there. Draw a line connected the midpoint to the opposite vertex of the triangle. The point where the lines meet is the balancing point of the triangle.
5
Theorem: Concurrency of Medians The centroid is 2/3 the distance from each vertex to the midpoint of the opposite side.
6

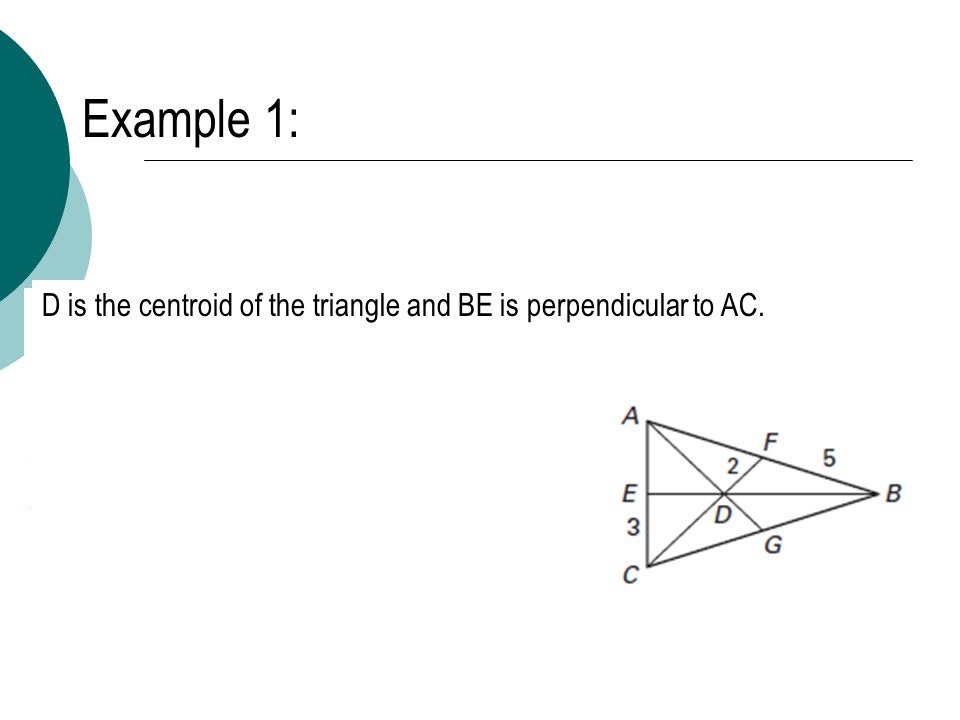

Example 1: D is the centroid of the triangle and BE is perpendicular to AC.
7

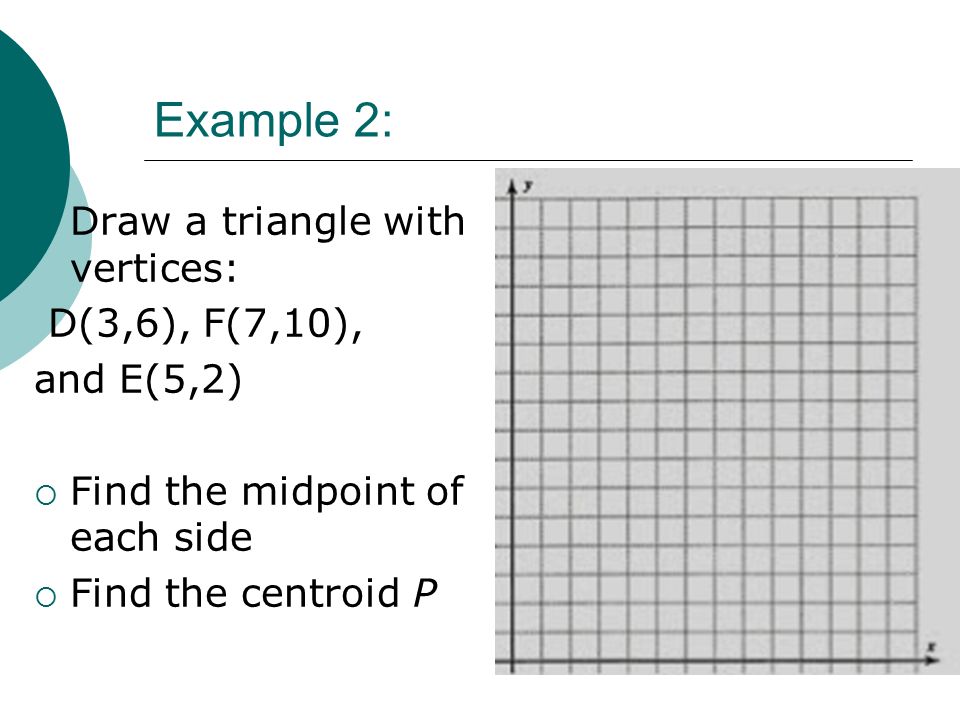

Example 2: Draw a triangle with vertices: D(3,6), F(7,10), and E(5,2) Find the midpoint of each side Find the centroid P
8

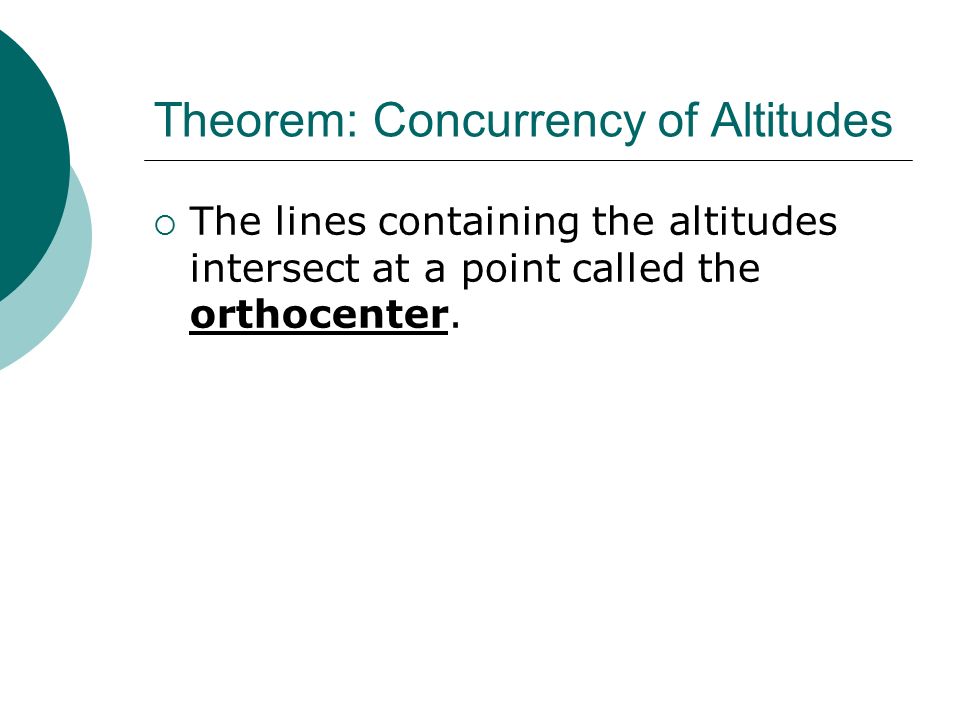

Theorem: Concurrency of Altitudes The lines containing the altitudes intersect at a point called the orthocenter.
9

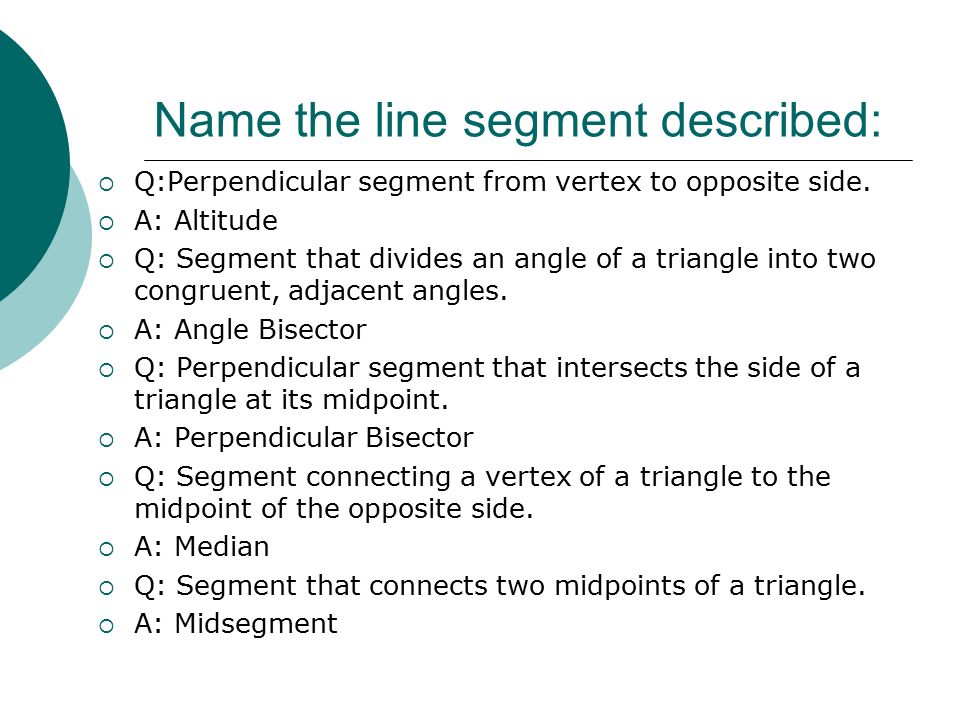

Name the line segment described: Q:Perpendicular segment from vertex to opposite side. A: Altitude Q: Segment that divides an angle of a triangle into two congruent, adjacent angles. A: Angle Bisector Q: Perpendicular segment that intersects the side of a triangle at its midpoint. A: Perpendicular Bisector Q: Segment connecting a vertex of a triangle to the midpoint of the opposite side. A: Median Q: Segment that connects two midpoints of a triangle. A: Midsegment
10

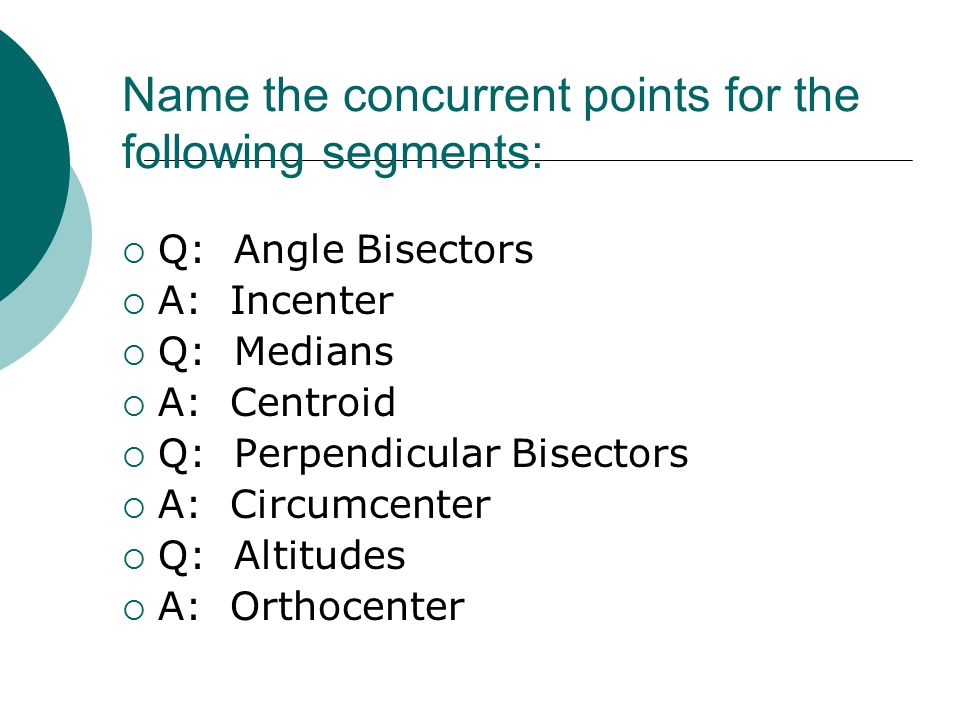

Name the concurrent points for the following segments: Q: Angle Bisectors A: Incenter Q: Medians A: Centroid Q: Perpendicular Bisectors A: Circumcenter Q: Altitudes A: Orthocenter
11

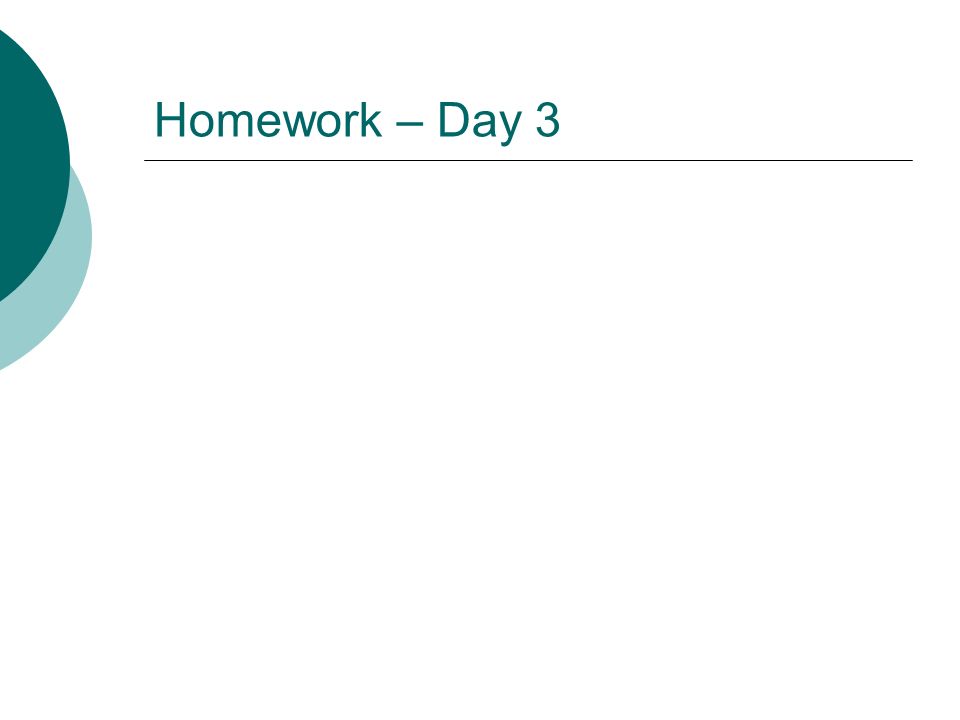

Homework – Day 3
12

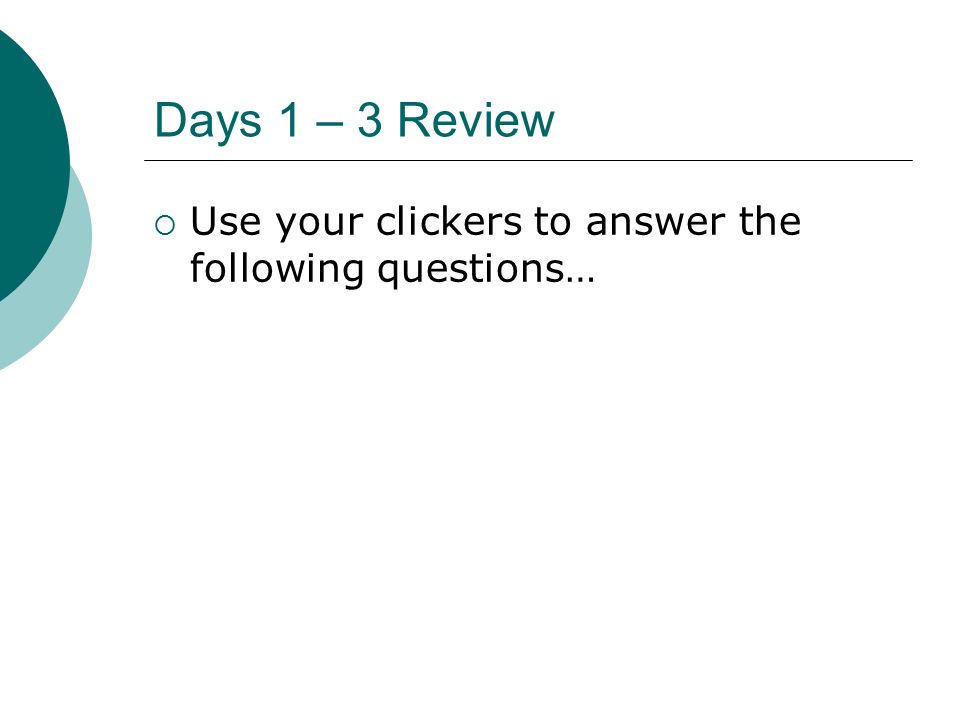

Days 1 – 3 Review Use your clickers to answer the following questions…
13

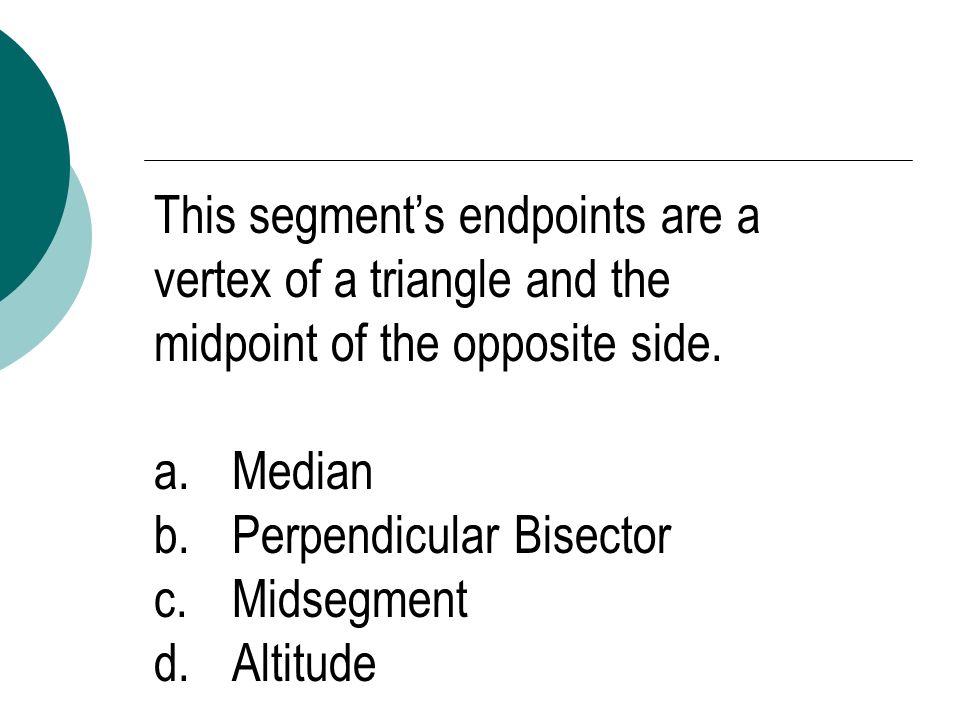

This segment’s endpoints are a vertex of a triangle and the midpoint of the opposite side. a.Median b.Perpendicular Bisector c.Midsegment d.Altitude
14
In WXY, Q is the centroid and YQ = 2 x 15 and QA = 4. Find x. a.9.5 b.11.5 c.13.5 Q Y W X A B C
15

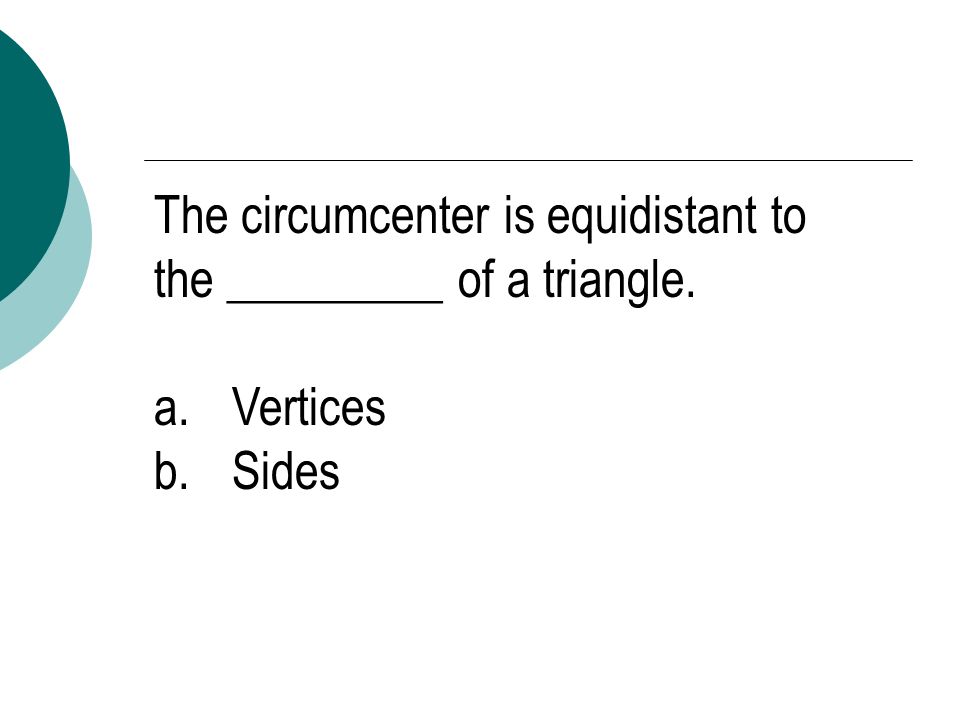

The circumcenter is equidistant to the _________ of a triangle. a.Vertices b.Sides
16

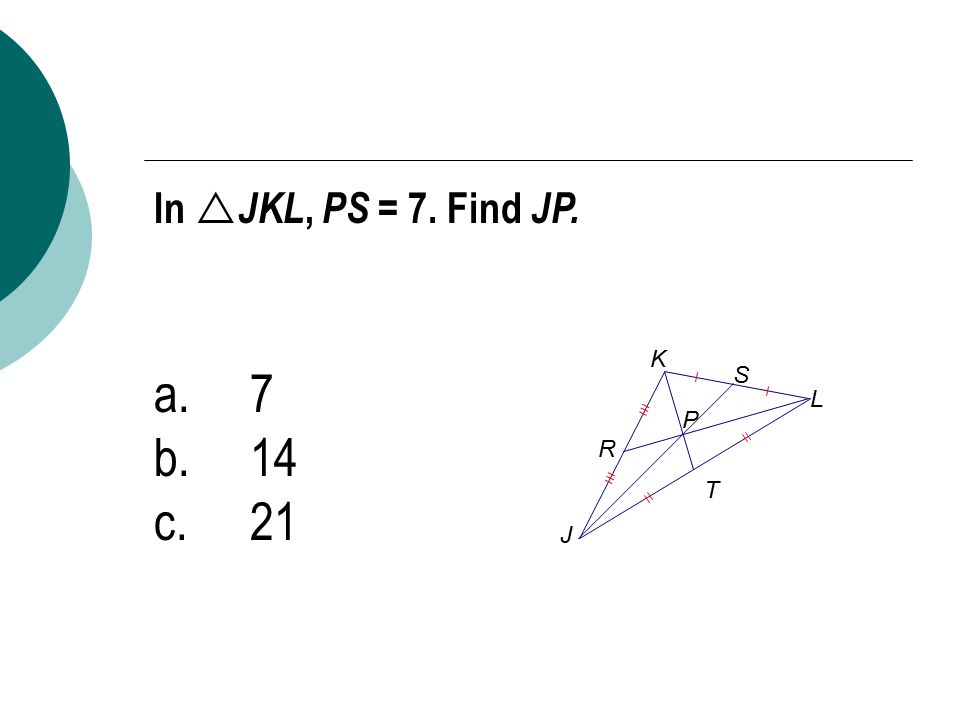

In JKL, PS = 7. Find JP. a.7 b.14 c.21 J K L R S T P
17

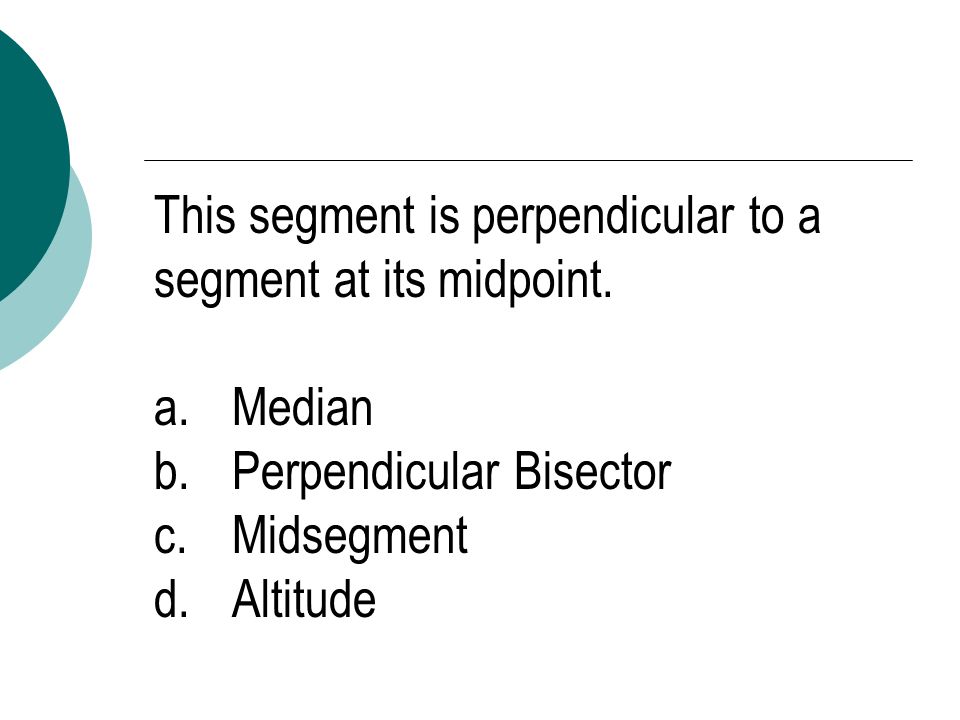

This segment is perpendicular to a segment at its midpoint. a.Median b.Perpendicular Bisector c.Midsegment d.Altitude
18
This line passes through a vertex and divides that interior angle in half. a.Perpendicular Bisector b.Angle Bisector c.Midsegment
19

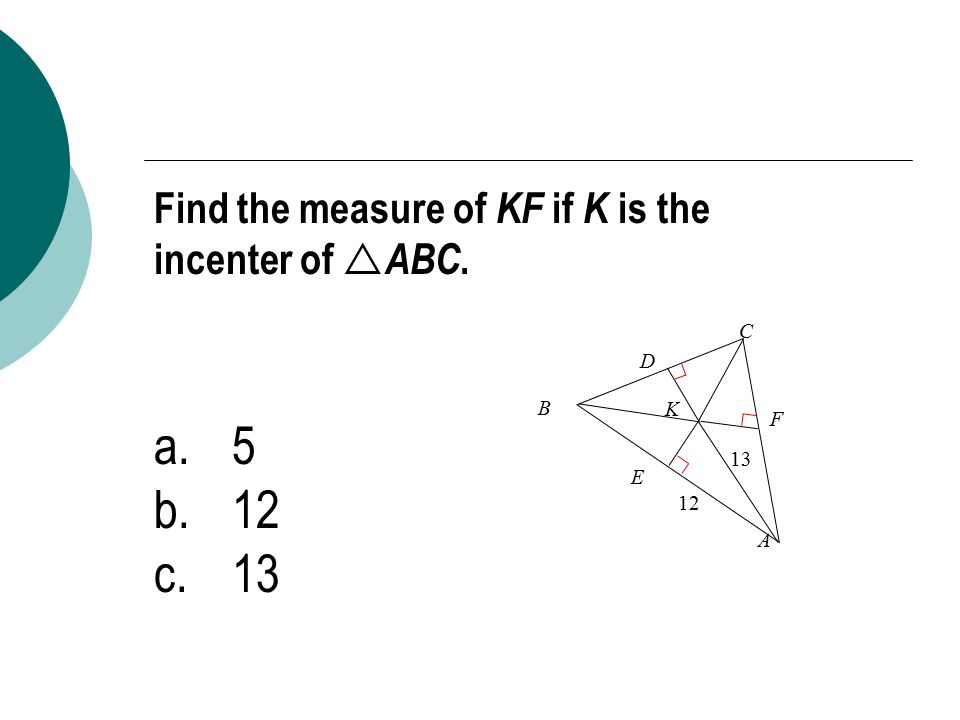

Find the measure of KF if K is the incenter of ABC. a.5 b.12 c.13 A B C F D E 13 12 K
20

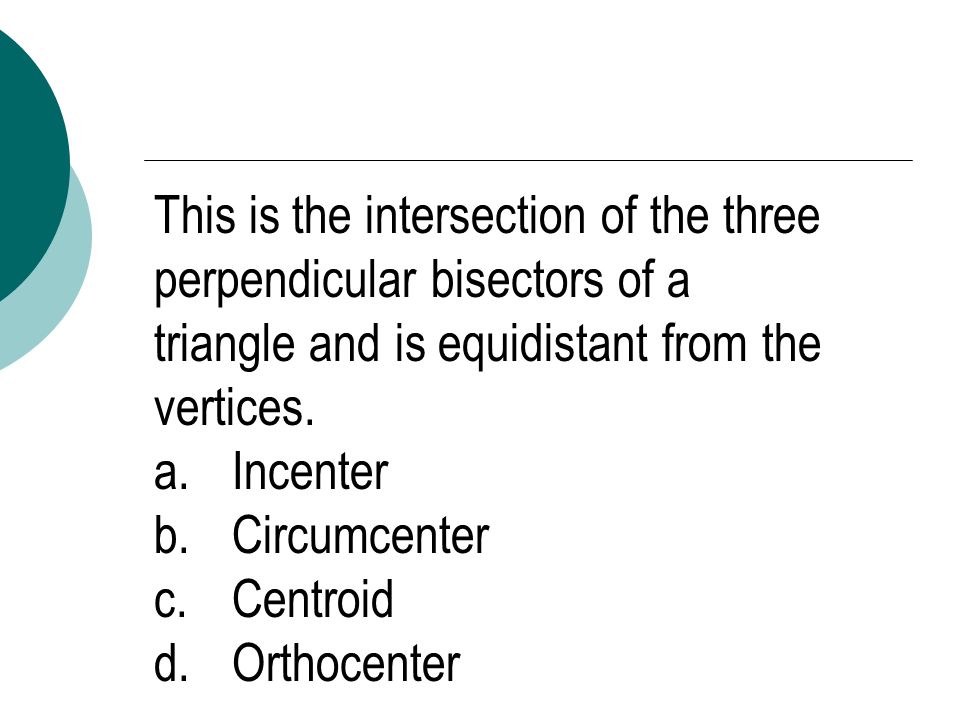

This is the intersection of the three perpendicular bisectors of a triangle and is equidistant from the vertices. a.Incenter b.Circumcenter c.Centroid d.Orthocenter
21

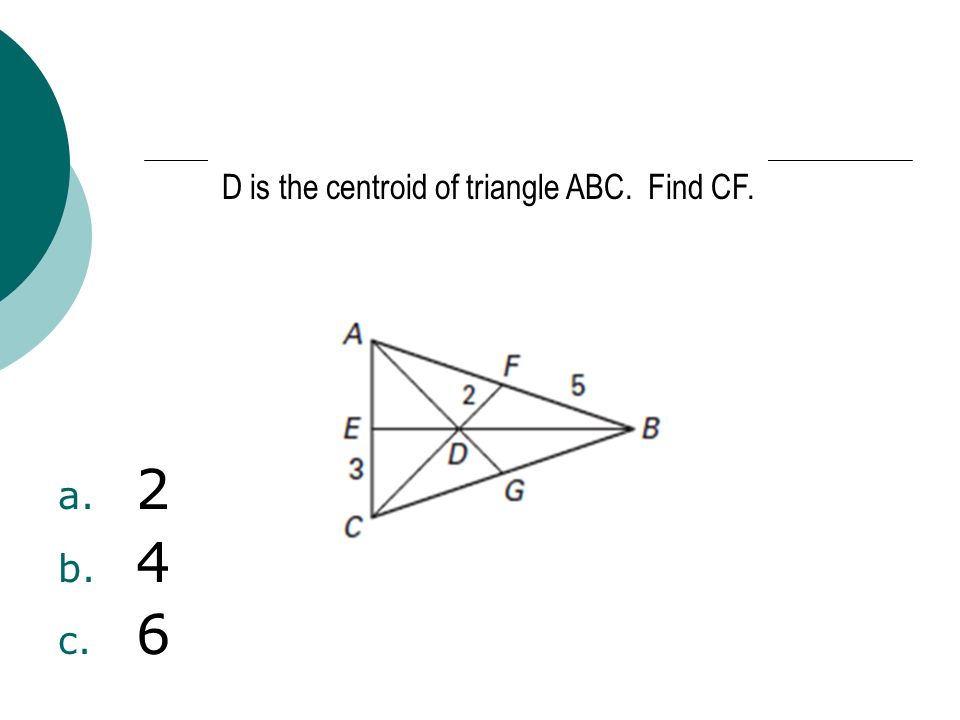

a. 2 b. 4 c. 6 D is the centroid of triangle ABC. Find CF.
22

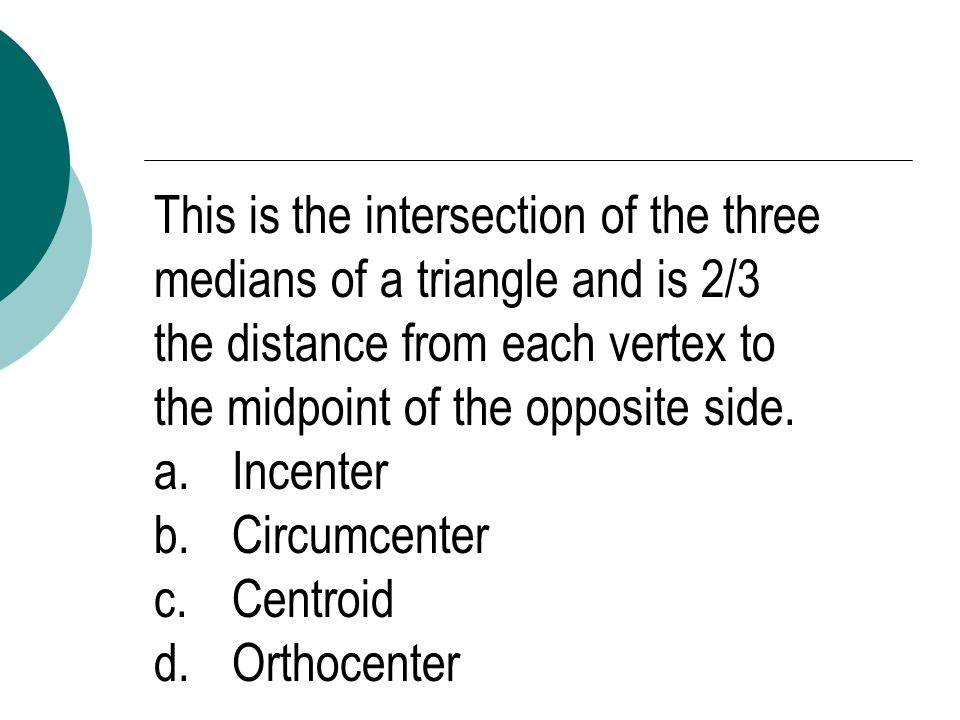

This is the intersection of the three medians of a triangle and is 2/3 the distance from each vertex to the midpoint of the opposite side. a.Incenter b.Circumcenter c.Centroid d.Orthocenter
23

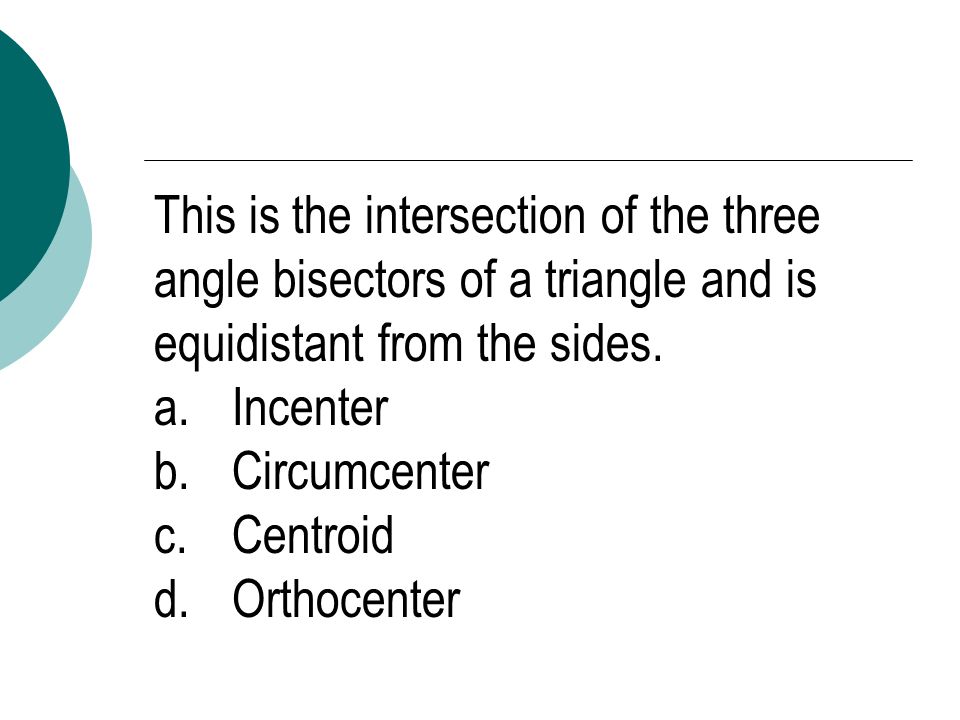

This is the intersection of the three angle bisectors of a triangle and is equidistant from the sides. a.Incenter b.Circumcenter c.Centroid d.Orthocenter
24

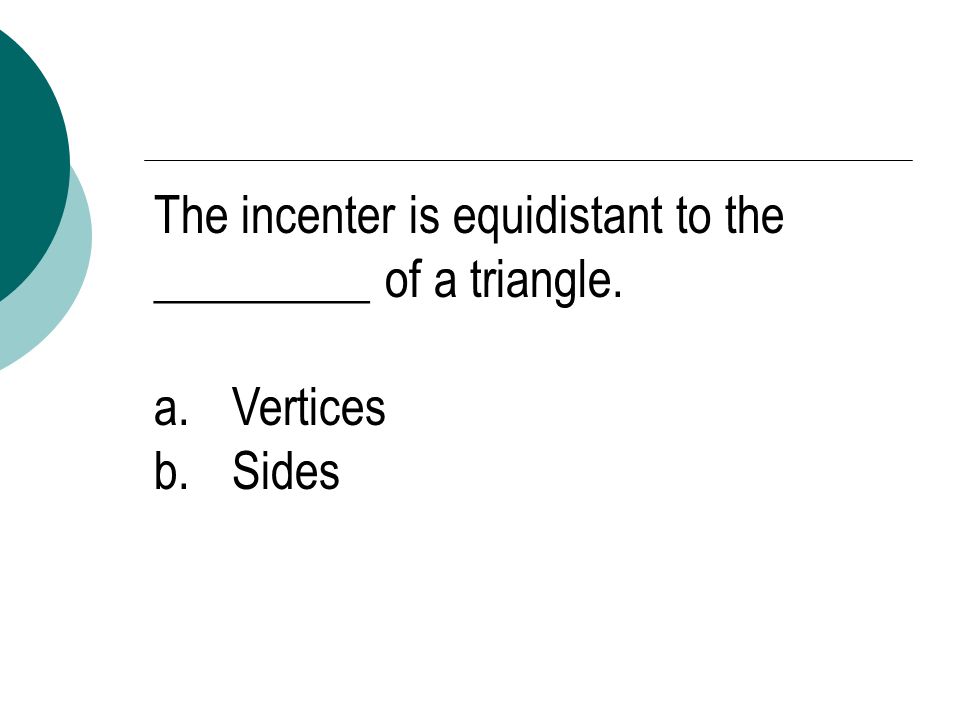

The incenter is equidistant to the _________ of a triangle. a.Vertices b.Sides
25

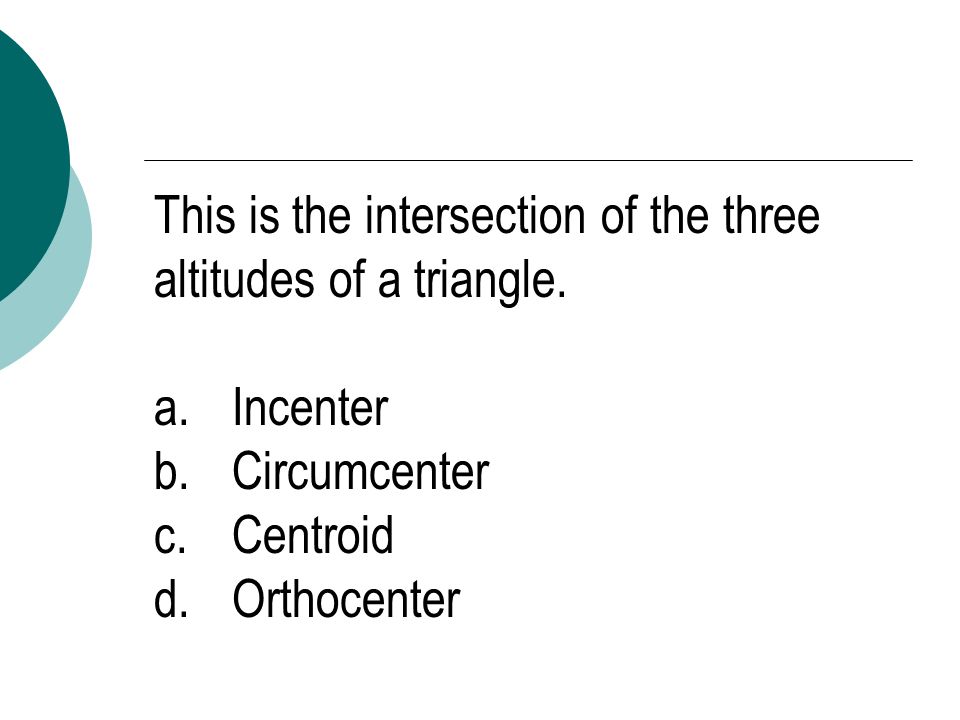

This is the intersection of the three altitudes of a triangle. a.Incenter b.Circumcenter c.Centroid d.Orthocenter
26

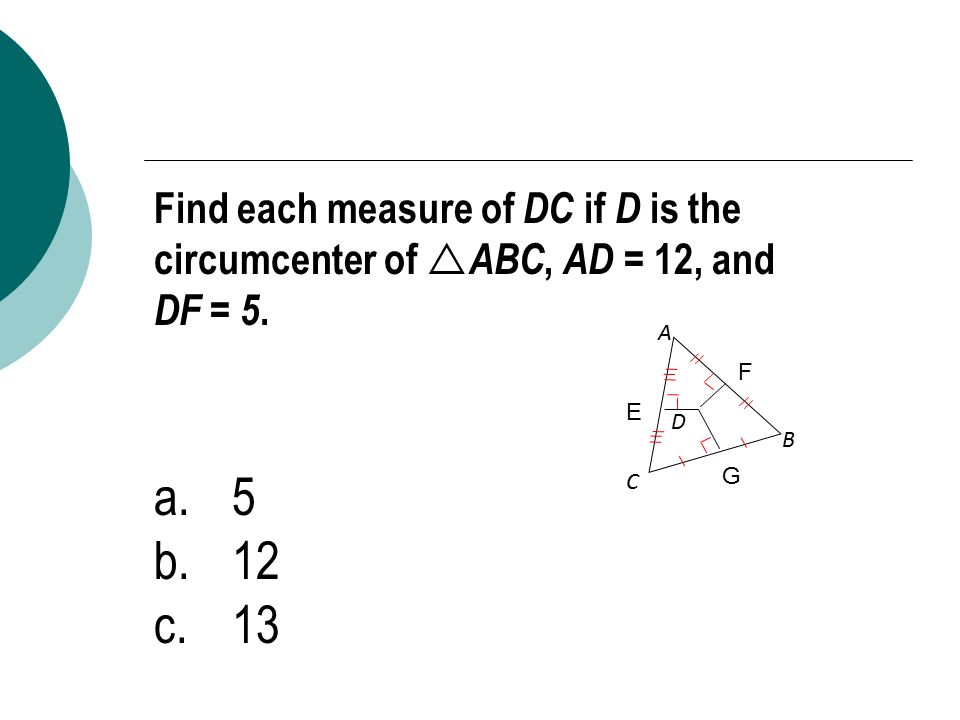

Find each measure of DC if D is the circumcenter of ABC, AD = 12, and DF = 5. a.5 b.12 c.13 A B C D E F G
27

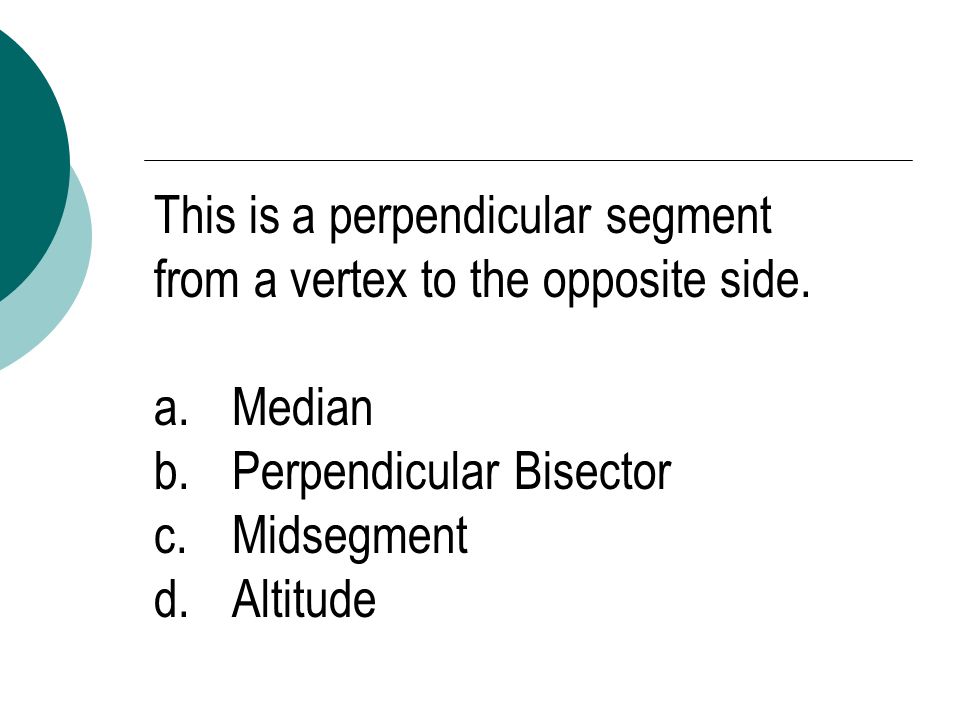

This is a perpendicular segment from a vertex to the opposite side. a.Median b.Perpendicular Bisector c.Midsegment d.Altitude
