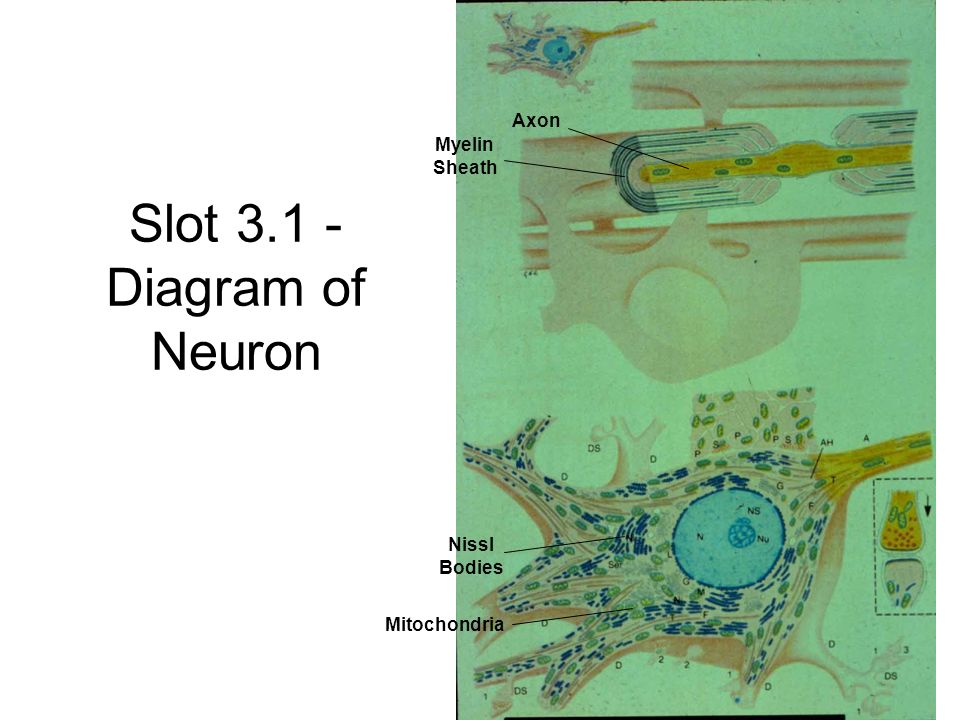

1. Slot 3.1 - Diagram of Neuron Nissl Bodies Mitochondria Myelin Sheath Axon

2. Slot 3.2 - Pseudounipolar neuron of dorsal root ganglion Nucleus with Nucleolus Arrowheads = satellite cells Arrow = nerve fibers

3. Slot 3.3 - Cell Bodies of pseudounipolar neuron Common trunk of axon and dendrite Nucleus with nucleolus giving “owl eye” appearance

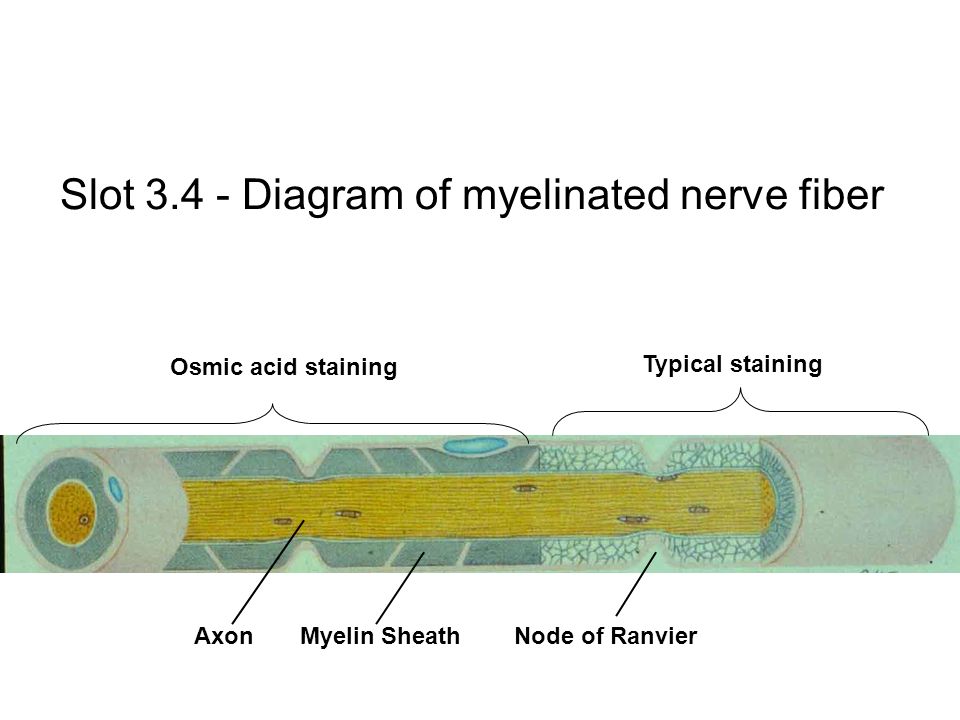

4. Slot 3.4 - Diagram of myelinated nerve fiber Osmic acid staining Typical staining AxonNode of RanvierMyelin Sheath

5. Slot 3.5 - Transverse section of peripheral nerve E = epineurium P = perineurium F = fascicle

6. Slot 3.8 - Nerve (c.s.) Fascicle Endoneurium Axon Perineurium

7. Slot 3.14 - Motor end plates Axon Motor end plate Muscle fibers

8. Slot 3.15 - Motor end plates Axon Motor end plate Muscle fiber

9. Slot 3.16 - Multipolar neurons Axon Hillock Dendrites Nissl Substance

10. Slot 3.17 - Multipolar neuron Dendrites Nissl Substance

11. Slot 3.18 - Nerve (c.s.) Fascicle Epineurium Perineurium

12. Slot 3.19 - Nerve (c.s.) Fascicle Endoneurium Axon Perineurium

13. Slot 3.20 - Nerve (c.s.) Fascicle Endoneurium Axon Perineurium Epineurium

14. Slot 3.21- Nerve (c.s.) Axon Myelin sheath Endoneurium Epineurium

15. Slot 3.22 - Nerve (l.s.) Node of Ranvier Myelin sheath Axon

16. Slot 3.23 - Nerve (l.s.) Node of Ranvier Myelin sheath

17. Slot 3.27 - Autonomic ganglion Nerve cell bodies Capsule

18. Slot 3.28 - Autonomic ganglion Nerve cell body Satellite Cells Nucleus with nucleolus giving “owl eye” appearance

19. Slot 3.29 - Autonomic ganglion cell Nucleus with nucleolus giving “owl eye” appearance Satellite Cells

20. Slot 3.30 - Autonomic ganglion Nerve cell bodies Cell processes
