1. The Co-evolution of continental ice cover and 3D ground temperature over the last glacial cycle Lev Tarasov Memorial University of Newfoundland (Thanks to A.S. Dyke, Richard Gyllencreutz, Oystein Lohne, Jan Mangerud, W. R. Peltier, and John Inge Svendsen)‏

2. Outline  MOTIVATION: Ice-sheet evolution  What makes the model results meaningful?  PHYSICS: Glacial Systems Model (GSM)  DATA  BRIDGING DATA and PHYSICS: model calibration  SOME RESULTS

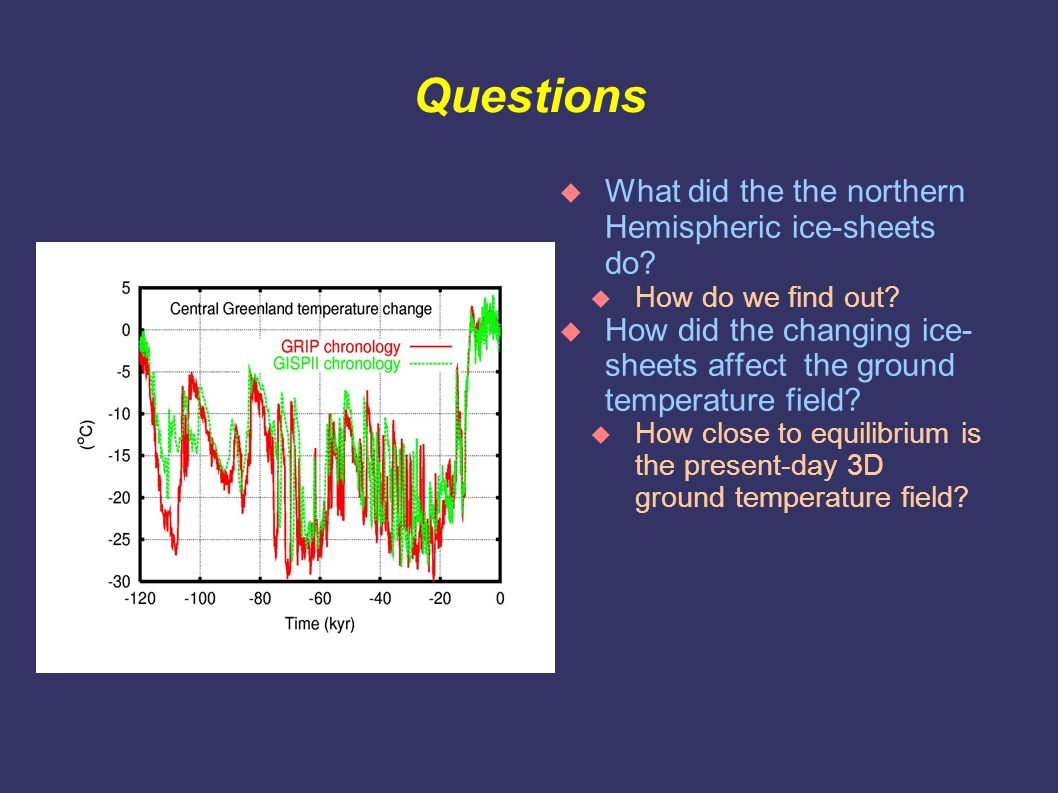

3. Questions  What did the the northern Hemispheric ice-sheets do?  How do we find out?  How did the changing ice- sheets affect the ground temperature field?  How close to equilibrium is the present-day 3D ground temperature field?

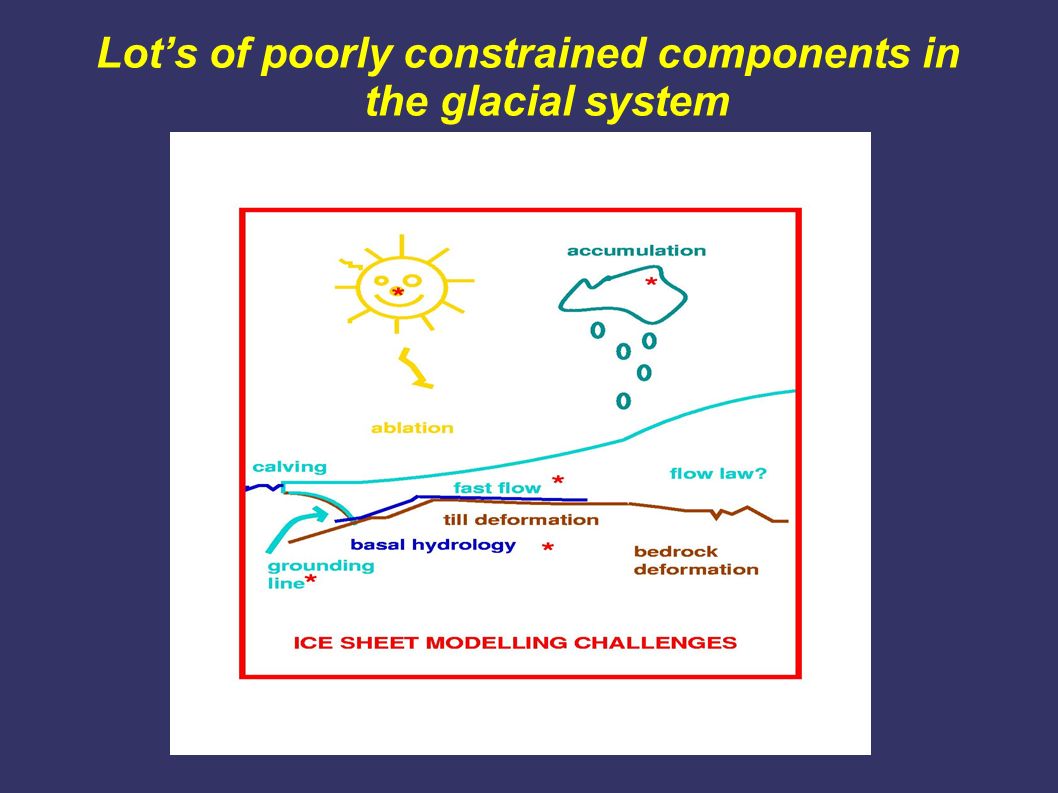

4. Lot’s of poorly constrained components in the glacial system

5. Poorly constrained system; model pre(retro)dictions have generally lacked meaningful error bars => no meaningful interpretation. Solution: 3 components:

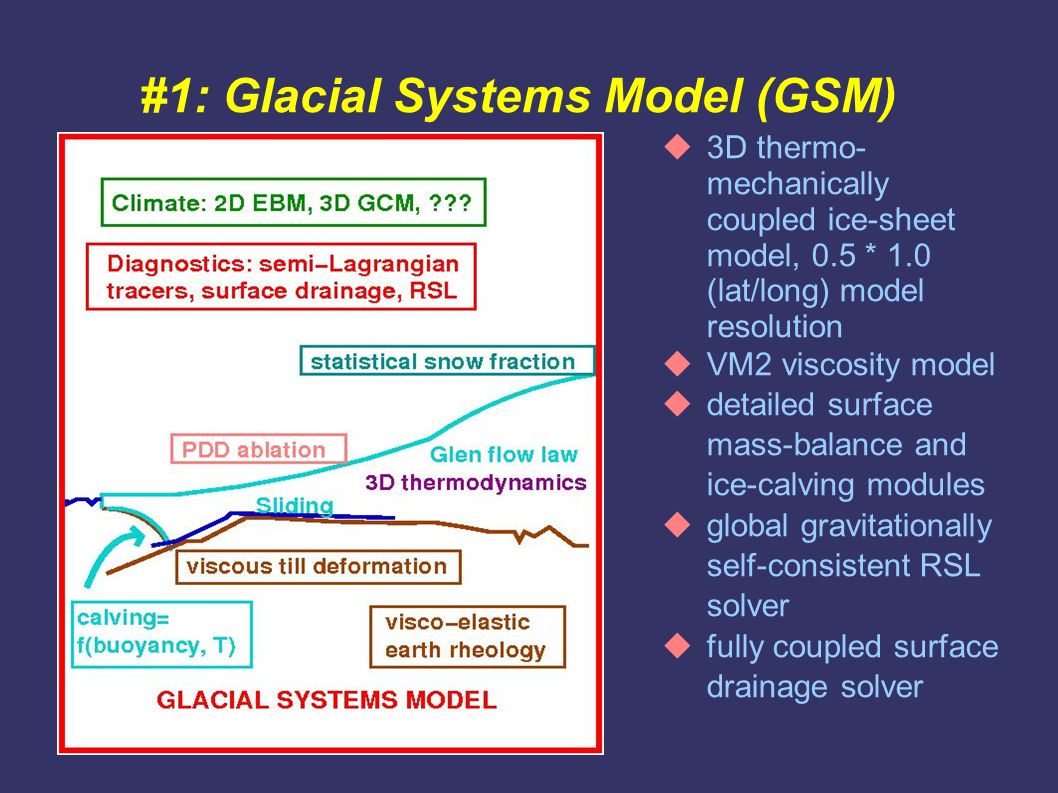

6. #1: Glacial Systems Model (GSM)‏  3D thermo- mechanically coupled ice-sheet model, 0.5 * 1.0 (lat/long) model resolution  VM2 viscosity model  detailed surface mass-balance and ice-calving modules  global gravitationally self-consistent RSL solver  fully coupled surface drainage solver

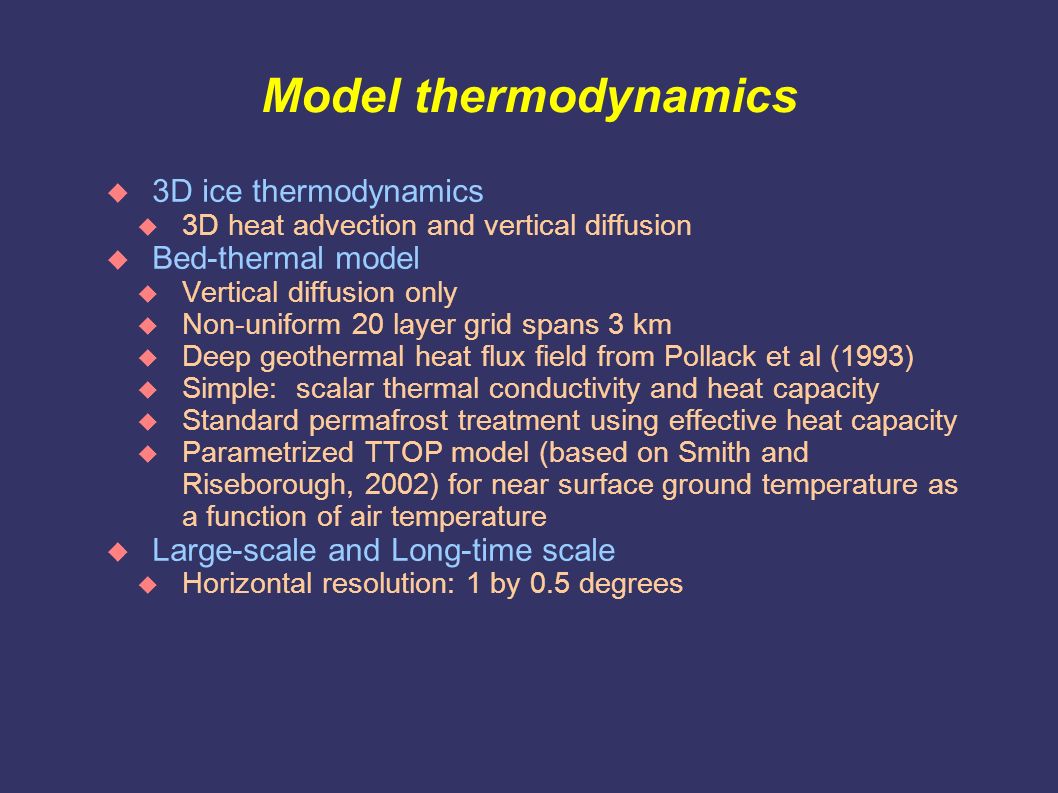

7. Model thermodynamics  3D ice thermodynamics  3D heat advection and vertical diffusion  Bed-thermal model  Vertical diffusion only  Non-uniform 20 layer grid spans 3 km  Deep geothermal heat flux field from Pollack et al (1993)‏  Simple: scalar thermal conductivity and heat capacity  Standard permafrost treatment using effective heat capacity  Parametrized TTOP model (based on Smith and Riseborough, 2002) for near surface ground temperature as a function of air temperature  Large-scale and Long-time scale  Horizontal resolution: 1 by 0.5 degrees

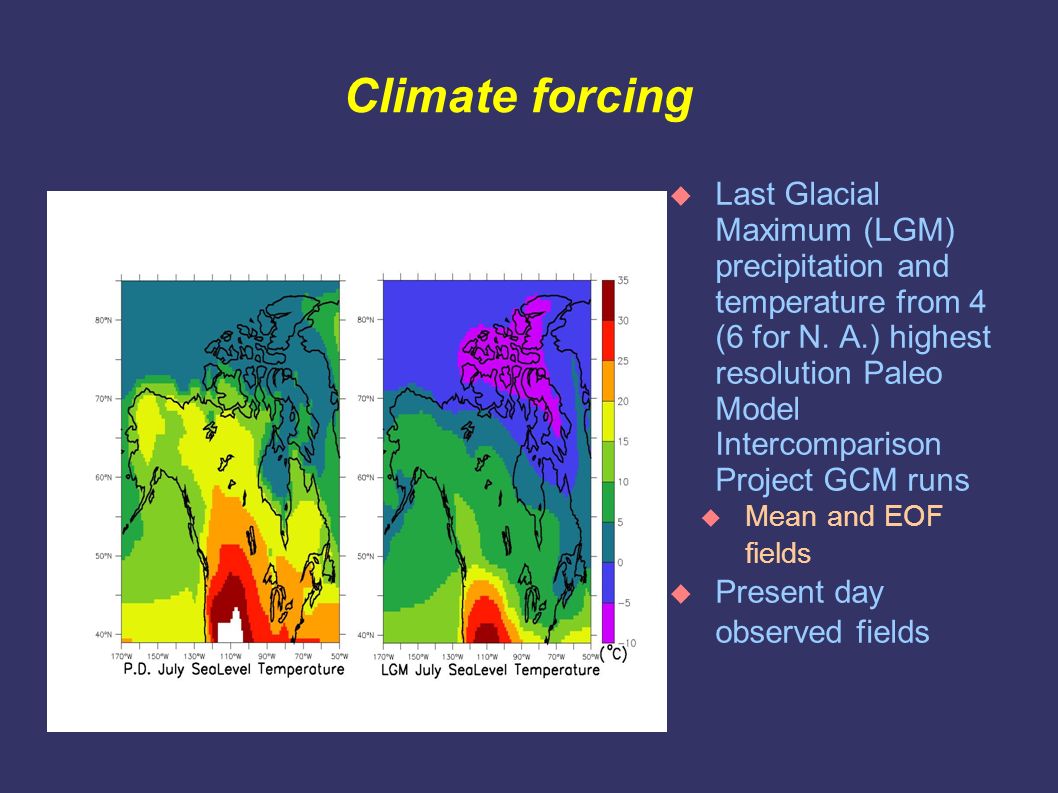

8. Climate forcing  Last Glacial Maximum (LGM) precipitation and temperature from 4 (6 for N. A.) highest resolution Paleo Model Intercomparison Project GCM runs  Mean and EOF fields  Present day observed fields

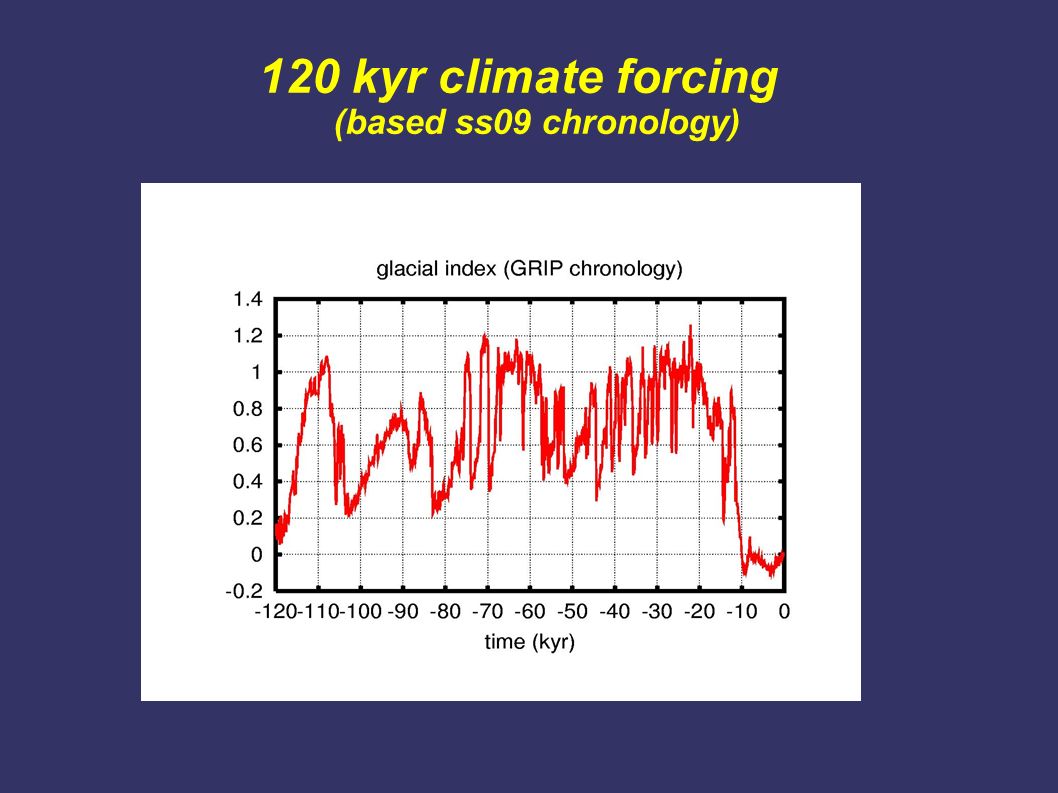

9. 120 kyr climate forcing (based ss09 chronology)‏

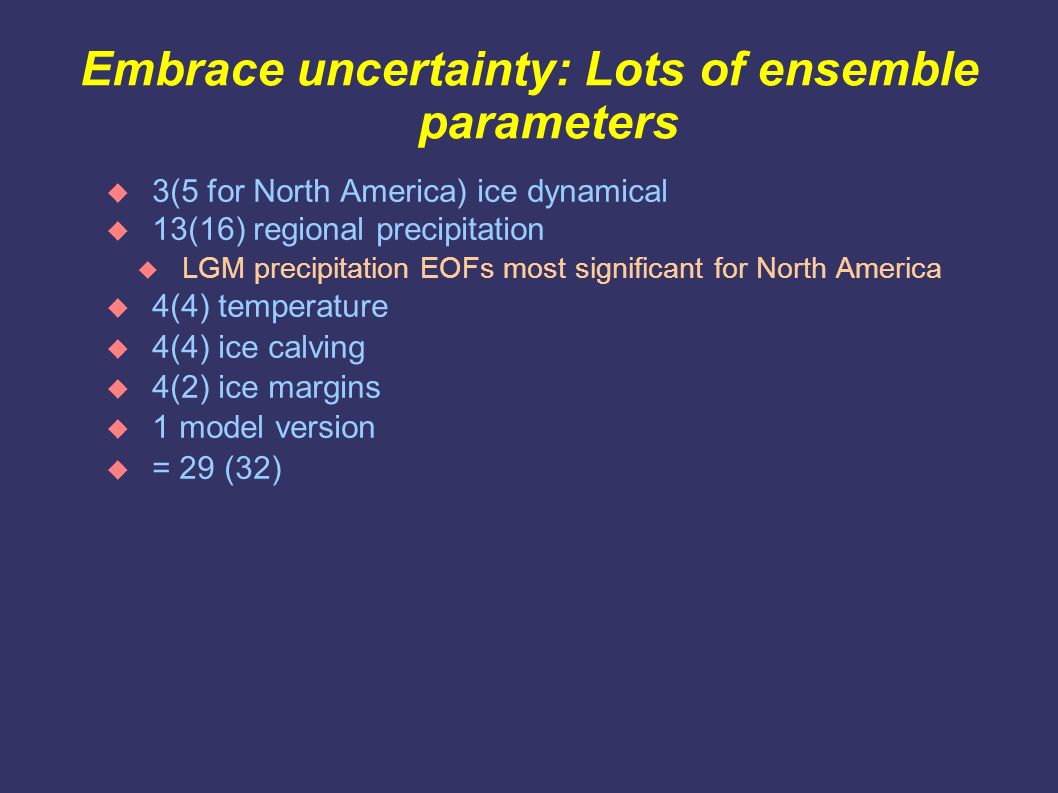

10. Embrace uncertainty: Lots of ensemble parameters  3(5 for North America) ice dynamical  13(16) regional precipitation  LGM precipitation EOFs most significant for North America  4(4) temperature  4(4) ice calving  4(2) ice margins  1 model version  = 29 (32)‏

11. Need constraints -> #2: DATA

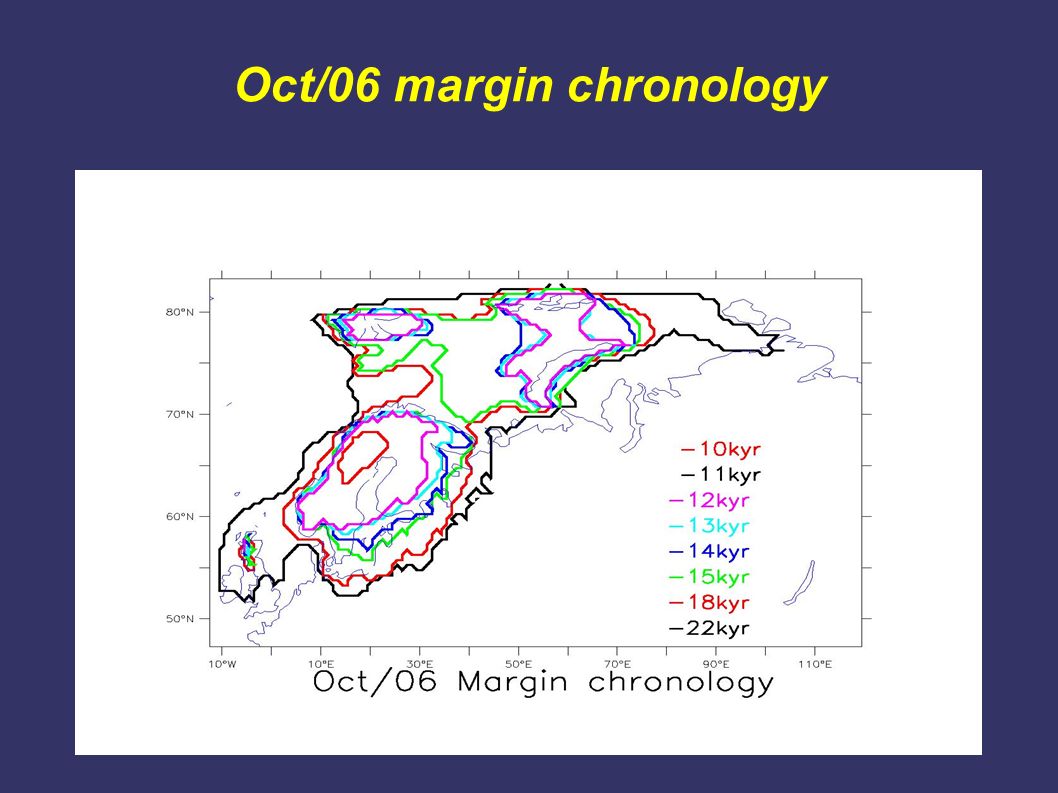

12. Oct/06 margin chronology

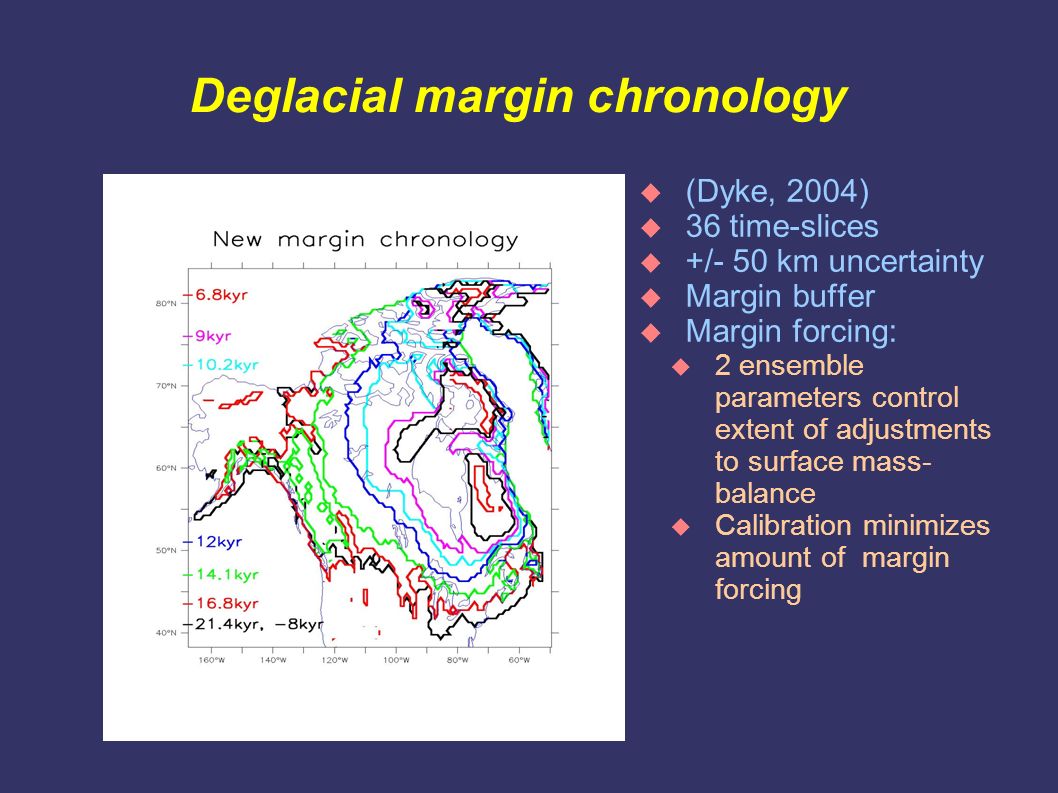

13. Deglacial margin chronology  (Dyke, 2004)‏  36 time-slices  +/- 50 km uncertainty  Margin buffer  Margin forcing:  2 ensemble parameters control extent of adjustments to surface mass- balance  Calibration minimizes amount of margin forcing

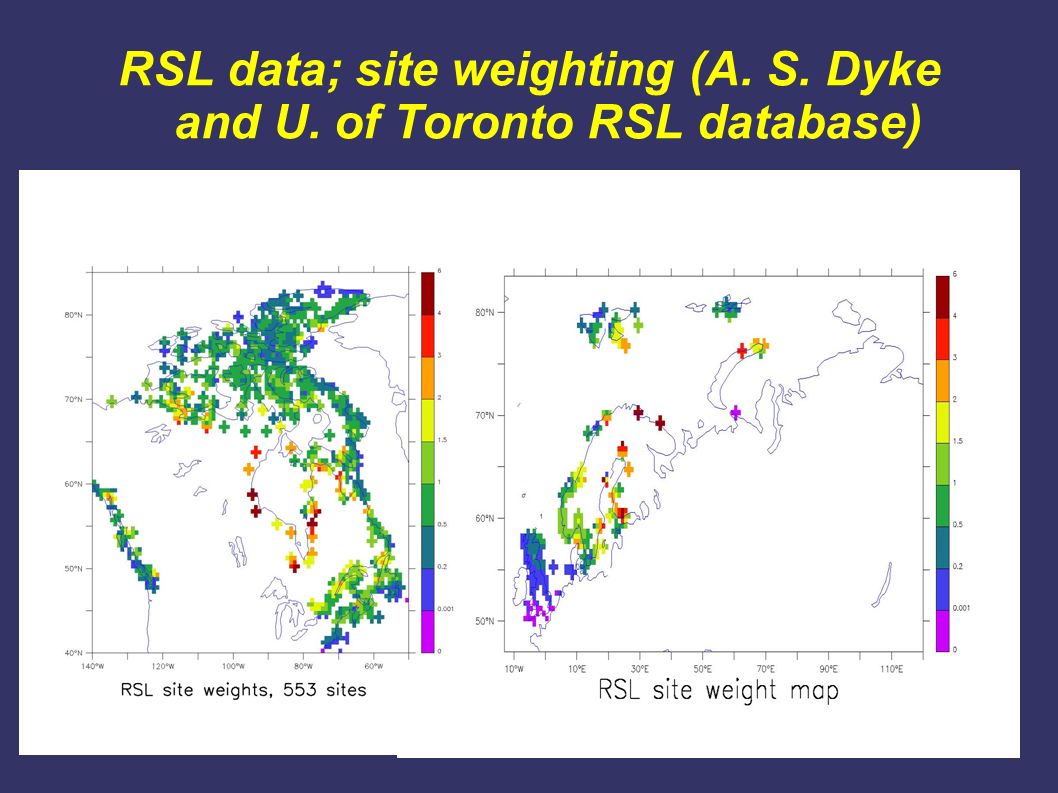

14. RSL data; site weighting (A. S. Dyke and U. of Toronto RSL database)‏

15. Noisy data and non-linear system => need #3: calibration and error bars

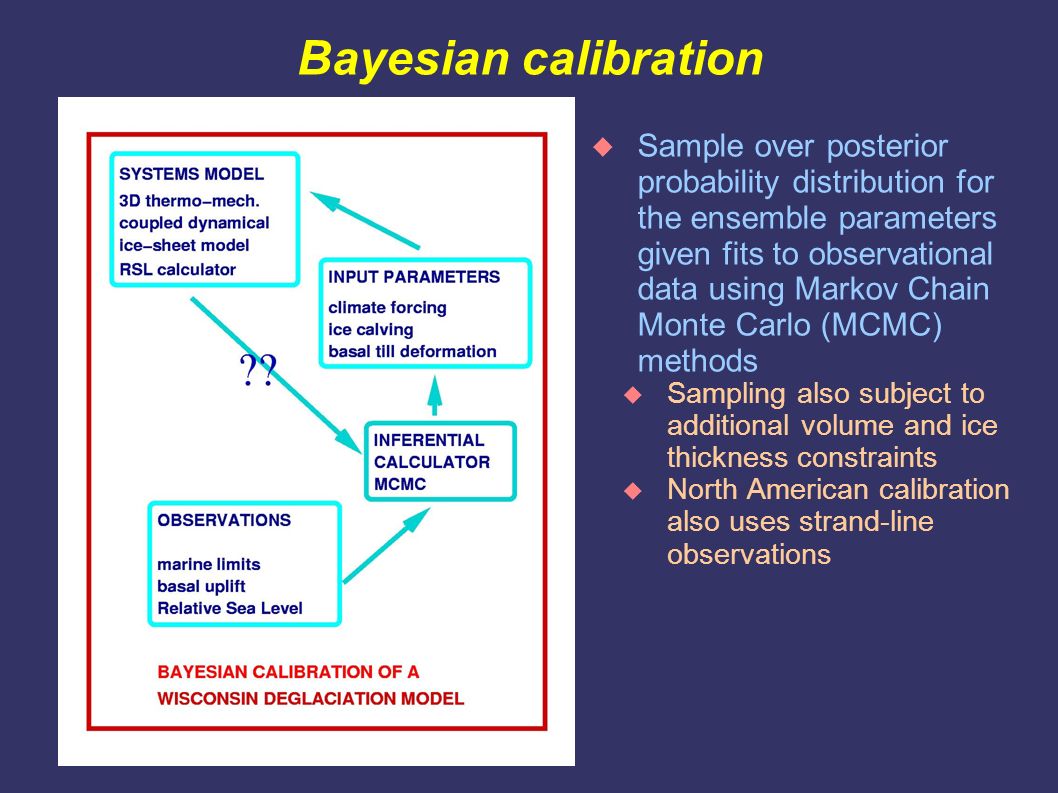

16. Bayesian calibration  Sample over posterior probability distribution for the ensemble parameters given fits to observational data using Markov Chain Monte Carlo (MCMC) methods  Sampling also subject to additional volume and ice thickness constraints  North American calibration also uses strand-line observations

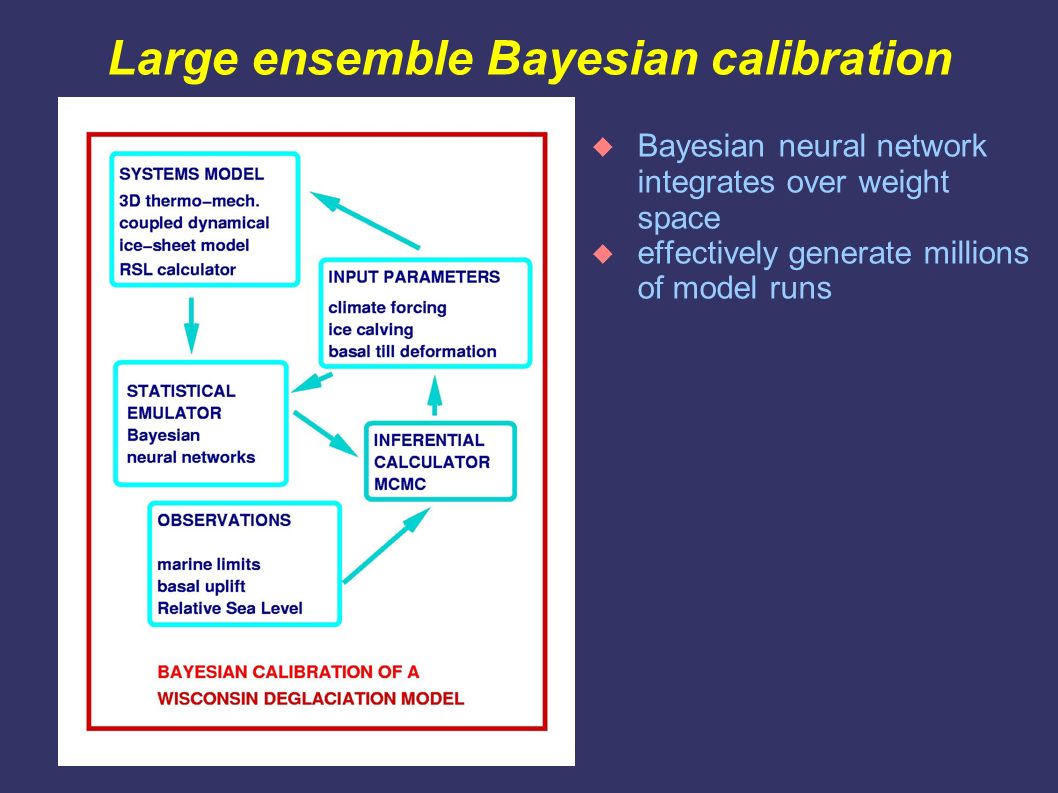

17. Large ensemble Bayesian calibration  Bayesian neural network integrates over weight space  effectively generate millions of model runs

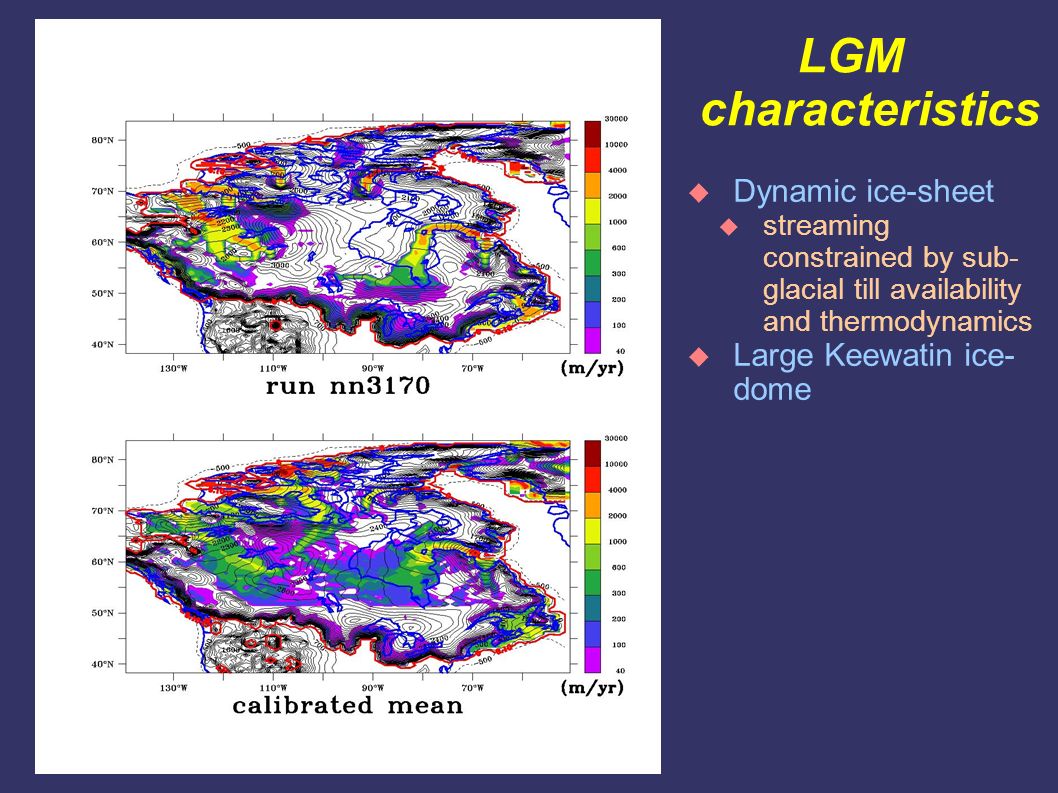

18. LGM characteristics  Dynamic ice-sheet  streaming constrained by sub- glacial till availability and thermodynamics  Large Keewatin ice- dome

19. Validation of glaciological model  RSL fits are overall as good as that of the non- glaciological ICE5-G model  North American model also validated against GRACE observations for present-day rate of mass- change  Surface topopgraphy similar to that infered on the basis of striations and landform orientation

20. Thermodynamic results (North American are published, Eurasian are preliminary)‏

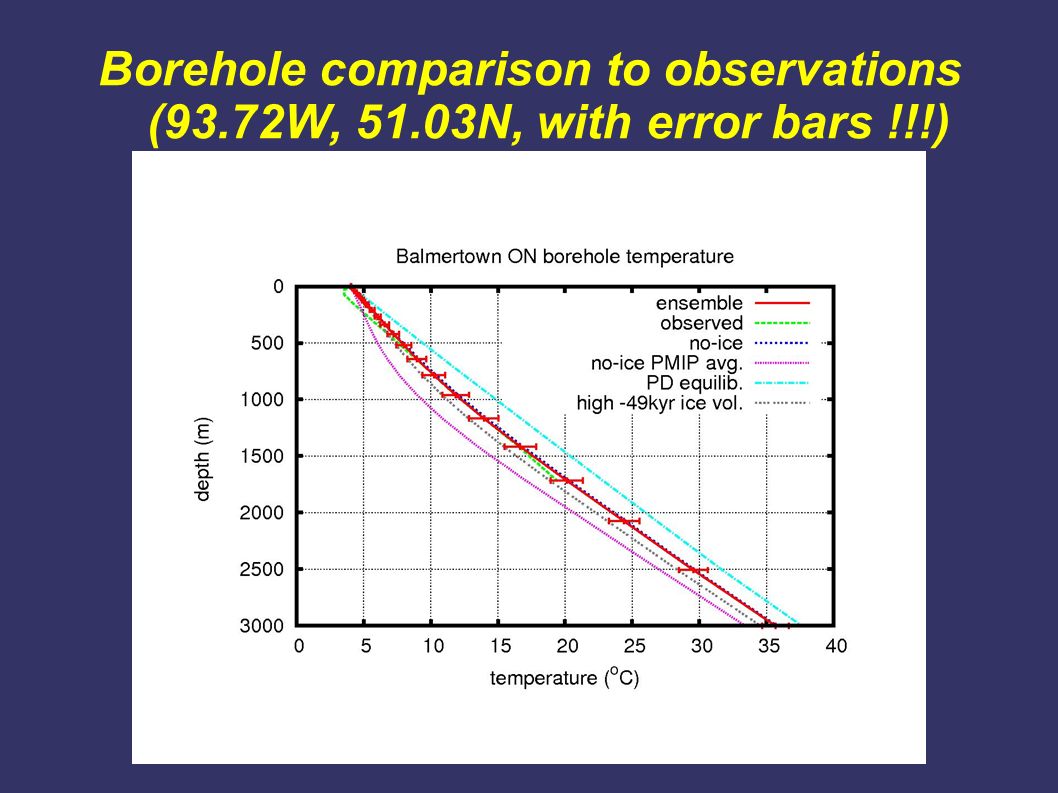

21. Borehole comparison to observations (93.72W, 51.03N, with error bars !!!)‏

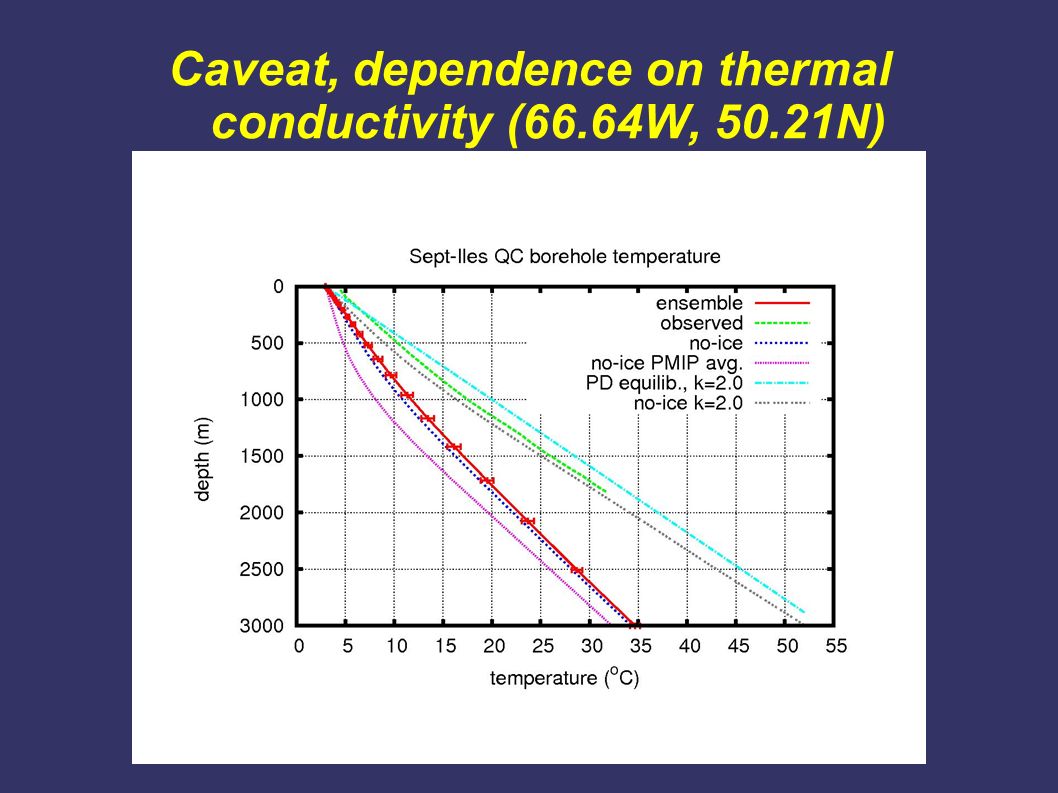

22. Caveat, dependence on thermal conductivity (66.64W, 50.21N)‏

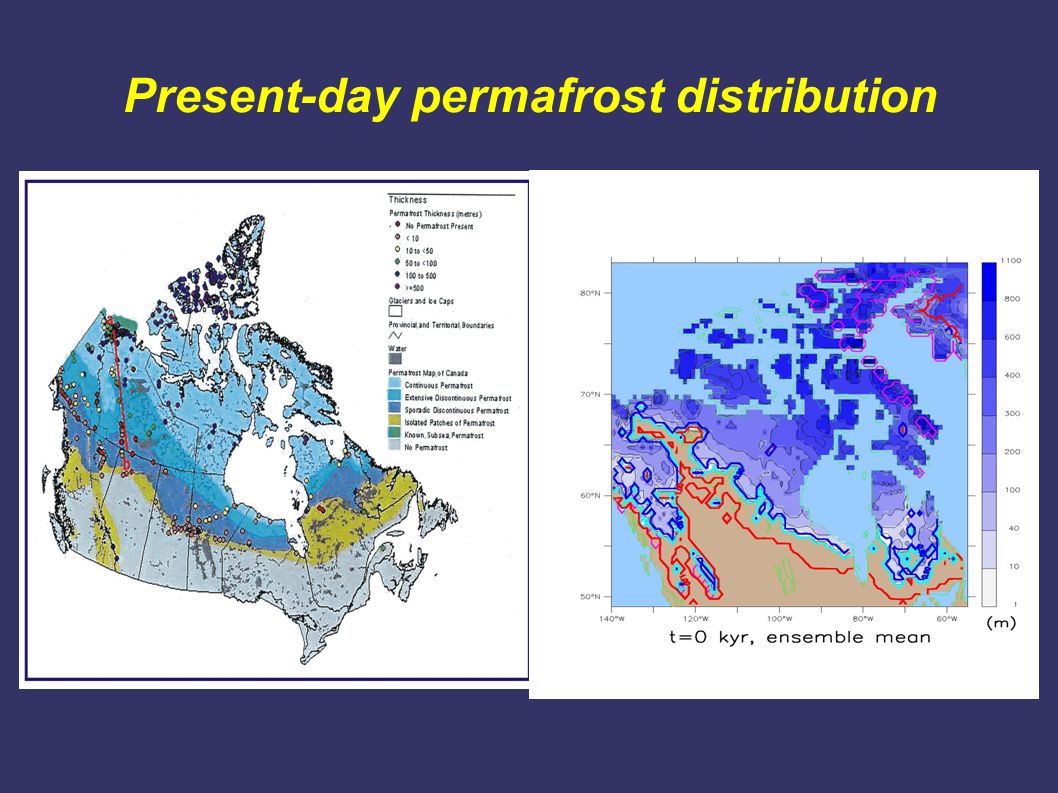

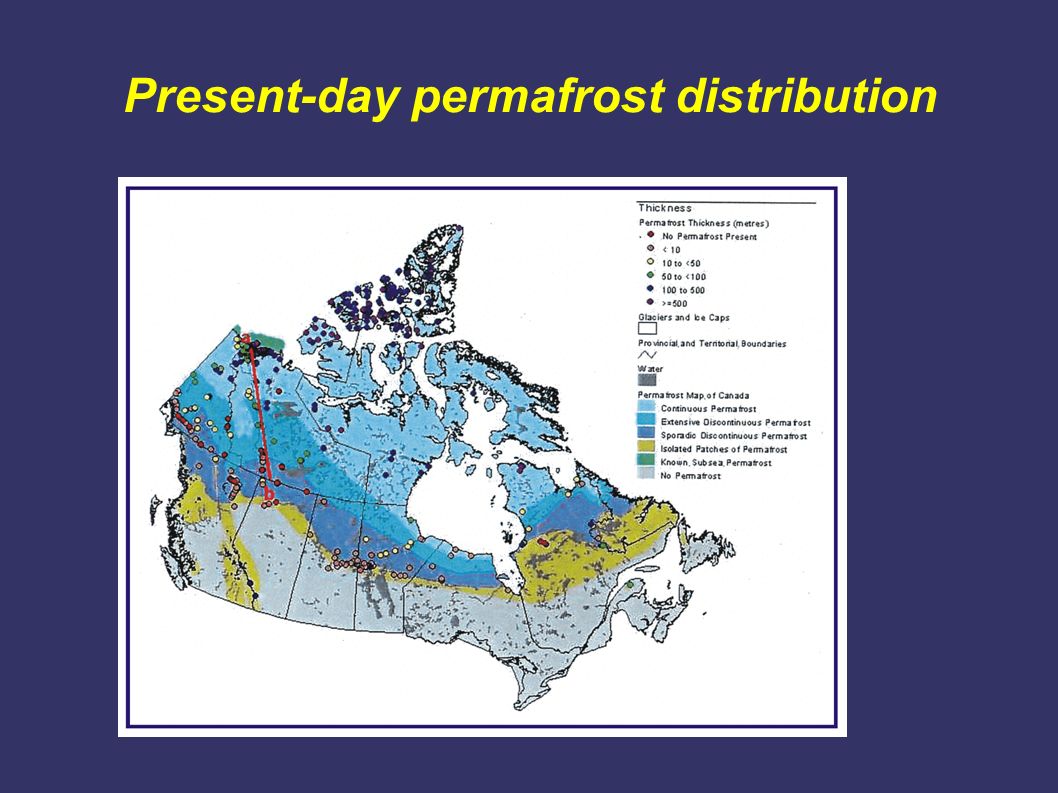

23. Present-day permafrost distribution

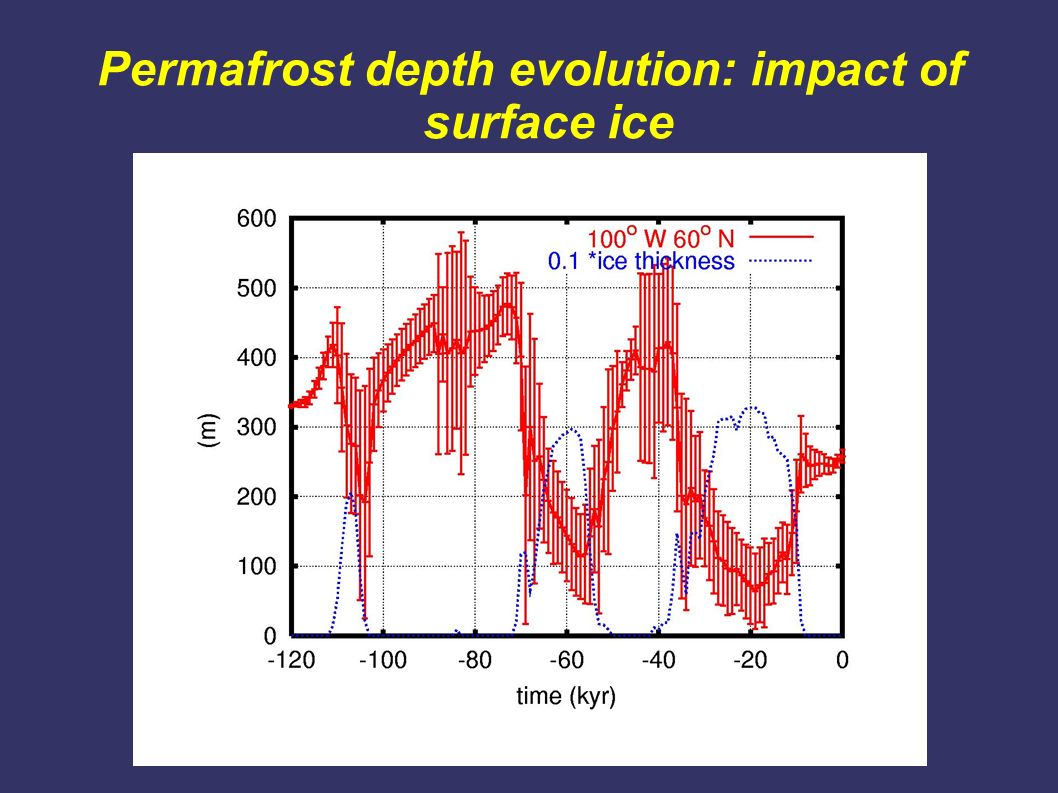

24. Permafrost depth evolution: impact of surface ice

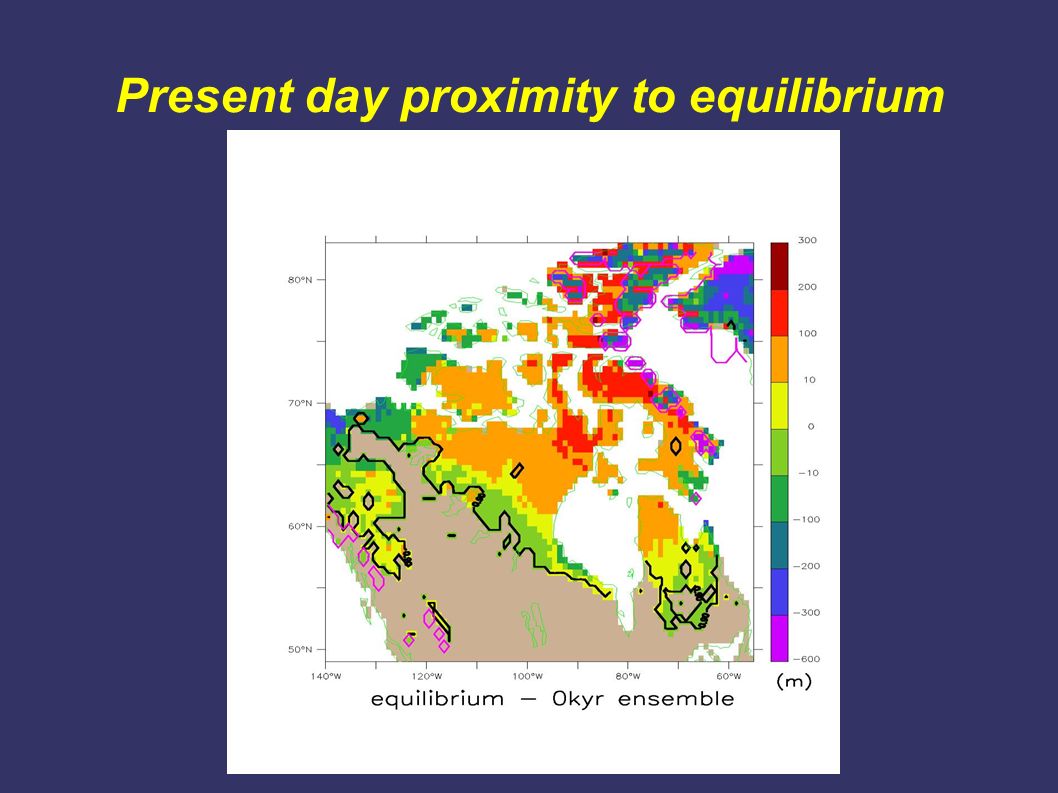

25. Present day proximity to equilibrium

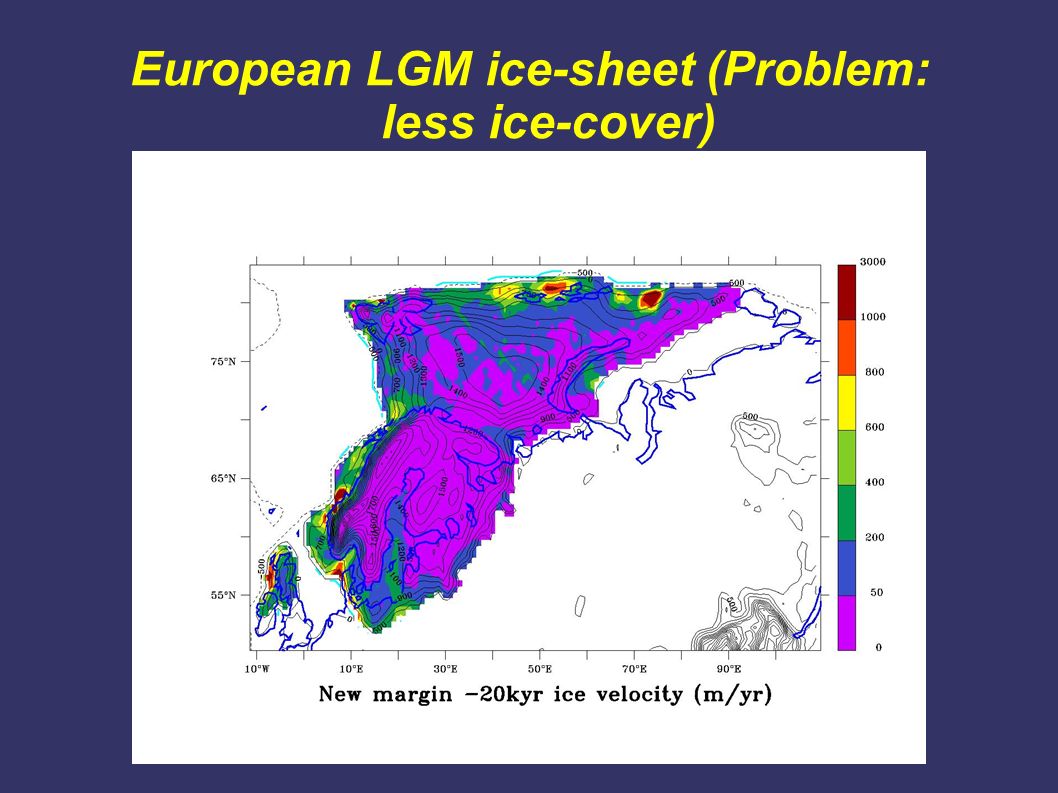

26. European LGM ice-sheet (Problem: less ice-cover)‏

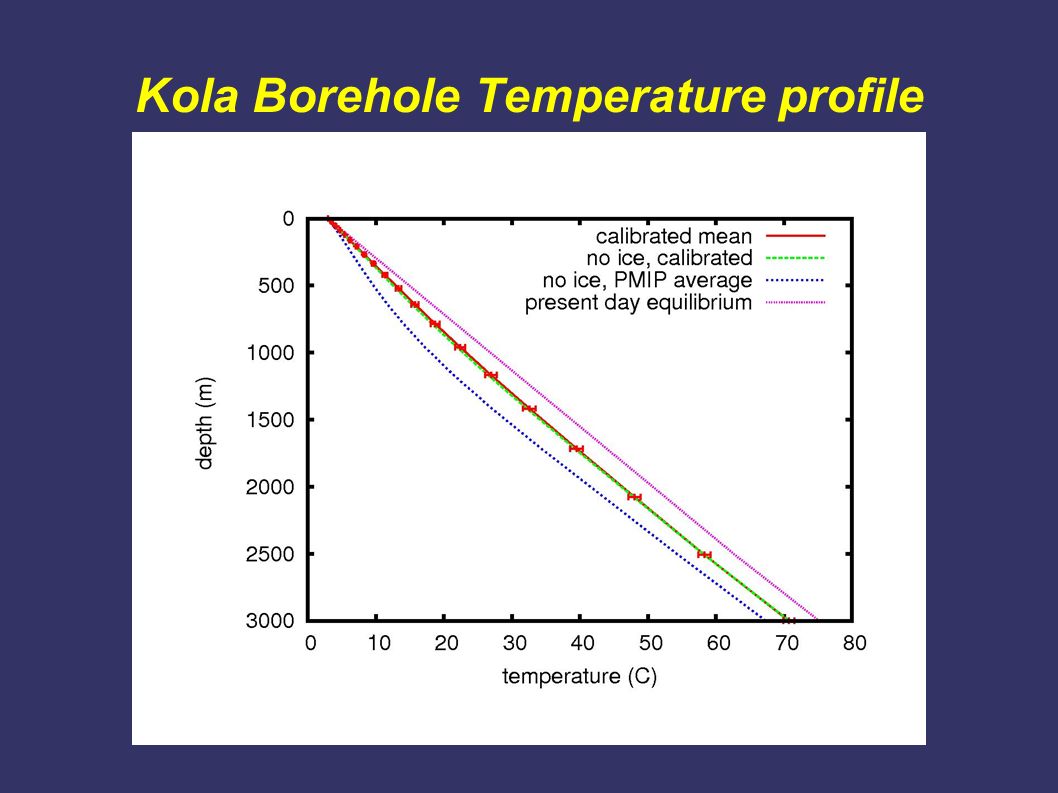

27. Kola Borehole Temperature profile

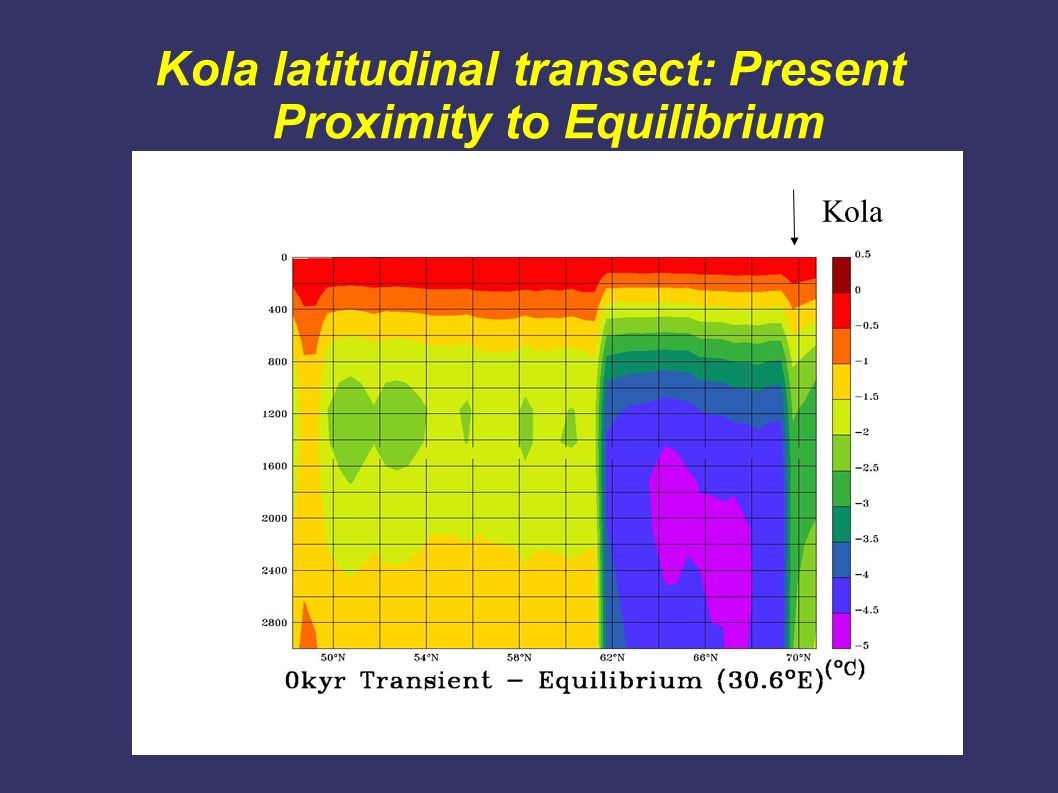

28. Kola latitudinal transect: Present Proximity to Equilibrium Kola

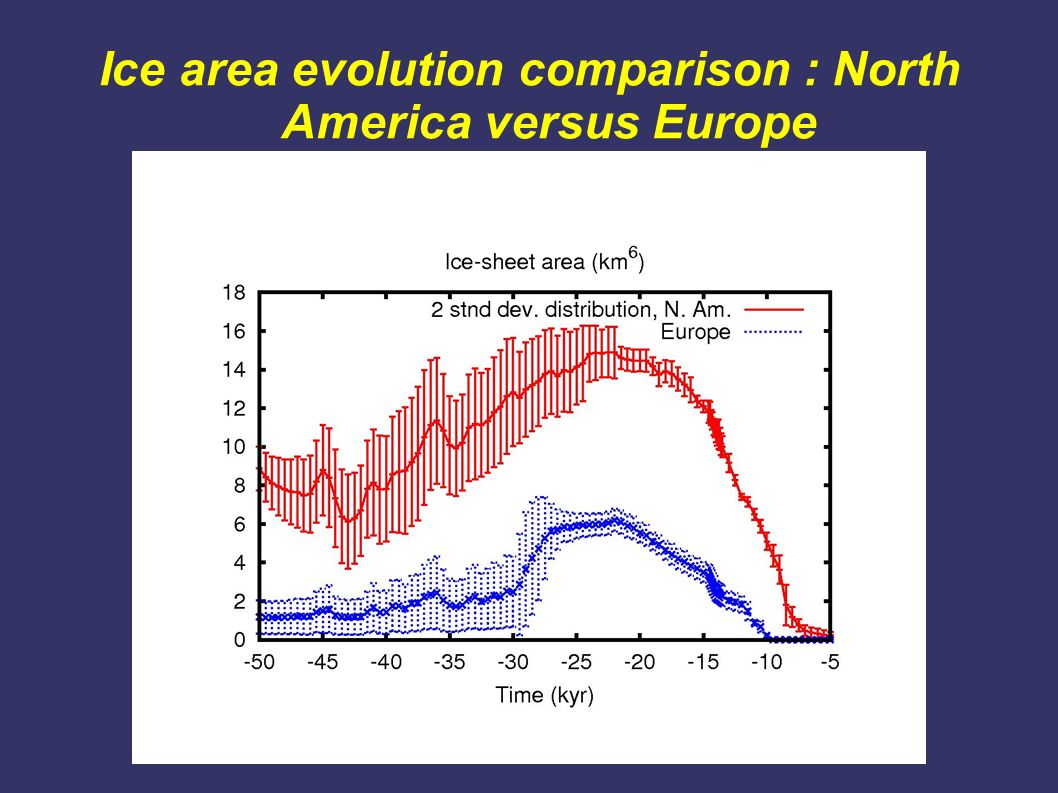

29. Ice area evolution comparison : North America versus Europe

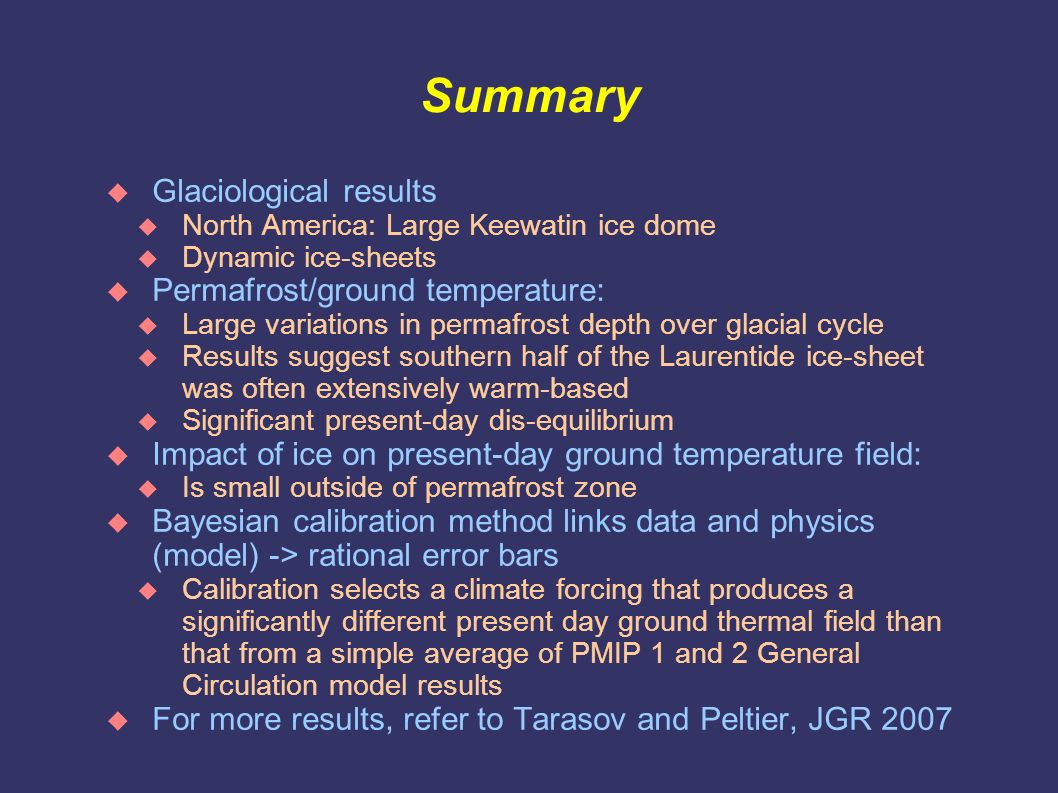

30. Summary  Glaciological results  North America: Large Keewatin ice dome  Dynamic ice-sheets  Permafrost/ground temperature:  Large variations in permafrost depth over glacial cycle  Results suggest southern half of the Laurentide ice-sheet was often extensively warm-based  Significant present-day dis-equilibrium  Impact of ice on present-day ground temperature field:  Is small outside of permafrost zone  Bayesian calibration method links data and physics (model) -> rational error bars  Calibration selects a climate forcing that produces a significantly different present day ground thermal field than that from a simple average of PMIP 1 and 2 General Circulation model results  For more results, refer to Tarasov and Peltier, JGR 2007

31. Request/Plea Need an online database of deep borehole observations (especially for Eurasia)!!!!

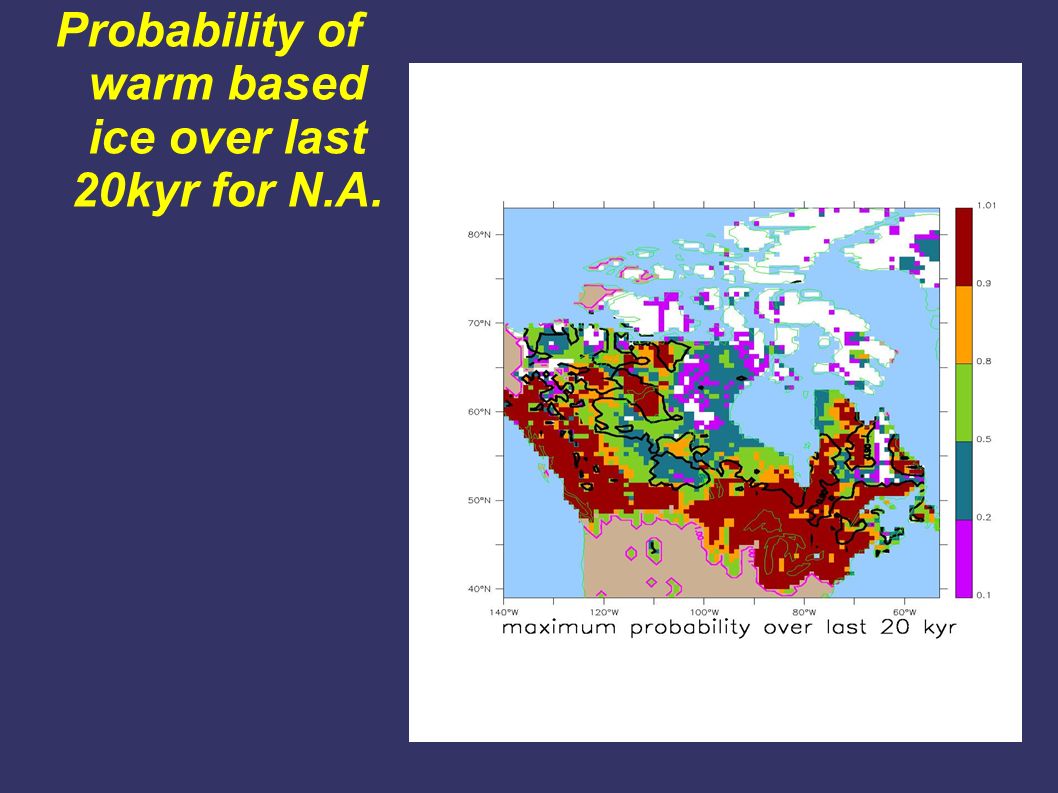

32. Probability of warm based ice over last 20kyr for N.A.

33. Present-day permafrost distribution

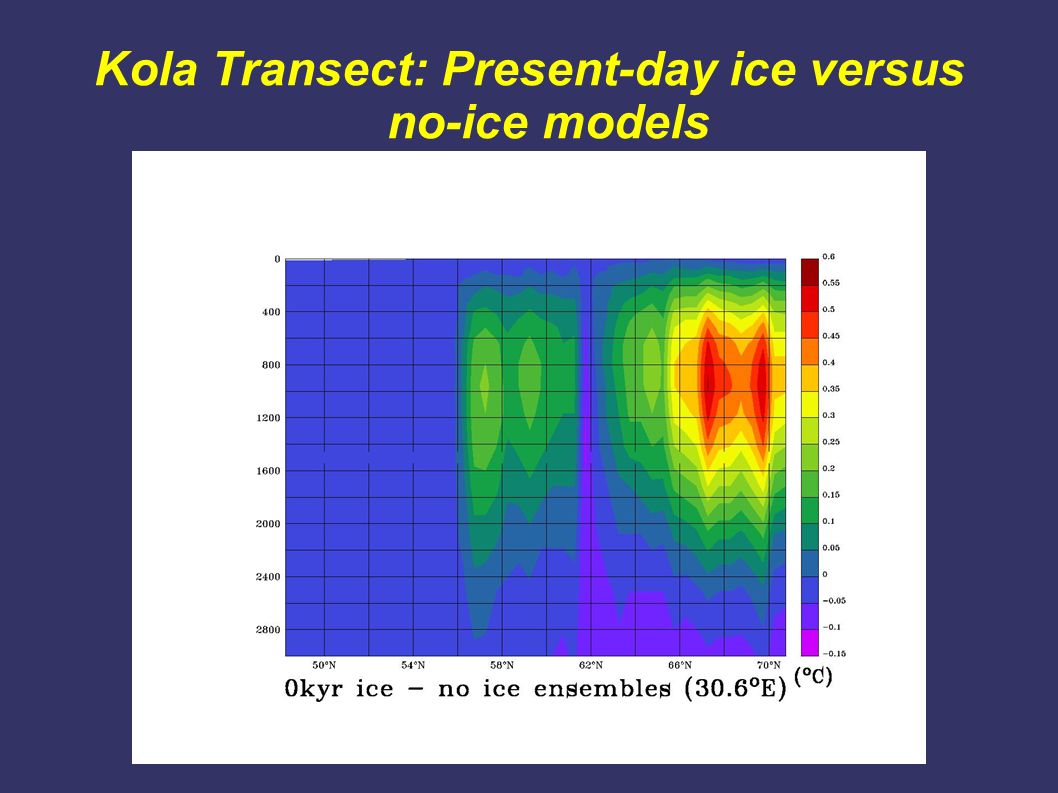

34. Kola Transect: Present-day ice versus no-ice models

35. Kola borehole time transect

36. Present ensemble mean permafrost depth for Europe
