1. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 1 Automated Testing Environment Concepts required for testing embedded systems adopted in this course (quizzes, assignments and laboratories)

2. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 2 / 28 To be tackled today Why test, and what kinds of tests are there? Difference between TLD – Test Last Development TDD – Test Driven Development (Test First Development) How do you add tests? More details on the testing process E-TDD and the testing toll E-UNIT Other kinds of available tests – time and access Design of custom TESTs and ASSERTS

3. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 3 / 28 Why test? Unit test I AM CURRENTLY BUILDING A NEW FUNCTION – does it work the way I expect? Testing my and my partner’s understanding of the Design WE ARE DESIGNING A NEW PRODUCT -- If we can’t explain (to ourselves via a test) the product ideas – how do we know when product is working? Regression testing MY PARTNER ADDED A NEW FEATURE to a product – how do I know it did not “break something” I wrote? System testing How do I PROVE TO THE CUSTOMER that the product (Lab. or assignment) works the way that was requested?

4. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 4 / 28 What are the problems with this sort of “Human intervention” test? This code would be placed in Assignments1 directory with the rest of the customer code

5. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 5 / 28 VisualDSP development environment (IDDE) – Communication overhead Debugging Interface “JTAG” boundary scan operation Processor Peripherals BF533 Evaluation Board VisualDSP++ program Debugging Interface HPPCIce Lab. station (ICT318 / 320) Each time we want to send a message (via printf( ) or cout) we must “stop” the processor from doing what we want it to do, and then send messages over the interface – Slow, plus the testing can impact on peripheral performance. E.g. no sound while doing printing in Assignment 2 and Lab. 1 THIS PROBLEM IS COMMON TO ALL EMBEDDED SYSTEM DEVELOPMENT NOT JUST THE BLACKFIN USED IN THE LAB.

6. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 6 / 28 More issues with this sort of test! Tests are mixed up “with production code”, in many places Must remove tests before release to customer Unreliable – may result in test messages at wrong time in released code Difficult to “add” and “remove tests” from production code without introducing new errors Results can be checked automatically – therefore unlikely to have tests run often during development – leads to unreliable product

7. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 7 / 28 E-TDD Tool E-TDD – embedded test driven development Build-the-tests-first (during design) ideas for product development has been made popular by the “Agile” approach Requires an automated testing approach (test framework) In this class, we are going to use the E-Unit tool for its automated behaviour Will use in both “test last” development (what most people currently do) and in “test first” development (trying to encourage). I (the customer) will provide tests so that you can check that you have developed the “right” stuff at the “high” level You will build additional tests to check your own code at the “low level”

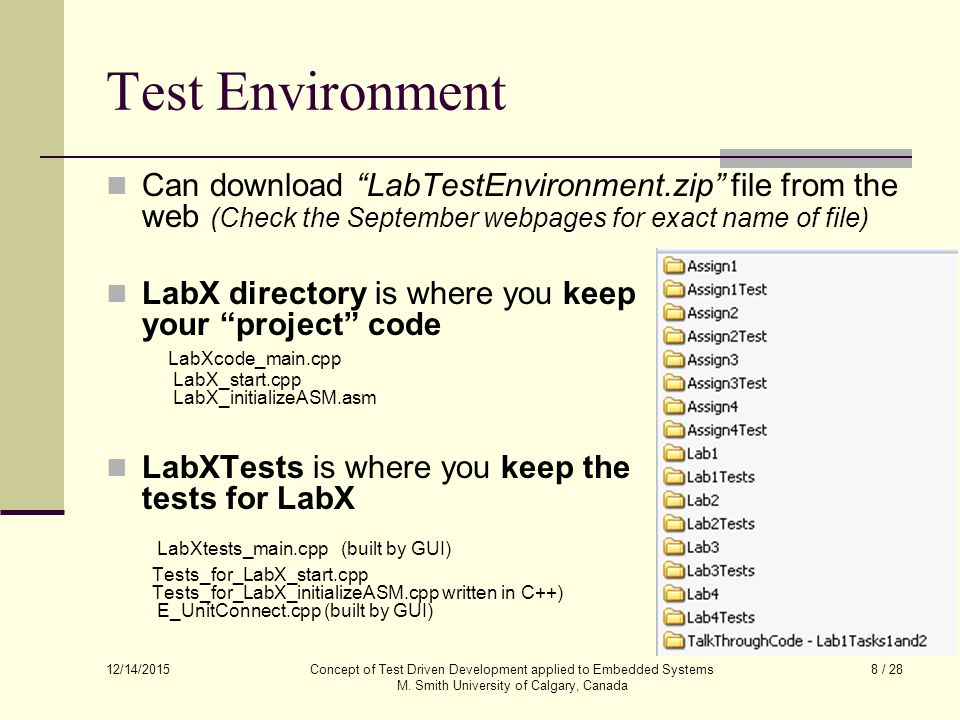

8. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 8 / 28 Test Environment Can download “LabTestEnvironment.zip” file from the web (Check the September webpages for exact name of file) LabX directory is where you keep your “project” code LabXcode_main.cpp LabX_start.cpp LabX_initializeASM.asm LabXTests is where you keep the tests for LabX LabXtests_main.cpp (built by GUI) Tests_for_LabX_start.cpp Tests_for_LabX_initializeASM.cpp written in C++) E_UnitConnect.cpp (built by GUI)

9. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 9 / 28 Build a new VDSP project “Assignment1Test” and place in “Assignment1Tests” directory Now add certain standard files to the project Same set of files for all assignments and laboratory Use the automated features of the GUI to “convert” VDSP project to test project

10. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 10 / 28 Now add your Assignment1 subroutines files to the Assignment1Test project Don’t move or copy the files into the test directory – just “add” them to the project Note the use of “Assignment1.h” which has the prototypes for all “C++” and “assembly code” functions used (from AssignmentX dir.) This files are “added” using VDSP to the “Test” project and NOT copied from the Assignment1 directory

11. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 11 / 28 The GUI has automatically added the “Tests_main.cpp”

12. The GUI has automatically added a “TestGroup” file for you 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 12 / 28

13. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 13 / 28 Modify “Assignment1Tests.cpp” to perform the needed testing

14. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 14 / 28 Tests and Test Groups have a standard format TESTGROUP NAME TESTGROUP NAME, TEST NAME Add further tests at this location

15. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 15 / 28 Tests then need to be customized A lot of this can be automated by GUI

16. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 16 / 28 Test Components Remember format for “exams” and “quizzes” The ACTUAL Test (This is a TEST MACRO) CHECK(result1 == result2) – If an error occurred what was ‘result1’ being used for? Error result1 != result2 Would get better test error messages if we “self- documented the code” int resultCPPCode = ; int resultASMCode = CHECK(resultCPPCode == resultASMCode); Error resultCPPCode != resultASMCode Test CONTROL statements (ALL MACROS) TEST_CONTROL( testgroup_name) TEST_FILE_RUN_NOTIFICATION( testgroup_name)

17. Have added stub versions of functions 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 17 / 28 Note “code DEFECT” There is NO return value placed in R0

18. Now build source files to make executable 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 18 / 28 Note the format of the error messages with both C / C++ and name-mangled ASM name shown

19. Fix the code. Review the code for syntax errors and “logical” errors 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 19 / 28 DON’T IGNORE WARNINGS FIX THE PROBLEM, e.g. add.extern or fix type

20. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 20 / 28 Now “build and run” the tests All the tests MUST fail (no code written) otherwise using bad tests Quick test failure visualization Detailed test failure information Something wrong – how did the test pass with no code?

21. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 21 / 28 Now “build and run” the tests All the tests should fail (no code present) Quick test failure visualization Detailed test failure information Clicking on the “detailed test info” automatically takes you to the “test” that failed

22. The test that failed 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 22 / 28 Clicking on the “detailed test info” automatically takes you to the “test” that failed

23. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 23 / 28 Test information modes are controlled in “Test_main” Show Failures and Expected Failures only Show Failures and Successes

24. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 24 / 28 Add a separate test to show that result2 (from the ASM code) is equal to 42 Add further tests at this location

25. Gui automatically adds new test 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 25 / 28

26. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 26 / 28 Write the tests for “self-documenting” messages (What does “result1 == result2” mean if 200 tests present?) HAVE – What is a ‘result1’ and a ‘result 2’ WANT

27. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 27 / 28 Write the “CPP” code to get to work but “Write the ASM for speed” FAIL SUCCESS “../E-UNITIncludes/E-UNIT_Tests1Sept07.h”

28. Get a “Volun-tell” to come to the front and write the “better” test 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 28 / 28

29. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 29 / 28 Available ASSERTS More can be “customized” CHECK(expected == actual) – Success if passes XF_CHECK(expected == actual) – Success if “fails” CHECK_EQUAL(expected, actual) XF_CHECK_EQUAL(expected, actual) – Success if fails CHECK_CLOSE(expected, actual, tolerance) CHECK_ARRAY_EQUAL(expected, actual, length) CHECK_ARRAY_CLOSE(expected, actual, length, tolerance) REPORT(“character message”); Special changes to editor.ini file makes this ASSERTS into highlighted key-words

30. 12/14/2015 Concept of Test Driven Development applied to Embedded Systems M. Smith University of Calgary, Canada 30 / 28 Handled today – some easy “non- programming” quiz and midterm questions Why test, and what kinds of tests are there? Difference between TLD – Test Last Development TDD – Test Driven Development (Test First Development) How do you add tests for Assignment 1? More details on the testing process E-TDD and the testing tool E-UNIT Other kinds of available tests – time and access Design of custom TESTs and ASSERTS
