1. Chapter 2 The Java Overview

2. What is Java? The name Java is applied to a variety of technologies created by Sun Microsystems There are three main components of Java: The Java Programming Language – a programming language used to write software for the Java platform The Java platform – a range of runtime environments that supports execution of software written in Java The Java API – a rich, fully featured class library that provides graphical user interface, data storage, data processing, I/O and networking support

3. The Java Programming Language History (http://java.sun.com/features/1998/05/birthday.html)http://java.sun.com/features/1998/05/birthday.html Properties of the Java language Object orientation Simplicity Automatic garbage collection Portability Multi-threaded programming Security Internet awareness

4. The Java Platform Third-generation language The source code instructions written in Java must be compiled to a form that the computer is capable to understand Most languages would be compiled to machine native code, hence running on a specific CPU architecture. Problem with distribution of the program

5. Cont. The Java platform takes a different approach. Instead of creating machine code for particular pieces of hardware, Java source code is compiled to run on a single CPU Java machine code or bytecode is executed by a special software that mimics a CPU chip capable of understanding bytecode The software is called Java Virtual Machine (JVM)

6. The Java Virtual Machine An emulation of hardware device Write Once, Run Anywhere (WORA) JVM allows Java to be portable across different type of OS Flexibility vs performance issues However, advancement of CPU performance “covers” Java weakness

7. Java Runtime Environment JVM is not a software application that can itself be run Usually, the JVM is hosted within a Java runtime environment (JRE) JRE will also include the core classes from the Java API and other supporting files. J2SE, J2EE, J2ME

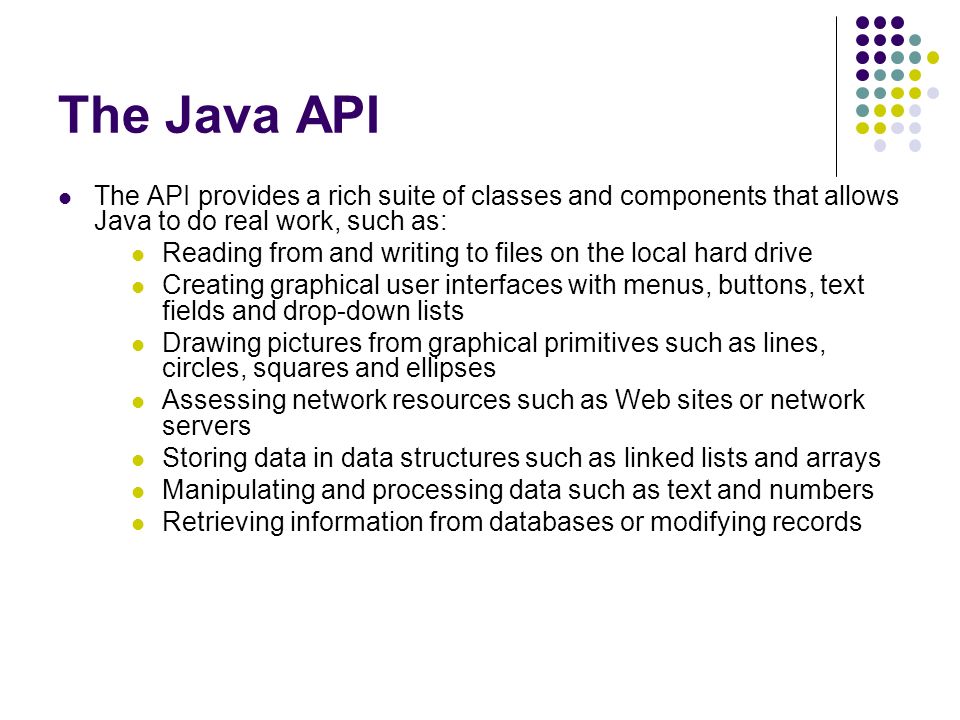

8. The Java API The API provides a rich suite of classes and components that allows Java to do real work, such as: Reading from and writing to files on the local hard drive Creating graphical user interfaces with menus, buttons, text fields and drop-down lists Drawing pictures from graphical primitives such as lines, circles, squares and ellipses Assessing network resources such as Web sites or network servers Storing data in data structures such as linked lists and arrays Manipulating and processing data such as text and numbers Retrieving information from databases or modifying records

9. Example of Java networking packages Package java.net – comprises the majority of classes that deal with Internet Programming. It provides the basic building blocks needed to write network applications and services such as UDP packets, TCP sockets, IP addresses, URLs and HTTP connections Package java.rmi – to supports Remote Method Invocation (RMI) Package org.omg – package that supports the Common Object Request Broker Architecture (CORBA) JavaMail – provides access to e-mail services.

10. Java Networking Considerations “Ideal” language for network programming However, Java does not provide low-level access to Internet Protocols Java imposes severe security restrictions on Java applets No applet may bind to a local port, to prevent it from masquerading as a legitimate service. An applet may connect only to the machine from which its codebase was loaded.

11. Application of Java Network Programming Network Programming adds a new dimension to software applications Network programming gives software the ability to communicate with machines scattered around the globe The limitation is the BANDWITDH of a network connection

12. Network clients A common use for Java is to create network clients such as: Mail readers Remote file transfer application Browser In the design of a new network protocols for which no client yet exists

13. Games One major application of network communication is the multiplayer games that run over a LAN or online games which run over the Internet

14. Software agents A software that acts on the behalf of one or more users, to perform specific commands and tasks or to fulfill a set of goals Examples: An agent to sort through email message An agent that searches for information on the Web An agent that monitors a source of information for changes relating to the interest of a user

15. Web Applications One of the most important areas for Java network programming Applets Server-side Java : JSP Within a web server, Java can perform a variety of tasks Accessing databases. Interacting with other systems.

16. Distributed Systems Used to solve very complex and large problems Resources may be distributed across an organization Distributed system technologies are used to integrate them (I.e. databases and inventory systems from different departments) RMI and CORBA make this possible

17. Java Language Issues In network programming using Java, there are some issues that we need to be aware of 1. Exception Handling in Java 2. What are Exceptions 3. Types of Exceptions 4. Handling exceptions 5. Causes of exceptions

18. Exception Handling in Java A mechanism for dealing with errors that occur in software at runtime. For example, while attempting to read from a file, an application may be unable to proceed because the file is missing (occur at runtime).

19. What are Exceptions Unusual conditions that occur at runtime and are represented as objects Track information about errors condition, making it possible to diagnose the cause of the problem or at least to provide clues as to why it occurred. The method in which an exception occurs will “throw” the exception and pass it to the calling method. The calling method may choose to handle the error condition and “catch” the exception or it may throw the exception to its calling method. Method that are likely to generate an exception will indicate the type of exception that will be thrown. At some point in the code, the exceptions need to be caught and dealt with accordingly

20. Checked and Unchecked Exceptions Checked The compiler checks that you don't ignore them Due to external circumstances that the programmer cannot prevent Majority occur when dealing with input and output For example, IOException Unchecked: Extend the class RuntimeException or Error They are the programmer's fault Examples of runtime exceptions: NumberFormatException IllegalArgumentException NullPointerException Example of error: OutOfMemoryError

22. Checked exceptions – must be caught or declared to be thrown Catch the exception – try, catch, finally clause Declare the exception - tell compiler that you want method to be terminated when the exception occurs Use throws specifier  public void read(String filename) throws FileNotFoundException { FileReader reader = new FileReader(filename); Scanner in = new Scanner(reader);... }  For multiple exceptions: public void read(String filename) throws IOException, ClassNotFoundException  Keep in mind inheritance hierarchy: If method can throw an IOException and FileNotFoundException, only use IOException

23. Handling Checked Exceptions Java provides three statements for handling checked exceptions: 1. try 2. catch 3. finally

24. try statement The try statement indicates a block of code that can generate exception //code outside of try block should not throw an exception try { // do something that could generate an exception… } //handle exception…

25. catch statement The catch statement is used to catch exceptions thrown within a try block of code. //try block can generate exceptions try { //generate an exception } catch (SocketException se) { System.err.println(“Socket error reading from host: “ + se); System.exit(2); } catch (Exception e) { System.err.println(“Error:” + e); System.exit(1); }

26. finally statement The finally statement is a generic catchall for cleaning up after a try block. //try block can generate exceptions try { //generate an exception } catch (SomeException some) { //handle some exception } finally { //clean up after try block, regardless of any //exceptions that are thrown }

27. An example try { String filename =...; FileReader reader = new FileReader(filename); Scanner in = new Scanner(reader); String input = in.next(); int value = Integer.parseInt(input);... } catch (IOException exception) { exception.printStackTrace(); } catch (NumberFormatException exception) { System.out.println("Input was not a number"); } finally { reader.close(); // if an exception occurs, finally clause is also // executed before exception is passed to its handler }

28. Unchecked Exceptions Exceptions that extend from the Error class: Typical errors that typical Java software should not encounter and over which the developer has no control. AWTError – serious error occurs in the Abstract Windowing Toolkit NoClassDefFoundError – thrown when the JVM is unable to locate the class definition file (.class) for a class OutOfMemoryError – occurs when JVM can no longer allocate memory to objects

29. Unchecked Exceptions Runtime error examples: NoSuchElementException – thrown when an attempt is made to access the next element of an enumeration but all elements have been exhausted NullPointerException – thrown when an attempt to reference an object has been made but the reference was null SecurityException – thrown by the current security manager when an attempt to access a resource, object or method has been made but not permitted

30. Causes of exceptions in network programming In networking, the most common cause of exceptions is related to the state of the network connection: Loss of connection due to congestion Server/host behind firewall that blocks external requests Other may be due to security measures imposed by the browser or by Java security policy or security manager.

31. import java.net.*; public class LocalHostDemo { public static void main(String args[]) { System.out.println ("Looking up local host"); try { // Get the local host InetAddress localAddress = InetAddress.getLocalHost(); System.out.println ("IP address : " + localAddress.getHostAddress() ); } catch (UnknownHostException uhe) { System.out.println ("Error - unable to resolve localhost"); } Using InetAddress to determine localhost address

32. import java.net.*; public class NetworkResolverDemo { public static void main(String args[]) { if (args.length != 1) { System.err.println ("Syntax - NetworkResolverDemo host"); System.exit(0); } System.out.println ("Resolving " + args[0]); try { // Resolve host and get InetAddress InetAddress addr = InetAddress.getByName ( args[0] ); System.out.println ("IP address : " + addr.getHostAddress() ); System.out.println ("Hostname : " + addr.getHostName() ); } catch (UnknownHostException uhe) { System.out.println ("Error - unable to resolve hostname"); } Using InetAddress to find out about other Addresses

33. Development Tools Java SDK version 6 IDE NetBeans Eclipse JCreator

34. Chapter Highlights You have learned The history of Java, design goals and properties of the Java language About compiled bytecode, the Java Virtual Machine and Java Runtime Environment The core Java API and some Java extensions Some issue and consideration related to Java Example of applications Exception handling Development tools
