1. BNL & Yale Mechanical Stave Developments BNL: David Lynn, Marc-Andre Pleier, Anatoli Gordeev, Russ Burns, Ken Sexton Yale: Paul Tipton, Will Emmet, Tom Hurteau ATLAS Upgrade Week, CERN, Nov 11 th, 2010

2. Outline Final 35 cm stavelet thermal imaging results CFdesign thermal simulation software issues and flow measurements 1.3 m stave construction and initial thermal measurement Stave Frames and Brackets

3. Changes from 2009’s 1 meter stave Dimensions 130 cm x 12 cm vs 100 cm x 10.7 cm Facing Material 220-280 um thick K13D2U vs 430 um thick K13C2U Facing Texture textured both sides vs smooth outside, texture inside CF Tubes Custom, thick walled vs commercial, thinner wall CF Tubes Better diamteer tolerance vs poor diameter tolerance Pipe Bend Dual diameter, closer to end vs single diameter further from end Fabrication New CF tube had thicker walls dissuaded us from using previous technique of using a steel bar inside tube and magnets to hold CF tube in assembly fixture. Required more steps to attach CF tubes and foam and honeycomb to first facing Did not use vacuum bagging (wasn’t clear such force is necessary) and afraid things might move during bagging and vacuuming procedure Much more practice in gluing technique…aim to improve Thinner facings much more delicate….more careful handling 1.3 Meter Stave Core Construction

4. Gordeev, BNL 7-12-104 New Pipe Bend and Location 35 cm stavelet1.3 m stave

5. 35 cm stavelet 1.3 m stave Simulation Comparing Effect of Change in U-turn Location and Shape Simulation suggests large improvement

6. Poco top/Koppers k-foam bottom Allcomp Carbon Foam, 0.5 g/cc Allcomp with hysol seal Note jagged edge Foam Issues Used open-cell Allcomp foam to replace closed-cell Poco Machines better, but still leaves gap with 4mm thick foam and 1/8” (3.175 mm) pipe We use compliant CGL…worry that CGL may seep into open cell foam and be drawn away from pipe Decided to seal foam with hysol BN loaded epoxy

7. Possible solution to Allcomp “ragged edge” problem Create a 1-2 mm thick layer of Hysol on interface surface of foam and allow to cure; Machine with ball endmill as before; Apply coating of Hysol as before to seal pores on semi-cylindrical surface… Apply Hysol layerMachine foam as before Note improved edge

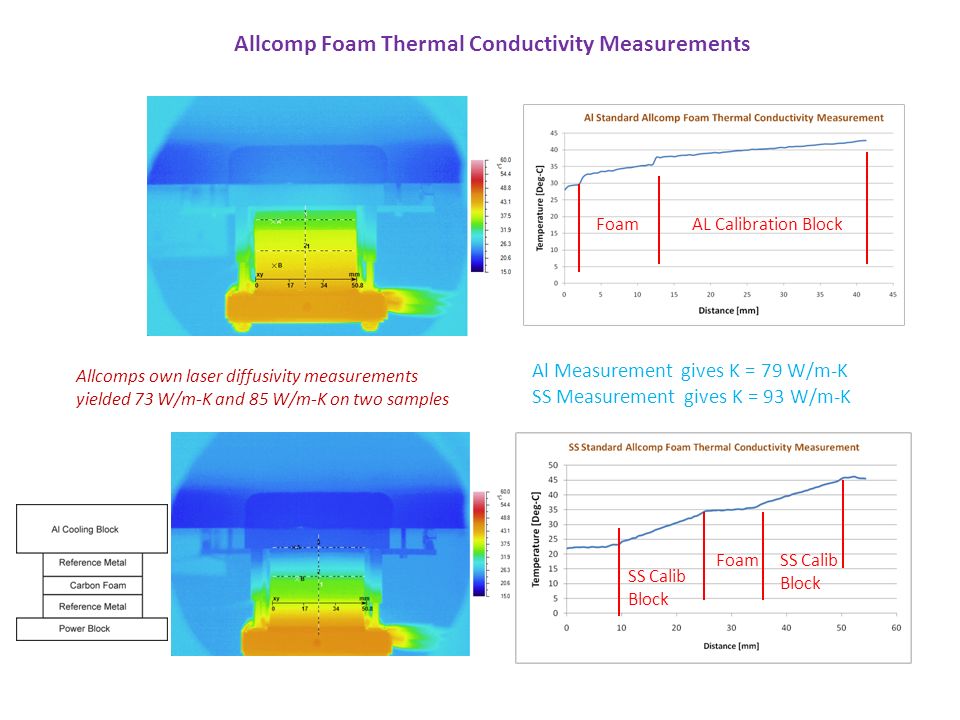

8. Allcomp Foam Thermal Conductivity Measurements Foam AL Calibration Block Foam SS Calib Block Al Measurement gives K = 79 W/m-K SS Measurement gives K = 93 W/m-K Allcomps own laser diffusivity measurements yielded 73 W/m-K and 85 W/m-K on two samples

9. Gluing of CF tubes to First facing Used shim springs to hold cf tubes in place due to thicker walled tubes (previously could use magents and steel rods inside cf tubes Thus cf tubes glue-up becomes two step process

10. Glue Joints Outside Inside Apply hysol only to inside: many tests done to get epoxy to bleed to outside without overflow Space left for shim spring Only imperfection in outer glue joint, but glue is in gap

11. Foam-Pipe Assembly Attachment to First Facing

12. Honeycomb attachment Honeycomb dipped in ~8 mil of epoxy Rubber sheet placed between honeycomb and aluminum blocks and brass rails

13. 2 nd Facing attachment 1 st dip Mask off CF tubes and dip assembly in 10 mils hysol (honeycomb + foam) 2 nd dip. Unmaxk CF tubes and dip tubes on elevated rails containing 2 mils epoxy

14. 2 nd Facing attachment

15. Finished Stave Side 1 Side 2 Looks very good 2 nd glue joint looks very good Appears straight Facing remains flat Detailed characterization to follow

16. area[cm^2]1560Note pipe is about twice what next will be (10 mil walls versus present 20 mil walls) x 12/10 Weight [g]X0 [g/cm^2]RL [%]RL norm to det [%] Pipe106.313.90.490.59 Foam45.6430.070.08 CGL1533.40.03 Facings104.8430.160.19 CF Tubes38.7430.060.07 Closeouts4.2430.01 Hysol30.742.40.050.06 Honeycomb24.7430.04 0.00 Total370 0.891.07 G. Gilchriese Estimate July 08 Mass and Radiation Length of Stave I Expect mass of pipe to reduce by factor of 2 next stave (10 mil walls rather than 20 mil) Expect mass of CF tubes to reduce by factor of 3 next stave Custom tubes had 1.03-1.09 mm walls after sanding New custom tubes have.30-.38 mm walls after sanding Expect RL =.64% with new ss tubes

17. StaveUK Stave x 1.3/0.5 Weight [g] Pipe106.398.40 Foam45.656.80 CGL15 Facings104.8103.80 CF Tubes38.710.80 Closeouts4.216.40 Hysol30.7 Honeycomb24.718.40 glue45.733.80 Total370.00338.40 Comparison of US Stave and UK Normalized Stavelet Mass UK chart from “The Design, Contstruction and Testing of a UK Stavelet”, Peter Cooke, Tim Jones, and Peter Sutcliffe UK built a 0.5 m stavelet for same stave-09 program Result is that both builds are comparable in mass(and consistent with original LBNL estimate) This is a good result in that using slightly different designs and different assembly techniques yields similar (and good!) results. Some small improvements in the future may be expected

18. Thermally characterize performance of chilled stave using ambient still-air and net radiation to uniformly provide power to stave (first preliminary result in next few slides) Use these results to understand reliability of CF design ambient calculations…smooth and simple surface of stave core is an easy object to study Precision measure profile of stave at room temperature and chilled to ~ -30C Perform bend tests and extract facing modulus to compare with direct facing modulus measurements Use to study aluminum support brackets (see later slide) Not clear if should make into full mechanical model. Have parts, but is time consuming. UK has already constructed full-scale thermo-mechanical model Test Plan

19. IR Camera Calibration and Determination of Emissivity Emmisivity =.89 and ambient box temperature = measured was result of calibration of our standard black spray paint and gave good correspondence Intended to do new calibration and surface of stave can’t be painted and we expected a different emissivity value would be needed. However e =.89 gave excellent correspondence over full range of temepratures -25 deg-C to 38 deg-C.

20. Temperature Profile of 1.3 m x 12 cm Stave 1.3 m 12 c m Temperature [Deg-C] Input power from ambient convection/radiation is approximately 150 W (determine by temperature difference of coolant at inlet and outlet and by flow rate)

21. Temperature Profile of 1.3 m x 12 cm Stave Temperature profile very uniform in longitudinal direction

22. Temperature Profile of 1.3 m x 12 cm Stave Temperature profile very uniform in longitudinal direction

23. Temperature Profile of 1.3 m x 12 cm Stave 13 temperature profiles, 3.2 mm apart at U- Turn end of Stave 201 Slices 3.2 mm apart U-Turn Half of Stave 201 Slices 3.2 mm apart Pipe Inlet/Outlet Half of Stave Temperature profile uniform in longitudinal direction Very little additional temperature gradient at U-turn end Can this technique be as part of QA of stave cores?

24. Barrel Support Bracket Prototyping Demonstrated concept with stereo-lithographic plastic brackets on 1 meter stave in 2009 Plastic brackets deform after one day and stave falls out Currently fabricating brackets in aluminum to study end insertion Final design needed to be fabricated in carbon fiber 2009 Bracket DemonstrationCurrent Al Bracket Prototype

25. US Style Transport and Storage Frame Prototype aluminum elastic brackets

26. US Style Transport and Storage Frame and Al Barrel Support Bracket Frame made from inexpensive 80/20 Aluminum T-slotted Framing Bars (<$50/frame small quantity) Brackets “hand” machined…need to look at alternative Friction currently to high with these frame brackets….work continuing Study of first Aluminum support bracket just beginning.

27. Plans Characterize thermal and mechanical performance of 1.3 meter stave Prepare to build Co-cured 1.3 meter stave with co-cured facings from LBNL Continue stave frame/support work Thermal measurements of Allcomp foam (three axis) and epoxies. Mechanical measurements of Allcomp foam
