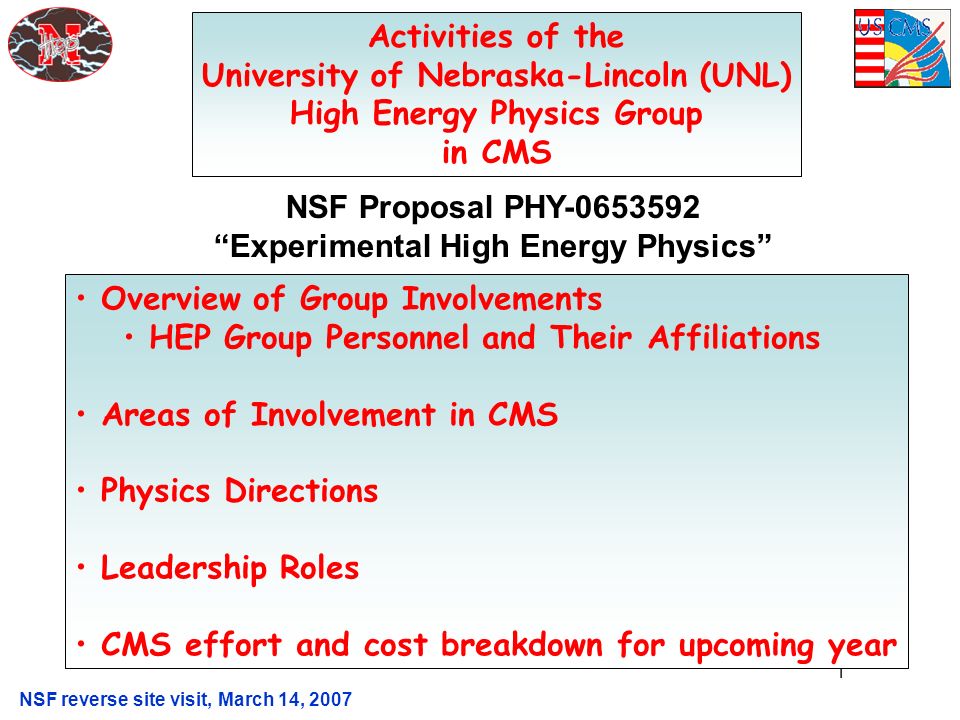

1. NSF reverse site visit, March 14, 2007 1 Activities of the University of Nebraska-Lincoln (UNL) High Energy Physics Group in CMS Overview of Group Involvements HEP Group Personnel and Their Affiliations Areas of Involvement in CMS Physics Directions Leadership Roles CMS effort and cost breakdown for upcoming year NSF Proposal PHY-0653592 “Experimental High Energy Physics”

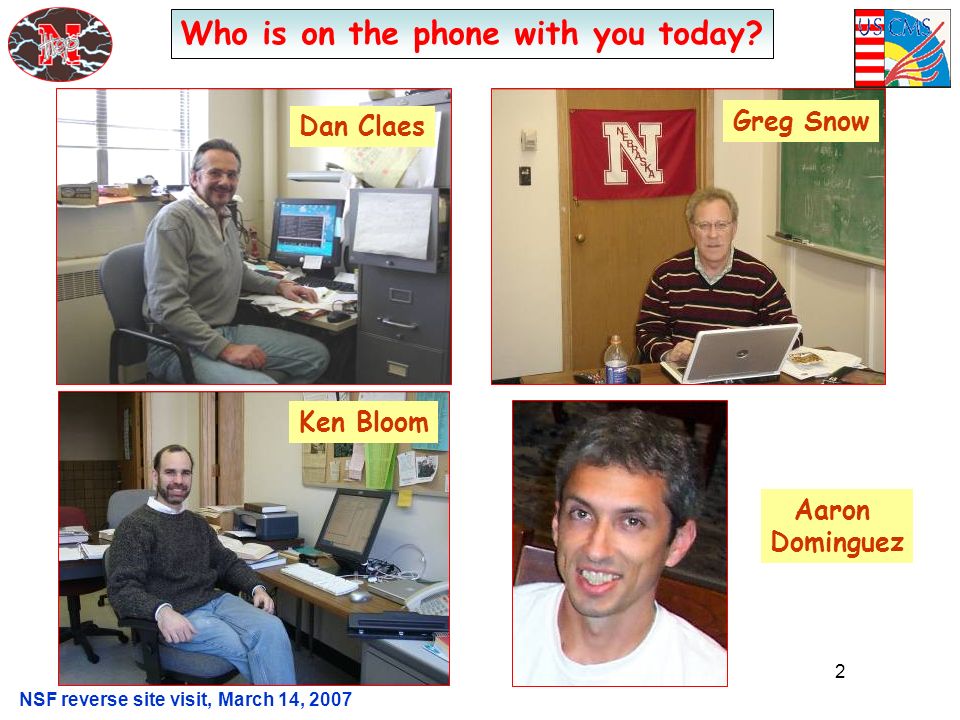

2. NSF reverse site visit, March 14, 2007 2 Who is on the phone with you today? Dan Claes Greg Snow Ken Bloom Aaron Dominguez

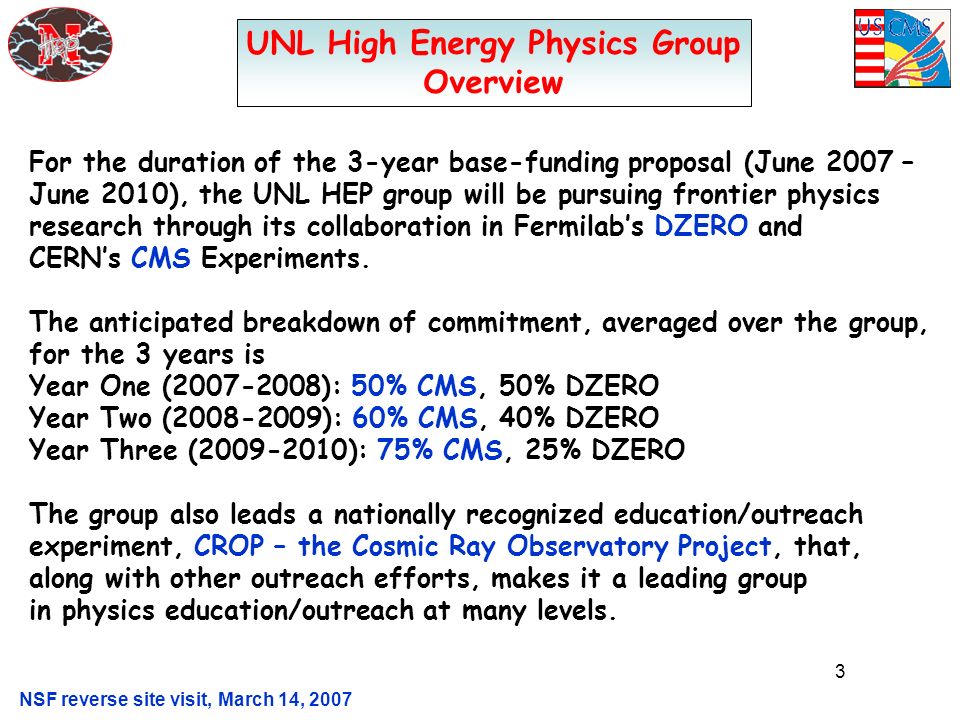

3. NSF reverse site visit, March 14, 2007 3 UNL High Energy Physics Group Overview For the duration of the 3-year base-funding proposal (June 2007 – June 2010), the UNL HEP group will be pursuing frontier physics research through its collaboration in Fermilab’s DZERO and CERN’s CMS Experiments. The anticipated breakdown of commitment, averaged over the group, for the 3 years is Year One (2007-2008): 50% CMS, 50% DZERO Year Two (2008-2009): 60% CMS, 40% DZERO Year Three (2009-2010): 75% CMS, 25% DZERO The group also leads a nationally recognized education/outreach experiment, CROP – the Cosmic Ray Observatory Project, that, along with other outreach efforts, makes it a leading group in physics education/outreach at many levels.

4. NSF reverse site visit, March 14, 2007 4 UNL HEP Personnel and Their Project Affiliations Faculty members: G. Snow (1993): CMS and DZERO Experiments, CROP, Pierre Auger Observatory D. Claes (1996):CMS and DZERO Experiments, CROP, DUSEL/UNO Experiments K. Bloom (2004): CMS and DZERO Experiments, NSF Career outreach (Rural Nebraska) A. Dominguez (2004): CMS and DZERO Experiments, NSF Career outreach (Bilingual English/Spanish Tutors – BEST) Tenured Associate Prof. Tenure-track Assistant Professor Tenure-track Assistant Professor

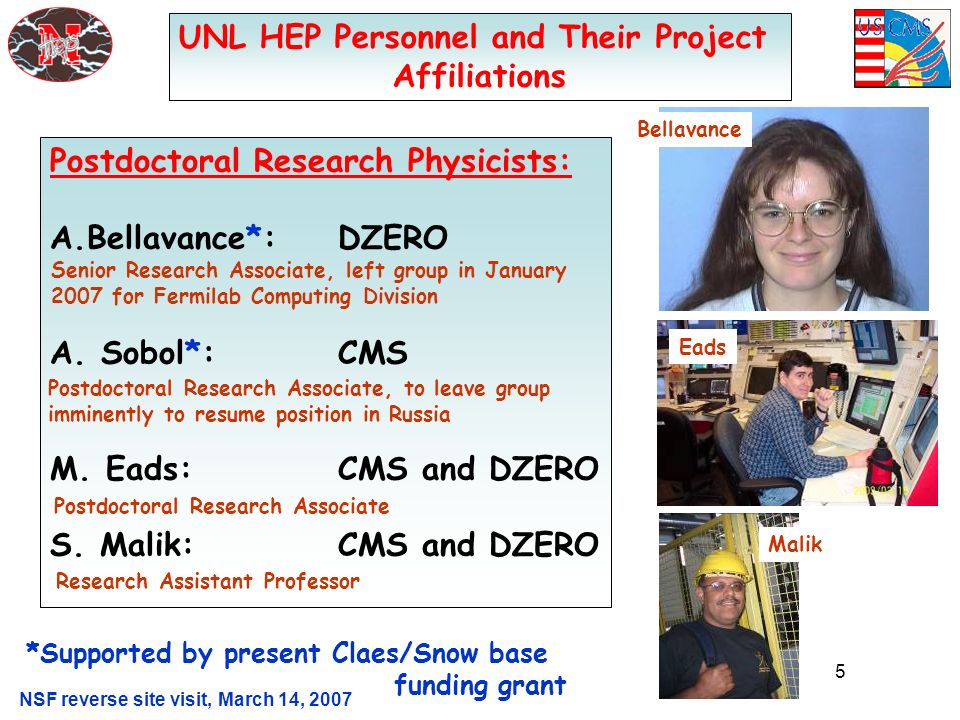

5. NSF reverse site visit, March 14, 2007 5 UNL HEP Personnel and Their Project Affiliations Postdoctoral Research Physicists: A.Bellavance*:DZERO A. Sobol*:CMS M. Eads:CMS and DZERO S. Malik: CMS and DZERO Senior Research Associate, left group in January 2007 for Fermilab Computing Division Postdoctoral Research Associate, to leave group imminently to resume position in Russia Research Assistant Professor Postdoctoral Research Associate Bellavance Eads Malik *Supported by present Claes/Snow base funding grant

6. NSF reverse site visit, March 14, 2007 6 UNL HEP Personnel and Their Project Affiliations Postdoctoral Research Physicists: A.Bellavance:DZERO A. Sobol:CMS Postdoctoral Research Associate, to leave group imminently to resume position in Russia Senior Research Associate, left group in January 2007 for Fermilab Computing Division Replacing these two positions is crucial to the group’s strength in CMS Bellavance replacement is foreseen to transition DZERO to CMS over the course of proposed 3-year program Ideal candidate: DZERO graduating Ph.D. aiming for LHC involvement. Several top candidates exist.

7. NSF reverse site visit, March 14, 2007 7 UNL HEP Personnel and Their Project Affiliations Current Graduate Students: K. DeVaughan:DZERO Experiment D. Johnston:DZERO Experiment M. Voutilainen:DZERO Experiment X. Xu:CROP First year students: J. Keller: CMS candidate T. Kelly: CMS candidate E. Petermann: CMS candidate 1-2 HEP students may join the group in fall 2007 UNL Visiting Scholar from Helsinki, Ph.D. 2007 on Inclusive jets Department of Statistics, Masters Degree 2006

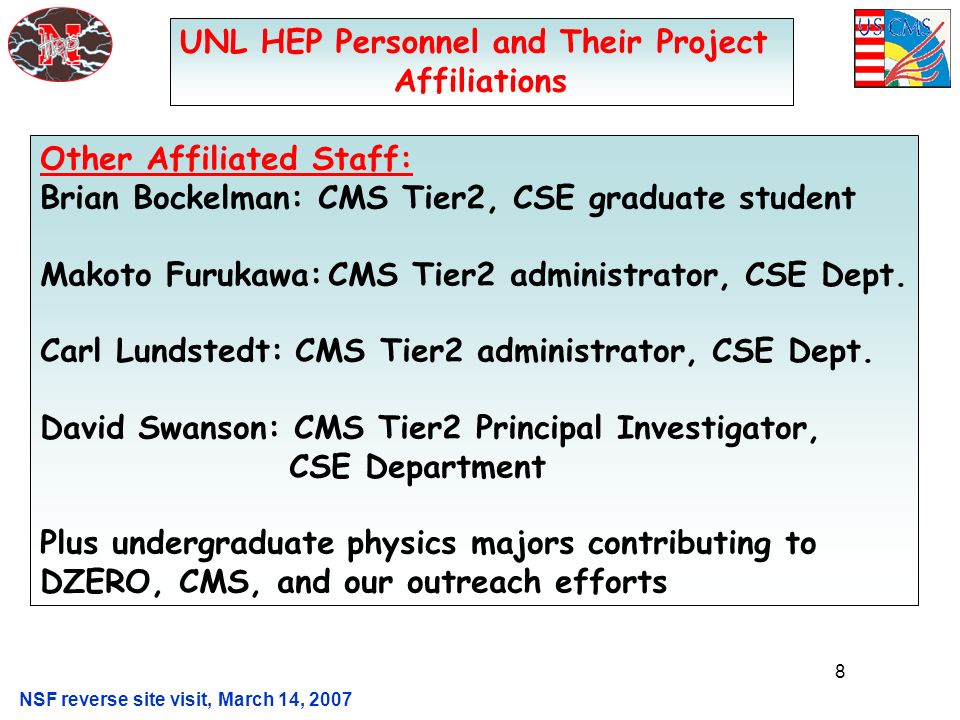

8. NSF reverse site visit, March 14, 2007 8 UNL HEP Personnel and Their Project Affiliations Other Affiliated Staff: Brian Bockelman: CMS Tier2, CSE graduate student Makoto Furukawa:CMS Tier2 administrator, CSE Dept. Carl Lundstedt: CMS Tier2 administrator, CSE Dept. David Swanson: CMS Tier2 Principal Investigator, CSE Department Plus undergraduate physics majors contributing to DZERO, CMS, and our outreach efforts

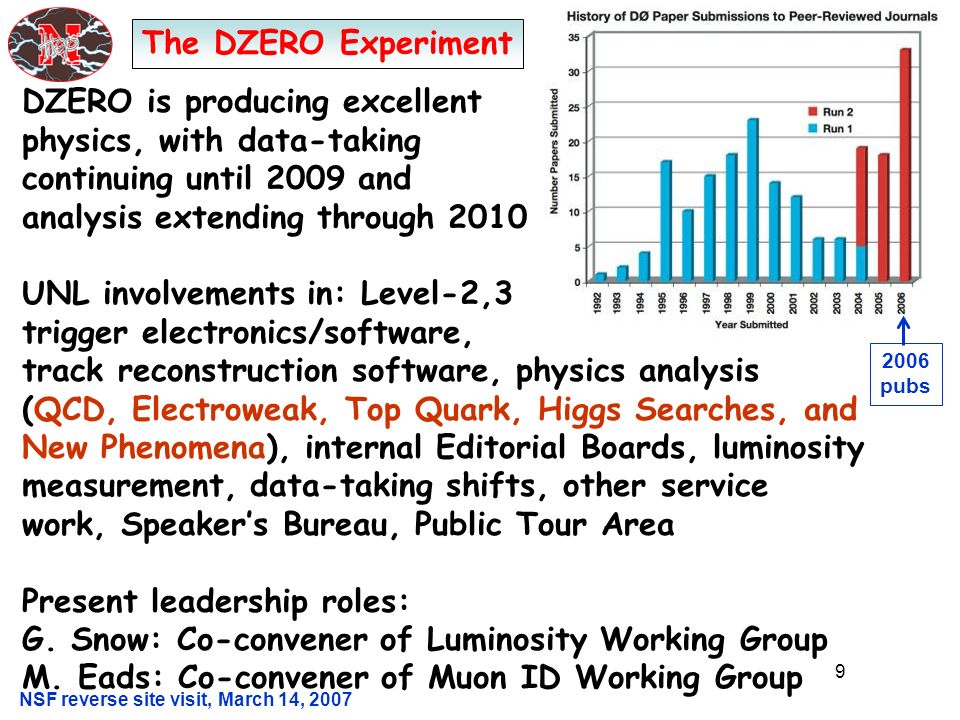

9. NSF reverse site visit, March 14, 2007 9 The DZERO Experiment DZERO is producing excellent physics, with data-taking continuing until 2009 and analysis extending through 2010 UNL involvements in: Level-2,3 trigger electronics/software, track reconstruction software, physics analysis (QCD, Electroweak, Top Quark, Higgs Searches, and New Phenomena), internal Editorial Boards, luminosity measurement, data-taking shifts, other service work, Speaker’s Bureau, Public Tour Area Present leadership roles: G. Snow: Co-convener of Luminosity Working Group M. Eads: Co-convener of Muon ID Working Group 2006 pubs

10. NSF reverse site visit, March 14, 2007 10 HEP Group Education and Outreach Summary of initiatives The Cosmic Ray Observatory Project (CROP) $1.34 Million NSF grant Snow serves as task leader for Education/Outreach for the Pierre Auger Observatory in Argentina and Colorado Claes serves as Education/Outreach leader for the emerging DUSEL and UNO initiatives in Colorado Bloom and Dominguez have important outreach initiatives funded by their NSF Career grants The UNL HEP group faculty members are leaders nationally known HEP education and outreach initiatives

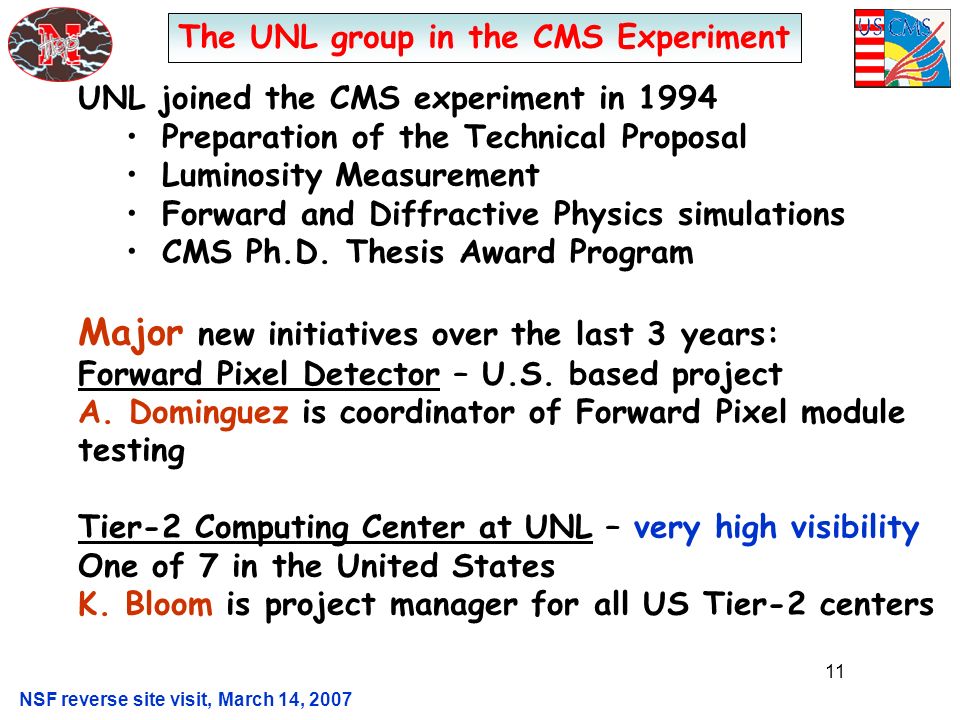

11. NSF reverse site visit, March 14, 2007 11 The UNL group in the CMS Experiment UNL joined the CMS experiment in 1994 Preparation of the Technical Proposal Luminosity Measurement Forward and Diffractive Physics simulations CMS Ph.D. Thesis Award Program Major new initiatives over the last 3 years: Forward Pixel Detector – U.S. based project A. Dominguez is coordinator of Forward Pixel module testing Tier-2 Computing Center at UNL – very high visibility One of 7 in the United States K. Bloom is project manager for all US Tier-2 centers

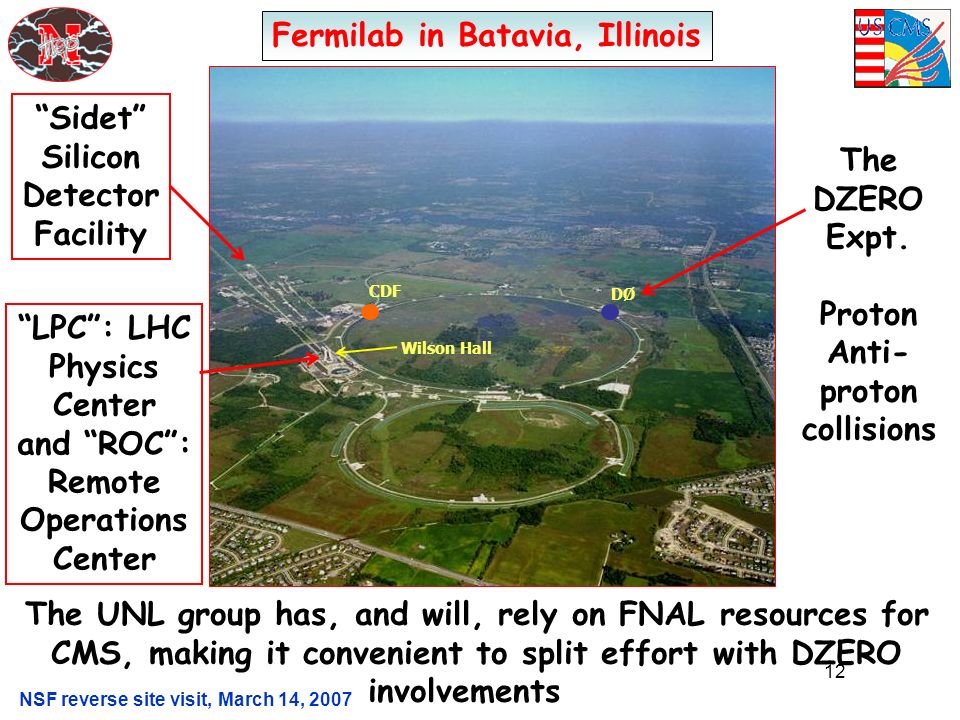

12. NSF reverse site visit, March 14, 2007 12 Wilson Hall DØ CDF Fermilab in Batavia, Illinois The DZERO Expt. Proton Anti- proton collisions “Sidet” Silicon Detector Facility “LPC”: LHC Physics Center and “ROC”: Remote Operations Center The UNL group has, and will, rely on FNAL resources for CMS, making it convenient to split effort with DZERO involvements

13. NSF reverse site visit, March 14, 2007 13 CMS accomplishments, past 12 months Hosted annual US-CMS collaboration meeting, April 2006 (Snow and full group) Forward and Diffractive Physics contribution to CMS-TOTEM Letter of Intent (CERN/LHCC 2006-039/G-124) (Snow, Sobol) CMS Thesis Awards Program (Snow) UNL CMS Tier-2 computing center progress and data challenge (Bloom, Dominguez, Tier-2 affiliated staff) Forward Pixel Detector progress; workshop on R&D for next generation pixel detector for Super LHC (Dominguez, Eads, Malik) Tracking and Vertex Reconstruction (Dominguez, Lundstedt, graduate students)

14. NSF reverse site visit, March 14, 2007 14 The CMS Thesis Award Program Unique to CMS at CERN Initiated by G. Snow in 2000, served as Secretary of the 8-member Committee for 7 years Committee has dealt with 49 nominated theses in 7 years Recipients receive plaque and expenses to an int’l conference to present thesis results Work concentrated Sept.-Dec. when nominated theses are critiqued and ranked by Committee Secretary’s work extends throughout the year Most of the Thesis Award recipients have continued on CMS as postdocs and are in leadership positions

15. NSF reverse site visit, March 14, 2007 15 The CMS Thesis Award Program Web page: http://crop.unl.edu/cms_thesis/enindex.html Dr. Ivica Puljak (2001 recipient) with Snow at Award presentation Large plaque in Building 40

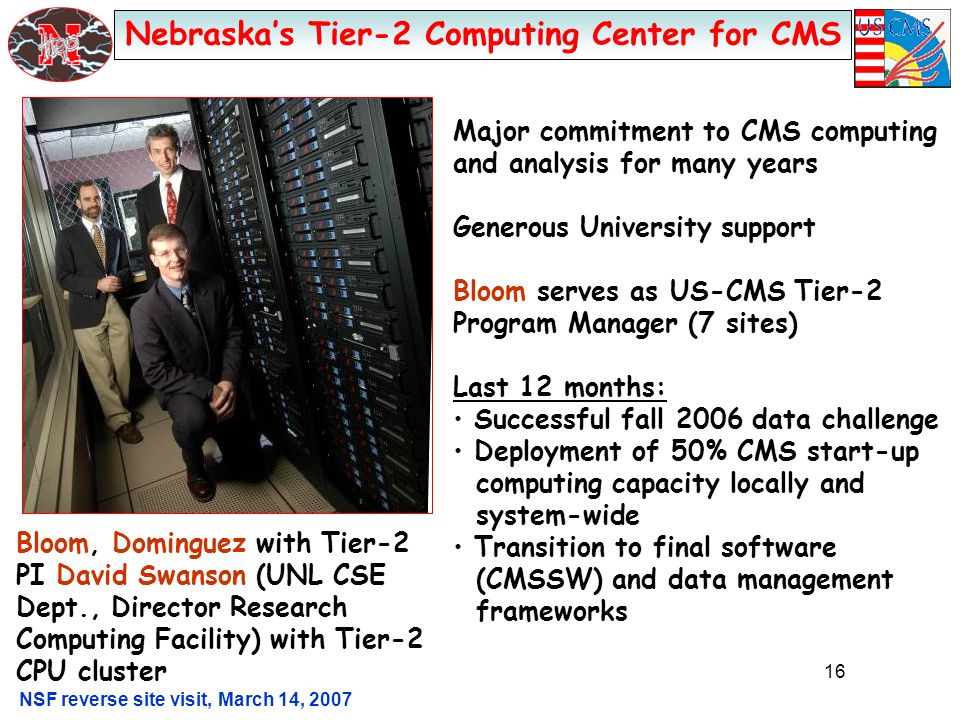

16. NSF reverse site visit, March 14, 2007 16 Nebraska’s Tier-2 Computing Center for CMS Bloom, Dominguez with Tier-2 PI David Swanson (UNL CSE Dept., Director Research Computing Facility) with Tier-2 CPU cluster Major commitment to CMS computing and analysis for many years Generous University support Bloom serves as US-CMS Tier-2 Program Manager (7 sites) Last 12 months: Successful fall 2006 data challenge Deployment of 50% CMS start-up computing capacity locally and system-wide Transition to final software (CMSSW) and data management frameworks

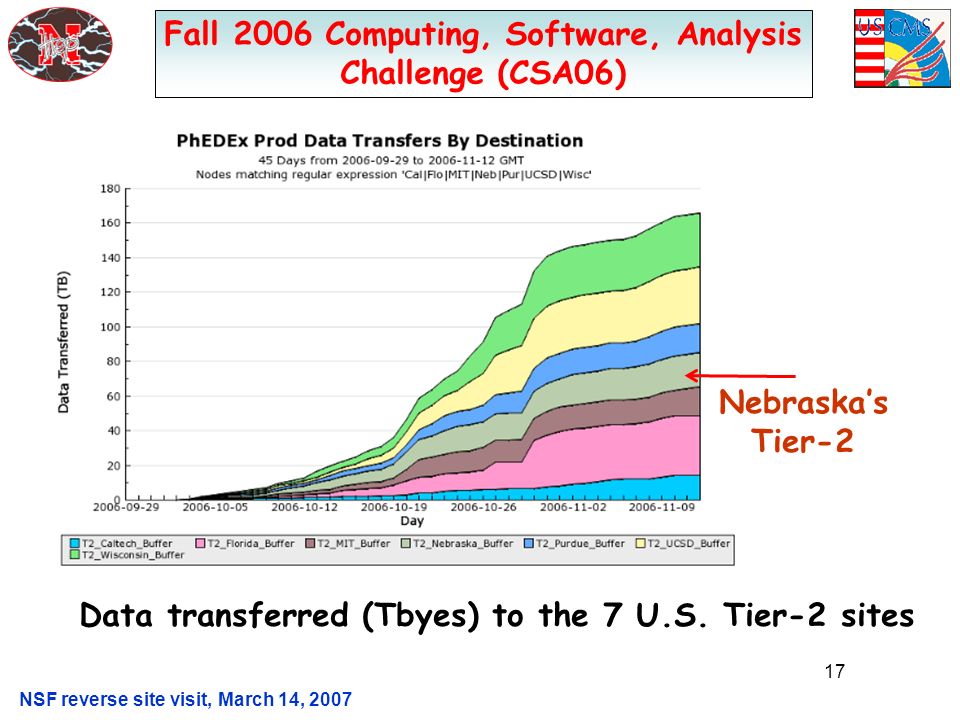

17. NSF reverse site visit, March 14, 2007 17 Fall 2006 Computing, Software, Analysis Challenge (CSA06) Nebraska’s Tier-2 Data transferred (Tbyes) to the 7 U.S. Tier-2 sites

18. NSF reverse site visit, March 14, 2007 18 Fall 2006 Computing, Software, Analysis Challenge (CSA06) Nebraska’s Tier-2 CPU hours generating Monte Carlo for the challenge

19. NSF reverse site visit, March 14, 2007 19 ~ 0.3m Consists of Barrel and Forward Disks USA responsible for Forward Disks 100 × 150 µm 2 pixel size  excellent spatial resolution  10-20 µm –Charge sharing promoted by 4T B field and 20 0 tilt in FPix 4 Forward disks (FPix) –Each Disk made of two ½-disks –Z=  34.5 and  46.5 cm (  6 cm above beam line) –96 blades, 192 panels, 672 plaquettes –Plaquettes = Sensor + Readout Chips + Flex Circuits –4320 Readout Chips –18 million pixels –0.45 m 2 silicon Nebraska responsible for testing and grading all plaquettes and panels The Pixel Detector for CMS Barrel ~ 1m Disks Panel (4 types) Plaquette (7 types) Disk IR

20. NSF reverse site visit, March 14, 2007 20 Nebraska’s Responsibility Testing Area Test Stand Operate and maintain testing area at Sidet (FNAL) Hardware, software, shifts Test all plaquettes and panels 8 plaquettes/day (672 needed) 2 panels/day (192 needed) Grade plaquettes and panels Burn-in Box Modules under test PlaquettePanel

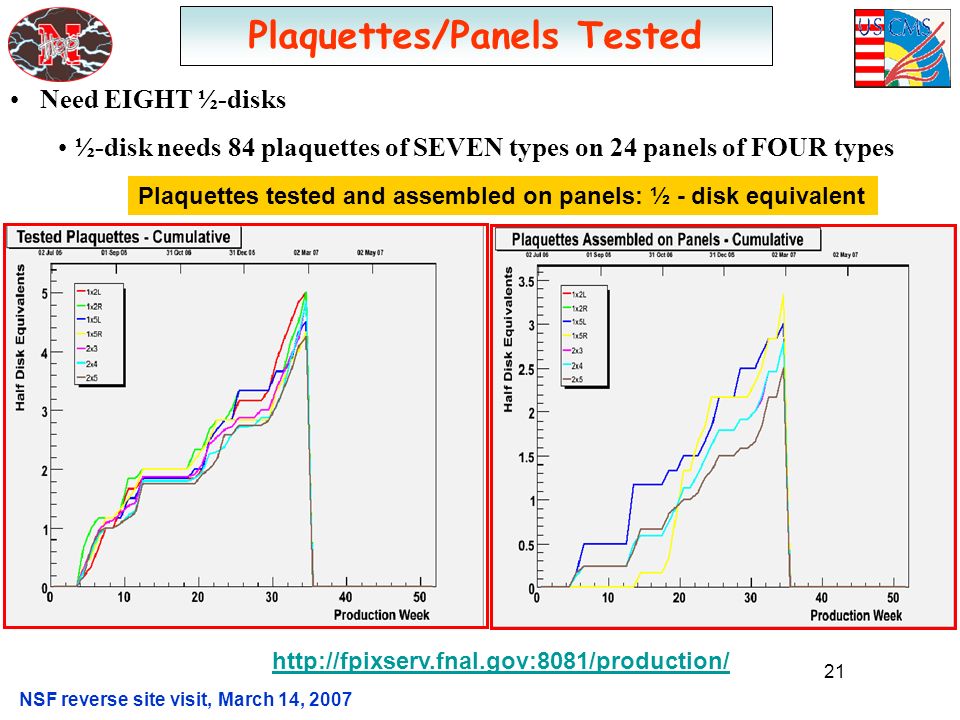

21. NSF reverse site visit, March 14, 2007 21 Plaquettes/Panels Tested Need EIGHT ½-disks ½-disk needs 84 plaquettes of SEVEN types on 24 panels of FOUR types Plaquettes tested and assembled on panels: ½ - disk equivalent http://fpixserv.fnal.gov:8081/production/

22. NSF reverse site visit, March 14, 2007 22 ½-Disk and ½-Cylinder First Production ½-Cylinder Pilot Run Detector Tested modules for 2007 CMS Pilot Run FPix Detector (8 panels) Invaluable learning tool for the “real” run Shipped to CERN in January 07 First Production ½-disk now in making First Production ½- cylinder now being instrumented Ship 8 ½-disks and 4 ½-cylinders by summer 2008 Panels on First Production ½-Disk

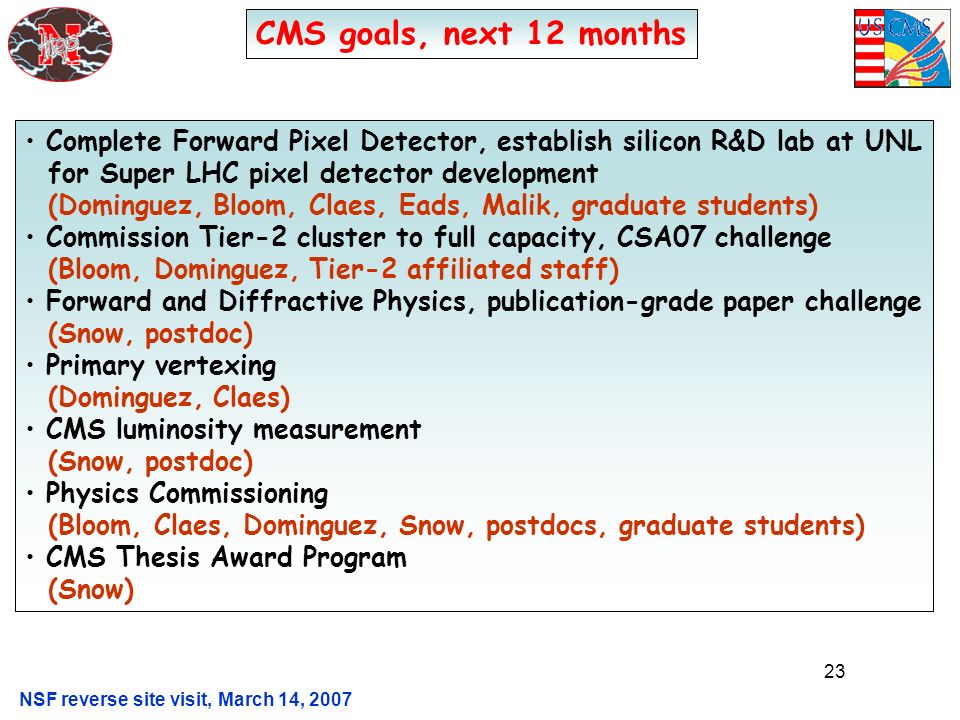

23. NSF reverse site visit, March 14, 2007 23 CMS goals, next 12 months Complete Forward Pixel Detector, establish silicon R&D lab at UNL for Super LHC pixel detector development (Dominguez, Bloom, Claes, Eads, Malik, graduate students) Commission Tier-2 cluster to full capacity, CSA07 challenge (Bloom, Dominguez, Tier-2 affiliated staff) Forward and Diffractive Physics, publication-grade paper challenge (Snow, postdoc) Primary vertexing (Dominguez, Claes) CMS luminosity measurement (Snow, postdoc) Physics Commissioning (Bloom, Claes, Dominguez, Snow, postdocs, graduate students) CMS Thesis Award Program (Snow)

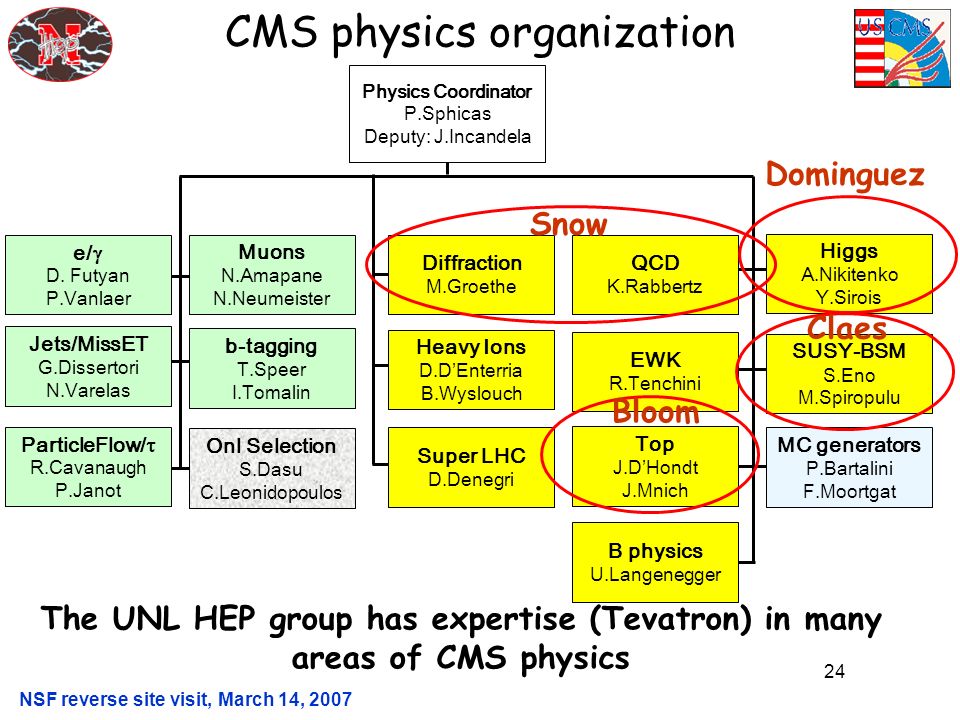

24. NSF reverse site visit, March 14, 2007 24 CMS physics organization Physics Coordinator P.Sphicas Deputy: J.Incandela MC generators P.Bartalini F.Moortgat Higgs A.Nikitenko Y.Sirois SUSY-BSM S.Eno M.Spiropulu EWK R.Tenchini B physics U.Langenegger b-tagging T.Speer I.Tomalin Jets/MissET G.Dissertori N.Varelas Muons N.Amapane N.Neumeister e/  D. Futyan P.Vanlaer Onl Selection S.Dasu C.Leonidopoulos ParticleFlow/  R.Cavanaugh P.Janot Diffraction M.Groethe Heavy Ions D.D’Enterria B.Wyslouch Super LHC D.Denegri QCD K.Rabbertz Top J.D’Hondt J.Mnich The UNL HEP group has expertise (Tevatron) in many areas of CMS physics Snow Claes Bloom Dominguez

25. NSF reverse site visit, March 14, 2007 25 An example of our physics involvement 2007 internal exercise: “Papers we want to write in 2008”. Each physics group: Full (Monte Carlo) data analysis of selected processes, PRL-quality paper, collaboration review. Snow in Diffractive group: “Measurement of rapidity gap survival probability from single diffractive and double Pomeron exchange dijet events at 14 TeV”; Extension of previous work of Snow/Sobol in CMSSW framework. Similar efforts by other UNL group members. Meeting with CMS physics group conveners at FNAL in April. 010-10 0 p p p P Single diffraction 010-10 0 p p p p P Double Pomeron exchange ~ 2 mb for dijets > 20 GeV ~ 7 nb for dijets > 20 GeV

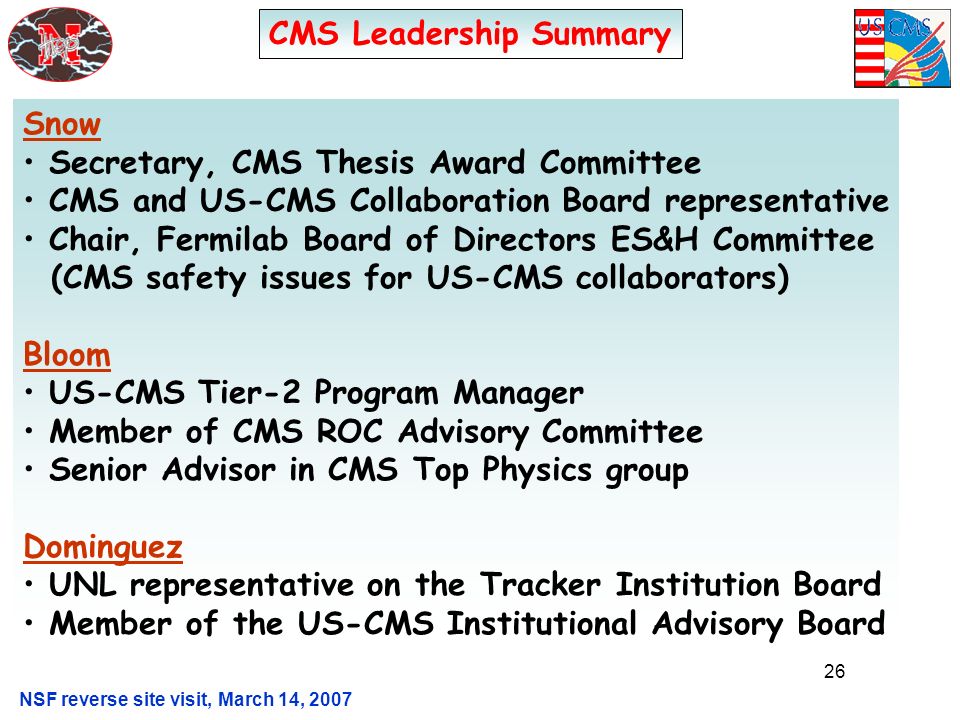

26. NSF reverse site visit, March 14, 2007 26 CMS Leadership Summary Snow Secretary, CMS Thesis Award Committee CMS and US-CMS Collaboration Board representative Chair, Fermilab Board of Directors ES&H Committee (CMS safety issues for US-CMS collaborators) Bloom US-CMS Tier-2 Program Manager Member of CMS ROC Advisory Committee Senior Advisor in CMS Top Physics group Dominguez UNL representative on the Tracker Institution Board Member of the US-CMS Institutional Advisory Board

27. NSF reverse site visit, March 14, 2007 27 Projected CMS effort in 2007 BloomProfessor75% ClaesProfessor25-50% DominguezProfessor75% SnowProfessor50% EadsPostdoc50%Supervised by Bloom and Dominguez Malik Research Asst. Prof. 100%Supervised by Bloom and Dominguez (Bellavance) Senior Rsrh. Associate 25%Replacement to begin mid-2007 (Sobol)Post doc100%Replacement to begin mid-2007 KellerStudent20%(reflects mostly summer research time) KellyStudent20%(reflects mostly summer research time)

28. NSF reverse site visit, March 14, 2007 28 Fraction of first-year proposal budget devoted to CMS Budget ItemCMS commitmentAmount Requested Snow (50% of summer salary)10,69222,239 Claes (25% of summer salary)4,39617,585 Postdoc (at least 1 full-time CMS)44,00088,000 Benefits (28% of above salaries)1654535,551 Undergrads-14,252 GRA (at least one committed to CMS)18,60037,200 Graduate Tuition Remission5,95211,904 Grad Student Health7501,500 Domestic Travel (~50% CMS)16,10032,200 Foreign Travel (~100% CMS)12,000 Publications-250 Materials & Supplies-4,750 Subtotal120,035276,574 IDC29,86672,409 Total Request 149,901345,388  43% CMS
