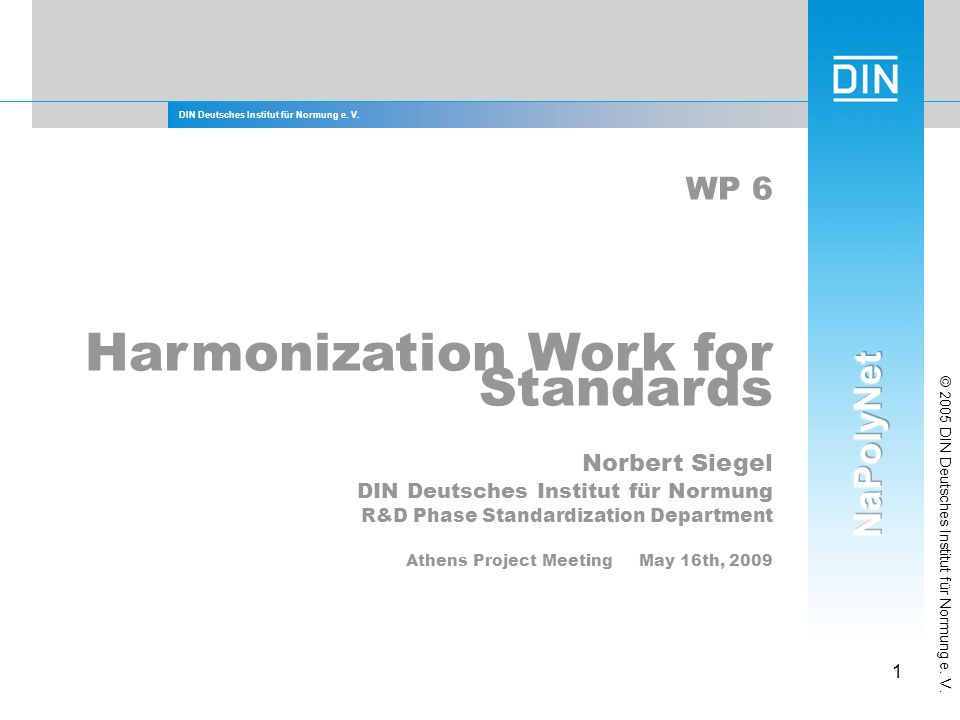

1. DIN Deutsches Institut für Normung e. V. 1 © 2005 DIN Deutsches Institut für Normung e. V. WP 6 Harmonization Work for Standards Norbert Siegel DIN Deutsches Institut für Normung R&D Phase Standardization Department Athens Project Meeting May 16th, 2009

2. DIN Deutsches Institut für Normung e. V. 2 © 2005 DIN Deutsches Institut für Normung e. V. Contents introduction work package 6.1 work package 6.2

3. DIN Deutsches Institut für Normung e. V. 3 DIN German Institute for Standardization DIN is a registered non-profit association supported by the private sector. On the basis of a contractual agreement with the Federal Republic of Germany, DIN is the responsible German standards body in European and international standards work. Source: DIN Annual Report 2006

4. DIN Deutsches Institut für Normung e. V. 4 R & D Phase Standardization 2007 EU Vice President Günter Verheugen Standardization is a link between inventions and wide industrial usage Standards are not enough used for the transfer of R&D results at the time being.

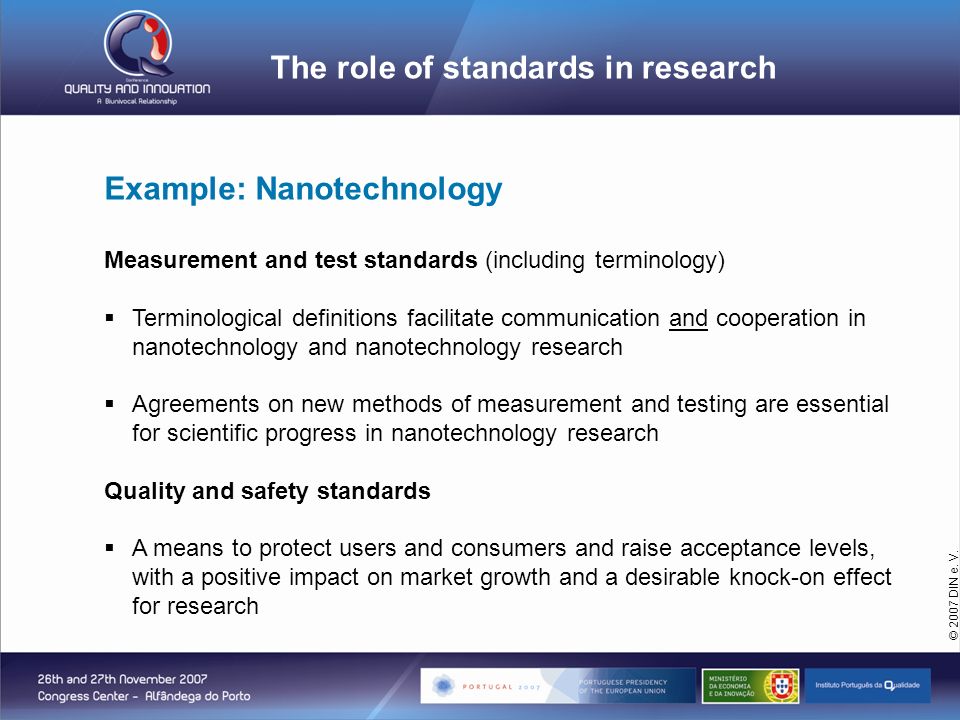

5. DIN Deutsches Institut für Normung e. V. Example: Nanotechnology Measurement and test standards (including terminology) Terminological definitions facilitate communication and cooperation in nanotechnology and nanotechnology research Agreements on new methods of measurement and testing are essential for scientific progress in nanotechnology research Quality and safety standards A means to protect users and consumers and raise acceptance levels, with a positive impact on market growth and a desirable knock-on effect for research The role of standards in research © 2007 DIN e. V.

6. DIN Deutsches Institut für Normung e. V. 6 © 2005 DIN Deutsches Institut für Normung e. V. Work package 6.1 Survey on existing standards in relevant peripheric areas

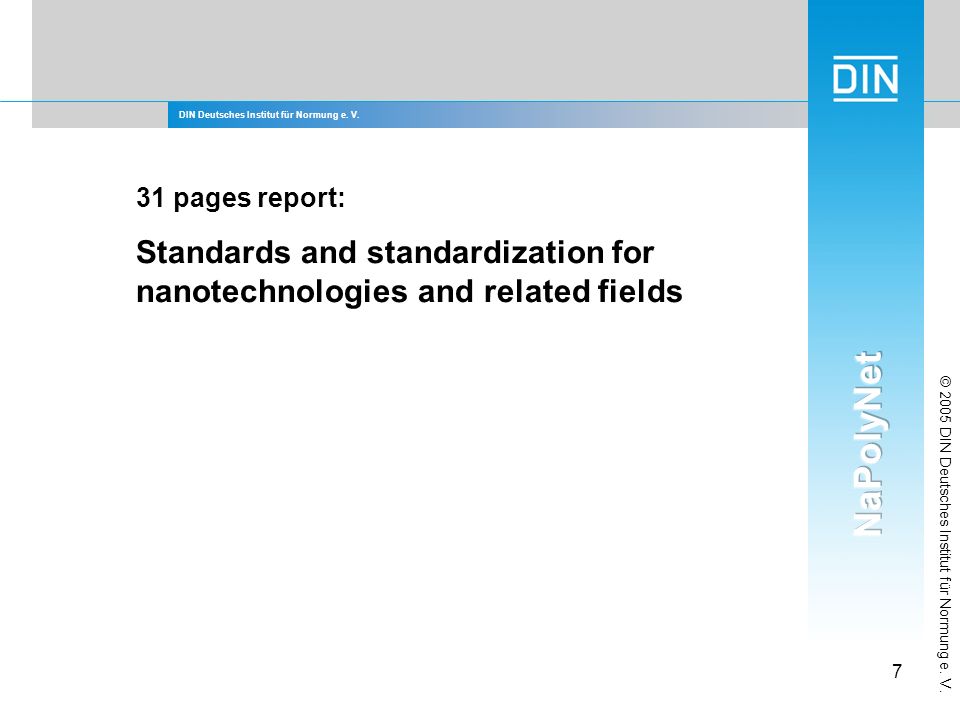

7. DIN Deutsches Institut für Normung e. V. 7 © 2005 DIN Deutsches Institut für Normung e. V. 31 pages report: Standards and standardization for nanotechnologies and related fields

8. DIN Deutsches Institut für Normung e. V. 8 NSBs and international standardization National European Inter- national BSI AFNOR CNI … Sectors engineering construction services IT aviation optics fine mechanics... electrotechnics electronics telecommunication © 2005 DIN Deutsches Institut für Normung e. V.

9. DIN Deutsches Institut für Normung e. V. 9 Standardization Bodies Nanotechnologies 1 ISO TC 229 Nanotechnologies IEC TC 113 Nanotechnology: Standardization for electrical and electronics products and systems © 2005 DIN Deutsches Institut für Normung e. V.

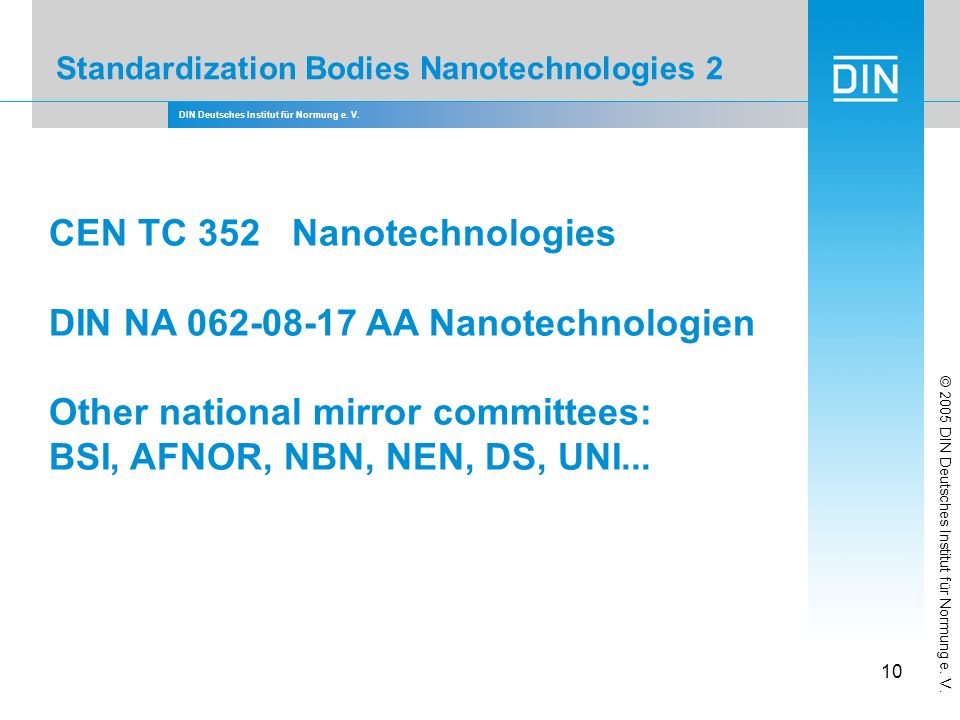

10. DIN Deutsches Institut für Normung e. V. 10 Standardization Bodies Nanotechnologies 2 CEN TC 352 Nanotechnologies DIN NA 062-08-17 AA Nanotechnologien Other national mirror committees: BSI, AFNOR, NBN, NEN, DS, UNI... © 2005 DIN Deutsches Institut für Normung e. V.

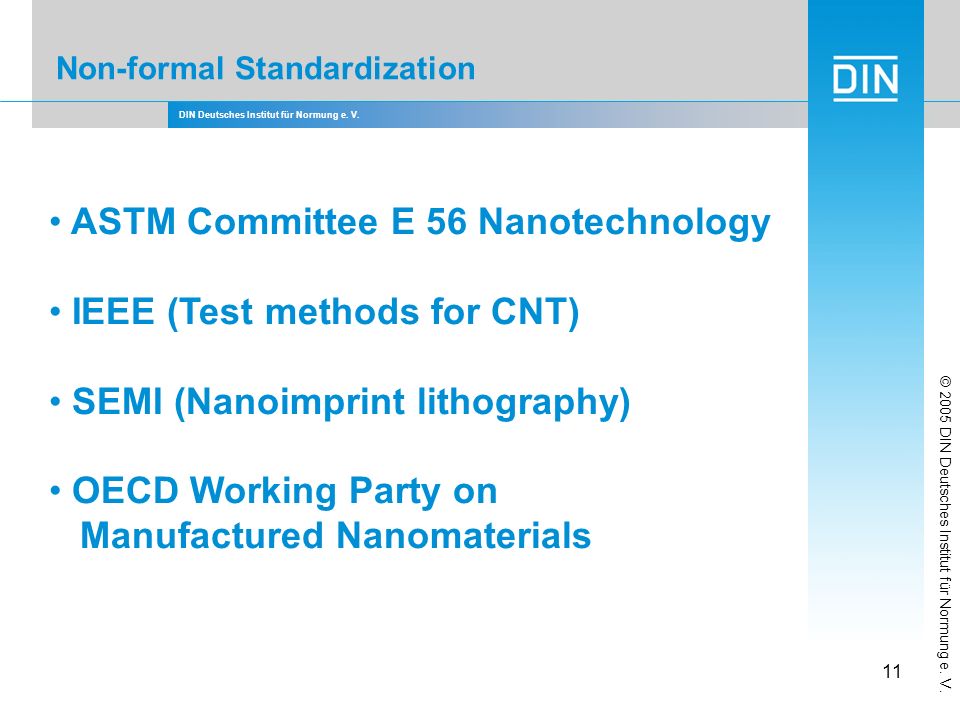

11. DIN Deutsches Institut für Normung e. V. 11 Non-formal Standardization ASTM Committee E 56 Nanotechnology IEEE (Test methods for CNT) SEMI (Nanoimprint lithography) OECD Working Party on Manufactured Nanomaterials © 2005 DIN Deutsches Institut für Normung e. V.

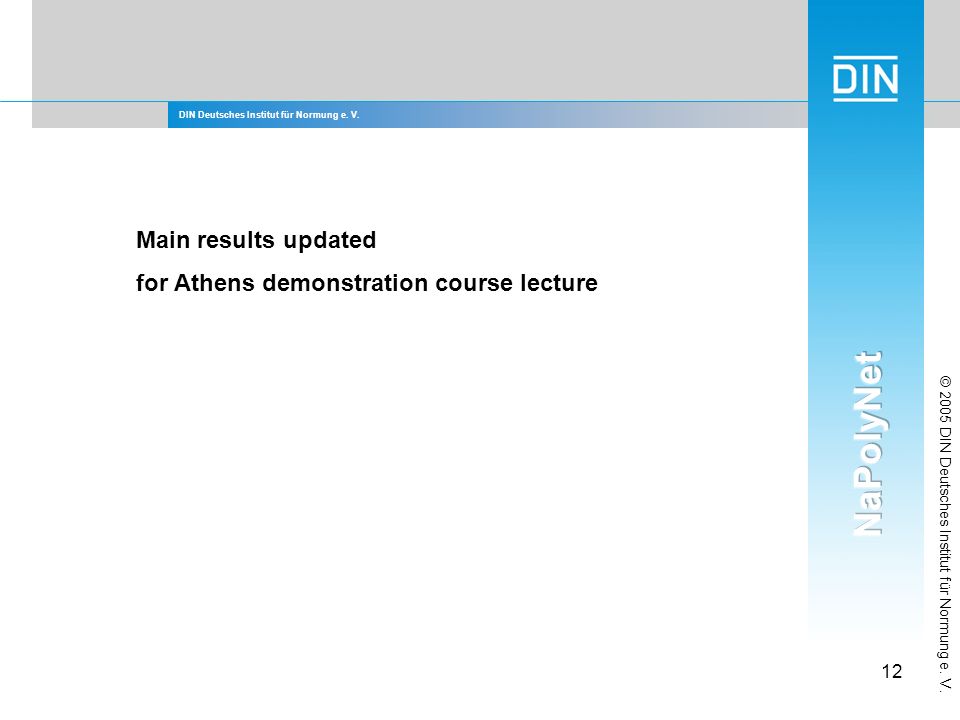

12. DIN Deutsches Institut für Normung e. V. 12 © 2005 DIN Deutsches Institut für Normung e. V. Main results updated for Athens demonstration course lecture

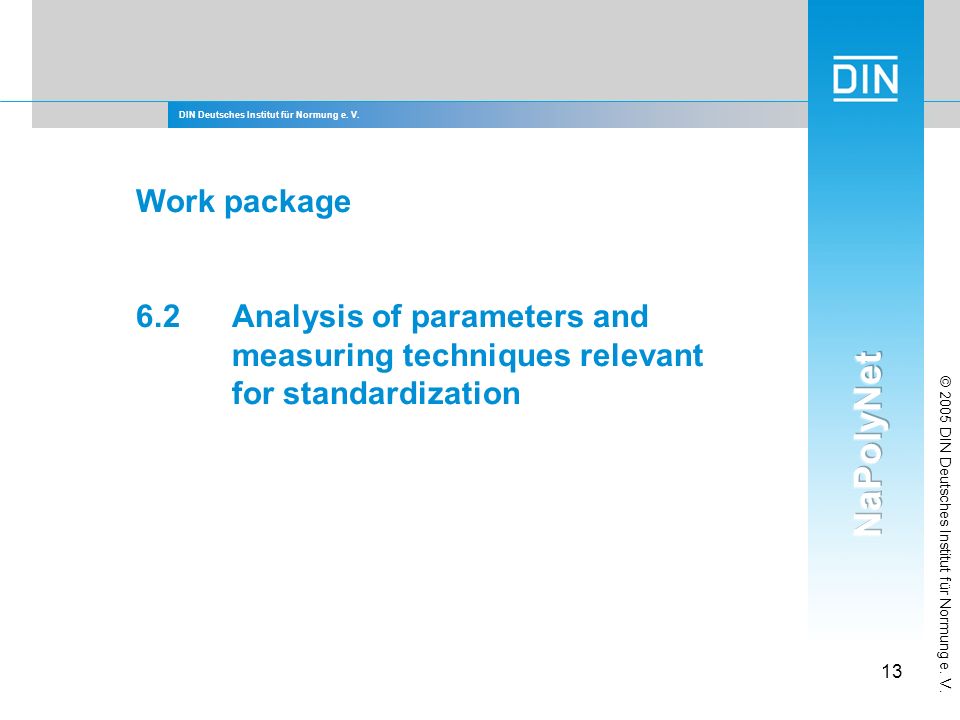

13. DIN Deutsches Institut für Normung e. V. 13 © 2005 DIN Deutsches Institut für Normung e. V. Work package 6.2 Analysis of parameters and measuring techniques relevant for standardization

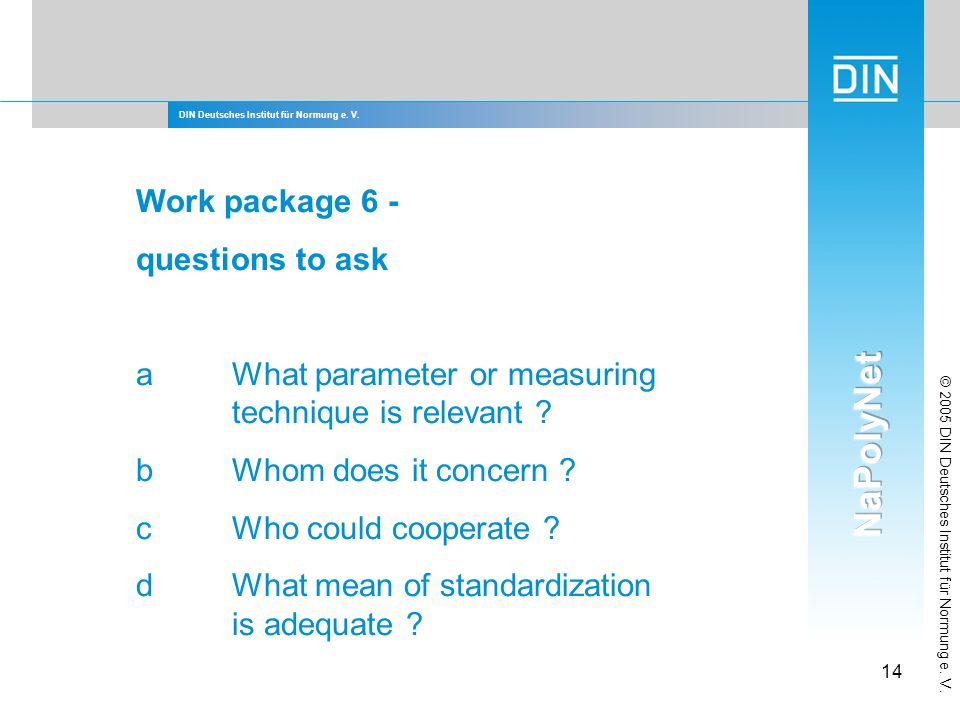

14. DIN Deutsches Institut für Normung e. V. 14 © 2005 DIN Deutsches Institut für Normung e. V. Work package 6 - questions to ask aWhat parameter or measuring technique is relevant ? bWhom does it concern ? cWho could cooperate ? dWhat mean of standardization is adequate ?

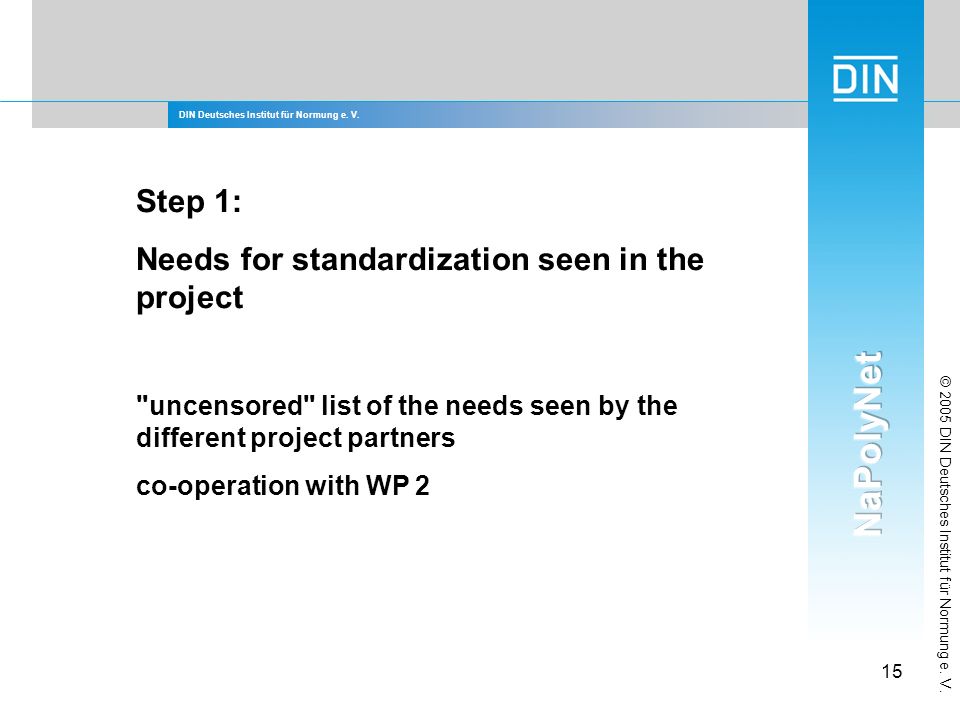

15. DIN Deutsches Institut für Normung e. V. 15 © 2005 DIN Deutsches Institut für Normung e. V. Step 1: Needs for standardization seen in the project "uncensored" list of the needs seen by the different project partners co-operation with WP 2

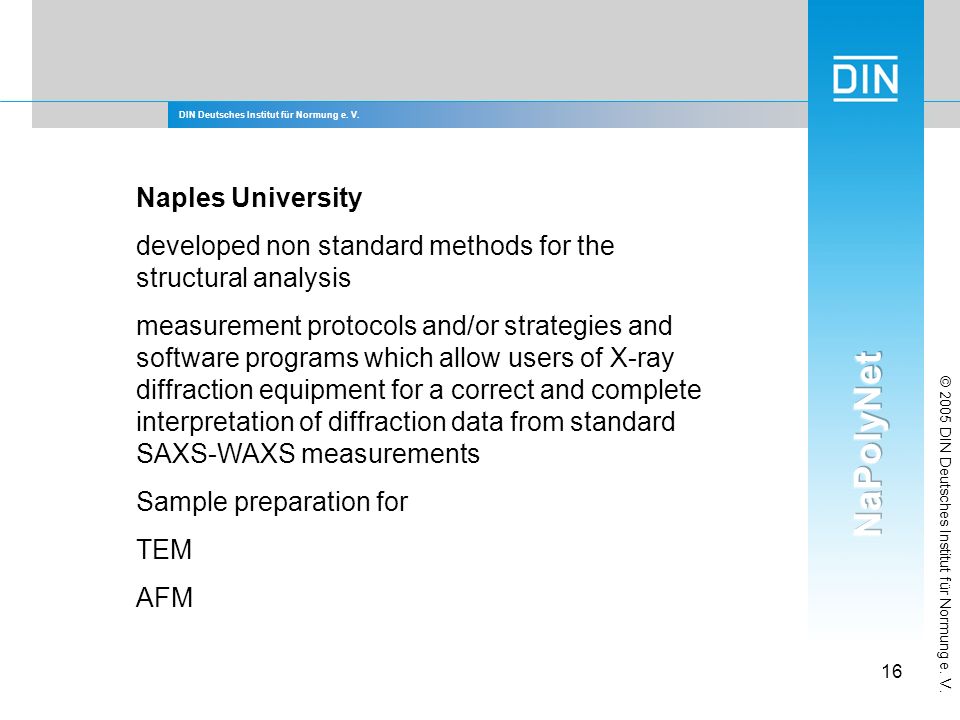

16. DIN Deutsches Institut für Normung e. V. 16 © 2005 DIN Deutsches Institut für Normung e. V. Naples University developed non standard methods for the structural analysis measurement protocols and/or strategies and software programs which allow users of X-ray diffraction equipment for a correct and complete interpretation of diffraction data from standard SAXS-WAXS measurements Sample preparation for TEM AFM

17. DIN Deutsches Institut für Normung e. V. 17 © 2005 DIN Deutsches Institut für Normung e. V. Research Institute on Membrane Technology, ITM-CNR: theoretical preparation of bulk and interface models of dense amorphous polymeric materials experimental stabilisation of universal criteria for membrane preparation and measurement treatment

18. DIN Deutsches Institut für Normung e. V. 18 © 2005 DIN Deutsches Institut für Normung e. V. Bulgarian Academy of Sciences - Central Laboratory Physico-Chemical Mechanics standardize their rheological tools (procedures) for control of the dispersity and the superstructure of nanocomposites. Reference polymer nanomaterials with well defined viscosity would be desirable

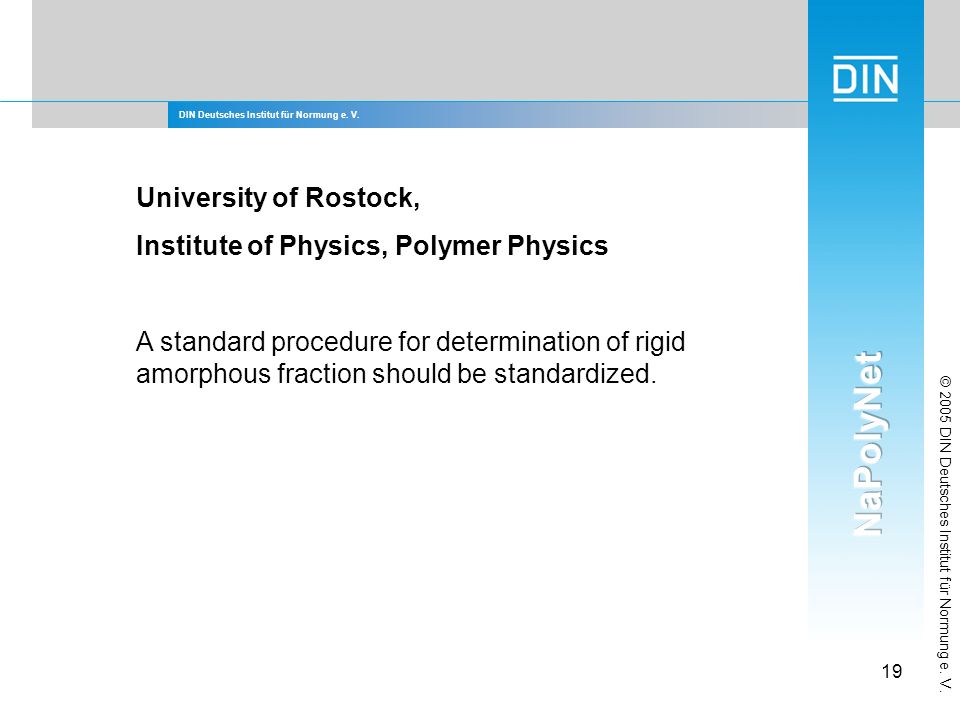

19. DIN Deutsches Institut für Normung e. V. 19 © 2005 DIN Deutsches Institut für Normung e. V. University of Rostock, Institute of Physics, Polymer Physics A standard procedure for determination of rigid amorphous fraction should be standardized.

20. DIN Deutsches Institut für Normung e. V. 20 © 2005 DIN Deutsches Institut für Normung e. V. National Technical University of Athens need of standard reference materials (polymer nanomaterials) with well characterized morphology (spatial distribution of nanoparticles) and chemistry (polymer filler interactions) to quantify the response by their experimental techniques in terms of these parameters. The work on these items will show which techniques and test procedures are appropriate for standardization.

21. DIN Deutsches Institut für Normung e. V. 21 © 2005 DIN Deutsches Institut für Normung e. V. Romanian Academy, P.Poni Institute of Macromolecular Chemistry Department of Physical Chemistry of Polymers for mechanical properties of the films a reference material would be desirable standard for measurements of zeta potential in aqueous and non-aqueous dispersions

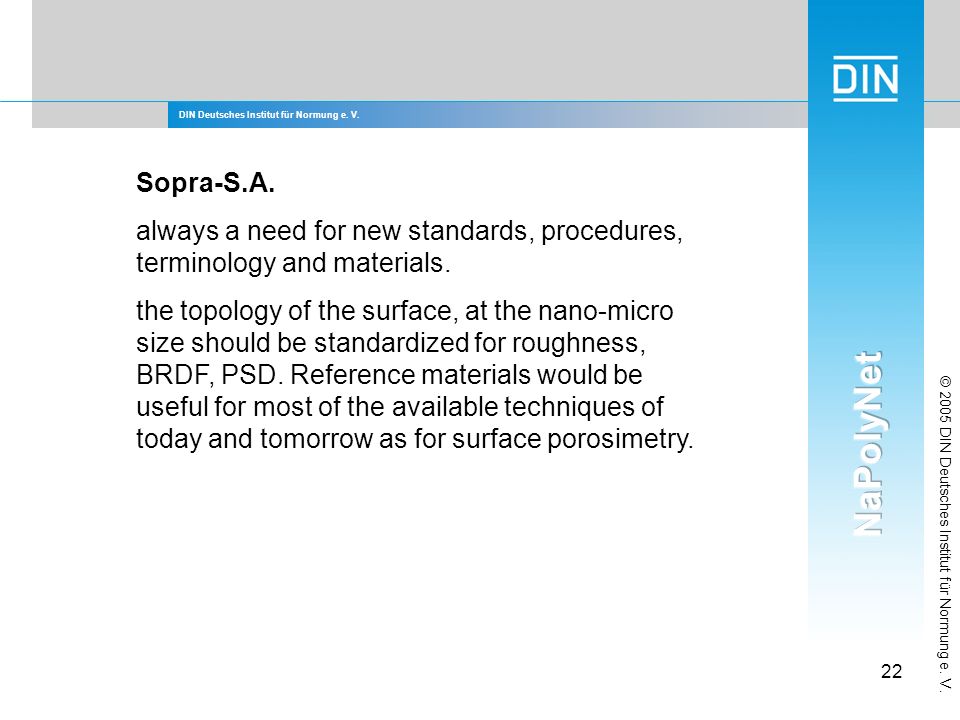

22. DIN Deutsches Institut für Normung e. V. 22 © 2005 DIN Deutsches Institut für Normung e. V. Sopra-S.A. always a need for new standards, procedures, terminology and materials. the topology of the surface, at the nano-micro size should be standardized for roughness, BRDF, PSD. Reference materials would be useful for most of the available techniques of today and tomorrow as for surface porosimetry.

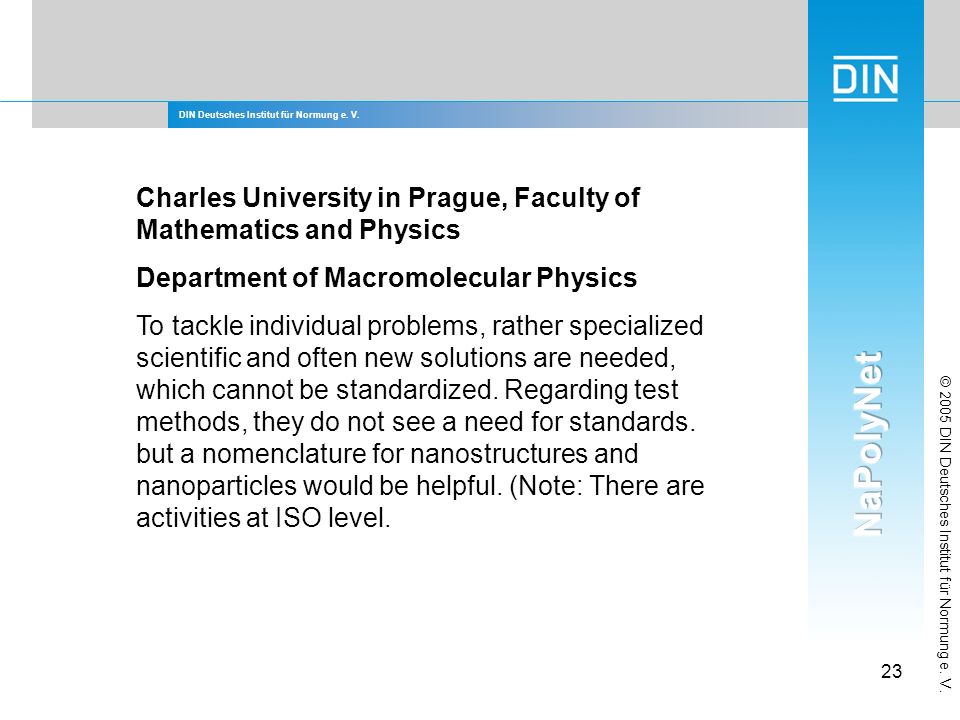

23. DIN Deutsches Institut für Normung e. V. 23 © 2005 DIN Deutsches Institut für Normung e. V. Charles University in Prague, Faculty of Mathematics and Physics Department of Macromolecular Physics To tackle individual problems, rather specialized scientific and often new solutions are needed, which cannot be standardized. Regarding test methods, they do not see a need for standards. but a nomenclature for nanostructures and nanoparticles would be helpful. (Note: There are activities at ISO level.

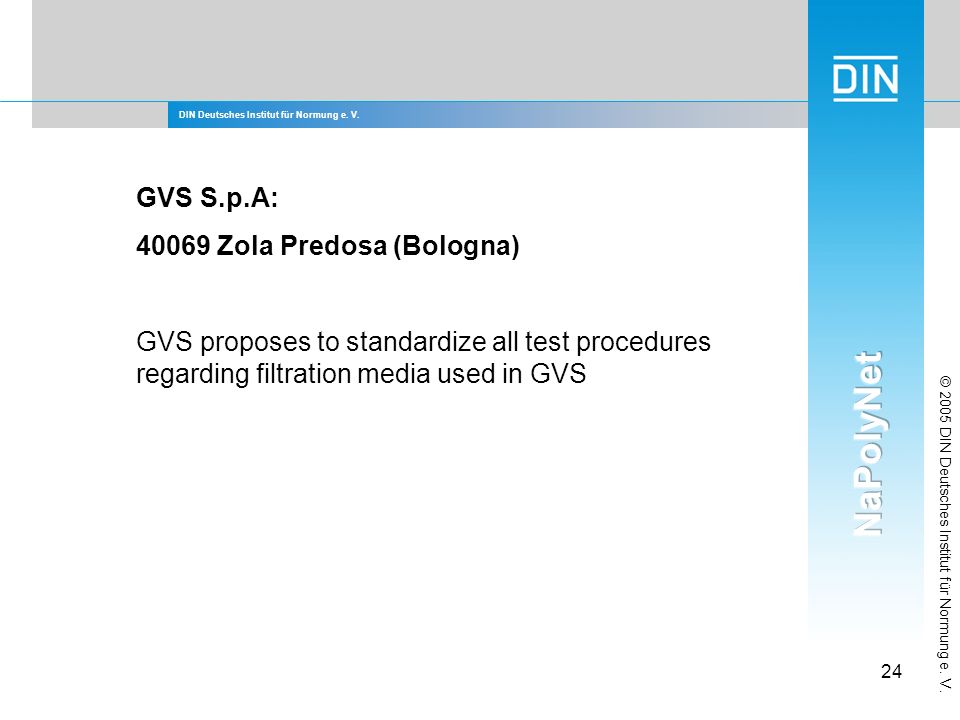

24. DIN Deutsches Institut für Normung e. V. 24 © 2005 DIN Deutsches Institut für Normung e. V. GVS S.p.A: 40069 Zola Predosa (Bologna) GVS proposes to standardize all test procedures regarding filtration media used in GVS

25. DIN Deutsches Institut für Normung e. V. 25 © 2005 DIN Deutsches Institut für Normung e. V. NanoBioMatters Ltd., Spain NanoBioMatters uses a great deal of test and measuring methods, like particle size distribution measurements (laser diffraction), thermal analysis (TGA, DSC), spectroscopic analysis (FTIR, UV-vis), oxygen and vapour transmission rate measurements, optical and electron microscopy (SEM, TEM), colorimetry, X-ray diffractometry, humidity measurements, antimicrobial tests, migration tests, and compostability. NanoBioMatters thinks, that all test procedures used should be standardized.

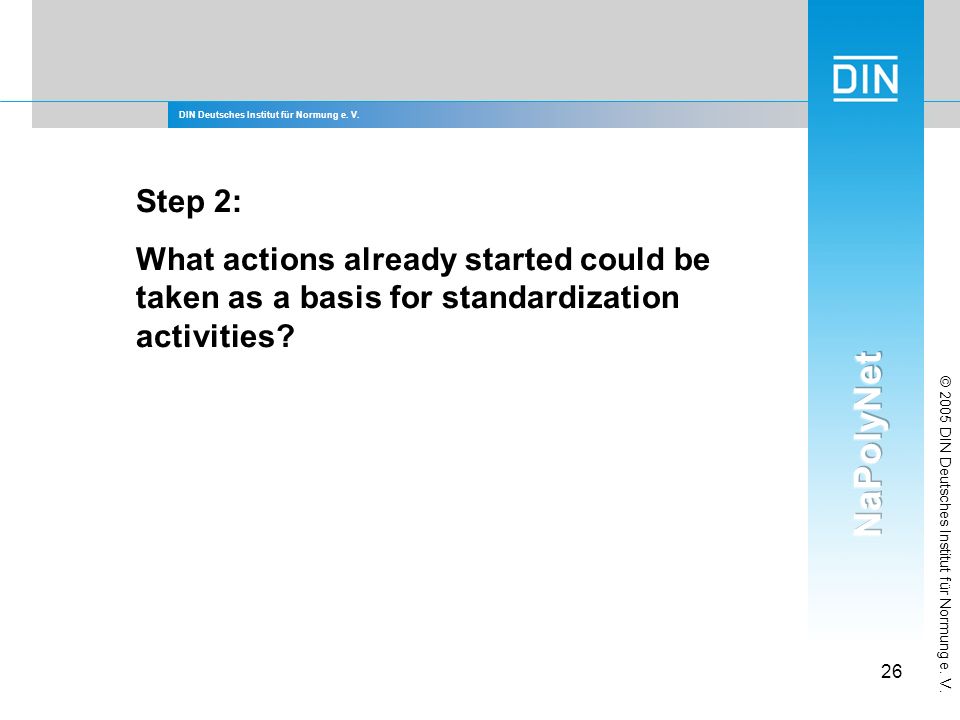

26. DIN Deutsches Institut für Normung e. V. 26 © 2005 DIN Deutsches Institut für Normung e. V. Step 2: What actions already started could be taken as a basis for standardization activities?

27. DIN Deutsches Institut für Normung e. V. 27 © 2005 DIN Deutsches Institut für Normung e. V. What measuring method is used by several NaPolyNet partners?

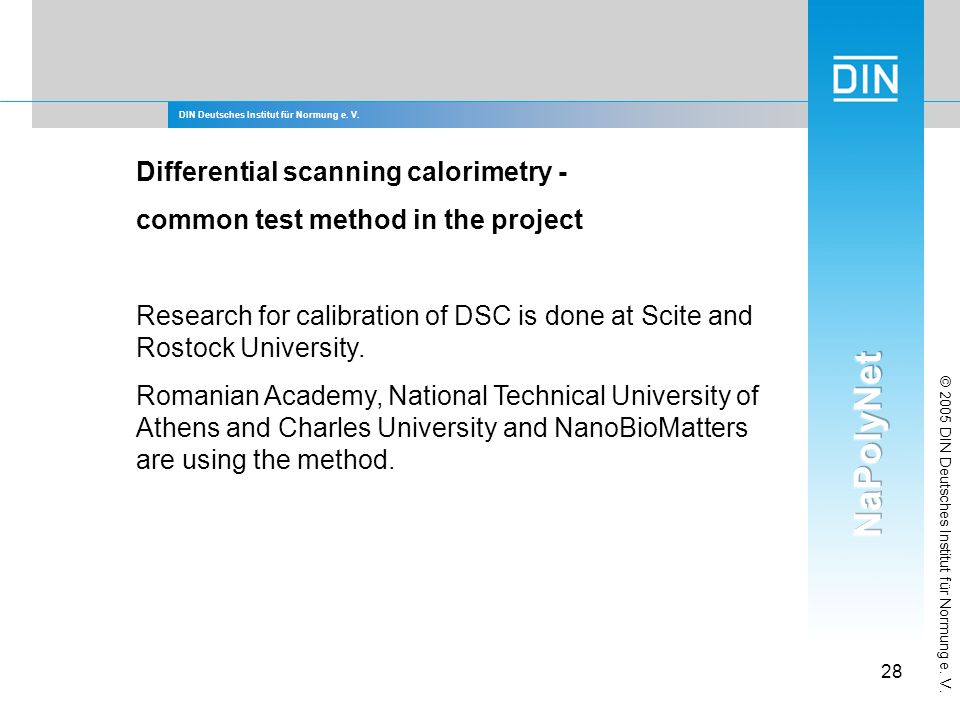

28. DIN Deutsches Institut für Normung e. V. 28 © 2005 DIN Deutsches Institut für Normung e. V. Differential scanning calorimetry - common test method in the project Research for calibration of DSC is done at Scite and Rostock University. Romanian Academy, National Technical University of Athens and Charles University and NanoBioMatters are using the method.

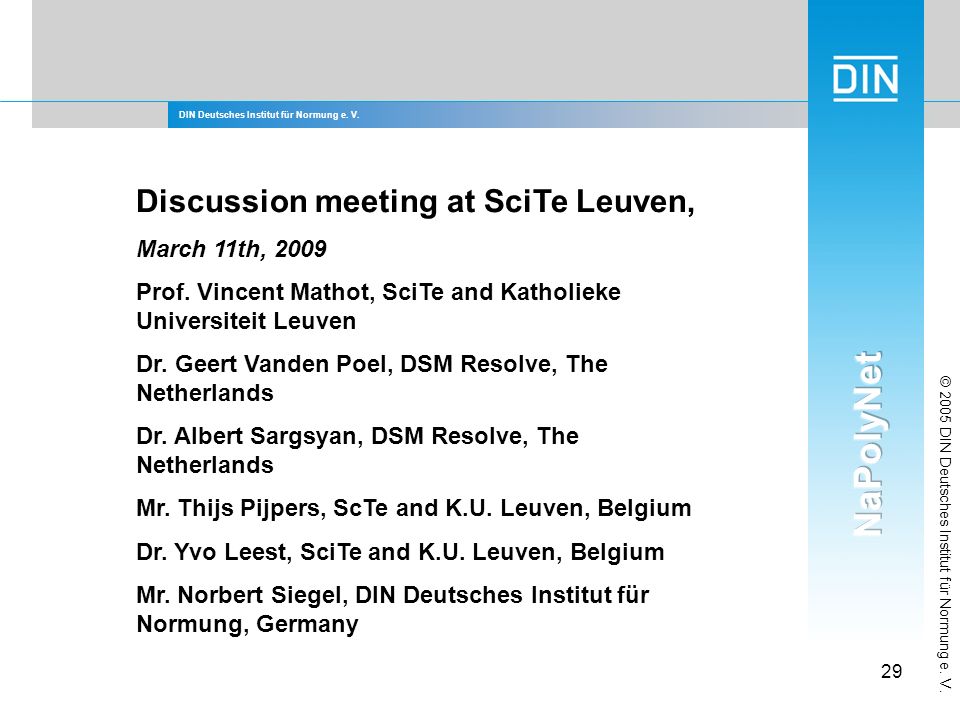

29. DIN Deutsches Institut für Normung e. V. 29 © 2005 DIN Deutsches Institut für Normung e. V. Discussion meeting at SciTe Leuven, March 11th, 2009 Prof. Vincent Mathot, SciTe and Katholieke Universiteit Leuven Dr. Geert Vanden Poel, DSM Resolve, The Netherlands Dr. Albert Sargsyan, DSM Resolve, The Netherlands Mr. Thijs Pijpers, ScTe and K.U. Leuven, Belgium Dr. Yvo Leest, SciTe and K.U. Leuven, Belgium Mr. Norbert Siegel, DIN Deutsches Institut für Normung, Germany

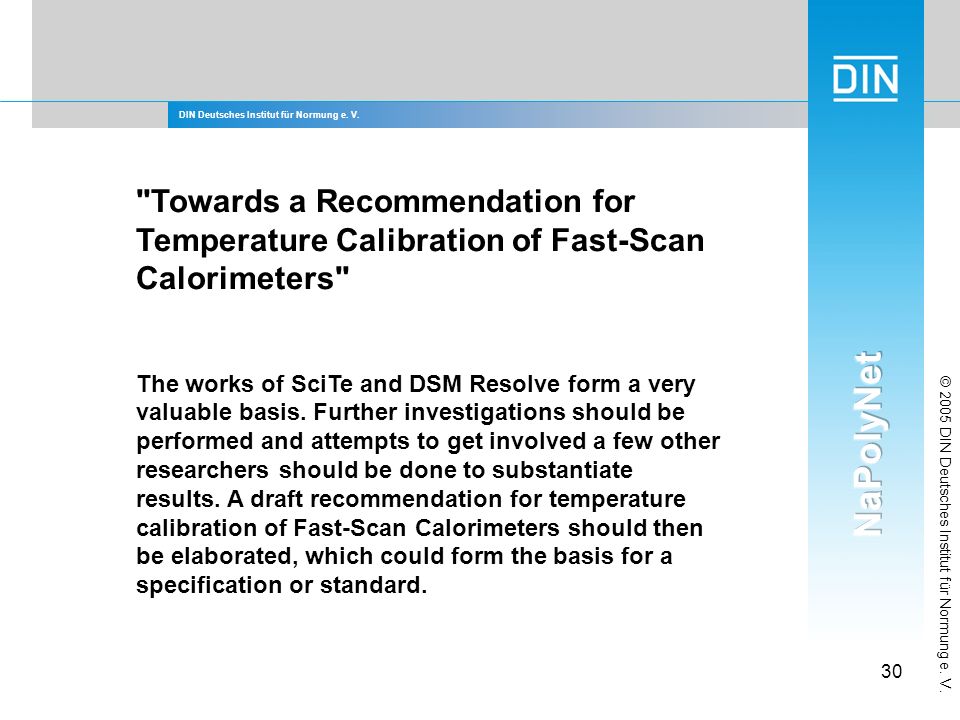

30. DIN Deutsches Institut für Normung e. V. 30 © 2005 DIN Deutsches Institut für Normung e. V. "Towards a Recommendation for Temperature Calibration of Fast-Scan Calorimeters" The works of SciTe and DSM Resolve form a very valuable basis. Further investigations should be performed and attempts to get involved a few other researchers should be done to substantiate results. A draft recommendation for temperature calibration of Fast-Scan Calorimeters should then be elaborated, which could form the basis for a specification or standard.

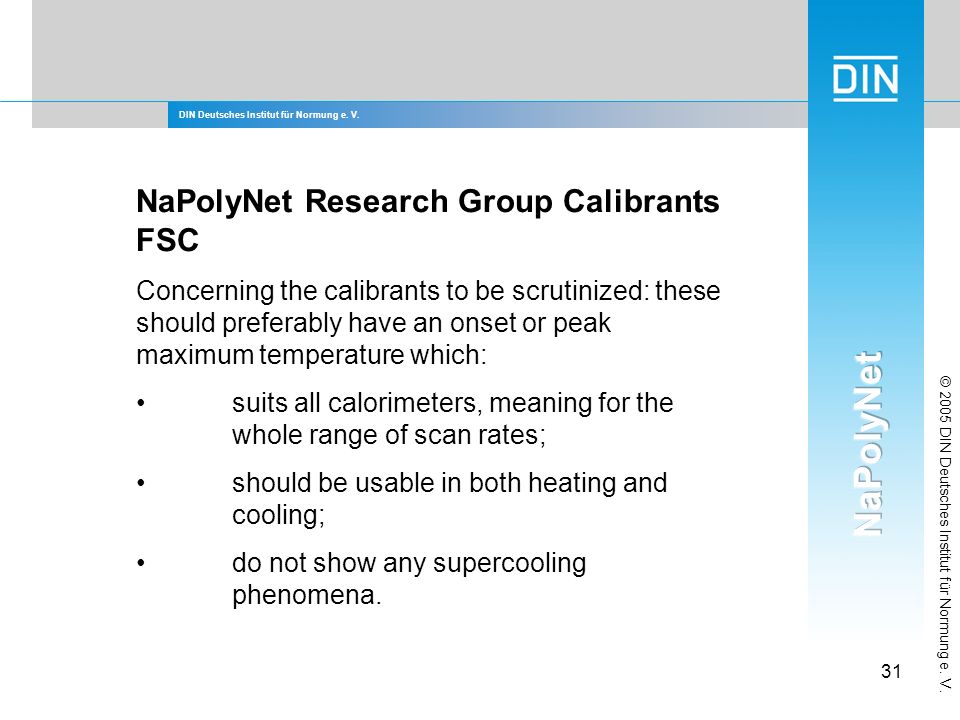

31. DIN Deutsches Institut für Normung e. V. 31 © 2005 DIN Deutsches Institut für Normung e. V. NaPolyNet Research Group Calibrants FSC Concerning the calibrants to be scrutinized: these should preferably have an onset or peak maximum temperature which: suits all calorimeters, meaning for the whole range of scan rates; should be usable in both heating and cooling; do not show any supercooling phenomena.

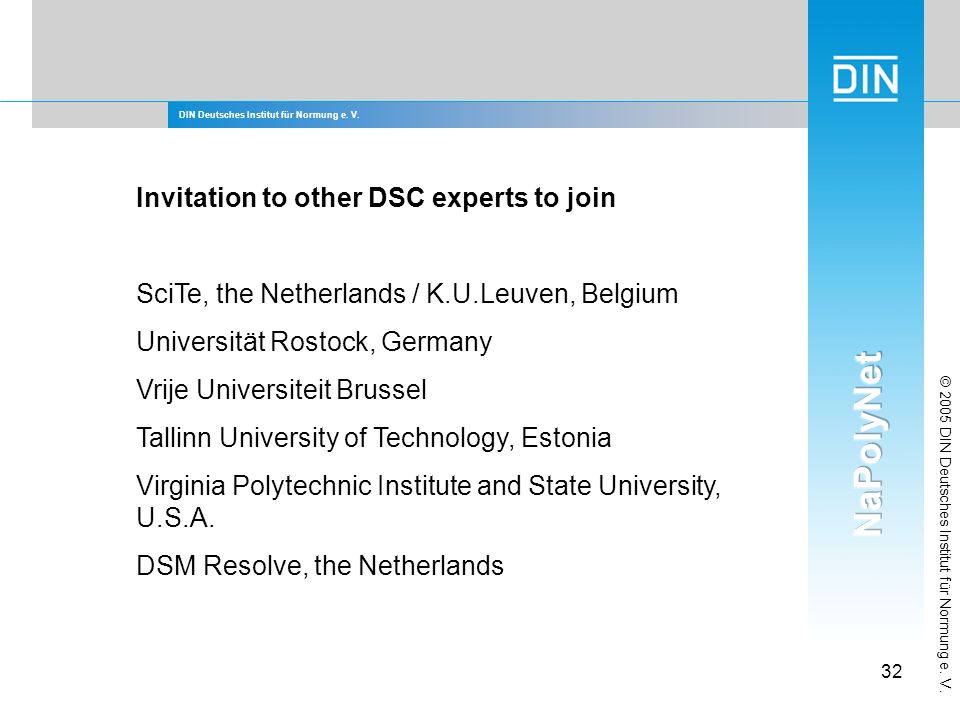

32. DIN Deutsches Institut für Normung e. V. 32 © 2005 DIN Deutsches Institut für Normung e. V. Invitation to other DSC experts to join SciTe, the Netherlands / K.U.Leuven, Belgium Universität Rostock, Germany Vrije Universiteit Brussel Tallinn University of Technology, Estonia Virginia Polytechnic Institute and State University, U.S.A. DSM Resolve, the Netherlands

33. DIN Deutsches Institut für Normung e. V. 33 © 2005 DIN Deutsches Institut für Normung e. V. Ask NaPolyNet partners using DSC to test calibration method

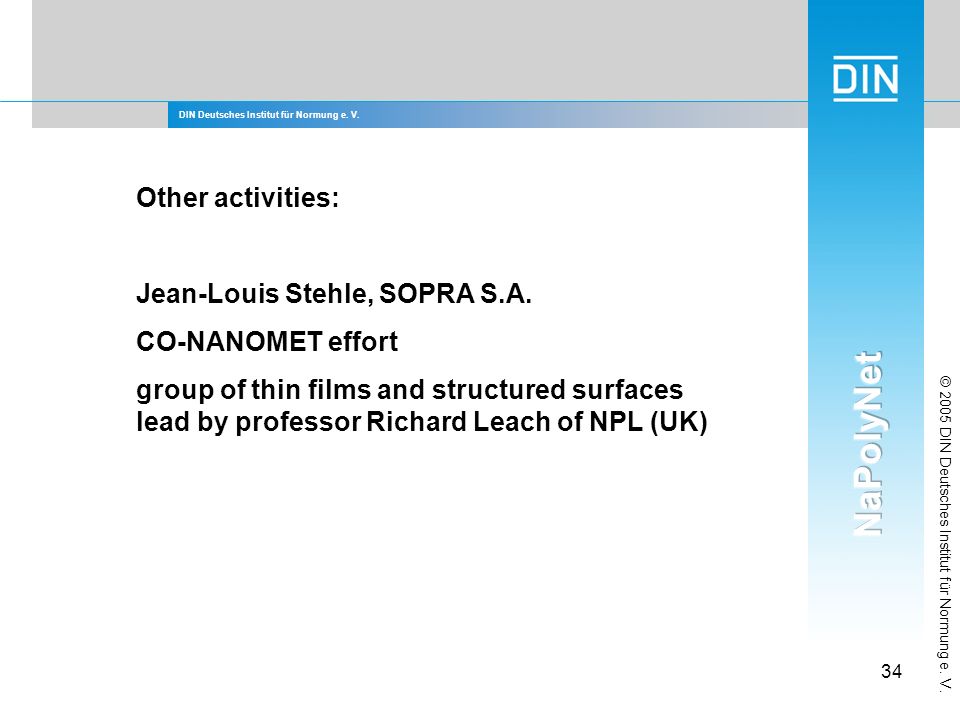

34. DIN Deutsches Institut für Normung e. V. 34 © 2005 DIN Deutsches Institut für Normung e. V. Other activities: Jean-Louis Stehle, SOPRA S.A. CO-NANOMET effort group of thin films and structured surfaces lead by professor Richard Leach of NPL (UK)

35. DIN Deutsches Institut für Normung e. V. 35 Norbert Siegel R & D Phase Standardization e-mail: norbert.siegel@din.de DIN German Institute for Standardization Burggrafenstr. 6 10787 Berlin GERMANY http://www.din.de phone: +49 30/2601-2343 fax:+49 30/2601-42343 Thanks for your attention!
