1. ISBN 0-321-19362-8 Chapter 6 Data Types Pointer Types Reference Types Memory Management

2. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-2 Pointers and Reference Types For a pointer type, range of values is memory addresses and nil. Uses –Indirect addressing –Dynamic storage management

3. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-3 Design Issues Scope and lifetime of pointer Lifetime of heap dynamic variable Type checking What uses are allowed Support pointer or reference types

4. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-4 Pointer Operations Assignment –Need to store an address in the variable –Generally part of the allocation process for heap- dynamic variables Address of operation needed if indirect addressing is used Dereferencing –Get the data being pointed to –Can be explicit or implicit

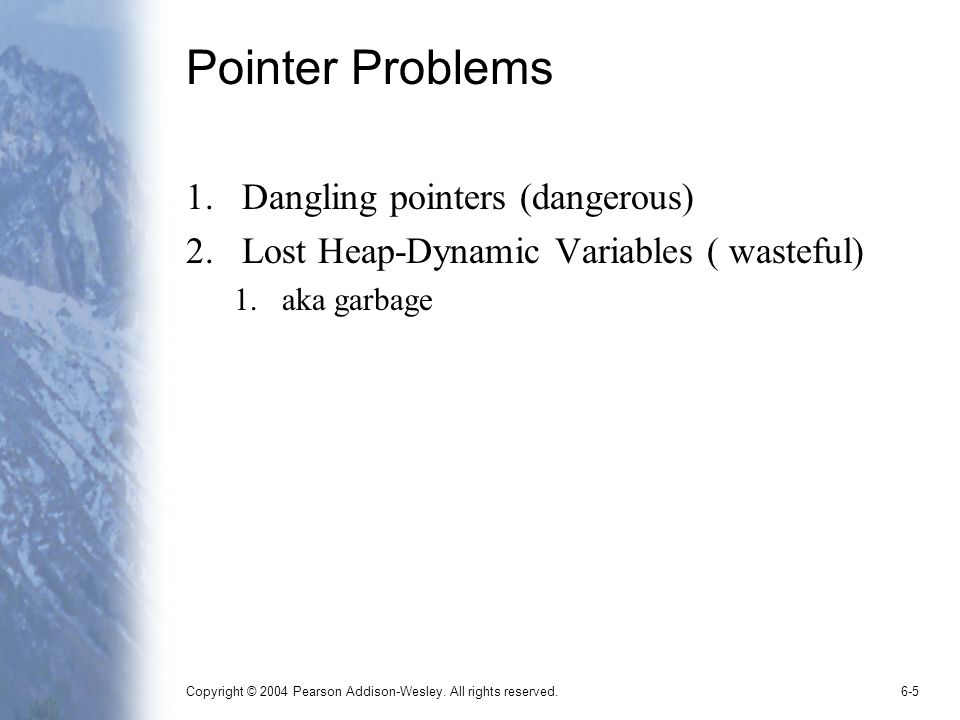

5. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-5 Pointer Problems 1.Dangling pointers (dangerous) 2.Lost Heap-Dynamic Variables ( wasteful) 1.aka garbage

6. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-6 Dangling pointers A pointer points to a heap-dynamic variable that has been deallocated Creating one (with explicit deallocation): a)Allocate a heap-dynamic variable and set a pointer to point at it b)Set a second pointer to the value of the first pointer c)Deallocate the heap-dynamic variable, using the first pointer

7. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-7 Lost Heap-Dynamic Variables A heap-dynamic variable that is no longer referenced by any program pointer Creating one: a)Pointer p1 is set to point to a newly created heap- dynamic variable b)p1 is later set to point to another newly created heap-dynamic variable The process of losing heap-dynamic variables is called memory leakage

8. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-8 Pointers in Pascal used for dynamic storage management only –Explicit dereferencing (postfix ^ ) –Dangling pointers are possible ( dispose ) –Dangling objects are also possible

9. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-9 Pointers in Ada A little better than Pascal –Some dangling pointers are disallowed because dynamic objects can be automatically deallocated at the end of pointer's type scope –All pointers are initialized to null –Similar dangling object problem (but rarely happens, because explicit deallocation is rarely done)

10. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-10 Pointers in C and C++ Used for dynamic storage management and addressing Explicit dereferencing and address-of operator Domain type need not be fixed ( void * ) –void * - Can point to any type and can be type checked (cannot be dereferenced)

11. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-11 Pointers in C and C++ (continued) Can do address arithmetic in restricted forms, e.g.: float stuff[100]; float *p; p = stuff; *(p+5) is equivalent to stuff[5] and p[5] *(p+i) is equivalent to stuff[i] and p[i] (Implicit scaling)

12. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-12 Pointers The assignment operation j = *ptr

13. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-13 Pointers in FORTRAN 90 Can point to heap and non-heap variables Implicit dereferencing Pointers can only point to variables that have the TARGET attribute The TARGET attribute is assigned in the declaration, as in: INTEGER, TARGET :: NODE

14. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-14 Pointers FORTRAN 90 Pointers (continued) A special assignment operator is used for non- dereferenced references, e.g.: REAL, POINTER :: ptr ( POINTER is an attribute) ptr => target (where target is either a pointer or a non- pointer with the TARGET attribute) This sets ptr to have the same value as target

15. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-15 C++ Reference Types Constant pointers that are implicitly dereferenced –Used for parameters Advantages of both pass-by-reference and pass-by- value

16. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-16 Pointers in Java Only references –No pointer arithmetic –Can only point at objects (which are all on the heap) –No explicit deallocator (garbage collection is used) –Means there can be no dangling references –Dereferencing is always implicit

17. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-17 Evaluation of Pointers Dangling pointers and dangling objects are problems, as is heap management Pointers are like goto's--they widen the range of cells that can be accessed by a variable Pointers or references are necessary for dynamic data structures--so we can't design a language without them

18. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-18 Pointer Implementation Representation of pointers and references –Large computers use single values –Intel microprocessors use segment and offset

19. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-19 Memory Management Avoiding dangling pointer problems 1.Tombstone: extra heap cell that is a pointer to the heap-dynamic variable The actual pointer variable points only at tombstones When heap-dynamic variable deallocated, tombstone remains but set to nil 2.Locks and keys: Pointer values are represented as (key, address) pairs Heap-dynamic variables are represented as variable plus cell for integer lock value When heap-dynamic variable allocated, lock value is created and placed in lock cell and key cell of pointer

20. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-20 Tombstones

21. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-21 Heap management How do we avoid the problem of dangling pointers and garbage? Issues –Single-size cells vs. variable-size cells –Reference counters (eager approach) vs. garbage collection (lazy approach)

22. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-22 Reference counters Maintain a counter in every cell that store the number of pointers currently pointing at the cell Disadvantages –space required –execution time required –complications for cells connected circularly

23. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-23 Garbage collection Allocate and disconnect until all available cells allocated; then begin gathering all garbage –Every heap cell has an extra bit used by collection algorithm –All cells initially set to garbage –All pointers traced into heap, and reachable cells marked as not garbage –All garbage cells returned to list of available cells Disadvantages: when you need it most, it works worst (takes most time when program needs most of cells in heap)

24. Copyright © 2004 Pearson Addison-Wesley. All rights reserved.6-24 Marking Algorithm
