1. Chapter 2 Decision-Making Instructions (Instructions: Language of the Computer Part V)

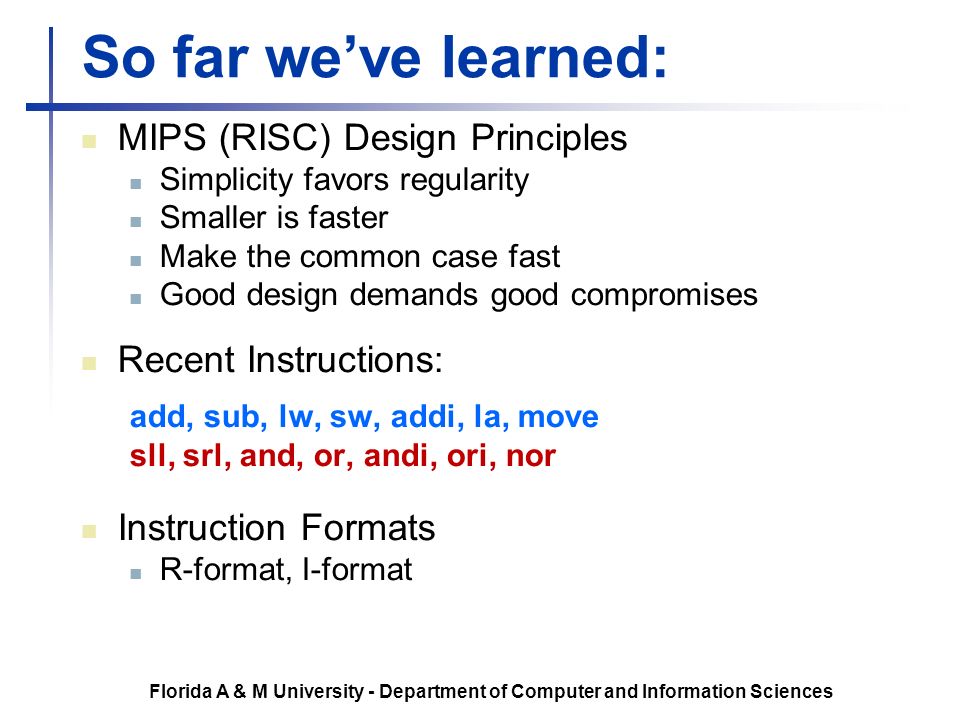

2. Florida A & M University - Department of Computer and Information Sciences So far we’ve learned: MIPS (RISC) Design Principles Simplicity favors regularity Smaller is faster Make the common case fast Good design demands good compromises Recent Instructions: add, sub, lw, sw, addi, la, move sll, srl, and, or, andi, ori, nor Instruction Formats R-format, I-format

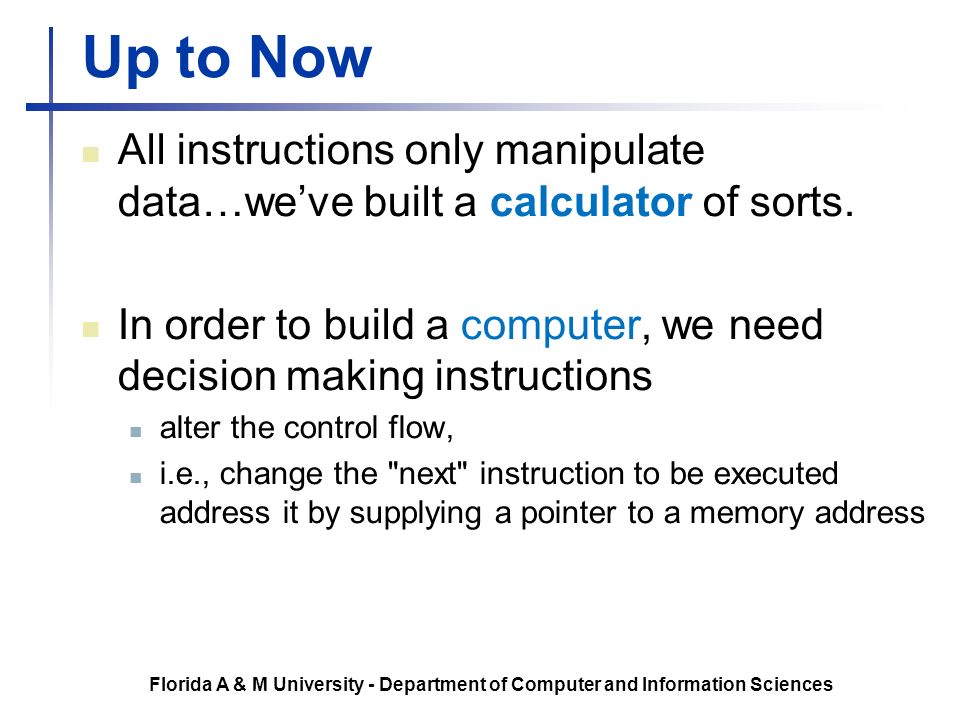

3. Up to Now All instructions only manipulate data…we’ve built a calculator of sorts. In order to build a computer, we need decision making instructions alter the control flow, i.e., change the "next" instruction to be executed address it by supplying a pointer to a memory address Florida A & M University - Department of Computer and Information Sciences

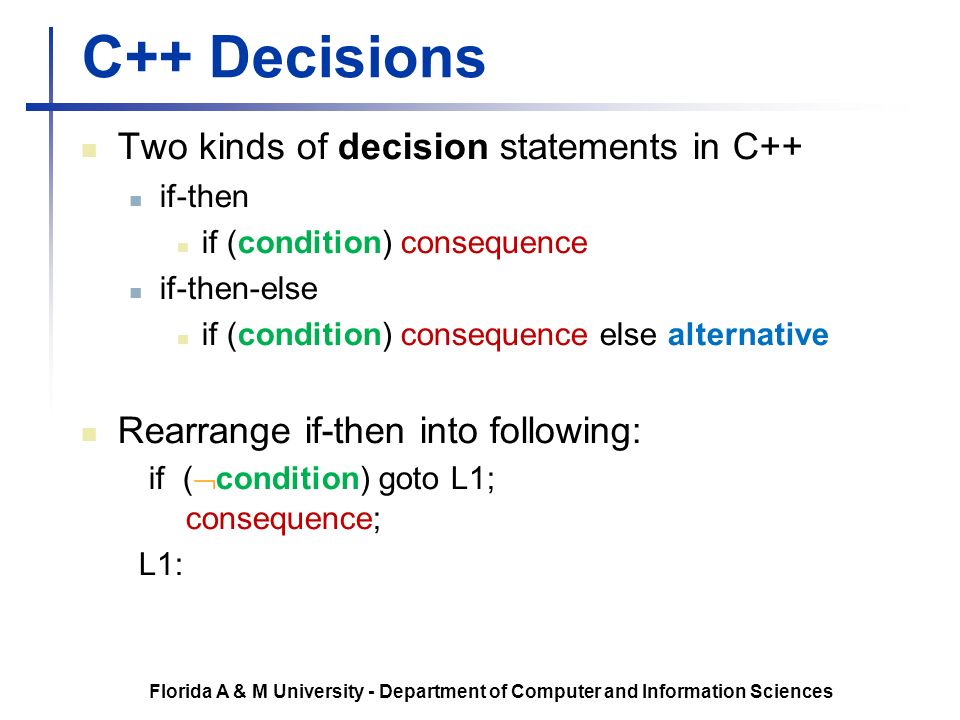

4. C++ Decisions Two kinds of decision statements in C++ if-then if (condition) consequence if-then-else if (condition) consequence else alternative Rearrange if-then into following: if (  condition) goto L1; consequence; L1: Florida A & M University - Department of Computer and Information Sciences

5. C++ Decisions Rearrange if-then-else into following: if (condition) goto L1; ORif (  condition) goto L1; alternative; consequence; goto L2; goto L2; L1: consequence; L1: alternative;L2: These are not as elegant as C++, but same meaning and easier to translate into MIPS Florida A & M University - Department of Computer and Information Sciences

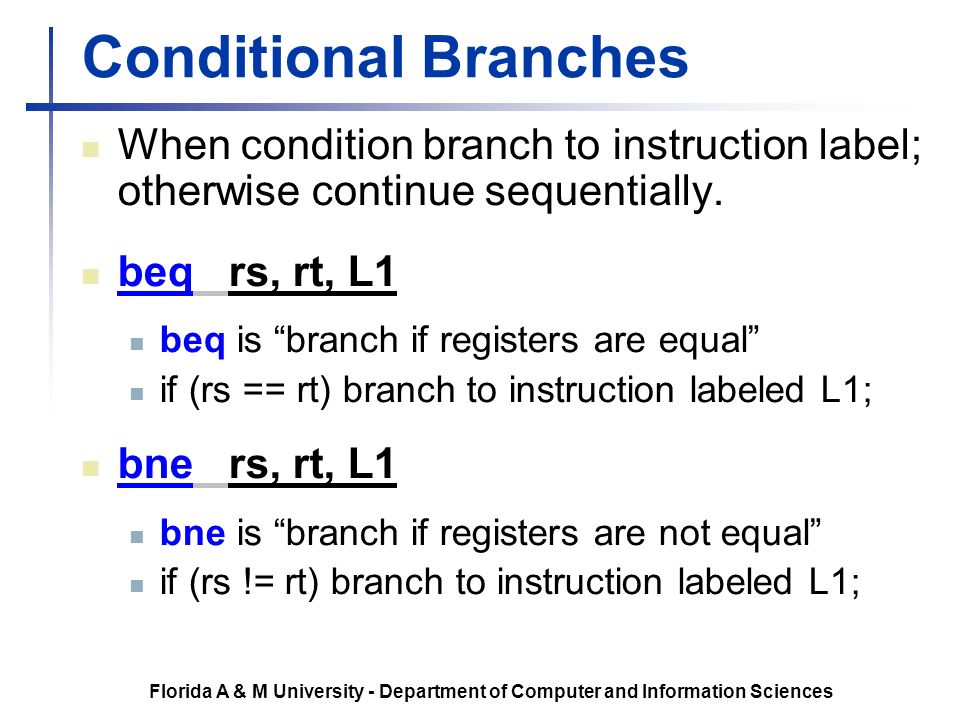

6. When condition branch to instruction label; otherwise continue sequentially. beq rs, rt, L1 beq is “branch if registers are equal” if (rs == rt) branch to instruction labeled L1; bne rs, rt, L1 bne is “branch if registers are not equal” if (rs != rt) branch to instruction labeled L1; Florida A & M University - Department of Computer and Information Sciences Conditional Branches

7. j label Jump Instruction: jump (or branch) directly to the given label Same meaning as goto label in C++ Technically, it has the same effect as: beq $0,$0,label Florida A & M University - Department of Computer and Information Sciences Unconditional Branch

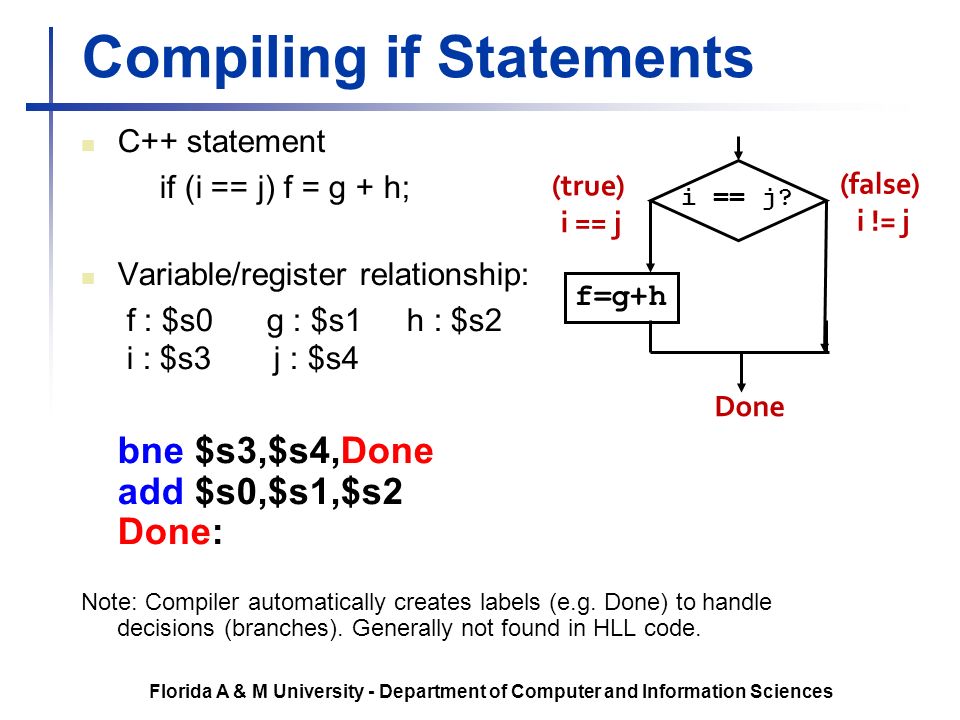

8. Compiling if Statements C++ statement if (i == j) f = g + h; Variable/register relationship: f : $s0 g : $s1 h : $s2 i : $s3 j : $s4 bne $s3,$s4,Done add $s0,$s1,$s2 Done: Note: Compiler automatically creates labels (e.g. Done) to handle decisions (branches). Generally not found in HLL code. Florida A & M University - Department of Computer and Information Sciences Done i == j? f=g+h (false) i != j (true) i == j

9. Compiling if Statements C++ statement if (i != j) f = g + h; else f = g – h; Variable/register mapping: I /$s3, j / $s4  j; f $s0, g/$s1, h/$s2 Florida A & M University - Department of Computer and Information Sciences Done i != j? f=g+hf=g-h (false) i == j (true) i != j

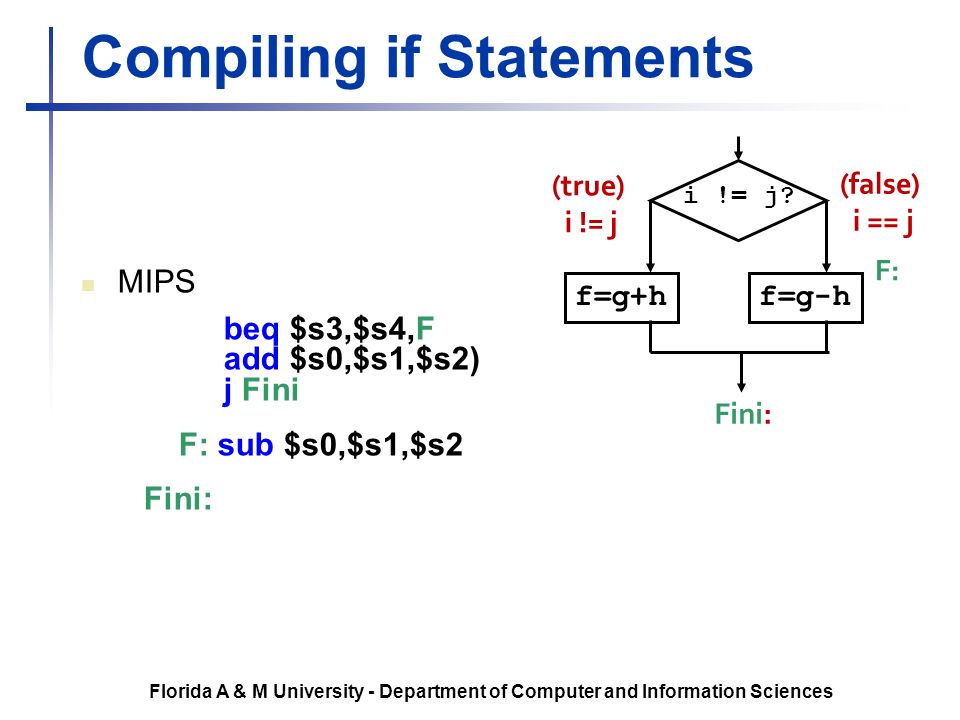

10. Compiling if Statements MIPS beq $s3,$s4,F add $s0,$s1,$s2) j Fini F: sub $s0,$s1,$s2 Fini: Florida A & M University - Department of Computer and Information Sciences Fini: i != j? f=g+hf=g-h (false) i == j (true) i != j F:

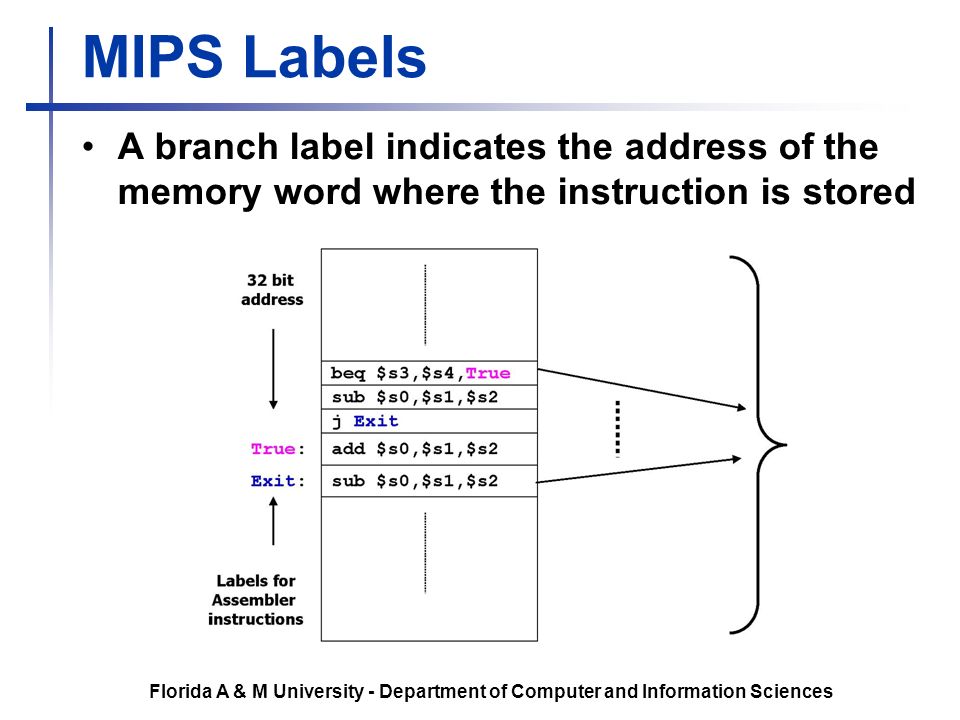

11. MIPS Labels A branch label indicates the address of the memory word where the instruction is stored Florida A & M University - Department of Computer and Information Sciences

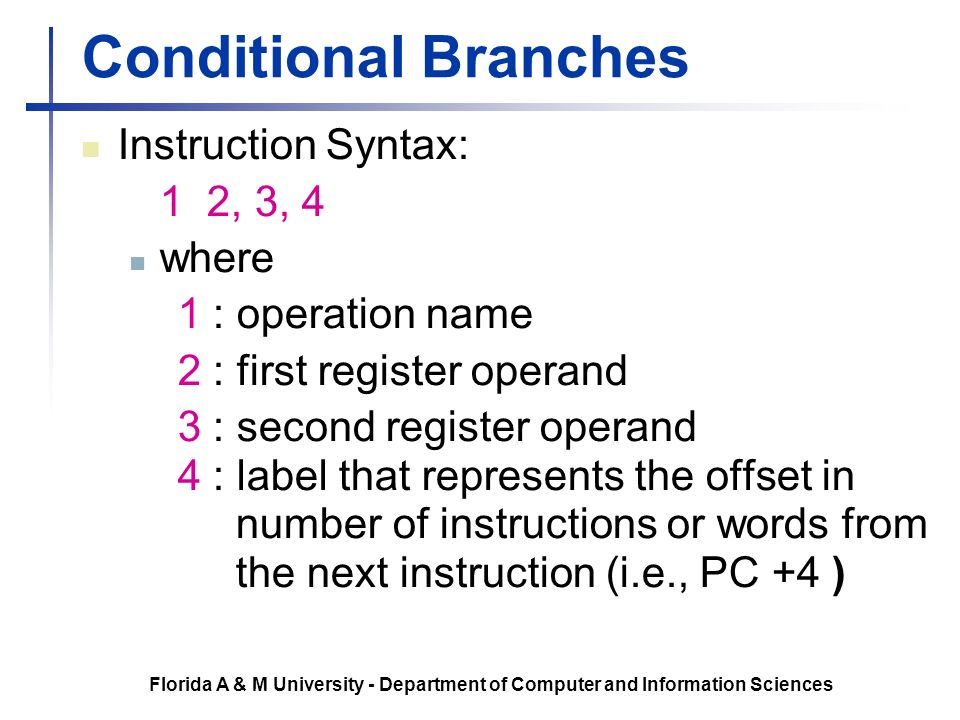

12. Conditional Branches Instruction Syntax: 1 2, 3, 4 where 1 : operation name 2 : first register operand 3 : second register operand 4 : label that represents the offset in number of instructions or words from the next instruction (i.e., PC +4 ) Florida A & M University - Department of Computer and Information Sciences

13. Conditional Branch Florida A & M University - Department of Computer and Information Sciences InstructionopcodersrtImmediate beq40-31 within ± 2 15 bne50-31 within ± 2 15 The assembler relieves the assembly language programmer from the tedium of calculating addresses for branches

14. MIPS:Semantics of Branching If we don’t take the branch: PC = PC + 4 If we do take the branch: PC = (PC + 4) + (immediate* 4) Observations Immediate field specifies the number of words to jump, which is simply the number of instructions to jump. Immediate field can be positive or negative. Due to hardware, add immediate to (PC+4), not to PC; will be clearer why later in course Florida A & M University - Department of Computer and Information Sciences

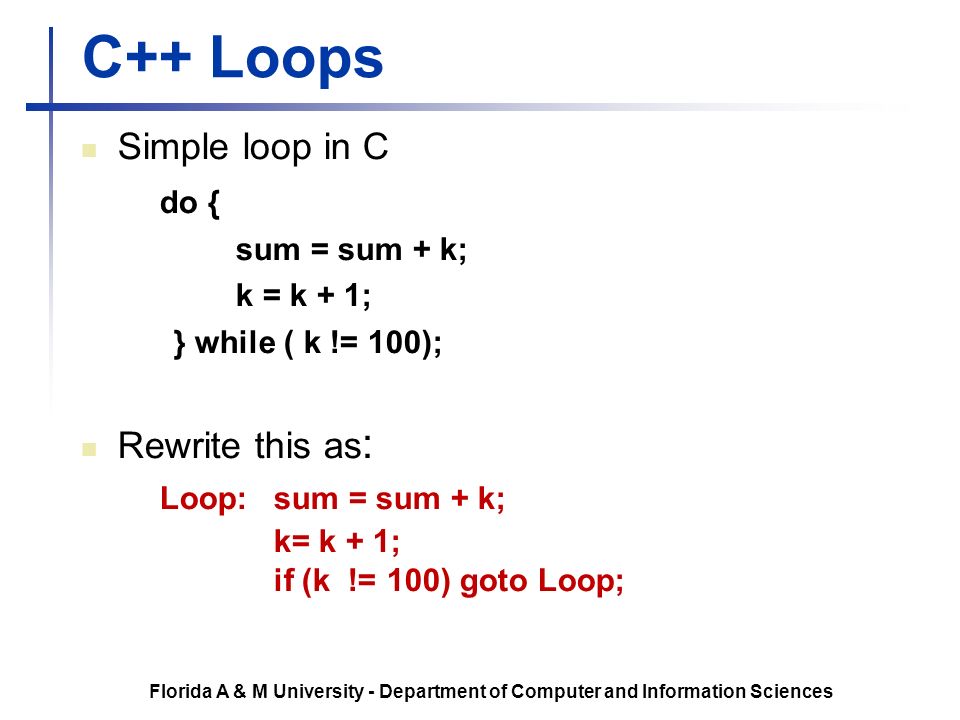

15. C++ Loops Simple loop in C do { sum = sum + k; k = k + 1; } while ( k != 100); Rewrite this as : Loop:sum = sum + k; k= k + 1; if (k != 100) goto Loop; Florida A & M University - Department of Computer and Information Sciences

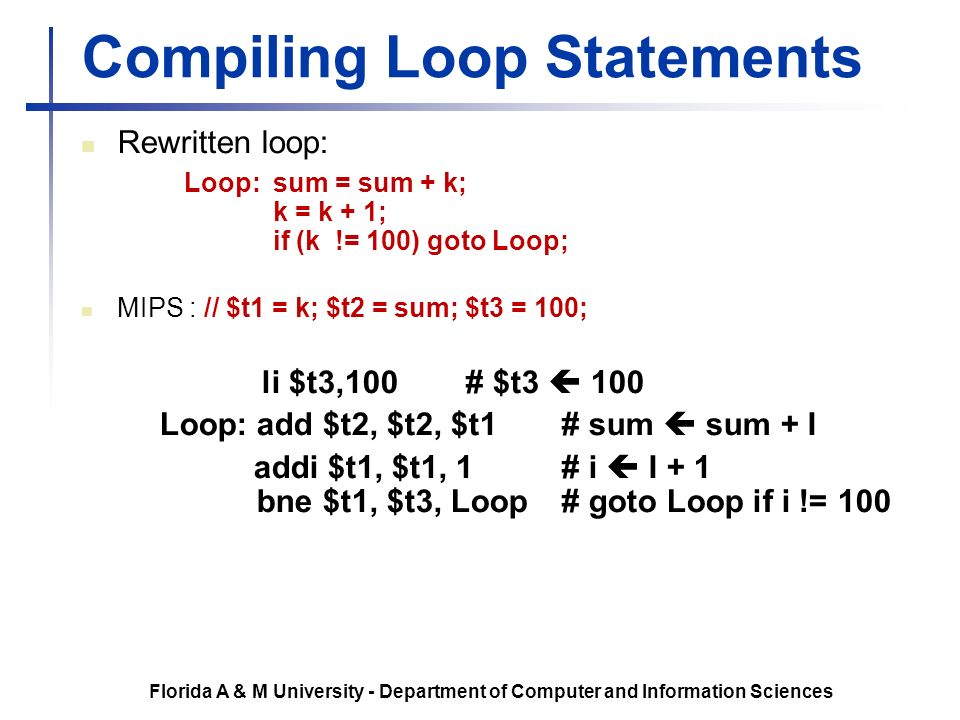

16. Compiling Loop Statements Rewritten loop: Loop:sum = sum + k; k = k + 1; if (k != 100) goto Loop; MIPS : // $t1 = k; $t2 = sum; $t3 = 100; li $t3,100 # $t3  100 Loop: add $t2, $t2, $t1 # sum  sum + I addi $t1, $t1, 1 # i  I + 1 bne $t1, $t3, Loop# goto Loop if i != 100 Florida A & M University - Department of Computer and Information Sciences

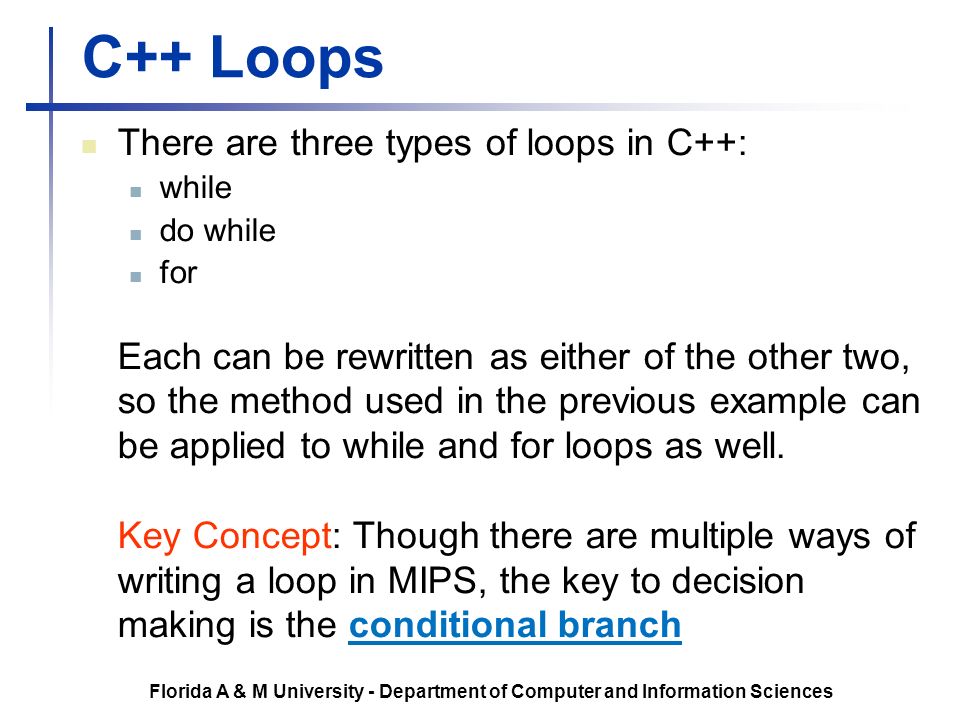

17. C++ Loops There are three types of loops in C++: while do while for Each can be rewritten as either of the other two, so the method used in the previous example can be applied to while and for loops as well. Key Concept: Though there are multiple ways of writing a loop in MIPS, the key to decision making is the conditional branch Florida A & M University - Department of Computer and Information Sciences

18. Basic Blocks A basic block is a sequence of instructions with No embedded branches (except at end) No branch targets (except at beginning) A compiler identifies basic blocks for optimization An advanced processor can accelerate execution of basic blocks

19. More Conditional Operations Up to now, only tested equalities (== or != in C++). Generally, programs need to test and ≥ as well Set result to 1 if a condition is true; else 0 Similar to Halix COMPARE instructions slt rd, rs, rt if (rs < rt) rd = 1; else rd = 0; slti rt, rs, constant if (rs < constant) rt = 1; else rt = 0;“ Florida A & M University - Department of Computer and Information Sciences

20. More Conditional Operations Use in combination with beq, bne C++ Statement: if (g < h) goto L1; Compiled to MIPS: slt $t0,$s0,$s1 bne $t0,$0,L1 Register $0 always contains the value 0, so bne and beq often use it for comparison after an slt instruction Florida A & M University - Department of Computer and Information Sciences

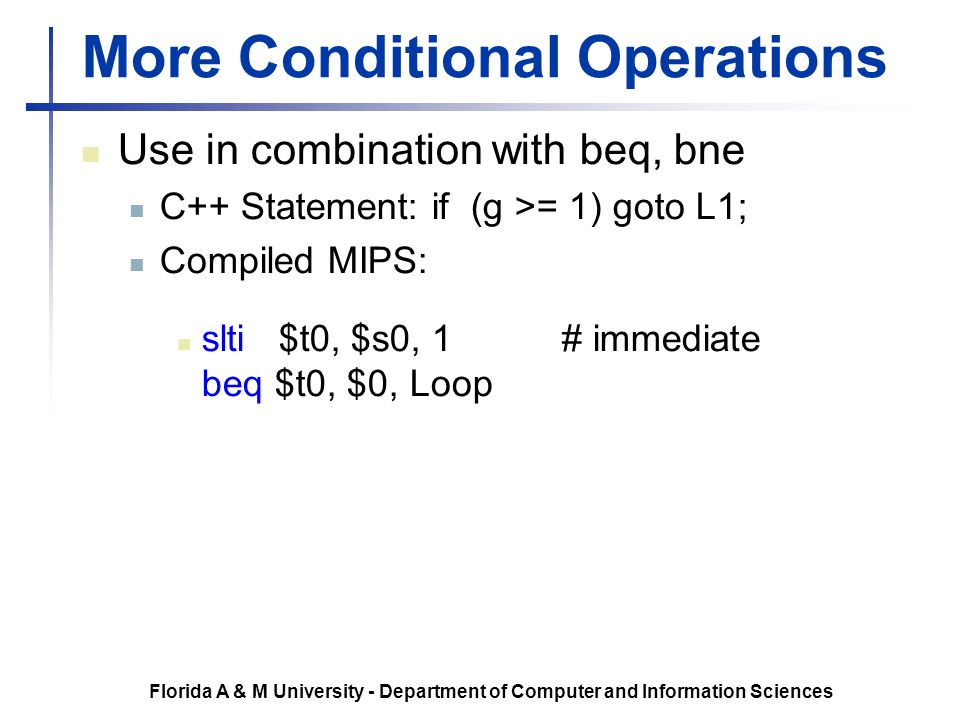

21. More Conditional Operations Use in combination with beq, bne C++ Statement: if (g >= 1) goto L1; Compiled MIPS: slti $t0, $s0, 1 # immediate beq $t0, $0, Loop Florida A & M University - Department of Computer and Information Sciences

22. More Conditional Operations Now, we can implement, ≤ and ≥ ? We could add 3 more instructions, but: MIPS goal: Simpler is Better Can we implement ≤ in one or more instructions using just slt and the branches? What about >? What about ≥? 4 combinations of slt and (beq or bne) Florida A & M University - Department of Computer and Information Sciences

23. More Conditional Operations if (g < h) goto Less; slt $t0, $s0, $s1 # $t0 = 1 if g < h bne $t0, $zero, Less # if (g < h) goto Less if (g >= h) goto Gteq; slt $t0, $s0, $s1 # $t0 = 1 if g < h beq $t0, $zero, Gteq# if (g >= h) goto Gteq if (g > h) goto Grtr; slt $t0, $s1, $s0 # $t0 = 1 if g > h bne $t0, $zero, Grtr # if (g > h) goto Grtr if (g <= h) goto Lteq; slt $t0, $s1, $s0# $t0 = 1 if g > h beq $t0, $zero, Lteq# if (g <= h) goto Lteq Florida A & M University - Department of Computer and Information Sciences

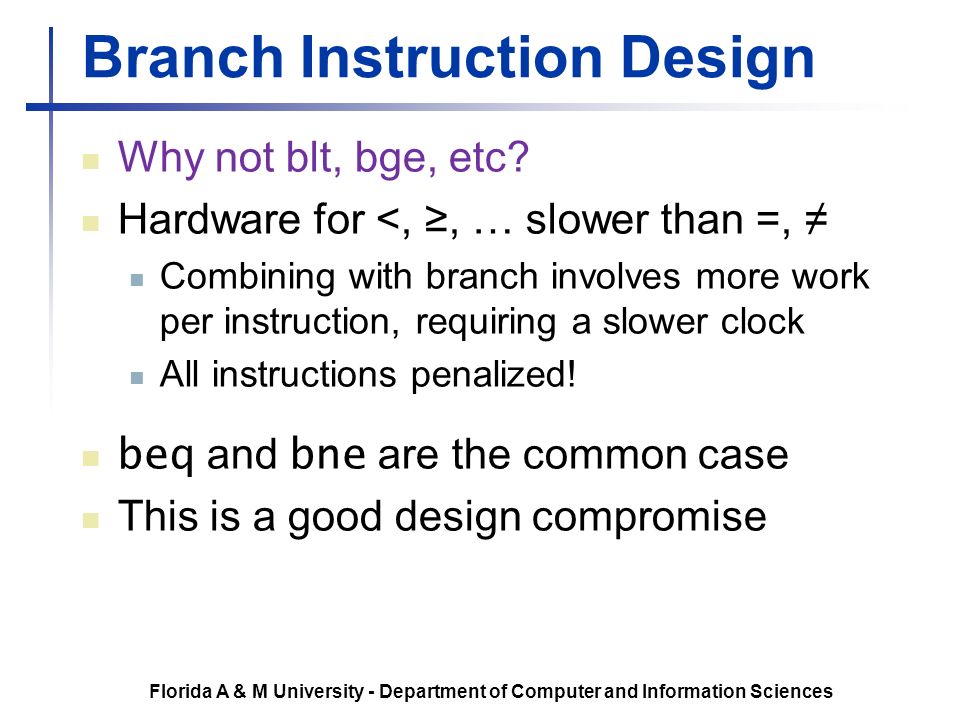

24. Branch Instruction Design Why not blt, bge, etc? Hardware for <, ≥, … slower than =, ≠ Combining with branch involves more work per instruction, requiring a slower clock All instructions penalized! beq and bne are the common case This is a good design compromise

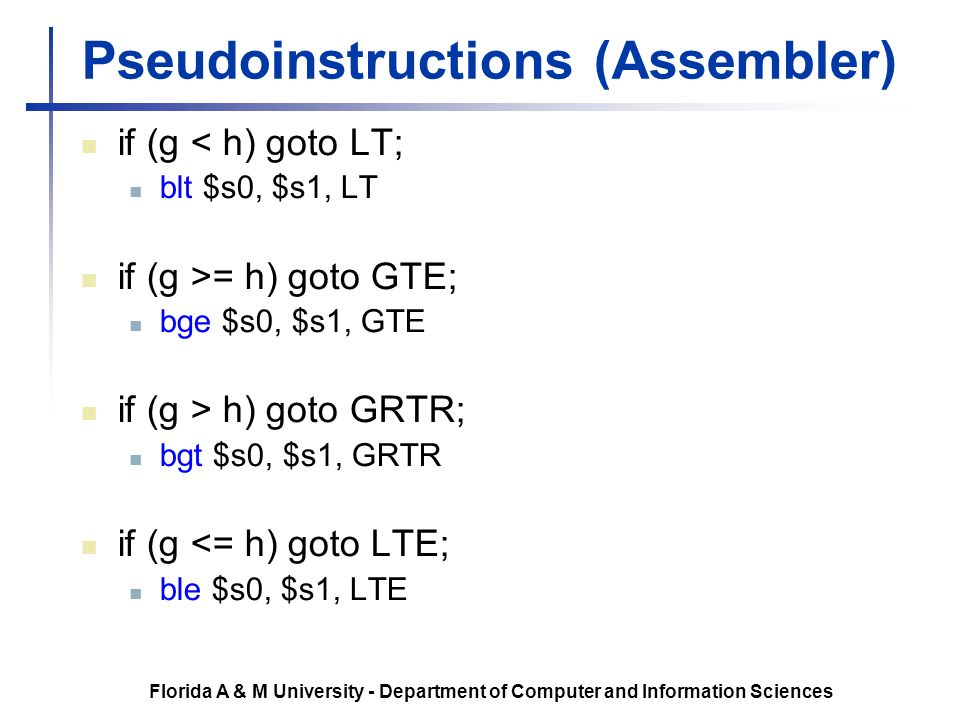

25. Pseudoinstructions (Assembler) if (g < h) goto LT; blt $s0, $s1, LT if (g >= h) goto GTE; bge $s0, $s1, GTE if (g > h) goto GRTR; bgt $s0, $s1, GRTR if (g <= h) goto LTE; ble $s0, $s1, LTE Florida A & M University - Department of Computer and Information Sciences

26. More Conditional Operations Instructionopcodersrtrdshamtfunct slt00-31 042 Florida A & M University - Department of Computer and Information Sciences Instructionopcodersrtconstant slti100-31

27. Florida A & M University - Department of Computer and Information Sciences Signed vs. Unsigned Signed comparison: slt, slti Unsigned comparison: sltu, sltui Example $s0 = 1111 1111 1111 1111 1111 1111 1111 1111 $s1 = 0000 0000 0000 0000 0000 0000 0000 0001 slt $t0, $s0, $s1 # signed –1 < +1  $t0 = 1 sltu $t0, $s0, $s1 # unsigned +4,294,967,295 > +1  $t0 = 0
