1. High Performance Computing: Concepts, Methods & Means Parallel Algorithms 1 Prof. Thomas Sterling Department of Computer Science Louisiana State University March 1 st, 2007

2. 2 Topics Introduction Array Decomposition Mandelbrot Sets Monte Carlo : PI Calculation Matrix Multiplication N-Body Problem Summary – Materials for Test

3. 3 Topics Introduction Array Decomposition Mandelbrot Sets Monte Carlo : PI Calculation Matrix Multiplication N-Body Problem Summary – Materials for Test

4. 4 “embarrassingly parallel” Common phrase –poorly defined, –widely used Suggests lots and lots of parallelism –with essentially no inter task communication or coordination –Highly partitionable workload with minimal overhead “almost embarrassingly parallel” –Same as above, but –Requires master to launch many tasks –Requires master to collect final results of tasks –Sometimes still referred to as “embarrassingly parallel”

5. 5 Basic Parallel (MPI) Program Steps Establish logical bindings Initialize application execution environment Distribute data and work Perform core computations in parallel (across nodes) Synchronize and Exchange intermediate data results –Optional for non-embarrassingly parallel (cooperative) Detect “stop” condition –Maybe implicit with a barrier etc. Aggregate final results –Often a reduction operator Output results and error code Terminate and return to OS

6. 6 Parallel Programming Goals –Correctness –Reduction in execution time –Efficiency –Scalability –Increased problem size and richness of models Objectives –Expose parallelism Algorithm design –Distribute work uniformly Data decomposition and allocation Dynamic load balancing –Minimize overhead of synchronization and communication Coarse granularity Big messages –Minimize redundant work Still sometimes better than communication

7. 7 Topics Introduction Array Decomposition Mandelbrot Sets Monte Carlo : PI Calculation Matrix Multiplication N-Body Problem Summary – Materials for Test

8. 8 Array Decomposition Simple MPI Example Master-Worker Data Partitioning and Distribution –Array decomposition –Uniformly distributes parts of array among workers (and master) –A kind of static load balancing Assumes equal work on equal data set sizes Demonstrates –Data partitioning –Data distribution –Coarse grain parallel execution No communication between tasks –Reduction operator –Master-worker control model

9. 9 Array Decomposition (LLNL Web) Demonstrate simple data decomposition : –Master initializes array and then distributes an equal portion of the array among the other tasks. –The other tasks receive their portion of the array, they perform an addition operation to each array element. –Each task maintains the sum for their portion of the array –The master task does likewise with its portion of the array. –As each of the non-master tasks finish, they send their updated portion of the array to the master. –An MPI collective communication call is used to collect the sums maintained by each task. –Finally, the master task displays selected parts of the final array and the global sum of all array elements. –Assumption : that the array can be equally divided among the group. Source : http://www.llnl.gov/computing/tutorials/mpi/samples/C/mpi_array.c

10. 10 Array Decomposition Array Processing : A Parallel Solution Arrays elements are distributed so that each processor owns a portion of an array (subarray). Independent calculation of array elements insures there is no need for communication between tasks. Distribution scheme is chosen by other criteria, e.g. unit stride (stride of 1) through the subarrays. Unit stride maximizes cache/memory usage. Since it is desirable to have unit stride through the subarrays, the choice of a distribution scheme depends on the programming language. See the Block- Cyclic Distribution Diagram for the options. After the array is distributed, each task executes the portion of the loop corresponding to the data it owns. For example, with Fortran block distribution: do j = mystart, myend do i = 1,n a(i,j) = fcn(i,j) end do end do Notice that only the outer loop variables are different from the serial solution.

11. 11 Array Decomposition Locality Maximize locality –Spatial locality Variable likely to be used if neighbor data is used Exploits unit or uniform stride access patterns Exploits cache line length Adjacent blocks minimizes message traffic –Temporal locality Variable likely to be reused if already recently used Exploits cache loads and LRU (least recently used) replacement policy Exploits register allocation –Granularity Maximizes length of local computation Reduces number of messages Maximizes length of individual messages

12. 12 Array Decomposition Layout Dimensions –1 dimension: linear –2 dimensions: “2-D” or –3 dimensions –Impacts surface to volume ratio for inter process communications Distribution –Block Minimizes messaging Maximizes message size –Cyclic Improves load balancing

13. 13 Array Decomposition Accumulate sum from each part

14. 14 Flowchart for Array Decomposition “master”“workers” Initialize MPI Environment … Initialize Array Partition Array into workloads Send Workload to “workers” Recv. work … Calculate Sum for array chunk … Send Sum … Recv. results Reduction Operator to Sum up results Print results End

15. 15 Array Decompositon (source code) #include "mpi.h" #include #define ARRAYSIZE16000000 /**Matrix Size 4000x4000**/ #define MASTER0 float data[ARRAYSIZE]; int main(argc,argv) int argc; char *argv[]; { int numtasks, taskid, rc, dest, offset, i, j, tag1, tag2, source, chunksize; float mysum, sum; float update(int myoffset, int chunk, int myid); MPI_Status status; /***** Initializing the MPI Environment *****/ MPI_Init(&argc, &argv); MPI_Comm_size(MPI_COMM_WORLD, &numtasks); if (numtasks % 4 != 0) { printf("Quitting. Number of MPI tasks must be divisible by 4.\n"); /**For equal distribution of workload**/ MPI_Abort(MPI_COMM_WORLD, rc); exit(0); } MPI_Comm_rank(MPI_COMM_WORLD,&taskid); printf ("MPI task %d has started...\n", taskid); chunksize = (ARRAYSIZE / numtasks); tag2 = 1; tag1 = 2;

16. 16 Array Decompositon (source code) /***** Master : Initializes the array and fills it with dummy values******/ if (taskid == MASTER){ /* Initialize the array */ sum = 0; for(i=0; i<ARRAYSIZE; i++) { data[i] = i * 1.0; sum = sum + data[i]; } printf("Initialized array sum = %e\n",sum); /* Partition & Send each task its portion of the array - master keeps 1st part */ offset = chunksize; for (dest=1; dest<numtasks; dest++) { MPI_Send(&offset, 1, MPI_INT, dest, tag1, MPI_COMM_WORLD); MPI_Send(&data[offset], chunksize, MPI_FLOAT, dest, tag2, MPI_COMM_WORLD); printf("Sent %d elements to task %d offset= %d\n",chunksize,dest,offset); offset = offset + chunksize; } /* Master does its part of the work */ offset = 0; mysum = update(offset, chunksize, taskid); /* Wait to receive results from each task */ for (i=1; i<numtasks; i++) { source = i; MPI_Recv(&offset, 1, MPI_INT, source, tag1, MPI_COMM_WORLD, &status); MPI_Recv(&data[offset], chunksize, MPI_FLOAT, source, tag2, MPI_COMM_WORLD, &status); }

17. 17 Array Decompositon (source code) /* Get final sum and print sample results */ MPI_Reduce(&mysum, &sum, 1, MPI_FLOAT, MPI_SUM, MASTER, MPI_COMM_WORLD); printf("Sample results: \n"); offset = 0; for (i=0; i<numtasks; i++) { for (j=0; j<5; j++) printf(" %e",data[offset+j]); printf("\n"); offset = offset + chunksize; } printf("*** Final sum= %e ***\n",sum); } /* end of master section */ /***** Non-master tasks only *****/ if (taskid > MASTER) { /* Receive my portion of array from the master task */ source = MASTER; MPI_Recv(&offset, 1, MPI_INT, source, tag1, MPI_COMM_WORLD, &status); MPI_Recv(&data[offset], chunksize, MPI_FLOAT, source, tag2, MPI_COMM_WORLD, &status); mysum = update(offset, chunksize, taskid); /* Send my results back to the master task */ dest = MASTER; MPI_Send(&offset, 1, MPI_INT, dest, tag1, MPI_COMM_WORLD); MPI_Send(&data[offset], chunksize, MPI_FLOAT, MASTER, tag2, MPI_COMM_WORLD); MPI_Reduce(&mysum, &sum, 1, MPI_FLOAT, MPI_SUM, MASTER, MPI_COMM_WORLD); } /* end of non-master */

18. 18 Array Decompositon (source code) MPI_Finalize(); } /* end of main */ /**calculates the sum of the array chunk**/ float update(int myoffset, int chunk, int myid) { int i; float mysum; /* Perform addition to each of my array elements and keep my sum */ mysum = 0; for(i=myoffset; i < myoffset + chunk; i++) { data[i] = data[i] + i * 1.0; mysum = mysum + data[i]; } printf("Task %d mysum = %e\n",myid,mysum); return(mysum); }

19. 19 Demo : Array Decomposition /home/cdekate/pa/array_decomposition Wed Feb 28 09:08:52 CST 2007 MPI task 0 has started... MPI task 2 has started... MPI task 1 has started... MPI task 3 has started... Initialized array sum = 1.335708e+14 Sent 4000000 elements to task 1 offset= 4000000 Sent 4000000 elements to task 2 offset= 8000000 Task 1 mysum = 4.884048e+13 Sent 4000000 elements to task 3 offset= 12000000 Task 2 mysum = 7.983003e+13 Task 0 mysum = 1.598859e+13 Task 3 mysum = 1.161867e+14 Sample results: 0.000000e+00 2.000000e+00 4.000000e+00 6.000000e+00 8.000000e+00 8.000000e+06 8.000002e+06 8.000004e+06 8.000006e+06 8.000008e+06 1.600000e+07 1.600000e+07 1.600000e+07 1.600001e+07 1.600001e+07 2.400000e+07 2.400000e+07 2.400000e+07 2.400001e+07 2.400001e+07 *** Final sum= 2.608458e+14 *** Wed Feb 28 09:08:53 CST 2007 Output from Celeritas for a 4 processor run.

20. 20 Topics Introduction Array Decomposition Mandelbrot Sets Monte Carlo : PI Calculation Matrix Multiplication N-Body Problem Summary – Materials for Test

21. 21

22. 22

23. 23

24. 24

25. 25

26. 26

27. 27

28. 28 Flowchart for Mandelbrot Set Generation “master”“workers” Initialize MPI Environment … Create Local Workload buffer … Isolate work regions Calculate Mandelbrot set values across work region … … Write result from task 0 to file Recv. results from “workers” Send result to “master” … Concatenate results to file End

29. 29 Mandelbrot Sets (source code) #include typedef struct complex{ double real; double imag; } Complex; /* Calculate Pixel Values */ int cal_pixel(Complex c){ int count, max_iter; Complex z; double temp, lengthsq; max_iter = 256; z.real = 0; z.imag = 0; count = 0; /* Core Mandelbrot Algorithm */ do{ temp = z.real * z.real - z.imag * z.imag + c.real; z.imag = 2 * z.real * z.imag + c.imag; z.real = temp; lengthsq = z.real * z.real + z.imag * z.imag; count ++; } while ((lengthsq < 4.0) && (count < max_iter)); return(count); } Source : http://people.cs.uchicago.edu/~asiegel/courses/cspp51085/lesson2/examples/

30. 30 Mandelbrot Sets (source code) #define MASTERPE 0 int main(int argc, char **argv){ FILE *file; int i, j; Complex c; int tmp; double *data_l, *data_l_tmp; int nx, ny; int mystrt, myend; int nrows_l; int nprocs, mype; MPI_Status status; /***** Initializing MPI Environment*****/ MPI_Init(&argc, &argv); MPI_Comm_size(MPI_COMM_WORLD, &nprocs); MPI_Comm_rank(MPI_COMM_WORLD, &mype); /***** Pass in the dimension (X,Y) of the area to cover *****/ if (argc != 3){ int err = 0; printf("argc %d\n", argc); if (mype == MASTERPE){ printf("usage: mandelbrot nx ny"); MPI_Abort(MPI_COMM_WORLD,err ); } /* get command line args */ nx = atoi(argv[1]); ny = atoi(argv[2]); Source : http://people.cs.uchicago.edu/~asiegel/courses/cspp51085/lesson2/examples/

31. 31 Mandelbrot Sets (source code) /* assume divides equally */ /***** Mark work region across processors*****/ nrows_l = nx/nprocs; /* create buffer for local work only */ data_l = (double *) malloc(nrows_l * ny * sizeof(double)); data_l_tmp = data_l; /* calculate each processor's region of work */ /***** Distribute region across processors*****/ /***** All processors including the “master” and “workers” perform the following*****/ mystrt = mype*nrows_l; myend = mystrt + nrows_l - 1; /* calc each procs coordinates and call local mandelbrot set function */ for (i = mystrt; i <= myend; ++i){ c.real = i/((double) nx) * 4. - 2. ; for (j = 0; j < ny; ++j){ c.imag = j/((double) ny) * 4. - 2. ; tmp = cal_pixel(c); /***** Calculate value for each coordinate point*****/ *data_l++ = (double) tmp; } data_l = data_l_tmp; /***** If “master” then begin writing output and then wait for “workers” to send their result*****/ if (mype == MASTERPE){ file = fopen("mandelbrot.bin_0000", "w"); printf("nrows_l, ny %d %d\n", nrows_l, ny); fwrite(data_l, nrows_l*ny, sizeof(double), file); fclose(file); Source : http://people.cs.uchicago.edu/~asiegel/courses/cspp51085/lesson2/examples/

32. 32 Mandelbrot Sets (source code) for (i = 1; i < nprocs; ++i){ MPI_Recv(data_l, nrows_l * ny, MPI_DOUBLE, i, 0, MPI_COMM_WORLD, &status); printf("received message from proc %d\n", i); file = fopen("mandelbrot.bin_0000", "a"); fwrite(data_l, nrows_l*ny, sizeof(double), file); fclose(file); } /***** If “worker” send the calculated pixel array to the the “master”*****/ else{ MPI_Send(data_l, nrows_l * ny, MPI_DOUBLE, MASTERPE, 0, MPI_COMM_WORLD); } MPI_Finalize(); } Source : http://people.cs.uchicago.edu/~asiegel/courses/cspp51085/lesson2/examples/

33. 33 Demo : Mandelbrot Sets

34. 34 Topics Introduction Array Decomposition Mandelbrot Sets Monte Carlo : PI Calculation Matrix Multiplication N-Body Problem Summary – Materials for Test

35. 35

36. 36

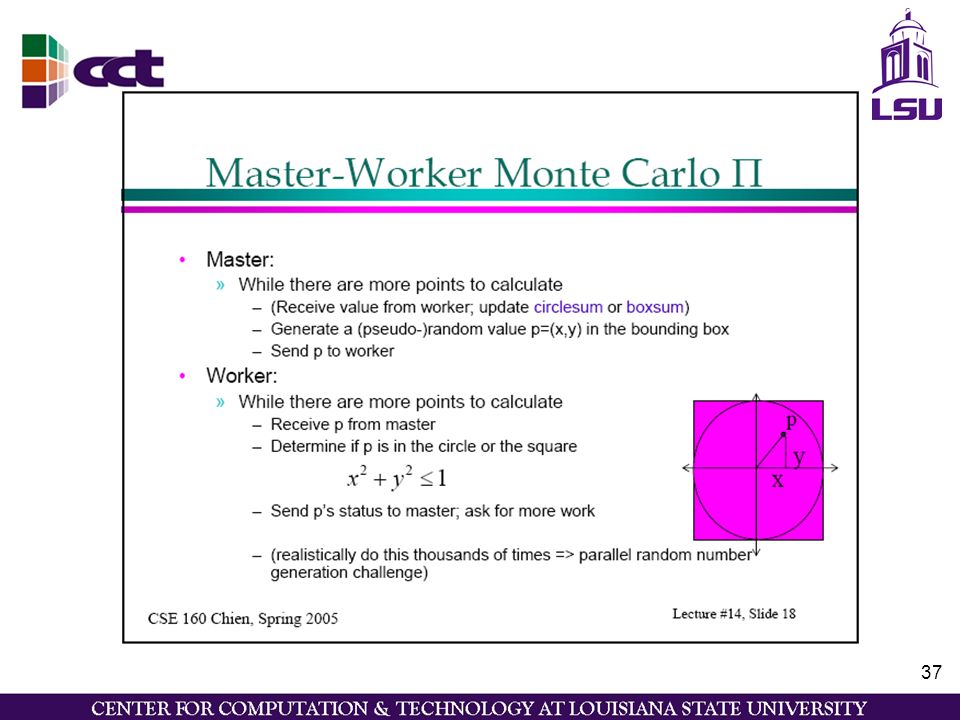

37. 37

38. 38 Monte Carlo The value of PI can be calculated in a number of ways. Consider the following method of approximating PI Inscribe a circle in a square Randomly generate points in the square Determine the number of points in the square that are also in the circle Let r be the number of points in the circle divided by the number of points in the square PI ~ 4 r Note that the more points generated, the better the approximation Algorithm : npoints = 10000 circle_count = 0 do j = 1,npoints generate 2 random numbers between 0 and 1 xcoordinate = random1 ; ycoordinate = random2 if (xcoordinate, ycoordinate) inside circle then circle_count = circle_count + 1 end do PI = 4.0*circle_count/npoints

39. 39 Monte Carlo Pi Computation Initialize MPI Environment Receive Request Compute Random Array Send Array to Requestor Last Request? Finalize MPI Y N Server Initialize MPI Environment WorkerMaster Receive Error Bound Send Request to Server Receive Random Array Perform Computations Stop Condition Satisfied? Finalize MPI N Y Propagate Number of Points (Allreduce) Initialize MPI Environment Broadcast Error Bound Send Request to Server Receive Random Array Perform Computations Stop Condition Satisfied? Print Statistics N Y Propagate Number of Points (Allreduce) Finalize MPI Output Partial Result

40. 40 Creating Custom Communicators Communicators define groups and the access patterns among them Default communicator is MPI_COMM_WORLD Some algorithms demand more sophisticated control of communications to take advantage of reduction operators MPI permits creation of custom communicators MPI_COMM_create

41. 41 Monte Carlo : Pi (source code) #include #include "mpi.h“ #define CHUNKSIZE 1000 /* We'd like a value that gives the maximum value returned by the function random, but no such value is *portable*. RAND_MAX is available on many systems but is not always the correct value for random (it isn't for Solaris). The value ((unsigned(1)<<31)-1) is common but not guaranteed */ #define INT_MAX 1000000000 /* message tags */ #define REQUEST 1 #define REPLY 2 int main( int argc, char *argv[] ) { int iter; int in, out, i, iters, max, ix, iy, ranks[1], done, temp; double x, y, Pi, error, epsilon; int numprocs, myid, server, totalin, totalout, workerid; int rands[CHUNKSIZE], request; MPI_Comm world, workers; MPI_Group world_group, worker_group; MPI_Status status; /* Initialize MPI Environment */ MPI_Init(&argc,&argv); world = MPI_COMM_WORLD; MPI_Comm_size(world,&numprocs); MPI_Comm_rank(world,&myid);

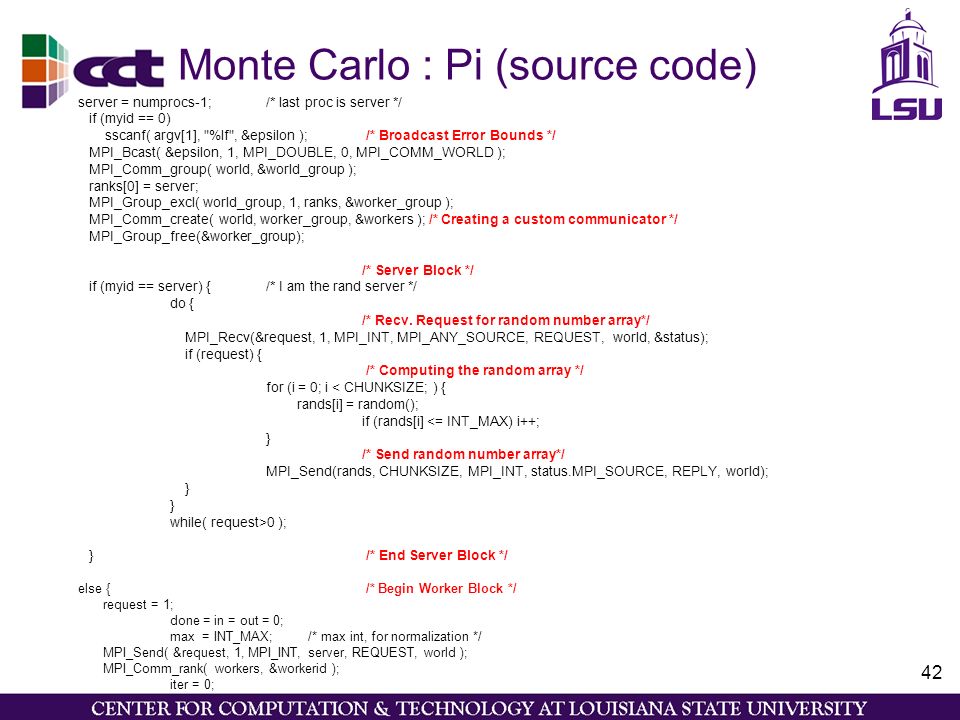

42. 42 Monte Carlo : Pi (source code) server = numprocs-1;/* last proc is server */ if (myid == 0) sscanf( argv[1], "%lf", &epsilon ); /* Broadcast Error Bounds */ MPI_Bcast( &epsilon, 1, MPI_DOUBLE, 0, MPI_COMM_WORLD ); MPI_Comm_group( world, &world_group ); ranks[0] = server; MPI_Group_excl( world_group, 1, ranks, &worker_group ); MPI_Comm_create( world, worker_group, &workers ); /* Creating a custom communicator */ MPI_Group_free(&worker_group); /* Server Block */ if (myid == server) {/* I am the rand server */ do { /* Recv. Request for random number array*/ MPI_Recv(&request, 1, MPI_INT, MPI_ANY_SOURCE, REQUEST, world, &status); if (request) { /* Computing the random array */ for (i = 0; i < CHUNKSIZE; ) { rands[i] = random(); if (rands[i] <= INT_MAX) i++; } /* Send random number array*/ MPI_Send(rands, CHUNKSIZE, MPI_INT, status.MPI_SOURCE, REPLY, world); } while( request>0 ); } /* End Server Block */ else { /* Begin Worker Block */ request = 1; done = in = out = 0; max = INT_MAX; /* max int, for normalization */ MPI_Send( &request, 1, MPI_INT, server, REQUEST, world ); MPI_Comm_rank( workers, &workerid ); iter = 0;

43. 43 Monte Carlo : Pi (source code) while (!done) { iter++; request = 1; /* Recv. random array from server*/ MPI_Recv( rands, CHUNKSIZE, MPI_INT, server, REPLY, world, &status ); /* Derive random x,y coordinates for each pair(x,y) of items in the Random Array */ for (i=0; i<CHUNKSIZE-1; ) { x = (((double) rands[i++])/max) * 2 - 1; y = (((double) rands[i++])/max) * 2 - 1; if (x*x + y*y < 1.0) in++; else out++; } /* Perform reduction and broadcast of */ MPI_Allreduce(&in, &totalin, 1, MPI_INT, MPI_SUM, workers); MPI_Allreduce(&out, &totalout, 1, MPI_INT, MPI_SUM, workers); Pi = (4.0*totalin)/(totalin + totalout); /* Compute PI*/ error = fabs( Pi-3.141592653589793238462643); /* Calculate Error */ done = (error 1000000); request = (done) ? 0 : 1; if (myid == 0) {/* If “Master” : Print current value of PI */ printf( "\rpi = %23.20f", Pi ); MPI_Send( &request, 1, MPI_INT, server, REQUEST, world ); } else { /* If “Worker” : Request new array if not finished */ if (request) MPI_Send(&request, 1, MPI_INT, server, REQUEST, world); } MPI_Comm_free(&workers); }

44. 44 Monte Carlo : Pi (source code) if (myid == 0) { /* If “Master” : Print Results */ printf( "\npoints: %d\nin: %d, out: %d, to exit\n", totalin+totalout, totalin, totalout ); getchar(); } MPI_Finalize(); }

45. 45 Demo : Monte Carlo Pi > mpirun –np 4 monte 1e-20 pi = 3.14164517741129456496 points: 1000500 in: 785804, out: 214696 > mpirun –np 4 monte 1e-20 pi = 3.14164517741129456496 points: 1000500 in: 785804, out: 214696

46. 46 Topics Introduction Array Decomposition Mandelbrot Sets Monte Carlo : PI Calculation Matrix Multiplication N-Body Problem Summary – Materials for Test

47. 47 Matrix Multiplication (LLNL Web) MPI Example : MPI Matrix Multiply - C Version In this code, the master task distributes a matrix multiply operation to numtasks-1 worker tasks. NOTE: C and Fortran versions of this code differ because of the way arrays are stored/passed. C arrays are row-major order but Fortran arrays are column-major order. Source : http://www.llnl.gov/computing/tutorials/mpi/samples/C/mpi_mm.c

48. 48 Slides for Parallel Programming Techniques & Applications Using Networked Workstations & Parallel Computers 2nd ed., by B. Wilkinson & M. Allen, @ 2004 Pearson Education Inc. All rights reserved. Matrices — A Review An n x m matrix

49. 49 Matrix Addition Involves adding corresponding elements of each matrix to form the result matrix. Given the elements of A as ai,j and the elements of B as bi,j, each element of C is computed as Slides for Parallel Programming Techniques & Applications Using Networked Workstations & Parallel Computers 2nd ed., by B. Wilkinson & M. Allen, @ 2004 Pearson Education Inc. All rights reserved.

50. 50 Matrix Multiplication Multiplication of two matrices, A and B, produces the matrix C whose elements, ci,j (0 <= i < n, 0 <= j < m), are computed as follows: where A is an n x l matrix and B is an l x m matrix. Slides for Parallel Programming Techniques & Applications Using Networked Workstations & Parallel Computers 2nd ed., by B. Wilkinson & M. Allen, @ 2004 Pearson Education Inc. All rights reserved.

51. 51 Matrix multiplication, C = A x B Slides for Parallel Programming Techniques & Applications Using Networked Workstations & Parallel Computers 2nd ed., by B. Wilkinson & M. Allen, @ 2004 Pearson Education Inc. All rights reserved.

52. 52 Matrix-Vector Multiplication c = A x b Matrix-vector multiplication follows directly from the definition of matrix-matrix multiplication by making B an n x1 matrix (vector). Result an n x 1 matrix (vector).

53. 53 Relationship of Matrices to Linear Equations A system of linear equations can be written in matrix form: Ax = b Matrix A holds the a constants x is a vector of the unknowns b is a vector of the b constants. Slides for Parallel Programming Techniques & Applications Using Networked Workstations & Parallel Computers 2nd ed., by B. Wilkinson & M. Allen, @ 2004 Pearson Education Inc. All rights reserved.

54. 54 Implementing Matrix Multiplication Sequential Code Assume throughout that the matrices are square (n x n matrices). The sequential code to compute A x B could simply be for (i = 0; i < n; i++) for (j = 0; j < n; j++) { c[i][j] = 0; for (k = 0; k < n; k++) c[i][j] = c[i][j] + a[i][k] * b[k][j]; } This algorithm requires n3 multiplications and n3 additions, leading to a sequential time complexity of O(n3). Very easy to parallelize. Slides for Parallel Programming Techniques & Applications Using Networked Workstations & Parallel Computers 2nd ed., by B. Wilkinson & M. Allen, @ 2004 Pearson Education Inc. All rights reserved.

55. 55 Partitioning into Submatrices Suppose matrix divided into s2 submatrices. Each submatrix has n/ s x n/s elements. Using notation Ap,q as submatrix in submatrix row p and submatrix column q: for (p = 0; p < s; p++) for (q = 0; q < s; q++) { Cp,q = 0; /* clear elements of submatrix */ for (r = 0; r < m; r++) /* submatrix multiplication &*/ Cp,q = Cp,q + Ap,r * Br,q; /*add to accum. submatrix*/ } The line Cp,q = Cp,q + Ap,r * Br,q; means multiply submatrix Ap,r and Br,q using matrix multiplication and add to submatrix Cp,q using matrix addition. Known as block matrix multiplication. Slides for Parallel Programming Techniques & Applications Using Networked Workstations & Parallel Computers 2nd ed., by B. Wilkinson & M. Allen, @ 2004 Pearson Education Inc. All rights reserved.

56. 56 Block Matrix Multiplication Slides for Parallel Programming Techniques & Applications Using Networked Workstations & Parallel Computers 2nd ed., by B. Wilkinson & M. Allen, @ 2004 Pearson Education Inc. All rights reserved.

57. 57 Slides for Parallel Programming Techniques & Applications Using Networked Workstations & Parallel Computers 2nd ed., by B. Wilkinson & M. Allen,@ 2004 Pearson Education Inc. All rights reserved.

58. 58 Direct Implementation One processor to compute each element of C – n^2 processors would be needed. One row of elements of A and one column of elements of B needed. Some of same elements sent to more than one processor. Can use submatrices. Slides for Parallel Programming Techniques & Applications Using Networked Workstations & Parallel Computers 2nd ed., by B. Wilkinson & M. Allen, @ 2004 Pearson Education Inc. All rights reserved.

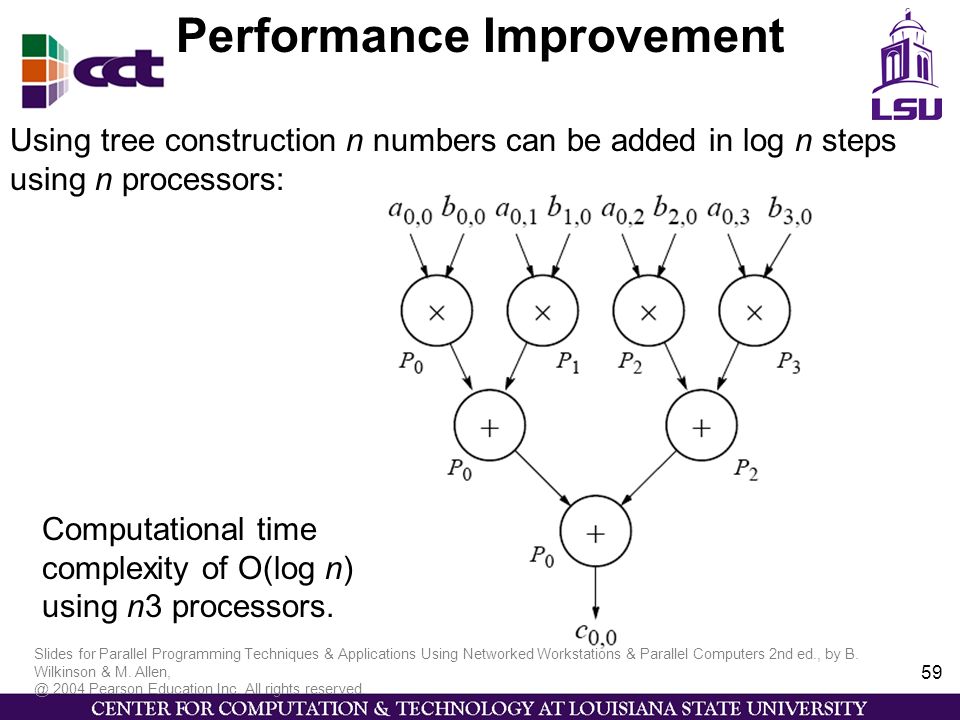

59. 59 Performance Improvement Using tree construction n numbers can be added in log n steps using n processors: Computational time complexity of O(log n) using n3 processors. Slides for Parallel Programming Techniques & Applications Using Networked Workstations & Parallel Computers 2nd ed., by B. Wilkinson & M. Allen, @ 2004 Pearson Education Inc. All rights reserved.

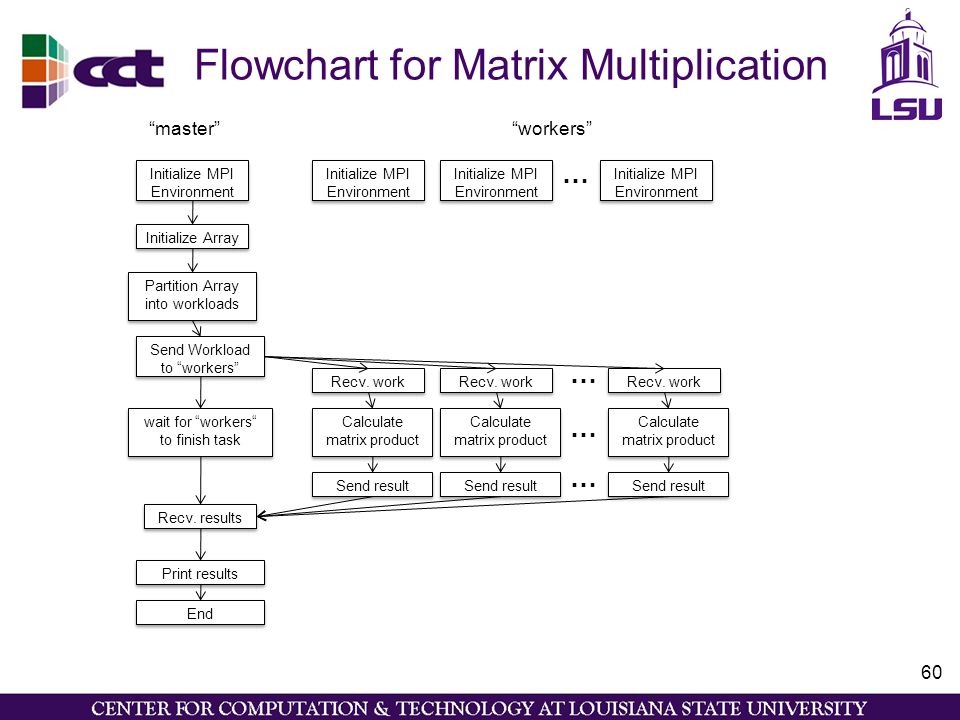

60. 60 Flowchart for Matrix Multiplication “master”“workers” Initialize MPI Environment … Initialize Array Partition Array into workloads Send Workload to “workers” Recv. work … wait for “workers“ to finish task Calculate matrix product … Send result … Recv. results Print results End

61. 61 Matrix Multiplication (source code) #include "mpi.h" #include #define NRA 62 /* number of rows in matrix A */ #define NCA 15 /* number of columns in matrix A */ #define NCB 7 /* number of columns in matrix B */ #define MASTER 0 /* taskid of first task */ #define FROM_MASTER 1 /* setting a message type */ #define FROM_WORKER 2 /* setting a message type */ int main(argc,argv) int argc; char *argv[]; { intnumtasks, /* number of tasks in partition */ taskid, /* a task identifier */ numworkers, /* number of worker tasks */ source, /* task id of message source */ dest, /* task id of message destination */ mtype, /* message type */ rows, /* rows of matrix A sent to each worker */ averow, extra, offset, /* used to determine rows sent to each worker */ i, j, k, rc; /* misc */ doublea[NRA][NCA], /* matrix A to be multiplied */ b[NCA][NCB], /* matrix B to be multiplied */ c[NRA][NCB]; /* result matrix C */ MPI_Status status; Source : http://www.llnl.gov/computing/tutorials/mpi/samples/C/mpi_mm.c

62. 62 Matrix Multiplication (source code) /* Initialize MPI Environment */ MPI_Init(&argc,&argv); MPI_Comm_rank(MPI_COMM_WORLD,&taskid); MPI_Comm_size(MPI_COMM_WORLD,&numtasks); if (numtasks < 2 ) { printf("Need at least two MPI tasks. Quitting...\n"); MPI_Abort(MPI_COMM_WORLD, rc); exit(1); } numworkers = numtasks-1; /* Master block*/ if (taskid == MASTER) { printf("mpi_mm has started with %d tasks.\n",numtasks); printf("Initializing arrays...\n"); for (i=0; i<NRA; i++) for (j=0; j<NCA; j++) a[i][j]= i+j; /* Initialize array a */ for (i=0; i<NCA; i++) for (j=0; j<NCB; j++) b[i][j]= i*j; /* Initialize array b */ /* Send matrix data to the worker tasks */ averow = NRA/numworkers; /* determining fraction of array to be processed by “workers” */ extra = NRA%numworkers; offset = 0; mtype = FROM_MASTER; /* Message Tag */ Source : http://www.llnl.gov/computing/tutorials/mpi/samples/C/mpi_mm.c

63. 63 Matrix Multiplication (source code) for (dest=1; dest<=numworkers; dest++) {/* To each worker send : Start point, number of rows to process, and sub-arrays to process */ rows = (dest <= extra) ? averow+1 : averow; printf("Sending %d rows to task %d offset=%d\n",rows,dest,offset); MPI_Send(&offset, 1, MPI_INT, dest, mtype, MPI_COMM_WORLD); MPI_Send(&rows, 1, MPI_INT, dest, mtype, MPI_COMM_WORLD); MPI_Send(&a[offset][0], rows*NCA, MPI_DOUBLE, dest, mtype, MPI_COMM_WORLD); MPI_Send(&b, NCA*NCB, MPI_DOUBLE, dest, mtype, MPI_COMM_WORLD); offset = offset + rows; } /* Receive results from worker tasks */ mtype = FROM_WORKER; /* Message tag for messages sent by “workers” */ for (i=1; i<=numworkers; i++) { source = i; /* offset stores the (processing) starting point of work chunk */ MPI_Recv(&offset, 1, MPI_INT, source, mtype, MPI_COMM_WORLD, &status); MPI_Recv(&rows, 1, MPI_INT, source, mtype, MPI_COMM_WORLD, &status); /* The array C contains the product of sub-array A and the array B */ MPI_Recv(&c[offset][0], rows*NCB, MPI_DOUBLE, source, mtype, MPI_COMM_WORLD, &status); printf("Received results from task %d\n",source); } printf("******************************************************\n"); printf("Result Matrix:\n"); for (i=0; i<NRA; i++) { printf("\n"); for (j=0; j<NCB; j++) printf("%6.2f ", c[i][j]); } printf("\n******************************************************\n"); printf ("Done.\n"); }

64. 64 Matrix Multiplication (source code) /**************************** worker task ************************************/ if (taskid > MASTER) { mtype = FROM_MASTER; MPI_Recv(&offset, 1, MPI_INT, MASTER, mtype, MPI_COMM_WORLD, &status); MPI_Recv(&rows, 1, MPI_INT, MASTER, mtype, MPI_COMM_WORLD, &status); MPI_Recv(&a, rows*NCA, MPI_DOUBLE, MASTER, mtype, MPI_COMM_WORLD, &status); MPI_Recv(&b, NCA*NCB, MPI_DOUBLE, MASTER, mtype, MPI_COMM_WORLD, &status); for (k=0; k<NCB; k++) for (i=0; i<rows; i++) { c[i][k] = 0.0; for (j=0; j<NCA; j++) /* Calculate the product and store result in C */ c[i][k] = c[i][k] + a[i][j] * b[j][k]; } mtype = FROM_WORKER; MPI_Send(&offset, 1, MPI_INT, MASTER, mtype, MPI_COMM_WORLD); MPI_Send(&rows, 1, MPI_INT, MASTER, mtype, MPI_COMM_WORLD); /* Worker sends the resultant array to the master */ MPI_Send(&c, rows*NCB, MPI_DOUBLE, MASTER, mtype, MPI_COMM_WORLD); } MPI_Finalize(); } Source : http://www.llnl.gov/computing/tutorials/mpi/samples/C/mpi_mm.c

65. 65 Demo : Matrix Multiplication [cdekate@compute-0-6 matrix_multiplication]$ mpirun -np 4./mpi_mm mpi_mm has started with 4 tasks. Initializing arrays... Sending 21 rows to task 1 offset=0 Sending 21 rows to task 2 offset=21 Sending 20 rows to task 3 offset=42 Received results from task 1 Received results from task 2 Received results from task 3 ****************************************************** Result Matrix: 0.00 1015.00 2030.00 3045.00 4060.00 5075.00 6090.00 0.00 1120.00 2240.00 3360.00 4480.00 5600.00 6720.00 0.00 1225.00 2450.00 3675.00 4900.00 6125.00 7350.00 0.00 1330.00 2660.00 3990.00 5320.00 6650.00 7980.00 0.00 1435.00 2870.00 4305.00 5740.00 7175.00 8610.00 0.00 1540.00 3080.00 4620.00 6160.00 7700.00 9240.00 0.00 1645.00 3290.00 4935.00 6580.00 8225.00 9870.00 … 0.00 6475.00 12950.00 19425.00 25900.00 32375.00 38850.00 0.00 6580.00 13160.00 19740.00 26320.00 32900.00 39480.00 0.00 6685.00 13370.00 20055.00 26740.00 33425.00 40110.00 0.00 6790.00 13580.00 20370.00 27160.00 33950.00 40740.00 0.00 6895.00 13790.00 20685.00 27580.00 34475.00 41370.00 0.00 7000.00 14000.00 21000.00 28000.00 35000.00 42000.00 0.00 7105.00 14210.00 21315.00 28420.00 35525.00 42630.00 0.00 7210.00 14420.00 21630.00 28840.00 36050.00 43260.00 0.00 7315.00 14630.00 21945.00 29260.00 36575.00 43890.00 0.00 7420.00 14840.00 22260.00 29680.00 37100.00 44520.00 ****************************************************** Done. [cdekate@compute-0-6 matrix_multiplication]$

66. 66 Topics Introduction Array Decomposition Mandelbrot Sets Monte Carlo : PI Calculation Matrix Multiplication N-Body Problem Summary – Materials for Test

67. 67 N Bodies OU Supercomputing Center for Education & Research

68. 68 OU Supercomputing Center for Education & Research N-Body Problems An N-body problem is a problem involving N “bodies” – that is, particles (e.g., stars, atoms) – each of which applies a force to all of the others. For example, if you have N stars, then each of the N stars exerts a force (gravity) on all of the other N–1 stars. Likewise, if you have N atoms, then every atom exerts a force (nuclear) on all of the other N–1 atoms.

69. 69 1-Body Problem When N is 1, you have a simple 1-Body Problem: a single particle, with no forces acting on it. Given the particle’s position P and velocity V at some time t 0, you can trivially calculate the particle’s position at time t 0 +Δt: P(t 0 +Δt) = P(t 0 ) + VΔt V(t 0 +Δt) = V(t 0 ) OU Supercomputing Center for Education & Research

70. 70 2-Body Problem When N is 2, you have – surprise! – a 2-Body Problem: exactly two particles, each exerting a force that acts on the other. The relationship between the 2 particles can be expressed as a differential equation that can be solved analytically, producing a closed-form solution. So, given the particles’ initial positions and velocities, you can immediately calculate their positions and velocities at any later time. OU Supercomputing Center for Education & Research

71. 71 N-Body Problems For N of 3 or more, no one knows how to solve the equations to get a closed form solution. So, numerical simulation is pretty much the only way to study groups of 3 or more bodies. Popular applications of N-body codes include astronomy and chemistry. Note that, for N bodies, there are on the order of N 2 forces, denoted O(N 2 ). OU Supercomputing Center for Education & Research

72. 72 N Bodies OU Supercomputing Center for Education & Research

73. 73 N-Body Problems Given N bodies, each body exerts a force on all of the other N–1 bodies. Therefore, there are N (N–1) forces in total. You can also think of this as (N (N–1))/2 forces, in the sense that the force from particle A to particle B is the same (except in the opposite direction) as the force from particle B to particle A. OU Supercomputing Center for Education & Research

74. 74 Aside: Big-O Notation Let’s say that you have some task to perform on a certain number of things, and that the task takes a certain amount of time to complete. Let’s say that the amount of time can be expressed as a polynomial on the number of things to perform the task on. For example, the amount of time it takes to read a book might be proportional to the number of words, plus the amount of time it takes to sit in your favorite easy chair. C 1. N + C 2 OU Supercomputing Center for Education & Research

75. 75 Big-O: Dropping the Low Term C 1. N + C 2 When N is very large, the time spent settling into your easy chair becomes such a small proportion of the total time that it’s virtually zero. So from a practical perspective, for large N, the polynomial reduces to: C 1. N In fact, for any polynomial, all of the terms except the highest-order term are irrelevant, for large N. OU Supercomputing Center for Education & Research

76. 76 Big-O: Dropping the Constant C 1. N Computers get faster and faster all the time. And there are many different flavors of computers, having many different speeds. So, computer scientists don’t care about the constant, only about the order of the highest-order term of the polynomial. They indicate this with Big-O notation: O(N) This is often said as: “of order N.” OU Supercomputing Center for Education & Research

77. 77 N-Body Problems Given N bodies, each body exerts a force on all of the other N–1 bodies. Therefore, there are N (N–1) forces in total. In Big-O notation, that’s O(N 2 ) forces to calculate. So, calculating the forces takes O(N 2 ) time to execute. But, there are only N particles, each taking up the same amount of memory, so we say that N-body codes are of: O(N) spatial complexity (memory) O(N 2 ) time complexity OU Supercomputing Center for Education & Research

78. 78 O(N 2 ) Forces Note that this picture shows only the forces between A and everyone else. A OU Supercomputing Center for Education & Research

79. 79 How to Calculate? Whatever your physics is, you have some function, F(A,B), that expresses the force between two bodies A and B. For example, F(A,B) = G · dist(A,B) 2 · m A · m B where G is the gravitational constant and m is the mass of the particle in question. If you have all of the forces for every pair of particles, then you can calculate their sum, obtaining the force on every particle. OU Supercomputing Center for Education & Research

80. 80 How to Parallelize? Okay, so let’s say you have a nice serial (single-CPU) code that does an N-body calculation. How are you going to parallelize it? You could: have a master feed particles to processes; have a master feed interactions to processes; have each process decide on its own subset of the particles, and then share around the forces; have each process decide its own subset of the interactions, and then share around the forces. OU Supercomputing Center for Education & Research

81. 81 Do You Need a Master? Let’s say that you have N bodies, and therefore you have ½N(N-1) interactions (every particle interacts with all of the others, but you don’t need to calculate both A  B and B  A). Do you need a master? Well, can each processor determine on its own either (a) which of the bodies to process, or (b) which of the interactions? If the answer is yes, then you don’t need a master. OU Supercomputing Center for Education & Research

82. 82 Parallelize How? Suppose you have P processors. Should you parallelize: by assigning a subset of N/P of the bodies to each processor, or by assigning a subset of ½N(N-1)/P of the interactions to each processor? OU Supercomputing Center for Education & Research

83. 83 N-Body “Pipeline” Implementation Flowchart Create ring communicator Initialize particle parameters Copy local particle data to send buffer Update positions of local particles All iterations done? Finalize MPI N Y Initiate transmission of send buffer to the RIGHT neighbor in ring Initiate reception of data from the LEFT neighbor in ring Compute forces between local and send buffer particles Processed particles from all remote nodes? N Wait for message exchange to complete Copy particle data from receive buffer to send buffer Y Initialize MPI environment

84. 84 N-Body (source code) #include "mpi.h" #include /* Pipeline version of the algorithm... */ /* we really need the velocities as well… */ /* Simplified structure describing parameters of a single particle */ typedef struct { double x, y, z; double mass; } Particle; /* We use leapfrog for the time integration... */ /* Structure to hold force components and old position coordinates of a particle */ typedef struct { double xold, yold, zold; double fx, fy, fz; } ParticleV; void InitParticles( Particle[], ParticleV [], int ); double ComputeForces( Particle [], Particle [], ParticleV [], int ); double ComputeNewPos( Particle [], ParticleV [], int, double, MPI_Comm ); #define MAX_PARTICLES 4000 #define MAX_P 128

85. 85 N-Body (source code) main( int argc, char *argv[] ) { Particle particles[MAX_PARTICLES]; /* Particles on ALL nodes */ ParticleV pv[MAX_PARTICLES]; /* Particle velocity */ Particle sendbuf[MAX_PARTICLES], /* Pipeline buffers */ recvbuf[MAX_PARTICLES]; MPI_Request request[2]; int counts[MAX_P], /* Number on each processor */ displs[MAX_P]; /* Offsets into particles */ int rank, size, npart, i, j, offset; /* location of local particles */ int totpart, /* total number of particles */ cnt; /* number of times in loop */ MPI_Datatype particletype; double sim_t; /* Simulation time */ double time; /* Computation time */ int pipe, left, right, periodic; MPI_Comm commring; MPI_Status statuses[2]; /* Initialize MPI Environment */ MPI_Init( &argc, &argv ); MPI_Comm_rank( MPI_COMM_WORLD, &rank ); MPI_Comm_size( MPI_COMM_WORLD, &size ); /* Create 1-dimensional periodic Cartesian communicator (a ring) */ periodic = 1; MPI_Cart_create( MPI_COMM_WORLD, 1, &size, &periodic, 1, &commring );

86. 86 N-Body (source code) MPI_Cart_shift( commring, 0, 1, &left, &right ); /* Find the closest neighbors in ring */ /* Calculate local fraction of particles */ if (argc < 2) { fprintf( stderr, "Usage: %s n\n", argv[0] ); MPI_Abort( MPI_COMM_WORLD, 1 ); } npart = atoi(argv[1]) / size; if (npart * size > MAX_PARTICLES) { fprintf( stderr, "%d is too many; max is %d\n", npart*size, MAX_PARTICLES ); MPI_Abort( MPI_COMM_WORLD, 1 ); } MPI_Type_contiguous( 4, MPI_DOUBLE, &particletype ); /* Data type corresponding to Particle struct */ MPI_Type_commit( &particletype ); /* Get the sizes and displacements */ MPI_Allgather( &npart, 1, MPI_INT, counts, 1, MPI_INT, commring ); displs[0] = 0; for (i=1; i<size; i++) displs[i] = displs[i-1] + counts[i-1]; totpart = displs[size-1] + counts[size-1]; /* Generate the initial values */ InitParticles( particles, pv, npart); offset = displs[rank]; cnt = 10; time = MPI_Wtime(); sim_t = 0.0; /* Begin simulation loop */ while (cnt--) { double max_f, max_f_seg;

87. 87 N-Body (source code) /* Load the initial send buffer */ memcpy( sendbuf, particles, npart * sizeof(Particle) ); max_f = 0.0; for (pipe=0; pipe<size; pipe++) { if (pipe != size-1) { /* Initialize send to the “right” neighbor, while receiving from the “left” */ MPI_Isend( sendbuf, npart, particletype, right, pipe, commring, &request[0] ); MPI_Irecv( recvbuf, npart, particletype, left, pipe, commring, &request[1] ); } /* Compute forces */ max_f_seg = ComputeForces( particles, sendbuf, pv, npart ); if (max_f_seg > max_f) max_f = max_f_seg; /* Wait for updates to complete and copy received particles to the send buffer */ if (pipe != size-1) MPI_Waitall( 2, request, statuses ); memcpy( sendbuf, recvbuf, counts[pipe] * sizeof(Particle) ); } /* Compute the changes in position using the already calculated forces */ sim_t += ComputeNewPos( particles, pv, npart, max_f, commring ); /* We could do graphics here (move particles on the display) */ } time = MPI_Wtime() - time; if (rank == 0) { printf( "Computed %d particles in %f seconds\n", totpart, time ); } MPI_Finalize(); return 0; }

88. 88 N-Body (source code) /* Initialize particle positions, masses and forces */ void InitParticles( Particle particles[], ParticleV pv[], int npart ) { int i; for (i=0; i<npart; i++) { particles[i].x = drand48(); particles[i].y = drand48(); particles[i].z = drand48(); particles[i].mass = 1.0; pv[i].xold = particles[i].x; pv[i].yold = particles[i].y; pv[i].zold = particles[i].z; pv[i].fx = 0; pv[i].fy = 0; pv[i].fz = 0; } /* Compute forces (2-D only) */ double ComputeForces( Particle myparticles[], Particle others[], ParticleV pv[], int npart ) { double max_f, rmin; int i, j; max_f = 0.0; for (i=0; i<npart; i++) { double xi, yi, mi, rx, ry, mj, r, fx, fy; rmin = 100.0; xi = myparticles[i].x; yi = myparticles[i].y; fx = 0.0; fy = 0.0;

89. 89 N-Body (source code) for (j=0; j<npart; j++) { rx = xi - others[j].x; ry = yi - others[j].y; mj = others[j].mass; r = rx * rx + ry * ry; /* ignore overlap and same particle */ if (r == 0.0) continue; if (r < rmin) rmin = r; /* compute forces */ r = r * sqrt(r); fx -= mj * rx / r; fy -= mj * ry / r; } pv[i].fx += fx; pv[i].fy += fy; /* Compute a rough estimate of (1/m)|df / dx| */ fx = sqrt(fx*fx + fy*fy)/rmin; if (fx > max_f) max_f = fx; } return max_f; } /* Update particle positions (2-D only) */ double ComputeNewPos( Particle particles[], ParticleV pv[], int npart, double max_f, MPI_Comm commring ) { int i; double a0, a1, a2; static double dt_old = 0.001, dt = 0.001; double dt_est, new_dt, dt_new;

90. 90 N-Body (source code) /* integation is a0 * x^+ + a1 * x + a2 * x^- = f / m */ a0 = 2.0 / (dt * (dt + dt_old)); a2 = 2.0 / (dt_old * (dt + dt_old)); a1 = -(a0 + a2); /* also -2/(dt*dt_old) */ for (i=0; i<npart; i++) { double xi, yi; /* Very, very simple leapfrog time integration. We use a variable step version to simplify time-step control. */ xi = particles[i].x; yi = particles[i].y; particles[i].x = (pv[i].fx - a1 * xi - a2 * pv[i].xold) / a0; particles[i].y = (pv[i].fy - a1 * yi - a2 * pv[i].yold) / a0; pv[i].xold = xi; pv[i].yold = yi; pv[i].fx = 0; pv[i].fy = 0; } /* Recompute a time step. Stability criteria is roughly 2/sqrt(1/m |df/dx|) >= dt. We leave a little room */ dt_est = 1.0/sqrt(max_f); if (dt_est < 1.0e-6) dt_est = 1.0e-6; MPI_Allreduce( &dt_est, &dt_new, 1, MPI_DOUBLE, MPI_MIN, commring ); /* Modify time step */ if (dt_new < dt) { dt_old = dt; dt = dt_new; } else if (dt_new > 4.0 * dt) { dt_old = dt; dt *= 2.0; } return dt_old; }

91. 91 Demo : N-Body Problem > mpirun –np 4 nbodypipe 4000 Computed 4000 particles in 1.119051 seconds > mpirun –np 4 nbodypipe 4000 Computed 4000 particles in 1.119051 seconds

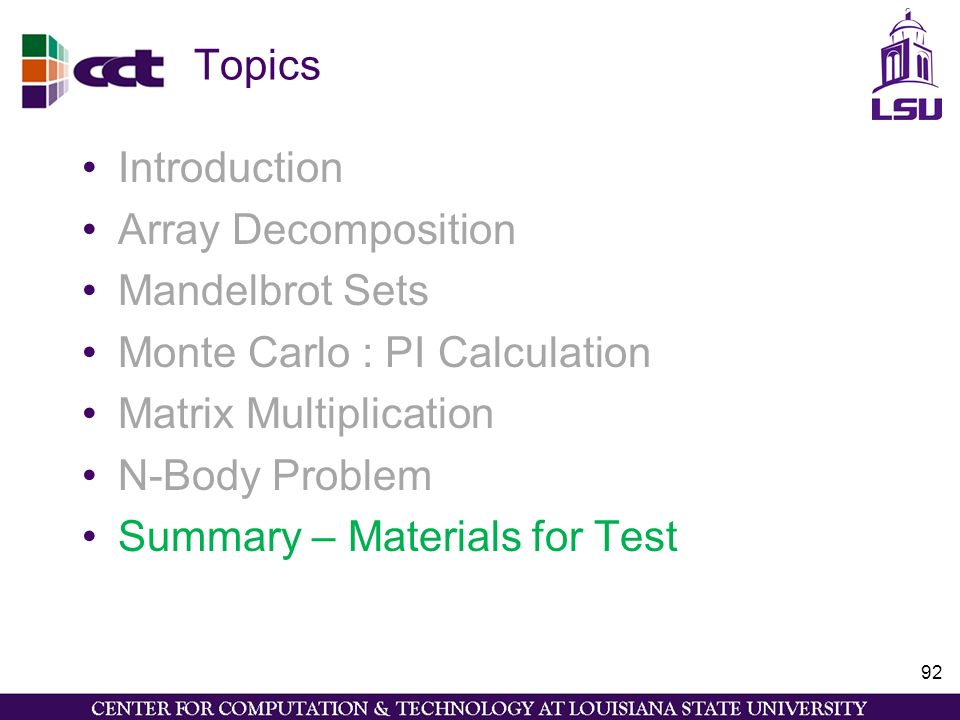

92. 92 Topics Introduction Array Decomposition Mandelbrot Sets Monte Carlo : PI Calculation Matrix Multiplication N-Body Problem Summary – Materials for Test

93. 93 Summary – Material for the Test Introduction – Slides: 4, 5, 6 Array decomposition – Slides: 11, 12 Mandelbrot load balancing – Slides: 25, 26 Monte Carlo create Communicators – Slides: 40, 42 Matrix Multiply basic algorithm – Slides: 49 – 54
