1. Warm Up Find the exact value of each trigonometric function. 1. sin 60°2. tan 45° 3. cos 45° 4. cos 60° 1 EQ: How can I convert between degrees and radians?

2. Convert angle measures between degrees and radians. Find the values of trigonometric functions on the unit circle. Objectives EQ: How can I convert between degrees and radians?

3. radian unit circle Vocabulary EQ: How can I convert between degrees and radians?

4. So far, you have measured angles in degrees. You can also measure angles in radians. A radian is a unit of angle measure based on arc length. Recall from geometry that an arc is an unbroken part of a circle. If a central angle θ in a circle of radius r, then the measure of θ is defined as 1 radian. EQ: How can I convert between degrees and radians?

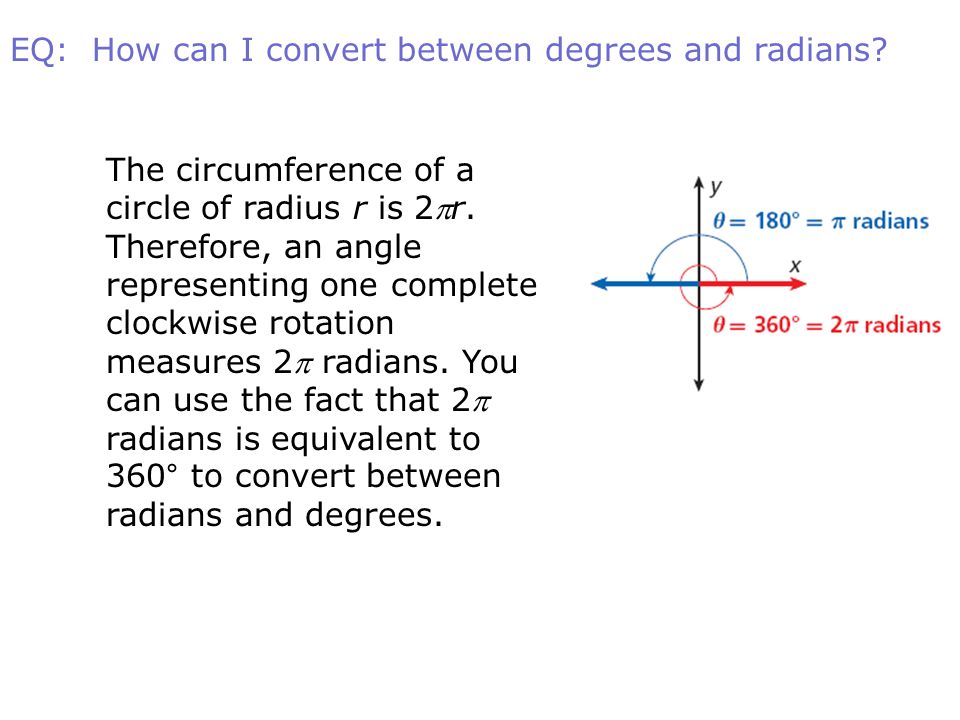

5. The circumference of a circle of radius r is 2r. Therefore, an angle representing one complete clockwise rotation measures 2 radians. You can use the fact that 2 radians is equivalent to 360° to convert between radians and degrees. EQ: How can I convert between degrees and radians?

7. Example 1: Converting Between Degrees and Radians Convert each measure from degrees to radians or from radians to degrees. A. – 60° B.. EQ: How can I convert between degrees and radians?

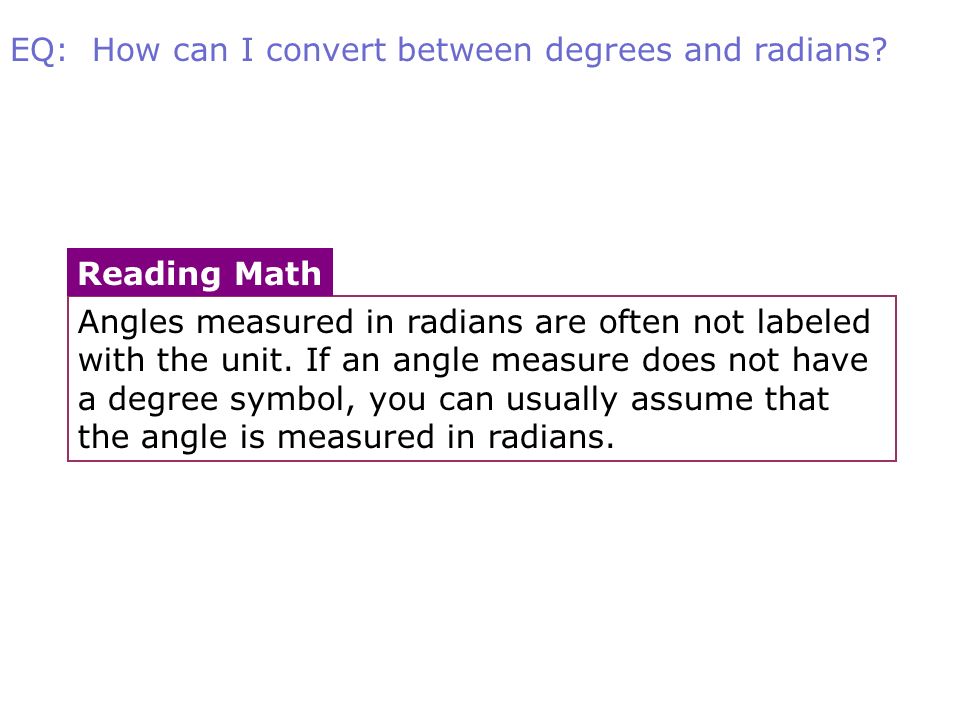

8. Angles measured in radians are often not labeled with the unit. If an angle measure does not have a degree symbol, you can usually assume that the angle is measured in radians. Reading Math EQ: How can I convert between degrees and radians?

9. Check It Out! Example 1 Convert each measure from degrees to radians or from radians to degrees. a. 80° b... 4 9 20 EQ: How can I convert between degrees and radians?

10. Check It Out! Example 1 Convert each measure from degrees to radians or from radians to degrees. c. – 36° d. 4 radians.. 5 EQ: How can I convert between degrees and radians?

11. A unit circle is a circle with a radius of 1 unit. For every point P(x, y) on the unit circle, the value of r is 1. Therefore, for an angle θ in the standard position: EQ: How can I convert between degrees and radians?

12. So the coordinates of P can be written as (cosθ, sinθ). The diagram shows the equivalent degree and radian measure of special angles, as well as the corresponding x- and y-coordinates of points on the unit circle. EQ: How can I convert between degrees and radians?

13. Example 2A: Using the Unit Circle to Evaluate Trigonometric Functions Use the unit circle to find the exact value of each trigonometric function. cos 225° The angle passes through the point on the unit circle. cos 225° = x Use cos θ = x. EQ: How can I convert between degrees and radians?

14. tan Example 2B: Using the Unit Circle to Evaluate Trigonometric Functions Use the unit circle to find the exact value of each trigonometric function. The angle passes through the point on the unit circle. Use tan θ =. EQ: How can I convert between degrees and radians?

15. Check It Out! Example 1a Use the unit circle to find the exact value of each trigonometric function. sin 315° sin 315° = y Use sin θ = y. The angle passes through the point on the unit circle. EQ: How can I convert between degrees and radians?

16. Check It Out! Example 1b Use the unit circle to find the exact value of each trigonometric function. tan 180° The angle passes through the point ( – 1, 0) on the unit circle. tan 180° = Use tan θ =. EQ: How can I convert between degrees and radians?

17. Check It Out! Example 1c Use the unit circle to find the exact value of each trigonometric function. The angle passes through the point on the unit circle. EQ: How can I convert between degrees and radians?

18. You can use reference angles and Quadrant I of the unit circle to determine the values of trigonometric functions. Trigonometric Functions and Reference Angles EQ: How can I convert between degrees and radians?

19. The diagram shows how the signs of the trigonometric functions depend on the quadrant containing the terminal side of θ in standard position. EQ: How can I convert between degrees and radians?

20. Example 3: Using Reference Angles to Evaluate Trigonometric functions Use a reference angle to find the exact value of the sine, cosine, and tangent of 330°. Step 1 Find the measure of the reference angle. The reference angle measures 30° EQ: How can I convert between degrees and radians?

21. Example 3 Continued Step 2 Find the sine, cosine, and tangent of the reference angle. Use sin θ = y. Use cos θ = x. EQ: How can I convert between degrees and radians?

22. Example 3 Continued Step 3 Adjust the signs, if needed. In Quadrant IV, sin θ is negative. In Quadrant IV, cos θ is positive. In Quadrant IV, tan θ is negative. EQ: How can I convert between degrees and radians?

23. Check It Out! Example 3a Use a reference angle to find the exact value of the sine, cosine, and tangent of 270°. Step 1 Find the measure of the reference angle. The reference angle measures 90° 270° EQ: How can I convert between degrees and radians?

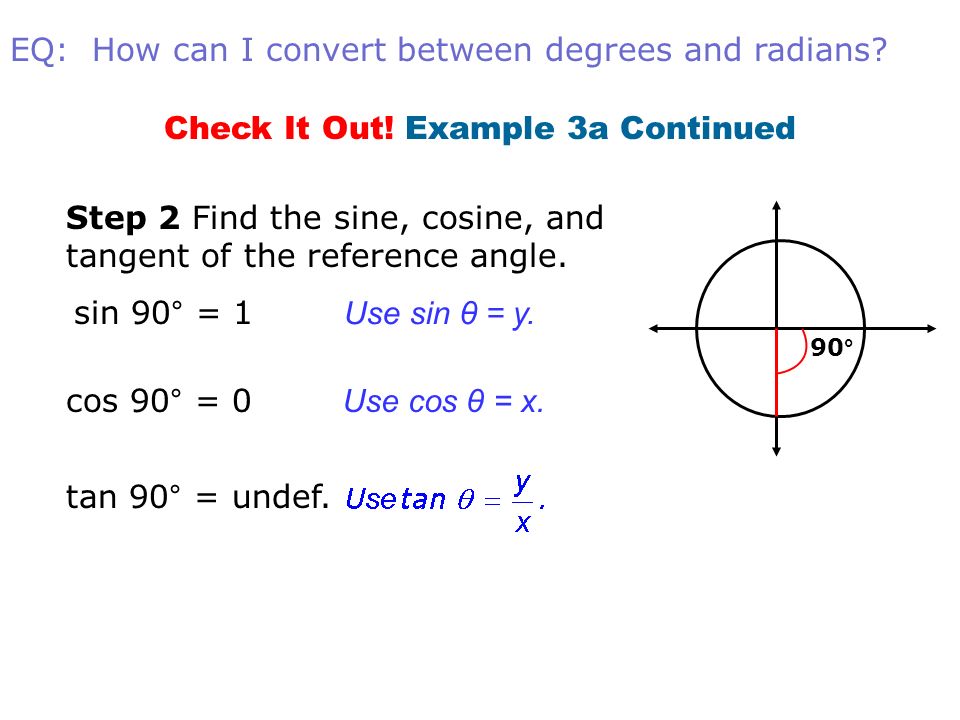

24. Step 2 Find the sine, cosine, and tangent of the reference angle. Use sin θ = y. Use cos θ = x. Check It Out! Example 3a Continued 90° tan 90° = undef. sin 90° = 1 cos 90° = 0 EQ: How can I convert between degrees and radians?

25. Step 3 Adjust the signs, if needed. In Quadrant IV, sin θ is negative. Check It Out! Example 3a Continued sin 270° = – 1 cos 270° = 0 tan 270° = undef. EQ: How can I convert between degrees and radians?

26. Check It Out! Example 3b Use a reference angle to find the exact value of the sine, cosine, and tangent of each angle. Step 1 Find the measure of the reference angle. The reference angle measures. EQ: How can I convert between degrees and radians?

27. Check It Out! Example 3b Continued Step 2 Find the sine, cosine, and tangent of the reference angle. Use sin θ = y. Use cos θ = x. 30° EQ: How can I convert between degrees and radians?

28. Step 3 Adjust the signs, if needed. In Quadrant IV, sin θ is negative. Check It Out! Example 3b Continued In Quadrant IV, cos θ is positive. In Quadrant IV, tan θ is negative. EQ: How can I convert between degrees and radians?

29. Check It Out! Example 3c Use a reference angle to find the exact value of the sine, cosine, and tangent of each angle. Step 1 Find the measure of the reference angle. The reference angle measures 30°. – 30° EQ: How can I convert between degrees and radians?

30. Check It Out! Example 3c Continued Step 2 Find the sine, cosine, and tangent of the reference angle. Use sin θ = y. Use cos θ = x. 30° EQ: How can I convert between degrees and radians?

31. Step 3 Adjust the signs, if needed. In Quadrant IV, sin θ is negative. Check It Out! Example 3c Continued In Quadrant IV, cos θ is positive. In Quadrant IV, tan θ is negative. EQ: How can I convert between degrees and radians?

32. If you know the measure of a central angle of a circle, you can determine the length s of the arc intercepted by the angle. EQ: How can I convert between degrees and radians?

34. Example 4: Automobile Application A tire of a car makes 653 complete rotations in 1 min. The diameter of the tire is 0.65 m. To the nearest meter, how far does the car travel in 1 s? Step 1 Find the radius of the tire. Step 2 Find the angle θ through which the tire rotates in 1 second. The radius is of the diameter. Write a proportion. EQ: How can I convert between degrees and radians?

35. Example 4 Continued The tire rotates θ radians in 1 s and 653(2  ) radians in 60 s. Simplify. Divide both sides by 60. Cross multiply. EQ: How can I convert between degrees and radians?

36. Example 4 Continued Step 3 Find the length of the arc intercepted by radians. Use the arc length formula. Simplify by using a calculator. Substitute 0.325 for r and for θ The car travels about 22 meters in second.

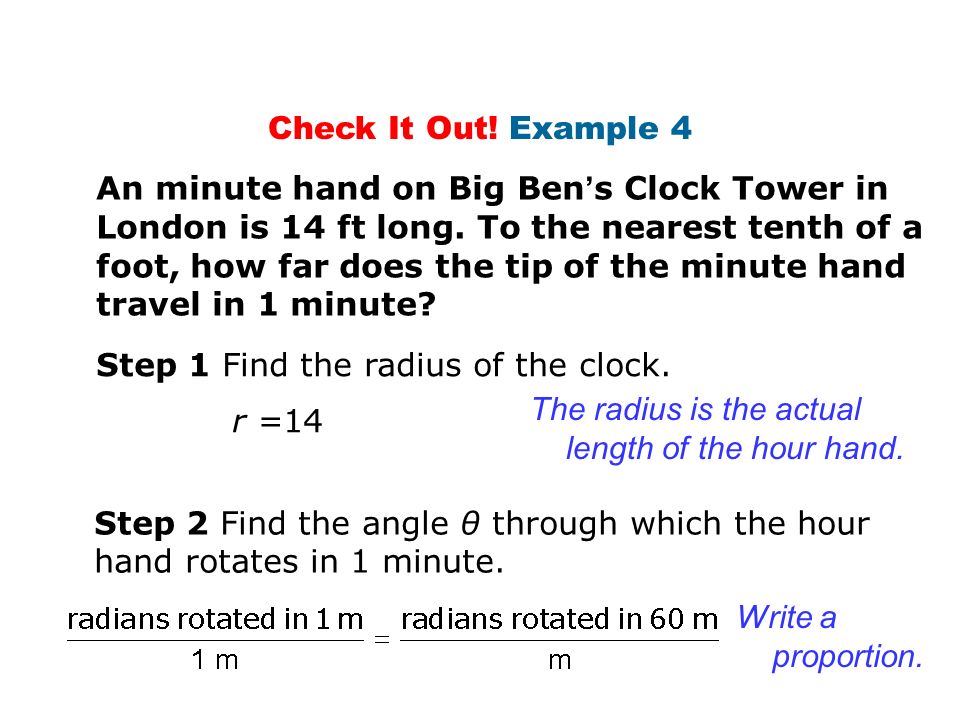

37. Check It Out! Example 4 An minute hand on Big Ben ’ s Clock Tower in London is 14 ft long. To the nearest tenth of a foot, how far does the tip of the minute hand travel in 1 minute? Step 1 Find the radius of the clock. The radius is the actual length of the hour hand. Step 2 Find the angle θ through which the hour hand rotates in 1 minute. Write a proportion. r =14

38. The hand rotates θ radians in 1 m and 2  radians in 60 m. Simplify. Divide both sides by 60. Cross multiply. Check It Out! Example 4 Continued

39. Step 3 Find the length of the arc intercepted by radians. Use the arc length formula. Simplify by using a calculator. The minute hand travels about 1.5 feet in one minute. Check It Out! Example 4 Continued Substitute 14 for r and for θ. s ≈ 1.5 feet

40. Lesson Quiz: Part I Convert each measure from degrees to radians or from radians to degrees. 1. 100° 2. 3. Use the unit circle to find the exact value of. 4. Use a reference angle to find the exact value of the sine, cosine, and tangent of 144°

41. Lesson Quiz: Part II 5. A carpenter is designing a curved piece of molding for the ceiling of a museum. The curve will be an arc of a circle with a radius of 3 m. The central angle will measure 120°. To the nearest tenth of a meter, what will be the length of the molding? 6.3 m
