1. ECMWF Training Course Reading, 25 April 2006 EPS Diagnostic Tools Renate Hagedorn European Centre for Medium-Range Weather Forecasts

2. ECMWF Training Course Reading, 25 April 2006 Objective of diagnostic/verification tools Assess quality of forecast system i.e. determine skill and value of forecast A forecast has skill if it predicts the observed conditions well according to some objective or subjective criteria. A forecast has value if it helps the user to make better decisions than without knowledge of the forecast. Forecasts with poor skill can be valuable (e.g. location mismatch) Forecasts with high skill can be of little value (e.g. blue sky desert)

3. ECMWF Training Course Reading, 25 April 2006 Ensemble Prediction System 1 control run + 50 perturbed runs (T L 399 L62)  added dimension of ensemble members  f(x,y,z,t,e) How do we deal with added dimension when  interpreting, verifying and diagnosing EPS output?

4. ECMWF Training Course Reading, 25 April 2006 Individual members (“stamp maps”)

5. ECMWF Training Course Reading, 25 April 2006 EPSgrams median min 25% 75% max Cloud Cover Precipitation 10m wind 2m Temperature

6. ECMWF Training Course Reading, 25 April 2006 Ensemble mean Day+6 Ensemble mean Day+6 control It gives a smoother field than the deterministic forecasts, but the same result can’t be achieved with a simple filtering of a deterministic forecast The ensemble mean forecast is the average over all ensemble members

7. ECMWF Training Course Reading, 25 April 2006 Ensemble mean Day+6 Ensemble mean Day+6 control (filtered) It gives a smoother field than the deterministic forecasts, but the same result can’t be achieved with a simple filtering of a deterministic forecast If spread is large the EM may be a very weak pattern and may not represent any of the possible evolutions (use measure of ens. spread!)

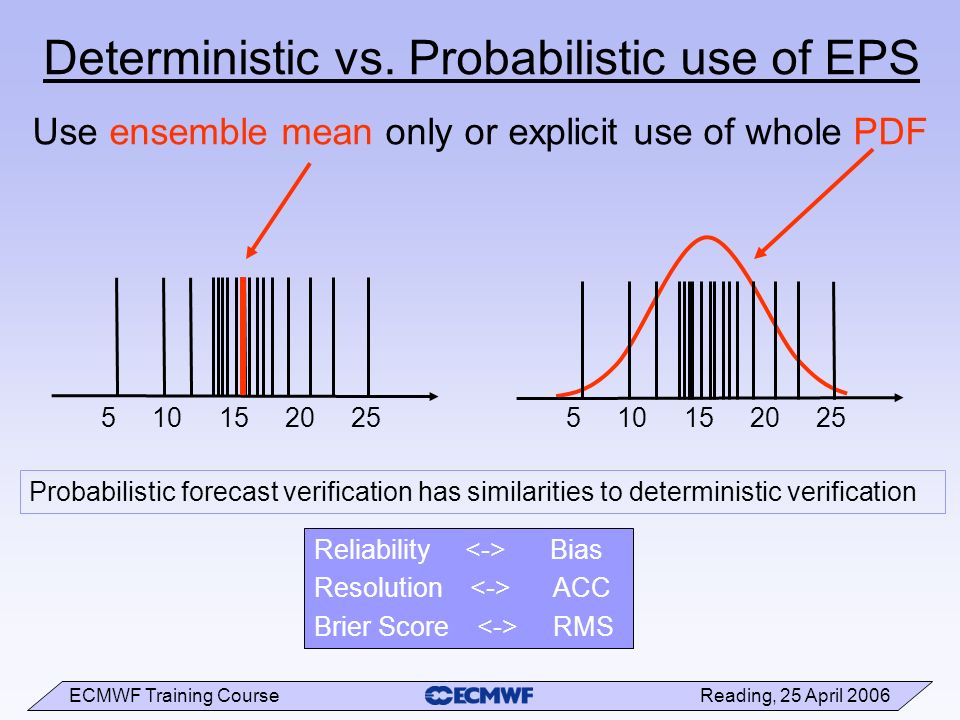

8. ECMWF Training Course Reading, 25 April 2006 Deterministic vs. Probabilistic use of EPS Use ensemble mean only or explicit use of whole PDF 5 10 15 20 25 Reliability Bias Resolution ACC Brier Score RMS Probabilistic forecast verification has similarities to deterministic verification

9. ECMWF Training Course Reading, 25 April 2006 Why Probabilities? Open air restaurant scenario:  open additional tables: £20 extra cost, £100 extra income (if T>25ºC)  weather forecast: 30% probability for T>25ºC  what would you do? Test the system for 100 days:  30 x T>25ºC -> 30 x (100 – 20) = 2400  70 x T 70 x ( 0 – 20) = -1400 +1000 Employing extra waiter (spending £20) is beneficial when probability for T>25 ºC is greater 20% The higher/lower the cost loss ratio, the higher/lower probabilities are needed in order to benefit from action on forecast

10. ECMWF Training Course Reading, 25 April 2006 Reliability Take a sample of probabilistic forecasts: e.g. 30 days x 2200 GP = 66000 forecasts How often was event (T > 25) forecasted with X probability? FC Prob. # FC“perfect FC” OBS-Freq. “real” OBS-Freq. 100% 8000 8000 (100%) 7200 (90%) 90% 5000 4500 ( 90%) 4000 (80%) 80% 4500 3600 ( 80%) 3000 (66%) …. 10% 5500 550 ( 10%) 800 (15%) 0% 7000 0 ( 0%) 700 (10%) 25

11. ECMWF Training Course Reading, 25 April 2006 Reliability FC Prob. # FC“perfect FC” OBS-Freq. “real” OBS-Freq. 100% 8000 8000 (100%) 7200 (90%) 90% 5000 4500 ( 90%) 4000 (80%) 80% 4500 3600 ( 80%) 3000 (66%) …. 10% 5500 550 ( 10%) 800 (15%) 0% 7000 0 ( 0%) 700 (10%) FC-Probability OBS-Frequency 0 0 100 100 Take a sample of probabilistic forecasts: e.g. 30 days x 2200 GP = 66000 forecasts How often was event (T > 25) forecasted with X probability?

12. ECMWF Training Course Reading, 25 April 2006 Reliability Diagram over-confident modelperfect model

13. ECMWF Training Course Reading, 25 April 2006 Reliability Diagram under-confident modelperfect model

14. ECMWF Training Course Reading, 25 April 2006 Reliability diagram Reliability score (the smaller, the better) imperfect model perfect model

15. ECMWF Training Course Reading, 25 April 2006 Components of the Brier Score N = total number of cases I = number of probability bins n i = number of cases in probability bin i f i = forecast probability in probability bin i o i = frequency of event being observed when forecasted with f i  Reliability: forecast probability vs. observed relative frequencies

16. ECMWF Training Course Reading, 25 April 2006 Reliability diagram Poor resolution Good resolution Reliability score (the smaller, the better) Resolution score (the bigger, the better) c c

17. ECMWF Training Course Reading, 25 April 2006 Components of the Brier Score N = total number of cases I = number of probability bins n i = number of cases in probability bin i f i = forecast probability in probability bin I o i = frequency of event being observed when forecasted with f i c = frequency of event being observed in whole sample  Reliability: forecast probability vs. observed relative frequencies  Resolution: ability to issue reliable forecasts close to 0% or 100%  Uncertainty: variance of observations frequency in sample

18. ECMWF Training Course Reading, 25 April 2006 Brier Score The Brier score is a measure of the accuracy of probability forecasts p is forecast probability (fraction of members predicting event) o is observed outcome (1 if event occurs; 0 if event does not occur) BS varies from 0 (perfect deterministic forecasts) to 1 (perfectly wrong!) Brier skill score (BSS) is a measure for skill relative to climatology (p=frequency of the event in the climate sample) positive (negative) BSS  better (worse) than reference Brier Score = Reliability – Resolution + Uncertainty

19. ECMWF Training Course Reading, 25 April 2006 Reliability: 2m-Temp.>0 0.039 0.899 0.141 BSS Rel-Sc Res-Sc 0.039 0.899 0.140 0.095 0.926 0.169 -0.001 0.877 0.123 0.065 0.918 0.147 -0.064 0.838 0.099 0.047 0.893 0.153 0.204 0.990 0.213 1 month lead, start date May, 1980 - 2001 CERFACS CNRM ECMWF INGV LODYC MPI UKMO DEMETER

20. ECMWF Training Course Reading, 25 April 2006 Brier Skill Score Europe: 850hPa Temperature, D+4

21. ECMWF Training Course Reading, 25 April 2006 Ranked Probability Score Measures the quadratic distance between forecast and verification probabilities for several categories It is the average Brier score across the range of the variable Ranked Probability Skill Score (RPSS) is a measure for skill relative to a reference forecast negative / positive RPSS  worse / better than reference

22. ECMWF Training Course Reading, 25 April 2006 Brier Score -> Ranked Probability Score 5 10 15 20 25 1 Brier Score used for two category (yes/no) situations (e.g. T > 15 o C) 5 10 15 20 25 1 RPS takes into account ordered nature of variable (“extreme errors”)

23. ECMWF Training Course Reading, 25 April 2006 Ranked Probability Skill Score Northern Hemisphere: 500hPa Geopotential

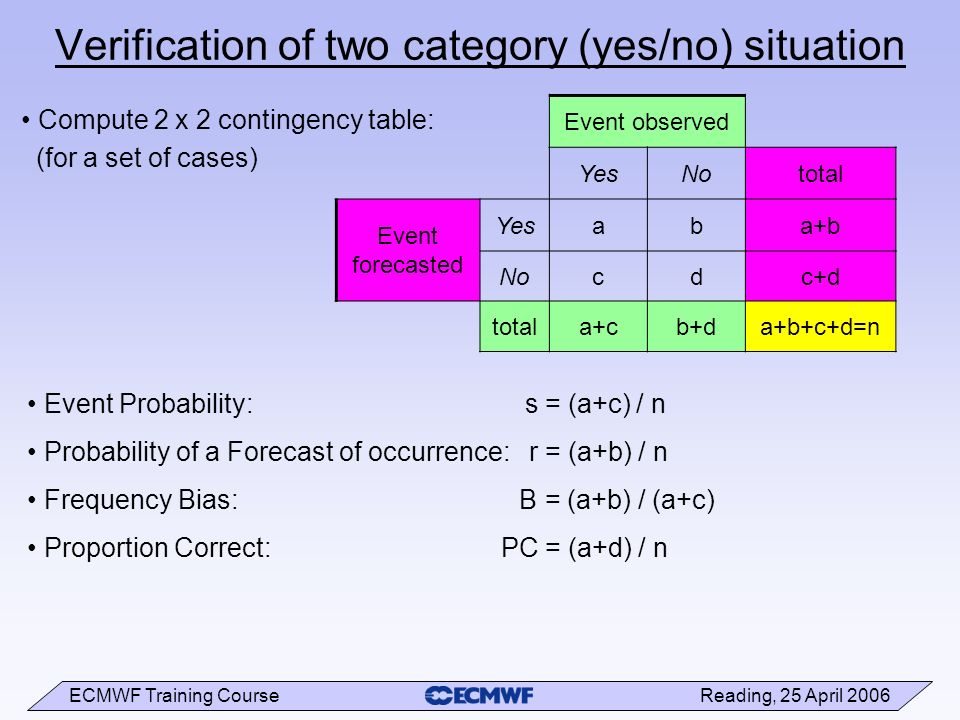

24. ECMWF Training Course Reading, 25 April 2006 Verification of two category (yes/no) situation Compute 2 x 2 contingency table: (for a set of cases) Event Probability: s = (a+c) / n Probability of a Forecast of occurrence: r = (a+b) / n Frequency Bias: B = (a+b) / (a+c) Proportion Correct: PC = (a+d) / n Event observed YesNototal Event forecasted Yesaba+b Nocdc+d totala+cb+da+b+c+d=n

25. ECMWF Training Course Reading, 25 April 2006 Example of Finley Tornado Forecasts (1884) Compute 2 x 2 contingency table: (for a set of cases) Event observed YesNototal Event forecasted Yes2872100 No2326802703 total5127522803 Event Probability: s = (a+c) / n = 51/2803 = 0.018 Probability of a Forecast of occurrence: r = (a+b) / n = 100/2803 = 0.036 Frequency Bias: B = (a+b) / (a+c) = 100/51 = 1.961 Proportion Correct: PC = (a+d) / n = 2708/2803 = 0.966 96.6% Accuracy

26. ECMWF Training Course Reading, 25 April 2006 Example of Finley Tornado Forecasts (1884) Compute 2 x 2 contingency table: (for a set of cases) Event Probability: s = (a+c) / n = 51/2803 = 0.018 Probability of a Forecast of occurrence: r = (a+b) / n = 0/2803 = 0.0 Frequency Bias: B = (a+b) / (a+c) = 0/51 = 0.0 Proportion Correct: PC = (a+d) / n = 2752/2803 = 0.982 Event observed YesNototal Event forecasted Yes000 No5127522803 total5127522803 98.2% Accuracy!

27. ECMWF Training Course Reading, 25 April 2006 Some Scores and Skill Scores ScoreFormulaFinley (original) Finley (never fc T.) Finley (always fc. T.) Proportion Correct PC=(a+d)/n 0.9660.9820.018 Threat ScoreTS=a/(a+b+c) 0.2280.0000.018 Odds RatioΘ=(ad)/(bc) 45.3-- Odss Ratio Skill Score Q=(ad-bc)/(ad+bc) 0.957-- Heidke Skill Score HSS=2(ad-bc)/ (a+c)(c+d)+(a+b)(b+d) 0.3550.0 Peirce Skill Score PSS=(ad-bc)/(a+c)(b+d) 0.5230.0 Clayton Skill Score CSS=(ad-bc)/(a+b)(c+d) 0.271-- Gilbert Skill Score (ETS) GSS=(a-a ref )/(a-a ref +b+c) a ref = (a+b)(a+c)/n 0.2160.0

28. ECMWF Training Course Reading, 25 April 2006 Definition of a proper score Consistency is one of the characteristics of a good forecast Some scoring rules encourage forecasters to be inconsistent, e.g. some scores give better results when a forecast closer to climatology is issued rather than the actual forecast (e.g. reliability) Scoring rule is strictly proper when the best scores are obtained if and only if the forecasts correspond with the forecaster’s judgement Examples of proper scores are the Brier Score or Ignorance Score n: forecast-verification pairs, i: quantiles Minimum only when p fc = p ver -> proper score The lower/higher the IGN the better/worse the forecast system Ignorance Score: IGN = - 1/n Σ n Σ i p n,i,ver ln p n,i,,fc See Roulston & Smith, 2001

29. ECMWF Training Course Reading, 25 April 2006 Verification of two category (yes/no) situation Compute 2 x 2 contingency table: (for a set of cases) Event Probability: s = (a+c) / n Probability of a Forecast of occurrence: r = (a+b) / n Frequency Bias: B = (a+b) / (a+c) Hit Rate: H = a / (a+c) False Alarm Rate: F = b / (b+d) False Alarm Ratio: FAR = b / (a+b) Event observed YesNototal Event forecasted Yesaba+b Nocdc+d totala+cb+da+b+c+d=n

30. ECMWF Training Course Reading, 25 April 2006 Example of Finley Tornado Forecasts (1884) Compute 2 x 2 contingency table: (for a set of cases) Event observed YesNototal Event forecasted Yes2872100 No2326802703 total5127522803 Event Probability: s = (a+c) / n = 0.018 Probability of a Forecast of occurrence: r = (a+b) / n = 0.036 Frequency Bias: B = (a+b) / (a+c) = 1.961 Hit Rate: H = a / (a+c) = 0.549 False Alarm Rate: F = b / (b+d) = 0.026 False Alarm Ratio: FAR = b / (a+b) = 0.720

31. ECMWF Training Course Reading, 25 April 2006 Event observed YesNo Event forecasted >80% - 100%305 >60% - 80%2510 >40% - 60%2015 >20% - 40%1520 >0% - 20%1025 0%530 total105 threshold HF >80%30/1055/105 >60%55/10515/105 >40%75/10530/105 >20%90/10550/105 >0%100/10575/105 105/105 Extension of 2 x 2 contingency table for prob. FC

32. ECMWF Training Course Reading, 25 April 2006 Extension of 2 x 2 contingency table for prob. FC Event observed YesNo threshold HF Event forecasted >80% - 100%305>80%0.290.05 >60% - 80%2510>60%0.520.14 >40% - 60%2015>40%0.710.29 >20% - 40%1520>20%0.860.48 >0% - 20%1025>0%0.950.71 0%5301.00 total105 False Alarm Rate Hit Rate 0 0 1 1

33. ECMWF Training Course Reading, 25 April 2006 ROC curve ROC curve is plot of H against F for range of probability thresholds low threshold moderate threshold high threshold ROC area (area under the ROC curve) is skill measure A=0.5 (no skill), A=1 (perfect deterministic forecast) A=0.83 H F

34. ECMWF Training Course Reading, 25 April 2006 ROC area

35. ECMWF Training Course Reading, 25 April 2006 ROCA vs. RPSS vs. BSS

36. ECMWF Training Course Reading, 25 April 2006 ROCSS vs. BSS ROCSS or BSS > 0 indicate skilful forecast system Northern Extra-Tropics 500 hPa anomalies > 2σ (spring 2002) Richardson, 2005 ROC skill score Brier skill score

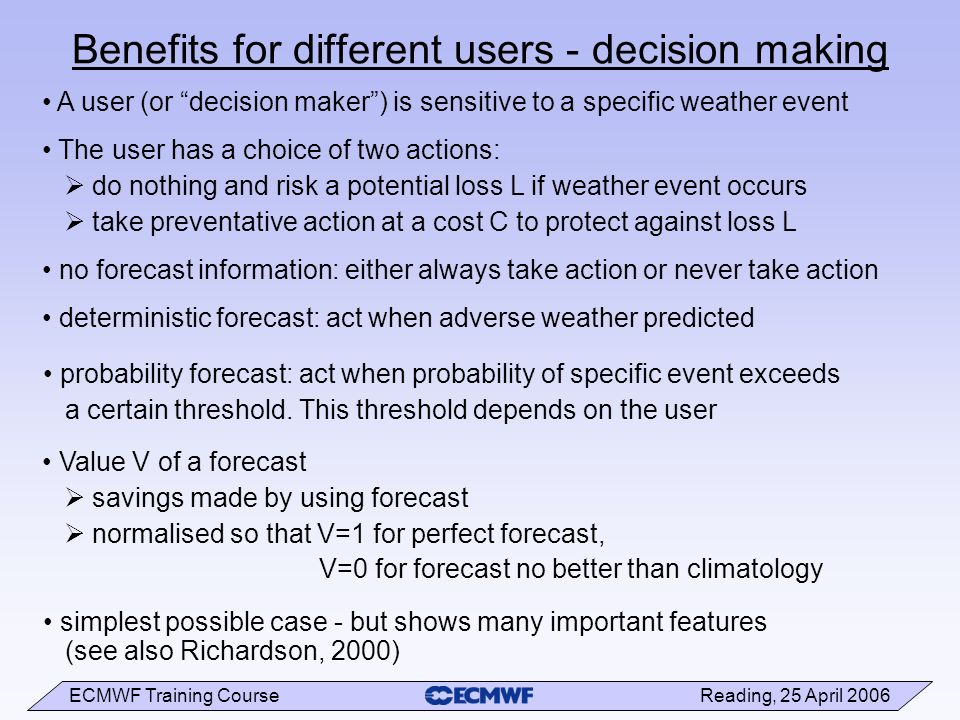

37. ECMWF Training Course Reading, 25 April 2006 Benefits for different users - decision making A user (or “decision maker”) is sensitive to a specific weather event The user has a choice of two actions:  do nothing and risk a potential loss L if weather event occurs  take preventative action at a cost C to protect against loss L no forecast information: either always take action or never take action deterministic forecast: act when adverse weather predicted probability forecast: act when probability of specific event exceeds a certain threshold. This threshold depends on the user Value V of a forecast  savings made by using forecast  normalised so that V=1 for perfect forecast, V=0 for forecast no better than climatology simplest possible case - but shows many important features (see also Richardson, 2000)

38. ECMWF Training Course Reading, 25 April 2006 Decision making: the cost-loss model Climate information – expense: Always use forecast – expense: Perfect forecast – expense: Value: Event occurs YesNo Action taken YesCC NoL0 Event occurs YesNo Event forecast Yesab Nocd o1-o Potential costs Fraction of occurences

39. ECMWF Training Course Reading, 25 April 2006 Decision making: the cost-loss model with: α = C/L H = a/(a+c) F = b/(b+d) o = a+c Northern Extra-Tropics (winter 01/02) D+5 deterministic FC > 1mm precip For given weather event and FC system: o, H and F are fixed value depends on C/L max if: C/L = o V max = H-F

40. ECMWF Training Course Reading, 25 April 2006 Potential economic value Northern Extra-Tropics (winter 01/02) D+5 FC > 1mm precipitation deterministicEPS p = 0.2 p = 0.5 p = 0.8

41. ECMWF Training Course Reading, 25 April 2006 Potential economic value Northern Extra-Tropics (winter 01/02) FC > 1mm precipitation EPS: each user chooses the most appropriate probability threshold Control Results based on simple cost/loss models have indicated that EPS probabilistic forecasts have a higher value than single deterministic forecasts EPS

42. ECMWF Training Course Reading, 25 April 2006 Potential economic value Northern Extra-Tropics (winter 01/02) D+5 FC > 20mm precipitation BSS = 0.06 (measure of overall value for all possible users) ROCSS = 0.65 (closely linked to V max )

43. ECMWF Training Course Reading, 25 April 2006 Summary Different ways of incorporating added dimension of EPS (EM vs. PDF) Ensemble mean is best deterministic forecast  EM should be used together with measure of spread Verification of probability forecast  different scores measure different aspects of forecast performance Reliability / Resolution, Brier Score (BSS), RPS (RPSS), ROC,…  Perception of usefulness of ensemble may vary with score used  It is important to understand the behaviour of different scores and choose appropriately Potential economic value  Decision making is user dependent  Cost-Loss model a simple illustration – but shows many useful features

44. ECMWF Training Course Reading, 25 April 2006 References and further reading Katz, R. W. and A.H. Murphy, 1997: Economic value of weather and climate forecasting. Cambridge University Press, pp. 222. Roulston, M. S. and L.A. Smith, 2001: Evaluating Probabilistic Forecasts Using Information Theory. Monthly Weather Review, 130, 1653-1660. Palmer, T.N. and R. Hagedorn (editors), 2006: Predictability of weather and climate. Cambridge University Press (available from July 2006) Jolliffe, I.T. and D.B. Stephenson, 2003: Forecast Verification. A Practitioner’s Guide in Atmospheric Science. Wiley, pp. 240 Wilks, D. S., 2006: Statistical methods in the atmospheric sciences. 2 nd ed. Academic Press, pp.627 ECMWF newsletter for updates on EPS performance Richardson, D. S., 2000. Skill and relative economic value of the ECMWF Ensemble Prediction System. Q. J. R. Meteorol. Soc., 126, 649-668.
