1. 1 Muhammed Al-MulhemVisual Languages Visual Programming Languages ICS 539 Introduction & Classification ICS Department KFUPM Sept. 1, 2007

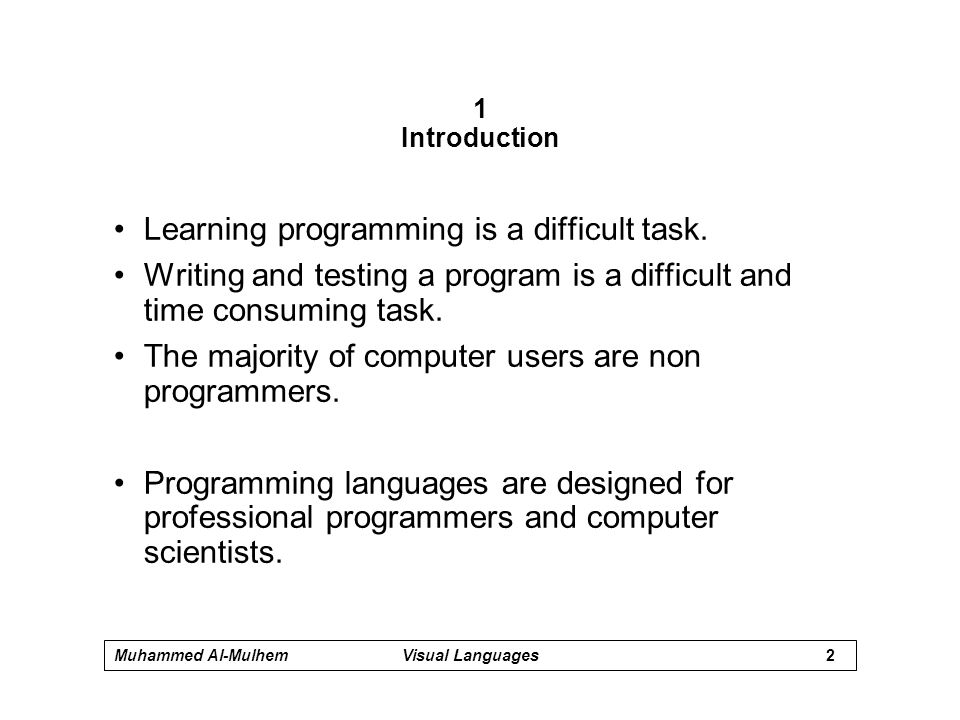

2. 2 Muhammed Al-MulhemVisual Languages Learning programming is a difficult task. Writing and testing a program is a difficult and time consuming task. The majority of computer users are non programmers. Programming languages are designed for professional programmers and computer scientists. 1 Introduction

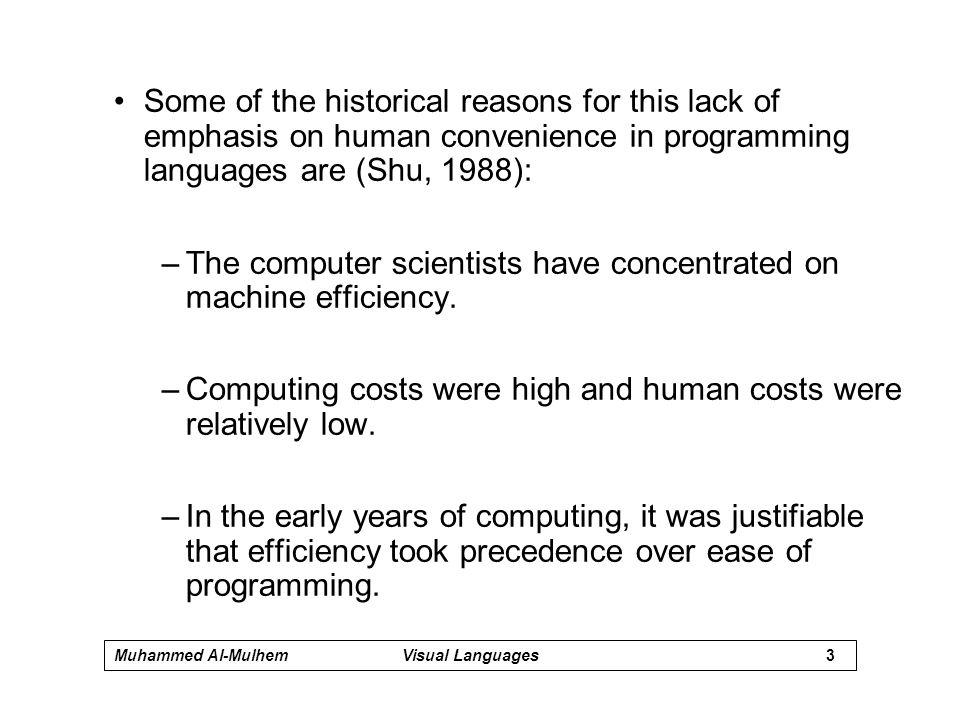

3. 3 Muhammed Al-MulhemVisual Languages Some of the historical reasons for this lack of emphasis on human convenience in programming languages are (Shu, 1988): –The computer scientists have concentrated on machine efficiency. –Computing costs were high and human costs were relatively low. –In the early years of computing, it was justifiable that efficiency took precedence over ease of programming.

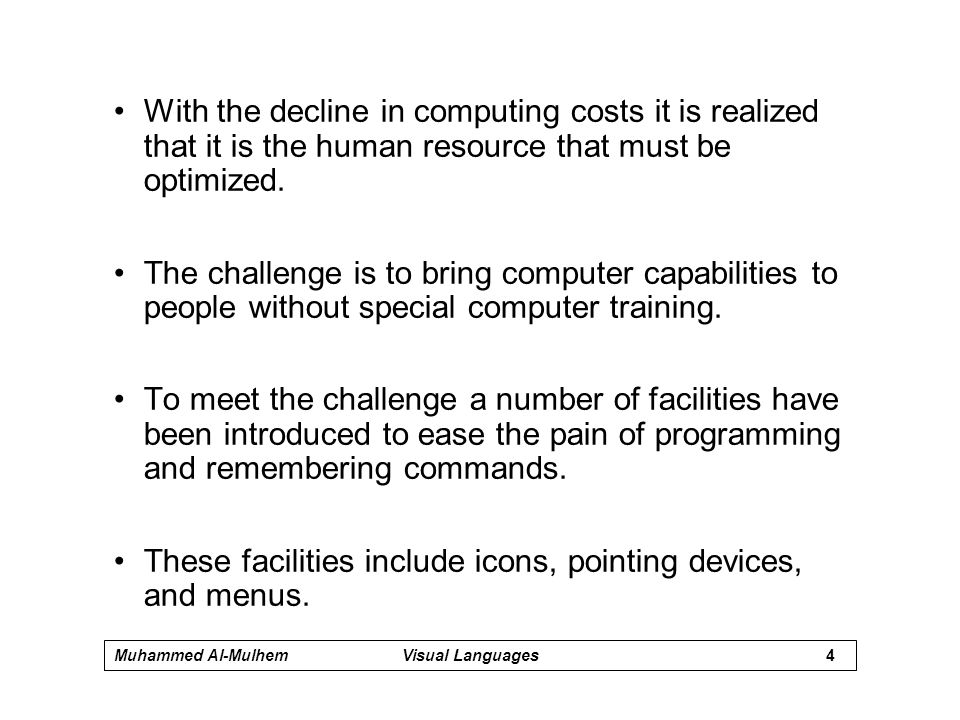

4. 4 Muhammed Al-MulhemVisual Languages With the decline in computing costs it is realized that it is the human resource that must be optimized. The challenge is to bring computer capabilities to people without special computer training. To meet the challenge a number of facilities have been introduced to ease the pain of programming and remembering commands. These facilities include icons, pointing devices, and menus.

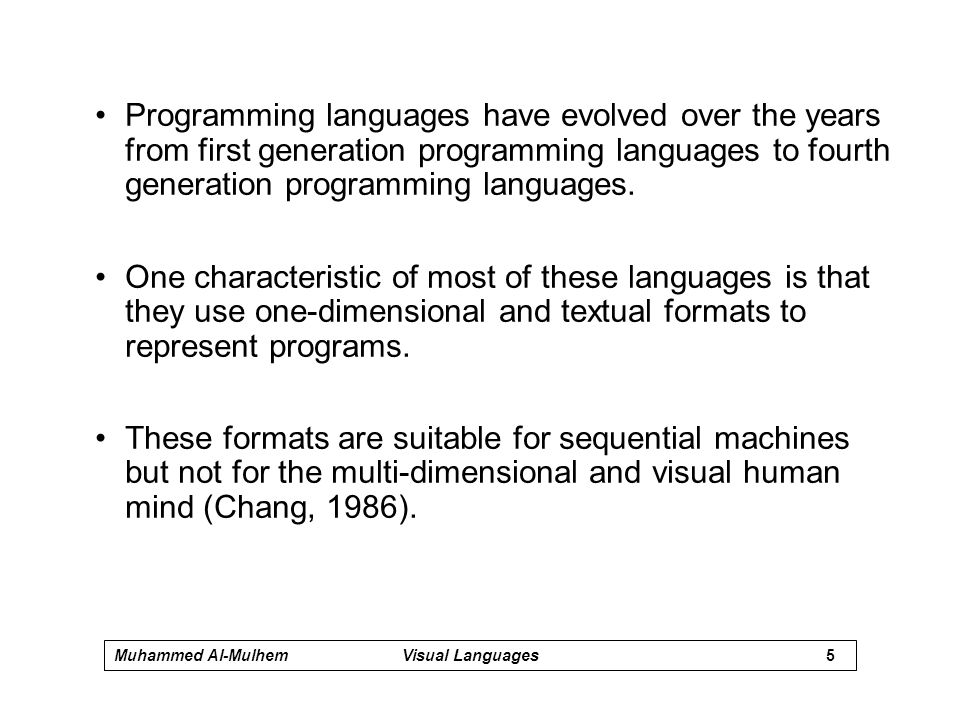

5. 5 Muhammed Al-MulhemVisual Languages Programming languages have evolved over the years from first generation programming languages to fourth generation programming languages. One characteristic of most of these languages is that they use one-dimensional and textual formats to represent programs. These formats are suitable for sequential machines but not for the multi-dimensional and visual human mind (Chang, 1986).

6. 6 Muhammed Al-MulhemVisual Languages Visual programming is an attempt to simplify programming and to make better use of the human mind's capabilities George Raeder states "... human mind is strongly visually oriented and that people acquire information at a significantly higher rate by discovering graphical relationships in complex pictures than by reading text.... When we scan paragraph, headlines, and material in bold type to speed up text search, we are really acting in the pictorial mode to overcome this limitation" (Raeder, 1985).

7. 7 Muhammed Al-MulhemVisual Languages Visual programming represents a conceptually revolutionary departure from the traditional one- dimensional and textual programming languages. It is stimulated by the following premises: 1) Pictures are more powerful than words as a means of communication. They can convey more meaning in a more concise unit of expression. 2) Pictures aid understanding and remembering. 3) Pictures may provide an incentives for learning program.

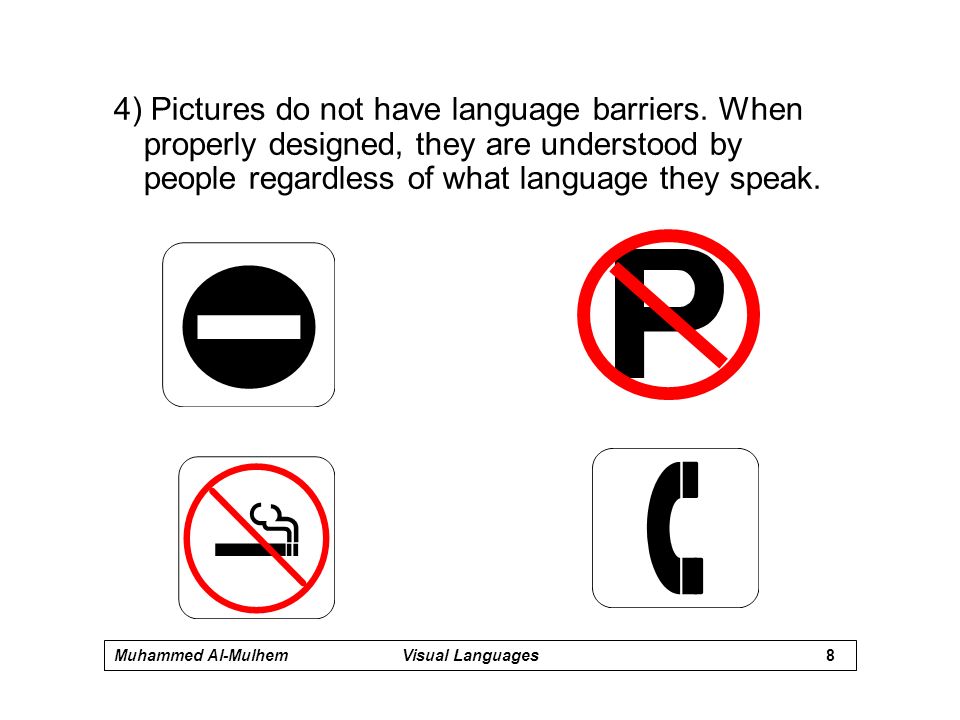

8. 8 Muhammed Al-MulhemVisual Languages 4) Pictures do not have language barriers. When properly designed, they are understood by people regardless of what language they speak.

9. 9 Muhammed Al-MulhemVisual Languages Visual programming has gained momentum in recent years. The falling costs of graphics-related hardware and software has made it feasible to use pictures as a mean of communicating with the computers. Visual programming is a very young but growing field. There is no common agreement on the definition of visual programming.

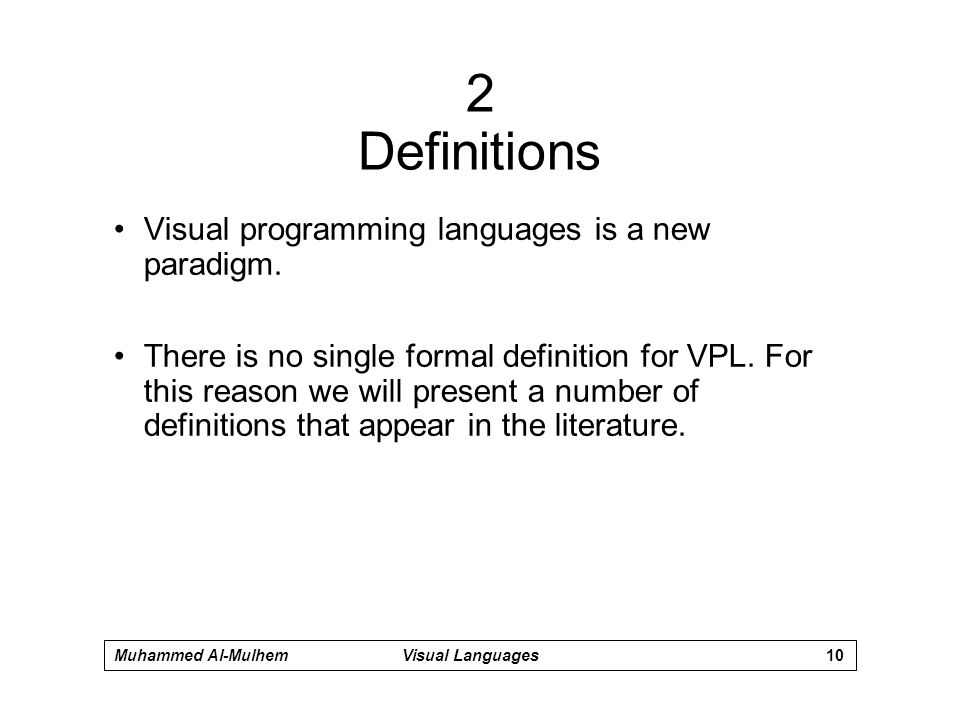

10. 10 Muhammed Al-MulhemVisual Languages 2 Definitions Visual programming languages is a new paradigm. There is no single formal definition for VPL. For this reason we will present a number of definitions that appear in the literature.

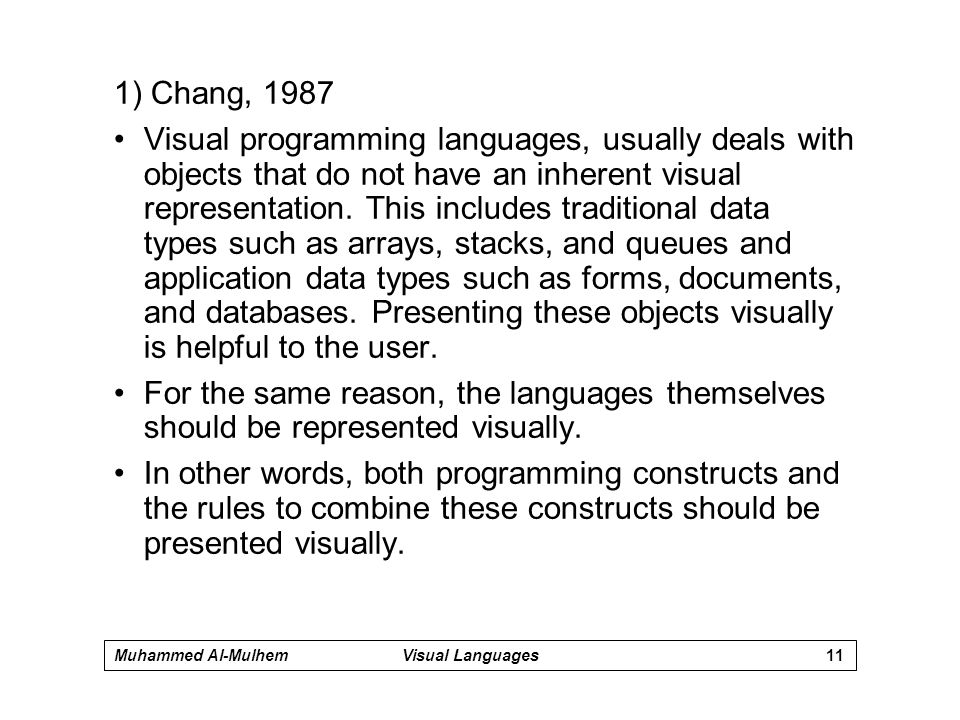

11. 11 Muhammed Al-MulhemVisual Languages 1) Chang, 1987 Visual programming languages, usually deals with objects that do not have an inherent visual representation. This includes traditional data types such as arrays, stacks, and queues and application data types such as forms, documents, and databases. Presenting these objects visually is helpful to the user. For the same reason, the languages themselves should be represented visually. In other words, both programming constructs and the rules to combine these constructs should be presented visually.

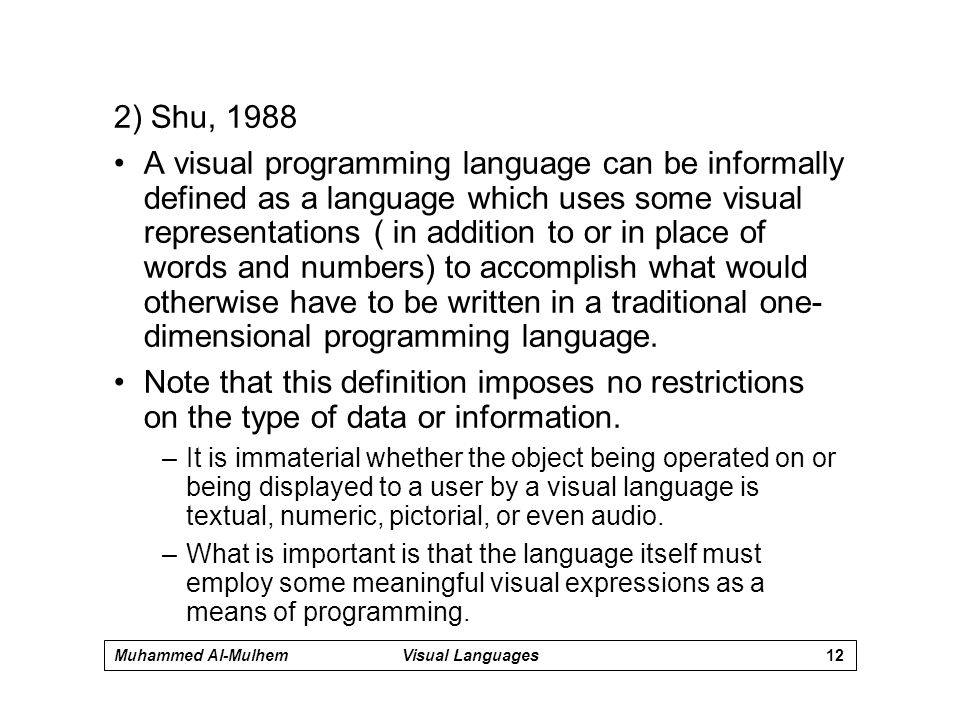

12. 12 Muhammed Al-MulhemVisual Languages 2) Shu, 1988 A visual programming language can be informally defined as a language which uses some visual representations ( in addition to or in place of words and numbers) to accomplish what would otherwise have to be written in a traditional one- dimensional programming language. Note that this definition imposes no restrictions on the type of data or information. –It is immaterial whether the object being operated on or being displayed to a user by a visual language is textual, numeric, pictorial, or even audio. –What is important is that the language itself must employ some meaningful visual expressions as a means of programming.

13. 13 Muhammed Al-MulhemVisual Languages 3) Tortora, 1990 A visual language models an icon system. In the icon system, a program consists of a spatial arrangement of pictorial symbols ( elementary icons ). Note that, the spatial arrangement is the two- dimensional counterpart of the sequential statements in the traditional programming languages. –In these languages, a program consists of a string in which terminals are concatenated. –Concatenation is the only construction rule, therefore it doesn’t appear in the language grammar.

14. 14 Muhammed Al-MulhemVisual Languages In the case of visual languages, three construction rules are used to spatially arrange icons: –Horizontal concatenation. –Vertical concatenation. –Spatial overlay. For this reason, there is a need to include both spatial operators and elementary icons in the vocabulary of terminal symbols of the visual language grammar. Elementary icons are partitioned into two categories: –Object icons which identify objects. –Process icons which express computation.

15. 15 Muhammed Al-MulhemVisual Languages 4) Al-Mulhem, 1993 Visual programming languages is a language which uses a combination of text and meaningful graphical symbols to write programs. These graphical/textual symbols represent the following: a) Data types such as numbers, characters, pictures, and sound. b) Data structures such as arrays, records, and pointers. c) Programming constructs such as iteration, selection, and conditional looping. d) Rules to combine the programming constructs.

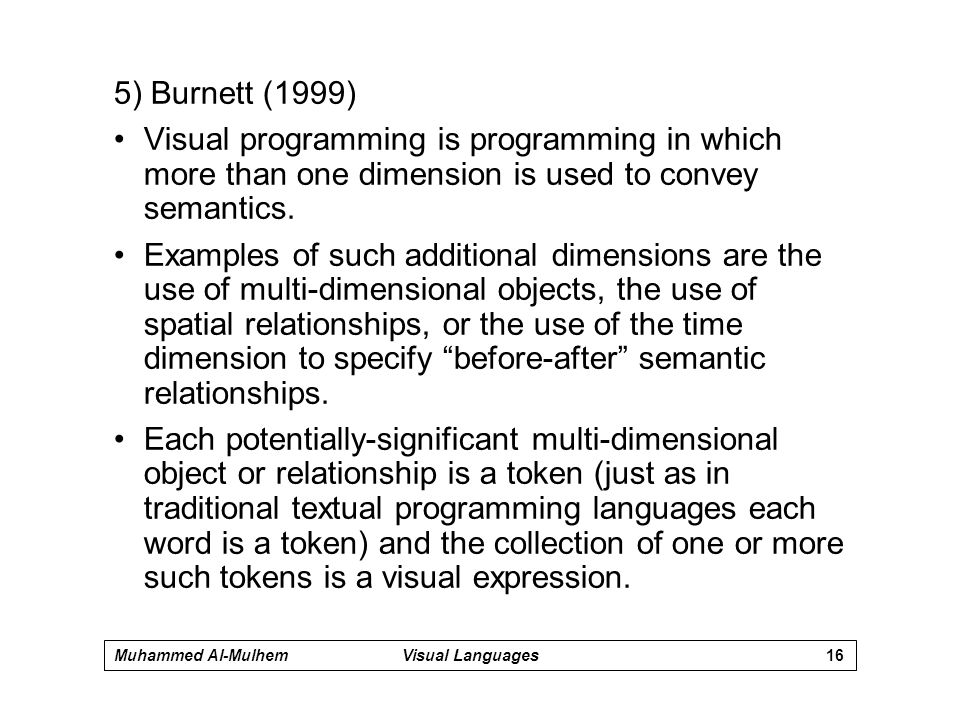

16. 16 Muhammed Al-MulhemVisual Languages 5) Burnett (1999) Visual programming is programming in which more than one dimension is used to convey semantics. Examples of such additional dimensions are the use of multi-dimensional objects, the use of spatial relationships, or the use of the time dimension to specify “before-after” semantic relationships. Each potentially-significant multi-dimensional object or relationship is a token (just as in traditional textual programming languages each word is a token) and the collection of one or more such tokens is a visual expression.

17. 17 Muhammed Al-MulhemVisual Languages Examples of visual expressions used in visual programming include diagrams, free-hand sketches, icons, or demonstrations of actions performed by graphical objects. When a programming language’s syntax includes visual expressions, the programming language is a visual programming language (VPL).

18. 18 Muhammed Al-MulhemVisual Languages Approaches Approaches of research are (Burnett 1999) : 1.Visual approaches to traditional programming languages (executable flowchart). 2.Visual approaches that deviated from traditional programming (programming by demonstration).

19. 19 Muhammed Al-MulhemVisual Languages How good are they? Good for toy programs. Bad for realistically-sized programs.

20. 20 Muhammed Al-MulhemVisual Languages More approaches 3.Use VP for selected parts of software development such as: –Incorporating visual techniques into programming environments: –To support textual specification of GUI layout –To support electronic forms of software engineering diagrams. –To create/visualize relationships among data structures. –To visually combine textually-programmed units to build new programs.

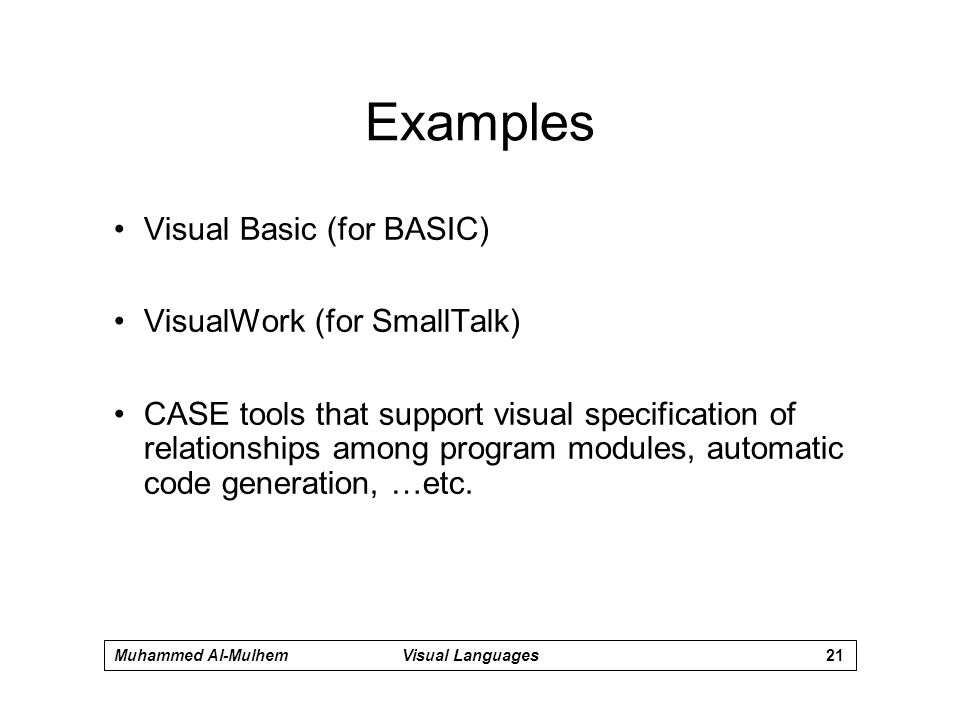

21. 21 Muhammed Al-MulhemVisual Languages Examples Visual Basic (for BASIC) VisualWork (for SmallTalk) CASE tools that support visual specification of relationships among program modules, automatic code generation, …etc.

22. 22 Muhammed Al-MulhemVisual Languages More approaches 4.Domain-specific visual programming systems Examples: LabVIEW – programming laboratory data acquestion. AVS – programming Scientific Visualization PhonePro – programming telephone and voice-mail behavior. Cocoa – programming graphical simulations and games.

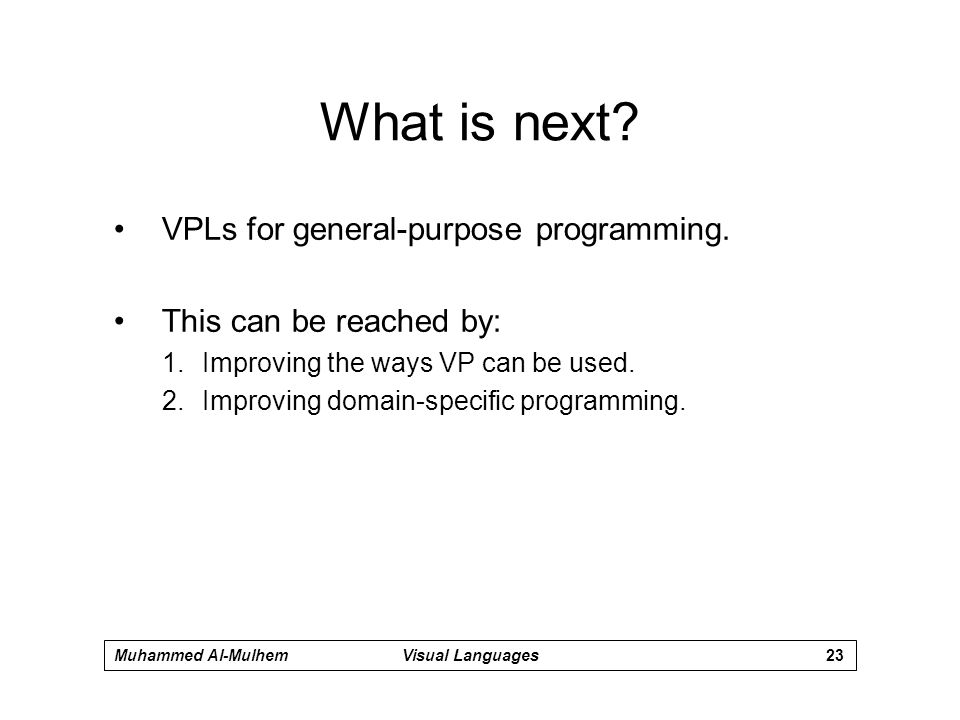

23. 23 Muhammed Al-MulhemVisual Languages What is next? VPLs for general-purpose programming. This can be reached by: 1.Improving the ways VP can be used. 2.Improving domain-specific programming.

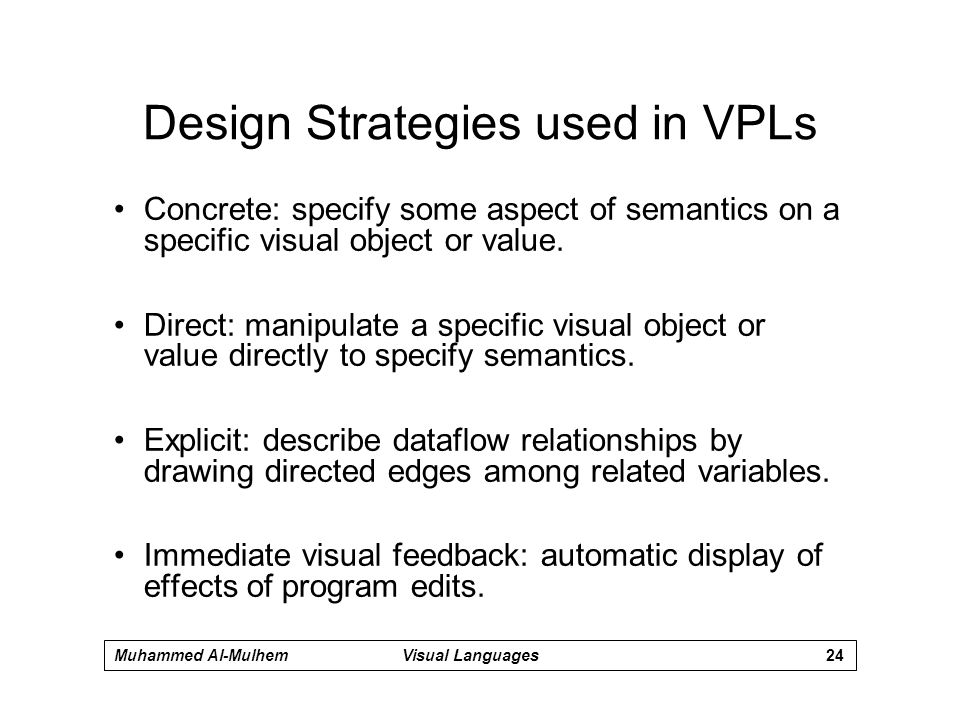

24. 24 Muhammed Al-MulhemVisual Languages Design Strategies used in VPLs Concrete: specify some aspect of semantics on a specific visual object or value. Direct: manipulate a specific visual object or value directly to specify semantics. Explicit: describe dataflow relationships by drawing directed edges among related variables. Immediate visual feedback: automatic display of effects of program edits.

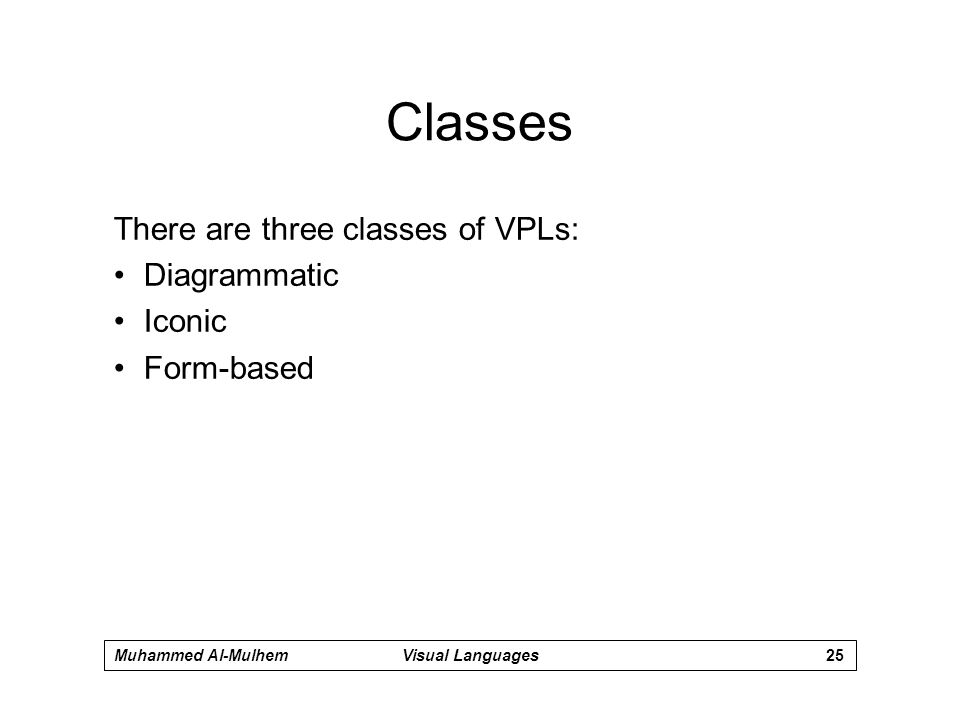

25. 25 Muhammed Al-MulhemVisual Languages Classes There are three classes of VPLs: Diagrammatic Iconic Form-based

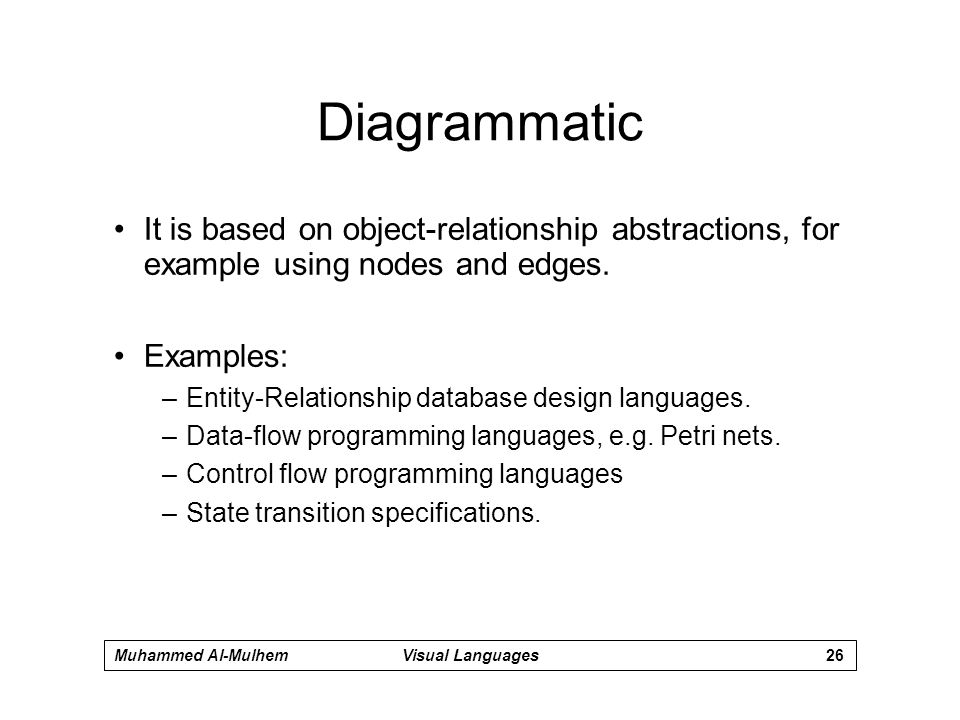

26. 26 Muhammed Al-MulhemVisual Languages Diagrammatic It is based on object-relationship abstractions, for example using nodes and edges. Examples: –Entity-Relationship database design languages. –Data-flow programming languages, e.g. Petri nets. –Control flow programming languages –State transition specifications.

27. 27 Muhammed Al-MulhemVisual Languages Iconic It is based on iconic theory of Chang, 1987. Icon is an object with the dual representation of: –logical part (the meaning) –Physical part (the image) iconic system is a structured set of related icons. iconic sentence (visual sentence) is a spatial arrangement of icons from iconic system. visual language is a set of iconic sentences constructed with given syntax and semantics.

28. 28 Muhammed Al-MulhemVisual Languages Form-based programming Borrowed their visualizations and programming metaphors from a spreadsheets. Represent programming as altering a group of interconnected cells over time and often allow the programmer to visualize the execution of a program as a sequence of different cell states which progress through time. Example: Forms/3

29. 29 Muhammed Al-MulhemVisual Languages Types of VPLs 1.Pure visual programming 2.Hybrid (textual / visual) programming 3.Programming-by-example 4.Constraint-based programming

30. 30 Muhammed Al-MulhemVisual Languages Pure visual programming Programmer manipulate icons to create a program. A program is debugged and executed in the same visual environment. A program is compiled directly from its visual representation. A program is never translated into intermediate text-based language. Examples: Prograph, VIPR, and PICT.

31. 31 Muhammed Al-MulhemVisual Languages Hybrid (textual / visual) programming Two forms: 1. Systems in which programs are created visually and then translated into an underlying high-level textual languages. Example: Rehearsal World – the user trains the system to solve a particular problem by manipulating graphical actors (icons) and then the system generates a Smalltalk program to implement the solution.

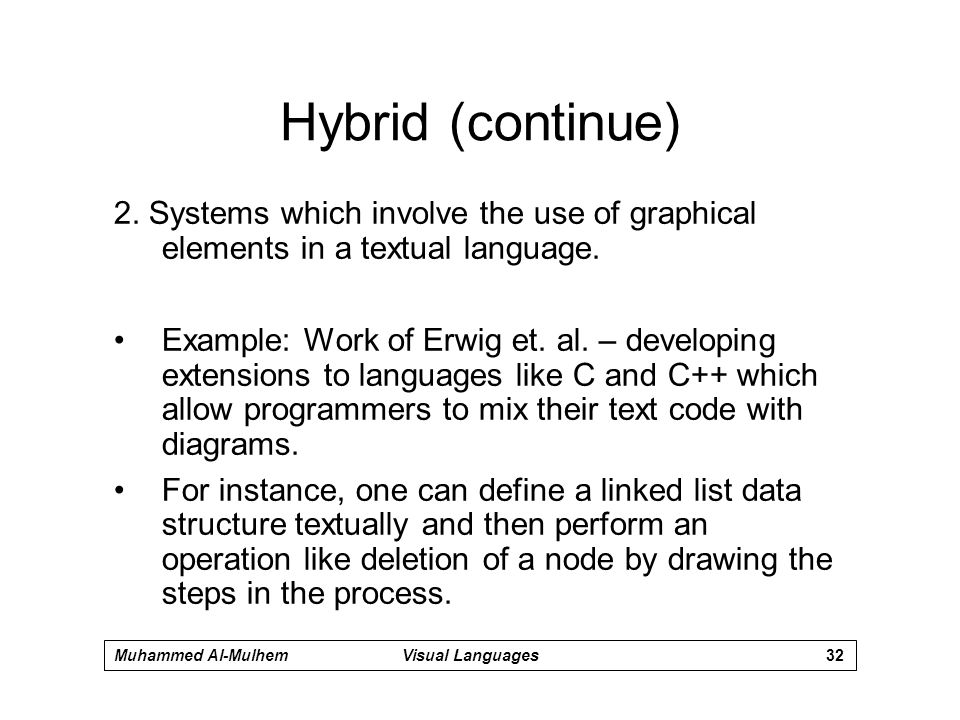

32. 32 Muhammed Al-MulhemVisual Languages Hybrid (continue) 2. Systems which involve the use of graphical elements in a textual language. Example: Work of Erwig et. al. – developing extensions to languages like C and C++ which allow programmers to mix their text code with diagrams. For instance, one can define a linked list data structure textually and then perform an operation like deletion of a node by drawing the steps in the process.

33. 33 Muhammed Al-MulhemVisual Languages Programming by example Allowing the user to create and manipulate graphical objects with which to teach the system how to perform a particular task. Examples: Rehearsal World and Pygmalion

34. 34 Muhammed Al-MulhemVisual Languages Constraint-oriented programming A programmer models physical objects as objects in the visual environment which are subject to constraints designed to mimic the behavior of natural laws, like gravity. Popular for simulation design. Examples: ThingLab, ARK

35. 35 Muhammed Al-MulhemVisual Languages VPL Orphans Algorithm animation systems –Provides interactive graphical displays of executing programs –Example: BALSA user-interface design systems –Provided with many modern compilers. –Example: Visual Basic, Visual C++
