1. VCC Case Study: Single-lane Bridge Problem Summer School on Software Engineering and Verification (SSSEV) July 17-27, Moscow, Russia Mentors: Stephan Tobies John Wickerson Formal2Normal team: Andrey Dereza * Anatoliy Gorbenko ** Lyubov Reva ** Leanid Vaitsekhovich*** Oleg Illiashenko ** Oleksii Starov** _________________________________________________________ * - Caddiesoft, Ukraine ** - National Aerospace University “KhAI”, Ukraine *** - Brest State Technical University, Belarus

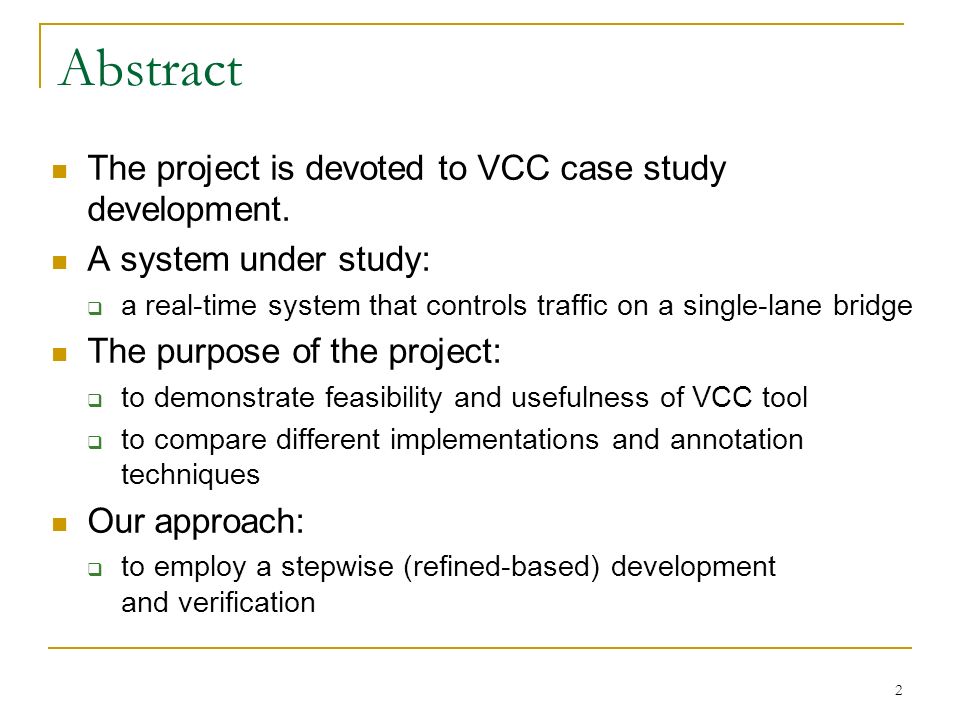

2. Abstract The project is devoted to VCC case study development. A system under study:  a real-time system that controls traffic on a single-lane bridge The purpose of the project:  to demonstrate feasibility and usefulness of VCC tool  to compare different implementations and annotation techniques Our approach:  to employ a stepwise (refined-based) development and verification 2

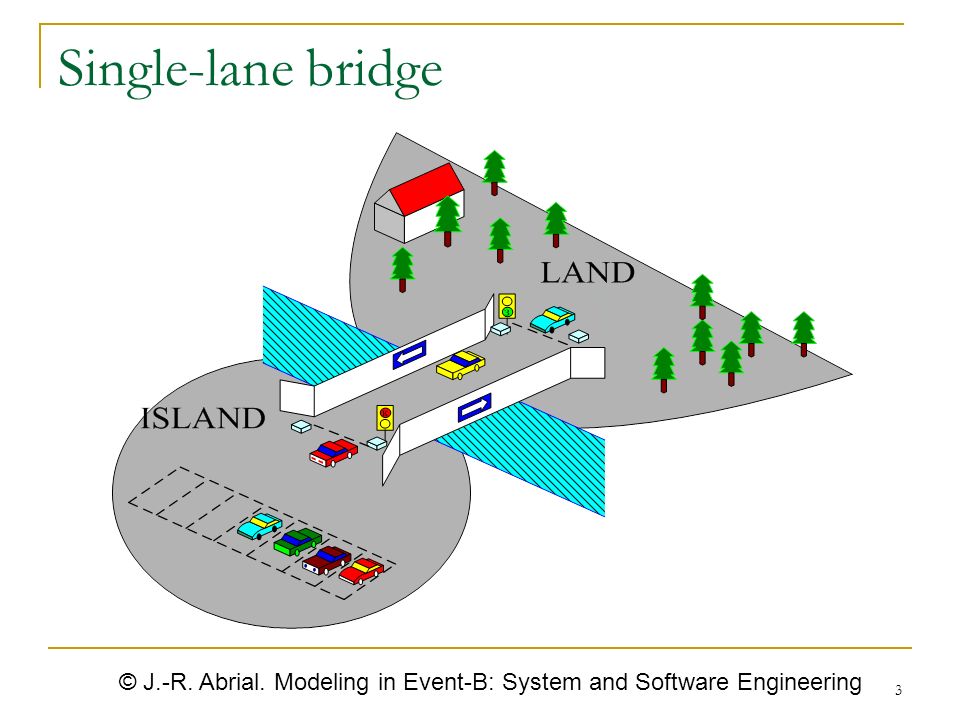

3. Single-lane bridge © J.-R. Abrial. Modeling in Event-B: System and Software Engineering 3

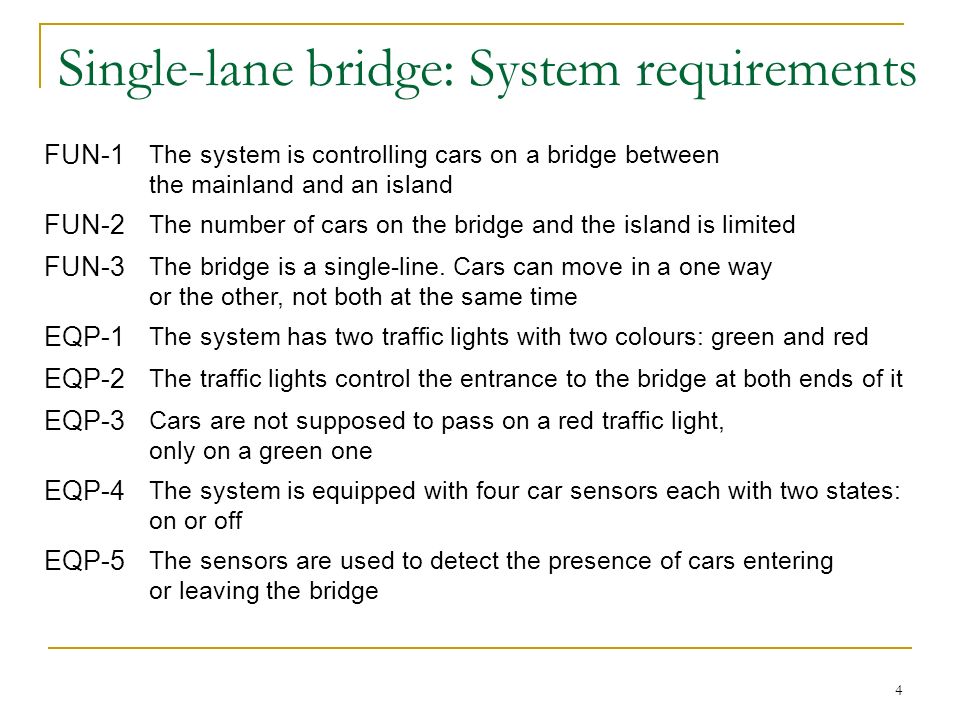

4. Single-lane bridge: System requirements FUN-1 The system is controlling cars on a bridge between the mainland and an island FUN-2 The number of cars on the bridge and the island is limited FUN-3 The bridge is a single-line. Cars can move in a one way or the other, not both at the same time EQP-1 The system has two traffic lights with two colours: green and red EQP-2 The traffic lights control the entrance to the bridge at both ends of it EQP-3 Cars are not supposed to pass on a red traffic light, only on a green one EQP-4 The system is equipped with four car sensors each with two states: on or off EQP-5 The sensors are used to detect the presence of cars entering or leaving the bridge 4

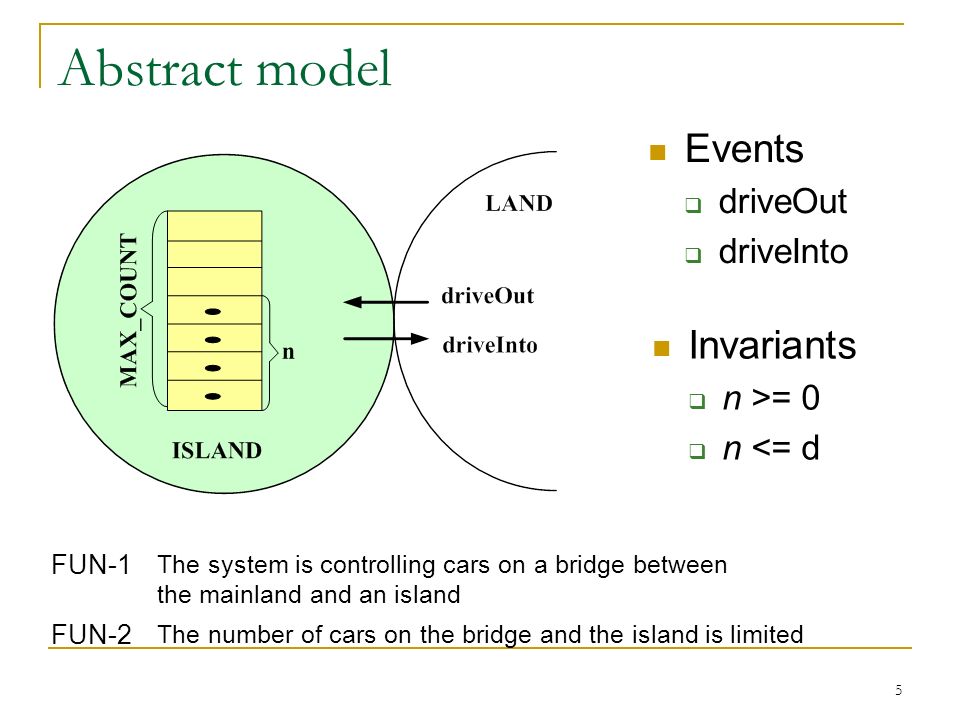

5. Abstract model Invariants  n >= 0  n <= d Events  driveOut  driveInto FUN-1 The system is controlling cars on a bridge between the mainland and an island FUN-2 The number of cars on the bridge and the island is limited 5

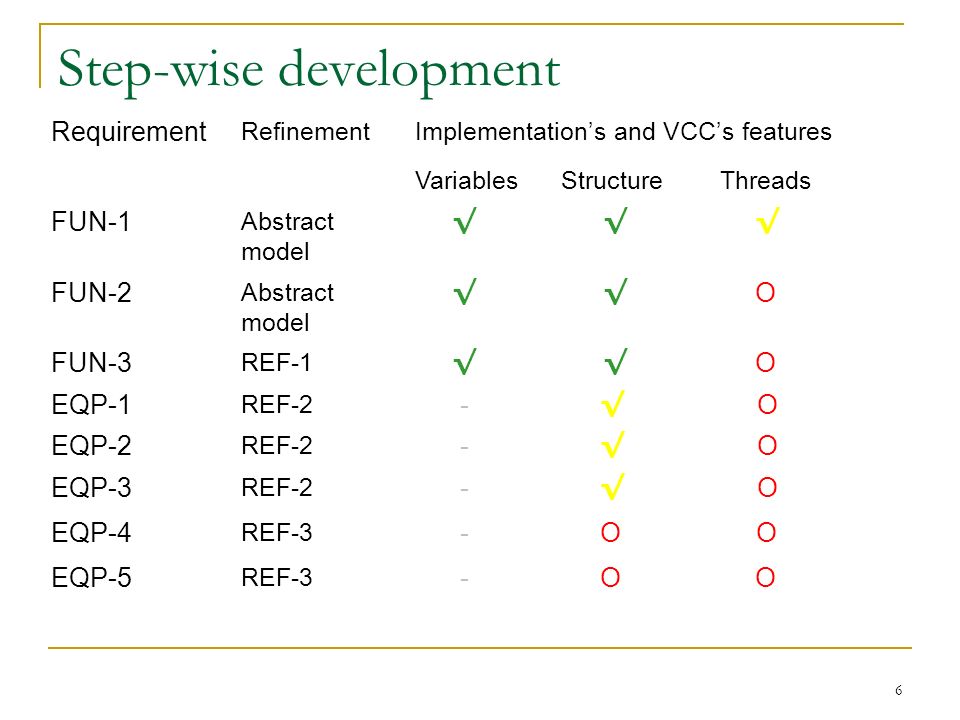

6. Step-wise development Requirement RefinementImplementation’s and VCC’s features Variables Structure Threads FUN-1 Abstract model √ √ √ FUN-2 Abstract model √ √ O FUN-3 REF-1 √ √ O EQP-1 REF-2 - √ O EQP-2 REF-2 - √ O EQP-3 REF-2 - √ O EQP-4 REF-3 - O O EQP-5 REF-3 - O O 6

7. VCC implementation using Variables #include #define MAX_COUNT 100 int driveInto(unsigned *pn) _(requires (*pn) >= 0 && (*pn) <= MAX_COUNT) _(writes pn) _(ensures (*pn) >= 0 && (*pn) <= MAX_COUNT) { if ((*pn) < MAX_COUNT) { (*pn)++; return 1; } return 0; } int driveOut(unsigned *pn) _(requires (*pn) >= 0 && (*pn) <= MAX_COUNT) _(writes pn) _(ensures (*pn) >= 0 && (*pn) <= MAX_COUNT) { if ((*pn) > 0) { (*pn)--; return 1; } return 0; } 7

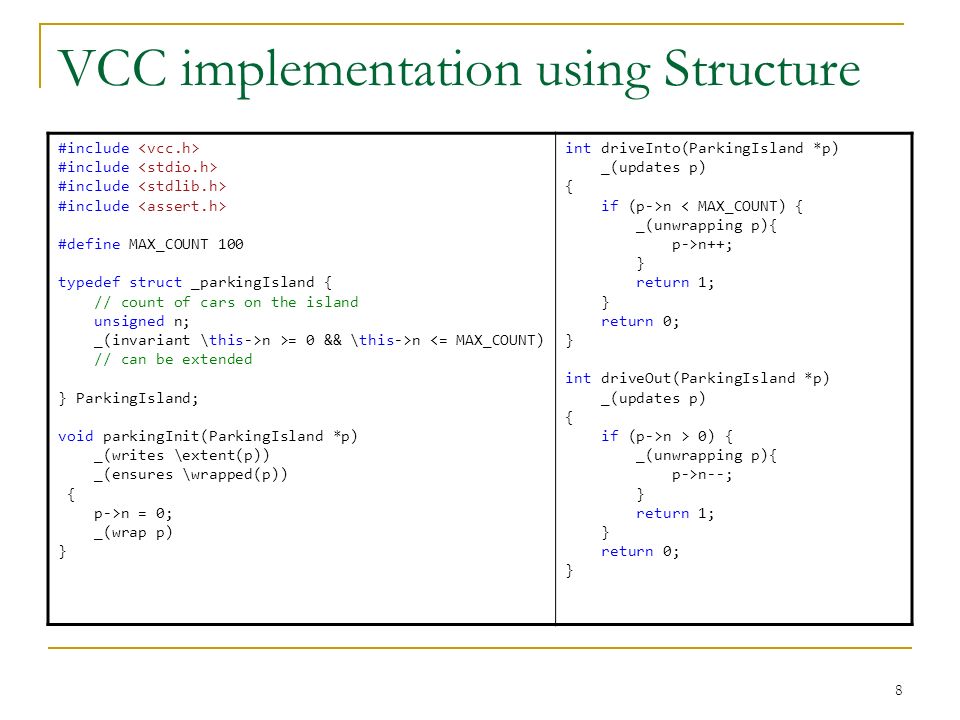

8. VCC implementation using Structure #include #define MAX_COUNT 100 typedef struct _parkingIsland { // count of cars on the island unsigned n; _(invariant \this->n >= 0 && \this->n <= MAX_COUNT) // can be extended } ParkingIsland; void parkingInit(ParkingIsland *p) _(writes \extent(p)) _(ensures \wrapped(p)) { p->n = 0; _(wrap p) } int driveInto(ParkingIsland *p) _(updates p) { if (p->n < MAX_COUNT) { _(unwrapping p){ p->n++; } return 1; } return 0; } int driveOut(ParkingIsland *p) _(updates p) { if (p->n > 0) { _(unwrapping p){ p->n--; } return 1; } return 0; } 8

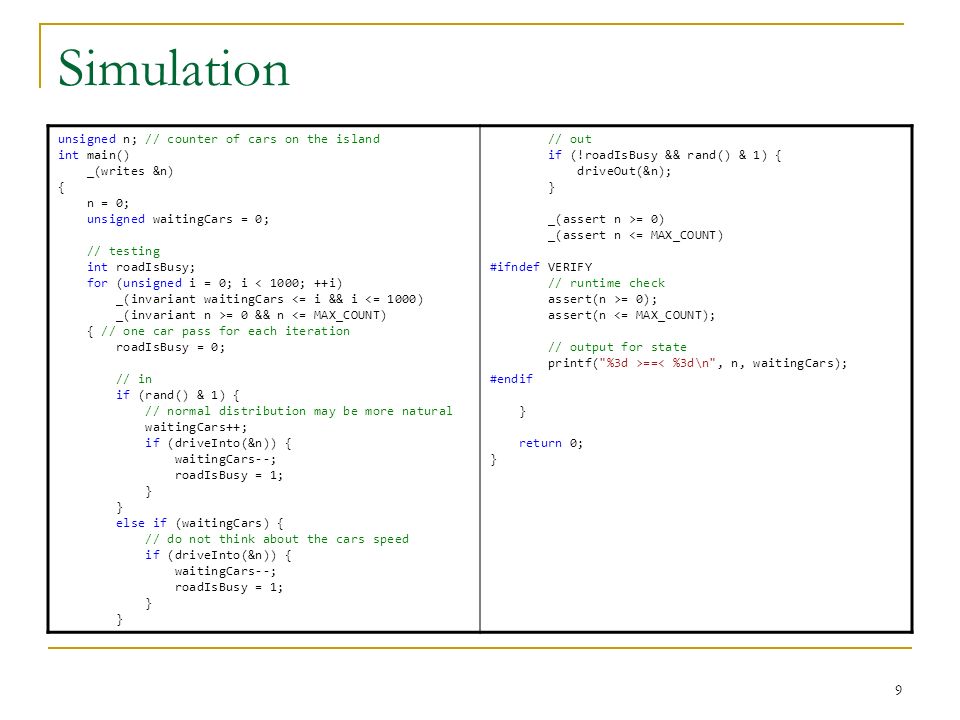

9. Simulation unsigned n; // counter of cars on the island int main() _(writes &n) { n = 0; unsigned waitingCars = 0; // testing int roadIsBusy; for (unsigned i = 0; i < 1000; ++i) _(invariant waitingCars <= i && i <= 1000) _(invariant n >= 0 && n <= MAX_COUNT) { // one car pass for each iteration roadIsBusy = 0; // in if (rand() & 1) { // normal distribution may be more natural waitingCars++; if (driveInto(&n)) { waitingCars--; roadIsBusy = 1; } else if (waitingCars) { // do not think about the cars speed if (driveInto(&n)) { waitingCars--; roadIsBusy = 1; } // out if (!roadIsBusy && rand() & 1) { driveOut(&n); } _(assert n >= 0) _(assert n <= MAX_COUNT) #ifndef VERIFY // runtime check assert(n >= 0); assert(n <= MAX_COUNT); // output for state printf("%3d >==< %3d\n", n, waitingCars); #endif } return 0; } 9

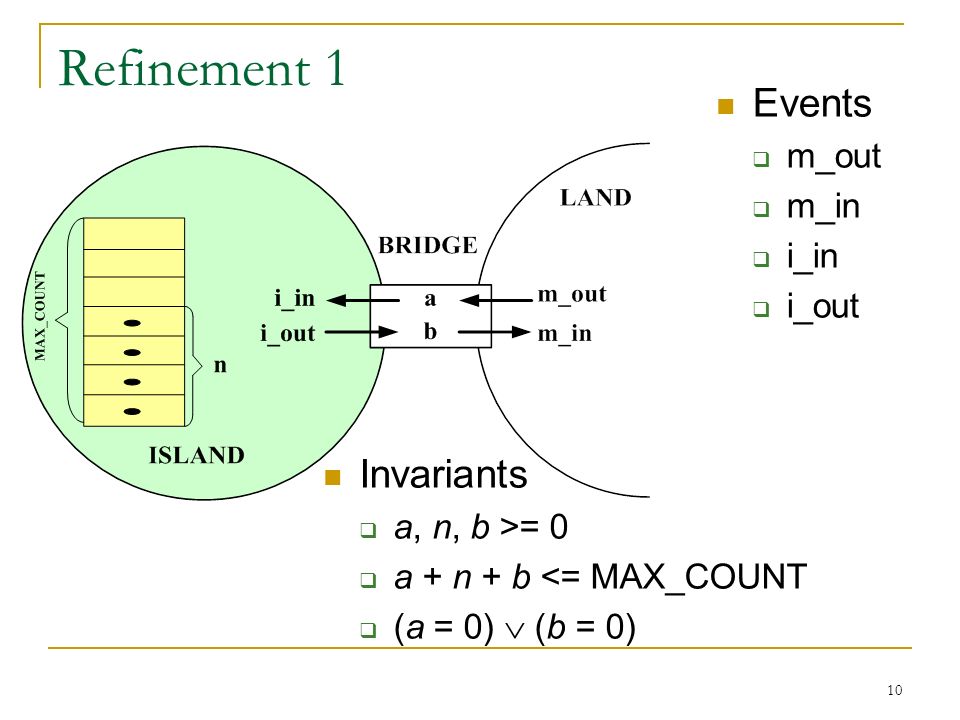

10. Refinement 1 Invariants  a, n, b >= 0  a + n + b <= MAX_COUNT  (a = 0)  (b = 0) Events  m_out  m_in  i_in  i_out 10

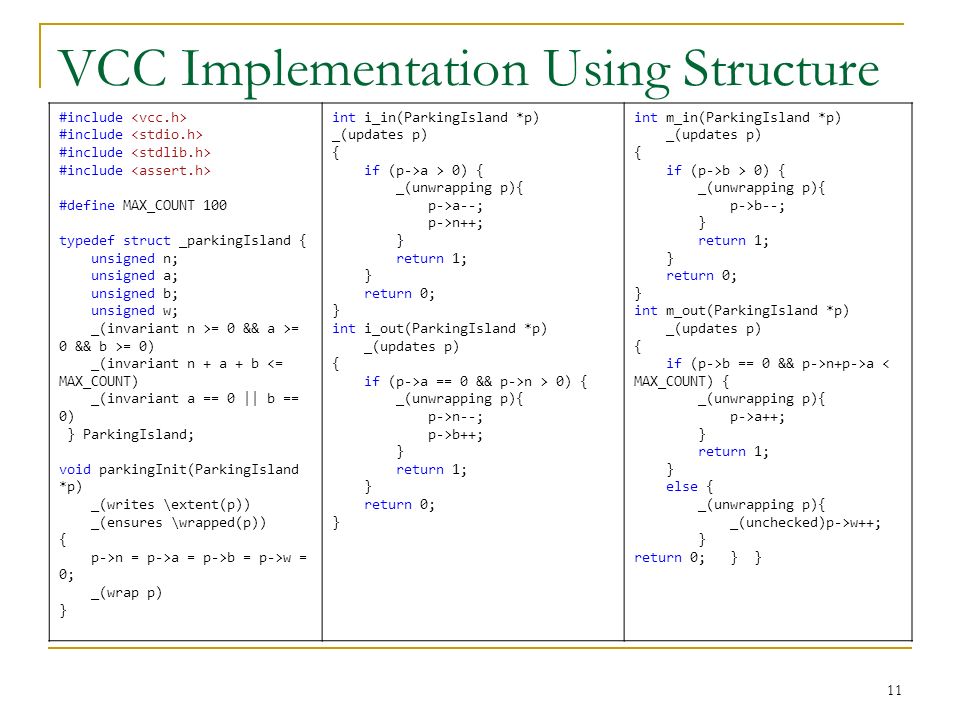

11. VCC Implementation Using Structure #include #define MAX_COUNT 100 typedef struct _parkingIsland { unsigned n; unsigned a; unsigned b; unsigned w; _(invariant n >= 0 && a >= 0 && b >= 0) _(invariant n + a + b <= MAX_COUNT) _(invariant a == 0 || b == 0) } ParkingIsland; void parkingInit(ParkingIsland *p) _(writes \extent(p)) _(ensures \wrapped(p)) { p->n = p->a = p->b = p->w = 0; _(wrap p) } int i_in(ParkingIsland *p) _(updates p) { if (p->a > 0) { _(unwrapping p){ p->a--; p->n++; } return 1; } return 0; } int i_out(ParkingIsland *p) _(updates p) { if (p->a == 0 && p->n > 0) { _(unwrapping p){ p->n--; p->b++; } return 1; } return 0; } int m_in(ParkingIsland *p) _(updates p) { if (p->b > 0) { _(unwrapping p){ p->b--; } return 1; } return 0; } int m_out(ParkingIsland *p) _(updates p) { if (p->b == 0 && p->n+p->a < MAX_COUNT) { _(unwrapping p){ p->a++; } return 1; } else { _(unwrapping p){ _(unchecked)p->w++; } return 0; } } 11

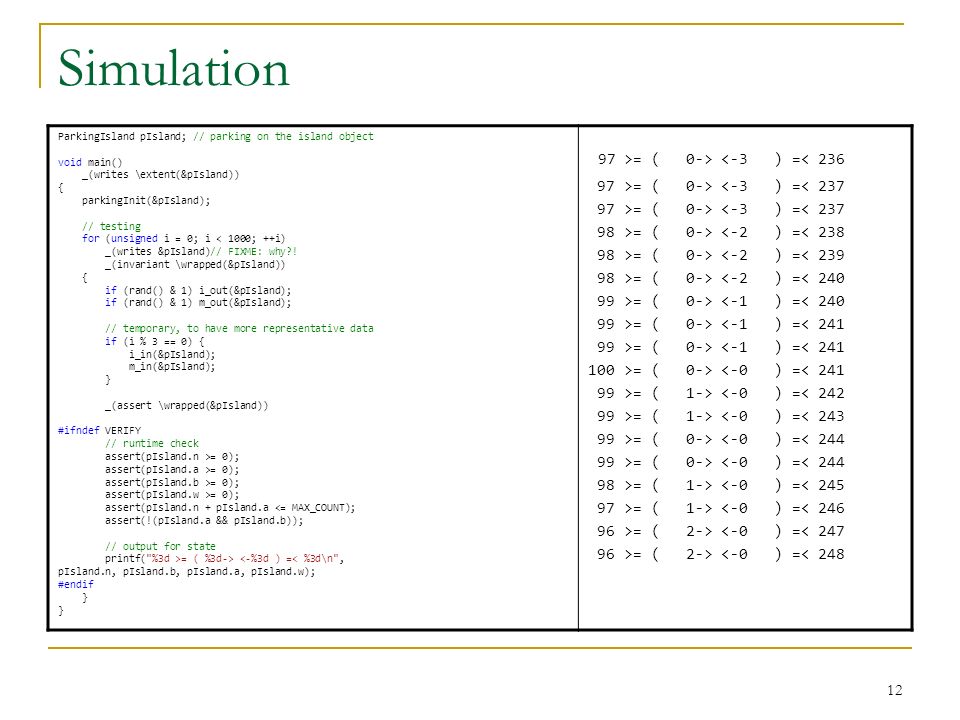

12. Simulation ParkingIsland pIsland; // parking on the island object void main() _(writes \extent(&pIsland)) { parkingInit(&pIsland); // testing for (unsigned i = 0; i < 1000; ++i) _(writes &pIsland)// FIXME: why?! _(invariant \wrapped(&pIsland)) { if (rand() & 1) i_out(&pIsland); if (rand() & 1) m_out(&pIsland); // temporary, to have more representative data if (i % 3 == 0) { i_in(&pIsland); m_in(&pIsland); } _(assert \wrapped(&pIsland)) #ifndef VERIFY // runtime check assert(pIsland.n >= 0); assert(pIsland.a >= 0); assert(pIsland.b >= 0); assert(pIsland.w >= 0); assert(pIsland.n + pIsland.a <= MAX_COUNT); assert(!(pIsland.a && pIsland.b)); // output for state printf("%3d >= ( %3d-> <-%3d ) =< %3d\n", pIsland.n, pIsland.b, pIsland.a, pIsland.w); #endif } 97 >= ( 0-> <-3 ) =< 236 97 >= ( 0-> <-3 ) =< 237 98 >= ( 0-> <-2 ) =< 238 98 >= ( 0-> <-2 ) =< 239 98 >= ( 0-> <-2 ) =< 240 99 >= ( 0-> <-1 ) =< 240 99 >= ( 0-> <-1 ) =< 241 100 >= ( 0-> <-0 ) =< 241 99 >= ( 1-> <-0 ) =< 242 99 >= ( 1-> <-0 ) =< 243 99 >= ( 0-> <-0 ) =< 244 98 >= ( 1-> <-0 ) =< 245 97 >= ( 1-> <-0 ) =< 246 96 >= ( 2-> <-0 ) =< 247 96 >= ( 2-> <-0 ) =< 248 12

13. Refinement 2 Invariants  a, n, b >= 0  a + n + b <= MAX_COUNT  (a = 0)  (b = 0)  il_tl xor ml_tl  … Events  ML_out  ML_in  IN_in  IN_out 13

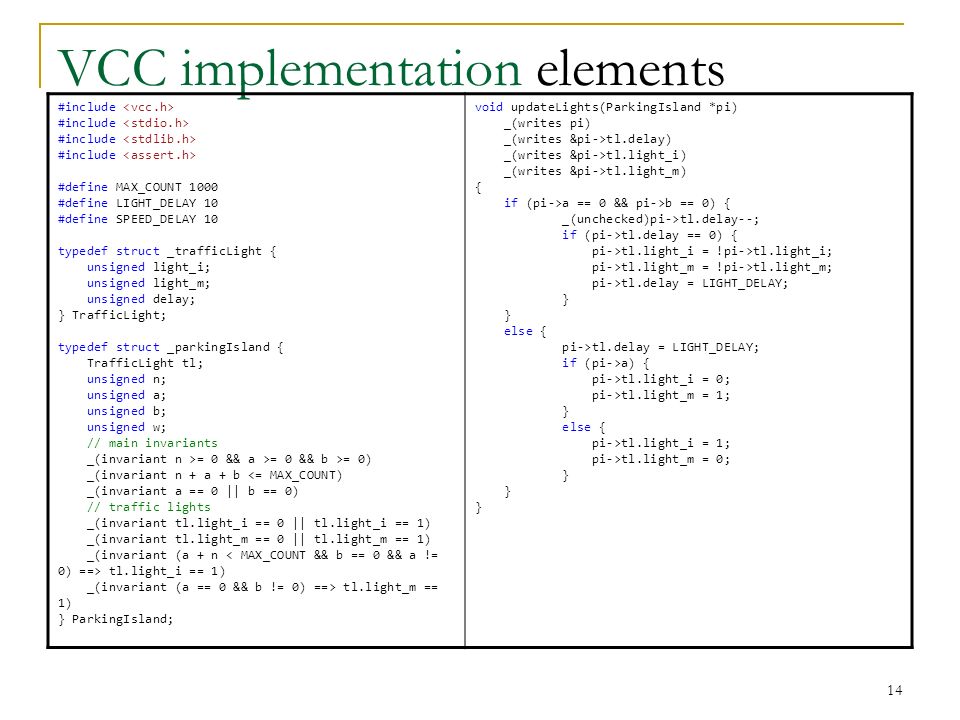

14. VCC implementation elements #include #define MAX_COUNT 1000 #define LIGHT_DELAY 10 #define SPEED_DELAY 10 typedef struct _trafficLight { unsigned light_i; unsigned light_m; unsigned delay; } TrafficLight; typedef struct _parkingIsland { TrafficLight tl; unsigned n; unsigned a; unsigned b; unsigned w; // main invariants _(invariant n >= 0 && a >= 0 && b >= 0) _(invariant n + a + b <= MAX_COUNT) _(invariant a == 0 || b == 0) // traffic lights _(invariant tl.light_i == 0 || tl.light_i == 1) _(invariant tl.light_m == 0 || tl.light_m == 1) _(invariant (a + n tl.light_i == 1) _(invariant (a == 0 && b != 0) ==> tl.light_m == 1) } ParkingIsland; void updateLights(ParkingIsland *pi) _(writes pi) _(writes &pi->tl.delay) _(writes &pi->tl.light_i) _(writes &pi->tl.light_m) { if (pi->a == 0 && pi->b == 0) { _(unchecked)pi->tl.delay--; if (pi->tl.delay == 0) { pi->tl.light_i = !pi->tl.light_i; pi->tl.light_m = !pi->tl.light_m; pi->tl.delay = LIGHT_DELAY; } else { pi->tl.delay = LIGHT_DELAY; if (pi->a) { pi->tl.light_i = 0; pi->tl.light_m = 1; } else { pi->tl.light_i = 1; pi->tl.light_m = 0; } 14

15. VCC implementation (next - atomic) #include #include "atomic.h" #define MAX_COUNT 100 typedef struct _parkingIsland { volatile unsigned n; _(invariant n == \old(n) || n == \old(n) + 1 || n == \old(n) - 1) _(invariant \this->n >= 0 && \this->n <= MAX_COUNT) } ParkingIsland; // todo int driveInto(ParkingIsland *p) { _(atomic p) { // todo } // todo } 15

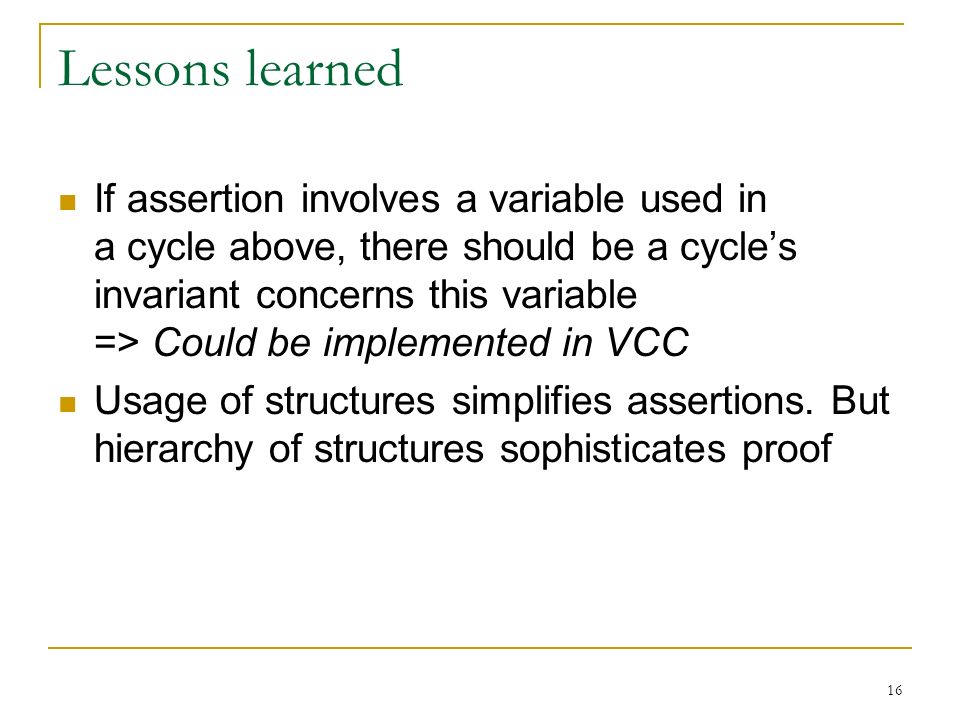

16. Lessons learned If assertion involves a variable used in a cycle above, there should be a cycle’s invariant concerns this variable => Could be implemented in VCC Usage of structures simplifies assertions. But hierarchy of structures sophisticates proof 16

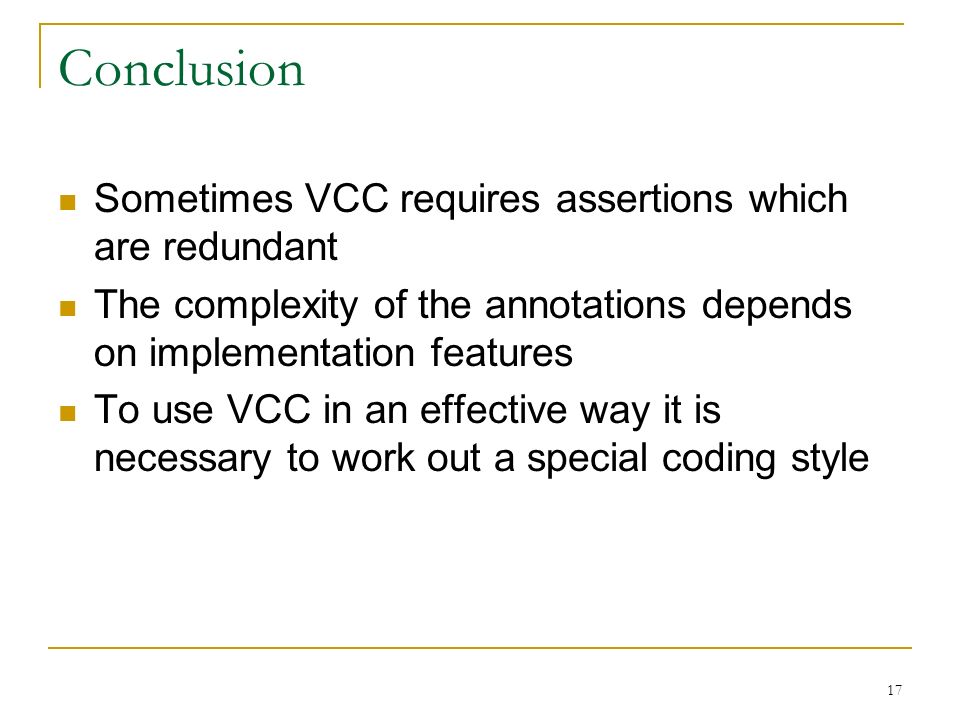

17. Conclusion Sometimes VСС requires assertions which are redundant The complexity of the annotations depends on implementation features To use VCC in an effective way it is necessary to work out a special coding style 17

18. Any questions? 18
