1. Inheritance and Design CSIS 3701: Advanced Object Oriented Programming

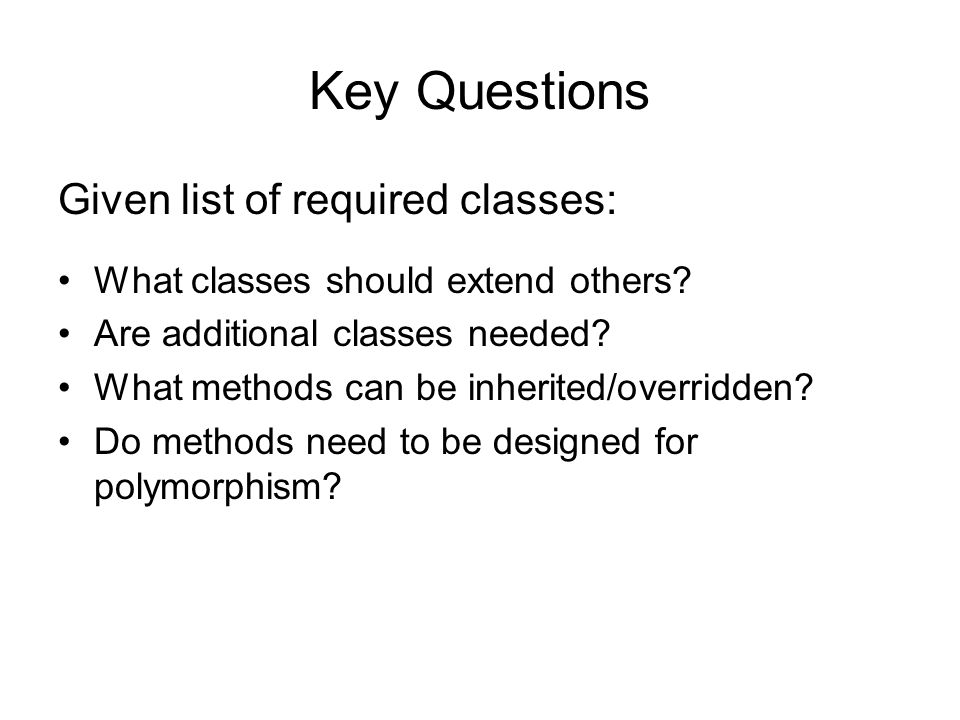

2. Key Questions Given list of required classes: What classes should extend others? Are additional classes needed? What methods can be inherited/overridden? Do methods need to be designed for polymorphism?

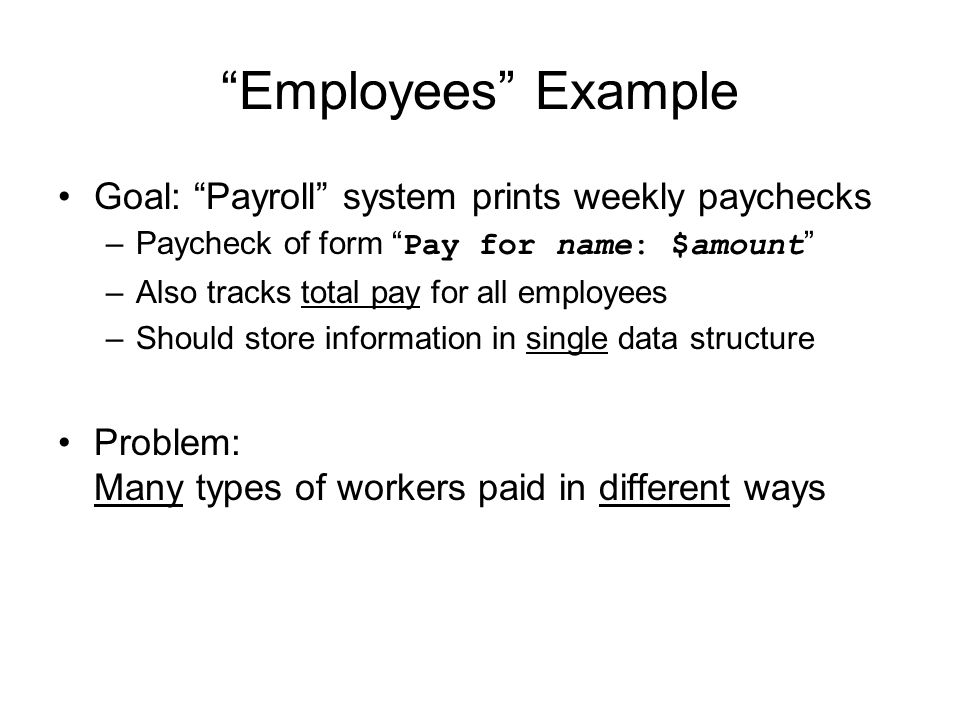

3. “Employees” Example Goal: “Payroll” system prints weekly paychecks –Paycheck of form “ Pay for name: $amount ” –Also tracks total pay for all employees –Should store information in single data structure Problem: Many types of workers paid in different ways

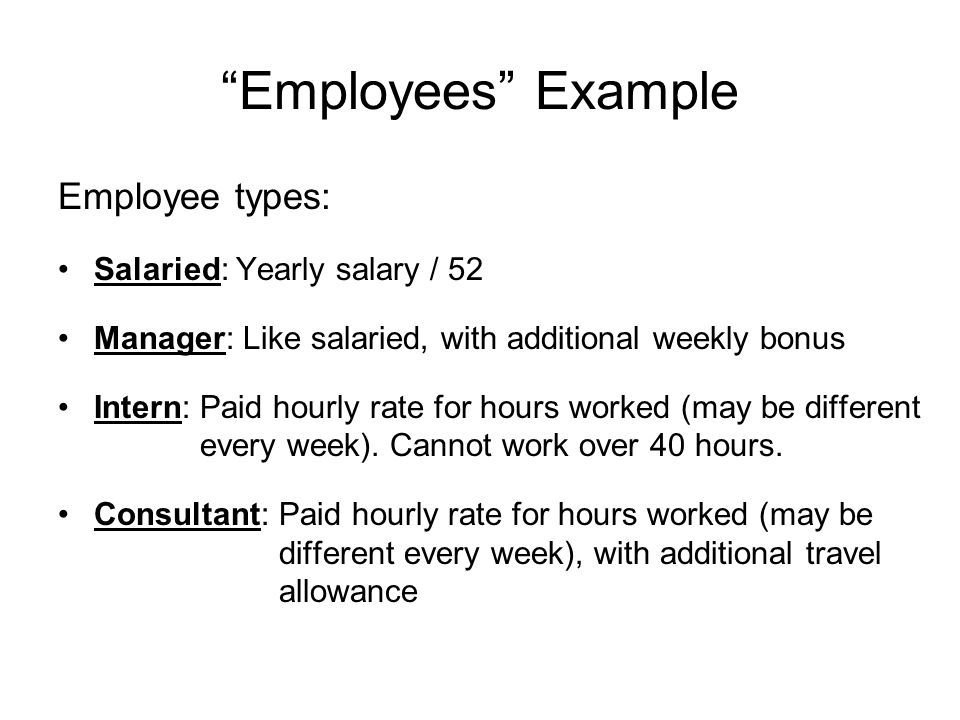

4. “Employees” Example Employee types: Salaried: Yearly salary / 52 Manager: Like salaried, with additional weekly bonus Intern: Paid hourly rate for hours worked (may be different every week). Cannot work over 40 hours. Consultant: Paid hourly rate for hours worked (may be different every week), with additional travel allowance

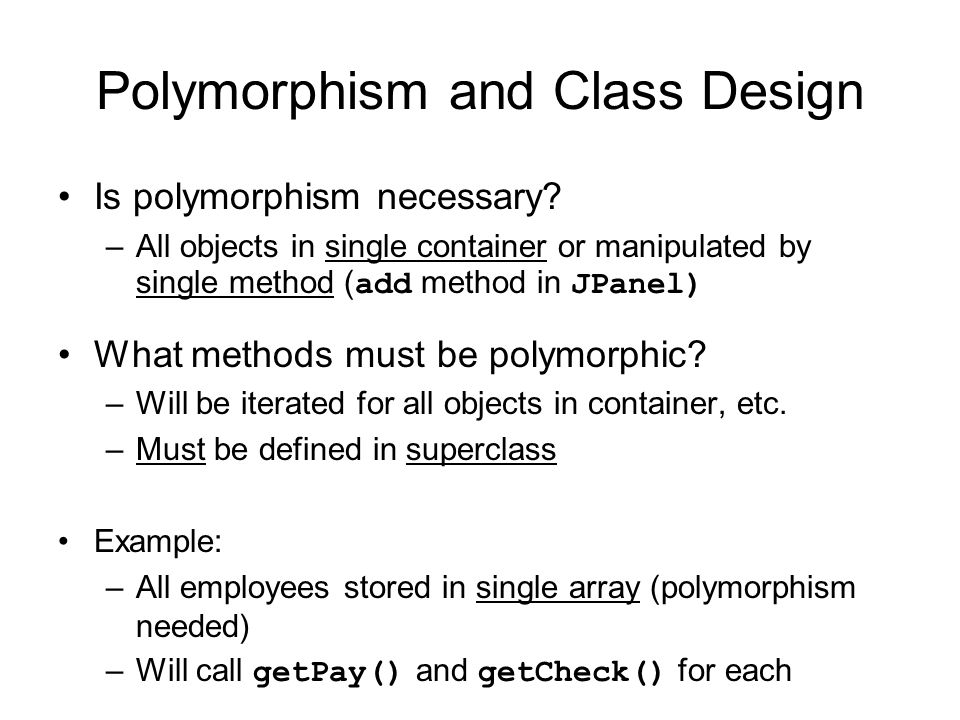

5. Polymorphism and Class Design Is polymorphism necessary? –All objects in single container or manipulated by single method ( add method in JPanel) What methods must be polymorphic? –Will be iterated for all objects in container, etc. –Must be defined in superclass Example: –All employees stored in single array (polymorphism needed) –Will call getPay() and getCheck() for each

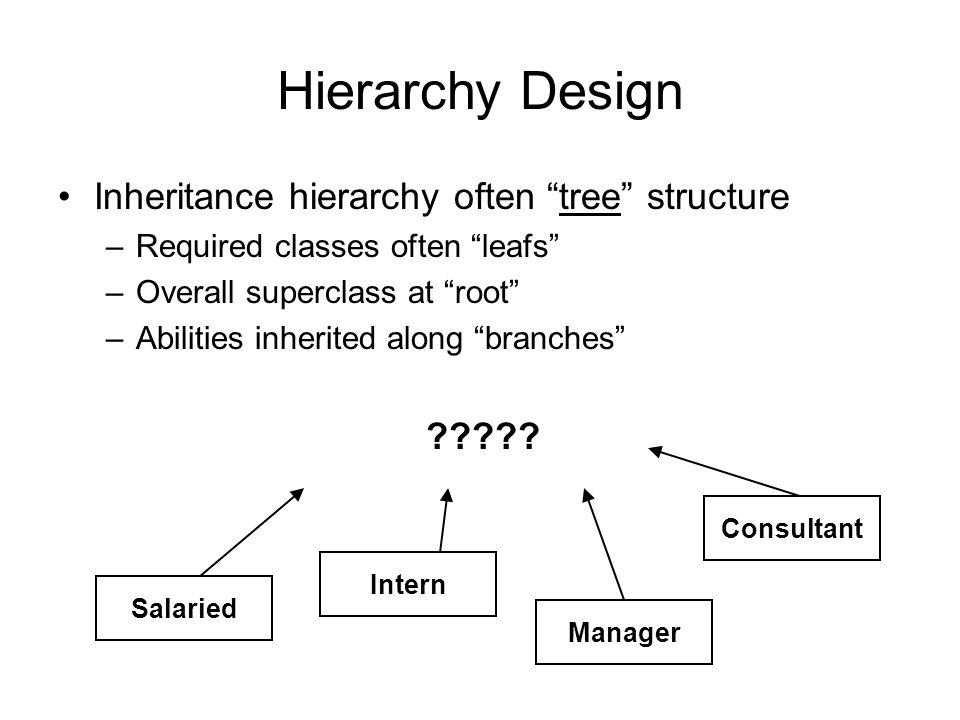

6. Hierarchy Design Inheritance hierarchy often “tree” structure –Required classes often “leafs” –Overall superclass at “root” –Abilities inherited along “branches” Consultant Intern Salaried Manager ?????

7. Superclass Identification What abilities/information are common to all required classes? –Defines overall superclass at root of hierarchy Example: All employees have –A name –Ability to compute weekly pay –Ability to print name/pay on paycheck

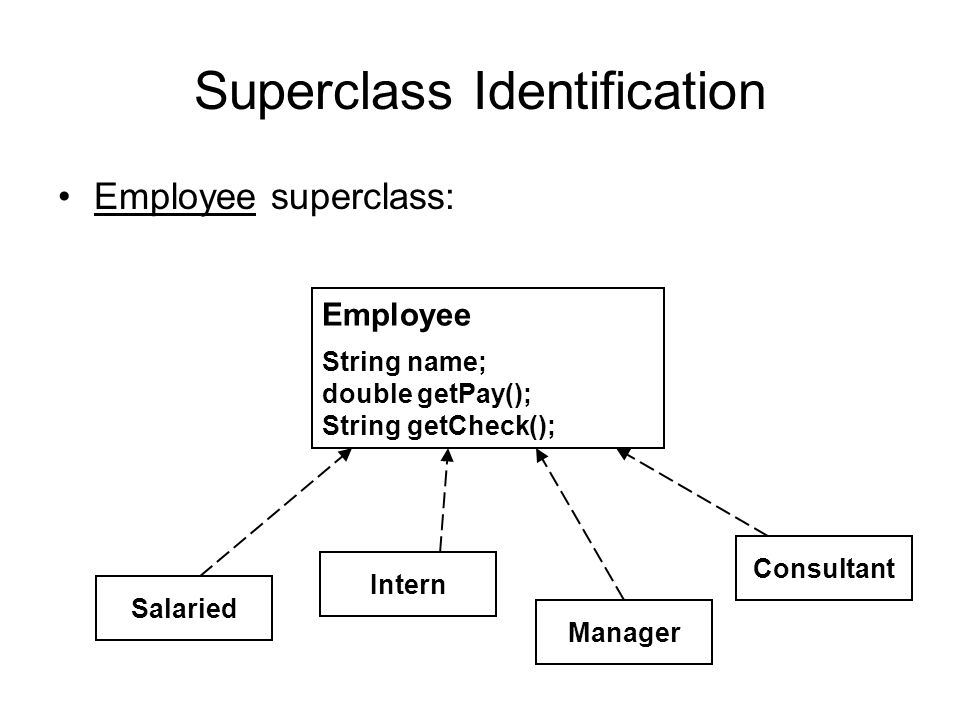

8. Superclass Identification Employee superclass: Consultant Intern Salaried Manager Employee String name; double getPay(); String getCheck();

9. Abstract Classes Problem: Users should not be able to create instances of Employee –Only exists to define common features of actual required classes –Will not actually have all required abilities for use Employee e = new Employee(); double p = e.getPay(); This is not defined for generic “employee”

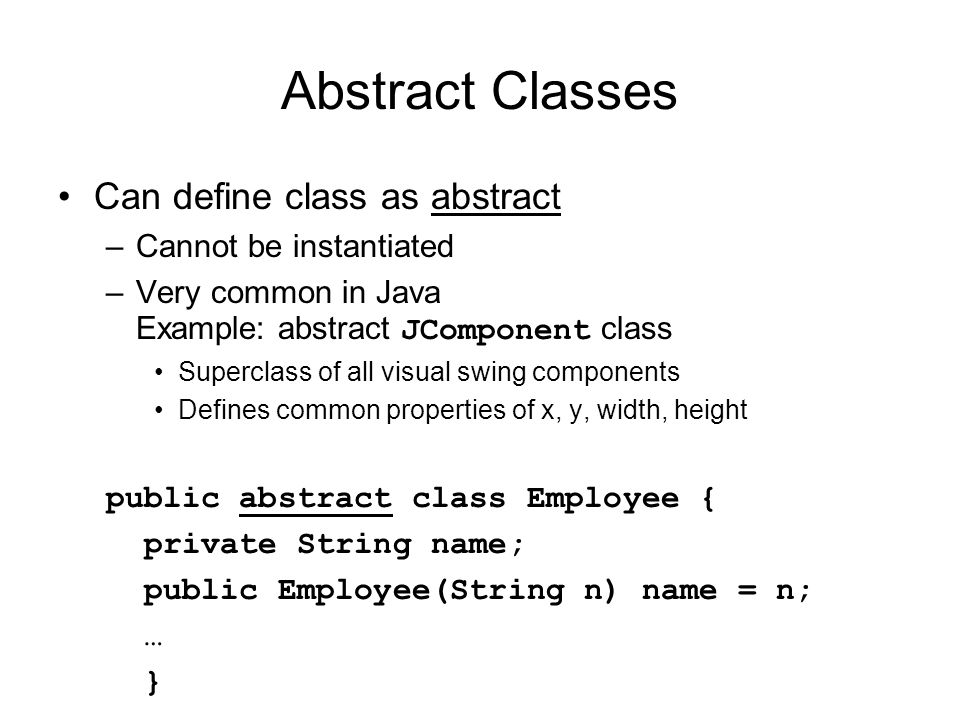

10. Abstract Classes Can define class as abstract –Cannot be instantiated –Very common in Java Example: abstract JComponent class Superclass of all visual swing components Defines common properties of x, y, width, height public abstract class Employee { private String name; public Employee(String n) name = n; … }

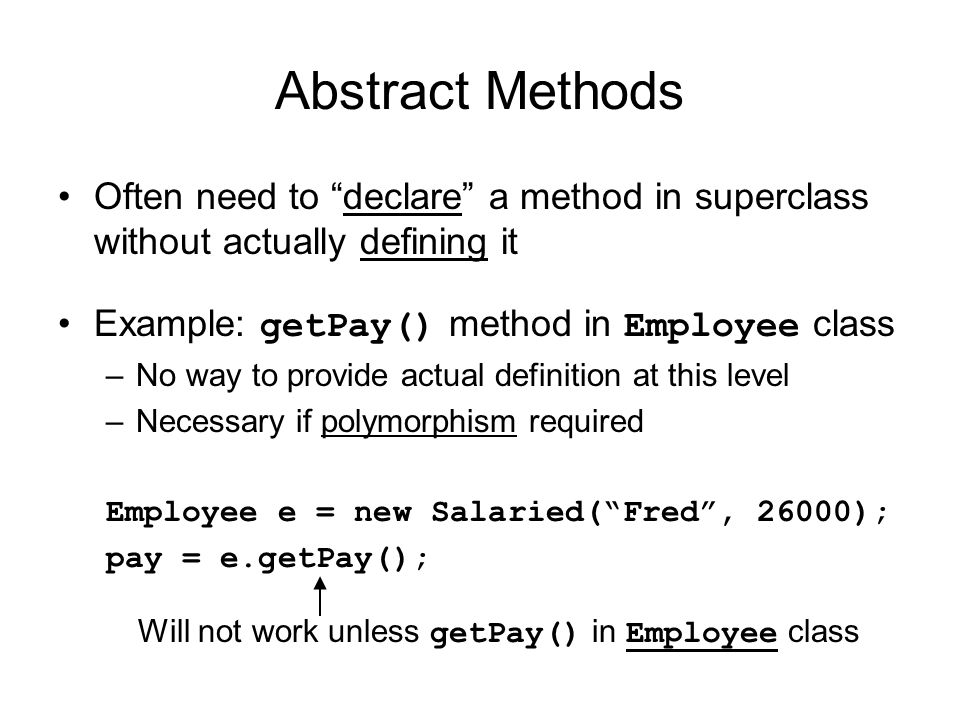

11. Abstract Methods Often need to “declare” a method in superclass without actually defining it Example: getPay() method in Employee class –No way to provide actual definition at this level –Necessary if polymorphism required Employee e = new Salaried(“Fred”, 26000); pay = e.getPay(); Will not work unless getPay() in Employee class

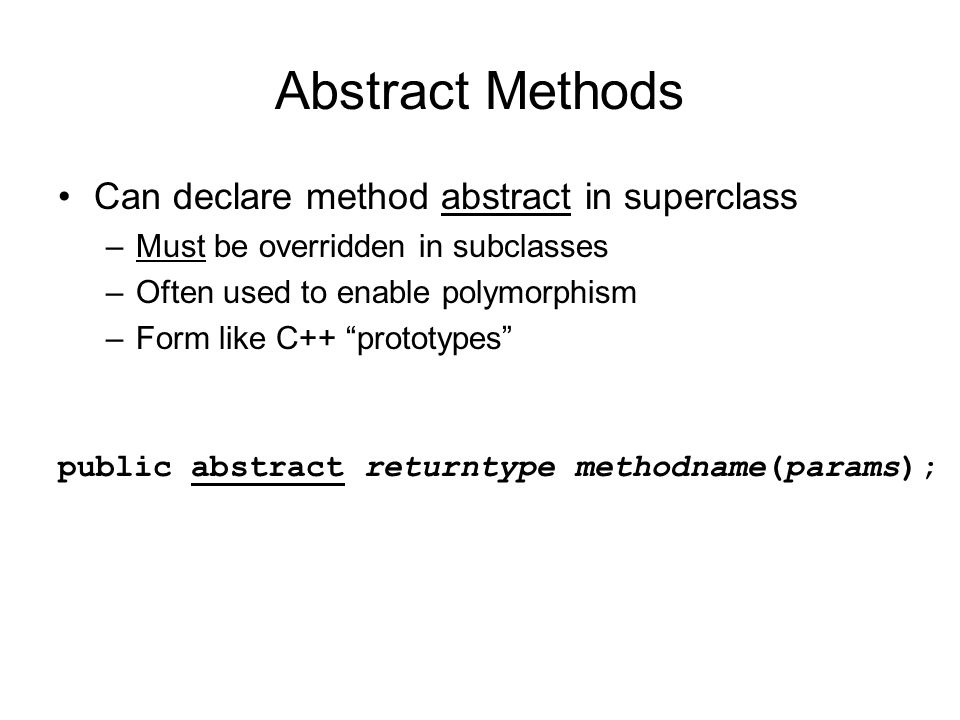

12. Abstract Methods Can declare method abstract in superclass –Must be overridden in subclasses –Often used to enable polymorphism –Form like C++ “prototypes” public abstract returntype methodname(params);

13. Final “Employee” Superclass public abstract class Employee { private String name; public Employee(String n){name = n;} public abstract double getPay(); public String getCheck() { return "Pay for "+name+": \t$"+ getPay(); } } Can still define getCheck even if calls abstract method –Will only be invoked on subclass objects –Those will use their overridden version of getPay()

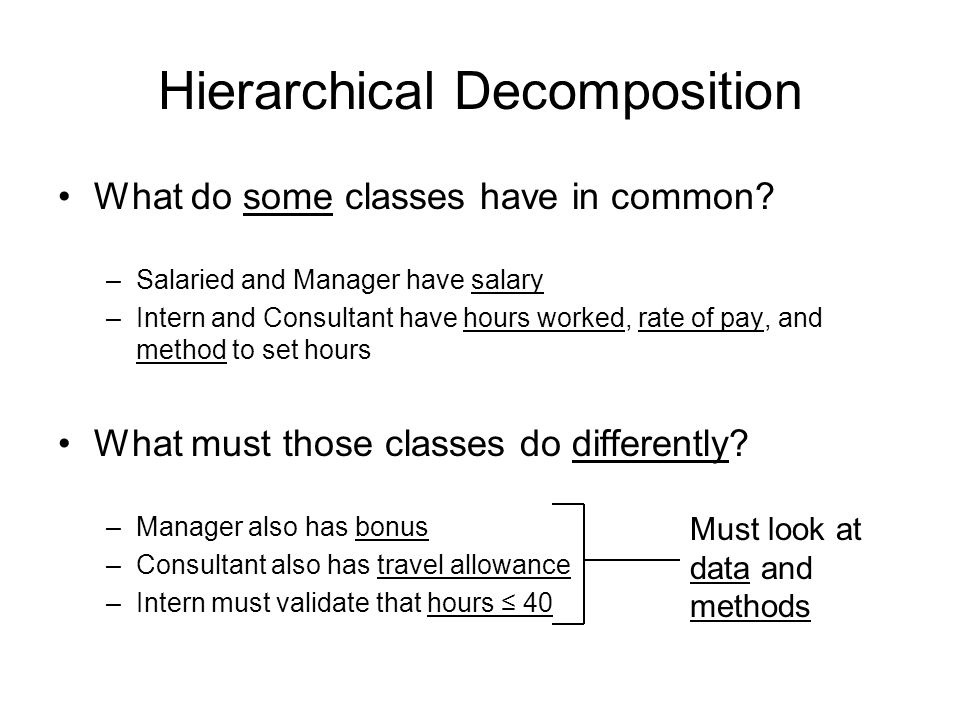

14. Hierarchical Decomposition What do some classes have in common? –Salaried and Manager have salary –Intern and Consultant have hours worked, rate of pay, and method to set hours What must those classes do differently? –Manager also has bonus –Consultant also has travel allowance –Intern must validate that hours ≤ 40 Must look at data and methods

15. Hierarchical Decomposition Are the abilities of one class a subset of another? –One class has all the same abilities as another, and some additional abilities If so, make C2 subclass of C1 data method data method … additional data method data method … C1 C2

16. Supervisor/Manager Example Salaried : –Stores name (inherited from Employee ), salary –Computes pay as salary/52 Manager : –Stores name, salary, and bonus –Computes pay as salary/52 + bonus Manager should be subclass of Salaried

17. Hierarchical Decomposition Do abilities of different classes intersect –Classes have shared abilities, but neither subset of other If so, create abstract class with shared abilites –Both classes now extend it data method shared data data method shared method data method C1 C2 New abstract C3

18. Hierarchical Decomposition Commonly done in Java Example: JTextComponent class JComponent int x, y, width, height Common to all visual components JTextComponent String text String getText() void setText(String) Common to visual components that accept text JTextFieldJTextArea

19. Consultant / Intern Example Consultant : –Stores name, hours, rate, travel –Computes pay as hours * rate + travel –Has method to set hours Intern : –Stores name, hours, rate –Computes pay as hours * rate –Has method to set hours which must validate ≤ 40 Create Hourly class with shared abilities

20. Consultant / Intern Example Hourly int hours, double rate set by constructor getPay(): hours * rate setHours(h): hours = h Consultant double travel getPay(): superclass version + travel Intern setHours(h): check h <= 40 before calling superclass version

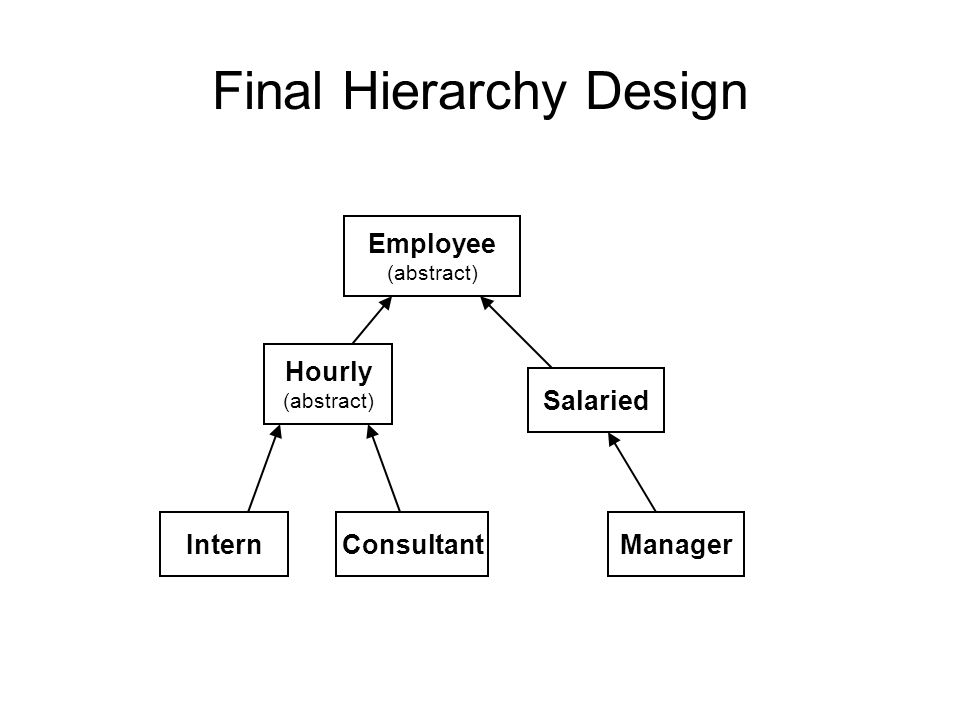

21. Final Hierarchy Design Employee (abstract) Salaried Manager Hourly (abstract) InternConsultant

22. Method Design Design methodologies: –Subclass methods should only directly manipulate subclass variables –Subclass methods should (if possible) call superclass version to manipulate inherited superclass variables

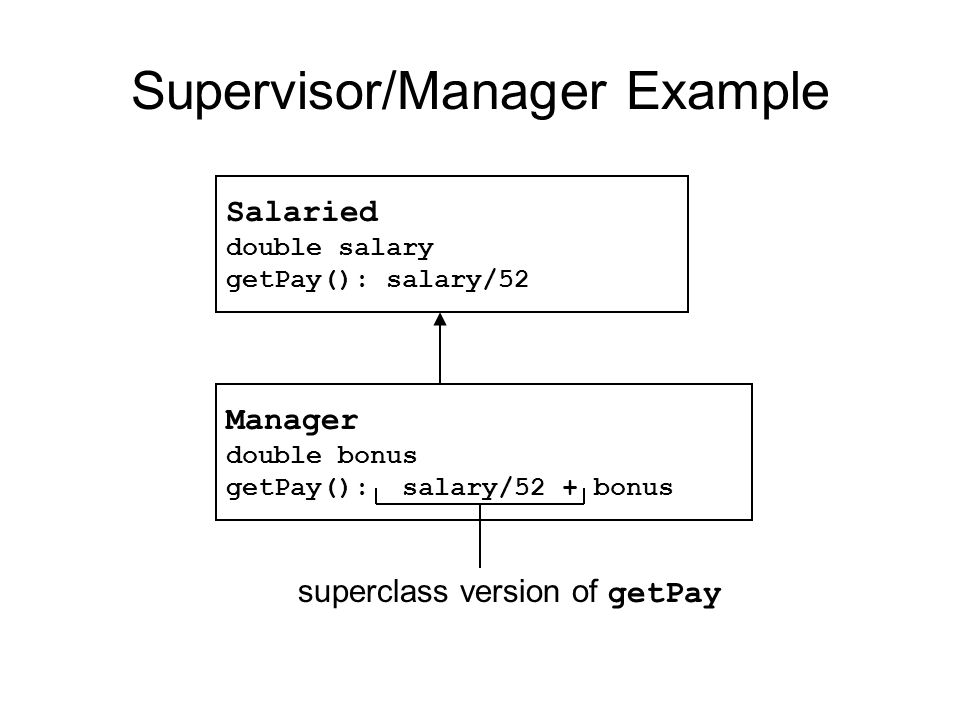

23. Supervisor/Manager Example Salaried double salary getPay(): salary/52 Manager double bonus getPay(): salary/52 + bonus superclass version of getPay

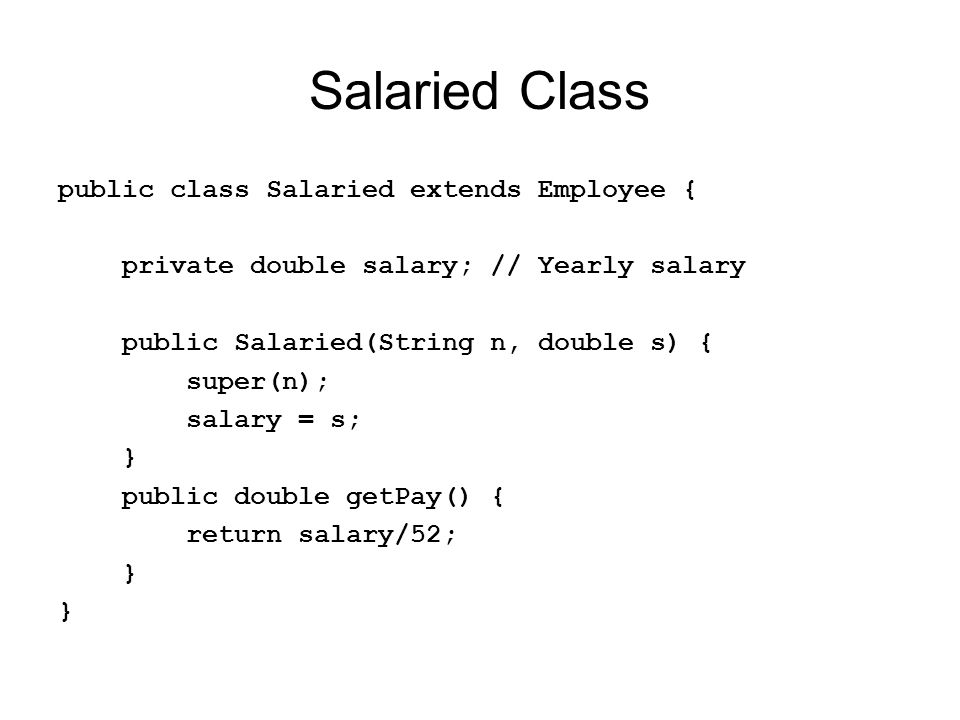

24. Salaried Class public class Salaried extends Employee { private double salary; // Yearly salary public Salaried(String n, double s) { super(n); salary = s; } public double getPay() { return salary/52; }

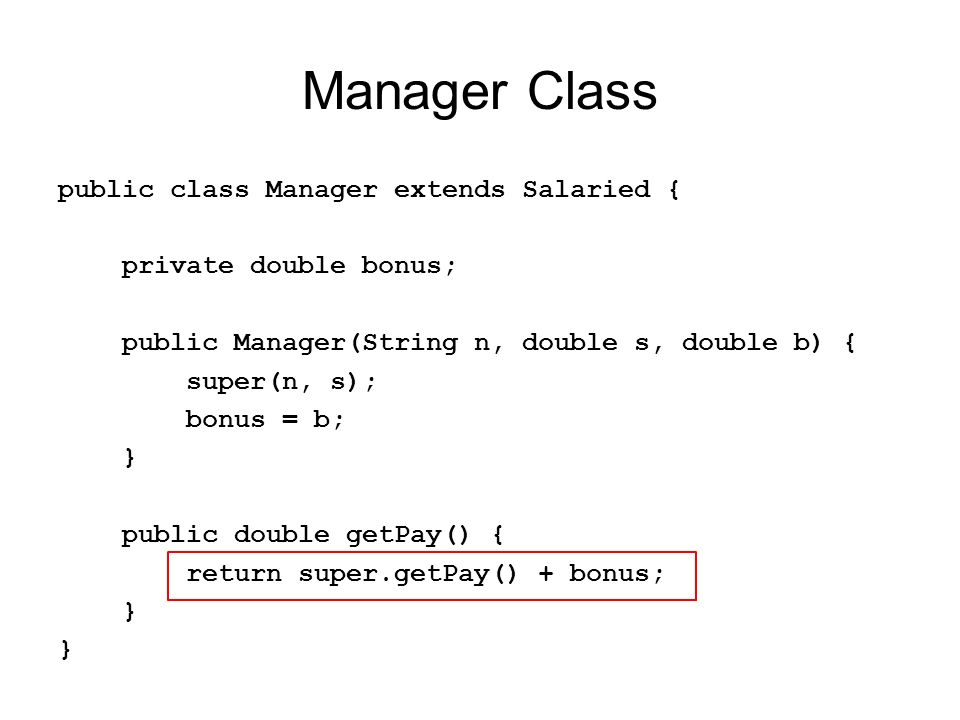

25. Manager Class public class Manager extends Salaried { private double bonus; public Manager(String n, double s, double b) { super(n, s); bonus = b; } public double getPay() { return super.getPay() + bonus; }

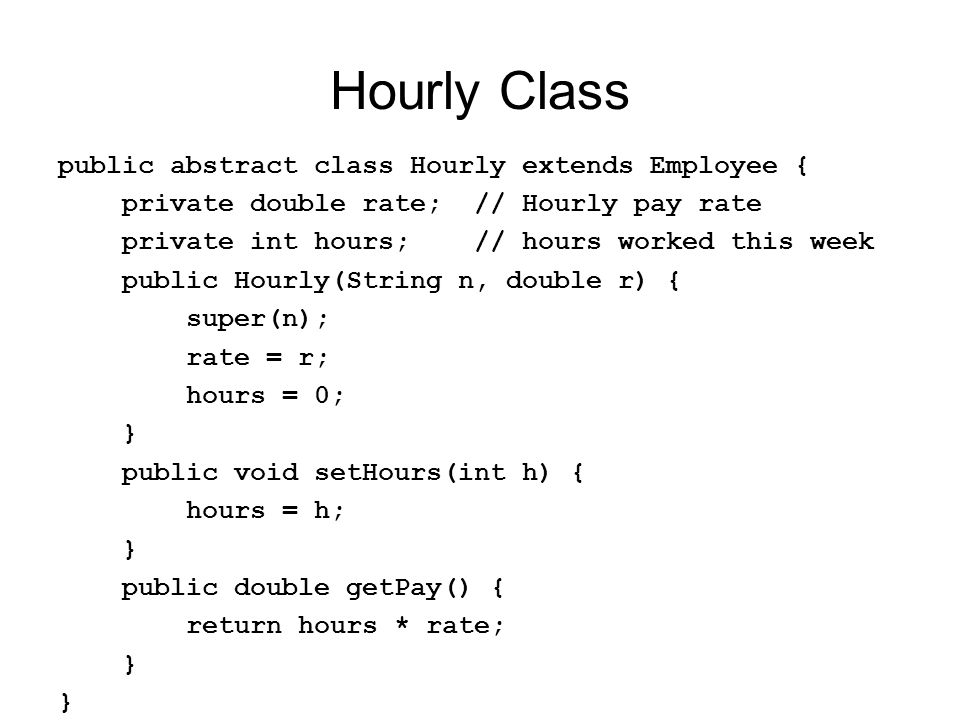

26. Hourly Class public abstract class Hourly extends Employee { private double rate; // Hourly pay rate private int hours; // hours worked this week public Hourly(String n, double r) { super(n); rate = r; hours = 0; } public void setHours(int h) { hours = h; } public double getPay() { return hours * rate; }

27. Consultant Class public class Consultant extends Hourly { private double travel; // Travel allowance public Consultant(String n, double r, double t) { super(n, r); travel = t; } public double getPay() { return super.getPay() + travel; }

28. Intern Class public class Intern extends Hourly { public Intern(String n, double r) { super(n, r); } public void setHours(int h) { if (h > 40) { h = 40; } super.setHours(h); }

29. Encapsulation Access to superclass variables may not be possible with public methods superclass should provide protected methods to allow access to superclass variables Example: –Intern class must print message with employee name if error –Employee must provide protected method to allow access to name

30. Encapsulation public abstract class Employee { private String name; … protected String getName() {return name;} public class Intern extends Hourly { … public void setHours(int h) { if (h > 40) { System.out.println(getName()+ ” can only work 40 hours”); } else super.setHours(h); }

31. Polymorphism Create objects in different classes public static void main(String[] args) { Salaried wally = new Salaried("Wally", 52000); Salaried alice = new Salaried("Alice", 78000); Manager phb = new Manager("Pointy Haired Boss", 104000, 200); Intern asok = new Intern("Asok", 20); asok.setHours(50); Consultant dogbert = new Consultant("Dogbert", 100, 500); dogbert.setHours(42);

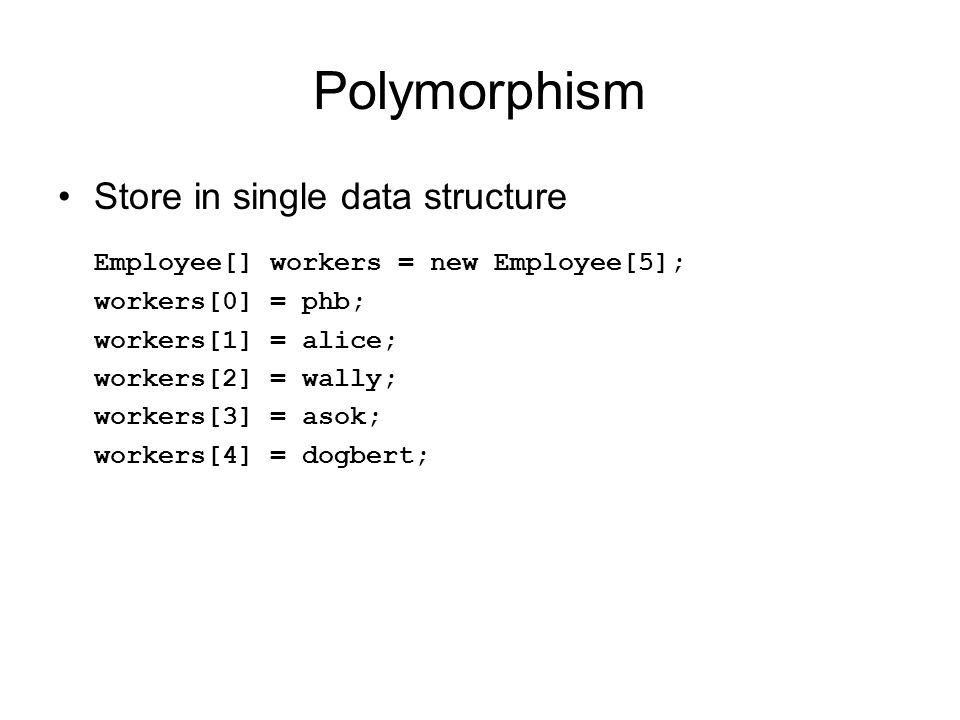

32. Polymorphism Store in single data structure Employee[] workers = new Employee[5]; workers[0] = phb; workers[1] = alice; workers[2] = wally; workers[3] = asok; workers[4] = dogbert;

33. Polymorphism Manipulate as though instances of superclass double total = 0; for (int i = 0; i < 5; i++) { System.out.println(workers[i].getCheck()); total += workers[i].getPay(); } System.out.println("Total pay: \t$" + total);
