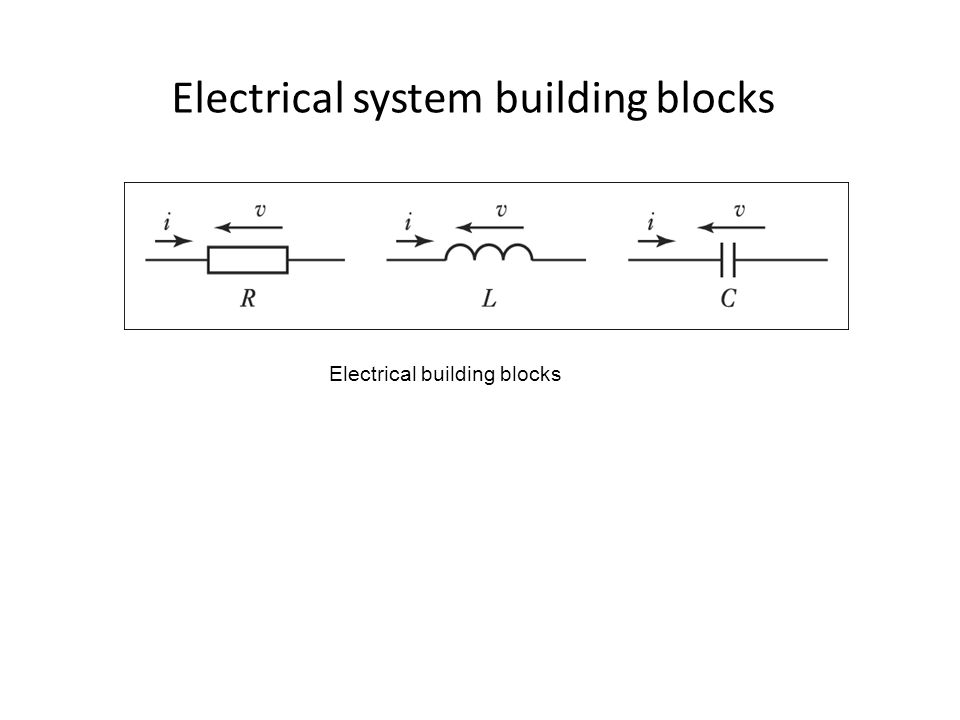

1 Electrical building blocks Electrical system building blocks

2 Table 10.2 Electrical building blocks

3 Kirchhoff’s law: Electrical networks can be analyzed using Kirchhoff’s current and voltage laws. The current law states that the sum of the current flowing into a junction equals to the sum of the current flowing out of a junction. The voltage law state that the sum of the voltage input equal the sum of the voltage drop in any closed loop.

4 Resistor–capacitor system

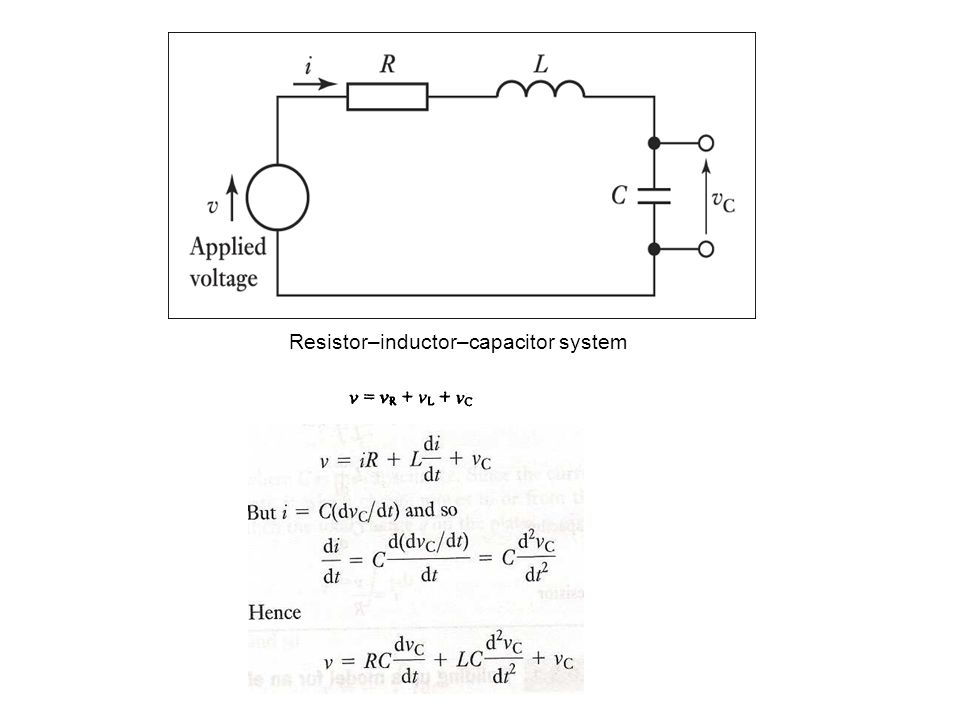

5 Resistor–inductor–capacitor system

6 Resistor–inductor system

7 Electrical System Model Resistor–capacitor–inductor system

8 Slide 10.26 Bolton, Mechatronics PowerPoints, 4 th Edition, © Pearson Education Limited 2008
