Dynamic Binding Object-Oriented Programming 236703 Spring 2008 1
2

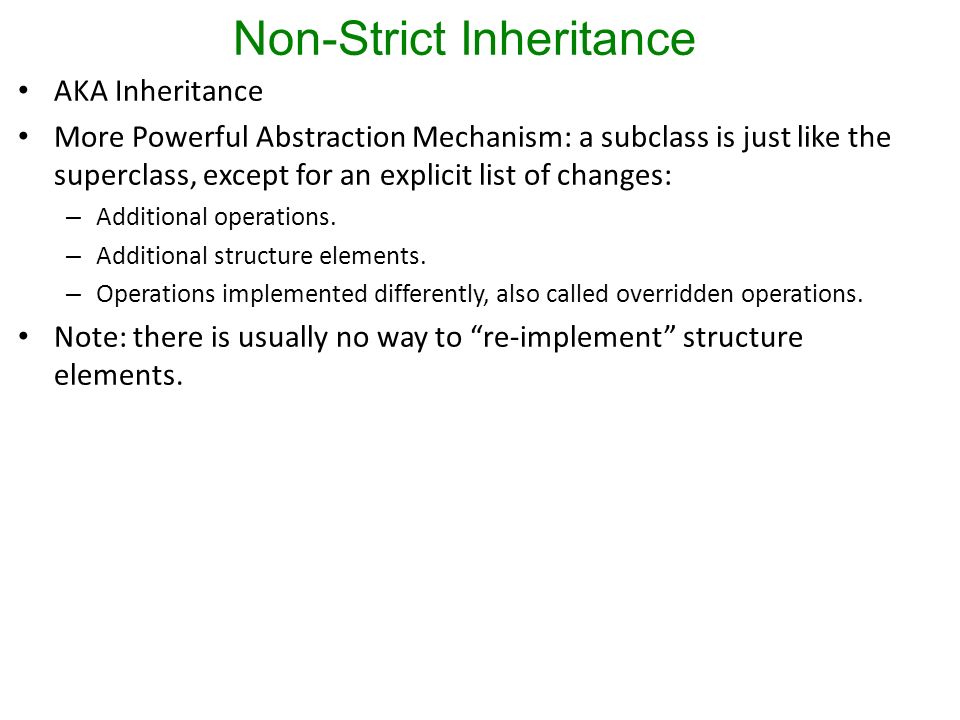

Non-Strict Inheritance AKA Inheritance More Powerful Abstraction Mechanism: a subclass is just like the superclass, except for an explicit list of changes: – Additional operations. – Additional structure elements. – Operations implemented differently, also called overridden operations. Note: there is usually no way to “re-implement” structure elements.
3

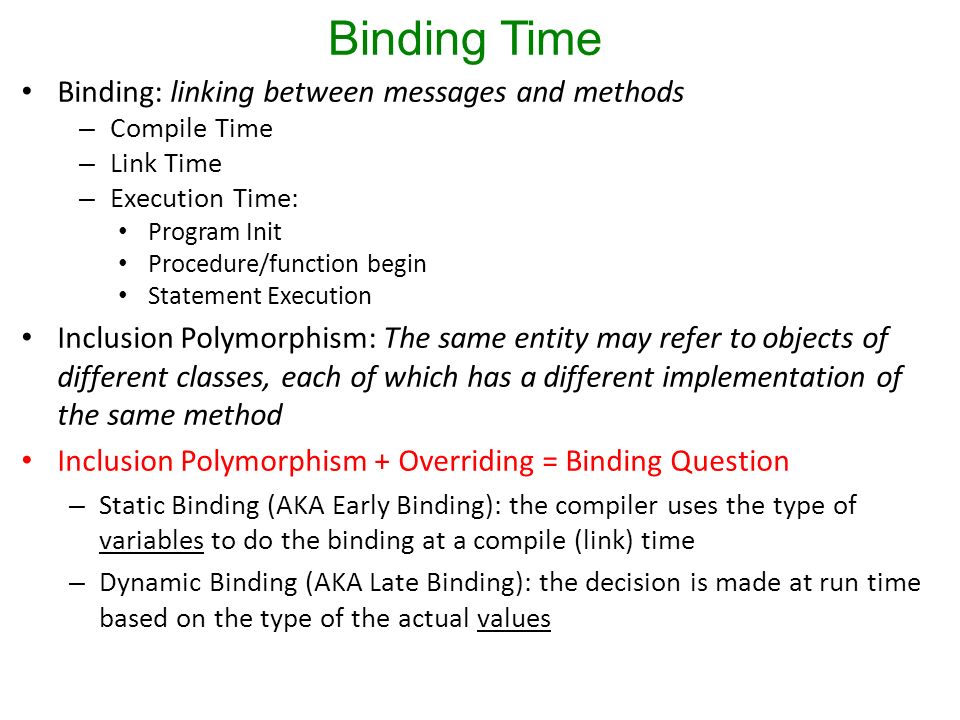

Binding Time Binding: linking between messages and methods – Compile Time – Link Time – Execution Time: Program Init Procedure/function begin Statement Execution Inclusion Polymorphism: The same entity may refer to objects of different classes, each of which has a different implementation of the same method Inclusion Polymorphism + Overriding = Binding Question – Static Binding (AKA Early Binding): the compiler uses the type of variables to do the binding at a compile (link) time – Dynamic Binding (AKA Late Binding): the decision is made at run time based on the type of the actual values
4

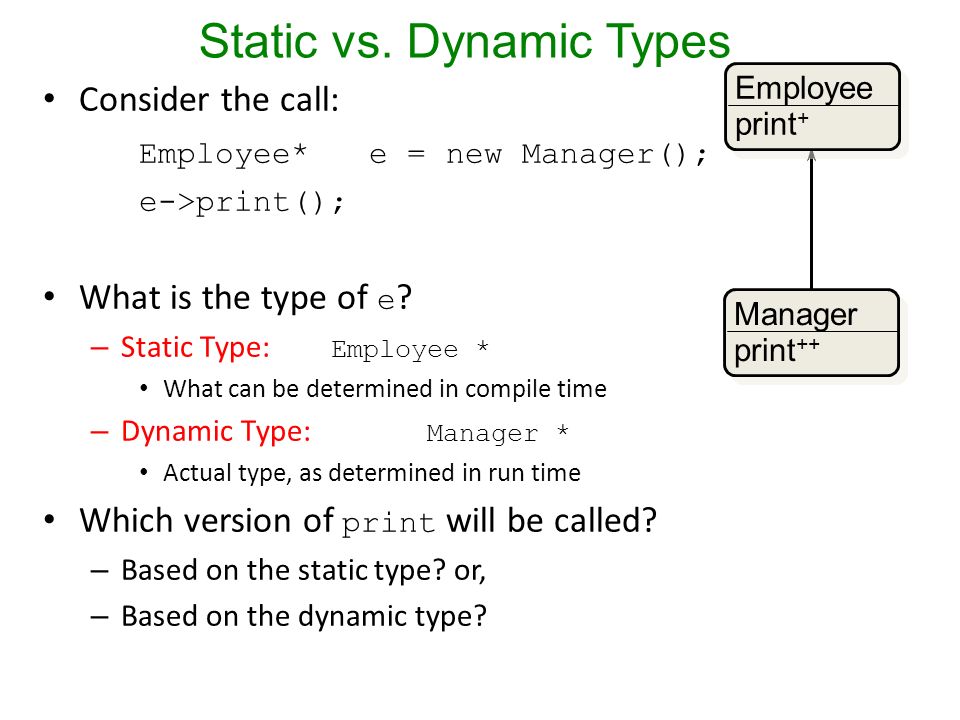

Static vs. Dynamic Types Consider the call: Employee* e = new Manager(); e->print(); What is the type of e ? – Static Type: Employee * What can be determined in compile time – Dynamic Type: Manager * Actual type, as determined in run time Which version of print will be called? – Based on the static type? or, – Based on the dynamic type? Manager print ++ Manager print ++ Employee print + Employee print +
5
Dynamic Binding and Static Typing Static typing: guarantee that a method exists – A variable of type T can contain only objects of type T, or of type T', where T' is derived from T. – A message to an object is legal only if its static type recognizes it. Dynamic binding: make sure that the right method is selected. – The method invoked for an object depends on its dynamic type. Static typing + Dynamic binding: the right combination of safety and power – Examples: Eiffel, C++, Java, Object-Pascal, Turbo-Pascal, etc.
6

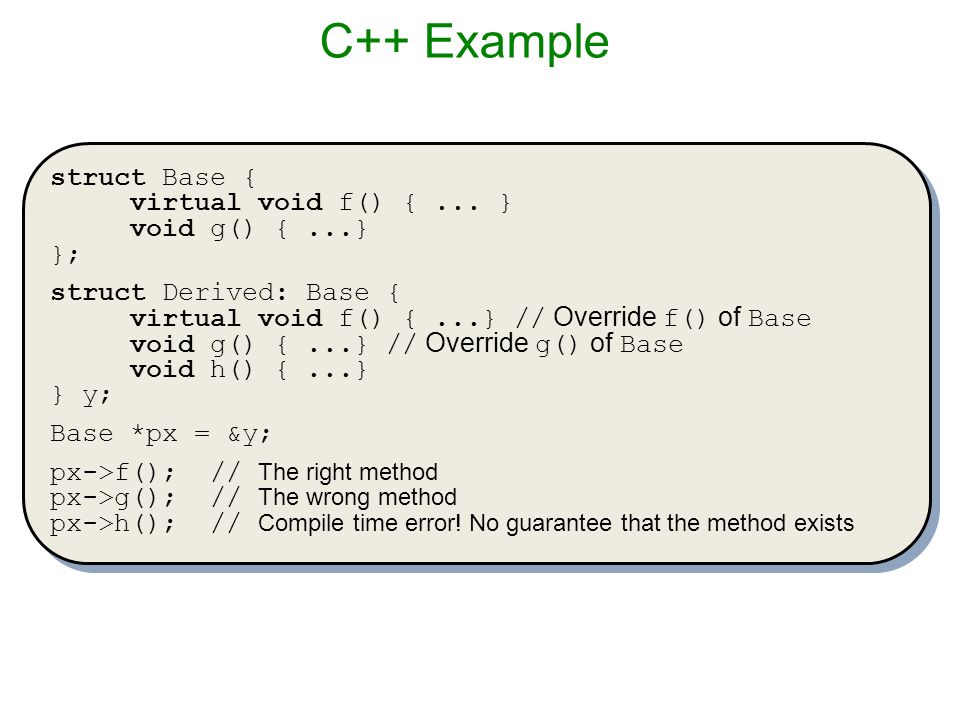

C++ Example struct Base { virtual void f() {... } void g() {...} }; struct Derived: Base { virtual void f() {...} // Override f() of Base void g() {...} // Override g() of Base void h() {...} } y; Base *px = &y; px->f(); // The right method px->g(); // The wrong method px->h(); // Compile time error! No guarantee that the method exists struct Base { virtual void f() {... } void g() {...} }; struct Derived: Base { virtual void f() {...} // Override f() of Base void g() {...} // Override g() of Base void h() {...} } y; Base *px = &y; px->f(); // The right method px->g(); // The wrong method px->h(); // Compile time error! No guarantee that the method exists
7

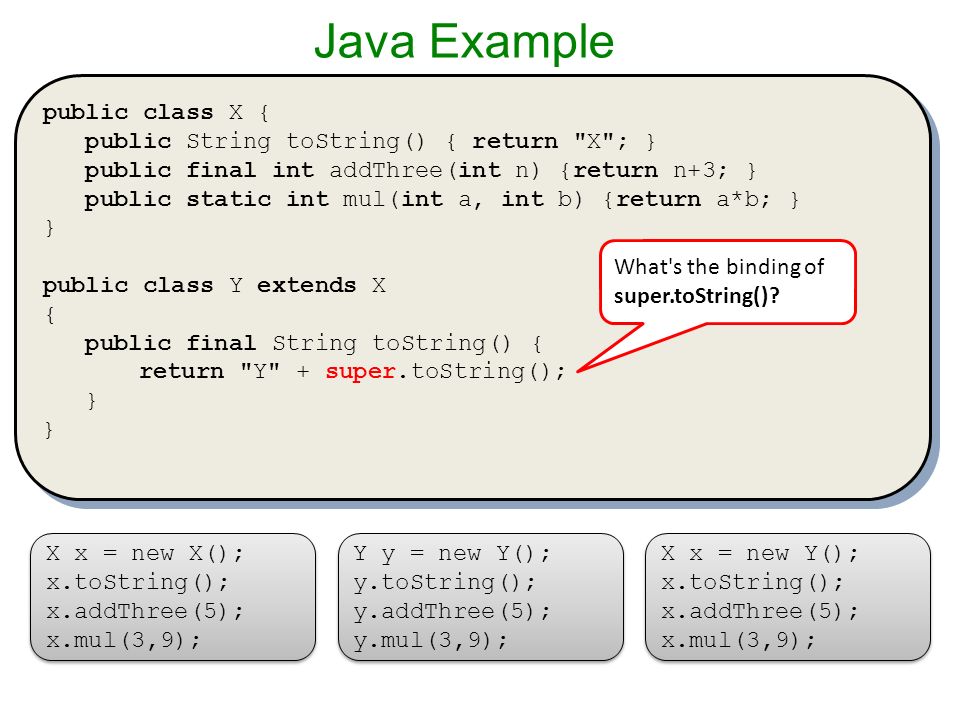

Java Example public class X { public String toString() { return "X"; } public final int addThree(int n) {return n+3; } public static int mul(int a, int b) {return a*b; } } public class Y extends X { public final String toString() { return "Y" + super.toString(); } { public class X { public String toString() { return "X"; } public final int addThree(int n) {return n+3; } public static int mul(int a, int b) {return a*b; } } public class Y extends X { public final String toString() { return "Y" + super.toString(); } { X x = new X(); x.toString(); x.addThree(5); x.mul(3,9); X x = new X(); x.toString(); x.addThree(5); x.mul(3,9); Y y = new Y(); y.toString(); y.addThree(5); y.mul(3,9); Y y = new Y(); y.toString(); y.addThree(5); y.mul(3,9); X x = new Y(); x.toString(); x.addThree(5); x.mul(3,9); X x = new Y(); x.toString(); x.addThree(5); x.mul(3,9); What's the binding of super.toString()?
8

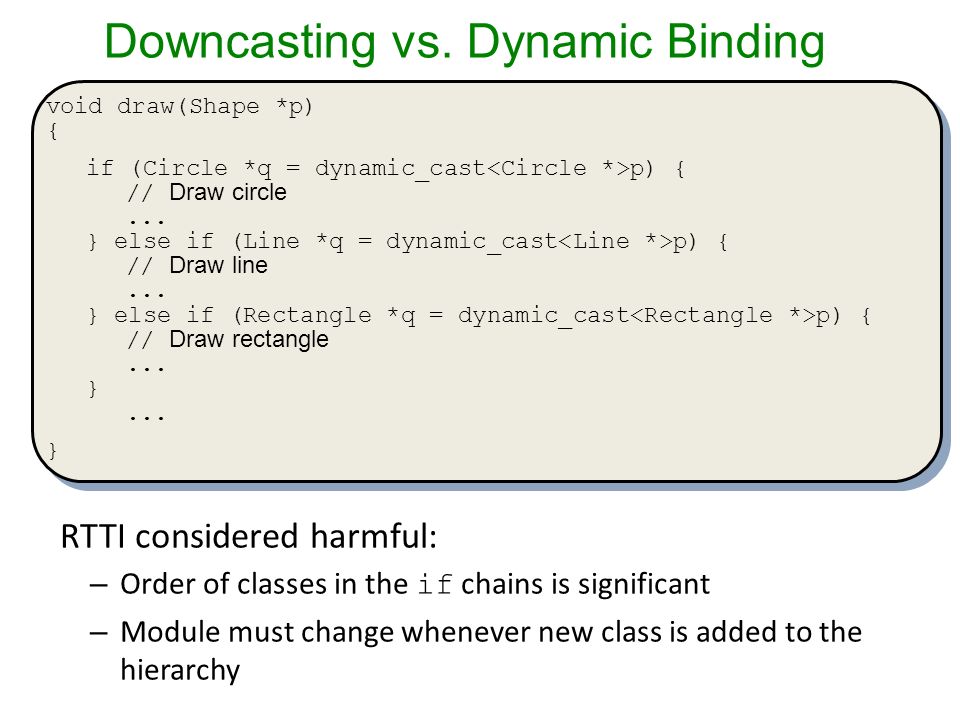

Downcasting vs. Dynamic Binding void draw(Shape *p) { if (Circle *q = dynamic_cast p) { // Draw circle... } else if (Line *q = dynamic_cast p) { // Draw line... } else if (Rectangle *q = dynamic_cast p) { // Draw rectangle... }... } void draw(Shape *p) { if (Circle *q = dynamic_cast p) { // Draw circle... } else if (Line *q = dynamic_cast p) { // Draw line... } else if (Rectangle *q = dynamic_cast p) { // Draw rectangle... }... } RTTI considered harmful: – Order of classes in the if chains is significant – Module must change whenever new class is added to the hierarchy
9

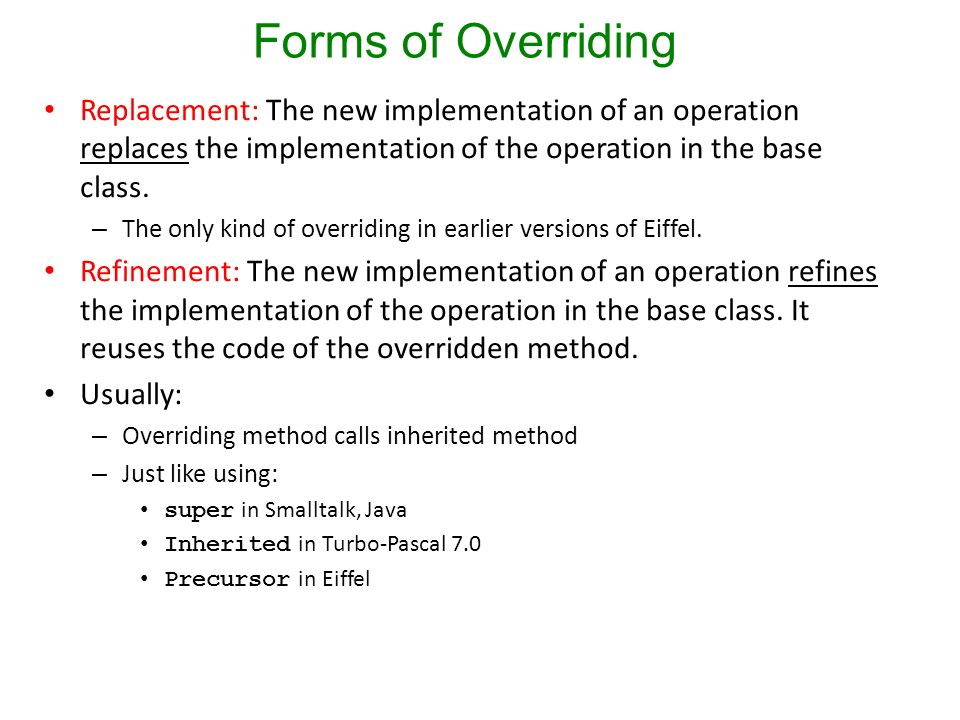

Forms of Overriding Replacement: The new implementation of an operation replaces the implementation of the operation in the base class. – The only kind of overriding in earlier versions of Eiffel. Refinement: The new implementation of an operation refines the implementation of the operation in the base class. It reuses the code of the overridden method. Usually: – Overriding method calls inherited method – Just like using: super in Smalltalk, Java Inherited in Turbo-Pascal 7.0 Precursor in Eiffel
10

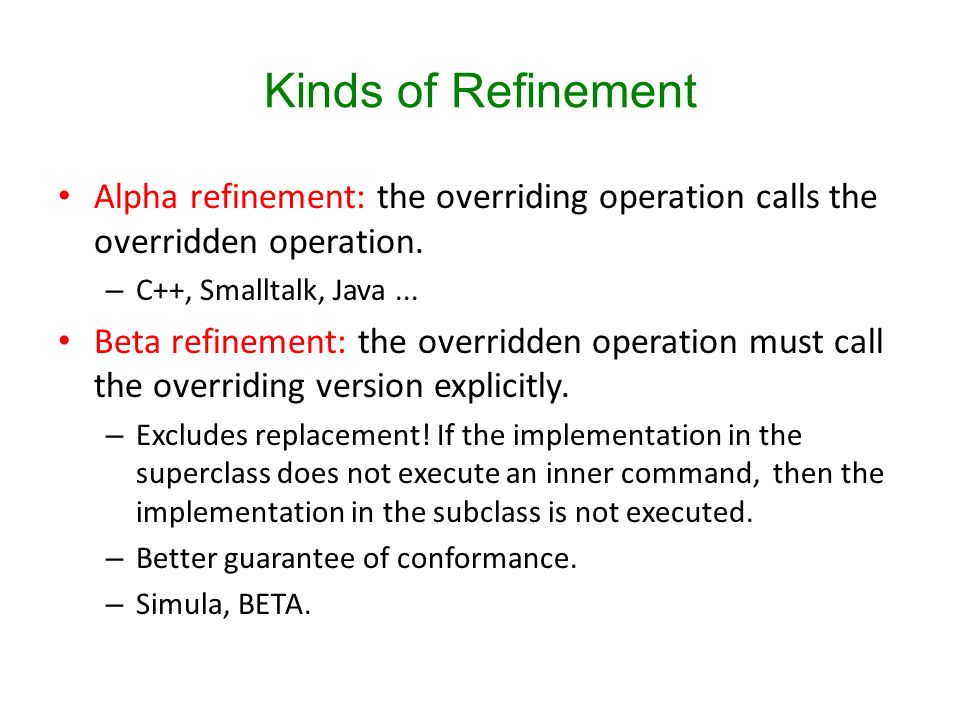

Kinds of Refinement Alpha refinement: the overriding operation calls the overridden operation. – C++, Smalltalk, Java... Beta refinement: the overridden operation must call the overriding version explicitly. – Excludes replacement! If the implementation in the superclass does not execute an inner command, then the implementation in the subclass is not executed. – Better guarantee of conformance. – Simula, BETA.
11

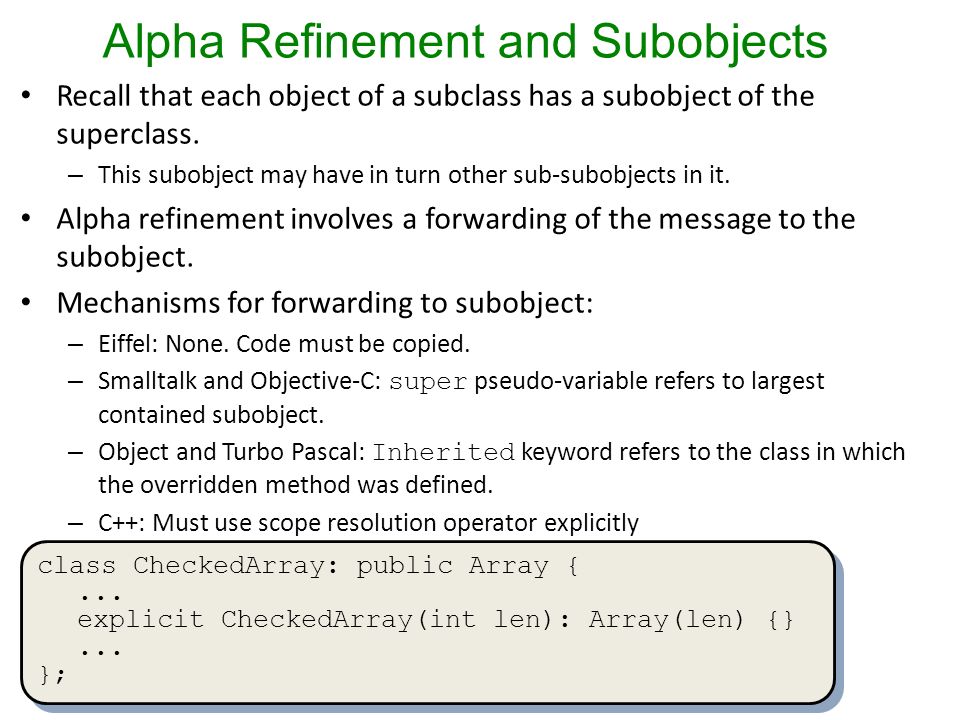

Alpha Refinement and Subobjects Recall that each object of a subclass has a subobject of the superclass. – This subobject may have in turn other sub-subobjects in it. Alpha refinement involves a forwarding of the message to the subobject. Mechanisms for forwarding to subobject: – Eiffel: None. Code must be copied. – Smalltalk and Objective-C: super pseudo-variable refers to largest contained subobject. – Object and Turbo Pascal: Inherited keyword refers to the class in which the overridden method was defined. – C++: Must use scope resolution operator explicitly class CheckedArray: public Array {... explicit CheckedArray(int len): Array(len) {}... }; class CheckedArray: public Array {... explicit CheckedArray(int len): Array(len) {}... };
12

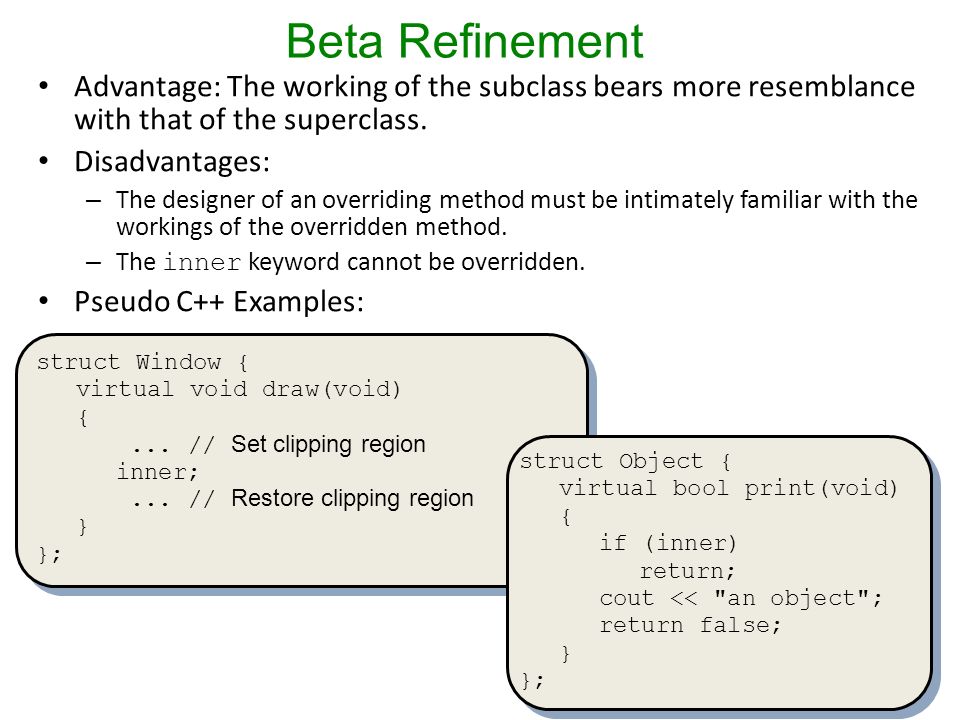

Beta Refinement Advantage: The working of the subclass bears more resemblance with that of the superclass. Disadvantages: – The designer of an overriding method must be intimately familiar with the workings of the overridden method. – The inner keyword cannot be overridden. Pseudo C++ Examples: struct Window { virtual void draw(void) {... // Set clipping region inner;... // Restore clipping region } }; struct Window { virtual void draw(void) {... // Set clipping region inner;... // Restore clipping region } }; struct Object { virtual bool print(void) { if (inner) return; cout << "an object"; return false; } }; struct Object { virtual bool print(void) { if (inner) return; cout << "an object"; return false; } };
13

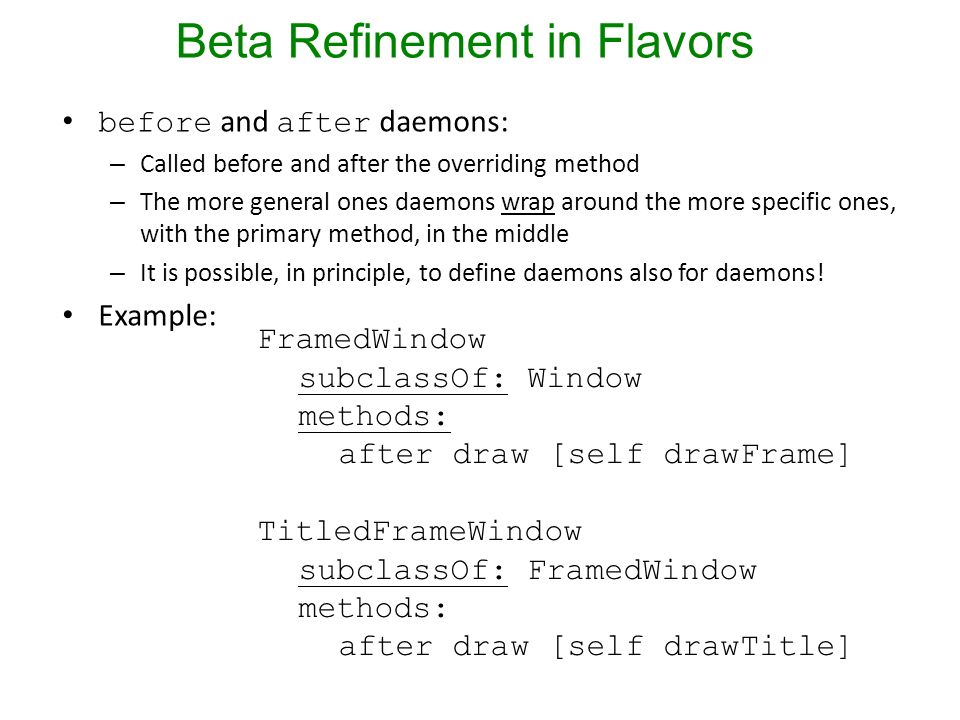

Beta Refinement in Flavors before and after daemons: – Called before and after the overriding method – The more general ones daemons wrap around the more specific ones, with the primary method, in the middle – It is possible, in principle, to define daemons also for daemons! Example: FramedWindow subclassOf: Window methods: after draw [self drawFrame] TitledFrameWindow subclassOf: FramedWindow methods: after draw [self drawTitle]
14

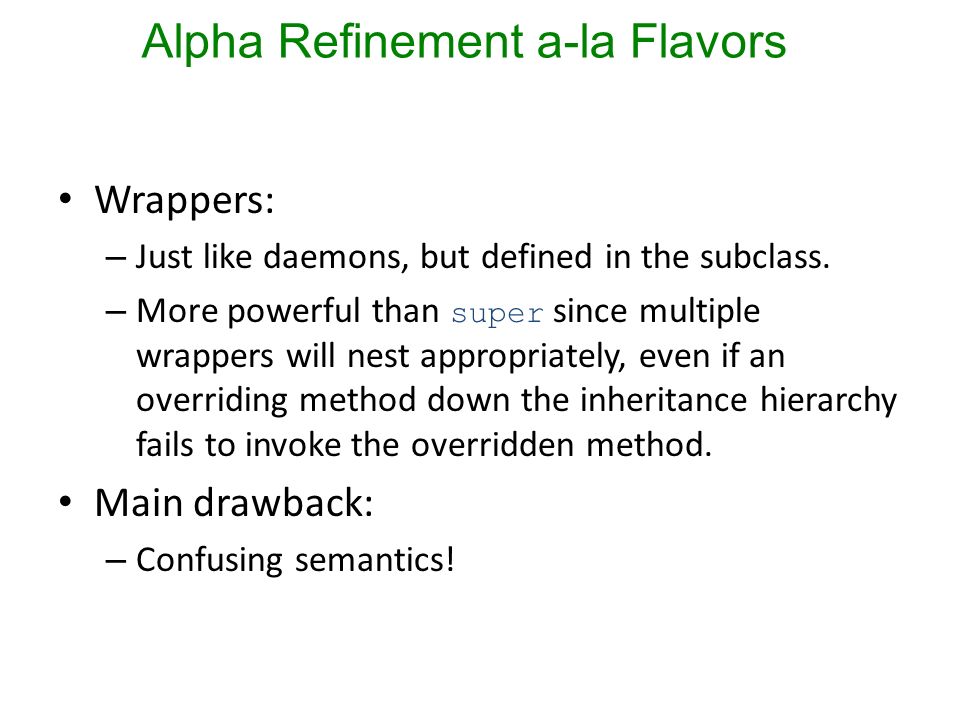

Alpha Refinement a-la Flavors Wrappers: – Just like daemons, but defined in the subclass. – More powerful than super since multiple wrappers will nest appropriately, even if an overriding method down the inheritance hierarchy fails to invoke the overridden method. Main drawback: – Confusing semantics!
15

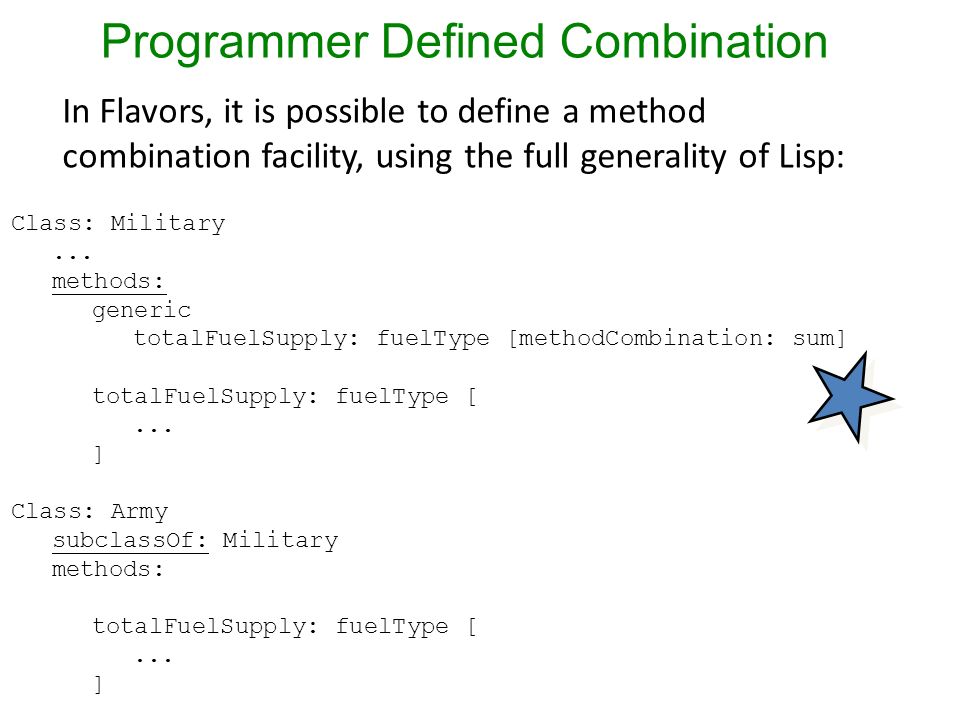

Programmer Defined Combination In Flavors, it is possible to define a method combination facility, using the full generality of Lisp: Class: Military... methods: generic totalFuelSupply: fuelType [methodCombination: sum] totalFuelSupply: fuelType [... ] Class: Army subclassOf: Military methods: totalFuelSupply: fuelType [... ]
