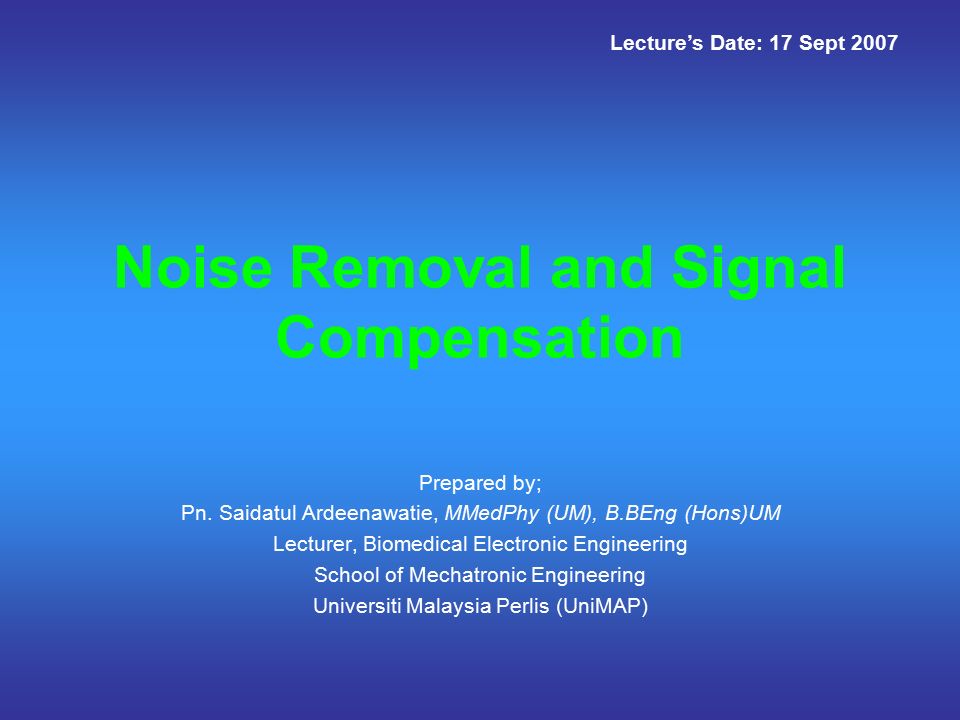

1. Noise Removal and Signal Compensation Lecture’s Date: 17 Sept 2007 Prepared by; Pn. Saidatul Ardeenawatie, MMedPhy (UM), B.BEng (Hons)UM Lecturer, Biomedical Electronic Engineering School of Mechatronic Engineering Universiti Malaysia Perlis (UniMAP)

2. Subtopics; Introduction Filtering in biomedical instruments: (a) Weiner Filter (b) DT Filter Properties and effects of noise in biomedical instrumentation

3. Introduction Removing noise from a signal probably is the most frequent application for signal processing. The distinction between noise and desired signal is an heuristic judgment that must be determined by the user. Biomedical applications often involve the acquisition of continuous time signals by digital sampling. Two choices; a) Before sampling using a continuous-time filter (analog filter) b) After sampling using a discrete-time filter (digital filter)

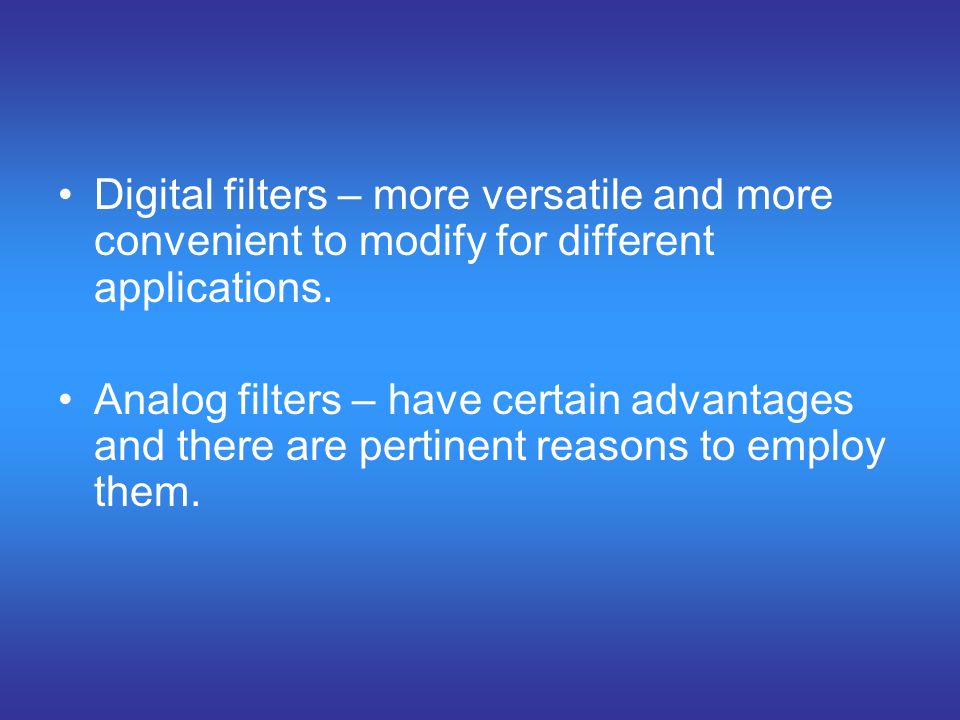

4. Digital filters – more versatile and more convenient to modify for different applications. Analog filters – have certain advantages and there are pertinent reasons to employ them.

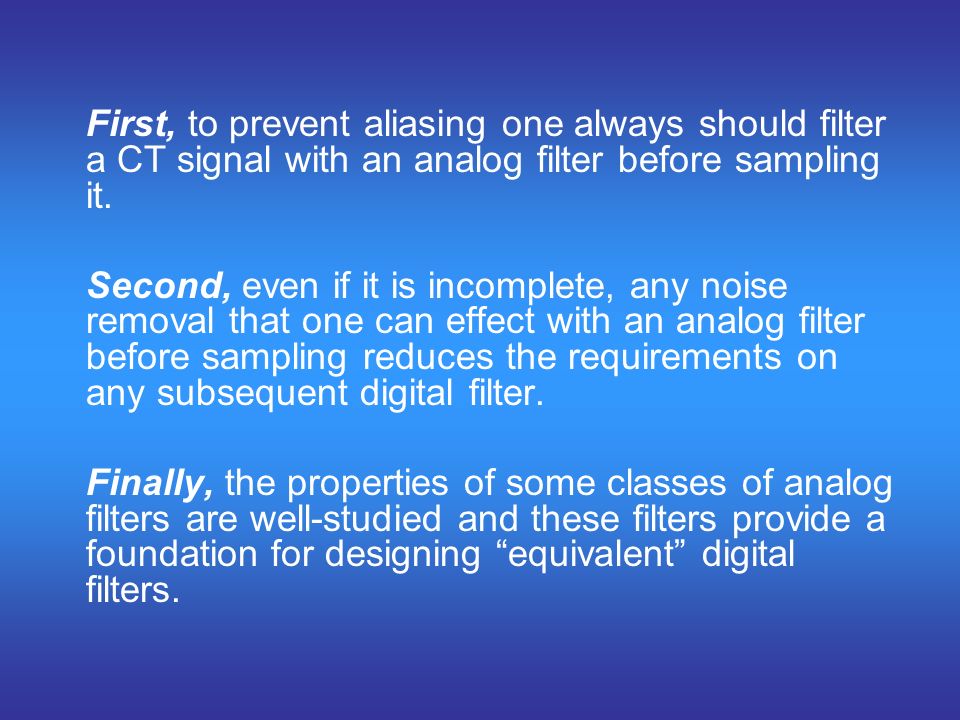

5. First, to prevent aliasing one always should filter a CT signal with an analog filter before sampling it. Second, even if it is incomplete, any noise removal that one can effect with an analog filter before sampling reduces the requirements on any subsequent digital filter. Finally, the properties of some classes of analog filters are well-studied and these filters provide a foundation for designing “equivalent” digital filters.

6. Introductory Example: Reducing the ECG artifact in an EMG recording When an electromyogram (EMG) is recorded from muscles on the torso, the electrocardiogram (ECG) is commonly superimposed on EMG signal because of the proximity of the heart and the large electrical amplitude of the ECG compared to many EMG signals. To better visualize the EMG signal due to breathing, or for subsequent quantitative analysis of the signal, it is desirable to filter out the ECG artifacts.

7. The power spectral density (PSD) is calculated for EMG and ECG signal. The ECG has much greater peak power density (amplitude and frequency) than EMG. Furthermore, the frequency contents of the two signals seem to overlap below about 30 Hz. Therefore removal of the ECG by filtering the EMG recording with highpass filter.

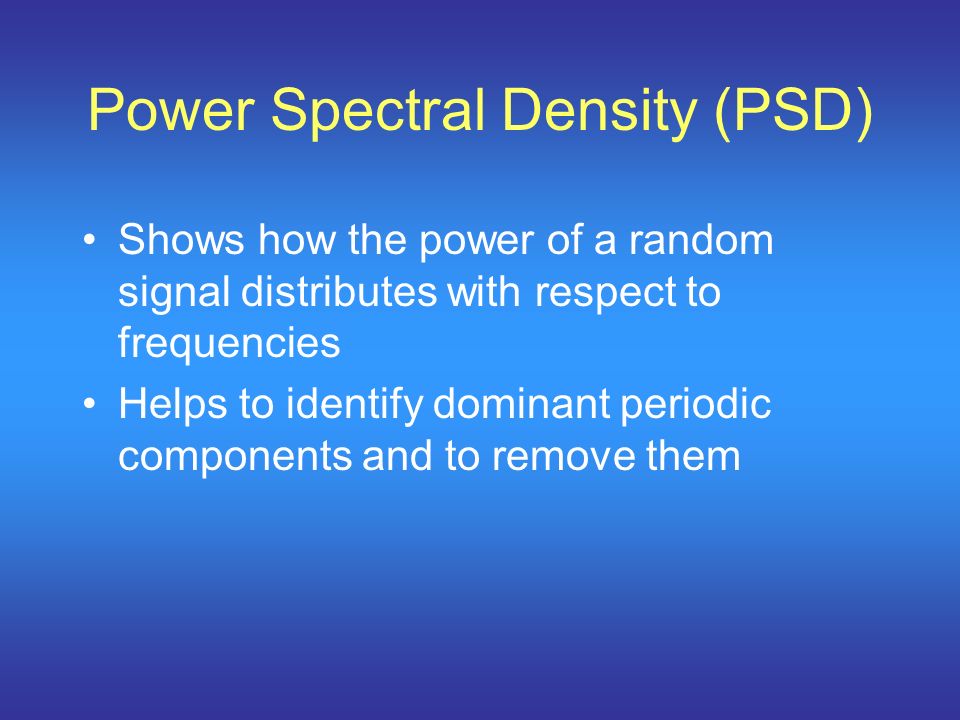

8. Power Spectral Density (PSD) Shows how the power of a random signal distributes with respect to frequencies Helps to identify dominant periodic components and to remove them

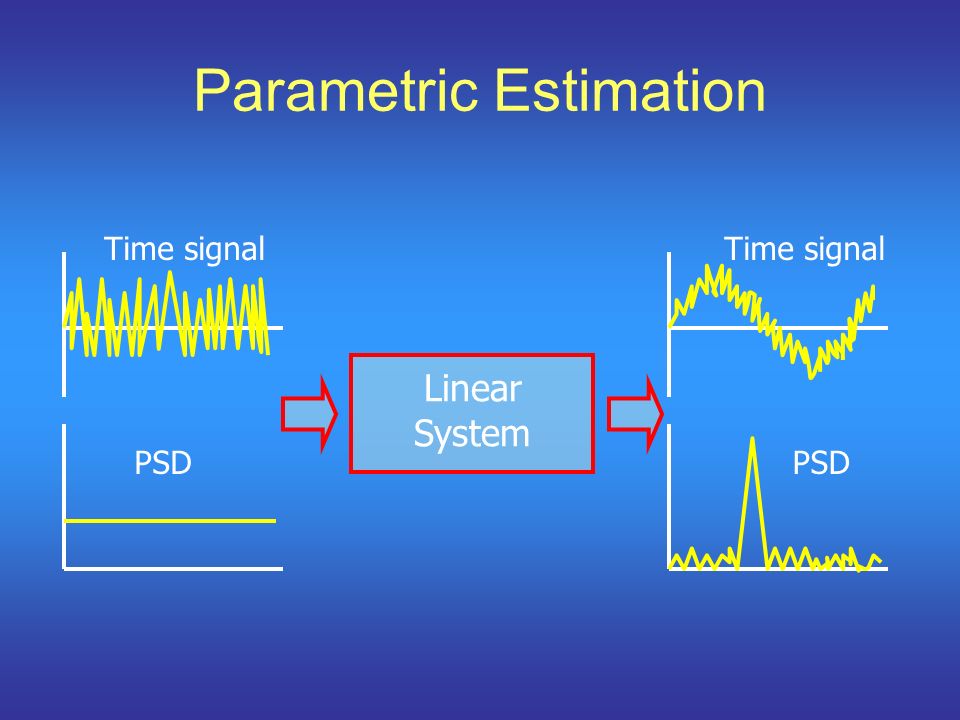

9. Parametric Estimation Linear System Time signal PSD Time signal PSD

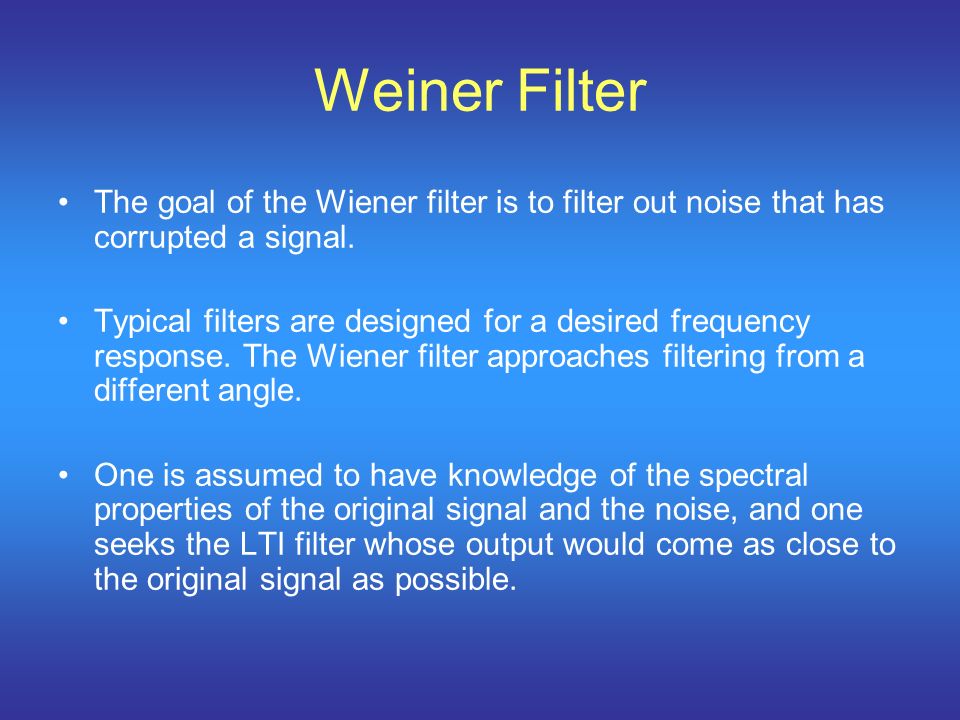

10. Weiner Filter The goal of the Wiener filter is to filter out noise that has corrupted a signal. Typical filters are designed for a desired frequency response. The Wiener filter approaches filtering from a different angle. One is assumed to have knowledge of the spectral properties of the original signal and the noise, and one seeks the LTI filter whose output would come as close to the original signal as possible.

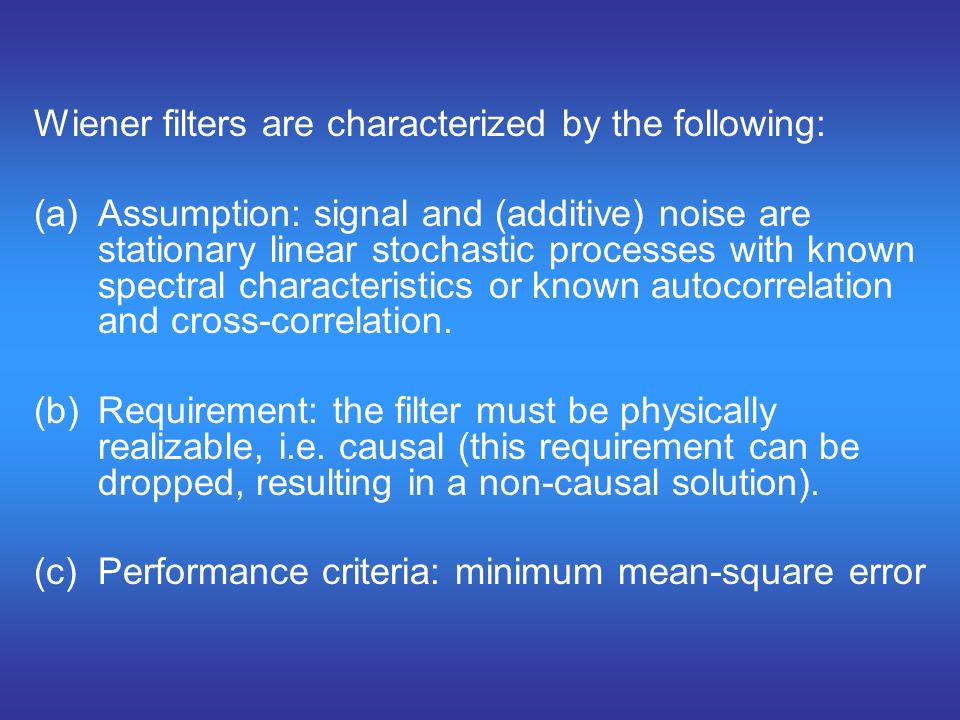

11. Wiener filters are characterized by the following: (a)Assumption: signal and (additive) noise are stationary linear stochastic processes with known spectral characteristics or known autocorrelation and cross-correlation. (b)Requirement: the filter must be physically realizable, i.e. causal (this requirement can be dropped, resulting in a non-causal solution). (c)Performance criteria: minimum mean-square error

12. DT filter Digital filter is any electronic filter that works by performing digital mathematical operations on an intermediate form of a signal. Digital filters can achieve virtually any filtering effect that can be expressed as a mathematical function or algorithm.

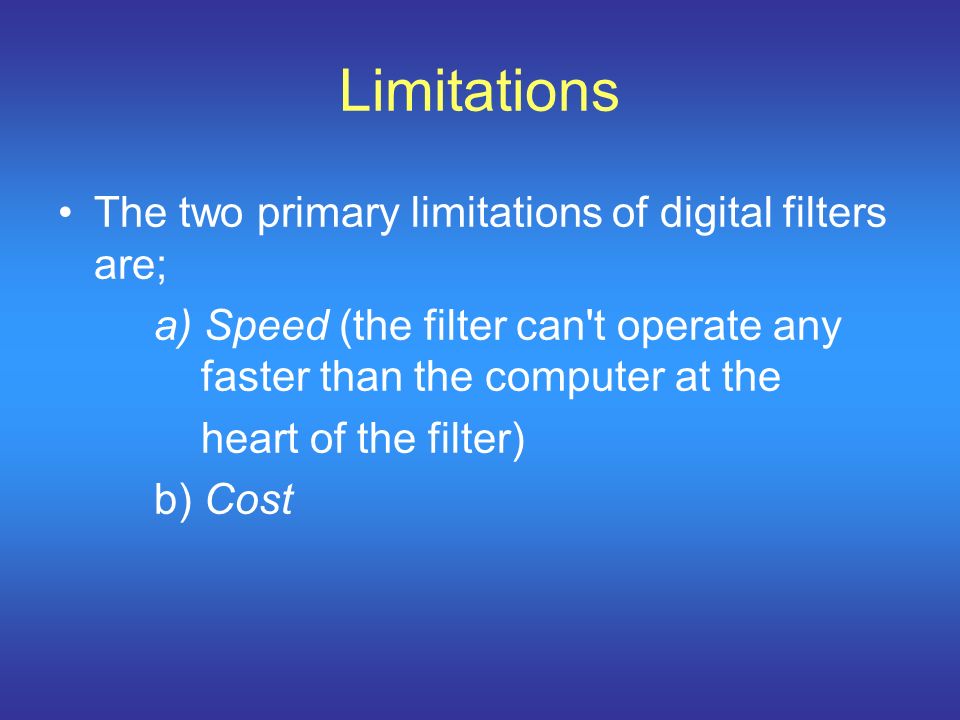

13. Limitations The two primary limitations of digital filters are; a) Speed (the filter can't operate any faster than the computer at the heart of the filter) b) Cost

14. Digital filter advantages Digital filters can easily realize performance characteristics far beyond what are practically implementable with analog filters. e.g : To create a 1000 Hz low-pass filter which can achieve near-perfect transmission of a 999 Hz input while entirely blocking a 1001 Hz signal. - Practical analog filters cannot discriminate between such closely spaced signals.

15. For complex multi-stage filtering operations, digital filters have the potential to attain much better signal-to-noise ratios than analog filters.

16. Properties & Effects of noise in biomedical instrumentations

17. Noise Every electronic component has noise –thermal noise –shot noise –distribution noise (or partition noise)

18. Thermal Noise Thermal noise due to agitation of electrons Present in all electronic devices and transmission media Cannot be eliminated Function of temperature

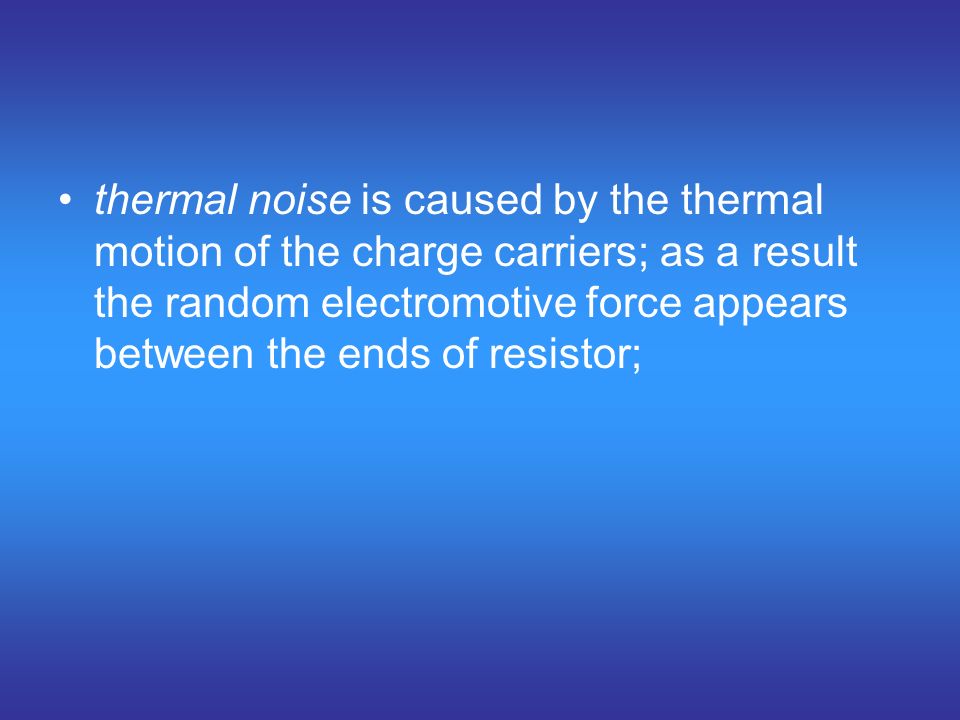

19. thermal noise is caused by the thermal motion of the charge carriers; as a result the random electromotive force appears between the ends of resistor;

20. Johnson Noise, or Thermal Noise, or Thermal Agitation Noise Also referred to as white noise because of gaussian spectral density. (V) where –Vn = noise Voltage –k = Boltzman’s constant Boltzman’s constant = 1.38 x 10 -23 Joules/  Kelvin –T = temperature in  Kelvin –R = resistance in ohms (Ώ) –B = Bandwidth in Hertz (Hz)

21. Example of thermal noise –Given R = 1Kohm –Given B = 2 KHz to 3 KHz = 1 KHz –Assume: T = 290K (room Temperature) Solution Vn = 4KTRB units V 2 Vn2= (4) (1.38 x 10 –23 J/K) (290K) (1 Kohm) (1KHz) = 1.6 x 10-14 V 2 Vn = 1.26 x10 –7 V = 0.126 uV

22. Shot noise Shot noise appears because the current through the electron tube (diode, triode etc.) consists of the separate pulses caused by the discontinuous electrons; –This effect is similar to the specific sound when the buckshot is poured out on the floor and the separate blows unite into the continuous noise;

23. Shot Noise: noise from DC current flowing in any conductor where –In = noise current (amps) –q = elementary electric charge – = 1.6 x 10 -19 Coulombs –I = Current (amp) –B = Bandwidth in Hertz (Hz)

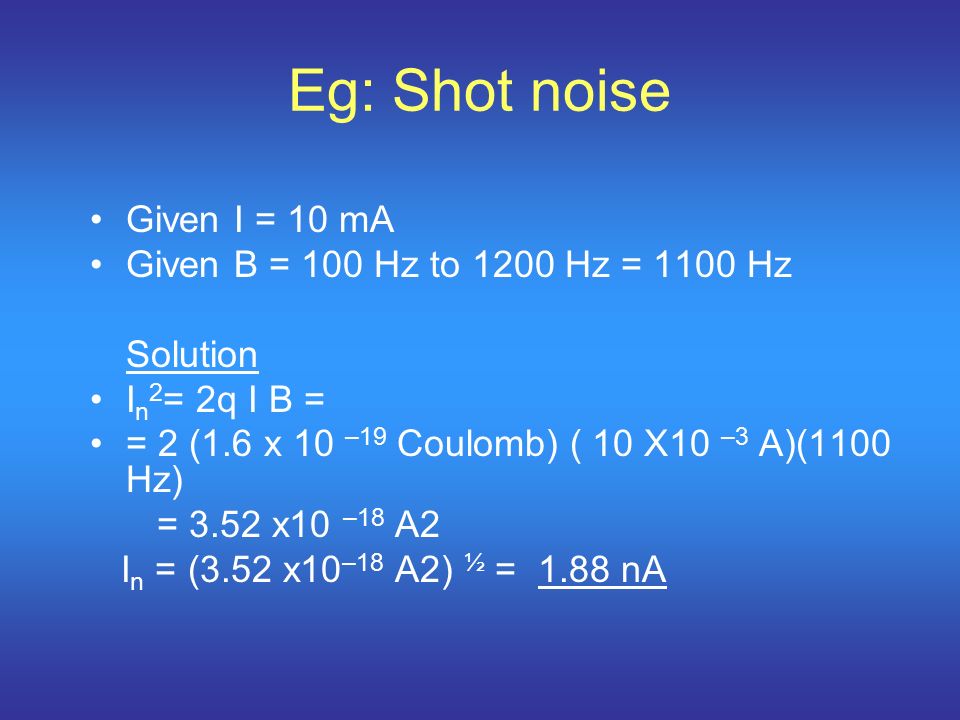

24. Eg: Shot noise Given I = 10 mA Given B = 100 Hz to 1200 Hz = 1100 Hz Solution I n 2 = 2q I B = = 2 (1.6 x 10 –19 Coulomb) ( 10 X10 –3 A)(1100 Hz) = 3.52 x10 –18 A2 I n = (3.52 x10 –18 A2) ½ = 1.88 nA

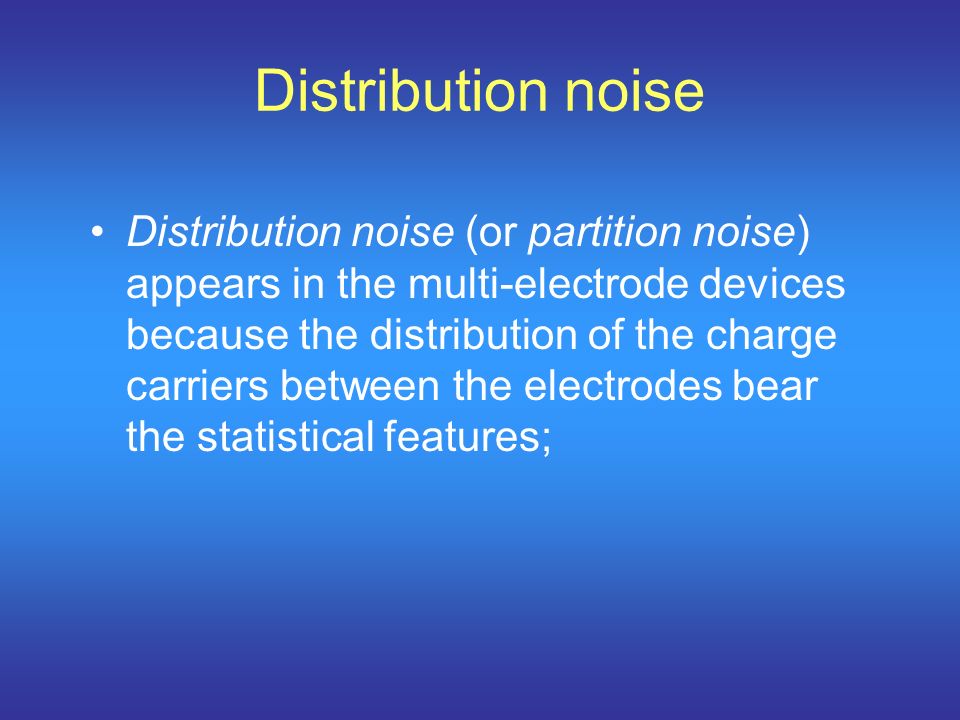

25. Distribution noise Distribution noise (or partition noise) appears in the multi-electrode devices because the distribution of the charge carriers between the electrodes bear the statistical features;

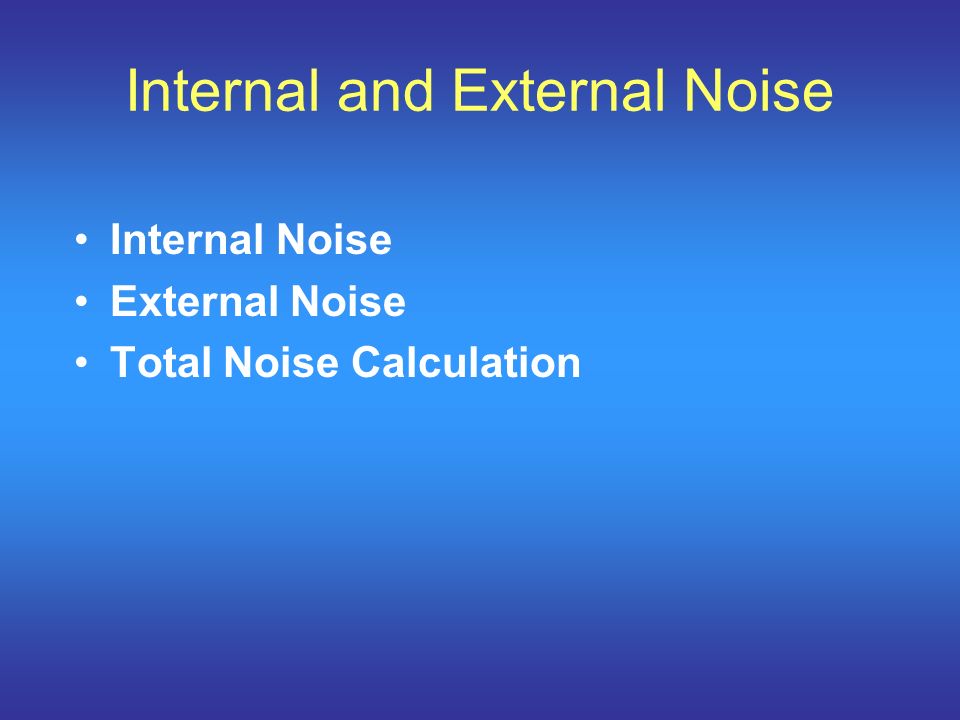

26. Internal and External Noise Internal Noise External Noise Total Noise Calculation

27. Internal Noise Internal Noise: Caused by thermal currents in semiconductor material resistances and is the difference between output noise level and input noise level

28. External Noise External Noise: Noise produced by signal sources also called source noise; cause by thermal agitation currents in signal source

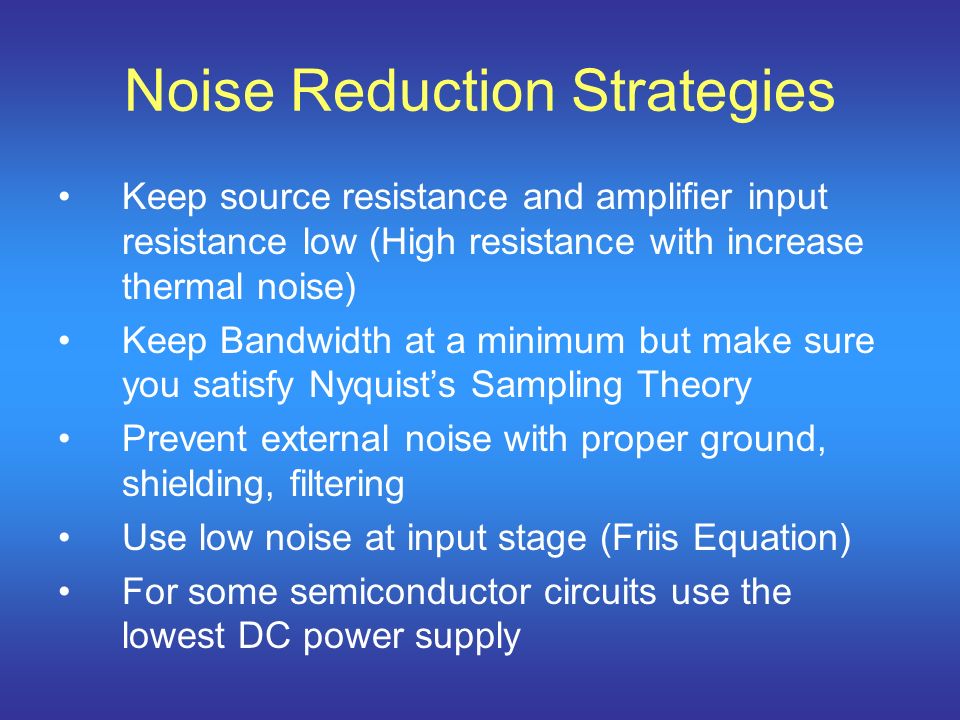

29. Noise Reduction Strategies Keep source resistance and amplifier input resistance low (High resistance with increase thermal noise) Keep Bandwidth at a minimum but make sure you satisfy Nyquist’s Sampling Theory Prevent external noise with proper ground, shielding, filtering Use low noise at input stage (Friis Equation) For some semiconductor circuits use the lowest DC power supply

30. Noise Reduction by Signal Averaging Un processed SNR, S n =20 log (V in /V n ) Processed SNR Ave S n = 20 log (V in /V n / N 1/2 ) –where –SNR, S n = unprocessed SNR –SNR, Ave S n = time averaged SNR –N = # repetitions of signals –Vin = Voltage of Signal –Vn = Voltage of Noise Processing Gain = Ave S n – S n in dB

31. Noise Reduction by Signal Averaging Ex: EEG signal of 5 uV with 100 uV of random noise –Find the unprocessed SNR, processed SNR with 1000 repetitions and the processing Gain

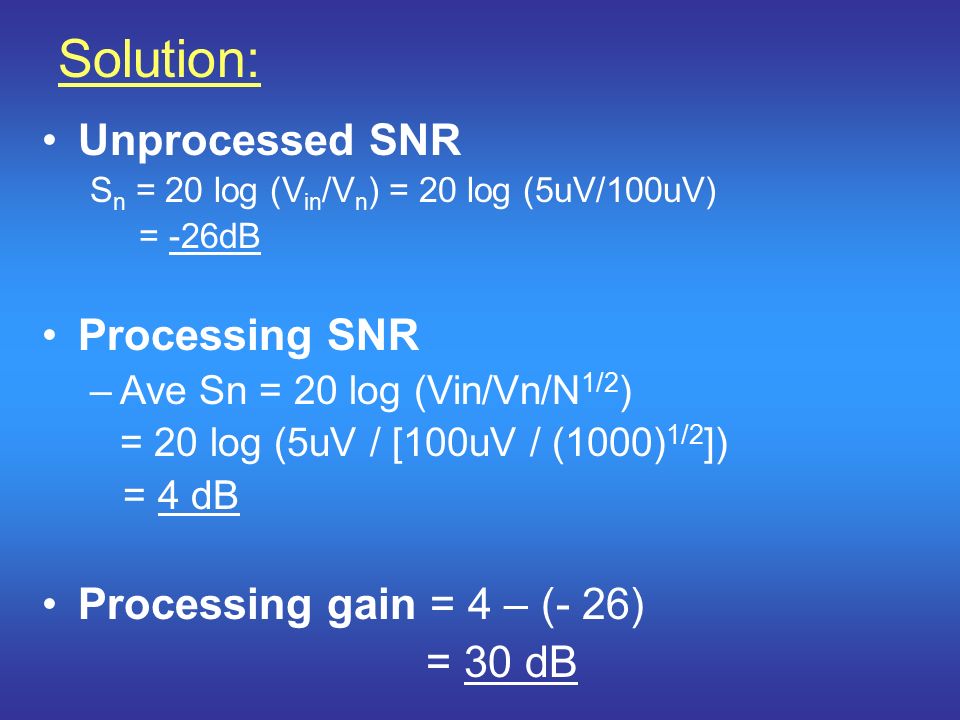

32. Solution: Unprocessed SNR S n = 20 log (V in /V n ) = 20 log (5uV/100uV) = -26dB Processing SNR –Ave Sn = 20 log (Vin/Vn/N 1/2 ) = 20 log (5uV / [100uV / (1000) 1/2 ]) = 4 dB Processing gain = 4 – (- 26) = 30 dB
