1. Chapter 5 Creating Page Templates

2. Principles of Web Design 2nd Ed. Chapter 5 2 Principles of Web Design Chapter 5 Objectives Understand table basics Format tables Follow table pointers to create well- designed tables Create a page template Evaluate examples of page templates

3. Principles of Web Design 2nd Ed. Chapter 5 3 Principles of Web Design Chapter 5 Using Table Elements To build effective page templates, you must be familiar with the HTML table elements and attributes The element contains the table information, which consists of table row elements, and individual table data cells. These are the three elements you will use most frequently when you are building tables.

4. Principles of Web Design 2nd Ed. Chapter 5 4 Principles of Web Design Chapter 5

5. Principles of Web Design 2nd Ed. Chapter 5 5 Principles of Web Design Chapter 5 Basic Table Code Stock Number Description List Price 3476-AB 76mm Socket 45.00 3478-AB 78mm Socket 47.50 3480-AB 80mm Socket 50.00

6. Principles of Web Design 2nd Ed. Chapter 5 6 Principles of Web Design Chapter 5

7. Principles of Web Design 2nd Ed. Chapter 5 7 Principles of Web Design Chapter 5 Captions and Table Header lets you add a caption to the top or bottom of the table. By default, captions display at the top of the table. You can use the align=“bottom” attribute to align the caption at the bottom of the table. The tag lets you create a table header cell that presents the cell content as bold and centered

8. Principles of Web Design 2nd Ed. Chapter 5 8 Principles of Web Design Chapter 5

9. Principles of Web Design 2nd Ed. Chapter 5 9 Principles of Web Design Chapter 5 Defining Table Attributes Table attributes let you further define a number of table characteristics. You can apply attributes at three levels of table structure: global, row-level, or cell-level.

10. Principles of Web Design 2nd Ed. Chapter 5 10 Principles of Web Design Chapter 5

11. Principles of Web Design 2nd Ed. Chapter 5 11 Principles of Web Design Chapter 5

12. Principles of Web Design 2nd Ed. Chapter 5 12 Principles of Web Design Chapter 5

13. Principles of Web Design 2nd Ed. Chapter 5 13 Principles of Web Design Chapter 5 Spanning Columns The COLSPAN attribute lets you create cells that span multiple columns of a table. Column cells always span to the right.

14. Principles of Web Design 2nd Ed. Chapter 5 14 Principles of Web Design Chapter 5

15. Principles of Web Design 2nd Ed. Chapter 5 15 Principles of Web Design Chapter 5 Spanning Rows The ROWSPAN attribute lets you create cells that span multiple rows of a table. Rows always span down.

16. Principles of Web Design 2nd Ed. Chapter 5 16 Principles of Web Design Chapter 5

17. Principles of Web Design 2nd Ed. Chapter 5 17 Principles of Web Design Chapter 5 Relative or Absolute Widths Set relative table widths as percentages in the table width attribute. If you choose relative table widths, your tables will resize based on the size of the browser window. Set absolute table widths as pixel values in the table width attribute. Fixed tables remain constant regardless of the browser window size.

18. Principles of Web Design 2nd Ed. Chapter 5 18 Principles of Web Design Chapter 5

19. Principles of Web Design 2nd Ed. Chapter 5 19 Principles of Web Design Chapter 5

20. Principles of Web Design 2nd Ed. Chapter 5 20 Principles of Web Design Chapter 5 Calculating Table Widths The most common width for page template tables is approximately 750 pixels. This width supports the 800 x 600 screen resolution.

21. Principles of Web Design 2nd Ed. Chapter 5 21 Principles of Web Design Chapter 5

22. Principles of Web Design 2nd Ed. Chapter 5 22 Principles of Web Design Chapter 5 Default Table Spacing Default spacing values are included in the table even when you don’t specify values for the table’s border, cellpadding, or cellspacing attributes Depending on the browser, approximately two pixels are reserved for each of these values You can remove the default spacing by explicitly stating a zero value for each attribute

23. Principles of Web Design 2nd Ed. Chapter 5 23 Principles of Web Design Chapter 5

24. Principles of Web Design 2nd Ed. Chapter 5 24 Principles of Web Design Chapter 5

25. Principles of Web Design 2nd Ed. Chapter 5 25 Principles of Web Design Chapter 5

26. Principles of Web Design 2nd Ed. Chapter 5 26 Principles of Web Design Chapter 5

27. Principles of Web Design 2nd Ed. Chapter 5 27 Principles of Web Design Chapter 5

28. Principles of Web Design 2nd Ed. Chapter 5 28 Principles of Web Design Chapter 5 Table Pointers Write easy-to-read code - You can simplify your table creation and maintenance tasks by writing clean, commented code Remove extra spaces - Always remove any leading or trailing spaces in your table cell content Center tables - Centering a fixed table makes the table independent of resolution changes, because the table is always centered in the browser window

29. Principles of Web Design 2nd Ed. Chapter 5 29 Principles of Web Design Chapter 5 Table Pointers Stack tables - Because of the way browsers display tables, it’s best to build several smaller tables rather than one large one Nest tables - You can nest tables by placing an entire table within a table cell

30. Principles of Web Design 2nd Ed. Chapter 5 30 Principles of Web Design Chapter 5

31. Principles of Web Design 2nd Ed. Chapter 5 31 Principles of Web Design Chapter 5

32. Principles of Web Design 2nd Ed. Chapter 5 32 Principles of Web Design Chapter 5

33. Principles of Web Design 2nd Ed. Chapter 5 33 Principles of Web Design Chapter 5 Creating a Page Template In this example you’ll see how to take a design sketch for a Web page and build a template for the page layout Figure 5-19 shows a sketch of the desired layout. This layout is designed for a base screen resolution of 800 x 600, so the table will be fixed at a width of 750 pixels.

34. Principles of Web Design 2nd Ed. Chapter 5 34 Principles of Web Design Chapter 5 Creating a Page Template Notice that the basic structure of the table is 3 rows by 4 columns. Each column uses 25% of the total width of the template. Row spans and column spans break across the layout to provide visual interest.

35. Principles of Web Design 2nd Ed. Chapter 5 35 Principles of Web Design Chapter 5

36. Principles of Web Design 2nd Ed. Chapter 5 36 Principles of Web Design Chapter 5 Build the Basic Structure Start by building the basic table structure, including all the cells and rows of the table As you customize the table you can remove extraneous cells as necessary The basic structure is a 3-row by 4-column table

37. Principles of Web Design 2nd Ed. Chapter 5 37 Principles of Web Design Chapter 5 Setting a Fixed Width One of the design characteristics of the template is a fixed width that is not dependent on the user’s browser size or screen resolution To accomplish this, use a pixel value in the global WIDTH attribute

38. Principles of Web Design 2nd Ed. Chapter 5 38 Principles of Web Design Chapter 5

39. Principles of Web Design 2nd Ed. Chapter 5 39 Principles of Web Design Chapter 5 Creating the Page Banner The page banner cell is R1C1. This cell spans the four columns of the table using the colspan attribute.

40. Principles of Web Design 2nd Ed. Chapter 5 40 Principles of Web Design Chapter 5

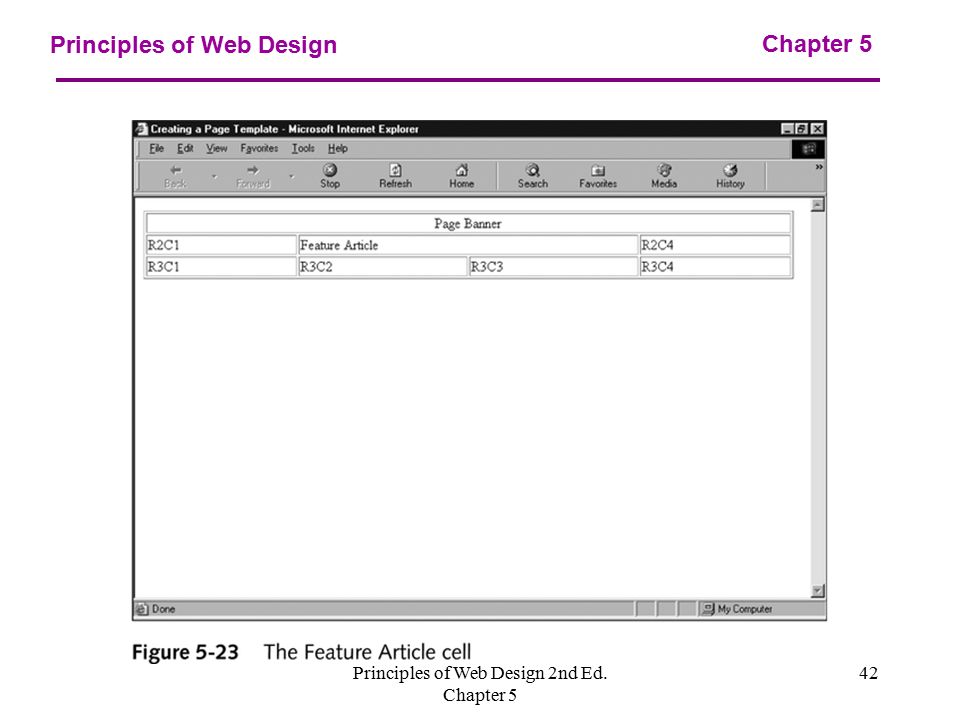

41. Principles of Web Design 2nd Ed. Chapter 5 41 Principles of Web Design Chapter 5 Creating the Feature Cell The Feature cell in the layout is R2C2, and spans two columns. This column span requires the removal of one cell in row two to make room for the span.

42. Principles of Web Design 2nd Ed. Chapter 5 42 Principles of Web Design Chapter 5

43. Principles of Web Design 2nd Ed. Chapter 5 43 Principles of Web Design Chapter 5 Creating the Link Columns The New Link and Linked Ads columns in the layout reside in cells R2C1 and R2C3 respectively. These cells span rows 2 and 3 of the table. The row spans require the removal of cells R3C1 and R3C4.

44. Principles of Web Design 2nd Ed. Chapter 5 44 Principles of Web Design Chapter 5

45. Principles of Web Design 2nd Ed. Chapter 5 45 Principles of Web Design Chapter 5

46. Principles of Web Design 2nd Ed. Chapter 5 46 Principles of Web Design Chapter 5 Creating the Page Banner Column widths must be set in only one cell per column It’s also best to set the column widths in only one row of the table Setting the column width ensures that the text will wrap properly

47. Principles of Web Design 2nd Ed. Chapter 5 47 Principles of Web Design Chapter 5

48. Principles of Web Design 2nd Ed. Chapter 5 48 Principles of Web Design Chapter 5 Testing the Template To verify that your template works properly, populate it with test content Test the template in multiple browsers

49. Principles of Web Design 2nd Ed. Chapter 5 49 Principles of Web Design Chapter 5

50. Principles of Web Design 2nd Ed. Chapter 5 50 Principles of Web Design Chapter 5

51. Principles of Web Design 2nd Ed. Chapter 5 51 Principles of Web Design Chapter 5

52. Principles of Web Design 2nd Ed. Chapter 5 52 Principles of Web Design Chapter 5

53. Principles of Web Design 2nd Ed. Chapter 5 53 Principles of Web Design Chapter 5

54. Principles of Web Design 2nd Ed. Chapter 5 54 Principles of Web Design Chapter 5 Template Examples The following templates cover a variety of page layout needs You may choose to stack different templates on top of each other for more complex layouts

55. Principles of Web Design 2nd Ed. Chapter 5 55 Principles of Web Design Chapter 5

56. Principles of Web Design 2nd Ed. Chapter 5 56 Principles of Web Design Chapter 5

57. Principles of Web Design 2nd Ed. Chapter 5 57 Principles of Web Design Chapter 5

58. Principles of Web Design 2nd Ed. Chapter 5 58 Principles of Web Design Chapter 5

59. Principles of Web Design 2nd Ed. Chapter 5 59 Principles of Web Design Chapter 5

60. Principles of Web Design 2nd Ed. Chapter 5 60 Principles of Web Design Chapter 5

61. Principles of Web Design 2nd Ed. Chapter 5 61 Principles of Web Design Chapter 5 Summary Plan your tables by sketching them out first Use fixed table widths if you want to determine the size of your page rather than letting the browser determine the width Use relative widths if you want to build tables that resize with the browser window, wrapping your content to fit

62. Principles of Web Design 2nd Ed. Chapter 5 62 Principles of Web Design Chapter 5 Summary Work on your pages with the table borders turned on, which displays the cell boundaries. When you are finished with your layout you can turn the borders off. Size your tables based on the page size you want to create. Use 800 x 600 as your base screen resolution. In most cases you’ll set the width but not the height of your tables, allowing the content to flow down the page.

63. Principles of Web Design 2nd Ed. Chapter 5 63 Principles of Web Design Chapter 5 Summary Test your work! Table settings, especially cell widths and heights, can vary based on the user’s browser.
