1. Immunoglobulin Gene Organization and Expression
W. Robert Fleischmann, Ph.D.
Department of Urologic Surgery
University of Minnesota Medical School
(612)

2. Objectives
Understand how the immunoglobulin genes are organized in the DNA.
Understand the basis for diversity of immunoglobulins.
Understand the mechanisms by which the variable regions undergo gene rearrangement.
Understand the mechanism of class switching.
Understand how immunoglobulin genes are expressed.
Understand the medical consequences of the activity of genetic rearrangement mechanisms.

3. What thoughts do you have about Patti?
Patti Palmer, age 7 months, is brought by her parents to your clinic for testing. For the past 3 months, she has been having repeated bouts of bacterial sinusitis, otitis media, and lung infections. Streptococcus pneumoniae has been cultured from Patti during several of these infections, despite the fact that she has been vaccinated with pneumococcal conjugate vaccine at 2 months, 4 months, and 6 months. She is currently ill with a lung infection.
What thoughts do you have about Patti?
It is likely that she has an immunodeficiency.

4. The physician suspects that Patti has an immundeficiency.
Blood test results:
Total WBC: 19,100/µl (4,100-10,900/µl)
Differential WBCs:
Neutrophils 82% (35-80%)
Lymphocytes 15% (20-50%)
Macrophages 3% (2-12%)
Eosinophils 0% (0-7%)
Basophils 0% (0-2%)
All other blood test results are normal.
What thoughts do you have about Patti?
What additional tests might you wish to run?
She has a very high WBC count, consistent with a bacterial infection.
The differential is tilted towards PMNs, so likely bacterial infection.
Absolute lymphocyte count is normal (appears low because of excess PMNs).
Unlikely to be T cell deficiency. Do T cell/B cell function tests. Measure Ab levels.

5. General Structure of an Antibody
Light chain
(kappa or lambda)
Heavy chain
(isotypic region:
,  , , or )
Light chains:
Kappa chains are found twice as
frequently in Abs as are lambda chains.
Heavy chains:
These undergo class switching
as the B cell undergoes differentiation.

6. The Conundrum
The human genome contains an estimated 20,000 to 25,000 genes that encode mRNAs for proteins.
To protect us, our immune system has the ability to produce about different antibodies.
If every gene encoded a different antibody, the genes would encode only 1 millionth of the antibodies needed.
How can our immune system produce so many different antibodies with so few genes?
If each gene encoded a different antibody, they would encode only 1 millionth of the antibodies needed.

7. Features of the Antibody Genes
Antibodies are composed of heavy and light chains.
As is seen for most eukaryotic genes, the heavy and light chains of the immunoglobulin genes are each composed of segments (exons) that must be joined together to form the immunoglobulin genes.
For immunoglobulin genes, the joining of a number of the exons occurs via a rearrangement of the gene segments at the level of the DNA, rather than at the level of the mRNA.
There are multiple copies of each of the various segments of the heavy and light chains of the immunoglobulin genes, with one of each of these segments becoming sequentially rearranged to form the heavy and light chain genes.

8. The Keys to Antibody Diversity
Antibody diversity is generated during genetic rearrangement by mixing and matching one of each of the various gene segments for the heavy and light chains in a combinatorial manner.
Antibody diversity is generated by errors incorporated at the joining sites for the various segments of the heavy and light chains.
Antibody diversity is generated by hypermutation in one of the gene segments (variable regions) of the heavy and light chains during proliferation of B cells.
Antibody diversity is generated by mixing and matching heavy and light chains in a combinatorial manner.

9. Overview of Immunoglobulin Expression at Various Stages of B Cell Maturation

10. The Immunoglobulin Heavy Chains
There are two identical immunoglobulin heavy chains in each antibody.
Each of the immunoglobulin heavy chain genes is assembled from V, D, J, and C gene segments.
There are multiple C gene segments (constant regions) that give rise to different isotypes.
IgD
IgM
IgG: 4 heavy chains, IgG1, IgG2, IgG3, IgG4
IgE
IgA: 2 heavy chains IgA1, IgA2

11. Heavy Chain Rearrangement

12. Heavy Chain Diversity 39 V gene segments 23 D gene segments
6 J gene segments
5,382 combinations of heavy chain VDJ segments

13. The Immunoglobulin Light Chains
There are two types of immunoglobulin light chains.
 light chain
 light chain
Each of the immunoglobulin light chain genes is assembled by the rearrangement of V, J, and C gene segments.

14.  Light Chain Rearrangement

15. Light Chain Diversity  light chain diversity  light chain diversity
40 V gene segments
5 J gene segments
1 C gene segment
 light chain diversity
30 V gene segments
4 J gene segments
4 C gene segments
200 combinations of  light chain VJC segments
480 combinations of  light chain VJC segments
680 combinations of light chain VJC segments

16. Antibody Diversity from Rearrangements
From heavy chains: 5,382 combinations
From  and  light chains: 680 combinations
3.6 x 106 Combinations of light and heavy chains
This is far short of the different
Antibodies that are postulated to occur.

17. How Does Rearrangement Occur?
Rearrangement occurs between specific sites on the DNA called recombination signal sequences (RSSs).
Rearrangement is catalyzed by two recombination-activating genes: RAG-1 and RAG-2.

18. Recombination Signal Sequences
The specific recognition sequences, called recombination signal sequences (RSSs), indicate the sites of recombination.
These signal sequences composed of a 7 bp sequence and a 9 bp sequence are separated by one turn of the DNA (12 bp spacer) or by two turns of the DNA (23 bp spacer).
The RSSs are inverted repeats that allow the DNA to form a stem-loop with the RSSs aligning on the stem.

19. Rearrangement Process
Site of P and N nucleotide
additions

20. P-Nucleotide And N-Nucleotide Additions
Cleavage of the RSSs by RAG leaves single-stranded regions.
These single-stranded regions are copied to form a hairpin loop by addition of P-nucleotides (P for palindromic nucleotides).
Additional N nucleotides (N for any nucleotide) may be added.
The sequences are joined.

21. Consequences of Rearrangement and P- and N-Nucleotide Addition
Positive consequence of imprecise joining of Ig gene segments
A productive rearrangement occurs if the number of nucleotides added across the joining region allows the genetic code to be read in phase.
This results in the generation of additional diversity.
Negative consequence of imprecise joining of Ig gene segments
A nonproductive rearrangement occurs if the number of nucleotides added across the joining region causes the genetic code to be read out of phase (the majority of times).
This results in an incomplete antibody (run into stop codons)
The B cell may be able to productively rearrange the immunoglobulin gene on the other chromosome.
Otherwise, it will result in the death of the B cell.

22. Alleleic Exclusion
Alleleic exclusion occurs when only one of two alleles is expressed.
This is the case with immunoglobulin molecules.
This ensures that a given B cell will make antibody molecules with only a single specificity.
Antibodies may be made from maternal and paternal chromosomes:HM:LM; HP:LM; HM:LP; HP:LP.
Note: If the first allele makes a non-functional antibody, the second allele will undergo rearrangement.

23. Immunoglobulin Molecules Expressed on Mature B Cells
Mature (but not activated) B cells initially express IgD and IgM on their external cell membranes.
The choice of IgD versus IgM occurs at the level of processing of mRNA, so a given B cell can both express IgD and IgM.
As mature B cells are activated to divide and differentiate by their cognate antigen, they switch from membrane-bound IgD and IgM to secretory IgM.
This switch occurs at the level of processing of mRNA transcripts.
As they continue to divide and differentiate, they may undergo additional class switching: IgM => IgG => IgE => IgA.
These switches occur at the level of rearrangements of the DNA.

24. Expression of Membrane-Bound IgD and IgM
An initial pre-mRNA transcript is produced.
Importantly, the pre-mRNA transcript has two poly-A sites.
If the second polyadenylation site is read, then the mRNA for membrane-bound IgM is generated by splicing.
If the fourth polyadenylation site is read, then the mRNA for membrane-bound IgD is generated by alternate splicing.

25. Structures of Membrane IgM and Secreted IgM
Note the many
hydrophobic
amino acids in
the trans-
membrane
sequence.
Note the cysteine
for creation of S-S
bonds between IgM
antibodies.

26. Expression of Membrane-Bound IgM and Secreted IgM
The initial pre-mRNA transcript is synthesized.
Importantly, the pre-mRNA transcripts have two poly-A sites within the Cµ gene segment.
If the M1, M2 exons are spliced out, the mRNA for secreted IgM is produced.

27. Class Switching With Activated B Cell Differentiation And Division
After activation, B cells switch from membrane-bound IgM and IgD to secreted IgM by differential splicing.
As the activated B cells continue to differentiate and divide, they class switch to production of IgG by DNA rearrangement.
Activated B cells may continue to class switch to production of IgE or IgA by DNA rearrangement.

28. Mechanism of Class Switching
With activation of the B cell, class switching can occur.
At the level of the DNA, a looping event occurs that cuts out the constant regions for IgM and IgD.
This leads to the production of IgG mRNAs.
If further looping out occurs, the mRNAs for IgE or IgA are produced.

29. Cytokine Effects on Class Switching
Certain cytokines affect class switching:
IFN- => IgG2a
IL-4 => IgG1, IgE
IL-5 => IgE

30. Antibody Diversity by Hypermutation
After exposure to its cognate antigen, the mature B cell is activated to proliferate.
As the B cell proliferates, mutations accumulate in the immunoglobulin gene by a process called somatic hypermutation.
These mutations are concentrated in the variable region.
The mutations give greater antibody diversity.
Some of the mutations will lead to an antibody that binds the antigen more firmly (affinity maturation).
If the mutations lead to less Ab affinity, the B cell dies.

31. Review of Immunoglobulin Expression at Various Stages of B Cell Maturation

32. Patti Palmer Lymphocyte stimulation test:
Phytohemaglutinin
Concanavalin A
Pokeweed mitogen
How do you interpret these results?
What additional tests would you wish to run?
B cell/T cell function is okay. Monitor subtypes of IgG.

33. Patti Palmer Antibody levels in the blood:
Serum IgG 385 mg/100 ml mg/100 ml
Serum IgA 30 mg/100 ml mg/100 ml
Serum IgM 50 mg/100 ml mg/100 ml
How do you interpret these results?
What additional tests would you wish to run?
IgG is low but other Abs are okay. Monitor B cell/T cell function.
Measure subtypes of IgG.

34. Patti Palmer IgG subtype test:
Different IgG subtypes were measured, using ELISA. The level of IgG2 was below the detectable level. The levels of IgG1, IgG3, and IgG4 were all in the normal range.
How do you interpret these results?
Patti has IgG2 subclass deficiency. Because of IgG2 constitutes about 30% of IgG,
this may not be seen as a significant reduction in total IgG level.

35. Patti Palmer
Patti is diagnosed with IgG2 subclass deficiency. There is no rearrangement of her IgG2 heavy chain, perhaps because of a lack of switch regions for her IgG2 heavy chain.
A principal cause of recurrent pneumococcal infections is a deficiency in the antibody response to pneumococcal polysaccharides in the capsule. IgG2 is the antibody subtype that best recognizes polysaccharides. Thus, a deficiency in IgG2 leads to an inability to control pneumococcal infections.
Patti is begun on intravenous IgG at 3-4 week intervals.

36. Diseases Associated With Expression of Immunoglobulin Genes
Burkitt’s Lymphoma
Acute Lymphocytic Leukemia
Acute Myelogenous Leukemia
Chronic Lymphocytic Leukemia
Chronic Myelogenous Leukemia

37. Diseases Involving Translocations of Oncogenes Onto Immunoglobulin Genes
Chronic Myelogenous Leukemia:
Philadelphia chromosome (novel chromosome 22)
This results from a reciprocal translocation of chromosomes 9 and 22.
This places a proto-oncogene under the control of the  light chain gene promoter on chromosome 22.
Burkitt’s Lymphoma:
A reciprocal translocation of chromosomes 8 and 14.
This places c-myc under the control of the heavy chain promoter on chromosome 14.

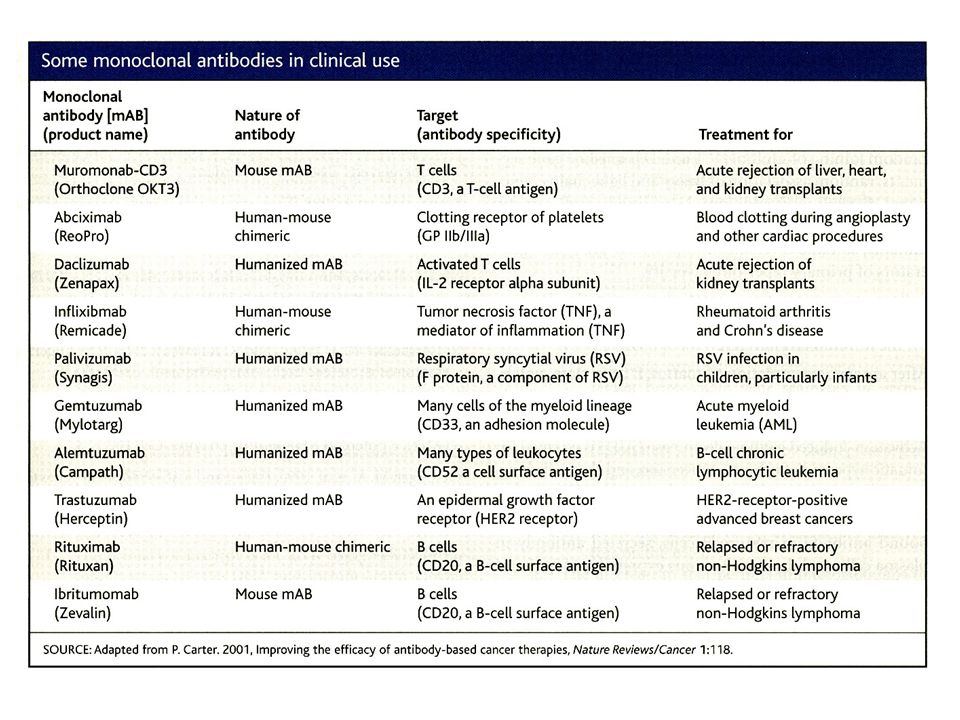

38. Medical Uses of Antibodies
Monoclonal antibodies are used for treatment of certain diseases.

39. Anti-Idiotopic Antibody
The concept is to make an antibody that mimics an antigen.
This is not in use yet.
It could be used to generate antibodies against antigens.
Antigens that are not readily recognized: a polysaccharide molecule
Antigens that are not readily recognized and toxic: the lipid A region of bacterial endotoxin.
The anti-idiotype antigen could then be used as a vaccine.

40. Generation of Monoclonal Antibodies
B cells from recently immunized mice are harvested from spleens and fused with mouse myeloma cells.
The myeloma cells have been cloned to resist a specific toxic drug.
Only myeloma cells and fused myeloma cells survive treatment with the toxin.
The surviving cells are cloned and tested for production of antibody to the antigen used to immunize the mice.
The identified clone is cultured and harvested for monoclonal antibody.

41. Production of Humanized Monoclonal Antibodies
Harvest mouse embryonic stem cells and KO the genes for the mouse heavy and light chains.
Transfect the KO mouse cell with a human artificial chromosome that encodes the human heavy and light chains.
Inject into a mouse blastocyst to generate a chimeric mouse with 1 normal mouse and one KO mouse chromosome for antibody genes.
Interbreed progeny mice to obtain a mouse that is homozygous for the KO mouse chromosome and the human artificial chromosome.
Inoculate mice with antigen as for generating monoclonal antibody.
Immunize with antigen.
Harvest spleen cells.
Fuse with myeloma cells.
