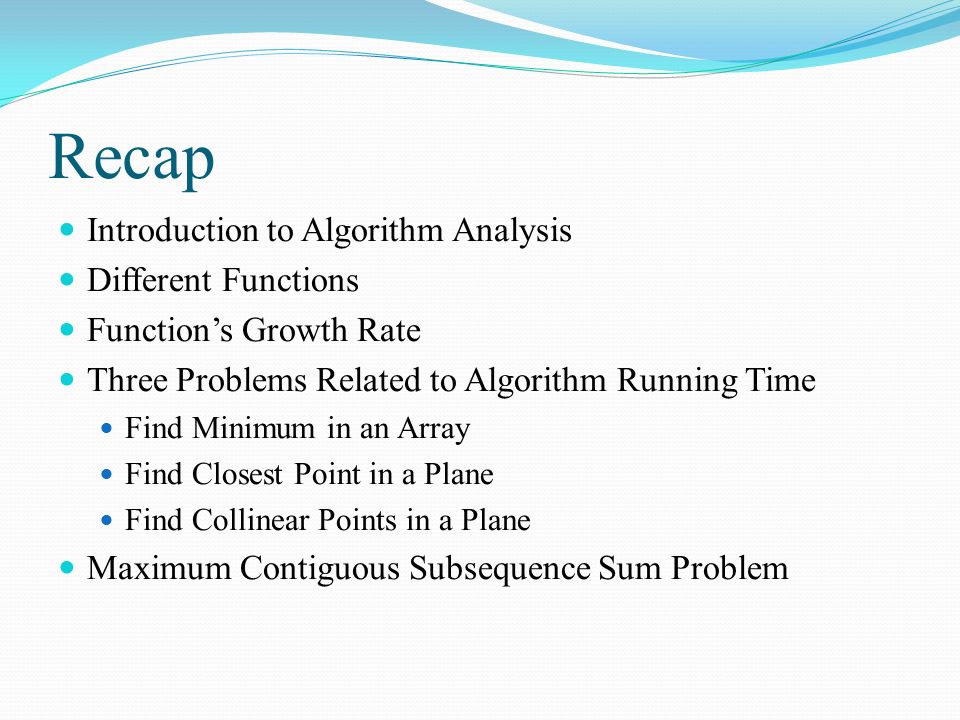

2. Recap Introduction to Algorithm Analysis Different Functions Function’s Growth Rate Three Problems Related to Algorithm Running Time Find Minimum in an Array Find Closest Point in a Plane Find Collinear Points in a Plane Maximum Contiguous Subsequence Sum Problem

3. Theorem 6.1

4. Proof Place the following N + 2 balls in a box: N balls numbered 1 through N, one unnumbered red ball and one unnumbered blue ball. Remove three balls from the box. If a red ball is drawn, number it as the lowest of the numbered balls drawn. If a blue ball is drawn, number it as highest of the numbered balls drawn. Note that if you draw both a red and a blue ball, then the effect is to have three balls identical numbered. Order the three balls. Each such order corresponds to a triplet solution to the equation in Theorem 6.1. The number of possible orders is the number of distinct ways to draw three balls without replacement from collection of N + 2 balls. This problem is similar to that of selecting three points from a group of N so we immediately obtain the stated result.

7. 1 // Quadratic maximum contiguous subsequence sum algorithm. 2 // seqStart and seqEnd represent the actual best sequence. 3 template 4 Comparable maxSubsequenceSum( const vector & a, 5 int & seqstart, int & seqEnd ) 6 ( 7 int n = a.size( ); 8 Comparable maxSum = 0; 9 10 for( int i = 0; i < n; i++ ) 11 { 12 Comparable thisSum = 0; 13 for( int j = i; j < n; j++ ) 14 ( 15 thisSum += a [ j ] ; 16 17 if ( thisSum > maxSum ) 18 { 19 maxSum = thisSum; 20 seqStart = i; 21 seqEnd = j ; 22 } 23 } 24 } 25 26 return maxSum; 27 }

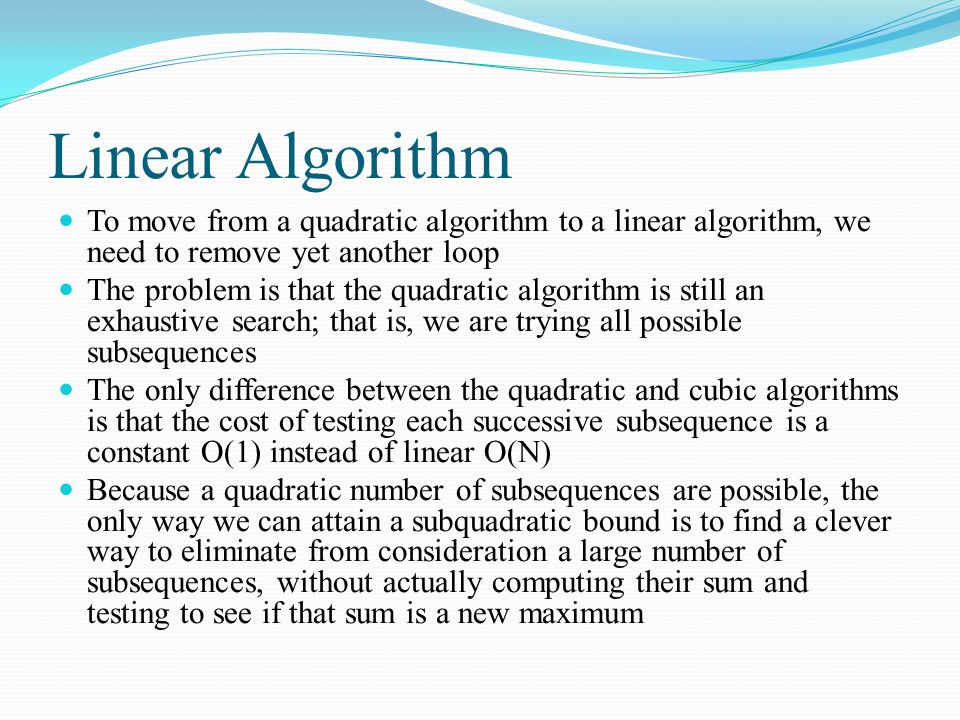

8. Linear Algorithm To move from a quadratic algorithm to a linear algorithm, we need to remove yet another loop The problem is that the quadratic algorithm is still an exhaustive search; that is, we are trying all possible subsequences The only difference between the quadratic and cubic algorithms is that the cost of testing each successive subsequence is a constant O(1) instead of linear O(N) Because a quadratic number of subsequences are possible, the only way we can attain a subquadratic bound is to find a clever way to eliminate from consideration a large number of subsequences, without actually computing their sum and testing to see if that sum is a new maximum

9. Theorem 6.2

10. Linear Algorithm Continued….

11. Theorem 6.3

12. 1 // Linear maximum contiguous subsequence sum algorithm. 2 // seqStart and seqEnd represent the actual best sequence. 3 template 4 Comparable maxSubsequenceSum( const vector & a, 5 int & seqstart, int & seqEnd ) 6 { 7 int n = a. size ( ) ; 8 Comparable thissum = 0; 9 Comparable maxSum = 0; 10 11 for( int i = 0, j = 0; j < n; j++ ) 12 { 13 thissum += a [ j ] ; 14 15 if( thissum > maxSum ) 16 { 17 maxSum = thissum; 18 seqstart = i; 19 seqEnd = j ; 20 } 21 else if ( thissum < 0 ) 22 { 23 i=j+1; 24 thissum = 0; 25 } 26 } 27 return maxsum; 28 }

13. Linear Algorithm Continued…. According to Theorem 6.3 when a negative subsequence is detected, not only can we break the inner loop, but we can also advance i to j + 1 The running time of this algorithm is linear: At each step in the loop, we advance j, so the loop iterates at most N times The correctness of this algorithm is much less obvious than for the previous algorithms, which is typical. That is, algorithms that use the structure of a problem to beat an exhaustive search generally require some sort of correctness proof We proved that the algorithm is correct by using a short mathematical argument The purpose is not to make the discussion entirely mathematical, but rather to give a flavor of the techniques that might be required in advanced work

14. General Big-Oh Rules

15. Big-Oh Notation

16. Big-Omega Notation

17. Big-Theta Notation

18. Little-Oh Notation

19. Summary of Four Definition Mathematical ExpressionRelative Rates of Growth T(N)=O(F(N)) T(N)=Ω(F(N)) T(N)=Θ(F(N))Growth of T(N) is = growth of F(N) T(N)=o(F(N))

20. Running Time of Algorithms The running time of statements inside a group of nested loops is the running time of the statements multiplied by the sizes of all the loops The running time of a sequence of consecutive loops is the running time of the dominant loop The time difference between a nested loop in which both indices run from 1 to N and two consecutive loops that are not nested but run over the same indices is the same as the space difference between a two-dimensional array and two one-dimensional arrays The first case is quadratic The second case is linear because N + N is 2N, which is still O(N) Occasionally, this simple rule can overestimate the running time, but in most cases it does not Even if it does, Big-Oh does not guarantee an exact asymptotic answer-just an upper bound

21. Continued…. The analyses performed thus far involved use of a worst-case bound, which is a guarantee over all inputs of some size Another form of analysis is the average-case bound, in which the running time is measured as an average over all the possible inputs of size N The average might differ from the worst case if, for example, a conditional statement that depends on the particular input causes an early exit from a loop One algorithm has a better worst-case bound than another algorithm, that’s why nothing is implied about their relative average-case bounds However, in many cases average-case and worst-case bounds are closely correlated. When they are not, the bounds are treated separately
