Hardware-accelerated Point-based Rendering of Surfaces and Volumes Eduardo Tejada, Tobias Schafhitzel, Thomas Ertl Universität Stuttgart, Germany.

Published byRalf Wade Modified over 8 years ago

Similar presentations

Presentation on theme: "Hardware-accelerated Point-based Rendering of Surfaces and Volumes Eduardo Tejada, Tobias Schafhitzel, Thomas Ertl Universität Stuttgart, Germany."— Presentation transcript:

1 Hardware-accelerated Point-based Rendering of Surfaces and Volumes Eduardo Tejada, Tobias Schafhitzel, Thomas Ertl Universität Stuttgart, Germany

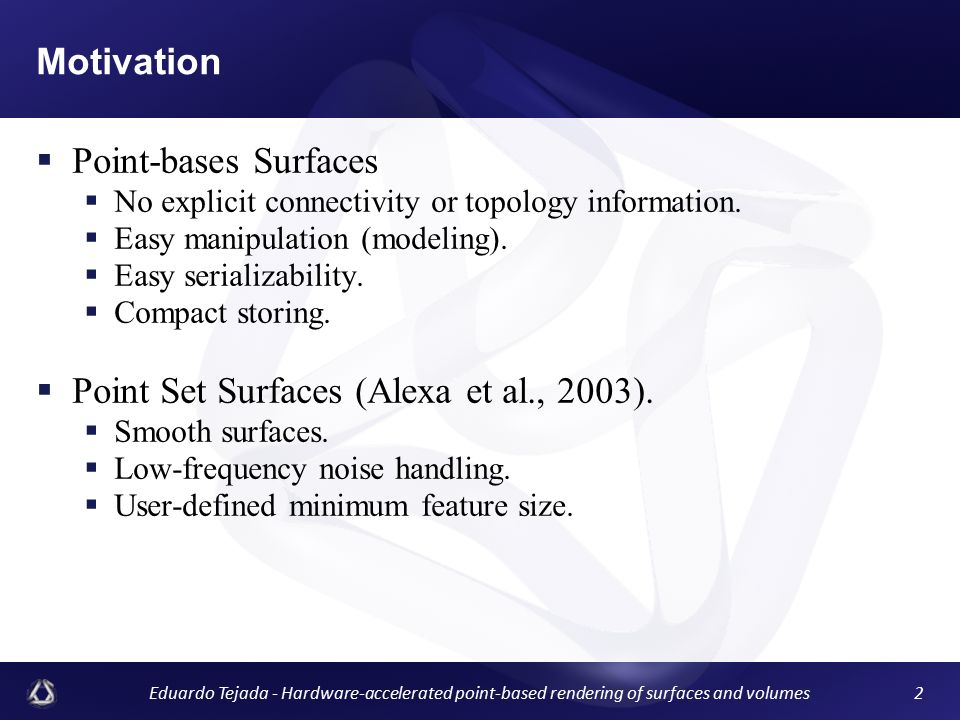

2 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes2 Motivation  Point-bases Surfaces  No explicit connectivity or topology information.  Easy manipulation (modeling).  Easy serializability.  Compact storing.  Point Set Surfaces (Alexa et al., 2003).  Smooth surfaces.  Low-frequency noise handling.  User-defined minimum feature size.

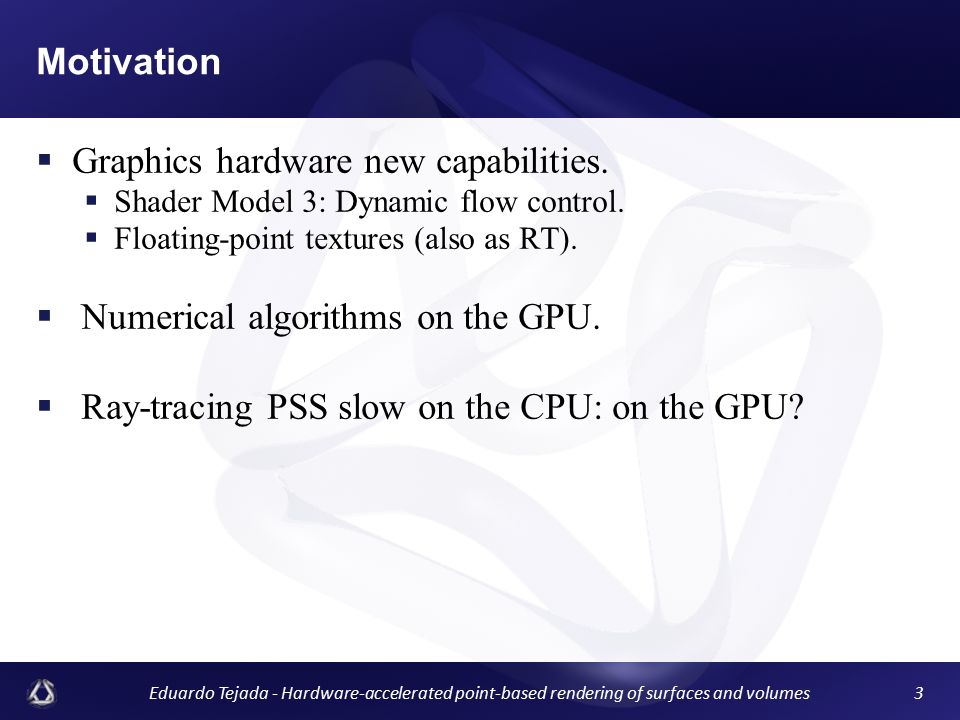

3 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes3 Motivation  Graphics hardware new capabilities.  Shader Model 3: Dynamic flow control.  Floating-point textures (also as RT).  Numerical algorithms on the GPU.  Ray-tracing PSS slow on the CPU: on the GPU?

4 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes4 Point-based Rendering

5 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes5 Point-based Rendering

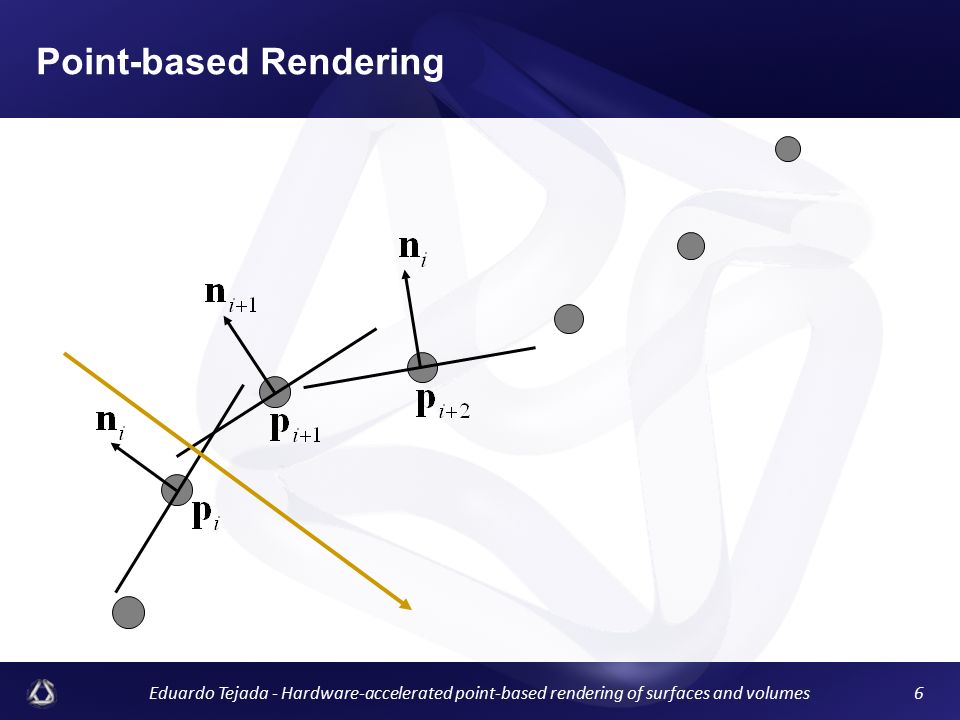

6 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes6 Point-based Rendering

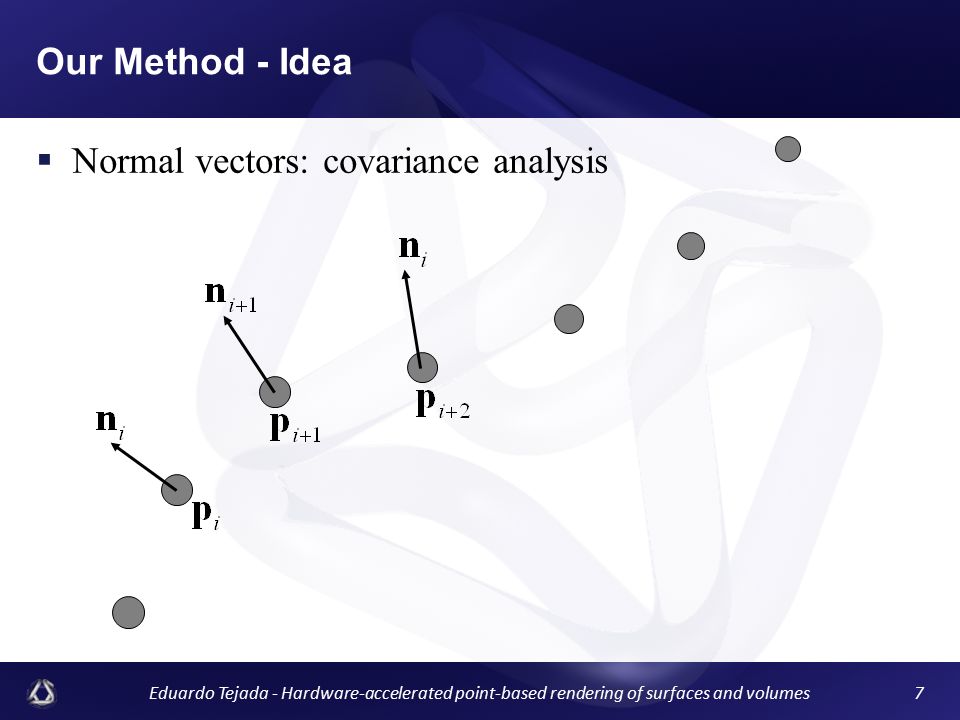

7 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes7 Our Method - Idea  Normal vectors: covariance analysis

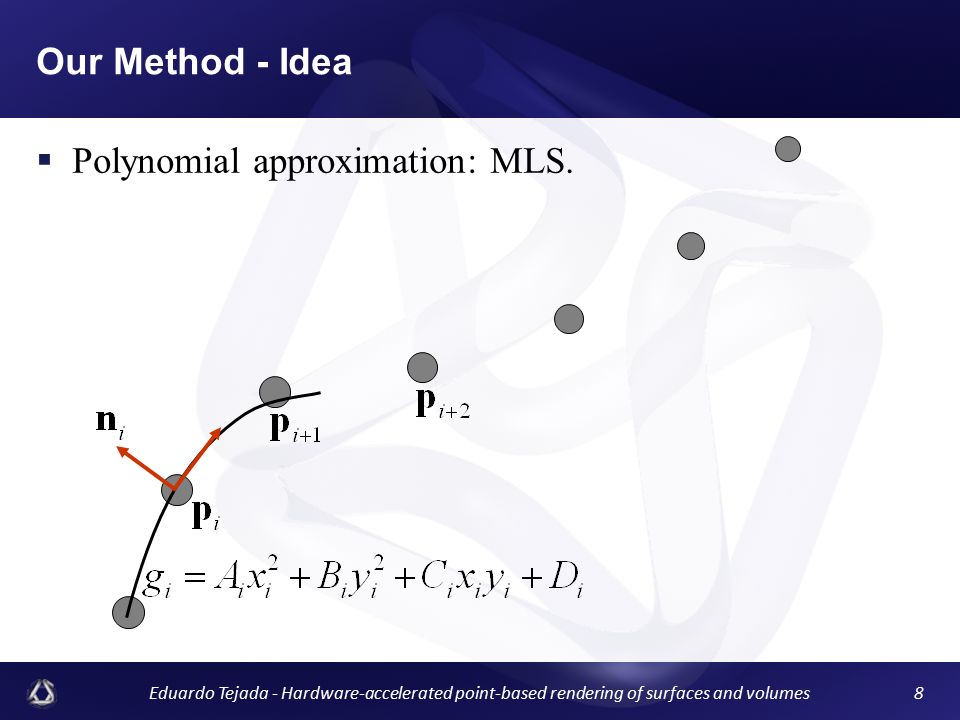

8 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes8 Our Method - Idea  Polynomial approximation: MLS.

9 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes9 Our Method - Idea

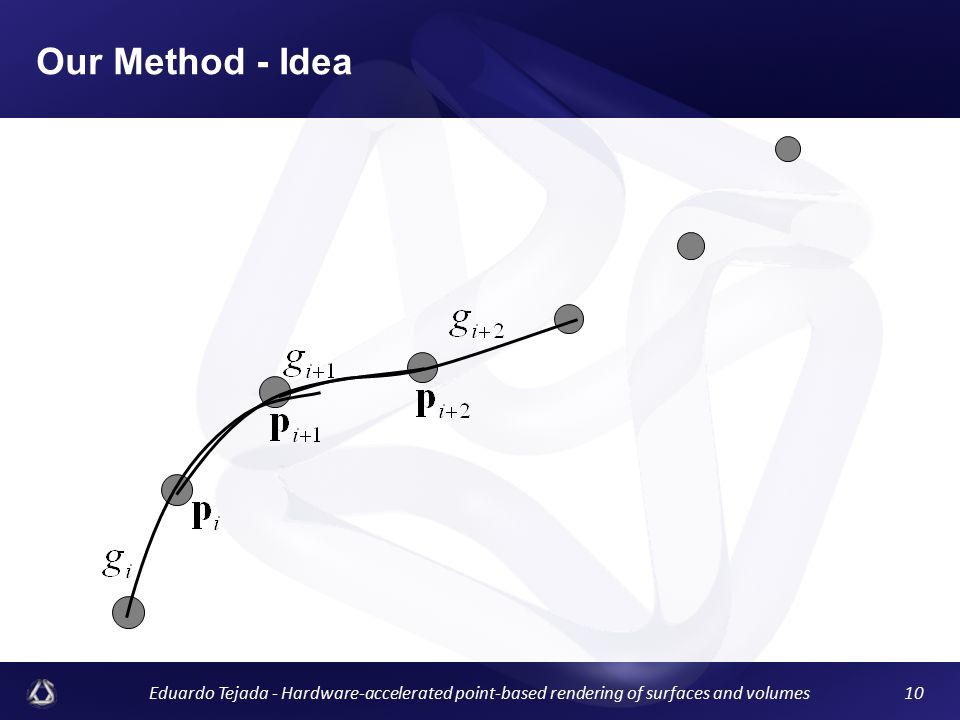

10 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes10 Our Method - Idea

11 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes11 Our Method - Idea

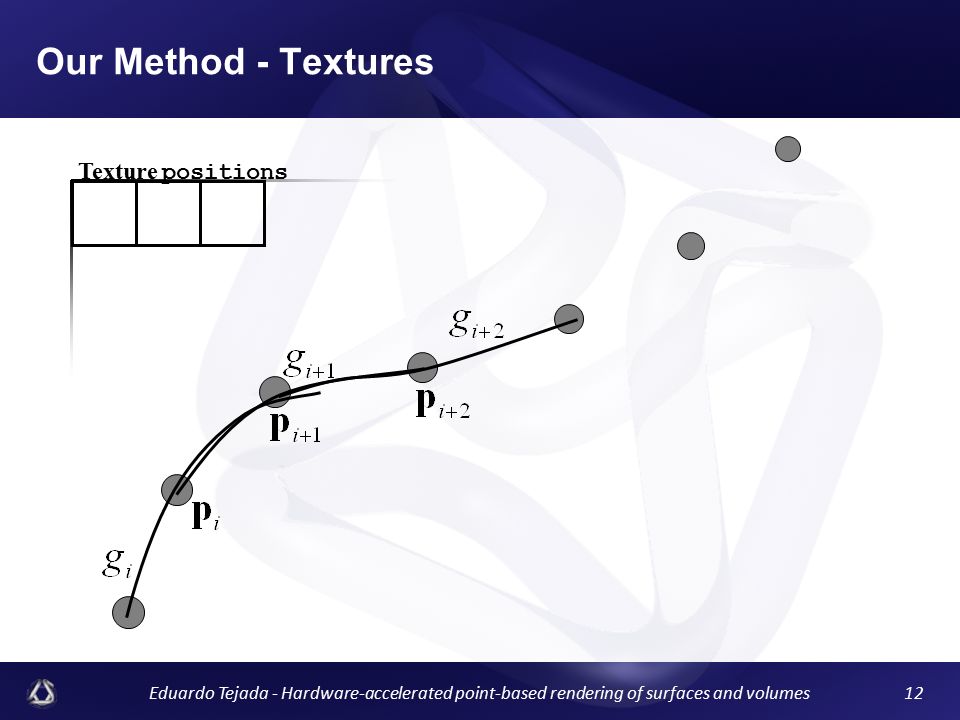

12 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes12 Our Method - Textures Texture positions

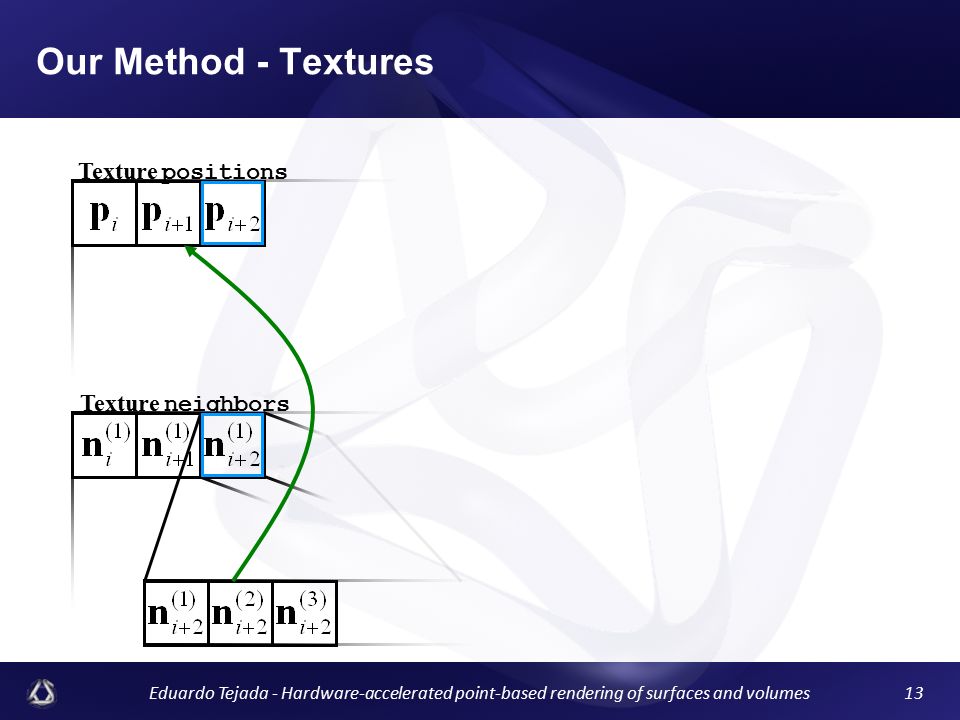

13 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes13 Our Method - Textures Texture positions Texture neighbors

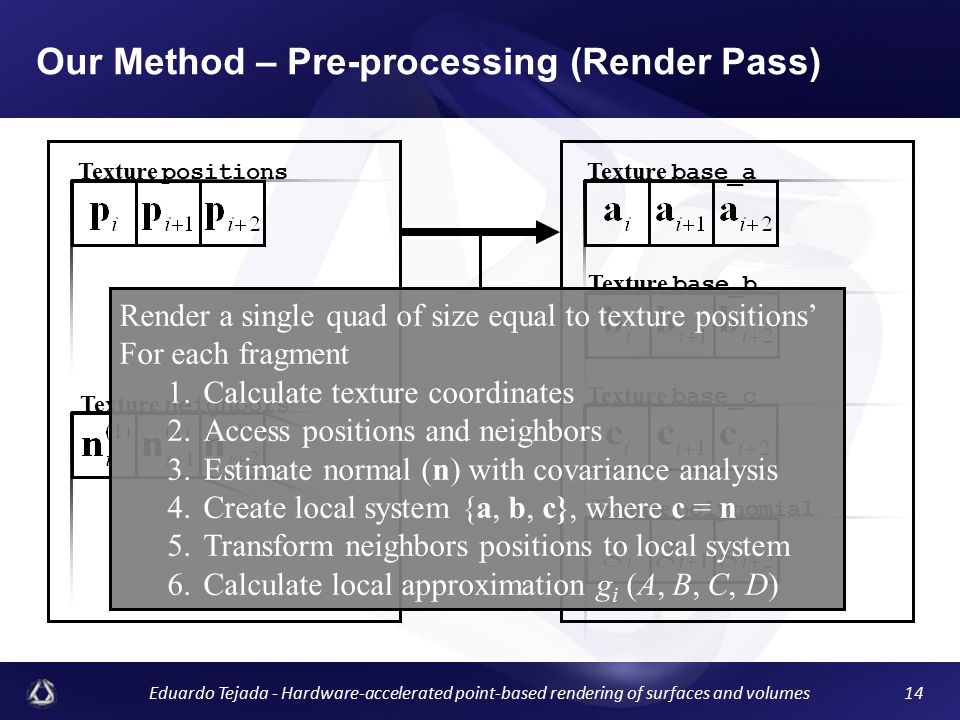

14 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes14 Our Method – Pre-processing (Render Pass) Texture positions Texture neighbors Texture base_a Texture base_b Texture base_c Texture polynomial Render a single quad of size equal to texture positions’ For each fragment 1.Calculate texture coordinates 2.Access positions and neighbors 3.Estimate normal (n) with covariance analysis 4.Create local system {a, b, c}, where c = n 5.Transform neighbors positions to local system 6.Calculate local approximation g i (A, B, C, D)

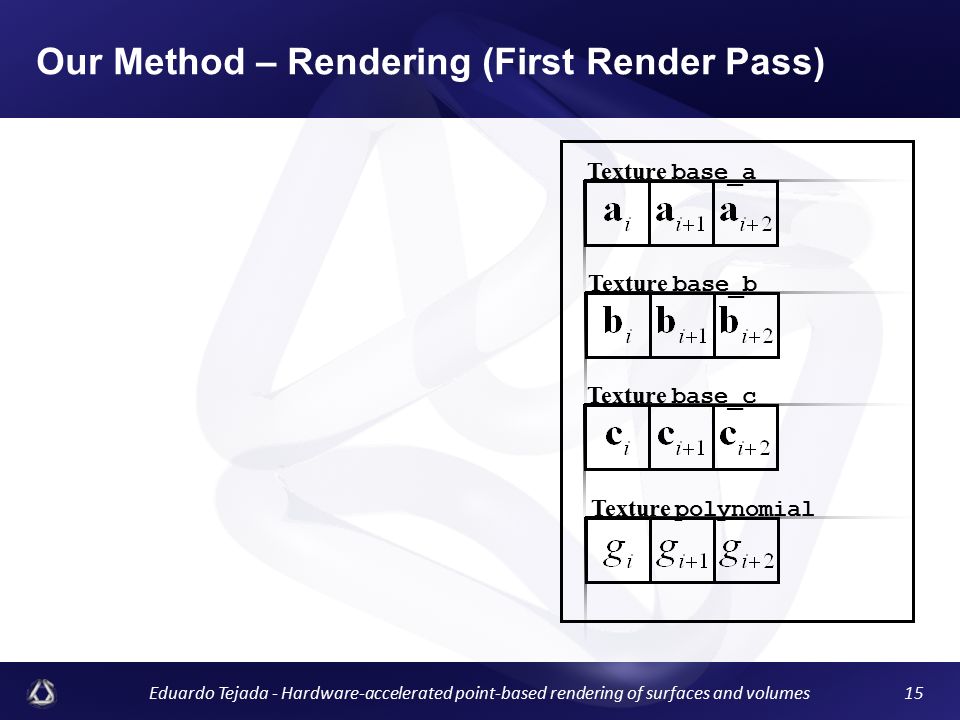

15 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes15 Our Method – Rendering (First Render Pass) Texture base_a Texture base_b Texture base_c Texture polynomial

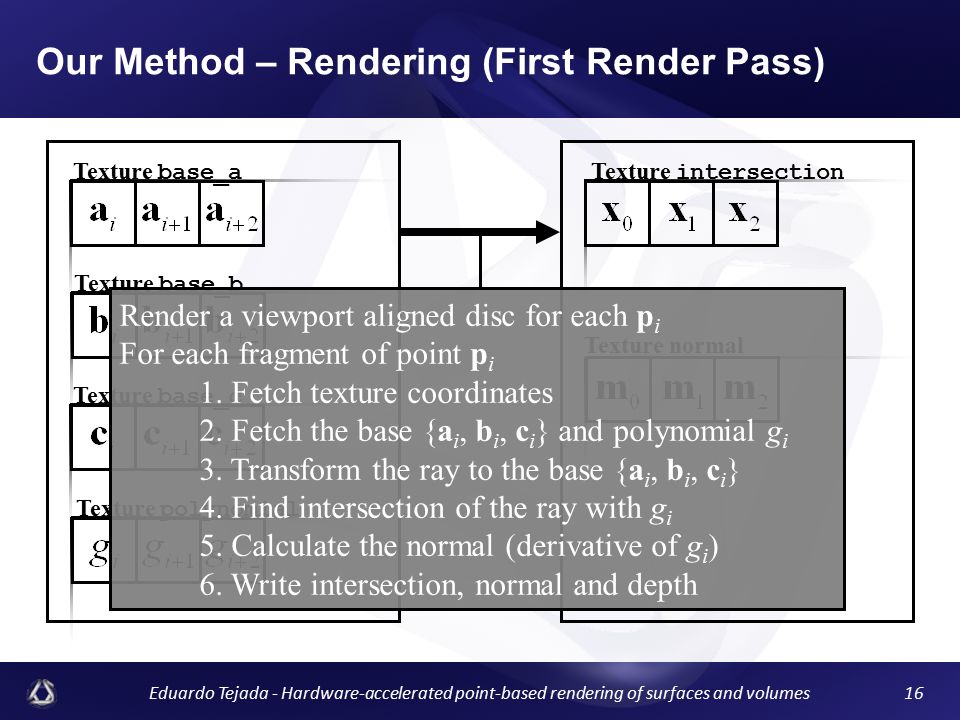

16 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes16 Our Method – Rendering (First Render Pass) Texture base_a Texture base_b Texture base_c Texture polynomial Texture normal Texture intersection Render a viewport aligned disc for each p i For each fragment of point p i 1. Fetch texture coordinates 2. Fetch the base {a i, b i, c i } and polynomial g i 3. Transform the ray to the base {a i, b i, c i } 4. Find intersection of the ray with g i 5. Calculate the normal (derivative of g i ) 6. Write intersection, normal and depth

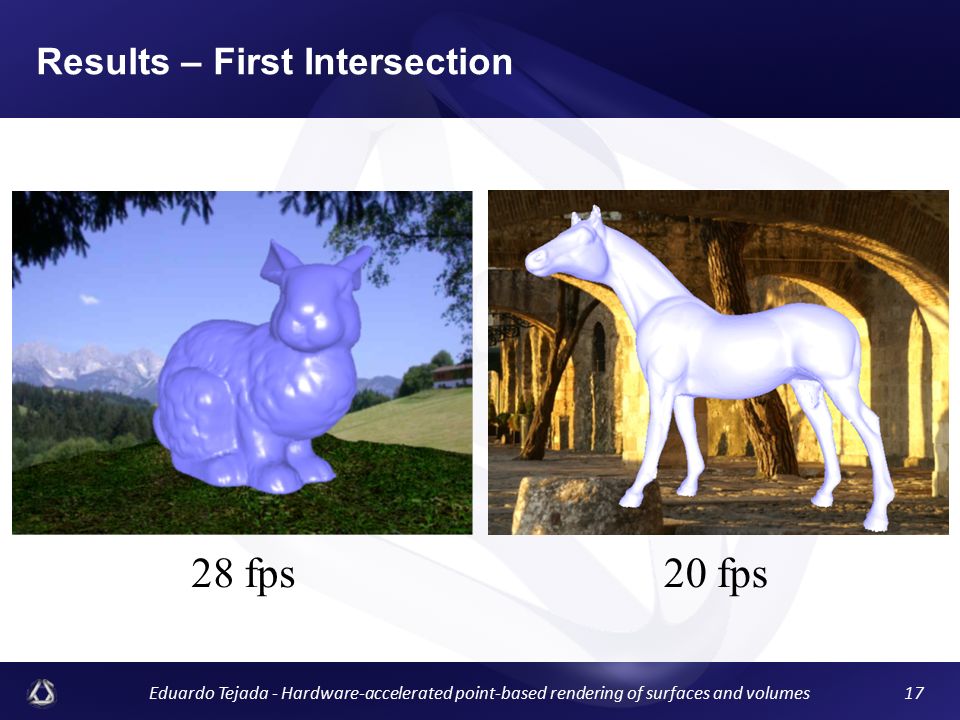

17 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes17 Results – First Intersection 28 fps20 fps

18 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes18 Our Method – Introducing Refraction

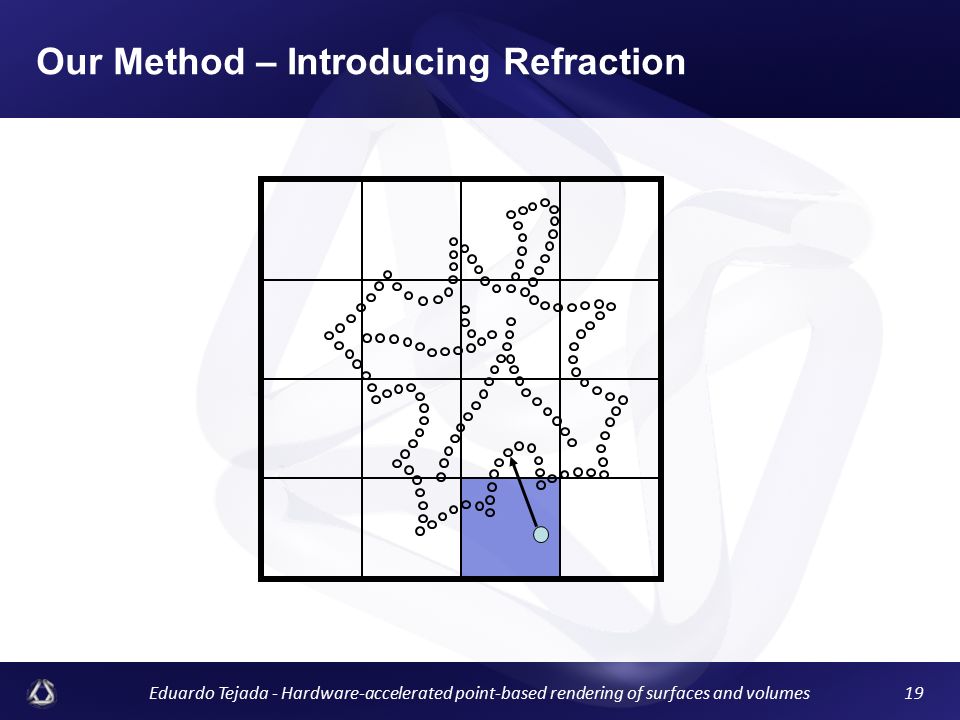

19 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes19 Our Method – Introducing Refraction

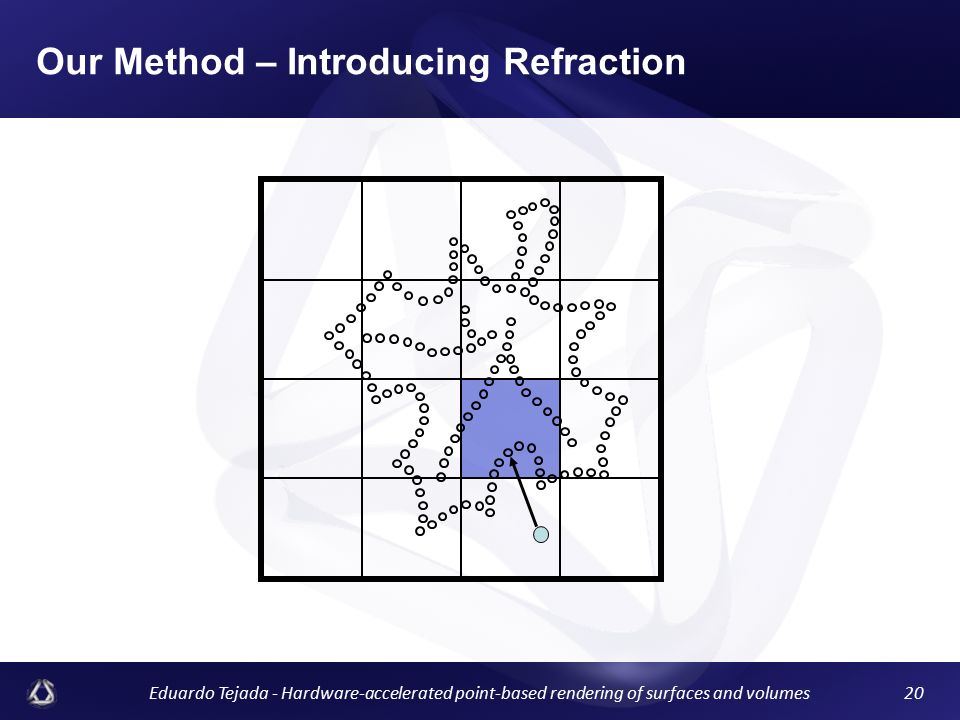

20 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes20 Our Method – Introducing Refraction

21 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes21 Our Method – Introducing Refraction

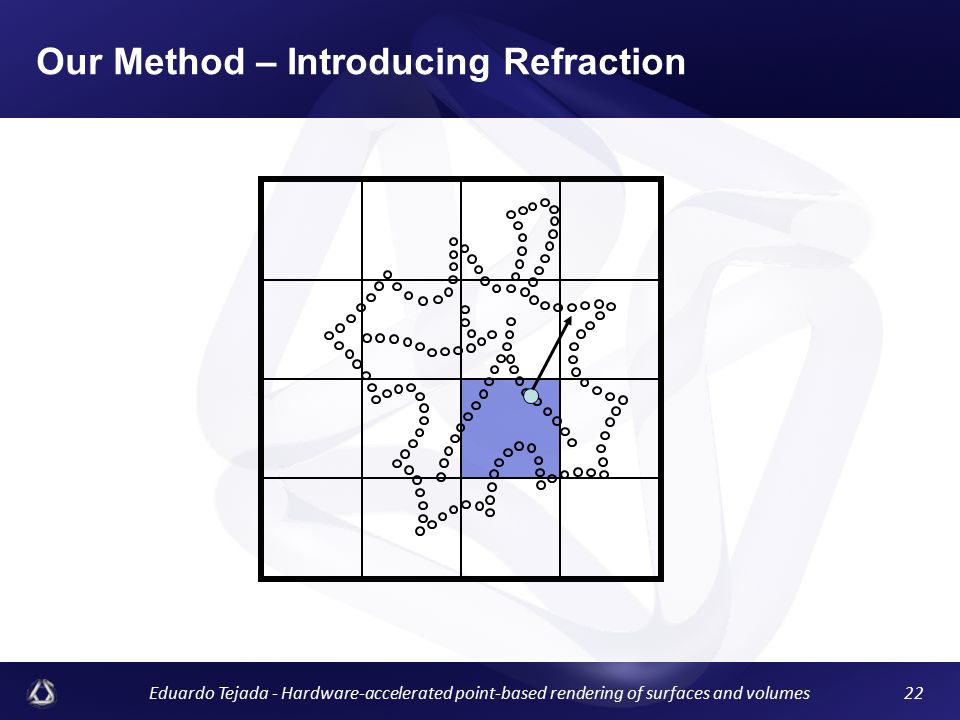

22 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes22 Our Method – Introducing Refraction

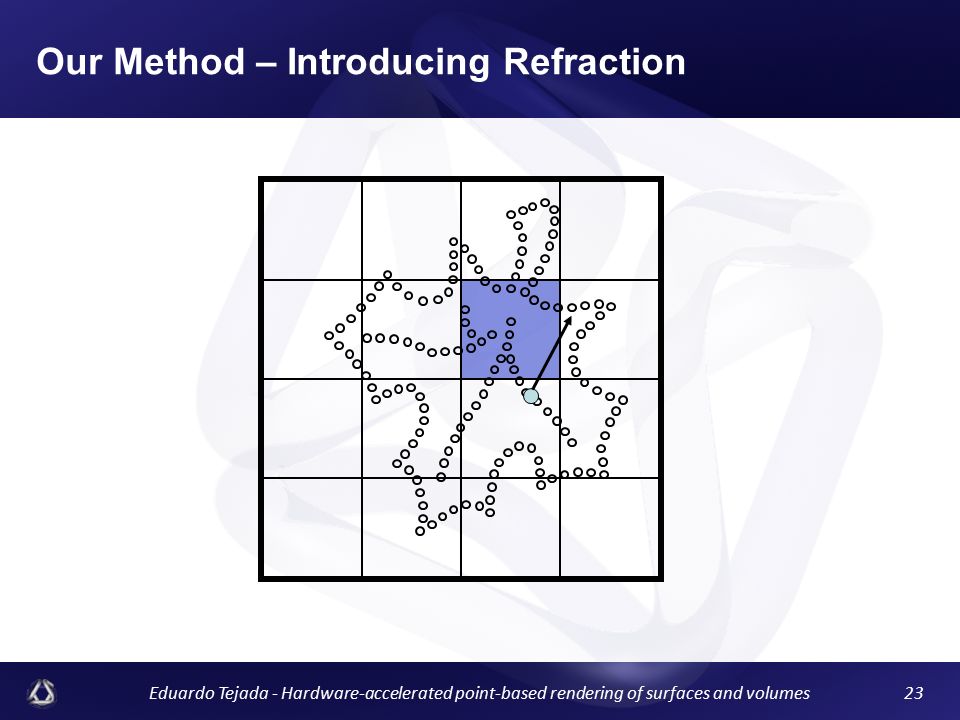

23 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes23 Our Method – Introducing Refraction

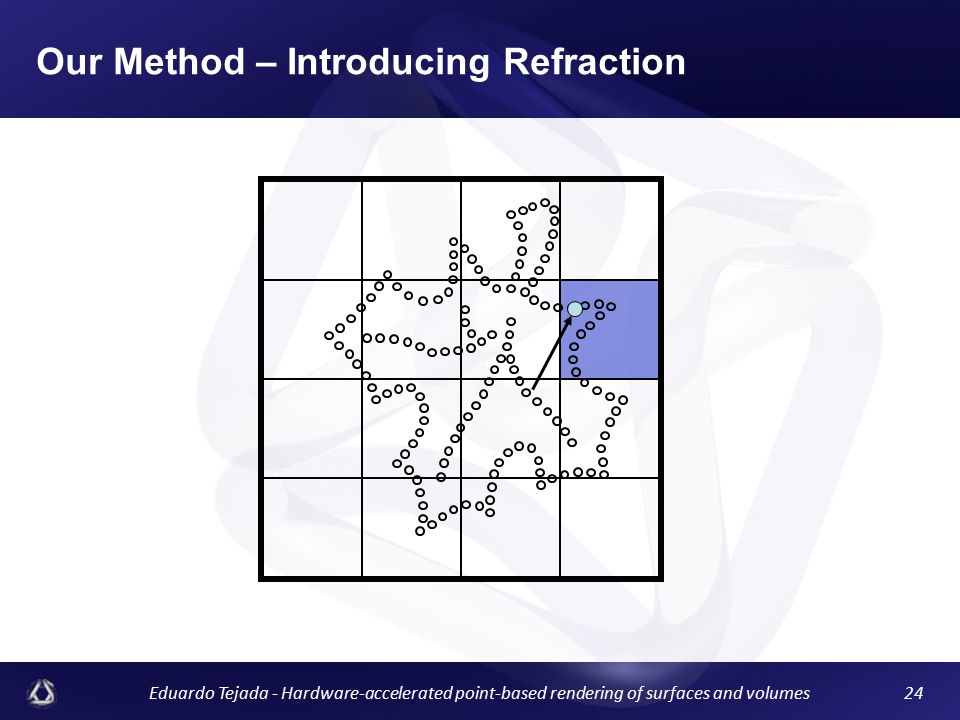

24 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes24 Our Method – Introducing Refraction

25 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes25 Our Method – Introducing Refraction

26 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes26 Our Method – Introducing Refraction

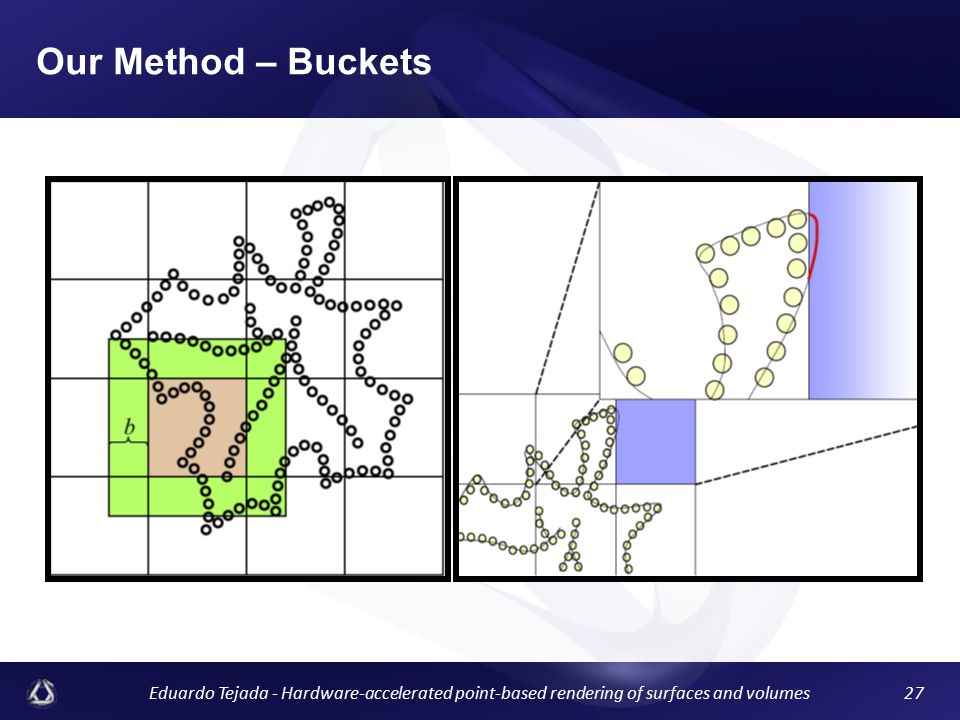

27 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes27 Our Method – Buckets

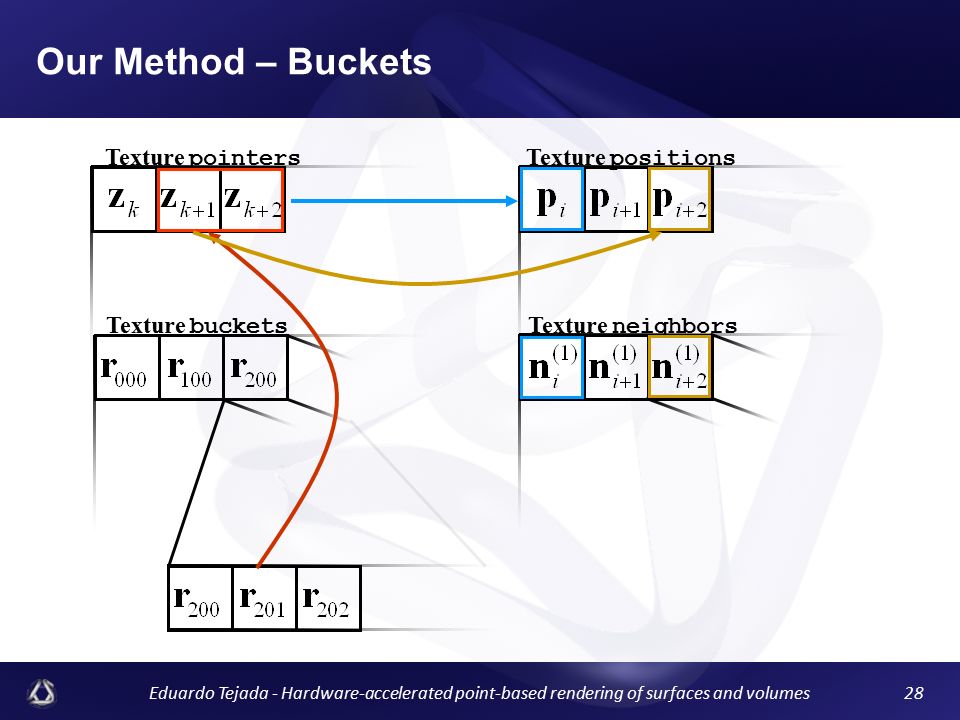

28 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes28 Our Method – Buckets Texture pointers Texture buckets Texture positions Texture neighbors

29 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes29 Our Method – Rendering (Iterative Render Pass) Texture base_a Texture base_b Texture base_c Texture polynomial Texture buckets Texture pointers Texture current_direction Texture current_ position Texture current_ cell Texture accumulated_color Render a single quad covering the viewport For each fragment 1. Fetch the points in the cell. 3. Find the nearest intersection 4. If an intersection is found 4.1 Update position, direction and color 5. Otherwise determine next cell.

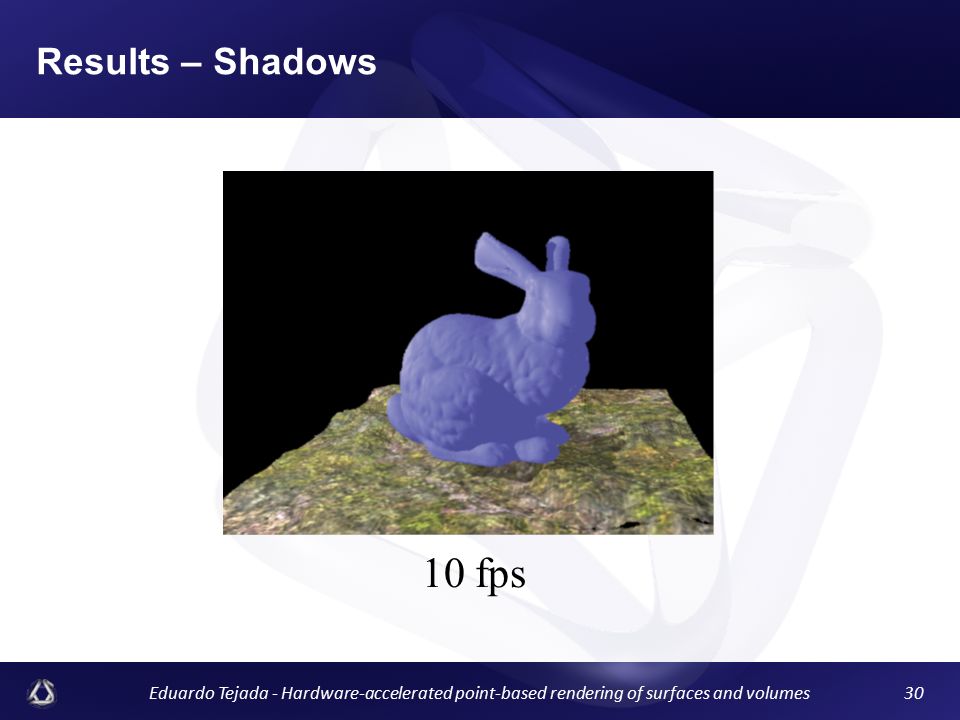

30 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes30 Results – Shadows 10 fps

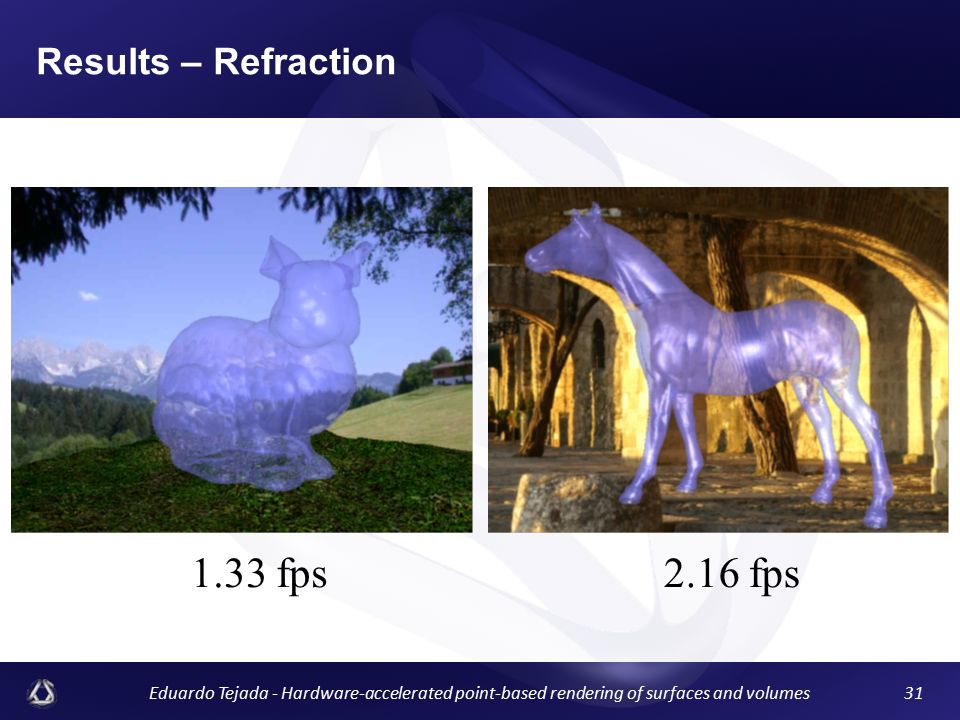

31 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes31 Results – Refraction 1.33 fps2.16 fps

32 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes32 Results – Multiple Indices of Refraction 0.25 fps0.22 fps

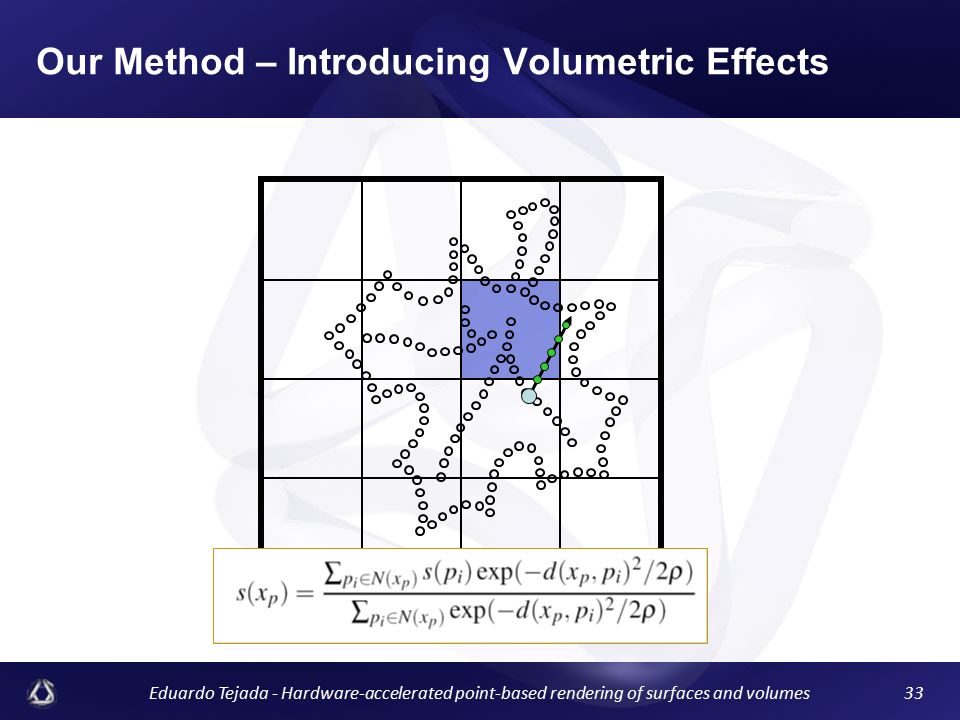

33 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes33 Our Method – Introducing Volumetric Effects

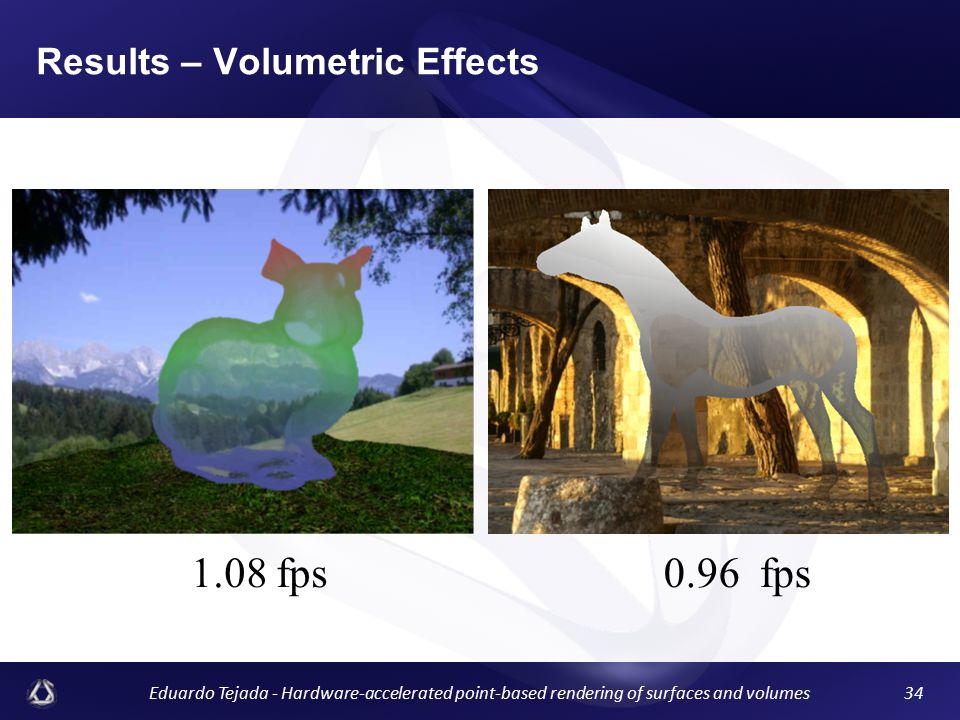

34 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes34 Results – Volumetric Effects 1.08 fps0.96 fps

35 Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes35 Conclusion  We do not use specialized HW (e.g. Wald and Seidel).  Neighbors search on the GPU not solved.  Kd-trees better than grid for ray-intersection, but for neighbors search?  Future: full PSS computation.

36 Questions?
