1. CISC 879 - Machine Learning for Solving Systems Problems John Cavazos Dept of Computer & Information Sciences University of Delaware www.cis.udel.edu/~cavazos/cisc879 Machine Learning applied to Static Compilation Lecture 2

2. CISC 879 - Machine Learning for Solving Systems Problems Hardware constantly changing Heterogeneous Processors in Gaming Devices Massively Parallel Graphics Processing Units Heterogeneous Processors In Supercomputers Powerful Embedded Devices

3. CISC 879 - Machine Learning for Solving Systems Problems Compilers changing slower ► In the early days of compilers … 1957: The FORTRAN Automatic Coding System Front End Front End Middle End Back End Index Optimiz’n Code Merge Flow Analysis Register Allocation Final Assembly

4. CISC 879 - Machine Learning for Solving Systems Problems ► And 50 years later… ► Compilers have not changed much ► Inadequate support for modern architectures Compiler changing slower Front End Front End Middle End Back End High-Level Optimiz’n Mid-Level Optimiz’n Flow Analysis Register Allocation Final Assembly 2007: Typical Compiler

5. CISC 879 - Machine Learning for Solving Systems Problems Proposed Solution ► Intelligent Compilers ► Using AI (i.e., machine learning) techniques ► Learn to optimize ► Specialize to architecture Feedback Intelligent Compiler (Ex: Neural Networks, Decision Trees, Reinforcement Learning) Applications Architecture

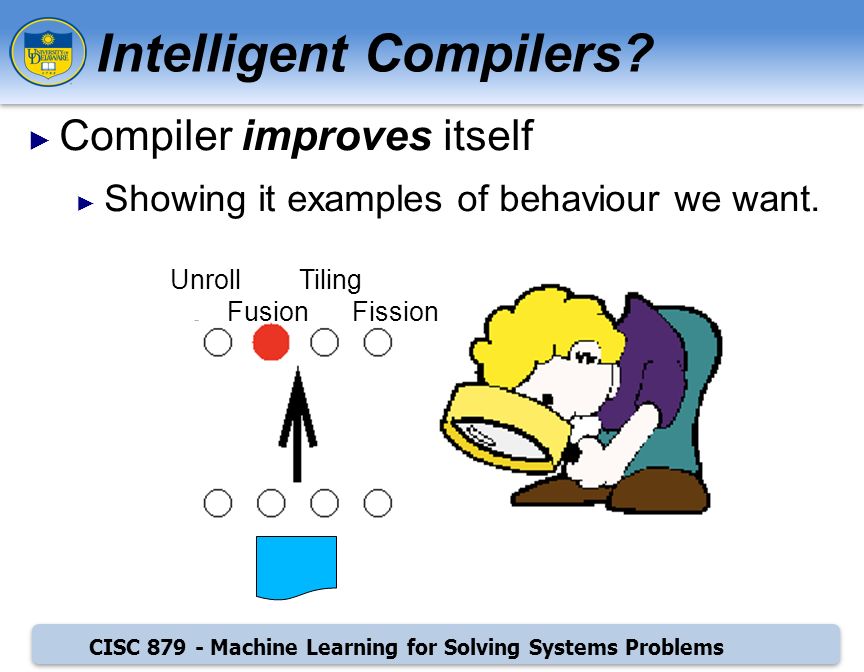

6. CISC 879 - Machine Learning for Solving Systems Problems Intelligent Compilers? ► Compiler improves itself ► Showing it examples of behaviour we want. Unroll Tiling Fusion Fission

7. CISC 879 - Machine Learning for Solving Systems Problems Applying Machine Learning ► Inputs ► Program characterization ► Outputs ► Set of optimizations to apply

8. CISC 879 - Machine Learning for Solving Systems Problems Case Study ► Whole Program Optimization ► Paper: Rapidly Selecting Good Compiler Optimizations using Performance Counters, Cavazos et al., CGO 2007

9. CISC 879 - Machine Learning for Solving Systems Problems Whole Program Optimization ► Automatically construct “model” ► Map performance counters to good opts ► Model predicts optimizations to apply ► Use performance counter characterization

10. CISC 879 - Machine Learning for Solving Systems Problems Inputs : Performance Cntrs ► Mnemonic Description Avg Values ► FPU_IDL (Floating Unit Idle) 0.473 ► VEC_INS (Vector Instructions) 0.017 ► BR_INS (Branch Instructions) 0.047 ► L1_ICH (L1 Icache Hits) 0.0006 Application

11. CISC 879 - Machine Learning for Solving Systems Problems Outputs : Optimizations Optimization Level Opt Level O0 Opt Level O1 Opt Level O2 Optimizations Controlled Branch Opts Low Constant Prop / Local CSE Reorder Code Copy Prop / Tail Recursion Static Splitting / Branch Opt Med Simple Opts Low While into Untils / Loop Unroll Branch Opt High / Redundant BR Simple Opts Med / Load Elim Expression Fold / Coalesce Global Copy Prop / Global CSE SSA

12. CISC 879 - Machine Learning for Solving Systems Problems Training Compiler ► Present a training database of ► Characteristics of application ► “Right” optimizations to use Unroll Tiling Fusion Fission Unroll Tiling Fusion Fission (.91,.32,.40,51) (.61,.12,.50,81) Model

13. CISC 879 - Machine Learning for Solving Systems Problems Using Trained Compiler ► Present characteristics of “new” application ► Compiler predicts how to optimize it (.81,.35,.40,69) Model

14. CISC 879 - Machine Learning for Solving Systems Problems Performance Counters

15. CISC 879 - Machine Learning for Solving Systems Problems Characterization of 181.mcf ► Perf cntrs relative to several benchmarks

16. CISC 879 - Machine Learning for Solving Systems Problems Characterization of 181.mcf ► Perf cntrs relative to several benchmarks Problem: Greater number of memory accesses per instruction than average

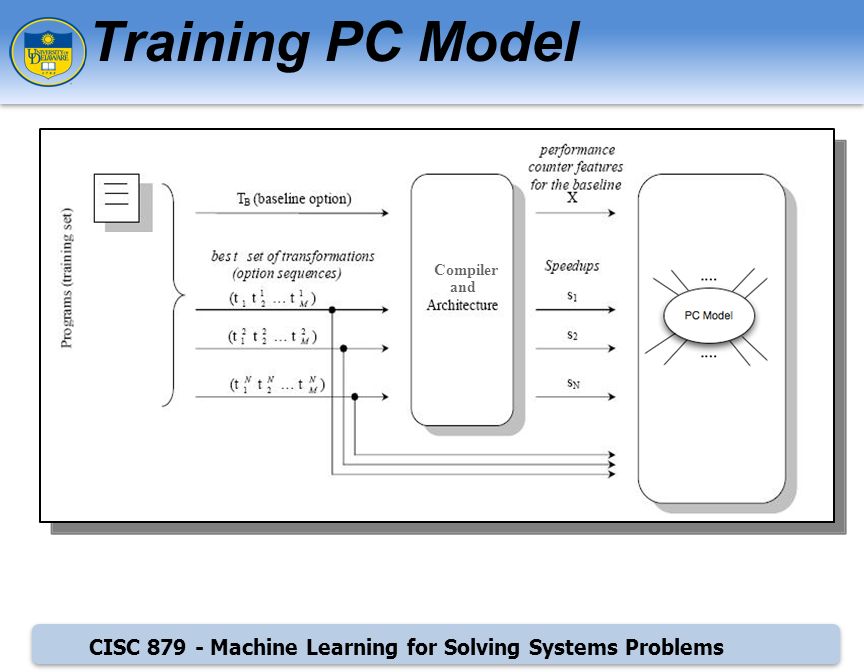

17. CISC 879 - Machine Learning for Solving Systems Problems Training PC Model Compiler and

18. CISC 879 - Machine Learning for Solving Systems Problems Programs to train model (different from test program). Compiler and Training Perf Cntr Model

19. CISC 879 - Machine Learning for Solving Systems Problems Baseline runs to capture performance counter values. Compiler and Training Perf Cntr Model

20. CISC 879 - Machine Learning for Solving Systems Problems Obtain performance counter values for a benchmark. Compiler and Training Perf Cntr Model

21. CISC 879 - Machine Learning for Solving Systems Problems Best optimizations runs to get speedup values. Compiler and Training Perf Cntr Model

22. CISC 879 - Machine Learning for Solving Systems Problems Best optimizations runs to get speedup values. Compiler and Training Perf Cntr Model

23. CISC 879 - Machine Learning for Solving Systems Problems Perform training on a large set of programs. Compiler and Training Perf Cntr Model

24. CISC 879 - Machine Learning for Solving Systems Problems New program interested in obtaining good performance. Compiler and Using Perf Cntr Model

25. CISC 879 - Machine Learning for Solving Systems Problems Baseline run to capture performance counter values. Compiler and Using Perf Cntr Model

26. CISC 879 - Machine Learning for Solving Systems Problems Input performance counter values to model. Compiler and Using Perf Cntr Model

27. CISC 879 - Machine Learning for Solving Systems Problems Model predicts optimization sequences to apply Compiler and Using Perf Cntr Model

28. CISC 879 - Machine Learning for Solving Systems Problems Model can predict multiple optimization sequences to try. Compiler and Using Perf Cntr Model

29. CISC 879 - Machine Learning for Solving Systems Problems ► Variation of ordinary regression ► Inputs ► Continuous, discrete, or a mix ► 60 performance counters ► All normalized to cycles executed ► Ouputs ► Number between 0 and 1 ► Probability an optimization is beneficial Logistic Regression

30. CISC 879 - Machine Learning for Solving Systems Problems ► Pathscale industrial-strength compiler ► Compare to highest opt level (-Ofast) ► Orchestrate 121 compiler optimizations ► AMD Athlon processor ► Real machine; Not simulation ► 57 benchmarks ► SPEC (95, 2000), MiBench, Polyhedral Experimental Methodology

31. CISC 879 - Machine Learning for Solving Systems Problems ► RAND ► Randomly select 500 optimization seqs ► Combined Elimination (CE) ► State-of-the-art search technique [CGO ‘06] ► Performance Counter (PC) Model Evaluated Search Strategies

32. CISC 879 - Machine Learning for Solving Systems Problems PCModel vs CE 9 benchmarks over 20% improvement and 17% on average!

33. CISC 879 - Machine Learning for Solving Systems Problems PCModel vs CE Obtained over 25% improvement on 6 benchmarks!

34. CISC 879 - Machine Learning for Solving Systems Problems PCModel vs CE On average, CE obtains 9% and PC Model 17% over -Ofast

35. CISC 879 - Machine Learning for Solving Systems Problems Performance vs Evaluations

36. CISC 879 - Machine Learning for Solving Systems Problems Performance vs Evaluations PC Model (17%)

37. CISC 879 - Machine Learning for Solving Systems Problems Performance vs Evaluations Random (17%)

38. CISC 879 - Machine Learning for Solving Systems Problems Performance vs Evaluations Combined Elim (12%)

39. CISC 879 - Machine Learning for Solving Systems Problems CE worse than RAND? ► Combined Elimination ► Easily stuck in local minima ► RAND and PC Model ► Probabilistic techniques ► Depends on distribution of good points ► Not susceptible to local minima

40. CISC 879 - Machine Learning for Solving Systems Problems Static vs Dynamic Features

41. CISC 879 - Machine Learning for Solving Systems Problems ► Using machine learning successful ► Out-performs production-quality compiler ► Using performance counters ► Determines automatically important characteristics ► Optimizations applied only when beneficial Conclusions

42. CISC 879 - Machine Learning for Solving Systems Problems ► Use performance counters to predict “how” and “when” to apply an optimization ► Individual Opts: E.g., how many times to unroll a loop? ► Optimization sequences: Which opts to apply? ► Malware identification ► Can malware be identified by performance counter characteristics? Example Projects
