1 CASTOR evolution Presentation to HEPiX 2003, Vancouver 20/10/2003 Jean-Damien Durand, CERN-IT

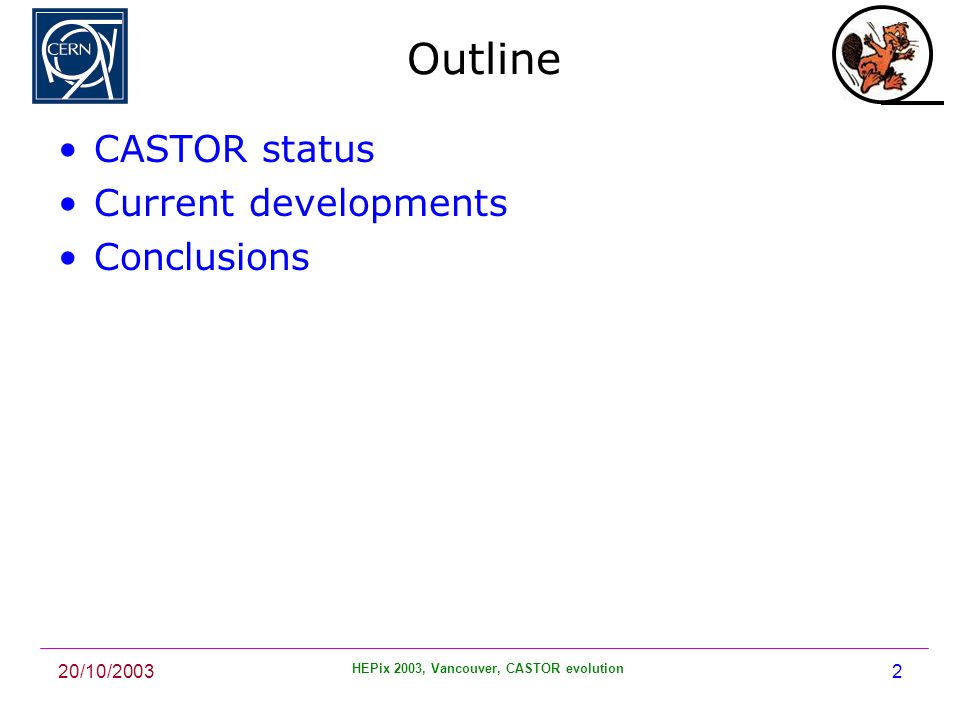

2 20/10/2003 HEPix 2003, Vancouver, CASTOR evolution 2 Outline CASTOR status Current developments Conclusions

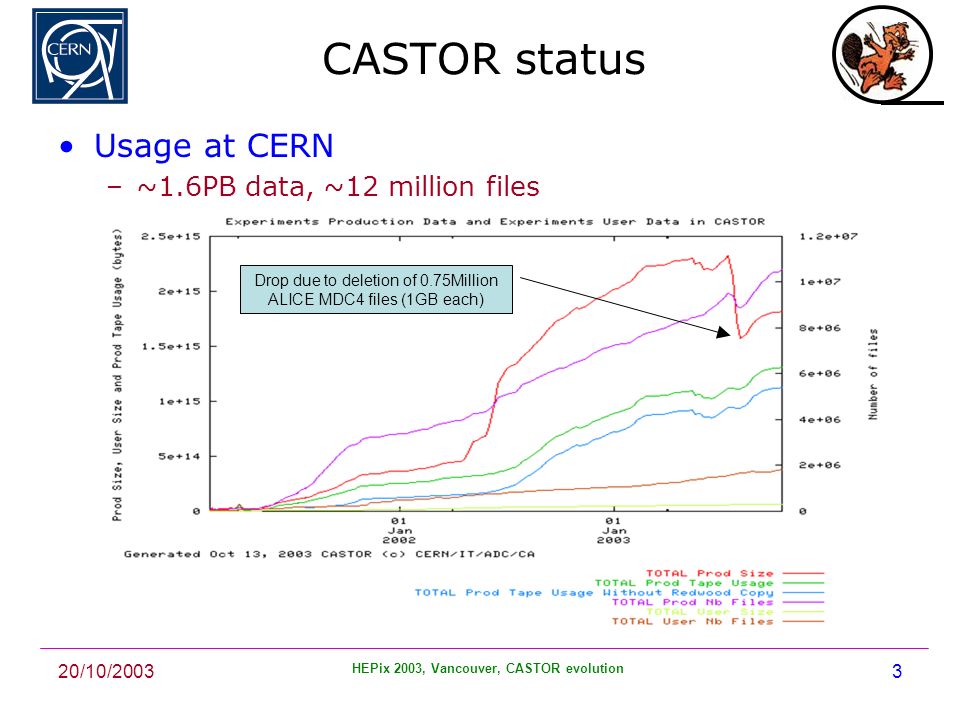

3 20/10/2003 HEPix 2003, Vancouver, CASTOR evolution 3 CASTOR status Usage at CERN –~1.6PB data, ~12 million files Drop due to deletion of 0.75Million ALICE MDC4 files (1GB each)

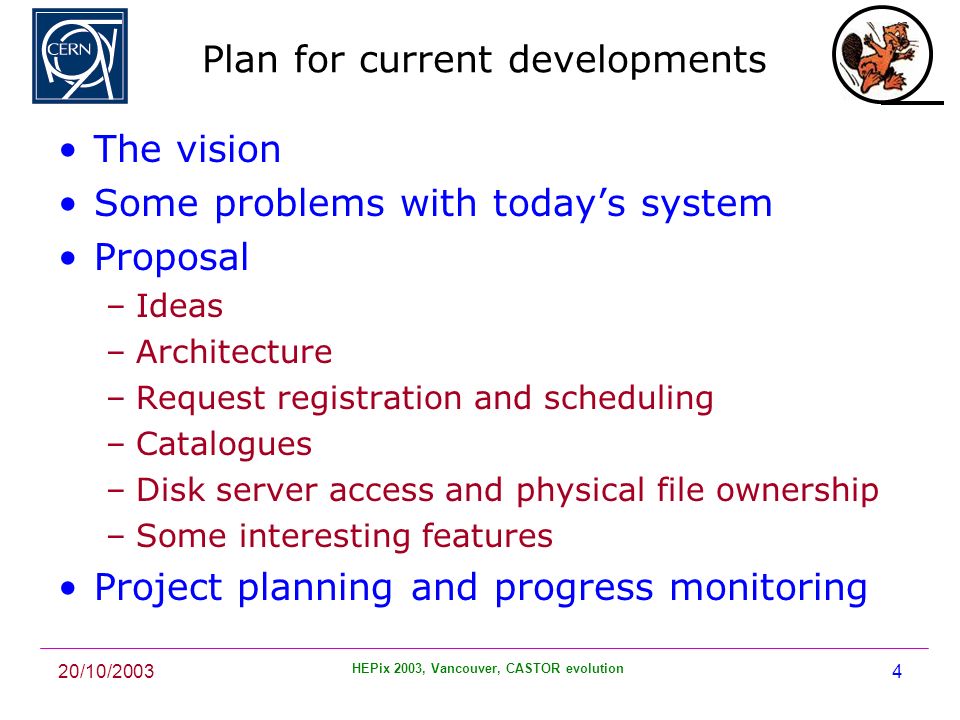

4 20/10/2003 HEPix 2003, Vancouver, CASTOR evolution 4 Plan for current developments The vision Some problems with today’s system Proposal –Ideas –Architecture –Request registration and scheduling –Catalogues –Disk server access and physical file ownership –Some interesting features Project planning and progress monitoring

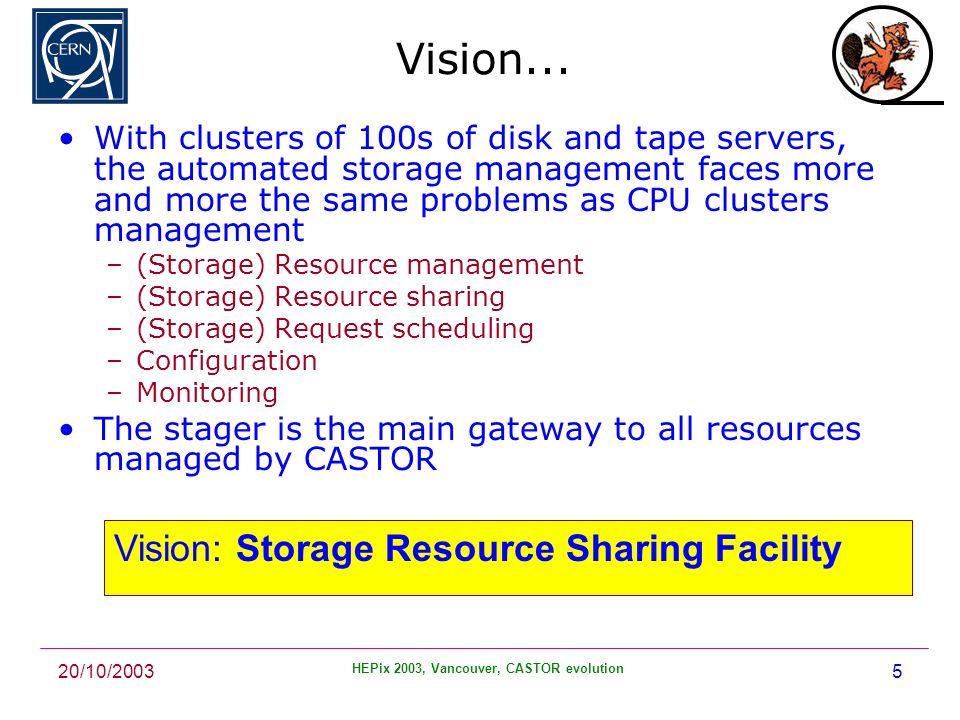

5 20/10/2003 HEPix 2003, Vancouver, CASTOR evolution 5 Vision... With clusters of 100s of disk and tape servers, the automated storage management faces more and more the same problems as CPU clusters management –(Storage) Resource management –(Storage) Resource sharing –(Storage) Request scheduling –Configuration –Monitoring The stager is the main gateway to all resources managed by CASTOR Vision: Storage Resource Sharing Facility

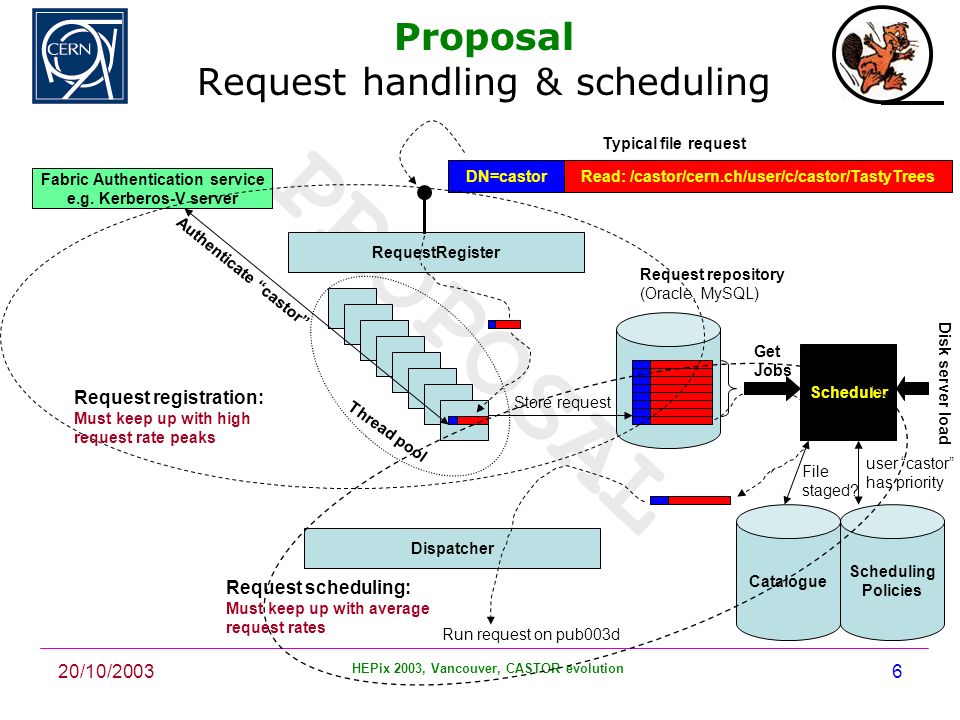

6 20/10/2003 HEPix 2003, Vancouver, CASTOR evolution 6 PROPOSAL Proposal Request handling & scheduling RequestRegister Fabric Authentication service e.g. Kerberos-V server Read: /castor/cern.ch/user/c/castor/TastyTreesDN=castor Typical file request Thread pool Authenticate “castor” Request repository (Oracle, MySQL) Scheduler Scheduling Policies user “castor” has priority Dispatcher Store request Run request on pub003d Get Jobs Disk server load Catalogue File staged? Request registration: Must keep up with high request rate peaks Request scheduling: Must keep up with average request rates

7 20/10/2003 HEPix 2003, Vancouver, CASTOR evolution 7 PROPOSAL Proposal Disk server access Today a user can access files on disk servers either by –The CASTOR file name /castor/cern.ch/... –The physical file name /shift/lhcb003d/... With the new stager we restrict –To only allow for access by CASTOR file name –All physical files are owned by a generic account (stage,st) and their paths are hidden from direct RFIO access WHY????

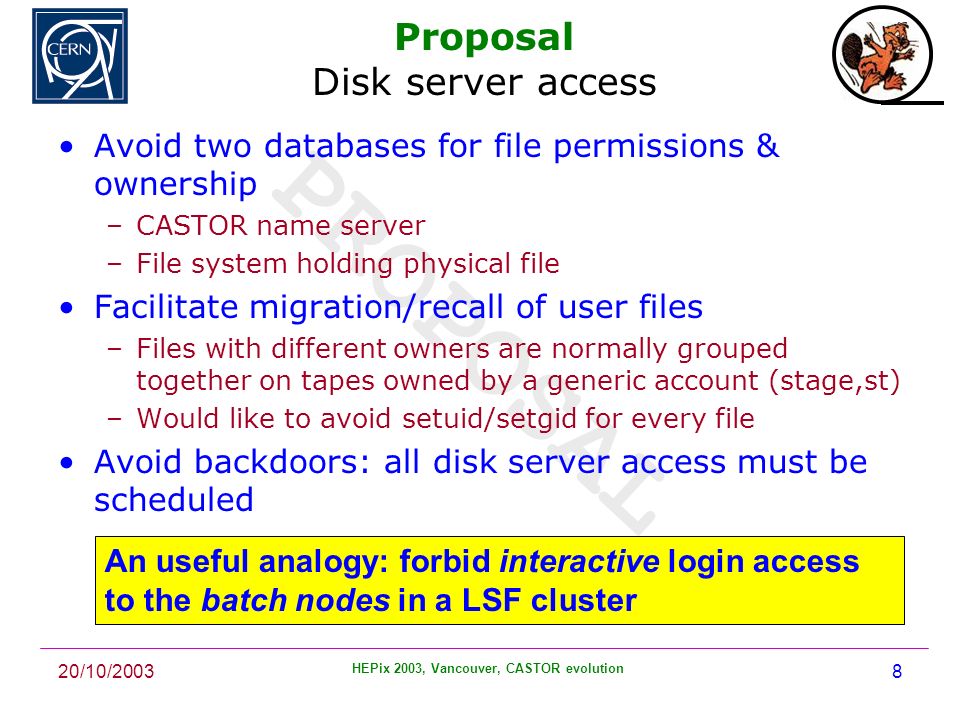

8 20/10/2003 HEPix 2003, Vancouver, CASTOR evolution 8 PROPOSAL Proposal Disk server access Avoid two databases for file permissions & ownership –CASTOR name server –File system holding physical file Facilitate migration/recall of user files –Files with different owners are normally grouped together on tapes owned by a generic account (stage,st) –Would like to avoid setuid/setgid for every file Avoid backdoors: all disk server access must be scheduled An useful analogy: forbid interactive login access to the batch nodes in a LSF cluster

9 20/10/2003 HEPix 2003, Vancouver, CASTOR evolution 9 Project planning and monitoring Detailed plan in proposal document –http://cern.ch/castor/DOCUMENTATION/ARCHITECTURE/NEWhttp://cern.ch/castor/DOCUMENTATION/ARCHITECTURE/NEW Three milestones: –October 2003: Demonstrate concept of pluggable scheduler and high rate request handling –February 2004: Integrated prototype of the whole system –April 2004: Production system ready for deployment Progress monitoring –Using the Project/Task manager provided by LCG Savannah portal for the CASTOR project: http://savannah.cern.ch/projects/castor/ http://savannah.cern.ch/projects/castor/ –Progress reviews at each milestone? are the experiments interested in providing efforts for helping with review?

10 20/10/2003 HEPix 2003, Vancouver, CASTOR evolution 10 Progress up to now mstaged/sstaged design Prototype with LSF scheduler ready Prototype with Maui almost ready Security design Design paper ready. Defines Strategies for securing CASTOR Emphasizes tight coupling with site security infrastructure Well received by CERN security team Security implementation Generic Csecurity module on top of GSS-API  krb5 & GSI automatically supported Dynamic loading allowing run-time setting or negotiation of preferred authentication method ReqHandler design, phase I Proof of concept request queuing Oracle & MySQL supported API for mstaged/sstaged scheduler to pop off requests from the queue No catalogue DB schema rtcpd modifications, design Design paper describing the modifications for dynamical extension of migration/recall streams rtcpd modifications, Implementation Implementation ready of designed modifications DMAPI evaluation Full DMAPI client prototype for XFS Evaluating the option of using DMAPI internally in CASTOR (between stager and tape archive) Logging facility Implements Universal Logger Message (ULM) format standard Multiple logging destinations supported Local logfiles Central logging DB (Oracle or MySQL)

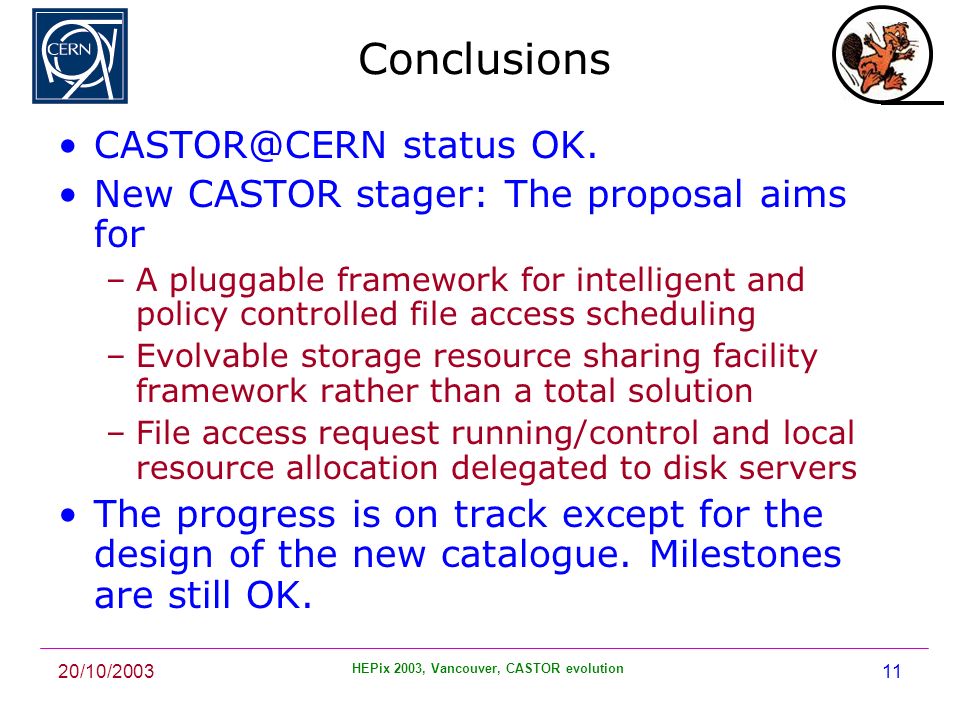

11 20/10/2003 HEPix 2003, Vancouver, CASTOR evolution 11 Conclusions CASTOR@CERN status OK. New CASTOR stager: The proposal aims for –A pluggable framework for intelligent and policy controlled file access scheduling –Evolvable storage resource sharing facility framework rather than a total solution –File access request running/control and local resource allocation delegated to disk servers The progress is on track except for the design of the new catalogue. Milestones are still OK.
