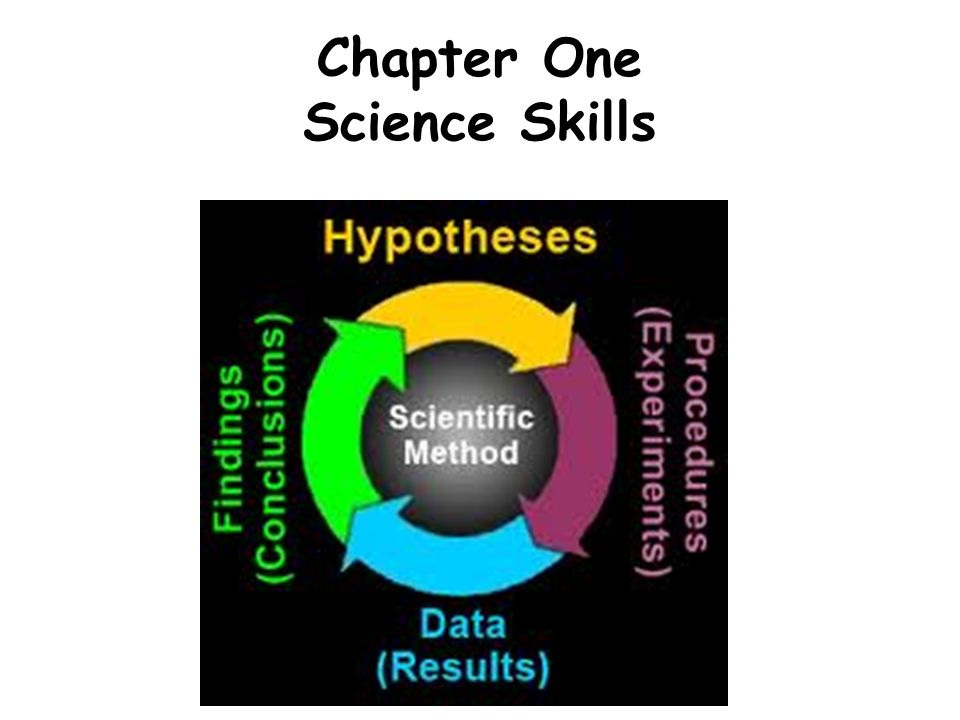

1. Chapter One Science Skills

2. 1.2 Using a Scientific Approach

3. Using a Scientific Approach Scientific Method: an organized plan for gathering, organizing, and communicating information – The goal of any scientific method is to solve a problem or better understand an observed event.

5. Scientific Method It is important to remember that the scientific method can vary from case to case, but in general the following steps must be included: 1.Making Observations/leads to Question 2.Forming a Hypothesis 3.Testing a Hypothesis 4.Analyzing Data & Drawing Conclusions 5.Developing a Theory

6. Making Observations Observation: information obtained through your senses – Things you see, feel, smell, taste, hear – Prompt you to ask questions

7. Forming a Hypothesis Hypothesis: a proposed answer to a question – STATEMENT, not a question! – A hypothesis must be testable – If/Then statement

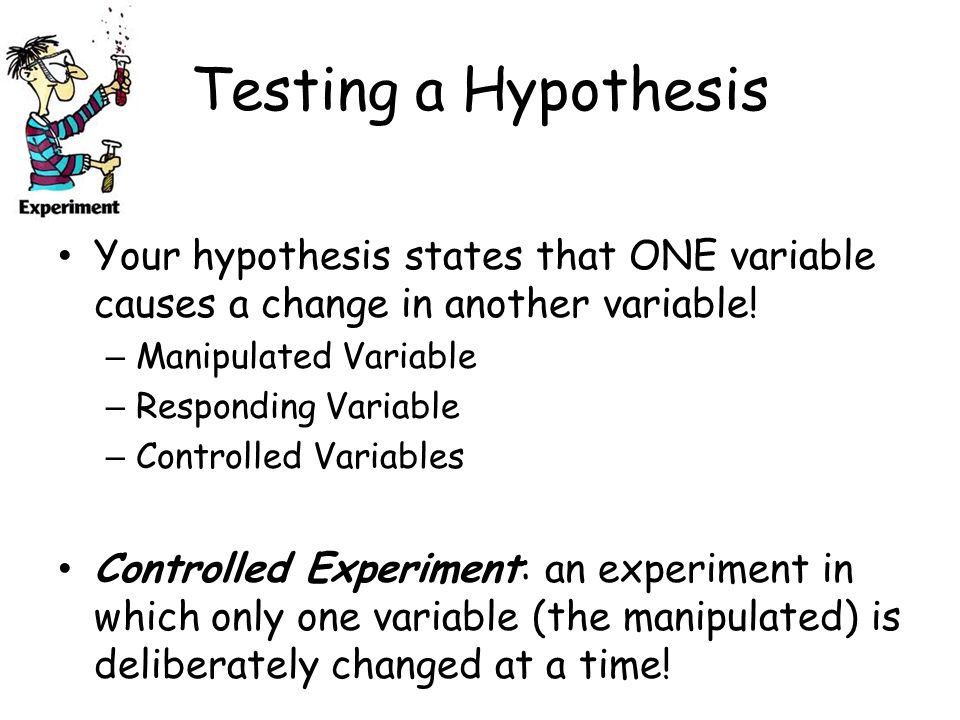

8. Testing a Hypothesis Your hypothesis states that ONE variable causes a change in another variable! – Manipulated Variable – Responding Variable – Controlled Variables Controlled Experiment: an experiment in which only one variable (the manipulated) is deliberately changed at a time!

9. Variables Hypothesis: If I run in the rain then I will stay drier than if I walk. Manipulated: the variable that causes a change in another – Example: speed (pace) Responding: the variable changes in response to the manipulated – Example: amount of water accumulated Controlled: variables that must be kept constant in all trials – Example: amount of rain, wind speed, distance

10. Drawing Conclusions If your experiments (with several trials) support your hypothesis you have scientific evidence to support the hypothesis What happens if data do not support the hypothesis? – Revise hypothesis or propose a new one New experiments must then be designed to test the revised or new hypothesis

12. Models Scientific Model: used to understand things that may be too difficult to observe directly – Too small, too large, too intricate

13. 1.3 Measurement

14. The Metric System Several base units in the metric system, we will most often use the following: – Length: straight-line distance between two points Base Unit = meter (m)

15. – Mass: quantity of matter in an object Base Unit = kilogram (kg)

16. – Volume: amount of space taken up by an object Base Unit = cubic meters, m 3 (length x width x height of regular solid)  each measured in meters, so we derive m 3 ) Base Unit = Liters, L for liquid volume

17. Density: the ratio of the mass of a substance to its volume (how tightly packed together particles are) D = mass( g )/volume( mL ) Density can be used to test puritity

18. – Temperature: how hot an object is (kinetic energy of particles) Measured in Celsius (  C), Fahrenheit (  F), or Kelvin (K)

19. Metric Prefixes The metric unit for a given quantity is not always a convenient one to use. A metric prefix simply tells us how many times a unit should be multiplied or divided by 10

20. Commonly Used Metric Prefixes

21. Converting

22. Practice 1) 5200g = ? Kg2) 0.002L = ? mL

23. Answer: 1) 5.200g Move decimal 3 steps to the left 2) 2mL Move decimal 3 steps to the right

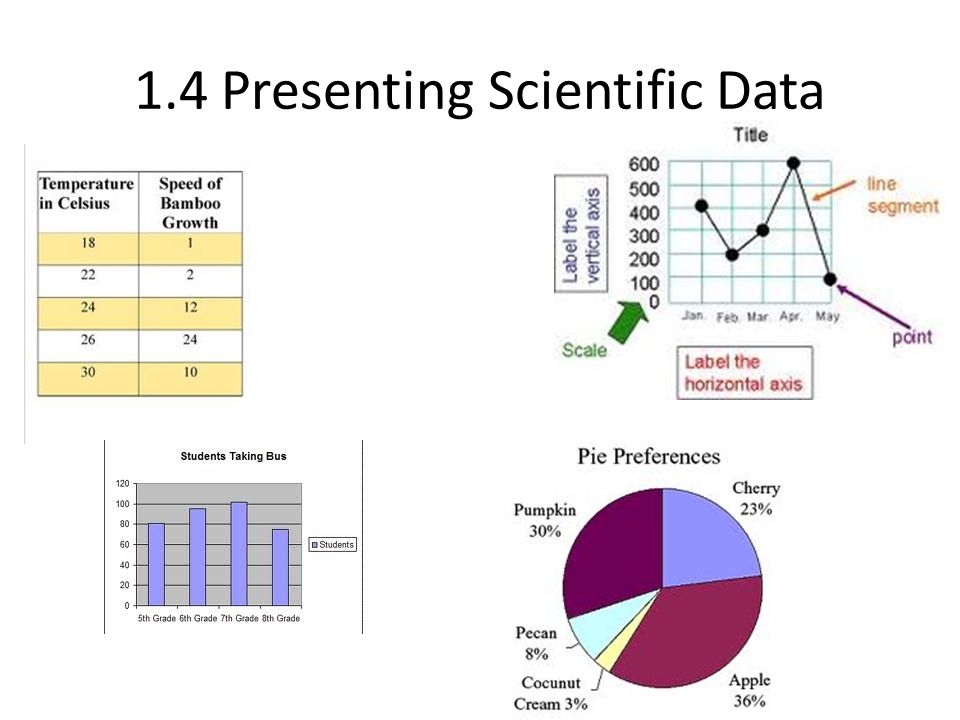

24. 1.4 Presenting Scientific Data

25. Organizing Data Scientists can organize data by using data tables and graphs Data Table: information organized in a table Graph: visual representation of data

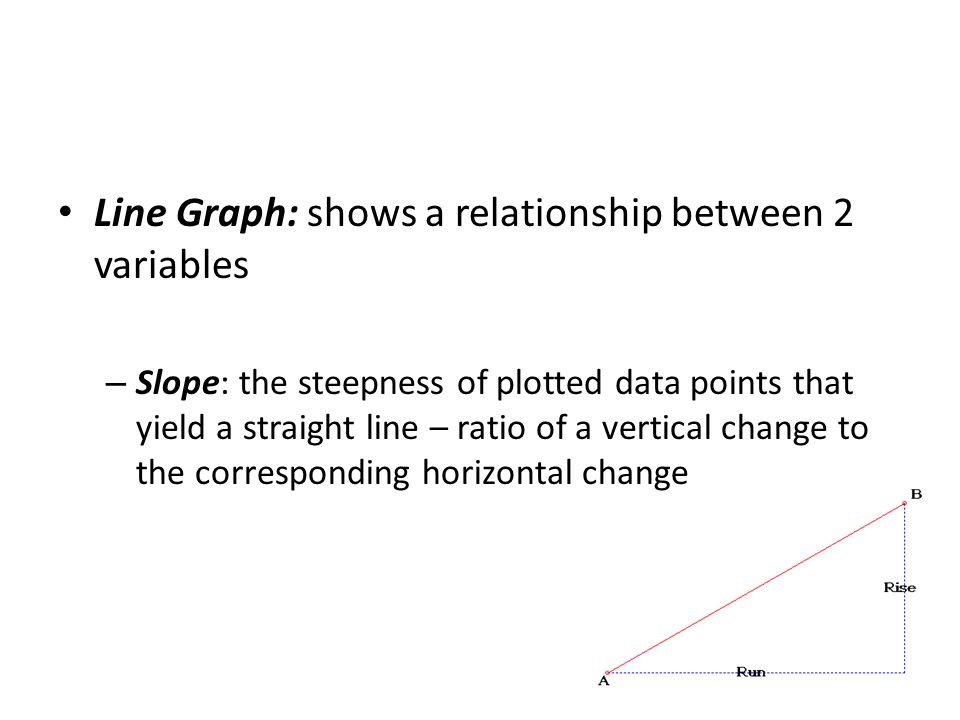

26. Line Graph: shows a relationship between 2 variables – Slope: the steepness of plotted data points that yield a straight line – ratio of a vertical change to the corresponding horizontal change

27. Line Graphs & Proportions Direct Proportion: a relationship in which the ratio of the two variables is constant – Example: If I have a cube with a volume of a 3 cm 3 and a mass of 3 grams what will the mass become if I double the volume to 6 cm 3 ?

28. Line Graphs & Proportions Inverse Proportion: relationship in which the product of the two variables is a constant – Example: I am filling a 1-gallon pot. I start with a flow rate of 0.5 gallon/minute and it takes two minutes to fill the pot. – How long will it take to fill the same 1-gallon pot if I double the flow rate to 1 gallon/minute?

29. Other types of graphs Bar Graph: used to compare sets of measurements, amounts, or changes Circle/Pie Graph: shows how a part or share of something relates to the whole
