2. Conservation of Energy System

3. Energy of Gravitational Interaction -- Gravitational Potential Energy If the system contains Earth and an object (or objects), then the system has gravitational potential energy. Gravitational potential energy depends on distance: greater distance, greater potential energy; less distance, less potential energy. Earth if y << Radius of Earth

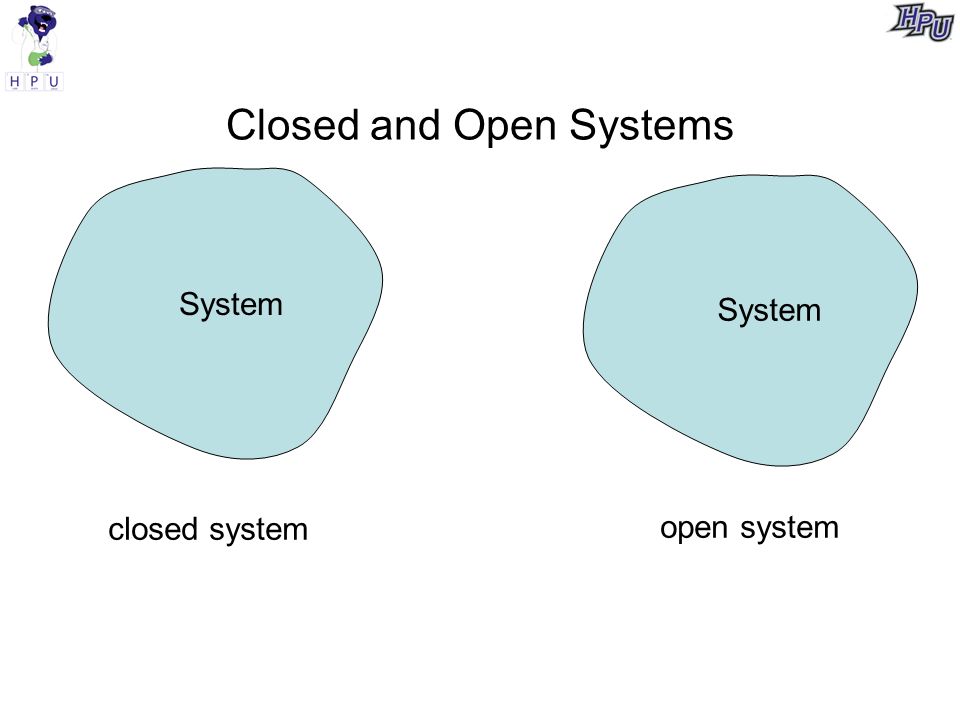

4. Closed and Open Systems System closed system open system

5. System Conservation of Mechanical Energy Earth System is Earth and the rock; assume no energy inputs or outputs. As the rock falls, the system loses gravitational potential energy, and the system gains kinetic energy.

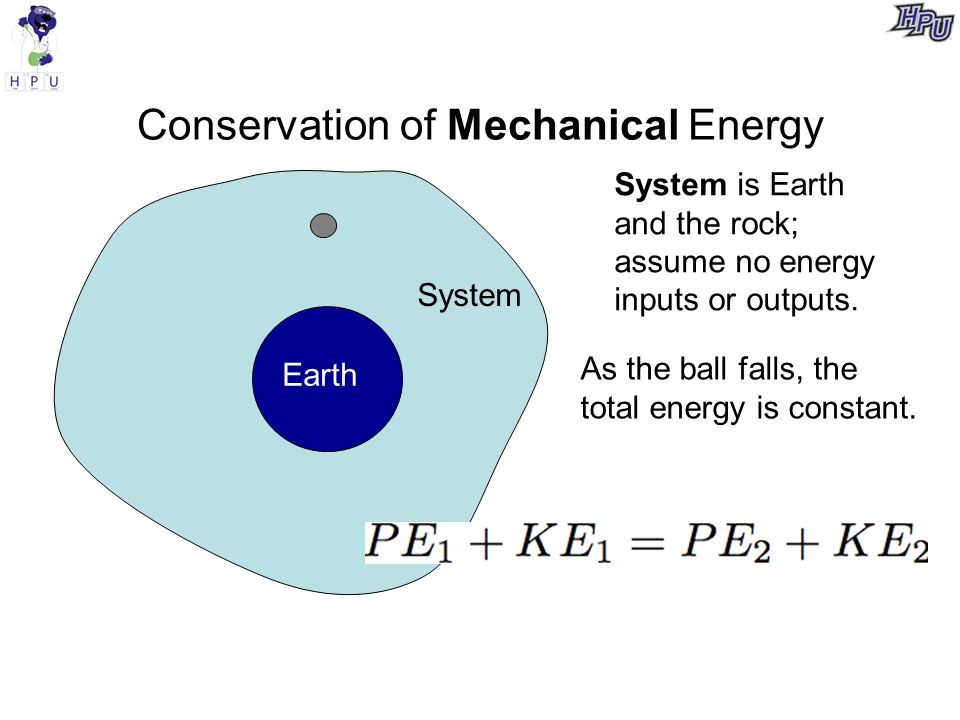

6. Conservation of Mechanical Energy System Earth As the ball falls, the total energy is constant. System is Earth and the rock; assume no energy inputs or outputs.

7. Tips on solving conservation of energy problems 1.Sketch a picture of the situation showing the system at two different states: 1 and 2. 2.Record any knowns such as y 1, y 2, v 1, and v 2. 3.Sketch bar graphs showing kinetic and potential energy. Note: they should add so that they equal the total energy. 4.Solve for the unknown.

8. Example The Kingda Ka roller coaster goes to the top of a 139-m tall hill. It drops to a height of 12 m above the ground. What is its speed at the bottom, if its speed at the top is 1.0 m/s?

9. Poll Does your answer to the previous question depend on whether the roller coaster is full of people? (In other words, does your answer depend on mass?) 1.yes 2.no

10. Poll Does the speed of the roller coaster at the bottom of the hill depend on whether it is frictionless or not? 1.yes 2.no

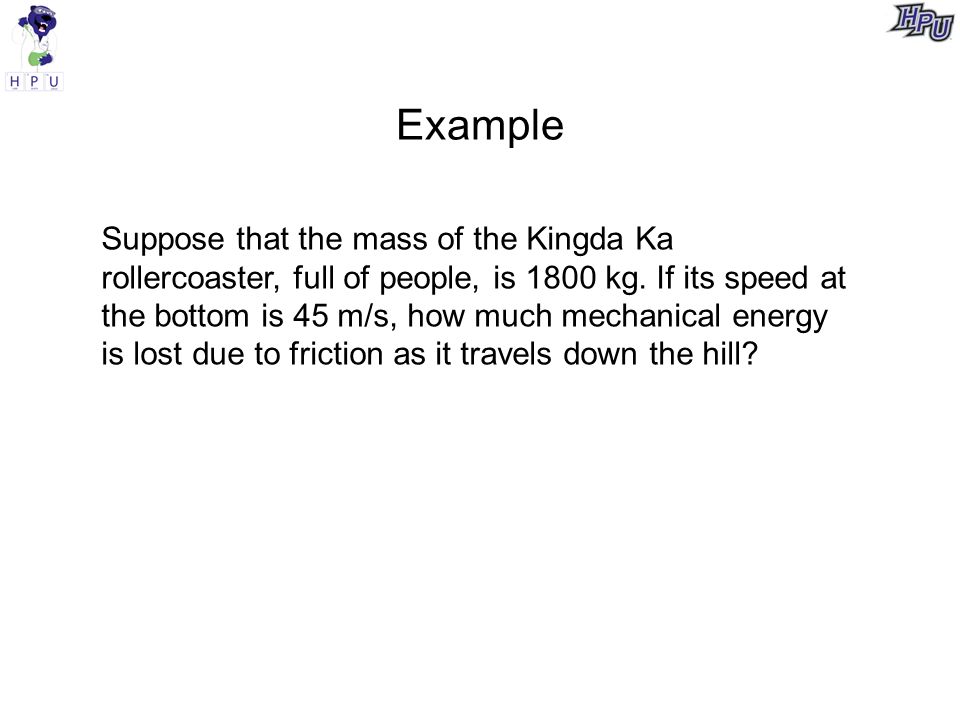

11. Example Suppose that the mass of the Kingda Ka rollercoaster, full of people, is 1800 kg. If its speed at the bottom is 45 m/s, how much mechanical energy is lost due to friction as it travels down the hill?

12. Poll Does your answer to the previous question depend on whether the roller coaster is full of people? (In other words, does your answer depend on mass?) 1.yes 2.no

13. Two identical blocks are simultaneously released from the same height above a level floor. Block 1 reaches the floor by dropping straight down. Block 2 reaches the floor by sliding down a frictionless ramp. Which of the following correctly compares the two motions? 1 2 A. Both blocks reach the ground at the same time with the same speed B. Block 2 reaches the ground later but with the same speed. C. Block 2 reaches the ground later and with less speed. D. Block 2 reaches the ground at the same time but with less speed.
