1. Advanced Computer Networks1 The Integrated Services in the Internet: State of the Art Paul P. White Jon Crowcroft

2. Advanced Computer Networks2 Motivation of the paper To Study the Evolution of the Internet from a simple Data only Network into a true multiservice Network that supports multimedia applications and their protocols with appropriate performance and cost.

3. Advanced Computer Networks3 What is traditional services and what was the goal behind it ? Point to point best effort service. Goal – highly fault tolerant data network for the defense community. So….. most of the attention was paid to dynamic route calculation, thus not too much attention was paid to performance of packet forwarding. Assumptions…… not to share network with other users and let it become overloaded. the amount of state shared between the network and end systems is minimized, just enough to calculate set to routes and determine best route. More importance given to dynamic and distributed route calculation.

4. Advanced Computer Networks4 What are typical old applications? Telnet FTP http etc…..

5. Advanced Computer Networks5 What are new emerging applications ? Real Audio Real video Net Meeting/ conferencing White board etc……

6. Advanced Computer Networks6 What do we need ? A new service model Applications that need higher assurance for bandwidth, packet loss and delay can ask for it. Implies that we need networks to treat some packets differently from others.

7. Advanced Computer Networks7 What led the internet evolution and how ? Traffic management for different applications. Different users. Stages in internet evolution: TOS (Type of Service) forwarding, obtained by spying at TCP port numbers. TCP, enhances inherently unreliable IP, to provide ordered and reliable delivery,

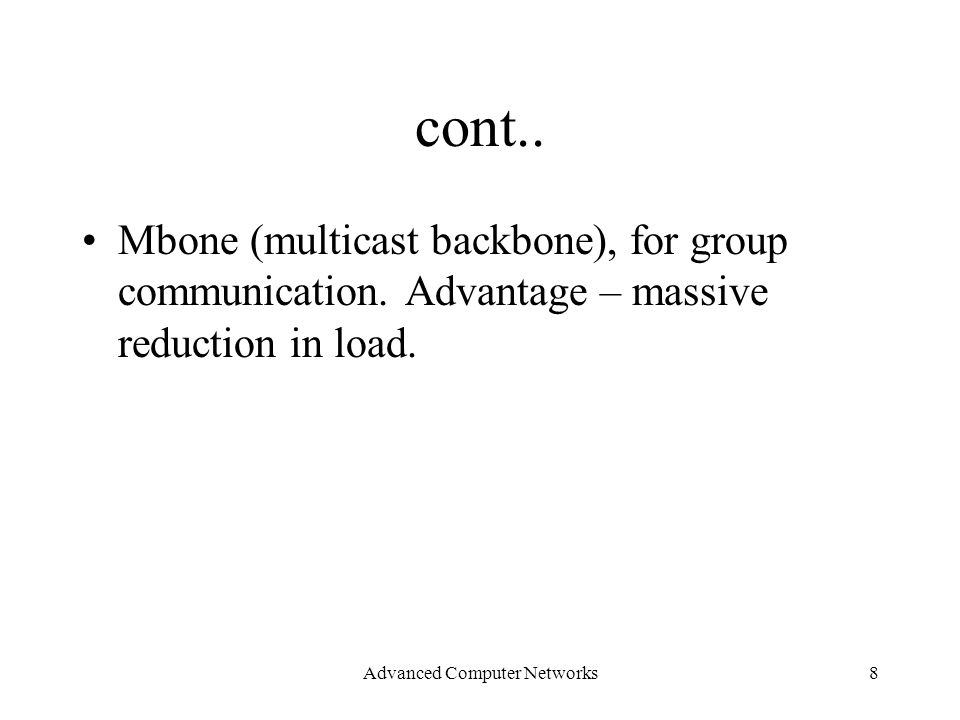

8. Advanced Computer Networks8 cont.. Mbone (multicast backbone), for group communication. Advantage – massive reduction in load.

9. Advanced Computer Networks9 How do we enhance internet to support various applications, users without overloading ? Overengineering – always will be some applications that can exceed network capacity. Resource Reservation – received most attention. Usage based charging – very complex, hard to deploy and not global agreement on traffic.

10. Advanced Computer Networks10 What do these new applications require? Commitment to have Real time delivery i.e. bounded jitter-no retransmission allowed. Certain Bandwidth Packet loss So, they are very sensitive to QOS their packet receives. Also, these new applications are multipoint to multipoint.

11. Advanced Computer Networks11 How to fulfill these requirement ? Not use the applications due to pricing and network congestion. Use congestion avoidance RED, DEC bit … Use congestion control and WFQ. None of above guarantee minimal packet forwarding rate, so…… dynamic specification of a source req. is preferable.

12. Advanced Computer Networks12 Two main classed of multimedia applications Adaptive applications – guarantee for minimum capacity with reasonable probability. Legacy constant rate applications – strong guarantee of service.

13. Advanced Computer Networks13 IETF (Internet Engineering Task Force) Standardizing body. Has Integrated Services Working group. http://www.ietf.org/html.charters/intserv- charter.html Defined several services classes – provides certain QOS commitments QOS is programmable on per flow basis by end applications.

14. Advanced Computer Networks14 How is it done ? End applications makes requests. Requests pass to routers by network management protocols or through Reservation Protocols (RSVP). Requests dictate level of resources to e reserved and transmission scheduling behavior in the routers……. Thus providing end-to-end QOS.

15. Advanced Computer Networks15 Does having QOS between router provide end to end QOS ? No…. Why ? What about link layer technologies ? Link layer to ensure that the link layer installs appropriate QOS support. Defined by Integrated Services over Specific Link Layers Working Group of IETF(issll). http://www.ietf.org/html.charters/issll-charter.html

16. Advanced Computer Networks16 What is admission control and why is it required ? Control mechanism. Admission control looks at the Tspec and Rspec of the flow to determine if desired service can be provided to a flow given its currently available resources. Not causing previously admitted flow to suffer. If it can provide the service flow is admitted Otherwise denied.

17. Advanced Computer Networks17 cont… Also look at the maximum datagram size, it should not be greater than MTU maximum transmission unit of the link. Assumption: Datagram receiving enhanced QOS are never fragmented.

18. Advanced Computer Networks18 What is Tspec ? Traffic characteristics of the flow. Tspec parameters include: ppeak rate of flow (bytes/sec) bbucket depth (bytes) rtoken bucket rate (bytes/sec) mminimum policed unit (bytes) Mmaximum datagram size (bytes)

19. Advanced Computer Networks19 What is Rspec ? Reservation characteristics. Rbandwidth, I.e. service rate (bytes/sec) Sslack term (ms)

20. Advanced Computer Networks20 Classes of services: Best effort Services And two Integrated Services: Guaranteed service Controlled load service Predictive load service

21. Advanced Computer Networks21 What is controlled load service ? Provides approximately the same QOS under heavy loads as under light loads. Commits to offer a service equivalent to that seen by a best effort flow on a lightly loaded network. Tspec is required without peak rate parameter.

22. Advanced Computer Networks22 How is it different from Best Effort Service ? Does not noticeably deteriorate as the network load increases. Best effort experiences worst services as the network load increases. Best effort uses simple FIFO buffering schemes while it uses simple priority queuing

23. Advanced Computer Networks23 What are the applications that require controlled load services ? Intended for class of applications that can tolerate certain amount of loss or delay. Adaptive real-time applications Existing Mbone applications over intranet SNA or DEC local area terminal tunneling across a public internet service provider’s backbone network –both are delay sensitive.

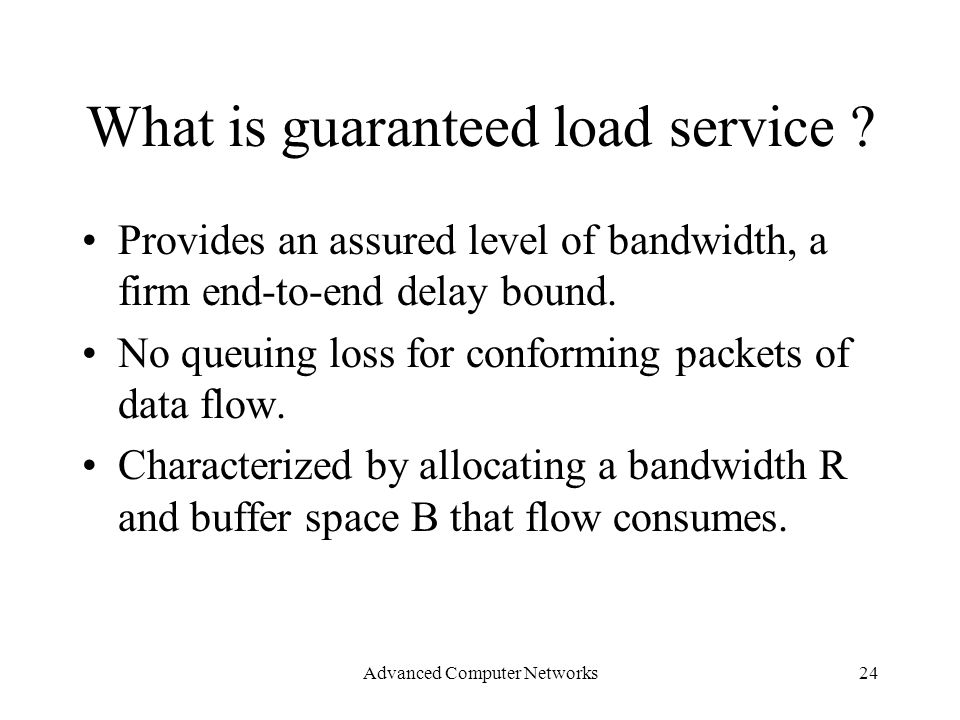

24. Advanced Computer Networks24 What is guaranteed load service ? Provides an assured level of bandwidth, a firm end-to-end delay bound. No queuing loss for conforming packets of data flow. Characterized by allocating a bandwidth R and buffer space B that flow consumes.

25. Advanced Computer Networks25 How to get end to end delay ? In a perfect fluid model delay is bound by b/R provided R > r where R is bandwidth of wire between src – dst. b is depth of bucket. r is token bucket rate. Two errors arises due to finite packet sizes Any packet experiences an excess delay in the forwarding due to its size in the same queue

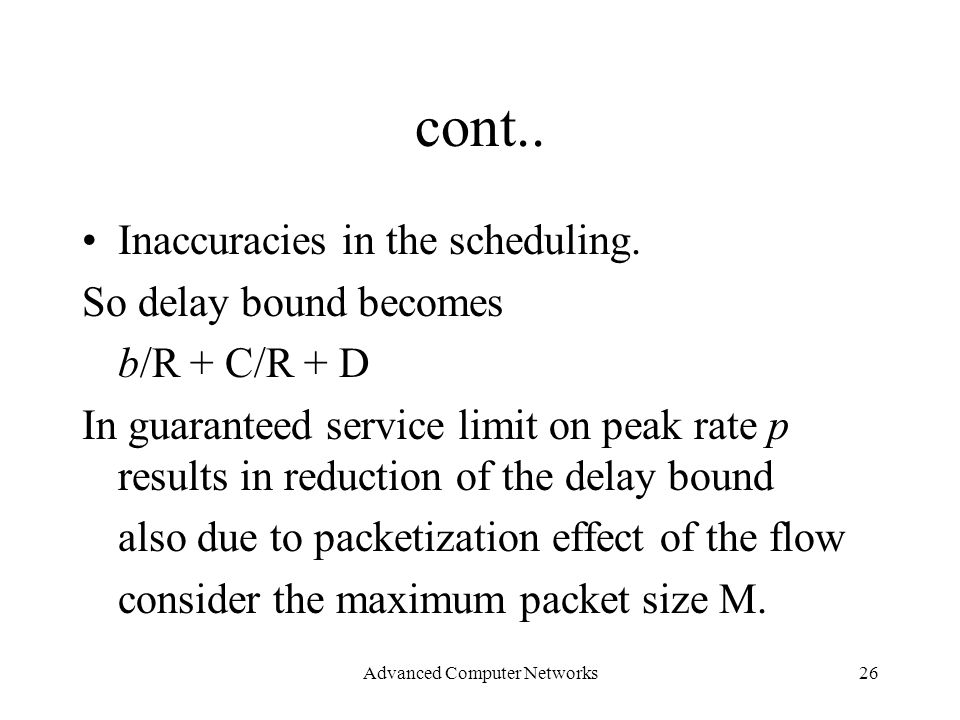

26. Advanced Computer Networks26 cont.. Inaccuracies in the scheduling. So delay bound becomes b/R + C/R + D In guaranteed service limit on peak rate p results in reduction of the delay bound also due to packetization effect of the flow consider the maximum packet size M.

27. Advanced Computer Networks27 cont.. Q delayend2end = (b-M) (p-R) + (M + Ctot) + Dtot R(p-r) R (case p> R > r) Q delayend2end = (M + Ctot) + Dtot R (case R > P > r)

28. Advanced Computer Networks28 What is policy control ? Why ? It is a function applied on a per-packet basis to make sure that a flow conforms to the Tspec that was used to make reservation. Policy control should be done at network access point to traffic does not interfere with other flows. Different from admission control …..

29. Advanced Computer Networks29 cont.. Non conforming flow should not be allowed to affect QOS if conforming flows. Non conforming data should be treated as best effort traffic. Routers should try to forward as many packets of nonconforming data as possible

30. Advanced Computer Networks30 Why need traffic reshaping ? Where ? Requires the reshaping of traffic to the token bucket of the reserved Tspec. Should be applied at places where it is possible for a data to exceed the reserved Tspec. Occurrences is possible in two cases: - branch pt in distribution tree where the reserved tspecs of the outgoing branches are not the same.

31. Advanced Computer Networks31 cont… - merge points in the distribution tree for sources sharing the same reservation. - reshaping incurs additional delay – slowing down early packets.

32. Advanced Computer Networks32 Killer Reservation problem Occurs due to merging of heterogeneous reservation requests from receivers onto the tree from the same source. - large reservations made subsequent to an existing smaller reservation fails, and due to native implementation entire reservation fails - receivers continually making attempts to make large reservations, retrying quickly after failure block smaller reservation requests that might succeed.

33. Advanced Computer Networks33 What are the applications that require guaranteed service ? Many military and commercial applications. Real-time stock quotes. Remote surgery using robotic arm. Any more applications ????

34. Advanced Computer Networks34 Does all link layer technology support QOS ? Token ring – yes (synchronous, asynchronous traffic) LAN switches – yes (multiple queue based on 802.1p header) Frame Relay - yes. ATM – yes (CBR, VBR, ABR, GFR) Ethernet – yes (802.1p header has 3 priority bits)

35. Advanced Computer Networks35 Why RSVP ? Setup necessary router state to support the Integrated Services. Why not ST-II or ST-II+ ? because RSVP has - receiver initiated reservation. - separating reservations from packet filtering - providing different reservation styles

36. Advanced Computer Networks36 cont… - maintaining soft state in the network. - protocol overhead control/ - modularity.

37. Advanced Computer Networks37 Why receiver oriented ? To efficiently handle heterogeneous receivers. Allow dynamic group membership. Easier to commercial deployment - since receiver would pay for requested services.’ similar to Deering’s Multicast routing approach.

38. Advanced Computer Networks38 Why use softstate ? Tolerant to frequent routing changes. Adds robustness QOS routing can be deployed separately gives straight forward way to increase or decrease the level of resource allocation.

39. Advanced Computer Networks39 RSVP is – is not Is Signaling protocol Is simplex – makes reservation for unidirectional flow only Receiver –oriented approach Maintains soft –state. Traffic control and policy control parameters are opaque to it. Is dependent on present routing protocols Provides transparent operation through routers that do not support it.

40. Advanced Computer Networks40 cont…. Is not A routing protocol. Not duplex. Not a sender oriented approach. Does not use hard-state.

41. Advanced Computer Networks41 How RSVP works ? Senders originate PATH message to install routing state in each router in the path provide information to receiver of Sender’s traffic Receivers send RESV messages towards senders to request reservation in intermediate routers IP datagram protocol number is 46.

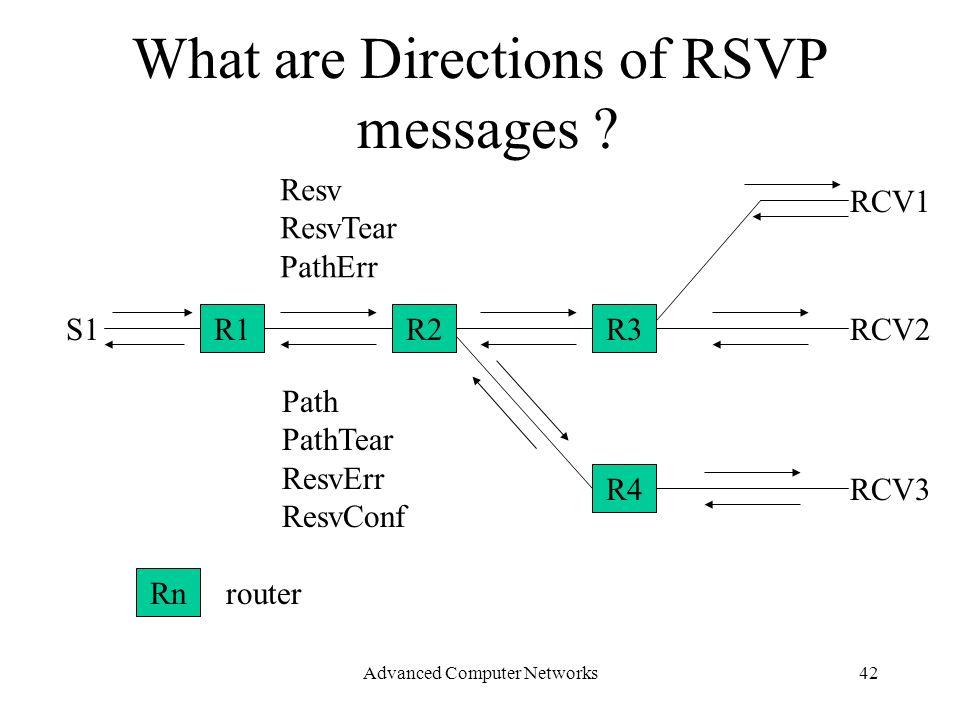

42. Advanced Computer Networks42 R1R2R3 R4 S1 RCV1 RCV2 RCV3 Rn router Resv ResvTear PathErr Path PathTear ResvErr ResvConf What are Directions of RSVP messages ?

43. Advanced Computer Networks43 What is filterspec and flowspec? Associated with reservations at the routers describes the packet to which reservation applies obtained from merging process applied to selected Resv messages style is (filterspec{flowspec}) used to summarize the request made by the Resv message.

44. Advanced Computer Networks44 What are different merging and reservation styles ? Fixed Filter (Distinctive Reservation and Explicit sender selection) -filterspec consists of single sender only - effective flowspec of the reservation installed is the maximum of all FF reservation requests received for that particular sender.

45. Advanced Computer Networks45 cont... Wildcard Filter (shared Reservation and Explicit Sender Selection) -filterspec is a wildcard and matches on any sender from upstream -effective flowspec installed is the maximum of all reservation requests received.

46. Advanced Computer Networks46 cont... Shared Explicit (Shared reservation and explicit sender selection) -filterspec contains a specific set of senders from upstream and is obtained by taking the union of individual filterspecs. -effective flowspec installed is the maximum form all SE reservation requests received

47. Advanced Computer Networks47 Towards S1, S2 Towards S3, S4 Towards S5, S6 FF(S1{4B},S2{6B}) FF(S3{2B},S4{5B}) FF(S5{4B},S6{6B}) WF(* {5b}) Towards S1, S2 Towards S3, S4 Towards S5, S6 Outgoing requests after merging incoming reservation requests FF(S1{2B}, S2{3B}, S4{5B}) FF(S1{4B}, S2{2B}) FF(S4{4B}) FF(S2{6B}, S4{2B}, S6{2B}) FF(S2{3B}, S3{2B}, S5{4B}) WF(* {5B}) WF(* {2B}) WF(* {3B}) WF(* {2B}) WF(* {4B}) I I I I I I Reserve S1{4B} S2{3B} S4{5B} S2{6B} S4{4B} S6{2B} S2{3B} S3{2B} S5{4B} Reserve (* {5B}) (* {3B}) (* {4B}) I I I FF Reservation example WF Reservation example

48. Advanced Computer Networks48 SE((S1,S2){5B}) SE((S3, S4){5B}) SE((S5, S6{5B}) Towards S1, S2 Towards S3, S4 Towards S5, S6 SE((S2, S4){5B}) SE((S1, S2){2B}) SE((S4{3B}) SE((S4, S6{2B}) SE((S2, S3, S5){4B}) I I I Reserve (S1, S2, S4){5B} (S4, S6){3B} (S2, S3, S5){4B} I I I SE Reservation example incoming reservation requestsOutgoing requests after merging

49. Advanced Computer Networks49 What information is in PATH messages ? phop - the address of the last RSVP capable node, updated at every RSVP capable router. Sender template - the filter specification identifying sender, IP addr, sender port sender Tspec -sender traffic characteristics adspec - OPWA information, updated at every RSVP capable router.

50. Advanced Computer Networks50 How PATH messages are processed and propagated ? Update/Create its PATH state entry. Setup cleanup timer equal to timeout interval and restart timer. Router generates the PATH messages based on its PATH state and forwarding down the tree. PATH messages forwarded on any change in PATH state or on change of outgoing interfaces in the data forwarding path.

51. Advanced Computer Networks51 cont.. Also created and forwarded very refresh timeout interval. Refresh timeout interval is several times smaller than cleanup timeout interval. PATHTEAR messages expedite the tear down process (explicitly), generated when Path state is deleted.

52. Advanced Computer Networks52 What is Adspec ? Optional object that sender may include in PATH message to advertise to receiver the characteristics of the end to end communication path. Receiver determines the level of reservation required for end to end QOS. Consist of message header, default general parameter fragment, and either guaranteed or controlled load service fragment.

53. Advanced Computer Networks53 cont.. General parameter fragment include -minimum path latency. -path bandwidth. -global break bit. -IS hop count. -PathMTU since IS requires that packet never be fragmented M in Tspec should never exceed MTU

54. Advanced Computer Networks54 cont.. Guaranteed service fragment includes -C tot - D tot - C sum - D sum - Guaranteed service break bit -Guaranteed service general parameters values

55. Advanced Computer Networks55 cont.. Controlled load service fragment include -controlled load service break bit -controlled load service general parameters values.

56. Advanced Computer Networks56 What is OPWA ? Refers to the reservation model where sender includes an adspec information in its PATH messages. Done to enable receiver to determine the end-to-end service as a result of this reservation helps minimize the handshaking latency between senders and recipient.

57. Advanced Computer Networks57 What does Resv message include? Reservation style filter specification, filterspec flow specification, flowspec reservation confirm object, ResvConf, contains IP addr Resv messages are merged in upstream routers to obtain effective flowspec and filterspec.

58. Advanced Computer Networks58 How does Resv message propagate ? Upward based on the PATH state. Merges based on the rules discussed earlier Effective flowspec is passed to the traffic control module to apply both admission control and policy control. ResvErr message is send downstream if attempt is denied. If accepted reservation state is setup in accordance to flowspec and filterspec.

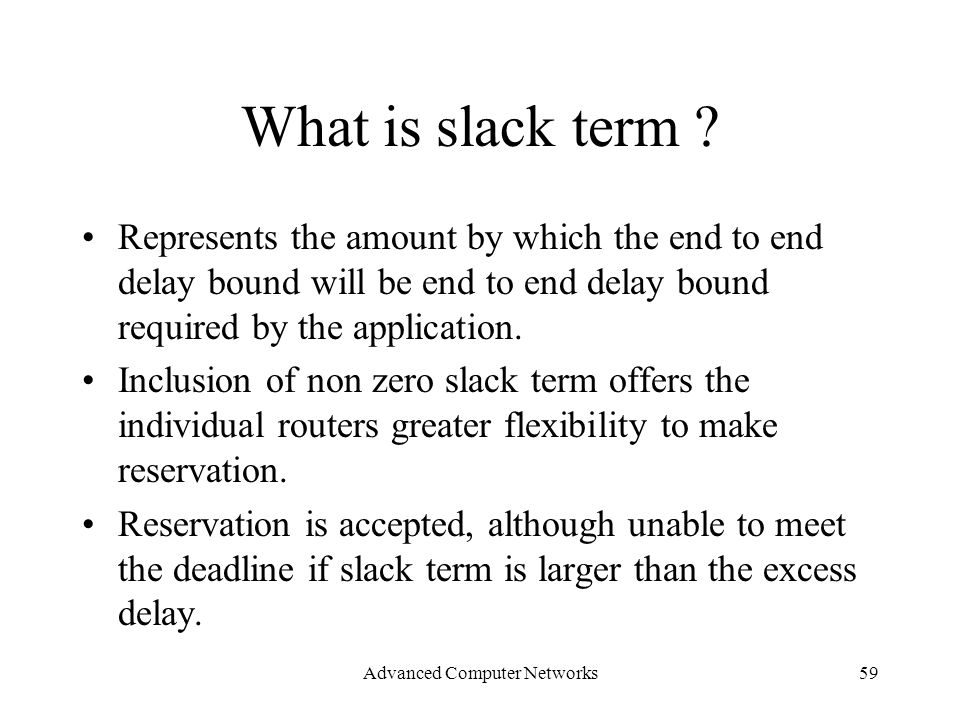

59. Advanced Computer Networks59 What is slack term ? Represents the amount by which the end to end delay bound will be end to end delay bound required by the application. Inclusion of non zero slack term offers the individual routers greater flexibility to make reservation. Reservation is accepted, although unable to meet the deadline if slack term is larger than the excess delay.

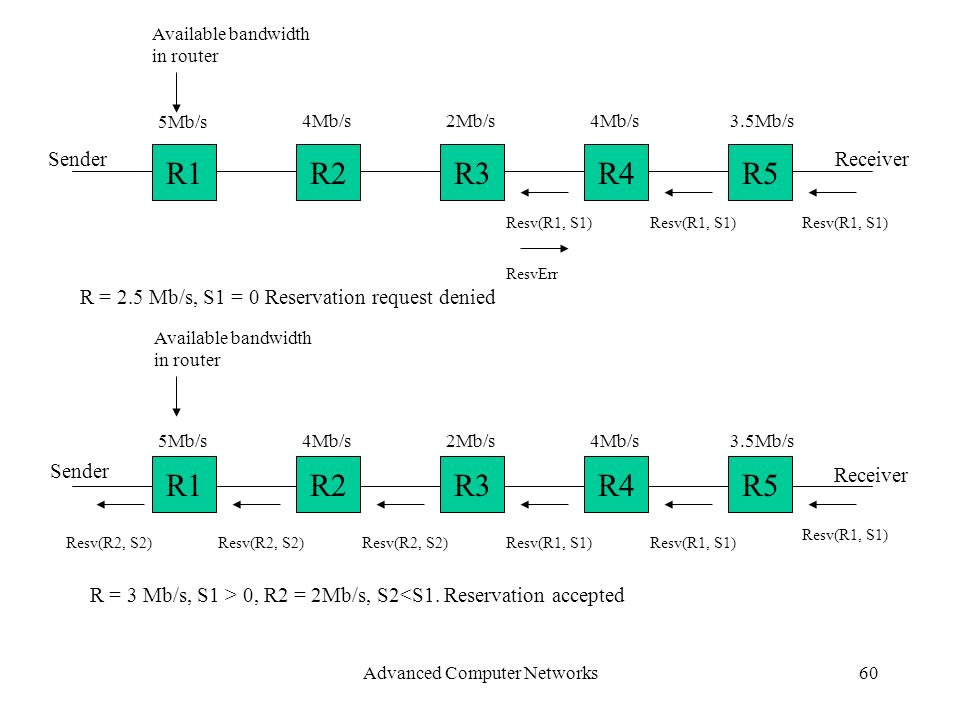

60. Advanced Computer Networks60 R1R2R3R4R5 R1R2R3R4R5 Sender Receiver 5Mb/s 4Mb/s2Mb/s4Mb/s3.5Mb/s 4Mb/s2Mb/s4Mb/s5Mb/s Available bandwidth in router Available bandwidth in router Resv(R1, S1) Resv(R2, S2) ResvErr R = 2.5 Mb/s, S1 = 0 Reservation request denied R = 3 Mb/s, S1 > 0, R2 = 2Mb/s, S2<S1. Reservation accepted

61. Advanced Computer Networks61 Some areas of future research Accounting and billing needs Aggregation of nonspecifically related reservations. Authentication. Usage account model etc…. To use IS or Diff services ????????? Is the big question. How to deploy them ?
