1. T2LD – An automatic framework for extracting, interpreting and representing tables as linked data Varish Mulwad Master’s Thesis Defense Advisor: Dr. Tim Finin June 29, 2010 1

2. Contribution - Tables to Linked Data http://dbpedia.org/resource/Baltimore Link Cell Value to an entity Find Relationships between columns http://dbpedia.org/onto logy/PopulatedPlace LargestCity 2

3. @prefix rdfs:. @prefix dbpedia:. @prefix dbpedia-owl:. “City”@en is rdfs:label of dbpedia-owl:City. “State”@en is rdfs:label of dbpedia-owl:AdminstrativeRegion. “Baltimore”@en is rdfs:label of dbpedia:Baltimore. dbpedia:Baltimore a dbpedia-owl:City. … Contribution - Tables to Linked Data 3

4. A thousand reasons why it’s important… 1.Generate linked RDF for the Semantic Web 2.Enrich facts and knowledge that is already existing on the Semantic Web 3.Add new facts and knowledge in the Semantic Web 4.Possible use in completing “incomplete tables” 5.Use in expanding the attributes / columns of a table … and 995 other applications (or more) that will exploit this data 4

5. Overview Introduction Related Work & Motivation Tables to linked data Results Future Work Conclusion 5

6. Introduction 6

7. The World Wide Web … ……………… ……………… ……………… ……………… ……………… ……………… Talk: abc By: xyz Venue: some location Talk: abc By: xyz Venue: some location ……………… ……………… Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 7

8. The World Wide Web … Good for you and me … … not so good for machines Images from http://www.bbc.co.uk/blogs/radiolabs/s5/linked-data/s5.htmlhttp://www.bbc.co.uk/blogs/radiolabs/s5/linked-data/s5.html Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 8

9. Web of Data – The Semantic Web Image – www.linkeddata.org Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 9

10. Linked Data The principles of Linked Data outline the best practices to share and expose structured data on the World Wide Web. Every resource has a URI: Baltimore: http://dbpedia.org/resource/Baltimore Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 10

11. Related Work and Motivation 11

12. Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 12

13. Chicken ? No – Egg … No – Chicken … More than a trillion documents on the Web ~ 14.1 billion tables, 154 million with high quality relational data (Cafarella et al. 2008) Where is structured data ? Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 13

14. Automate the process We need systems that can generate data from existing sources Not practical for humans to encode all this into RDF manually Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 14

15. In Databases and Web Systems … Understanding tables for Data Integration (Ziegler & Dittrich 2004), (Pantel, Philpot, & Hovy 2005) Learning to index tables to improve search experience (Cafarella et al. 2008) Expanding attributes (columns) of web tables (Lin et al. 2010) Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 15

16. On the Semantic Web Database to Ontology mapping (Barrasa, scar Corcho, & Gmez-prez 2004), (Hu & Qu 2007), (Papapanagiotou et al. 2006), and (Lawrence 2004) W3C working group – RDB2RDF !!! First working draft – June 8, 2010 Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 16

17. On the Semantic Web Mapping spreadsheets to RDF Systems like RDF123 (Han et. al 2008) allows users to convert spreadsheets to RDF Such systems are practical and helpful but … – Require significant manual work – Do not generate linked data Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 17

18. On the Semantic Web Han et. al 2009, addressed the problem of recommending a set of terms to use to describe the objects and relationships in the table Did not focus on the overall interpretation of a table Did not attempt to understand and link cell values Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 18

19. @prefix rdfs:. @prefix dbpedia:. @prefix dbpedia-owl:. “City”@en is rdfs:label of dbpedia-owl:City. “State”@en is rdfs:label of dbpedia-owl:AdminstrativeRegion. “Baltimore”@en is rdfs:label of dbpedia:Baltimore. dbpedia:Baltimore a dbpedia-owl:City. … An overall interpretation Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 19

20. Tables to Linked Data 20

21. T2LD Framework Predict Class for Columns Linking the table cells Identify and Discover relations T2LD Framework Input: Table Headers and Rows Output: Linked Data Representation of a Table Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 21

22. An overview Query Knowledge base Predict Class for Columns Re query Knowledge base using the new evidence Link cell value to an entity using the new results obtained Input: Table Headers and Rows Identify Relationships between columns Output: Linked Data Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 22

23. T2LD Framework Predict Class for Columns Linking the table cells Identify and Discover relations Input: Table Headers and Rows Output: Linked Data Representation of a Table Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 23

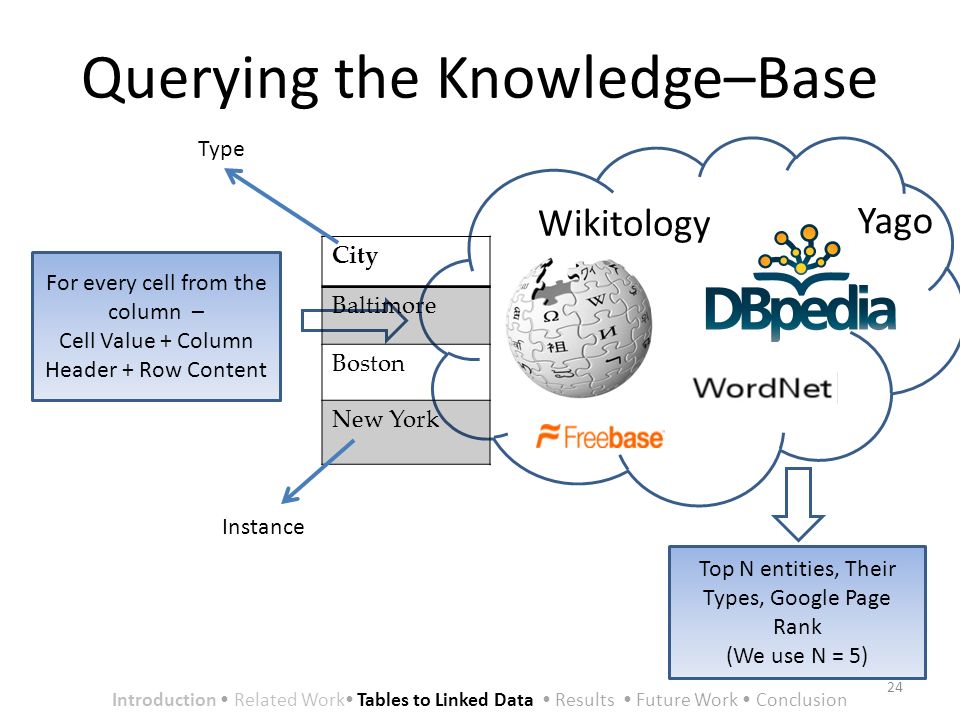

24. Querying the Knowledge–Base For every cell from the column – Cell Value + Column Header + Row Content Top N entities, Their Types, Google Page Rank (We use N = 5) Wikitology Yago Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 24 City Baltimore Boston New York Type Instance

25. Querying the Knowledge–Base City Baltimore Boston New York 1.Baltimore, Types, Page Rank 2. Baltimore County, Maryland, Types, Page Rank 3. John Baltimore, Types, Page Rank 1. Boston, Types, Page Rank 2. Boston_(band), Types, Page Rank 3. Boston_University, Types, Page Rank 1. New_York_City, Types, Page Rank 2. New_York, Types, Page Rank 3. New_York_(album), Types, Page Rank Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 25

26. Set of Classes Types for Baltimore {dbpedia-owl:Place, dbpedia- owl:Area} Types for Baltimore County {yago:AmericanConduc tors,yago:LivingPeople} Types for John Baltimore {dbpedia-owl:Place, dbpedia- owl:Area} Types for Boston {dbpedia-owl:Place, dbpedia- owl:PopulatedPlace} Types for Boston_band {dbpedia-owl:Band, dbpedia- owl:Organisation}... Set of classes for a column: {dbpedia-owl:Place, dbpedia-owl:Area, yago:AmericanConductors, yago:LivingPeople, dbpedia- owl:PopulatedPlace, dbpedia-owl:Band, dbpedia-owl:Organisation,... } Set of classes for a column: {dbpedia-owl:Place, dbpedia-owl:Area, yago:AmericanConductors, yago:LivingPeople, dbpedia- owl:PopulatedPlace, dbpedia-owl:Band, dbpedia-owl:Organisation,... } Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 26

27. Ranking the Classes [Baltimore, dbpedia-owl:Place] [Boston, dbpedia-owl:Place] [New York, dbpedia-owl:Place] [Baltimore, dbpedia-owl:PopulatedPlace] [Boston, dbpedia-owl:PopulatedPlace] … [Baltimore, dbpedia-owl:Band] … [Baltimore, dbpedia-owl:Place] [Boston, dbpedia-owl:Place] [New York, dbpedia-owl:Place] [Baltimore, dbpedia-owl:PopulatedPlace] [Boston, dbpedia-owl:PopulatedPlace] … [Baltimore, dbpedia-owl:Band] … Create a pairing of all the class labels and strings in a column Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 27

28. Ranking the Classes Assign a score to every pair based on – – The entity’s rank that matches the class label – Predicted Google Page Rank We use the following formula – – Score = w x ( 1 / R ) + (1 – w) (Normalized Google Page Rank) – We use w = 0.25 Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 28

29. Ranking the Classes E.g. Processing class – “dbpedia:Area” String Baltimore: (R = 1) Baltimore {dbpedia-owl:Place, dbpedia-owl:Area} [PR = 6] (R = 2) Baltimore County {dbpedia-owl:Place, dbpedia-owl:Area} [PR = 4] (R = 3) John Baltimore {yago:AmericanConductors,yago:LivingPeople} [PR = 5] Score = w x ( 1 / R ) + (1 – w) x (Normalized Page Rank) [Baltimore, dbpedia:Area] = (0.25 x 1 / 1 ) + (0.75 x 6 / 7) = 0.892 E.g. Processing class – “dbpedia:Band” String Baltimore: (R = 1) Baltimore {dbpedia-owl:Place, dbpedia-owl:Area} [PR = 6] (R = 2) Baltimore County {dbpedia-owl:Place, dbpedia-owl:Area} [PR = 4] (R = 3) John Baltimore {yago:AmericanConductors,yago:LivingPeople} [PR = 5] [Baltimore, dbpedia:Band] = 0 [Since the class does not match any of the entities for Baltimore] Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 29

30. Predicting the Classes Select the class that maximizes its sum of score over the entire column E.g. Sum of dbpedia:Area – [Baltimore, dbpedia:Area] + [Boston, dbpedia:Area] + [New York, dbpedia:Area] = 2.85 Sum of dbpedia:Band – [Baltimore, dbpedia:Band] + [Boston, dbpedia:Band] + [New York, dbpedia:Band] = 0.25 Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 30

31. Predicting the Classes We predict classes from four vocabularies – DBpedia Ontology, Freebase, WordNet and Yago [City, dbpedia:Area] = 1 [City, dbpedia:PoplulatedPlace] = 0.9 [City, dbpedia:Band] = 0.2 [City, yago:LivingPeople] = 0.23 [City, dbpedia:Area] = 1 [City, dbpedia:PoplulatedPlace] = 0.9 [City, dbpedia:Band] = 0.2 [City, yago:LivingPeople] = 0.23 Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 31

32. The underlying query process … 32

33. Mapping Table to Wikipedia StateCapital CityLargest CityGovernor MarylandAnnapolisBaltimoreMartin O Malley Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 33

34. Mapping Table to Wikipedia StateCapital CityLargest CityGovernor MarylandAnnapolisBaltimoreMartin O Malley TypesLinked ConceptsProperty Values Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 34

35. Summary of the Query Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 35

36. Extracting Types from DBpedia Types for Annapolis SPARQL Query Query redirects too … … to avoid disparity in KBs Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 36

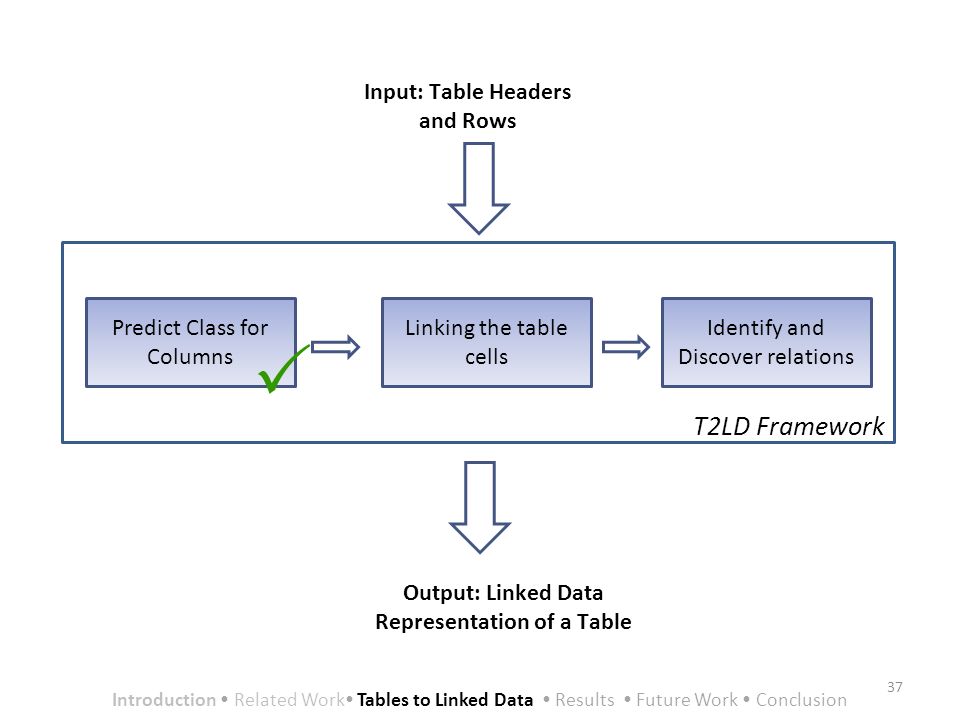

37. T2LD Framework Predict Class for Columns Linking the table cells Identify and Discover relations Input: Table Headers and Rows Output: Linked Data Representation of a Table Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 37

38. Approach Table Cell + Column Header + Row Data + Column Type Requery KB with predicted class labels as additional evidence Generate a feature vector for the top N results of the query Classifier ranks the entities within the set of possible results Select the highest ranked entity Classifier decides whether to link or not Link to “NIL” Link to the top ranked instance Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 38

39. Class labels are mapped to typesRef field Re-querying KB Use of predicted class labels as “additional evidence” WordNet:City http://dbpedia.org/ontology/City Yago:CitiesinUnitedStates Freebase:Location Restricts the types of the results returned to the predicted class labels Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 39

40. Summary of the re-query Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 40

41. Learning to Rank We trained a SVM rank classifier which learnt to rank entities within a given set Feature Vector Similarity Measures Popularity Measures Levenshtein distance Dice Score Wikitology Score PageRank Page Length Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 41

42. “To Link or not to Link … ’’ The highest ranked entity may not the correct one to link to … – Because the string we are querying may not be in the KB – Top N results may not include the correct answer We trained an SVM classifier which would determine whether to link to the top one or not Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 42

43. “To Link or not to Link … ’’ Feature vector included the feature vector of the top ranked entity and additional two features – – The SVM rank score of the top ranked entity – The difference in scores between the top two ranked entities Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 43

44. T2LD Framework Predict Class for Columns Linking the table cells Identify and Discover relations Input: Table Headers and Rows Output: Linked Data Representation of a Table Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 44

45. Relation between columns City Baltimore Boston New York State Maryland Massachusetts New York Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 45

46. Relation between columns Maryland - Baltimore Massachusetts - Boston New York - New York dbonto:LargestCity dbonto:Capital dbonto:LargestCity dbonto:Capital dbonto:LargestCity Candidate relations Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 46

47. Scoring the relations Maryland - Baltimore Massachusetts - Boston New York - New York dbonto:LargestCity dbonto:Capital dbonto:LargestCity Candidates: dbonto:Capital dbonto:LargestCity dbonto:Capital Score:0 dbonto:Capital Score:1 dbonto:LargestCity Score:3 Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 47

48. Relation between columns Select * where { http://dbpedia.org/resource/Maryland ?relation http://dbpedia.org/resource/Baltimore } _______________________________________________________________________ Select * where { http://dbpedia.org/resource/Maryland ?relation “Baltimore”@en> } Query the second column as URI and a literal string Check all redirects when querying with URI Check all other common names when querying with literal string Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 48

49. T2LD Framework Predict Class for Columns Linking the table cells Identify and Discover relations Input: Table Headers and Rows Output: Linked Data Representation of a Table Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 49

50. An example @prefix rdfs:. @prefix dbpedia:. @prefix dbpedia-owl:. @prefix dbpprop:. “City”@en is rdfs:label of dbpedia-owl:City. “State”@en is rdfs:label of dbpedia-owl:AdminstrativeRegion. “Baltimore”@en is rdfs:label of dbpedia:Baltimore. dbpedia:Baltimore a dbpedia-owl:City. “MD”@en is rdfs:label of dbpedia:Maryland. dbpedia:Maryland a dbpedia-owl:AdministrativeRegion. dbpprop:LargestCity rdfs:domain dbpedia-owl:AdminstrativeRegion. dbpprop:LargestCity rdfs:range dbpedia-owl:City. “City”@en is rdfs:label of dbpedia-owl:City. “City” is the common / human name for the class dbpedia-owl:City dbpedia:Baltimore a dbpedia-owl:City. dbpedia:Baltimore is a type (instance) dbpedia-owl:City dbpprop:LargestCity rdfs:domain dbpedia-owl:AdminstrativeRegion.  The subjects of the triples using the property have to be instances of dbpedia- owl:AdminstrativeRegion dbpprop:LargestCity rdfs:range dbpedia-owl:City.  The objects of the triples using the property have to be instances of dbpedia-owl:City Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 50

51. Template @prefix rdfs:. “ColumnHeader1” is rdfs:label of PredictedClassLabel1. “ColumnHeader2” is rdfs:label of PredictedClassLabel2. “TableCellString” is rdfs:label of CellValueURL. CellValueURL a PredictedClassLabel. property rdfs:domain PredictedClassLabel1. property rdfs:range PredictedClassLabel2. Where: ColumnHeader - is a column header from the table TableCellString - is a string representing a table cell PredictedClassLabel - is the class label associated with the column CellValueURL - is the DBpedia url, the table cell string is linked to property - is the relation discovered between the two columns Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 51

52. Results 52

53. Dataset summary Number of Tables15 Total Number of rows199 Total Number of columns56 (52) Total Number of entities639 (611) * The number in the brackets indicates # excluding columns that contained numbers Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 53

54. Dataset summary Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 54

55. Dataset summary Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 55

56. Evaluation for class label predictions 56

57. Evaluation # 1 (MAP) Compared the system’s ranked list of labels against a human ranked list of labels Metric - Mean Average Precision (MAP) Commonly used in the Information Retrieval domain to compare two ranked sets Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 57

58. Evaluation # 1 (MAP) MAP is defined as – R(n) - is the relevance at n. If the class label ranked “n” in the system generated set is a relevant one then R(n) is 1,else it is 0. P(n) - is the precision at n. It measures the relevance of the top n results. N - is the number of labels retrieved. For our evaluation we consider the top 3 labels retrieved. Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 58

59. Evaluation # 1 (MAP) Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 59 80.76 % System Ranked: 1. Person 2. Politician 3. President Evaluator Ranked: 1. President 2. Politician 3. OfficeHolder

60. Evaluation # 2 (Recall) Checked whether the system was retrieving relevant class labels or not. Measure used : Recall (R) Top three labels ranked by the user were considered to be relevant. Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 60

61. Evaluation # 2 (Recall) Recall > 0.6 (75 %) Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 61 System Ranked: 1. Person 2. Politician 3. President Evaluator Ranked: 1. President 2. Politician 3. OfficeHolder

62. Evaluation # 3 (Rank Match) A comparison of how many times the top three ranked system generated labels match with the top three labels ranked by the users Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 62

63. Evaluation # 4 (Correctness) Evaluated whether our predicted class labels were “fair and correct” Class label may not be the most accurate one, but may be correct. – E.g. dbpedia:PopulatedPlace is not the most accurate, but still a correct label for column of cities Three human judges evaluated our predicted class labels Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 63

64. Evaluation # 4 (Correctness) A category-wise breakdown for class label correctness Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion Overall Accuracy: 76.92 % 64 Column – Nationality Prediction – MilitaryConflict Column – Birth Place Prediction – PopulatedPlace

65. Summary – Class label prediction Recall and class label correctness show that our approach produces relevant and correct labels MAP and Rank Match show that we enjoyed moderate success in ranking labels within a set Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 65

66. Evaluation for linking table cells to entities 66

67. Category-wise accuracy for linking table cells Overall Accuracy: 66.12 % Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 67

68. SVM rank classifier Correctly predicted top ranked instance 215 Incorrectly predicted top ranked instance 7 Total number of instances 222 Accuracy96.84 % Correctly predicted top ranked instance 543 Incorrectly predicted top ranked instance 68 Total number of instances 611 Accuracy88.87 % Training data – 171 queries (each with 10 results) The correct entity was assigned the highest rank and all others were assigned a same lower rank Test data – 222 queries (each with 10 results) Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 68

69. The binary SVM classifier Correctly predicted 145 Incorrectly predicted 26 Total number of instances 171 Accuracy84.79 % Correctly predicted 541 Incorrectly predicted 70 Total number of instances 611 Accuracy88.54 % Training data – 222 queries (146 +ve, 76 –ve examples) If the highest ranked instance was correct, a class label of “yes” was assigned Test data – 171 queries (119 +ve, 52 –ve examples) Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 69

70. Evaluation for relation between columns 70

71. Relation between columns Idea – Ask human evaluators to identify relations between columns in a given table Pilot Experiment – Asked three evaluators to annotate five random tables from our dataset Evaluators identified 20 relations Our accuracy – 5 out of 20 (25 % ) were correct Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 71

72. Future Work 72

73. Future Work Implement a machine learning based approach for class label predictions for columns Alternative approach for relation discovery and identification Approaches to handle unknown entities Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 73

74. Conclusion 74

75. Conclusion There’s lot of data that is stored in html tables, spreadsheets, databases and documents We presented an automated framework that extracts, interprets and represents tables as linked data We are unlocking large amounts of tabular data currently inaccessible and useless for the Semantic Web and making it more meaningful and useful on the Semantic Web We believe our work will contribute in materializing the web of data vision Introduction  Related Work  Tables to Linked Data  Results  Future Work  Conclusion 75

76. References Cafarella, M. J., Halevy, A., Wang, D. Z., Wu, E., Zhang, Y., 2008. Webtables:exploring the power of tables on the web. Proc. VLDB Endow.1 (1), 538- 549. Ziegler, P., and Dittrich, K. R. 2004. Three decades of data intecration: all problems solved? In Building the Information Society, volume 156 of IFIP International Federation for Information Processing, 312. Springer Boston. Pantel, P.; Philpot, A.; and Hovy, E. 2005. Aligning database columns using mutual information. In Proceedings of the 2005 national conference on Digital government research, dg.o 05, 205210. Cindy Xide Lin, Bo Zhao, Tim Weninger, Jiawei Han, and Bing Liu. 2010. Entity relation discovery from web tables and links. In Proceedings of the 19th international conference on World wide web (WWW '10). ACM, New York, NY, USA, 1145-1146. Barrasa, J., Corcho, O., Gomez-perez, A., 2004. R2o, an extensible and semantically based database-to-ontology mapping language. In Proceedings of the 2nd Workshop on Semantic Web and Databases(SWDB2004). Vol. 3372. pp. 1069- 1070. 76

77. Hu, W., and Qu, Y. 2007. Discovering simple mappings between relational database schemas and ontologies. In Aberer, K.; Choi, K.-S.; Noy, N. F.; Allemang, D.; Lee, K.- I.; Nixon, L. J. B.; Golbeck, J.; Mika, P.; Maynard, D.; Mizoguchi, R.; Schreiber, G.;and Cudre-Mauroux, P., eds., ISWC/ASWC, volume 4825 of Lecture Notes in Computer Science, 225238. Springer. Papapanagiotou, P.; Katsiouli, P.; Tsetsos, V.; Anagnostopoulos, C.; and Hadjiefthymiades, S. 2006. Ronto: Relational to ontology schema matching. In AISSIGSEMIS BULLETIN. Lawrence, E. D. R. 2004. Composing mappings between schemas using a reference ontology. In In Proceedings of International Conference on Ontologies, Databases and Application of Semantics (ODBASE), 783800. Springer Han, L.; Finin, T.; Parr, C.; Sachs, J.; and Joshi, A. 2008. RDF123: from Spreadsheets to RDF. In Seventh International Semantic Web Conference. Springer. Han, L., Finin, T., Yesha, Y., 2009. Finding semantic web ontology terms from words. In: Proceedings of the Eight International Semantic Web Conference. Springer. References 77

78. Discussion 78
