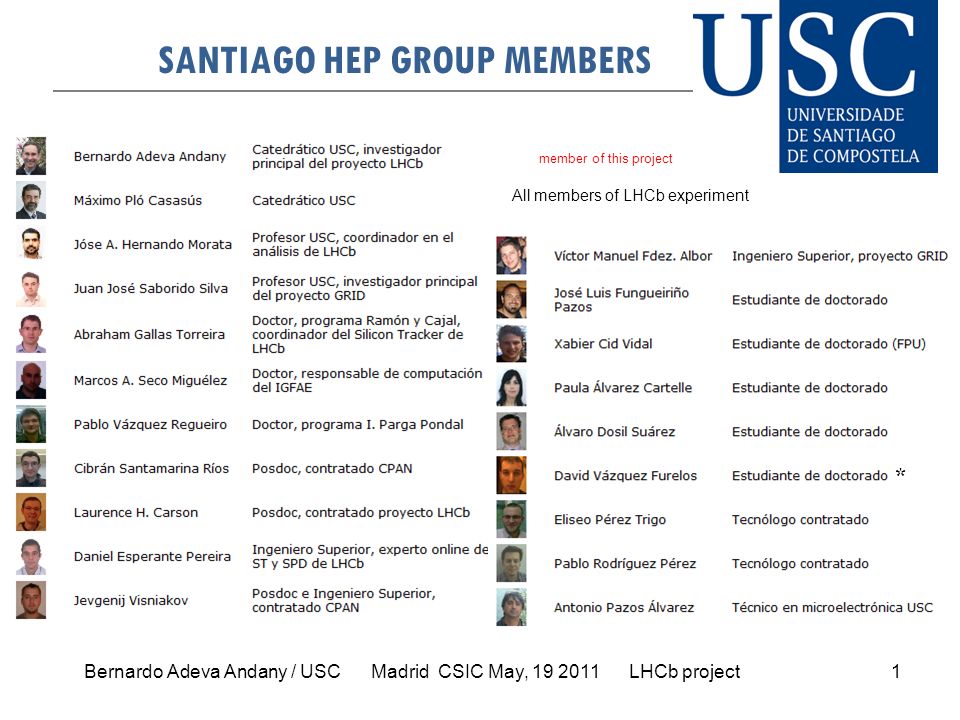

Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project1 SANTIAGO HEP GROUP MEMBERS member of this project All members of LHCb experiment *
2

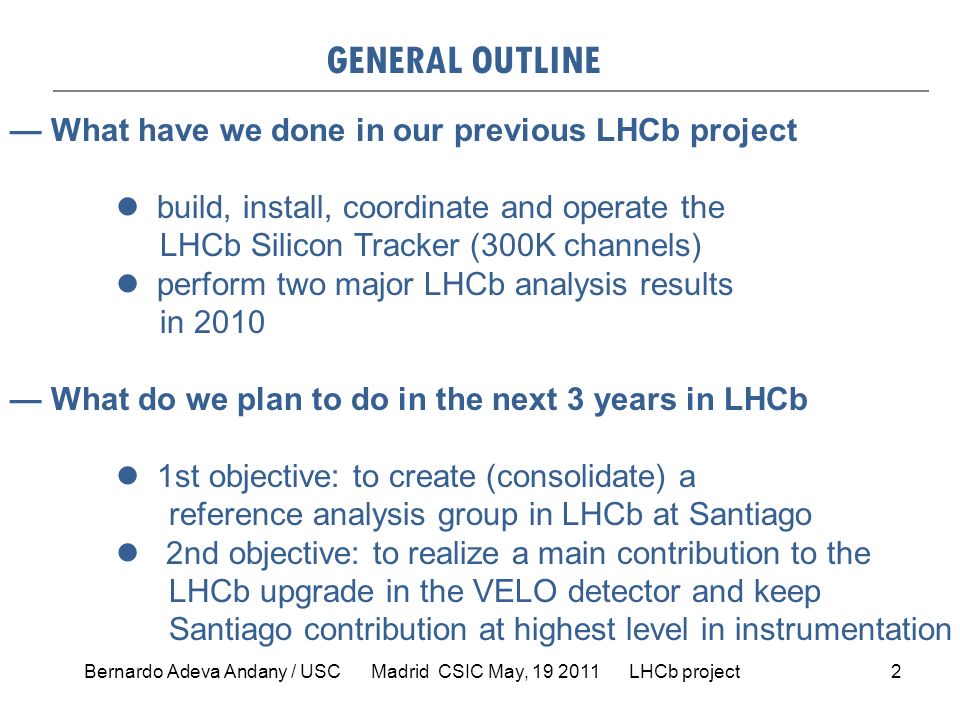

GENERAL OUTLINE Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project2 — What have we done in our previous LHCb project build, install, coordinate and operate the LHCb Silicon Tracker (300K channels) perform two major LHCb analysis results in 2010 — What do we plan to do in the next 3 years in LHCb 1st objective: to create (consolidate) a reference analysis group in LHCb at Santiago 2nd objective: to realize a main contribution to the LHCb upgrade in the VELO detector and keep Santiago contribution at highest level in instrumentation
3

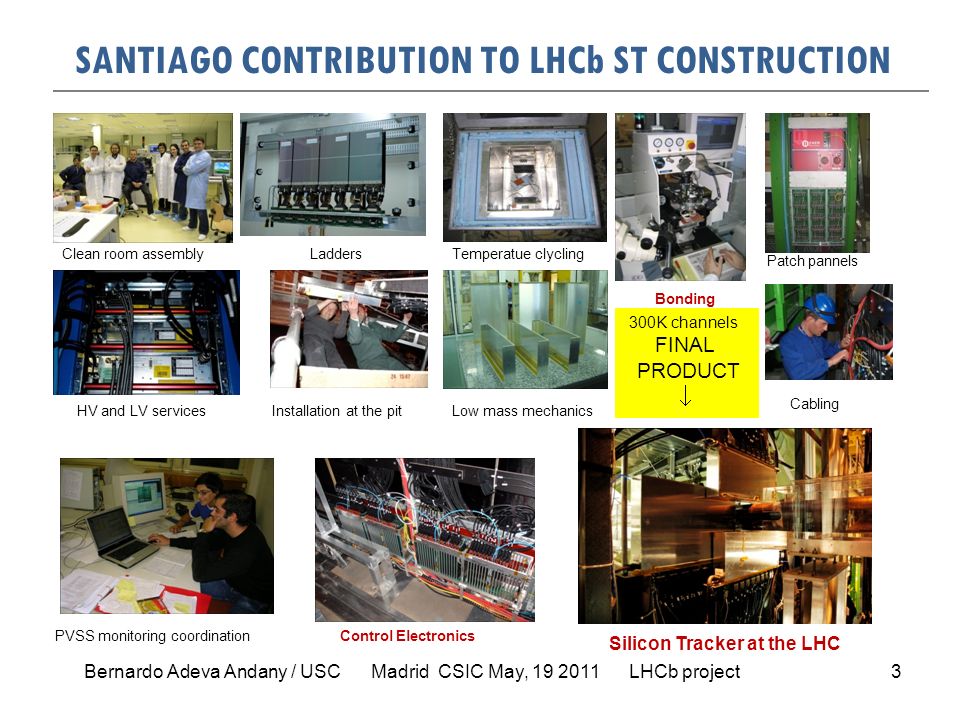

Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project3 SANTIAGO CONTRIBUTION TO LHCb ST CONSTRUCTION Clean room assembly Bonding Installation at the pit Cabling HV and LV services Control Electronics Temperatue clycling PVSS monitoring coordination Ladders Low mass mechanics Patch pannels 300K channels FINAL PRODUCT Silicon Tracker at the LHC
4

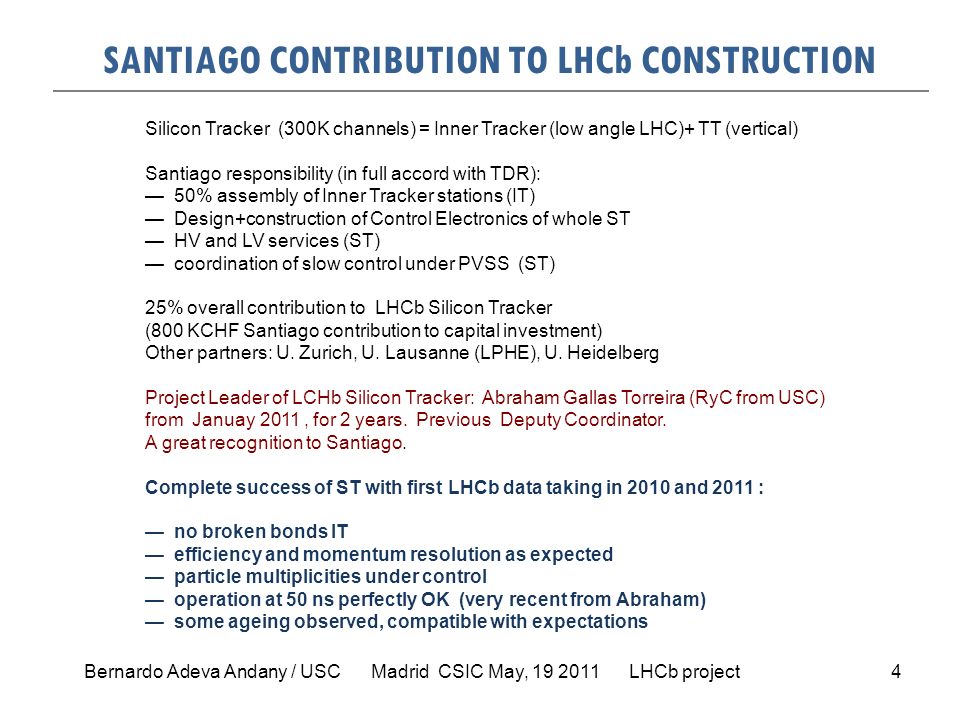

Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project4 SANTIAGO CONTRIBUTION TO LHCb CONSTRUCTION Silicon Tracker (300K channels) = Inner Tracker (low angle LHC)+ TT (vertical) Santiago responsibility (in full accord with TDR): — 50% assembly of Inner Tracker stations (IT) — Design+construction of Control Electronics of whole ST — HV and LV services (ST) — coordination of slow control under PVSS (ST) 25% overall contribution to LHCb Silicon Tracker (800 KCHF Santiago contribution to capital investment) Other partners: U. Zurich, U. Lausanne (LPHE), U. Heidelberg Project Leader of LCHb Silicon Tracker: Abraham Gallas Torreira (RyC from USC) from Januay 2011, for 2 years. Previous Deputy Coordinator. A great recognition to Santiago. Complete success of ST with first LHCb data taking in 2010 and 2011 : — no broken bonds IT — efficiency and momentum resolution as expected — particle multiplicities under control — operation at 50 ns perfectly OK (very recent from Abraham) — some ageing observed, compatible with expectations
5

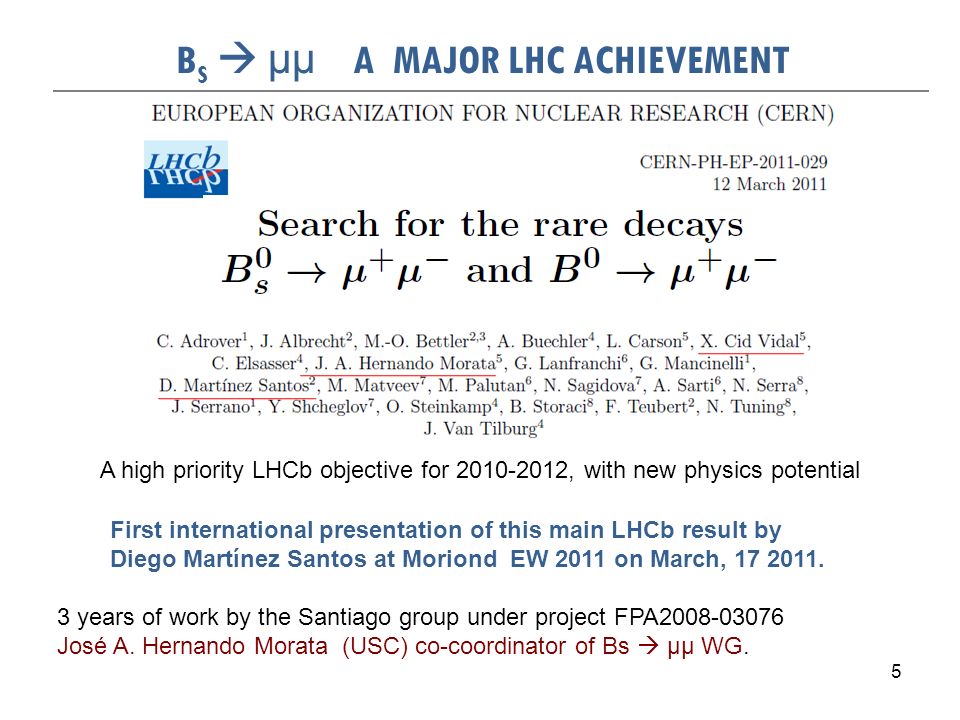

5 B S µµ A MAJOR LHC ACHIEVEMENT First international presentation of this main LHCb result by Diego Martínez Santos at Moriond EW 2011 on March, 17 2011. 3 years of work by the Santiago group under project FPA2008-03076 José A. Hernando Morata (USC) co-coordinator of Bs µµ WG. A high priority LHCb objective for 2010-2012, with new physics potential
6

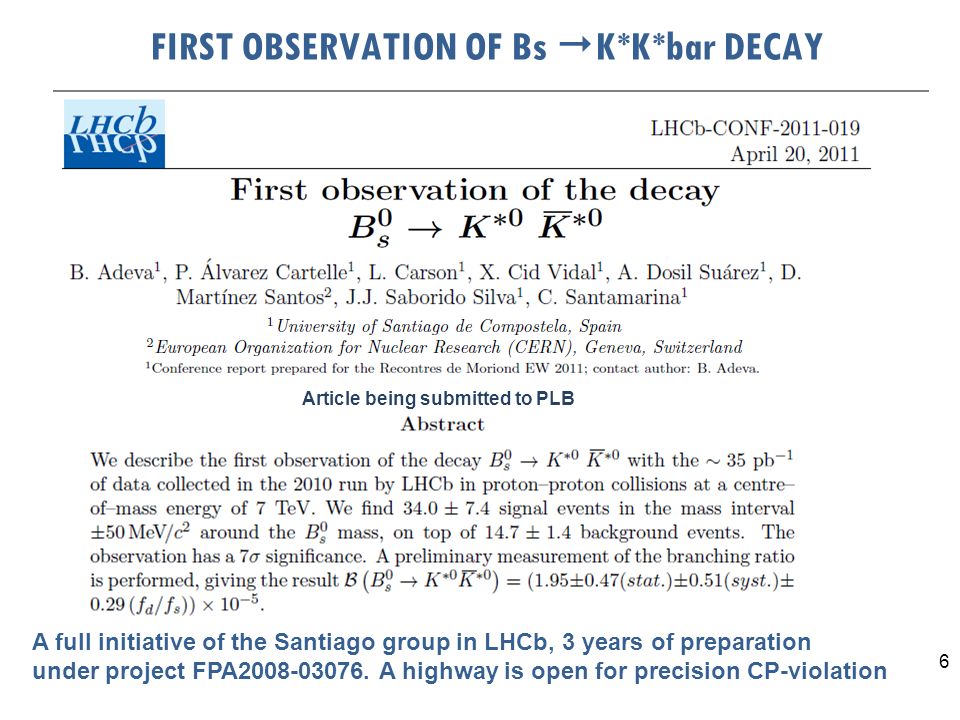

6 FIRST OBSERVATION OF Bs K*K*bar DECAY A full initiative of the Santiago group in LHCb, 3 years of preparation under project FPA2008-03076. A highway is open for precision CP-violation Article being submitted to PLB
7

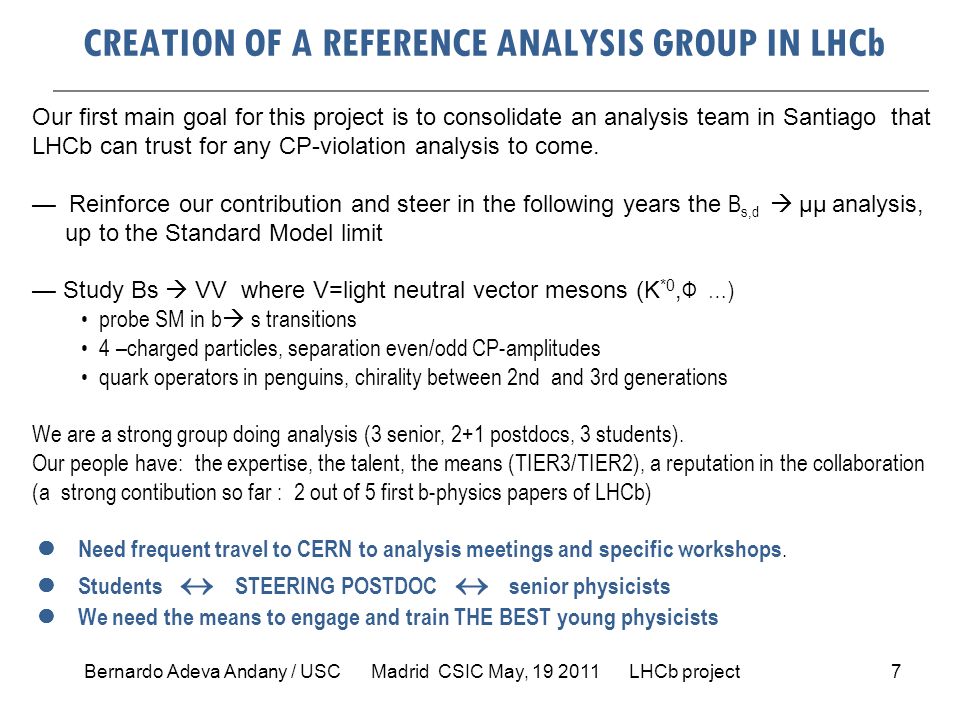

Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project7 CREATION OF A REFERENCE ANALYSIS GROUP IN LHCb Our first main goal for this project is to consolidate an analysis team in Santiago that LHCb can trust for any CP-violation analysis to come. — Reinforce our contribution and steer in the following years the B s,d µµ analysis, up to the Standard Model limit — Study Bs VV where V=light neutral vector mesons (K *0, Ф …) probe SM in b s transitions 4 –charged particles, separation even/odd CP-amplitudes quark operators in penguins, chirality between 2nd and 3rd generations We are a strong group doing analysis (3 senior, 2+1 postdocs, 3 students). Our people have: the expertise, the talent, the means (TIER3/TIER2), a reputation in the collaboration (a strong contibution so far : 2 out of 5 first b-physics papers of LHCb) Need frequent travel to CERN to analysis meetings and specific workshops. Students STEERING POSTDOC senior physicists We need the means to engage and train THE BEST young physicists
8

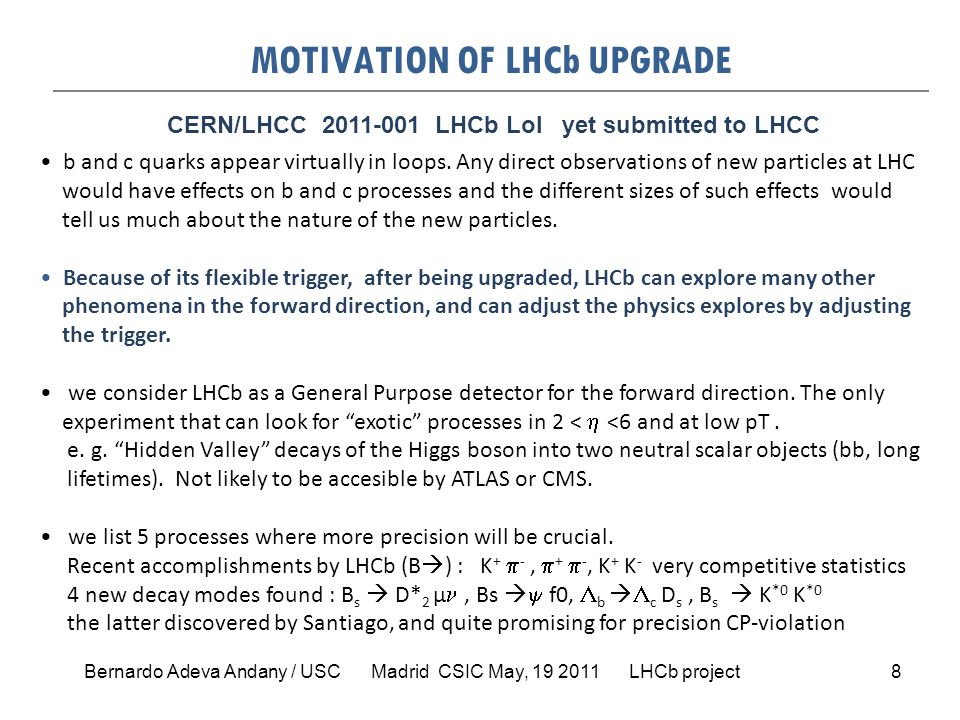

Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project8 MOTIVATION OF LHCb UPGRADE b and c quarks appear virtually in loops. Any direct observations of new particles at LHC would have effects on b and c processes and the different sizes of such effects would tell us much about the nature of the new particles. Because of its flexible trigger, after being upgraded, LHCb can explore many other phenomena in the forward direction, and can adjust the physics explores by adjusting the trigger. we consider LHCb as a General Purpose detector for the forward direction. The only experiment that can look for “exotic” processes in 2 < <6 and at low pT. e. g. “Hidden Valley” decays of the Higgs boson into two neutral scalar objects (bb, long lifetimes). Not likely to be accesible by ATLAS or CMS. we list 5 processes where more precision will be crucial. Recent accomplishments by LHCb (B ) : K + -, + -, K + K - very competitive statistics 4 new decay modes found : B s D* 2 µ, Bs f0, b c D s, B s K *0 K *0 the latter discovered by Santiago, and quite promising for precision CP-violation CERN/LHCC 2011-001 LHCb LoI yet submitted to LHCC
9

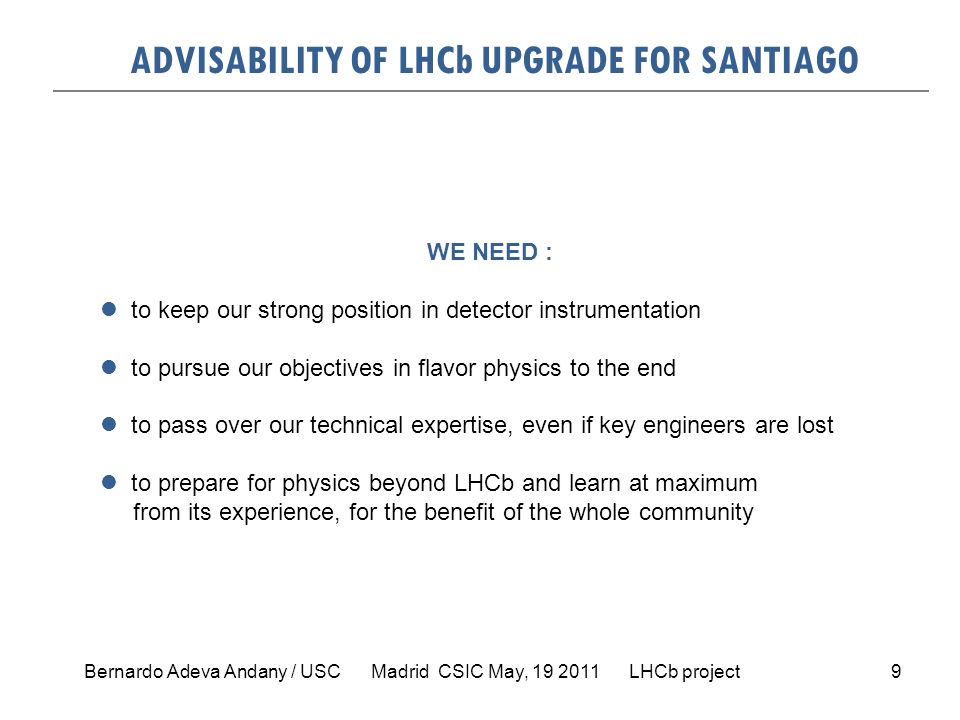

Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project9 ADVISABILITY OF LHCb UPGRADE FOR SANTIAGO WE NEED : to keep our strong position in detector instrumentation to pursue our objectives in flavor physics to the end to pass over our technical expertise, even if key engineers are lost to prepare for physics beyond LHCb and learn at maximum from its experience, for the benefit of the whole community
10

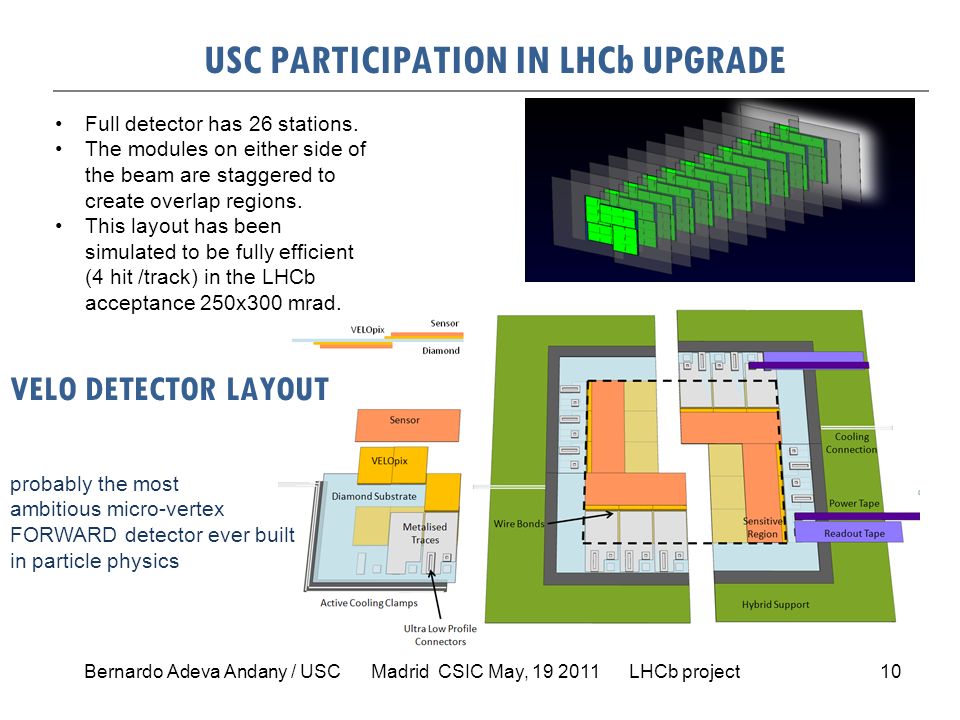

Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project10 USC PARTICIPATION IN LHCb UPGRADE VELO DETECTOR LAYOUT Full detector has 26 stations. The modules on either side of the beam are staggered to create overlap regions. This layout has been simulated to be fully efficient (4 hit /track) in the LHCb acceptance 250x300 mrad. probably the most ambitious micro-vertex FORWARD detector ever built in particle physics
11

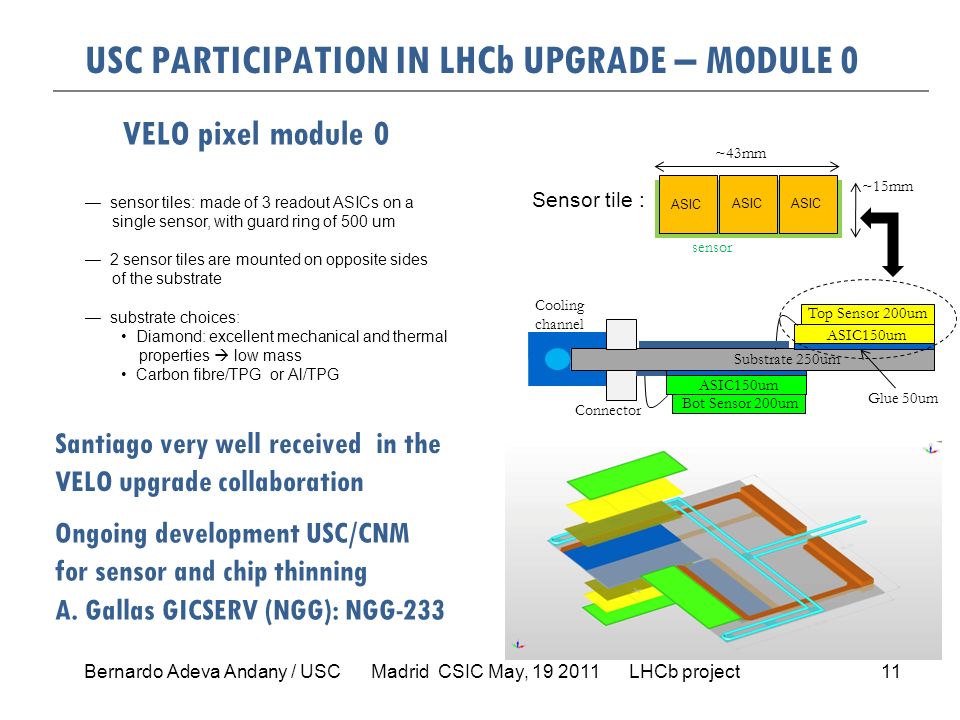

Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project11 USC PARTICIPATION IN LHCb UPGRADE – MODULE 0 ~15mm ASIC ~43mm Sensor tile : sensor Bot Sensor 200um ASIC150um Substrate 250um Cooling channel Glue 50um Top Sensor 200um ASIC150um Connector VELO pixel module 0 Ongoing development USC/CNM for sensor and chip thinning A. Gallas GICSERV (NGG): NGG-233 Santiago very well received in the VELO upgrade collaboration — sensor tiles: made of 3 readout ASICs on a single sensor, with guard ring of 500 um — 2 sensor tiles are mounted on opposite sides of the substrate — substrate choices: Diamond: excellent mechanical and thermal properties low mass Carbon fibre/TPG or Al/TPG
12

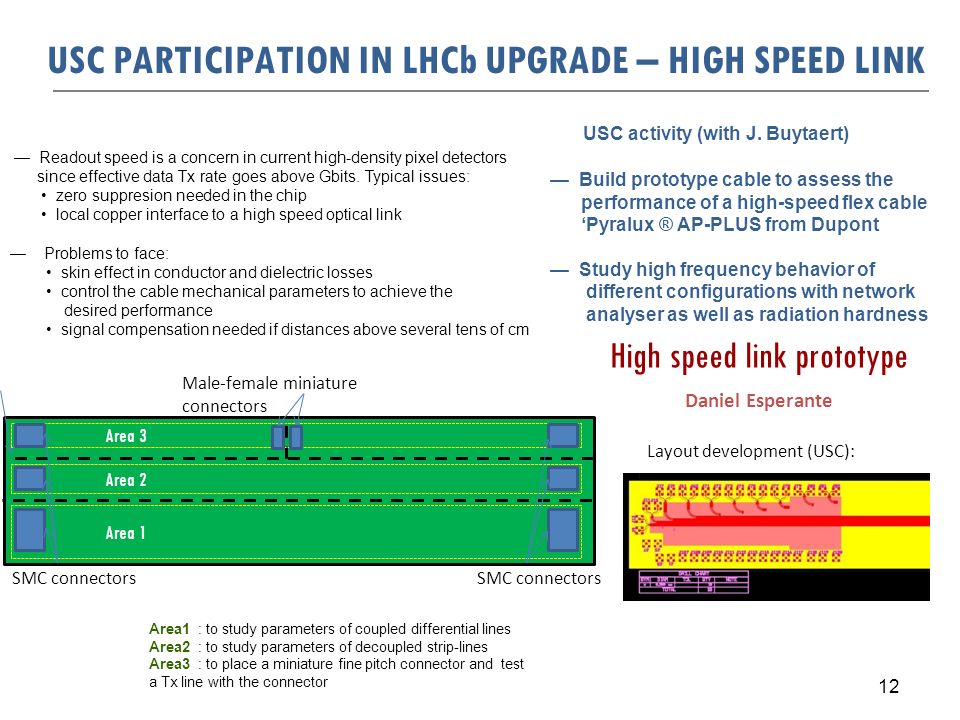

12 USC PARTICIPATION IN LHCb UPGRADE – HIGH SPEED LINK Area 1 Area 2 Area 3 Male-female miniature connectors SMC connectors Daniel Esperante Layout development (USC): High speed link prototype — Readout speed is a concern in current high-density pixel detectors since effective data Tx rate goes above Gbits. Typical issues: zero suppresion needed in the chip local copper interface to a high speed optical link — Problems to face: skin effect in conductor and dielectric losses control the cable mechanical parameters to achieve the desired performance signal compensation needed if distances above several tens of cm USC activity (with J. Buytaert) — Build prototype cable to assess the performance of a high-speed flex cable ‘Pyralux ® AP-PLUS from Dupont — Study high frequency behavior of different configurations with network analyser as well as radiation hardness Area1 : to study parameters of coupled differential lines Area2 : to study parameters of decoupled strip-lines Area3 : to place a miniature fine pitch connector and test a Tx line with the connector
13
Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project13 FPI FELLOW DEFENSE FPI fellow to work on the LHCb analysis, with a serious chance to discover New Physics beyond the Standard Model either in a non-zero value of the CKM phase S or by observing a Bs µµ branching ratio above the SM value. — The group has a strong position in LHCb to boost his/her participation really high — 3 recent examples of exceptional contributions by Santiago FPI/FPU fellows are: Diego Martínez Santos, FPU, main author of LHCb Bs µµ analysis, CERN fellow Daniel Esperange Pereira, FPI 2002, creator of LHCb ST Control Electronics Paula Alvarez Cartelle, FPI 2007, discoverer of the Bs K*K*b decay mode — Group training capacity for both analysis and instrumentation, at maximum level — Timely awarding, about 5 years from previous FPI
14
Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project14 LHCb SHIFTS PLAN Approved at Sept,2010 LHCb Collaboration Board This means a significant dedication and budget - see below
15
Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project15 PERSONNEL REQUEST Postdoc for analysis, 3 years (126.000 €) take responsibility in CP-violation analysis b s penguins Bs VV (phi phi, phi K*0 y K*0 K*0 bar) essential for the creation of a reference group in LHCb make fluid interface with collaboration and with students Ingeniero Superior or Ph.D., 30 months (96.000 €) key position to keep Santiago’s leadership position in LHCb upgrade assembly double-sided multichip device + diamond substrate + signal integrity tests integration in LHCb micro-vertex (VELO) group 4 contracts for hiring young physicists (between 12 and 18 month) (110.000 €) bridge for students before they get a doctoral grant to make a PhD reasonable probe period to define further mutual interest Postdoc R&D Si PMTs, 2 years (84.000 €) wider scope R&D in pixel detectors in relation with NEXT TPC in Canfranc
16

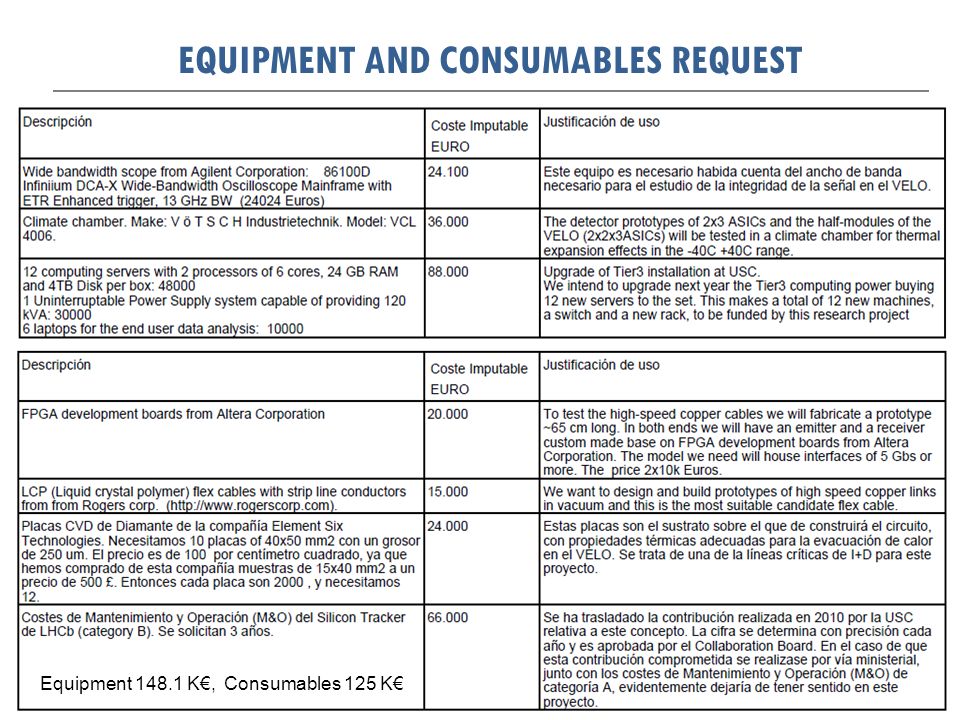

Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project16 EQUIPMENT AND CONSUMABLES REQUEST Equipment 148.1 K€, Consumables 125 K€
17

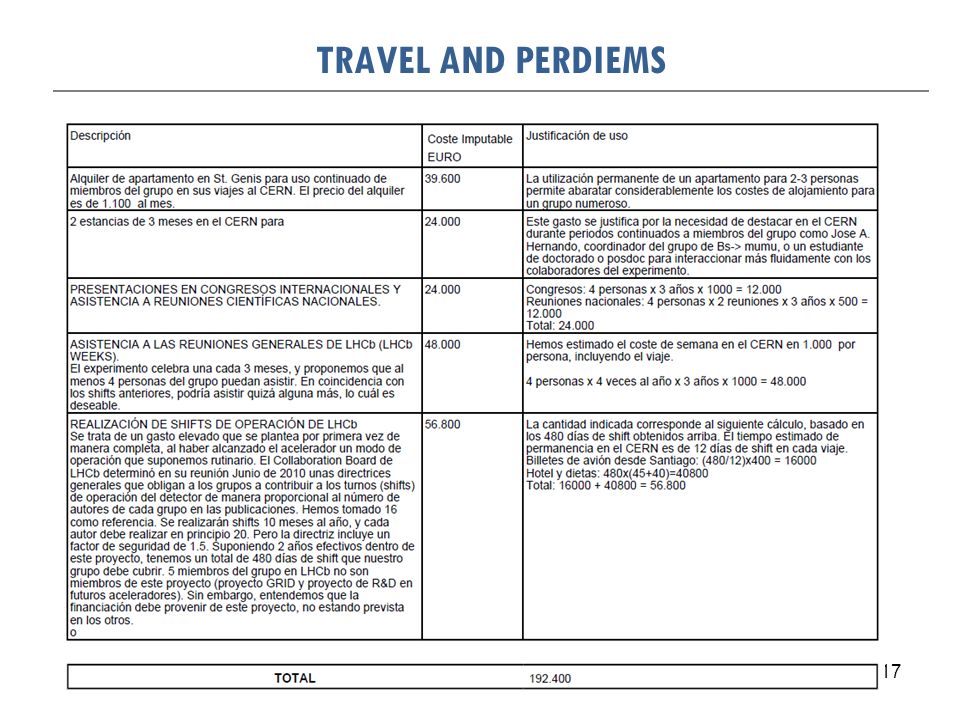

Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project17 TRAVEL AND PERDIEMS
18
Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project18 TOTAL REQUEST
19
Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project19 BACKUP
20
Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project20 USC PARTICIPATION IN LHCb UPGRADE – VELO STRIP OPTION Santiago has contributed with several protypes as described in the LoI — In case the material budget/power consumption of the pixel option falls beyond specifications or time limits, a backup strip option is being prototyped — Key points: Optimization of strip capacitance (< 4pF) to bring down noise Increase in number of strips and better layout: 30 mm minimum pitch, 20x 128 strips per sensor Expected occupancy at upgrade will be 0.5% for first phase New chip also needed (synergy with IT/TT) IP resolution superior to pixels
21

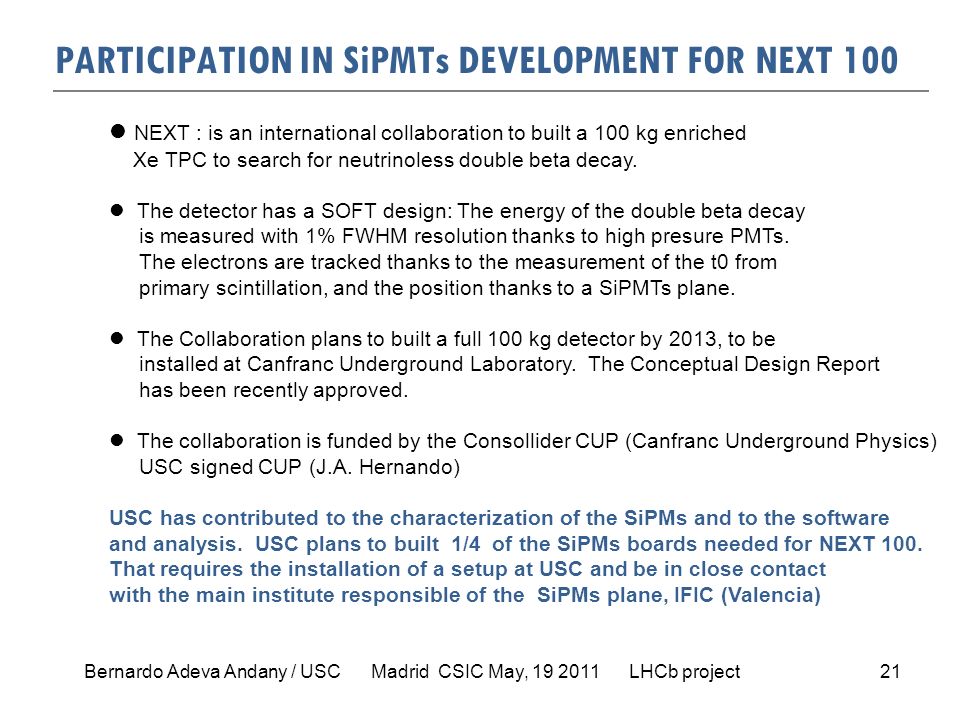

PARTICIPATION IN SiPMTs DEVELOPMENT FOR NEXT 100 Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project21 NEXT : is an international collaboration to built a 100 kg enriched Xe TPC to search for neutrinoless double beta decay. The detector has a SOFT design: The energy of the double beta decay is measured with 1% FWHM resolution thanks to high presure PMTs. The electrons are tracked thanks to the measurement of the t0 from primary scintillation, and the position thanks to a SiPMTs plane. The Collaboration plans to built a full 100 kg detector by 2013, to be installed at Canfranc Underground Laboratory. The Conceptual Design Report has been recently approved. The collaboration is funded by the Consollider CUP (Canfranc Underground Physics) USC signed CUP (J.A. Hernando) USC has contributed to the characterization of the SiPMs and to the software and analysis. USC plans to built 1/4 of the SiPMs boards needed for NEXT 100. That requires the installation of a setup at USC and be in close contact with the main institute responsible of the SiPMs plane, IFIC (Valencia)
22
Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project22 Diego Martínez at 36th ITEP Winter School of Physics (2008) 22 SM:(3.55 ± 0.33)x10 -9BR (Bs μμ ) in SM: (3.55 ± 0.33)x10 -9 (for Bd : (1.00 ± 0.14)x10 -10 ) BR< 4.7x10 -8 @ 90% C.L,Current limit (Tevatron) : BR< 4.7x10 -8 @ 90% C.L, (for Bd :BR < 1.5x10 -8 ) One order of magnitude from current upper limit to SM prediction !! + This BR can be affected by New Physics, in particular SUSY models. MSSM: Enhancement ~tanβ6 larger value Bs μ+μ- in LHCb STRONG DISCOVERY / EXCLUSION POTENTIAL BY LHCb
23

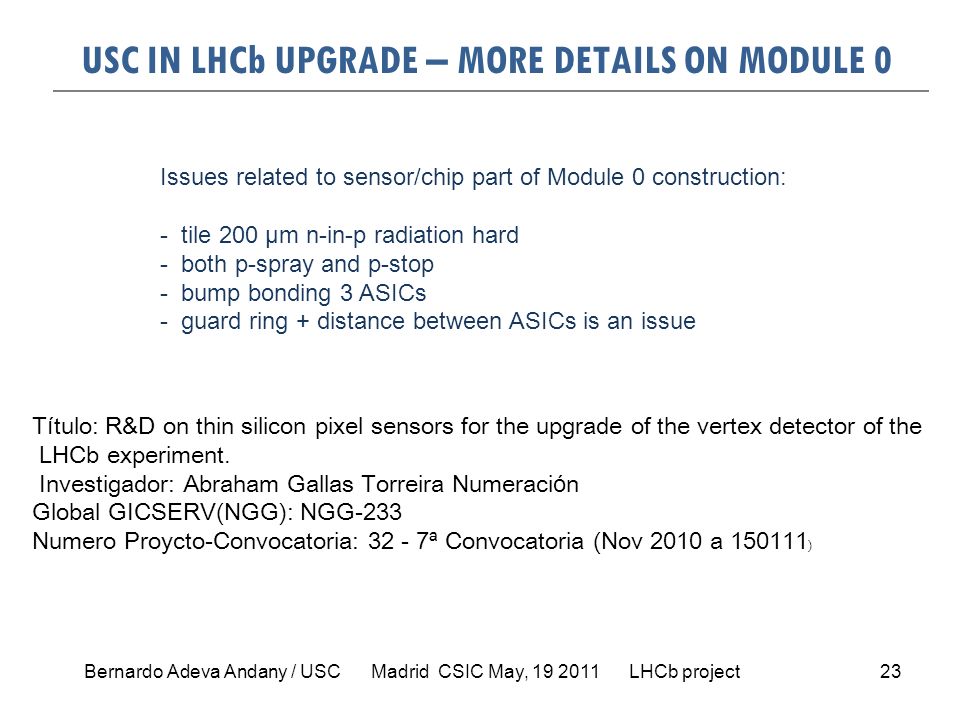

Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project23 T í tulo: R&D on thin silicon pixel sensors for the upgrade of the vertex detector of the LHCb experiment. Investigador: Abraham Gallas Torreira Numeraci ó n Global GICSERV(NGG): NGG-233 Numero Proycto-Convocatoria: 32 - 7 ª Convocatoria (Nov 2010 a 150111 ) Issues related to sensor/chip part of Module 0 construction: - tile 200 µm n-in-p radiation hard - both p-spray and p-stop - bump bonding 3 ASICs - guard ring + distance between ASICs is an issue USC IN LHCb UPGRADE – MORE DETAILS ON MODULE 0
24

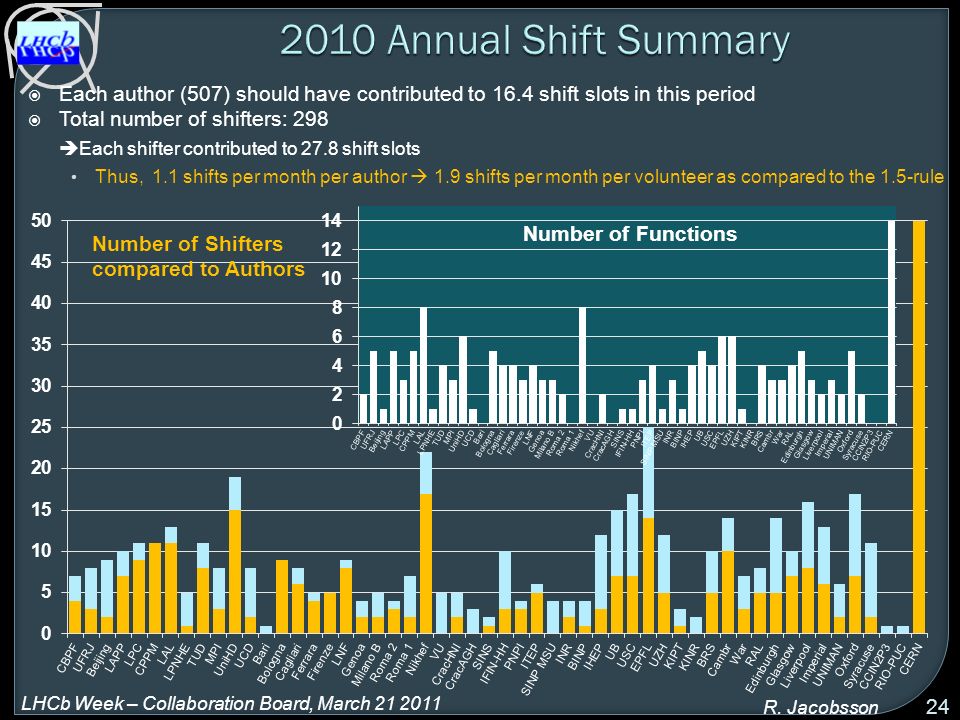

R. Jacobsson LHCb Week – Collaboration Board, March 21 2011 Each author (507) should have contributed to 16.4 shift slots in this period Total number of shifters: 298 Each shifter contributed to 27.8 shift slots Thus, 1.1 shifts per month per author 1.9 shifts per month per volunteer as compared to the 1.5-rule 24 Number of Shifters compared to Authors Number of Functions
25

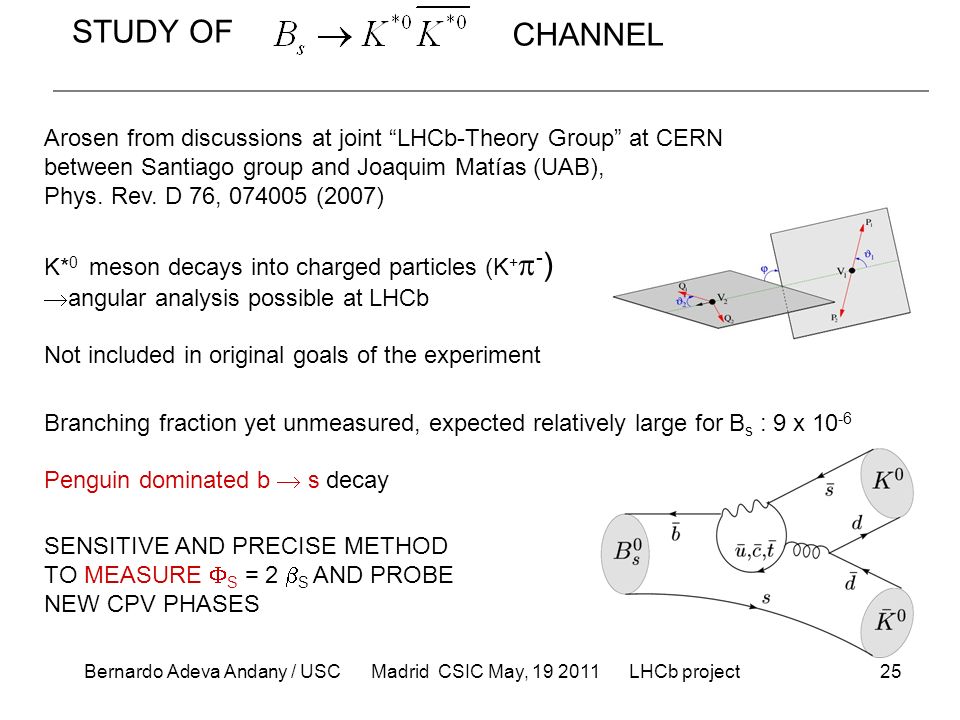

Bernardo Adeva Andany / USC Madrid CSIC May, 19 2011 LHCb project25 Arosen from discussions at joint “LHCb-Theory Group” at CERN between Santiago group and Joaquim Matías (UAB), Phys. Rev. D 76, 074005 (2007) K* 0 meson decays into charged particles (K + - ) angular analysis possible at LHCb Not included in original goals of the experiment Branching fraction yet unmeasured, expected relatively large for B s : 9 x 10 -6 Penguin dominated b s decay SENSITIVE AND PRECISE METHOD TO MEASURE S = 2 S AND PROBE NEW CPV PHASES STUDY OF CHANNEL
26

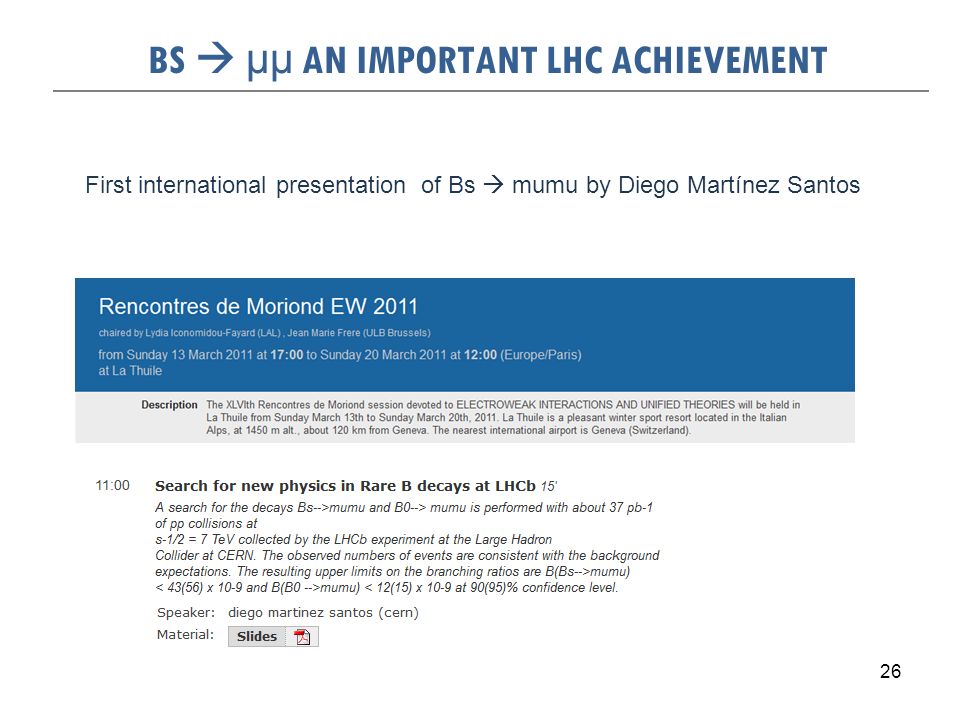

26 BS µµ AN IMPORTANT LHC ACHIEVEMENT First international presentation of Bs mumu by Diego Martínez Santos
