1. Multi-Core Development Kyle Anderson

2. Overview History Pollack’s Law Moore’s Law CPU GPU OpenCL CUDA Parallelism

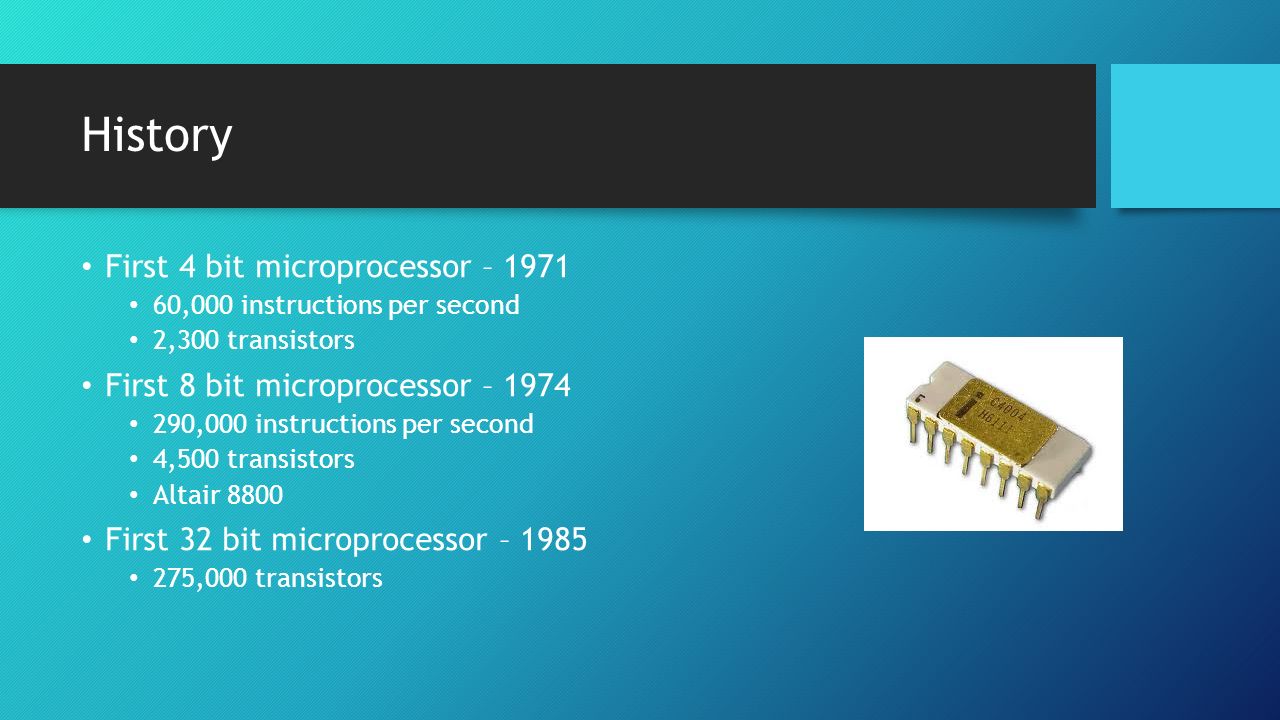

3. History First 4 bit microprocessor – 1971 60,000 instructions per second 2,300 transistors First 8 bit microprocessor – 1974 290,000 instructions per second 4,500 transistors Altair 8800 First 32 bit microprocessor – 1985 275,000 transistors

4. History First Pentium processor released – 1993 66 MHz Pentium 4 released – 2000 1.5 GHz 42,000,000 transistors Approach 4GHz 2000 - 2005 Core 2 Duo released – 2006 291,000,000 tranisitors

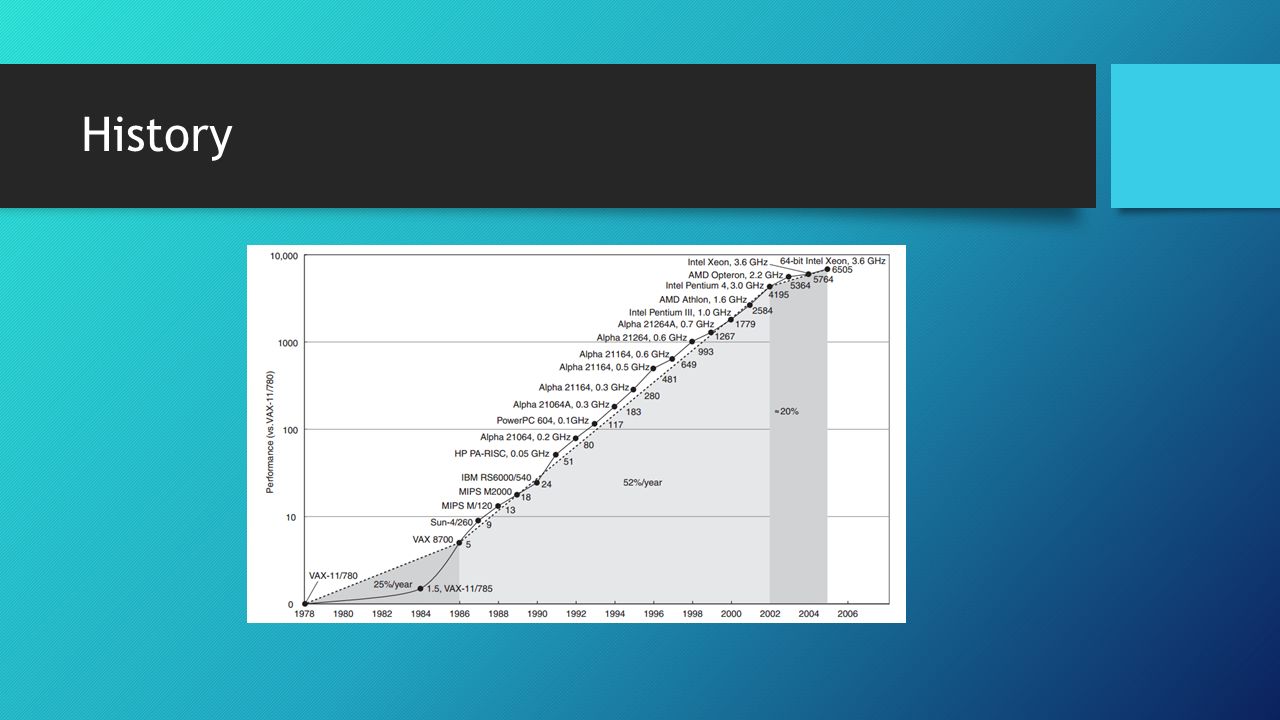

5. History

6. Pollack’s Law Processor Performance grows with square root of area

7. Pollack’s Law

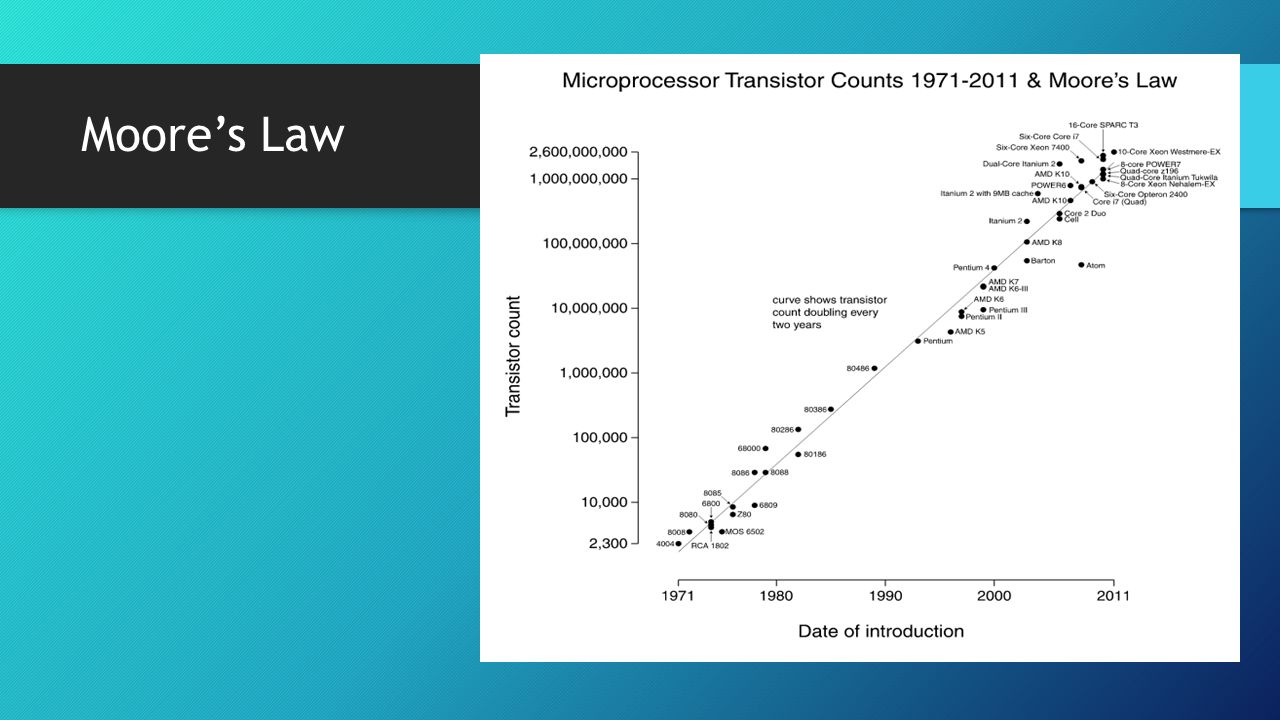

8. Moore’s Law “The Number of transistors incorporated in a chip will approximately double every 24 months.” – Gordon Moore, Intel co-founder Smaller and smaller transistors

9. Moore’s Law

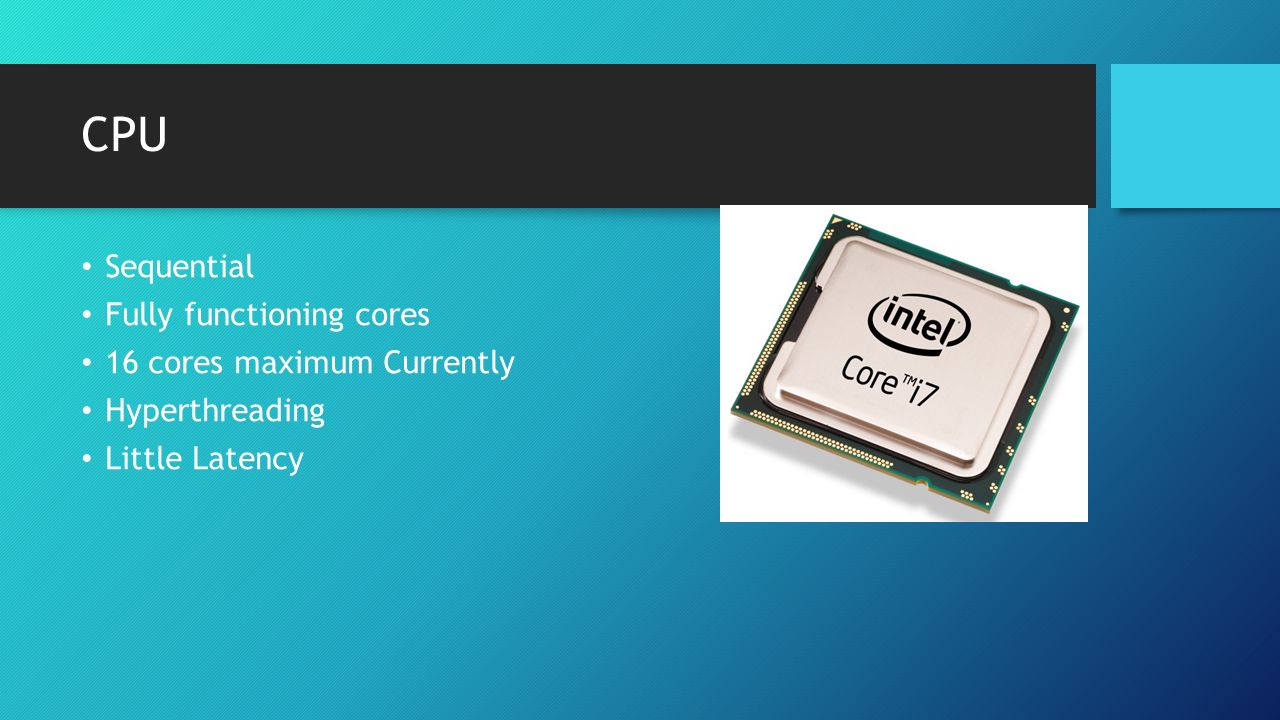

10. CPU Sequential Fully functioning cores 16 cores maximum Currently Hyperthreading Little Latency

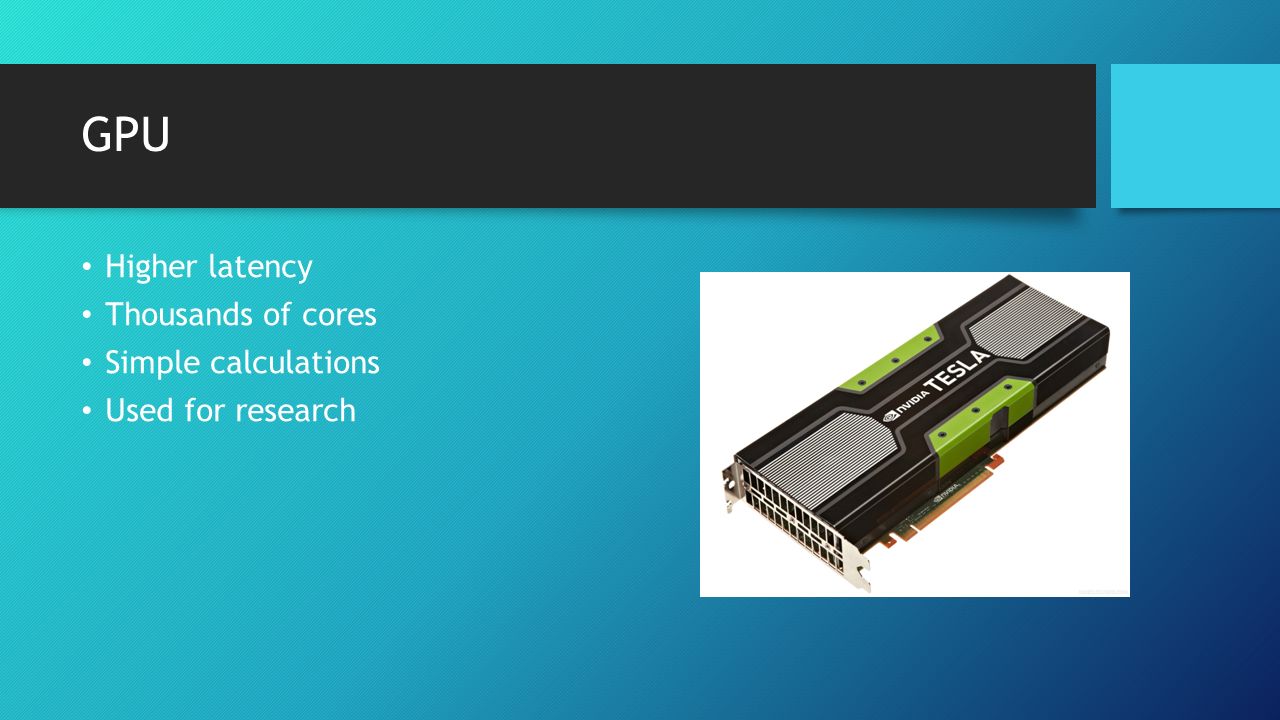

11. GPU Higher latency Thousands of cores Simple calculations Used for research

12. OpenCL Multitude of Devices Run-time compilation ensures most up to date features on device Lock-Step

13. OpenCL Data Structures Host Device Compute Units Work-Group Work-Item Command Queue Kernel Context

14. OpenCL Types of Memory Global Constant Local Private

15. OpenCL

16. OpenCL Example

19. CUDA NVidia's proprietary API for their GPU’s Stands for “Compute Unified Device Architecture” Compiles directly to hardware Used by Adobe, Autodesk, National Instruments, Microsoft and Wolfram Mathematica Faster than OpenCL because compiled directly on hardware and focus on a single architecture.

20. CUDA Indexing

21. CUDA Example

24. CUDA Function Call cudaMemcpy( dev_a, a, N * sizeof(int),cudaMemcpyHostToDevice ); cudaMemcpy( dev_b, b, N * sizeof(int),cudaMemcpyHostToDevice ); add >>( dev _ a, dev _ b, dev _ c );

25. Types of Parallelism SIMD MISD MIMD Instruction parallelism Task parallelism Data parallelism

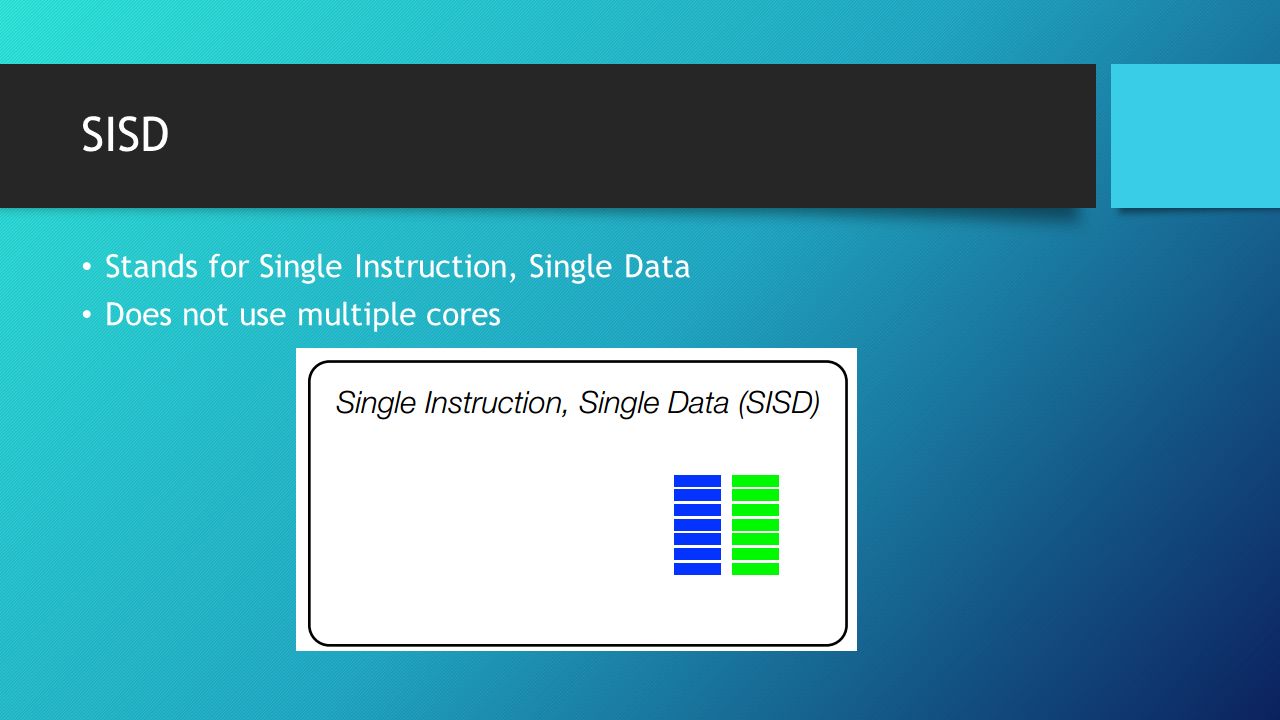

26. SISD Stands for Single Instruction, Single Data Does not use multiple cores

27. SIMD Stands for “Single Instruction, Multiple Data Streams” Can be process multiple data streams concurrently

28. MISD Stands for “Multiple Instruction, Single Data” Risky because several instructions are processing the same data

29. MIMD Stands for “Multiple Instruction, Multiple Data” Instructions are processed sequentially

30. Instruction Parallelism Mutually exclusive MIMD and MISD often use this Allows multiple instructions to be run at once Instructions considered operations Not programmatically done Hardware Compiler

31. Task Parallelism Dividing up of main tasks or controls Runs multiple threads concurrently

32. Data Parallelism Used by SIMD and MIMD A list of instructions is able to work concurrently on a several data sets
