Presentation on theme: "2011.01.25. VR-AD Environment in office Soccer Field Real object on field SONY HD CAMERA PTZF."— Presentation transcript:

1 2011.01.25

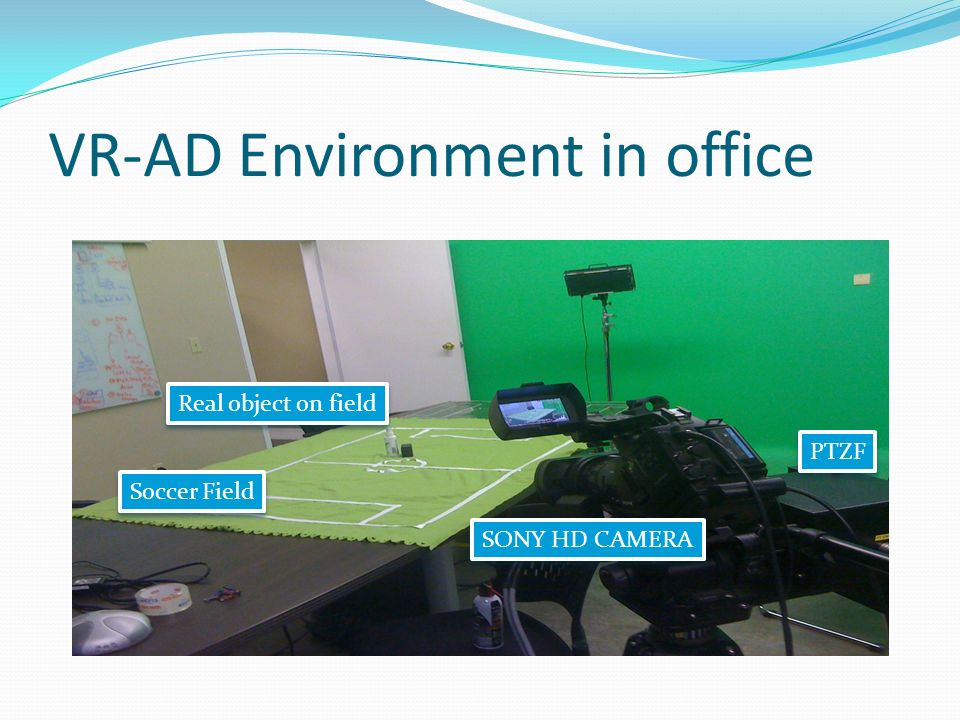

2 VR-AD Environment in office Soccer Field Real object on field SONY HD CAMERA PTZF

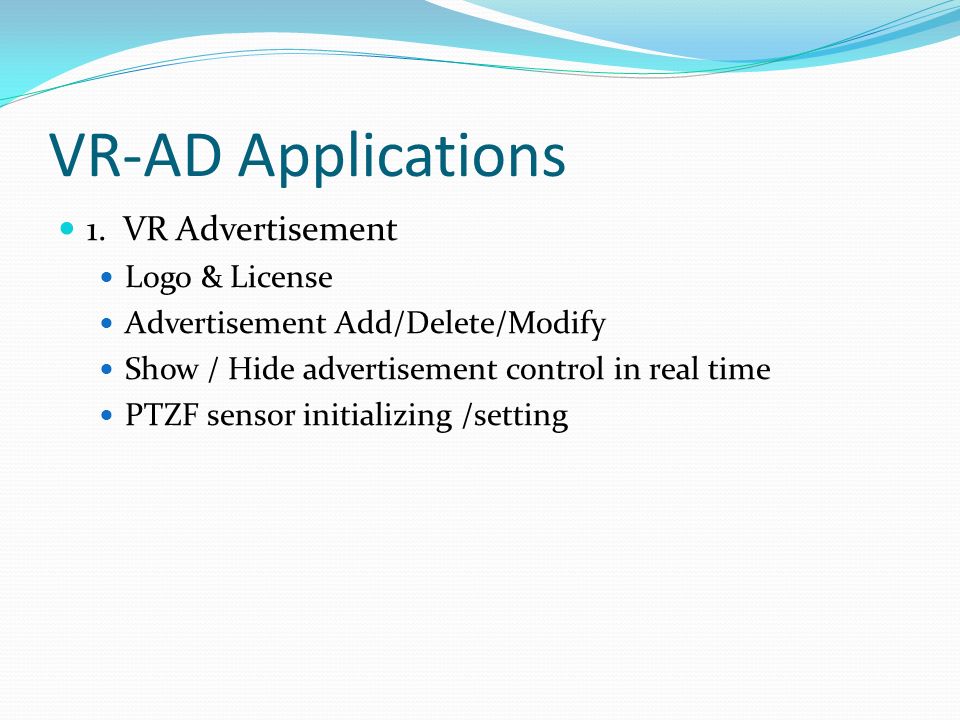

3 VR-AD Applications 1. VR Advertisement Logo & License Advertisement Add/Delete/Modify Show / Hide advertisement control in real time PTZF sensor initializing /setting

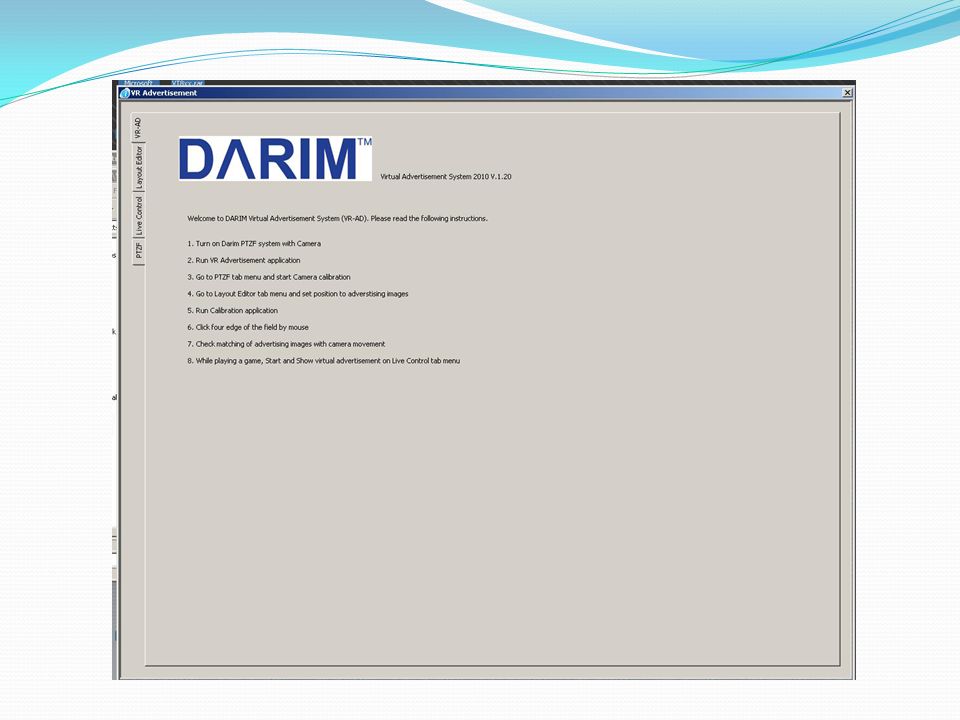

4

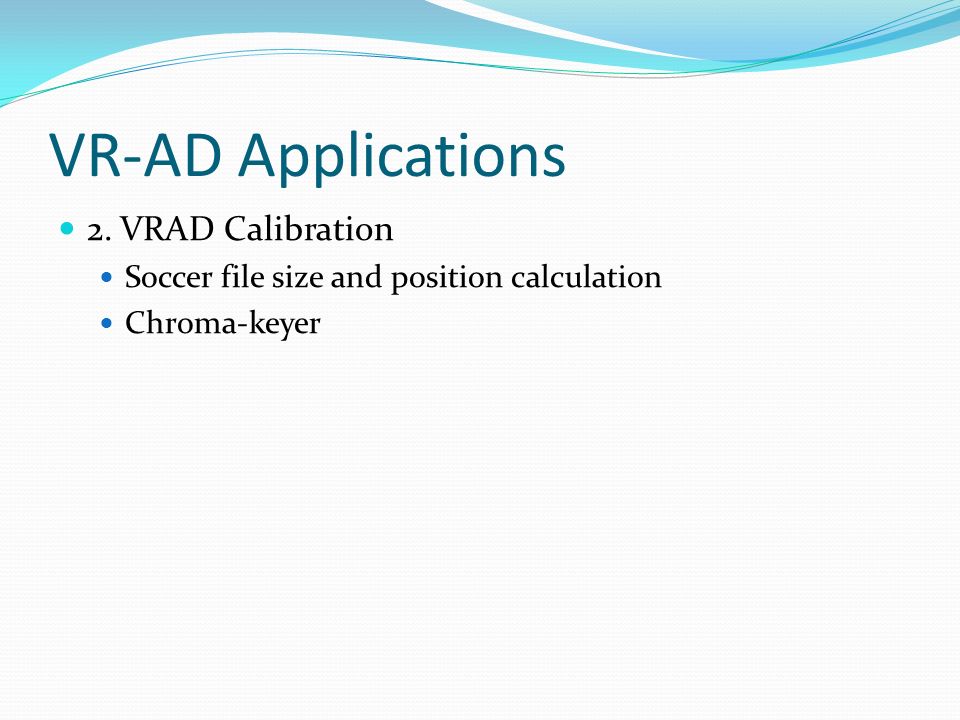

5 VR-AD Applications 2. VRAD Calibration Soccer file size and position calculation Chroma-keyer

6

7 Sc01.jpg Darim Logo and version Short Instruction VR-AD menu

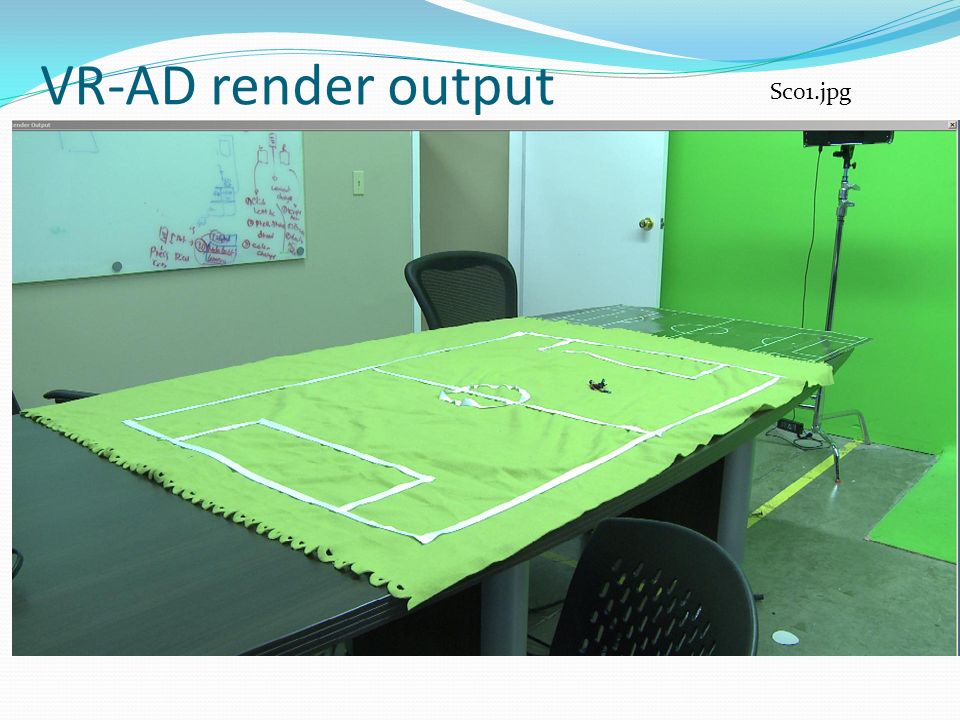

8 Sc01.jpg VR-AD render output

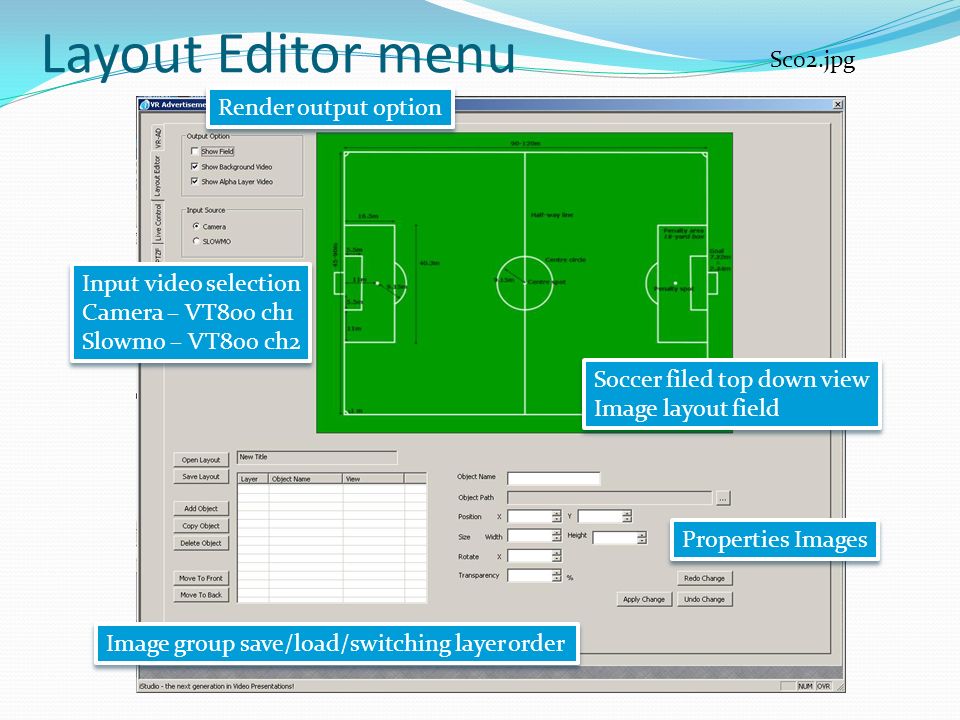

9 Sc02.jpg Layout Editor menu Render output option Input video selection Camera – VT800 ch1 Slowmo – VT800 ch2 Input video selection Camera – VT800 ch1 Slowmo – VT800 ch2 Soccer filed top down view Image layout field Soccer filed top down view Image layout field Image group save/load/switching layer order Properties Images

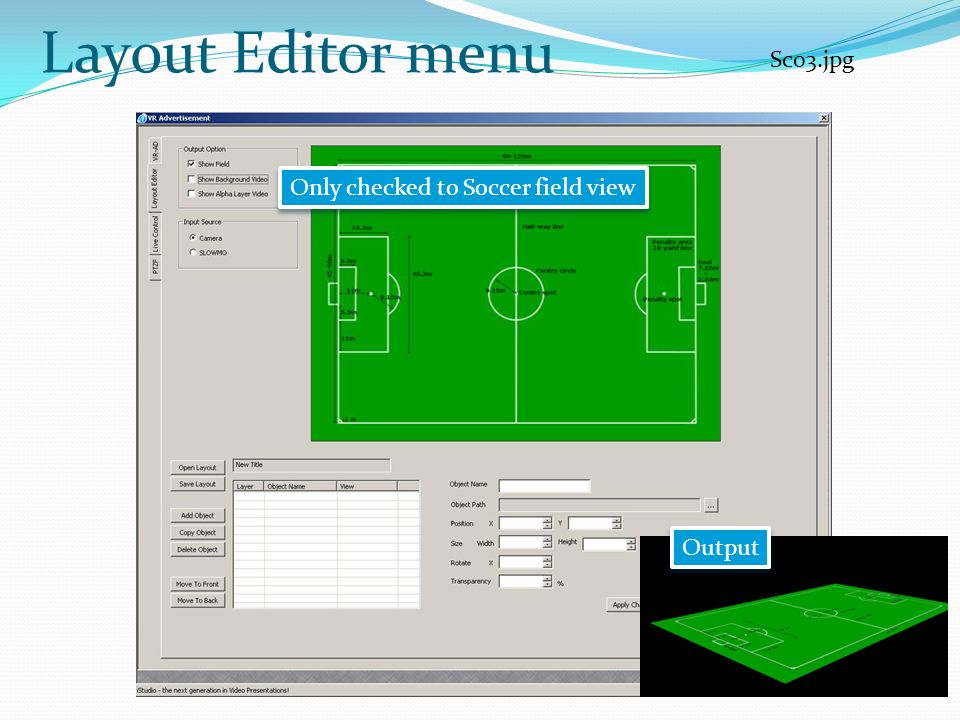

10 Sc03.jpg Layout Editor menu Only checked to Soccer field view Output

11 Sc04.jpg Layout Editor menu Checked soccer field with background video * Background video = Camera Live input Checked soccer field with background video * Background video = Camera Live input Output

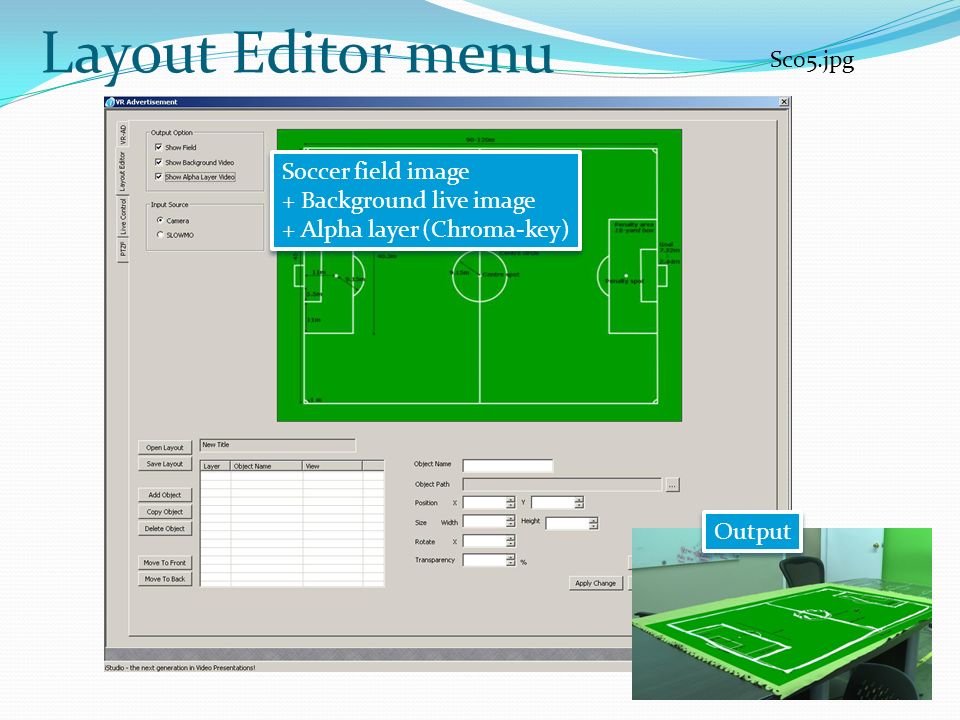

12 Sc05.jpg Layout Editor menu Soccer field image + Background live image + Alpha layer (Chroma-key) Soccer field image + Background live image + Alpha layer (Chroma-key) Output

13 Output compare Only Advertisement image Mixing Live background + image Mixing Live background + image Mixing Live background + image + Chroma-key layer Mixing Live background + image + Chroma-key layer

14 Sc06.jpg Layout Editor menu Soccer field image + Background live image + Alpha layer (Chroma-key) Soccer field image + Background live image + Alpha layer (Chroma-key) Output Up to 20 images Rename/Position/Size/ Rotate/Transparency Rename/Position/Size/ Rotate/Transparency

15 Sc07.jpg Live Control menu Output Show/Hide Images Show/Hide 3D objects

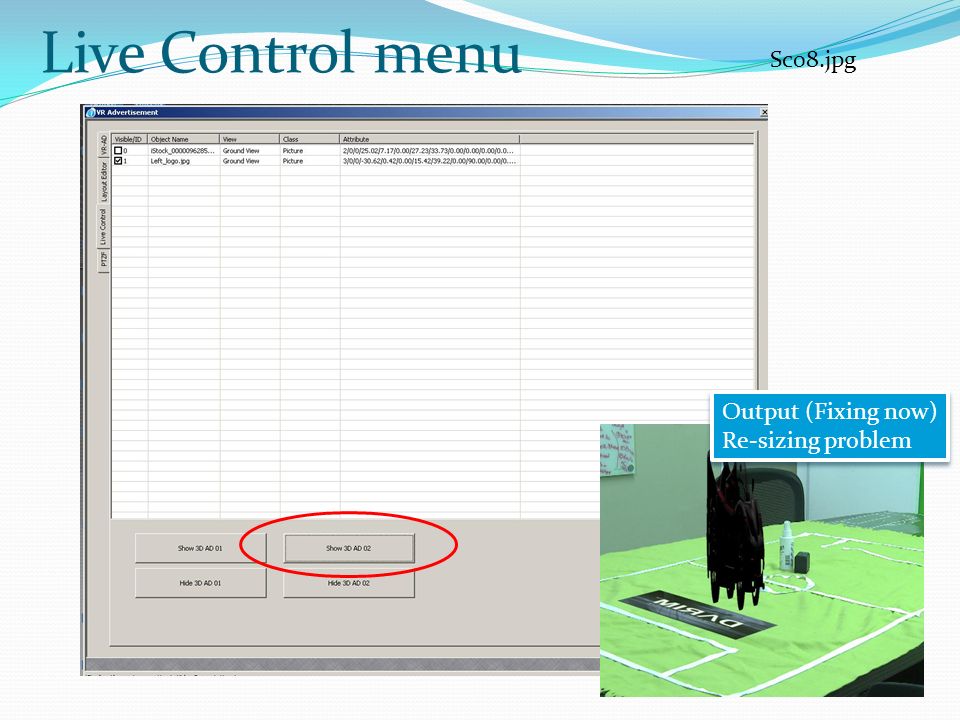

16 Sc08.jpg Live Control menu Output (Fixing now) Re-sizing problem Output (Fixing now) Re-sizing problem

17 Sc09.jpg PTZF menu Comport select – check “Connected” Shotoku compatible Initialization Sensor value Put Delay 12F (but will optimize) Camera center offset control Zoom Lense offset control

18 Sc010.jpg PTZF menu Zoom Calibration menu

19 VR Calibration menu Sc012.jpg 1 2 3 4 5 6 7 7 Mouse left button click on edge point of field

20 VR Calibration menu Sc011.jpg Set correctly

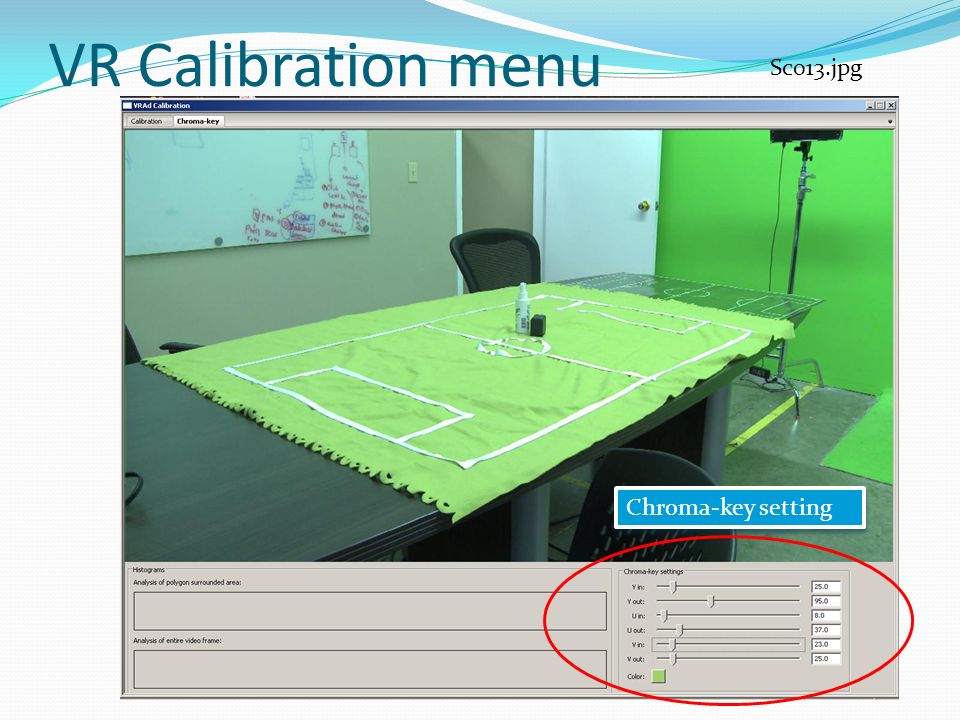

21 VR Calibration menu Sc013.jpg Chroma-key setting

22 Chroma-key compare Sc014-16.jpg

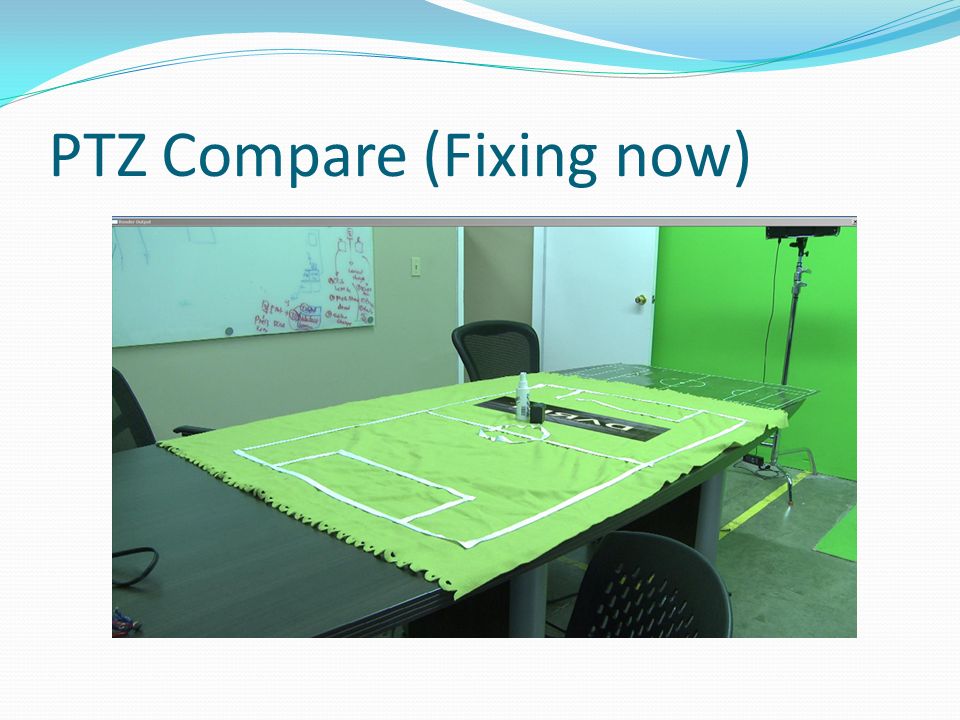

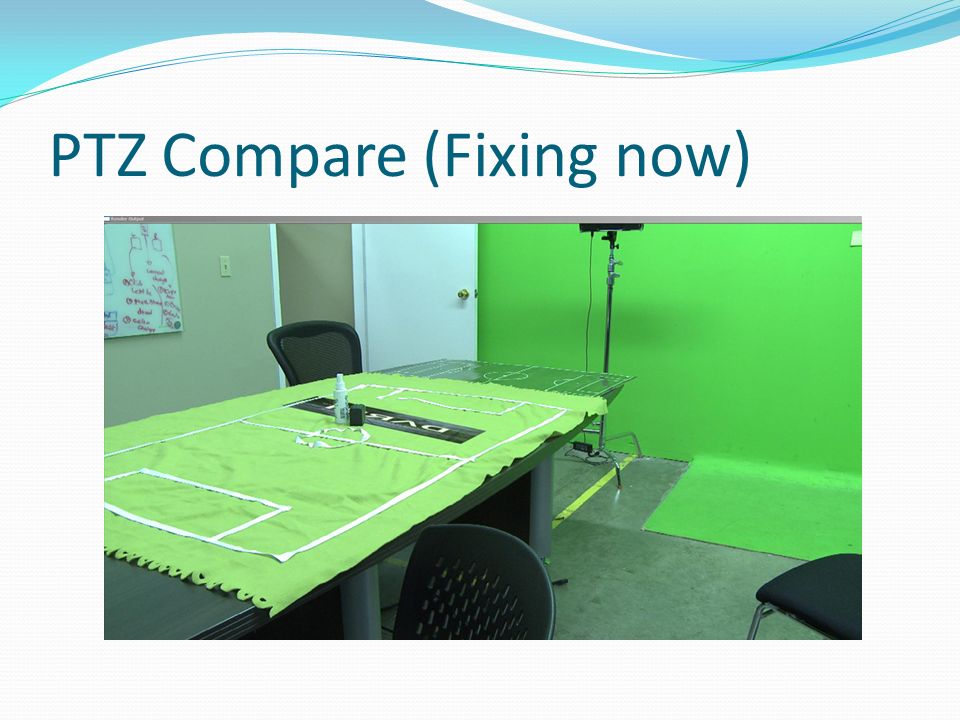

23 PTZ Compare (Fixing now)

24

25

26 Thanks.
