Motion Estimation and Prediction
Present by :fakewen
2
Advanced motion vector prediction
AMVP It allows the selection of the best predictor from three spatially adjacent motion vectors their median temporal motion vector.
4
#if PART_MRG Bool bTestNormalMC = true; if (pcCU->getWidth( 0 ) > 8 && iNumPart == 2 && iPartIdx == 0) bTestNormalMC = false; if (bTestNormalMC) { #endif
5
Motion Estimation and Prediction
主要分布位置 Tcomprediction.cpp TEncSearch.cpp
6
predInterSearch
7
I frame xMotionEstimation ( pcCU, pcOrgYuv, iPartIdx, eRefPicList, &cMvPred[iRefList][iRefIdxTemp], iRefIdxTemp, cMvTemp[iRefList][iRefIdxTemp], uiBitsTemp, uiCostTemp ); I frame自己重算motion vector I frame I frame
8
P frame I frame pcCU->getSlice()->getNoBackPredFlag()==1 P frame
enum RefPicList { REF_PIC_LIST_0 = 0, ///< reference list 0 REF_PIC_LIST_1 = 1, ///< reference list 1 #if DCM_COMB_LIST REF_PIC_LIST_C = 2, ///< combined reference list for uni-prediction in B-Slices #endif REF_PIC_LIST_X = 100 ///< special mark }; 如果很smooth且cost不高 ->SKIP MODE 直接拿之前的Motion vector來用 否則再從他的ref frame list裡找
9
B frame I frame P frame 如果很smooth且cost不高 ->SKIP MODE
直接拿之前的Motion vector來用 否則再從他的ref frame list裡找
11

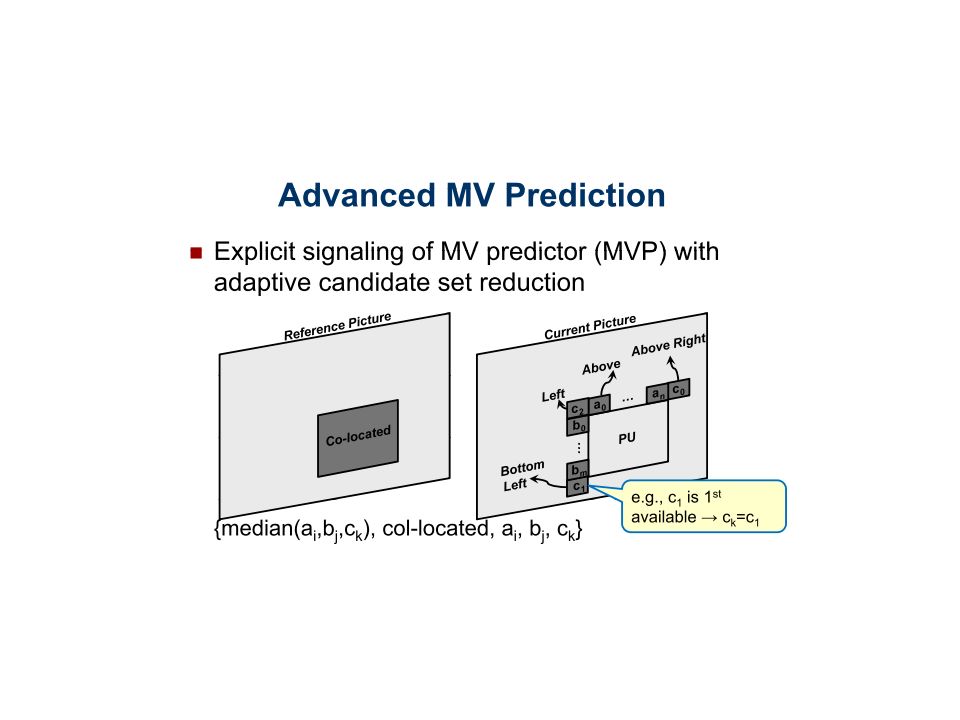

Advanced motion vector prediction
AMVP It allows the selection of the best predictor from three spatially adjacent motion vectors(a,b,c) their median temporal motion vector. xCheckBestMVP 計算哪種的cost較低
12
xEstimateMvPredAMVP Step 1 check
AMVP mode還有number of motion vector predictor candidates for ( i = 0 ; i < pcAMVPInfo->iN; i++) 算uiBestCost rcMvPred = pcAMVPInfo->m_acMvCand[pcCU->getMVPIdx(eRefPicList,uiPartAddr)]; 從裡面選一個最像的當Mvpredict 並記錄cost還有選到的鄰居
13
Merge xMergeEstimation 算出最小的cost的合併方式 xMergeEstimation(…);
UInt uiMRGCost = uiMRGError + m_pcRdCost->getCost( uiMRGBits ); if ( bMergeValid && uiMRGCost < uiMECost ) 合併!
14
xMotionEstimation if ( !m_iFastSearch || bBi ) xPatternSearch
xPatternSearchFast Mv初始值用傳入參數 xTZSearch xPatternSearchFracDIF( pcCU, pcPatternKey, piRefY, iRefStride, &rcMv, cMvHalf, cMvQter, ruiCost )
15
xMotionEstimation xSetSearchRange ( pcCU, cMvPred, iSrchRng, cMvSrchRngLT, cMvSrchRngRB ); 先設定一下range(P frame) if ( !m_iFastSearch || bBi ) xPatternSearch xPatternSearchFast Mv初始值用傳入參數 xTZSearch xPatternSearchFracDIF( pcCU, pcPatternKey, piRefY, iRefStride, &rcMv, cMvHalf, cMvQter, ruiCost ) rcMv <<= 2; rcMv += (cMvHalf <<= 1); rcMv += cMvQter; 紀錄結果
16
xTZSearch range test whether one of PRED_A, PRED_B, PRED_C MV is better start point than Median predictor PK raster search if distance is too big idist raster refinement P.s. 若idist==1 則只考慮上下左右
17
raster refinement Idist too big
18
motionCompensation Step 1 Check iPartIdx >= 0 Step 2
eRefPicList!= REF_PIC_LIST_X(B frame) xPredInterLumaBlk xPredInterBi xPredInterUni xPredInterChromaBlk xPredInterLumaBlk_ha 畫圖 Motion compensation 可以處理到subpixel(1/4) 用filter處理 xPredInterChromaBlk_ha
19
motionCompensation Void motionCompensation ( TComDataCU* pcCU, TComYuv* pcYuvPred, RefPicList eRefPicList = REF_PIC_LIST_X, Int iPartIdx = -1 );初始 Motion Compensation pcCU->getPartIndexAndSize( iPartIdx, uiPartAddr, iRoiWidth, iRoiHeight ); iPartIdx >= 0? getPartIndexAndSize For(pcCU->getNumPartInter()) eRefPicList != REF_PIC_LIST_X ? eRefPicList看是I還是P frame eRefPicList不在REF裡 xPredInterUni xPredInterBi
20
// set motion cMv[iRefList] = cMvTemp[iRefList][iRefIdxTemp]; iRefIdx[iRefList] = iRefIdxTemp; pcCU->getCUMvField(eRefPicList)->setAllMvField( cMv[iRefList], iRefIdx[iRefList], ePartSize, uiPartAddr, iPartIdx, 0 ); 紀錄最後結果 接著做AMVP xEstimateMvPredAMVP( pcCU, pcOrgYuv, iPartIdx, eRefPicList, iRefIdxTemp, cMvPred[iRefList][iRefIdxTemp]); aaiMvpIdx[iRefList][iRefIdxTemp] = pcCU->getMVPIdx(eRefPicList, uiPartAddr); aaiMvpNum[iRefList][iRefIdxTemp] = pcCU->getMVPNum(eRefPicList, uiPartAddr); uiBitsTemp += m_auiMVPIdxCost[aaiMvpIdx[iRefList][iRefIdxTemp]][aaiMvpNum[iRefList][iRefIdxTemp]];
21
predInterSearch SPS: sequence parameter set predInterSearch
pcCU->getPartIndexAndSize( iPartIdx, uiPartAddr, iRoiWidth, iRoiHeight );得到這個block的info if (pcCU->getWidth( 0 ) > 8 && iNumPart == 2 && iPartIdx == 0) bTestNormalMC = false; For(iNumPredDir) FOR(pcCU->getSlice()->getNumRefIdx(eRefPicList) iNumPredDir = pcCU->getSlice()->isInterP() ? 1 : 2; P是1 B是2 RefPicList 標示現在是IPB enum RefPicList { REF_PIC_LIST_0 = 0, ///< reference list 0 REF_PIC_LIST_1 = 1, ///< reference list 1 #if DCM_COMB_LIST REF_PIC_LIST_C = 2, ///< combined reference list for uni-prediction in B-Slices #endif REF_PIC_LIST_X = 100 ///< special mark }; RefPicList eRefPicList = ( iRefList ? REF_PIC_LIST_1 : REF_PIC_LIST_0 ); iRefList//若是I frame則0 pcCU->getSlice()->getNoBackPredFlag()… 判斷式 判斷式 pcCU->getSlice()->getNoBackPredFlag() || pcCU->getSlice()->getSPS()->getUseLDC() cMvTemp[1][iRefIdxTemp] = cMvTemp[0][iRefIdxTemp]; SKIP MODE xMotionEstimation ( pcCU, pcOrgYuv, iPartIdx, eRefPicList, &cMvPred[iRefList][iRefIdxTemp], iRefIdxTemp, cMvTemp[iRefList][iRefIdxTemp], uiBitsTemp, uiCostTemp ); I frame自己重算motion vector uiCostTemp = uiCostTempL0[pcCU->getSlice()->getRefIdxOfL0FromRefIdxOfL1(iRefIdxTemp)]; 用相近的block
22
predInterSearch(cont.)
// set motion cMv[iRefList] = cMvTemp[iRefList][iRefIdxTemp]; iRefIdx[iRefList] = iRefIdxTemp; pcCU->getCUMvField(eRefPicList)->setAllMvField( cMv[iRefList], iRefIdx[iRefList], ePartSize, uiPartAddr, iPartIdx, 0 ); 紀錄最後結果 接著做AMVP xEstimateMvPredAMVP( pcCU, pcOrgYuv, iPartIdx, eRefPicList, iRefIdxTemp, cMvPred[iRefList][iRefIdxTemp]); aaiMvpIdx[iRefList][iRefIdxTemp] = pcCU->getMVPIdx(eRefPicList, uiPartAddr); aaiMvpNum[iRefList][iRefIdxTemp] = pcCU->getMVPNum(eRefPicList, uiPartAddr); uiBitsTemp += m_auiMVPIdxCost[aaiMvpIdx[iRefList][iRefIdxTemp]][aaiMvpNum[iRefList][iRefIdxTemp]]; for( UInt ui = 0; ui < MRG_MAX_NUM_CANDS; ui++ ) { pcCU->setNeighbourCandIdxSubParts( ui, ucNeighCand[ui], uiPartAddr, iPartIdx, pcCU->getDepth( uiPartAddr ) ); } if ( bMergeValid && uiMRGCost < uiMECost ) // 可以merge且merge cost較低>>set Merge result else // set ME result記錄自己的motion estimation
23
xEstimateMvPredAMVP if( pcCU->getAMVPMode(uiPartAddr) == AM_NONE || (pcAMVPInfo->iN <= 1 && pcCU->getAMVPMode(uiPartAddr) == AM_EXPL) ) no AMVP mode或是number of motion vector predictor candidates小於一 來亂的 if (pcCU->getAMVPMode(uiPartAddr) == AM_EXPL && bFilled) for ( i = 0 ; i < pcAMVPInfo->iN; i++) 算uiBestCost rcMvPred = pcAMVPInfo->m_acMvCand[pcCU->getMVPIdx(eRefPicList,uiPartAddr)]; 從裡面選一個最像的當Mvpredict 並記錄cost還有選到的鄰居
24
xMotionEstimation xSetSearchRange ( pcCU, cMvPred, iSrchRng, cMvSrchRngLT, cMvSrchRngRB ); 先設定一下range(P frame) if ( !m_iFastSearch || bBi ) xPatternSearch xPatternSearchFast Mv初始值用傳入參數 xPatternSearchFracDIF( pcCU, pcPatternKey, piRefY, iRefStride, &rcMv, cMvHalf, cMvQter, ruiCost ) rcMv <<= 2; rcMv += (cMvHalf <<= 1); rcMv += cMvQter; 紀錄結果
25
motionCompensation Void motionCompensation ( TComDataCU* pcCU, TComYuv* pcYuvPred, RefPicList eRefPicList = REF_PIC_LIST_X, Int iPartIdx = -1 );初始 Motion Compensation pcCU->getPartIndexAndSize( iPartIdx, uiPartAddr, iRoiWidth, iRoiHeight ); iPartIdx >= 0? getPartIndexAndSize For(pcCU->getNumPartInter()) eRefPicList != REF_PIC_LIST_X ? eRefPicList看是I還是P frame eRefPicList不在REF裡 xPredInterUni xPredInterBi
26
combine
27
taco
28
Inter Block Coding Extended block size motion partitions
Geometric motion partitions Higher precision MV representation Improved sub-pixel interpolation 他口Taco
29
Extended block size motion partitions
Advantage to allow for motion partition sizes larger than 16x16 Set largest motion partition size is 64x64 => 64x64 64x32 32x64 32x32 => 32x32 32x16 16x32 16x16 => Existing motion partition sizes in H264 每一個block 都要傳一個MV 所以說 若允許越大的block size motion partition 則傳的bit也可以減少 最上面那一層就是從 64*64的block size 開始 會比 如果是選32x32 就會 繼續下一層 最後 就會跟AVC/H.264一樣 (16*16 16*8 8*16 8*8 8*4 4*8 4*4) 那真正用的時候 是bottom-up search 如果原本H264是16*16 那就會再往上看32x32 32x16 16x32 16x16 看哪個RD cost比較小 他口Taco
30
Inter Block Coding Extended block size motion partitions
Geometric motion partitions Higher precision MV representation Improved sub-pixel interpolation 他口Taco
31
Geometric motion partitions
Divides the block into two regions by a straight line. Define by the angle subtended by the perpendicular line with x axis (θ) and the distance (ρ) Motion model 都假設是長方形或正方形的 block 移動 但是其實不是 而且當我們做了剛剛的事情 extend block size motion partition 此問題會更嚴重 那一個方法當然是把block切小一點 但是MV會變多!~ 所以 他這邊提出 Geometric motion partitions 而這條線的方程式如下 而這邊用兩個 32 bit lookup table 一個存-1/tano 另一個存 1/sino 所以用查表就行了 而teta 和饕 各有這麼多種可能 所以在16*16 有256種可能…… θ : 32 different values ρ : 8 values (16x16) =>256 16 values (32x32) =>512 32 values (64x64) =>1024 他口Taco
32
Geometric motion partitions
Reuse rectangular partitions Find the largest rectangular block that lies entirely inside the region => MV for the partition region Motion cost : SAD For example: 16x16 blocks 256 possible geometric partition Calculate motion cost 16 best motion costs Full enhanced predictive zonal search(EPZS) to find the lowest RD cost one 而這種 歪歪斜斜用線切的 geometric motion partitions 的motion search又要怎麼做呢 那如果用這種奇怪形狀直接去找的話 很expensive => Reuse rectangular partitions 就找整個躺在partition region的最大rectangular block 其MV為整partition region的MV 而 32*32 和64*64 的blocks 為了減少計算量 會將 可能的geometric partitions數量減少 他口Taco
33
Geometric motion partitions
Reuse rectangular partitions Find the largest rectangular block that lies entirely inside the region => MV for the partition region For 32x32 and 64x64 Sub sampling ρ and θ by 2 ρ =8 θ =16 (32x32) 128 ρ =16 θ =16 (32x32) 256 而 32*32 和64*64 的blocks 為了減少計算量 他口Taco
34
Geometric motion partitions
Deblocking may not reduce this. Define boundary pixels Not a boundary pixels Normal motion compensation Boundary pixel => Weighted sum of 2/3 for belonging region MV 1/3 other region MV 在同一個block 卻有兩個region 有不同的MV 所以在region分界的地方 應該是有超大的discontinuities 就很像block effect一樣 對人眼產生副作用 很直觀的 假如此pixel上下左右鄰近的pixels 是另外一個region的 => boundary pixels 他口Taco
35
Inter Block Coding Extended block size motion partitions
Geometric motion partitions Higher precision MV representation Improved sub-pixel interpolation 他口Taco
36
Motion accuracy Separate filters to perform 1/4th and 3/4th pixel interpolation And have higher accuracy MV(1/8th pixel) For every block in a motion partition, first a 1/4th pixel accuracy MV is found using EPZS 比H264用bilinear interpolation 準多了 且準確度達到 1/8 個pixel 所以對每個block 做motion partition時 一開始用EPZS 來算所有1/4th的MV 看誰最準 在最準的那個點附近再長1/8的點 成為最後的MV 他口Taco
37
Inter Block Coding Extended block size motion partitions
Geometric motion partitions Higher precision MV representation Improved sub-pixel interpolation 他口Taco
39
Simple QuadTree Motion and Transform Structure
The quadtree based prediction representation was common among many proposals to HEVC. But it is configurable so that it can operate in the simplified low complexity mode.
40
Simple QuadTree Motion and Transform Structure
Large macroblocks are employed in addition to traditional 16x16 macroblocks. Restricts the quadtree structure of large macroblocks to inter-picture coding modes and only one motion vector.(16x16 16x8 8x16 8x8) Motion partition sizes smaller than 8x8 are disabled, reducing decoder complexity.
41
Simple QuadTree Motion and Transform Structure
Higher motion and detailed texture are coded using smaller macroblocks. Smooth areas are either coded with SKIP macroblocks of size 16x16 pixels or with macroblocks of size 32x32 64x64 pixels.順的,沒啥變化的地方用SKIP For transform sizes larger than 8x8, the proposal utilizes truncated transforms where only the 8x8 low frequency coefficients are calculated.
42
Simple QuadTree Motion and Transform Structure
Gray skip 原來顏色 找motion Green intra 自己壓
43
fakewen
44
Improved Techniques for Motion Representation
For fractional-sample motion-compensated prediction, a fixed-point implementation of the maximal-order-minimum-support 有用到嗎?algorithm is presented that uses a combination of infinite impulse response and FIR filtering. 用arithmetic coding? infinite impulse response and FIR filtering?
45
Motion-Compensated Prediction
Fractional-Sample Interpolation Using MOMS Generalized interpolation using MOMS Choice of MOMS basis functions Implementation aspects of cubic and quintic O-MOMS Interleaved Motion-Vector Prediction Merging of Motion-Compensated Predicted Blocks
46
Interleaved Motion-Vector Prediction
In order to reduce the bit rate required for transmitting the motion vectors first step, the vertical motion vector component is predicted using conventional median prediction Then, only those motion vectors of neighboring blocks for which the absolute difference between their vertical component and the vertical component for the current motion vector is minimized are used for the prediction of the horizontal motion-vector component first step, the vertical motion vector component is predicted using conventional median prediction (as in [1]), and the corresponding prediction residual, i.e., the difference between the actual vertical component and its prediction, is coded. Then, only those motion vectors of neighboring blocks for which the absolute difference between their vertical compo- nent and the vertical component for the current motion vector is minimized are used for the prediction of the horizontal motion-vector component. Interleaving the prediction of the motion-vector components and the actual coding of related residuals in such a way leads to an overall increased coding efficiency.
47
Merging of Motion-Compensated Predicted Blocks
However, in general, quadtree-based block partitioning may result in an over-segmentation due to the fact that, without any further provision, at each interior node of a quadtree, four subblocks are generated while merging of blocks is possible only by pruning complete branches consisting of at least four child nodes in the parent-child relationship within a quadtree.
48
skill
49
Inter Prediction Motion vector resolution: 1/4, 1/8
Interpolation Filter AVC filter, separable AIF filter, bilinear Motion sharing Motion vector competition Block-based illumination compensation 那 motion vector它的resolution可以到多少呢? 那大家已經看到答案了 1/8 在 inter prediction這邊 1/8的 resolution並不會用在B frame 因為b frame已經算 技巧QQ|||
