1

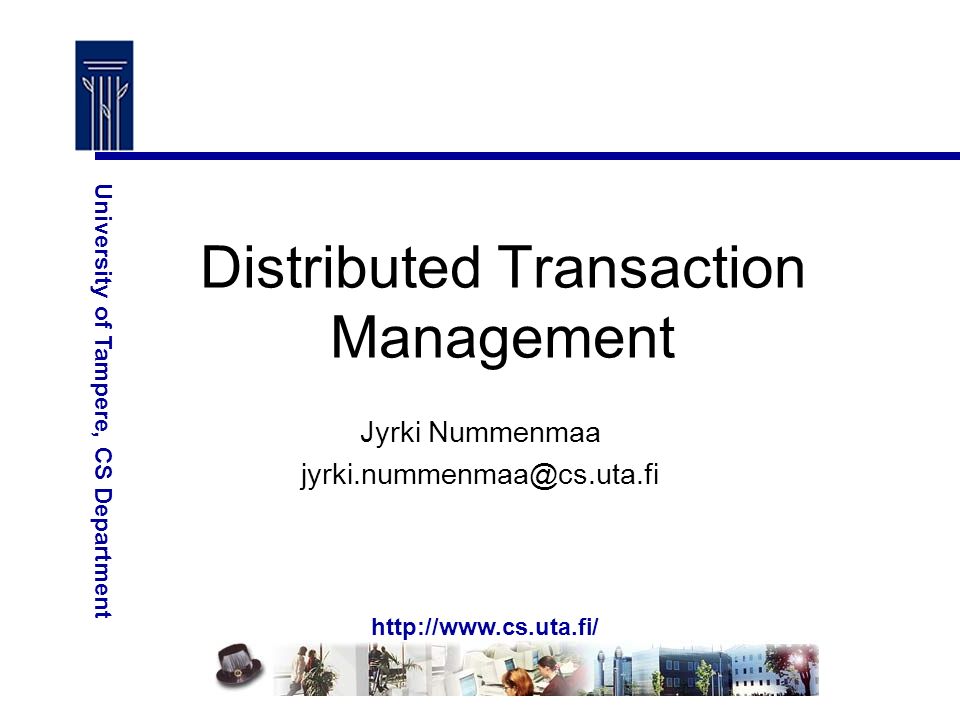

http://www.cs.uta.fi/ University of Tampere, CS Department Distributed Transaction Management Jyrki Nummenmaa jyrki.nummenmaa@cs.uta.fi
2

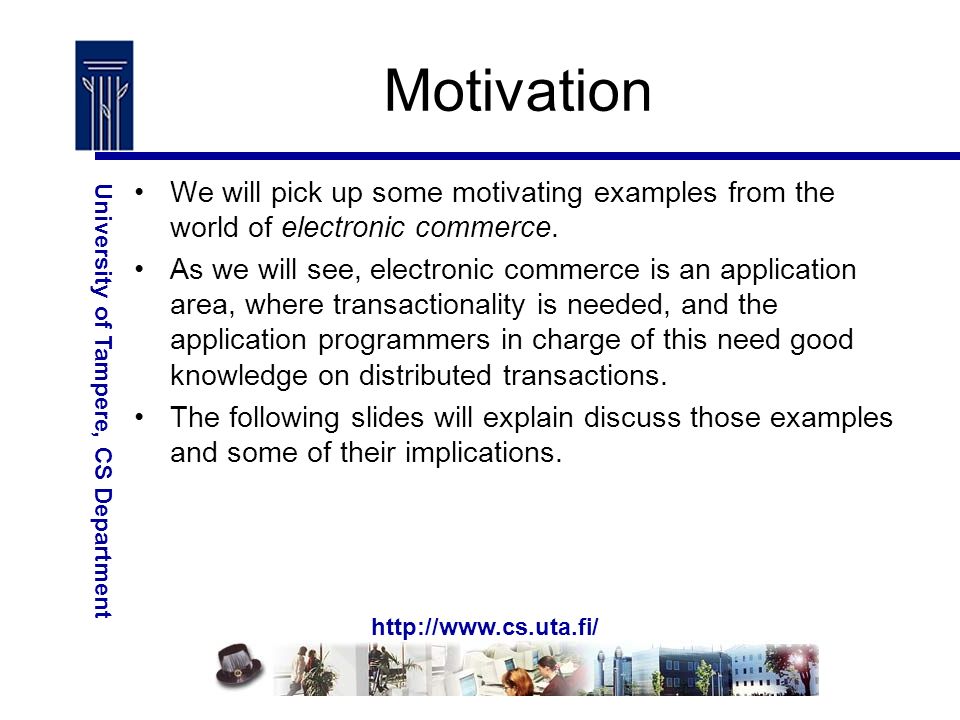

http://www.cs.uta.fi/ University of Tampere, CS Department Motivation We will pick up some motivating examples from the world of electronic commerce. As we will see, electronic commerce is an application area, where transactionality is needed, and the application programmers in charge of this need good knowledge on distributed transactions. The following slides will explain discuss those examples and some of their implications.
3

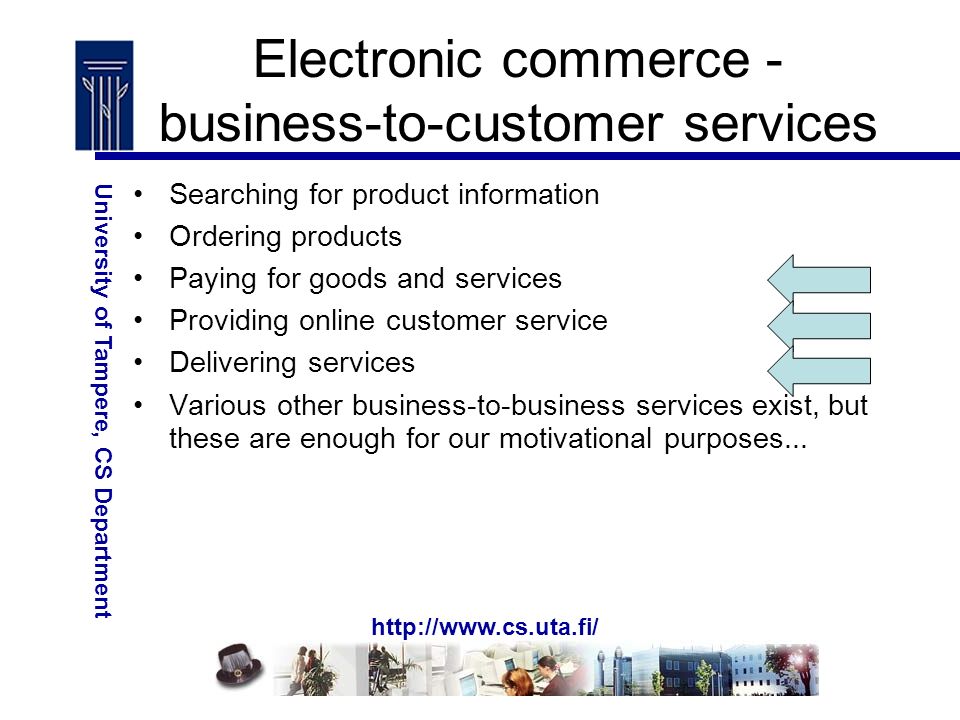

http://www.cs.uta.fi/ University of Tampere, CS Department Electronic commerce - business-to-customer services Searching for product information Ordering products Paying for goods and services Providing online customer service Delivering services Various other business-to-business services exist, but these are enough for our motivational purposes...
4

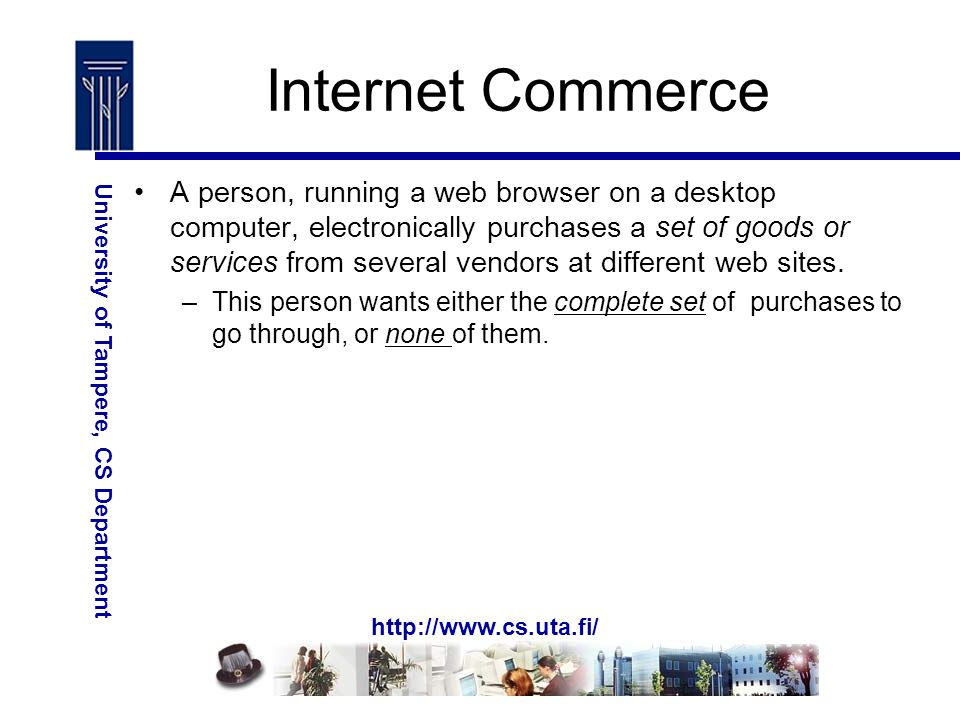

http://www.cs.uta.fi/ University of Tampere, CS Department Internet Commerce A person, running a web browser on a desktop computer, electronically purchases a set of goods or services from several vendors at different web sites. –This person wants either the complete set of purchases to go through, or none of them.
5

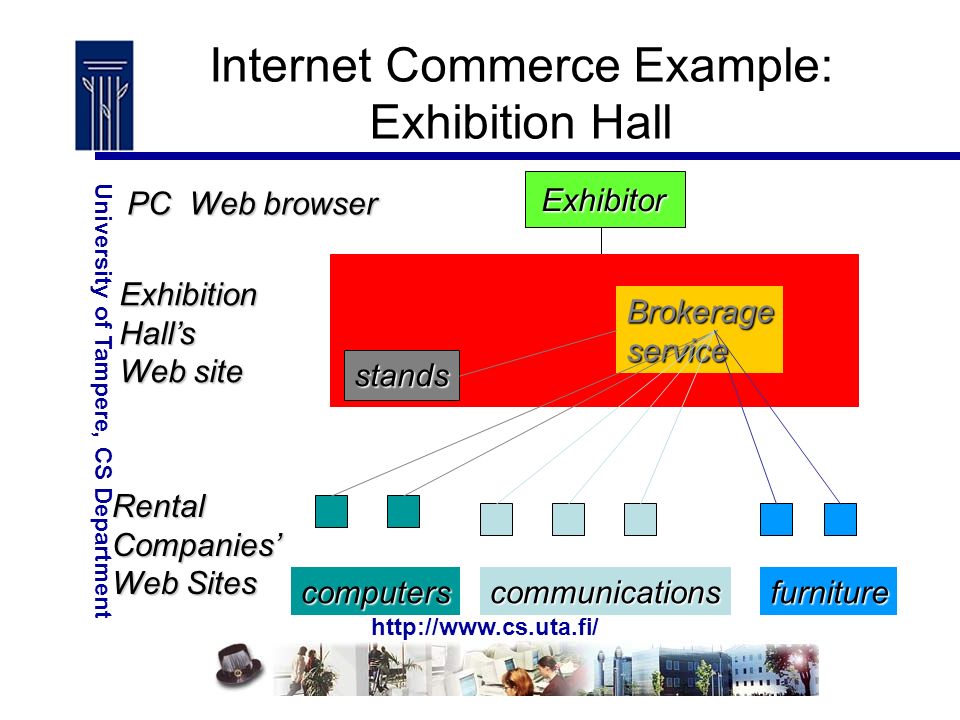

http://www.cs.uta.fi/ University of Tampere, CS Department Internet Commerce Example: Exhibition Hall RentalCompanies’ Web Sites Exhibition Hall’s Web site stands Brokerageservice Exhibitor PC Web browser computerscommunicationsfurniture
6
http://www.cs.uta.fi/ University of Tampere, CS Department Technical Problems with Internet Commerce Security Failure Multiple sites Protocol problems Server product limitations Response time Heterogeneous systems
7

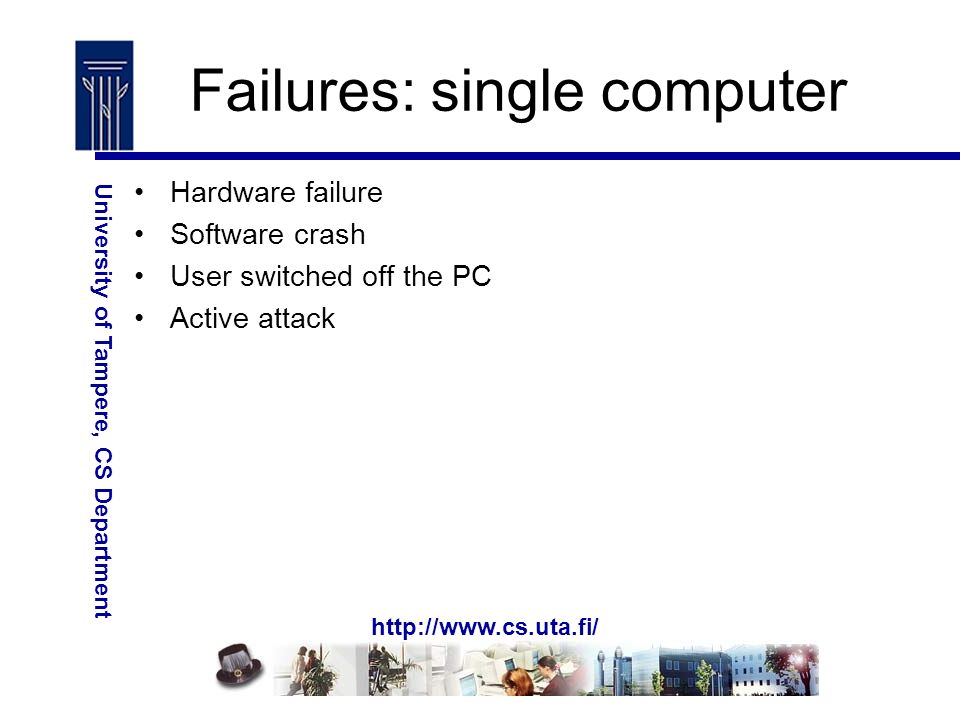

http://www.cs.uta.fi/ University of Tampere, CS Department Failures: single computer Hardware failure Software crash User switched off the PC Active attack
8

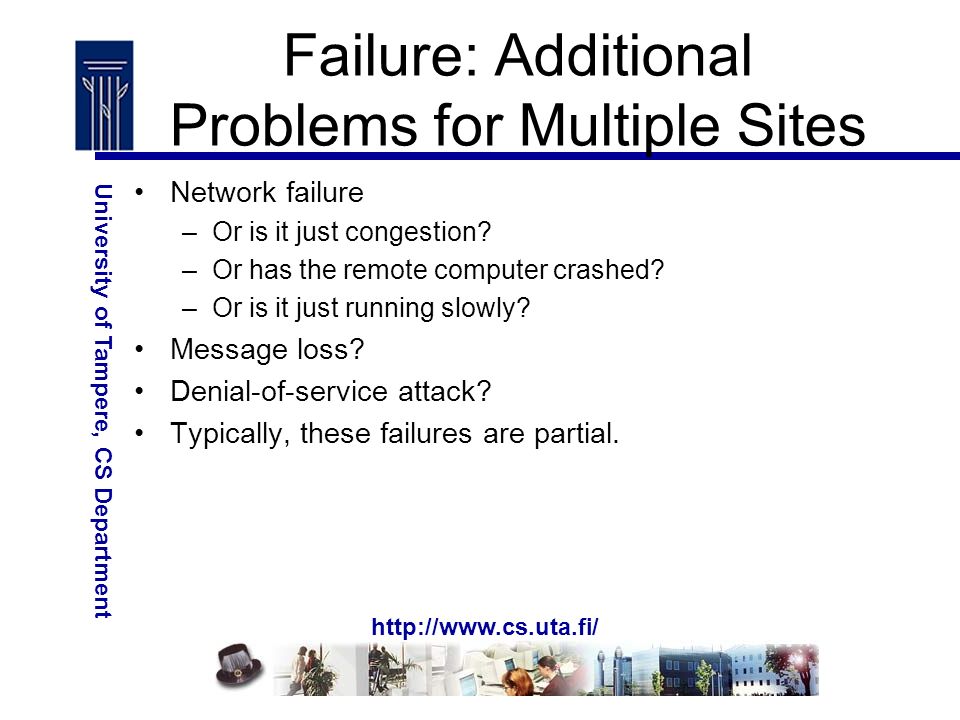

http://www.cs.uta.fi/ University of Tampere, CS Department Failure: Additional Problems for Multiple Sites Network failure –Or is it just congestion? –Or has the remote computer crashed? –Or is it just running slowly? Message loss? Denial-of-service attack? Typically, these failures are partial.
9

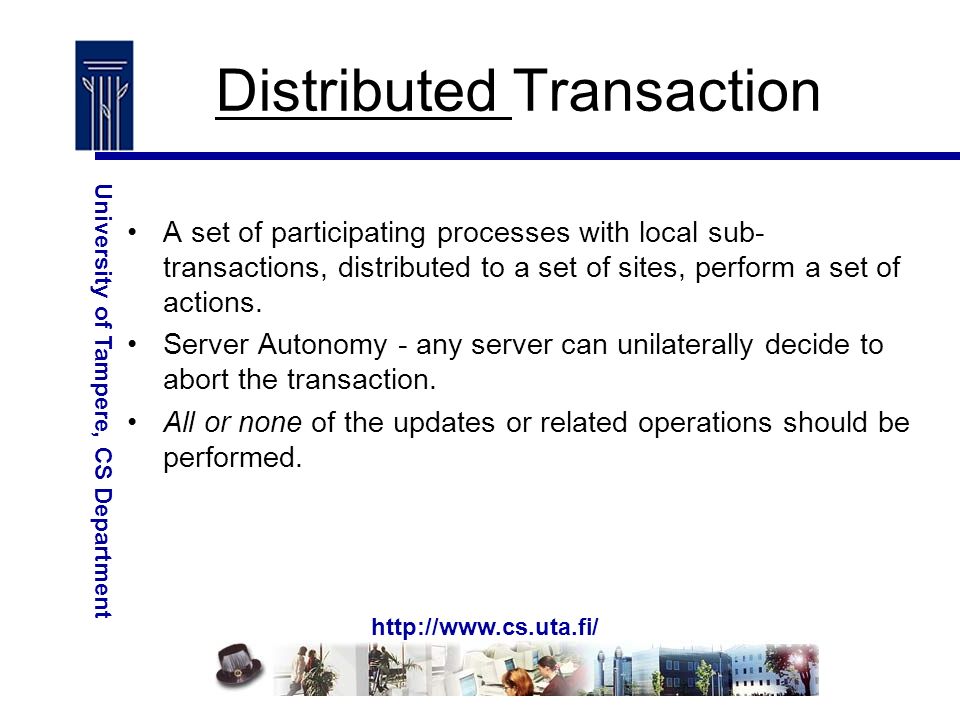

http://www.cs.uta.fi/ University of Tampere, CS Department Distributed Transaction A set of participating processes with local sub- transactions, distributed to a set of sites, perform a set of actions. Server Autonomy - any server can unilaterally decide to abort the transaction. All or none of the updates or related operations should be performed.
10

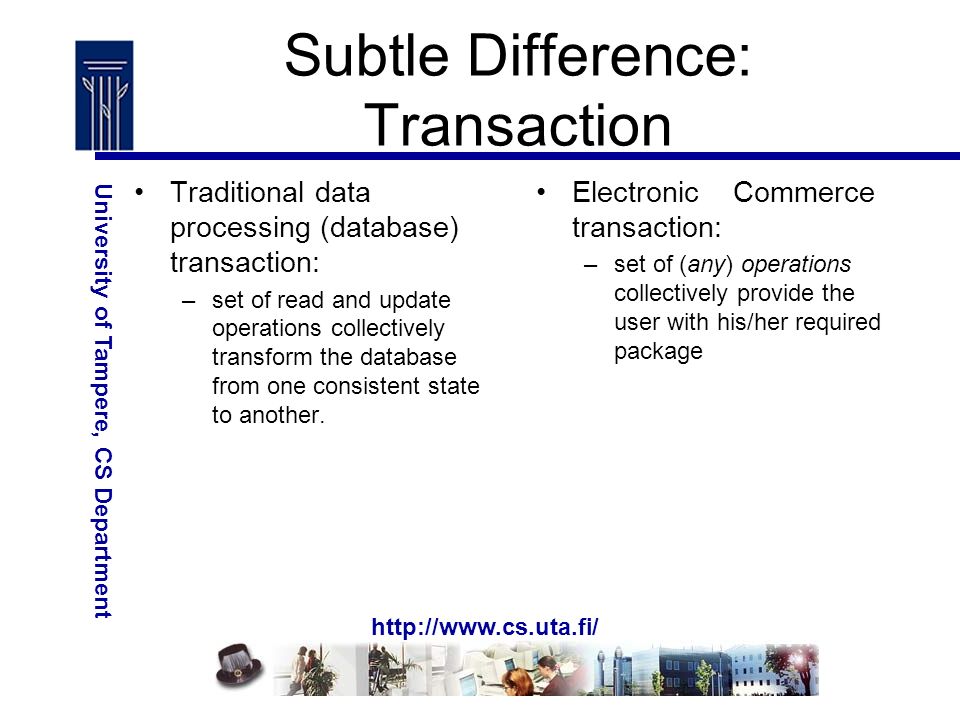

http://www.cs.uta.fi/ University of Tampere, CS Department Subtle Difference: Transaction Traditional data processing (database) transaction: –set of read and update operations collectively transform the database from one consistent state to another. Electronic Commerce transaction: –set of (any) operations collectively provide the user with his/her required package
11

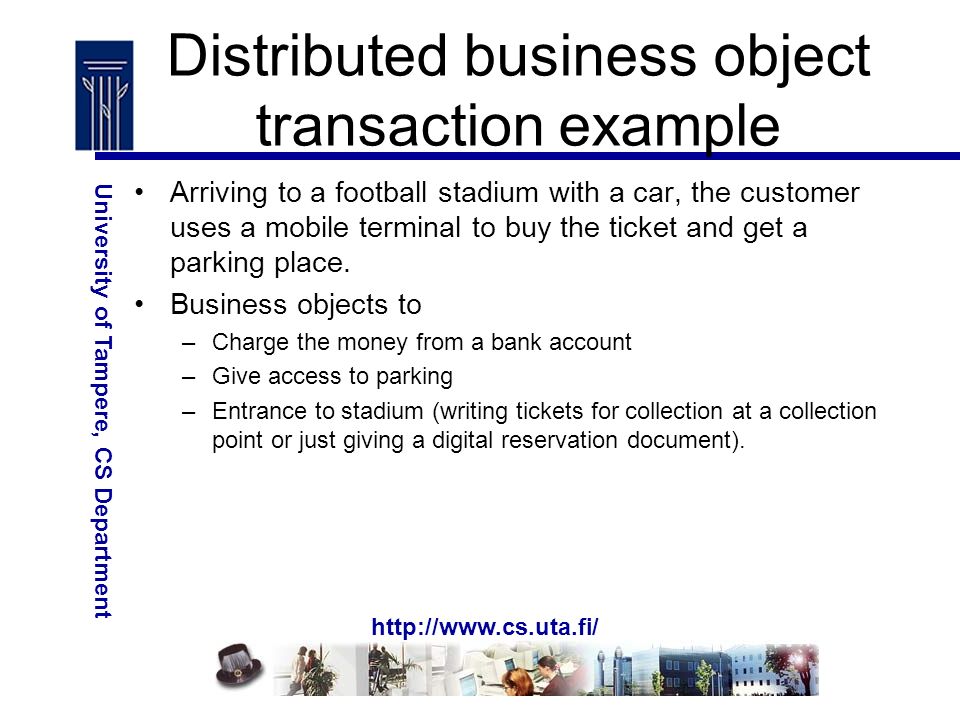

http://www.cs.uta.fi/ University of Tampere, CS Department Distributed business object transaction example Arriving to a football stadium with a car, the customer uses a mobile terminal to buy the ticket and get a parking place. Business objects to –Charge the money from a bank account –Give access to parking –Entrance to stadium (writing tickets for collection at a collection point or just giving a digital reservation document).
12
http://www.cs.uta.fi/ University of Tampere, CS Department Distributed business object transaction example (cont’d) Why is transactionality needed? All-or-nothing situation? Maybe... Compensational transactions are difficult - e.g. once access is given to car park, that is difficult to roll back. (Arriving to a football stadium…)
13

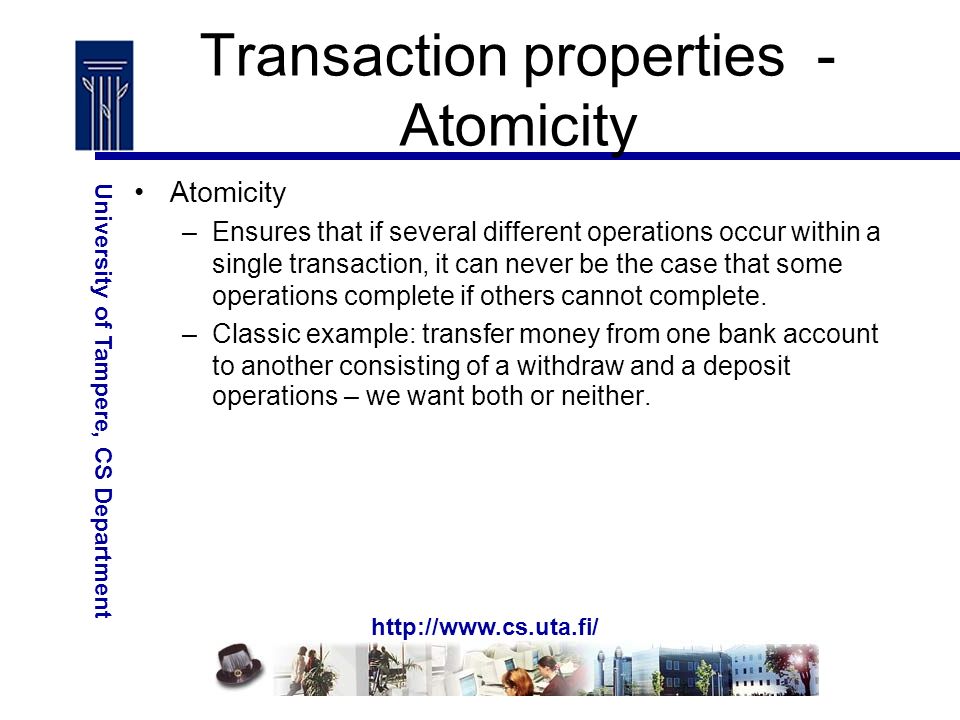

http://www.cs.uta.fi/ University of Tampere, CS Department Transaction properties - Atomicity Atomicity –Ensures that if several different operations occur within a single transaction, it can never be the case that some operations complete if others cannot complete. –Classic example: transfer money from one bank account to another consisting of a withdraw and a deposit operations – we want both or neither.
14

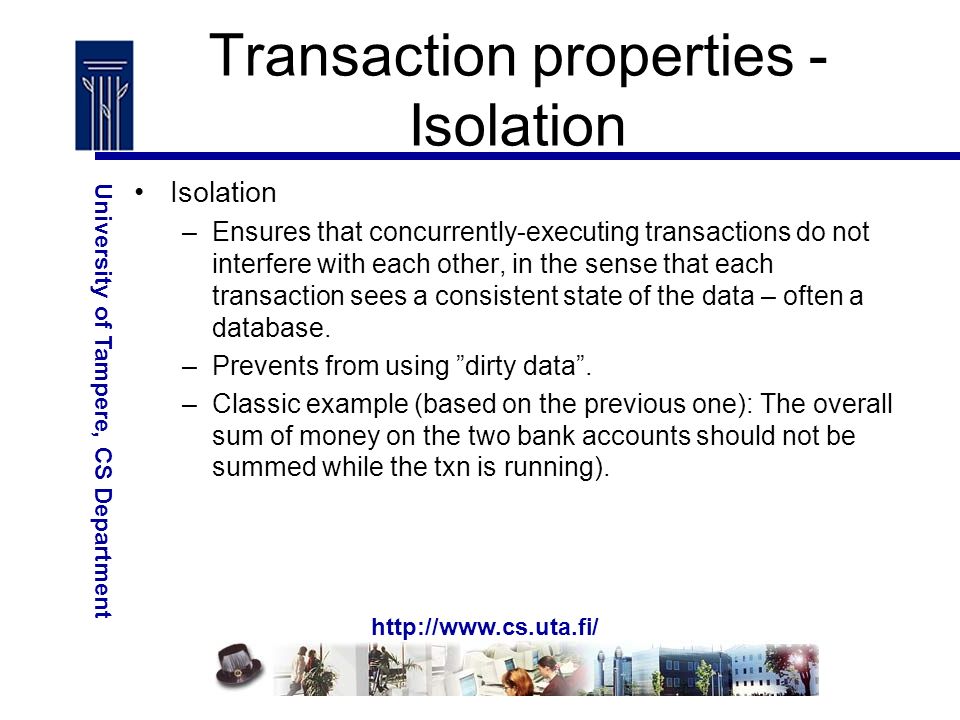

http://www.cs.uta.fi/ University of Tampere, CS Department Transaction properties - Isolation Isolation –Ensures that concurrently-executing transactions do not interfere with each other, in the sense that each transaction sees a consistent state of the data – often a database. –Prevents from using ”dirty data”. –Classic example (based on the previous one): The overall sum of money on the two bank accounts should not be summed while the txn is running).
15

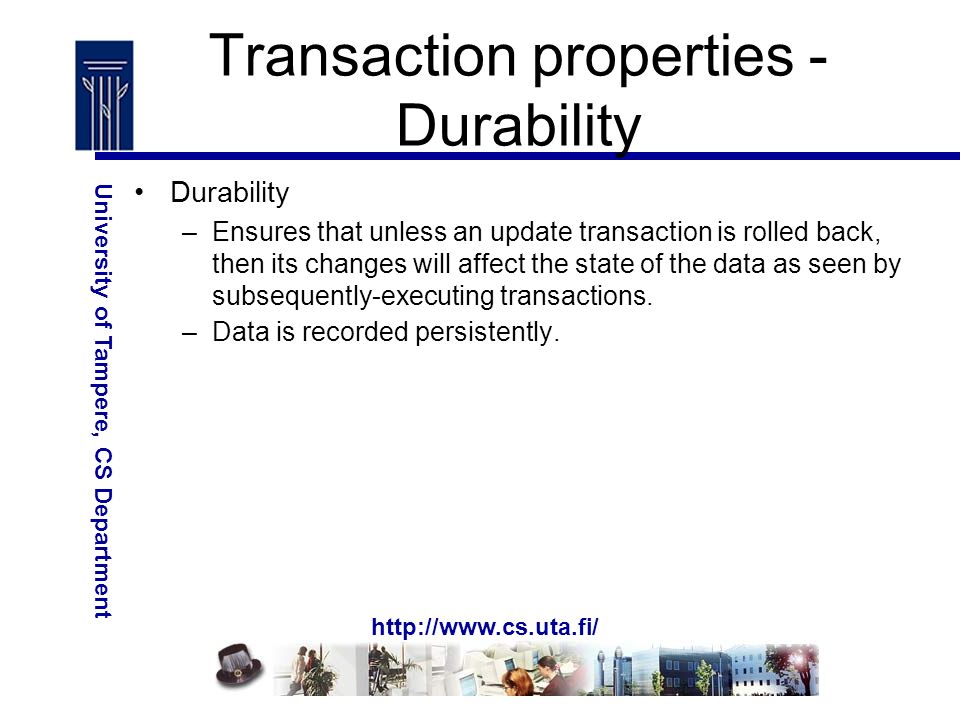

http://www.cs.uta.fi/ University of Tampere, CS Department Transaction properties - Durability Durability –Ensures that unless an update transaction is rolled back, then its changes will affect the state of the data as seen by subsequently-executing transactions. –Data is recorded persistently.
16

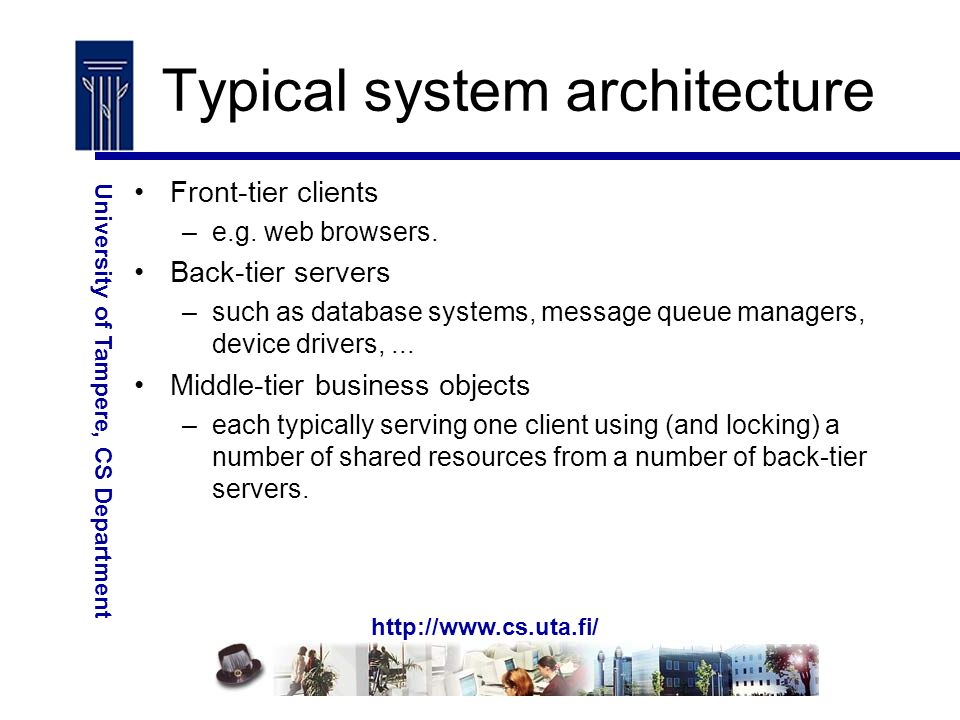

http://www.cs.uta.fi/ University of Tampere, CS Department Typical system architecture Front-tier clients –e.g. web browsers. Back-tier servers –such as database systems, message queue managers, device drivers,... Middle-tier business objects –each typically serving one client using (and locking) a number of shared resources from a number of back-tier servers.
17

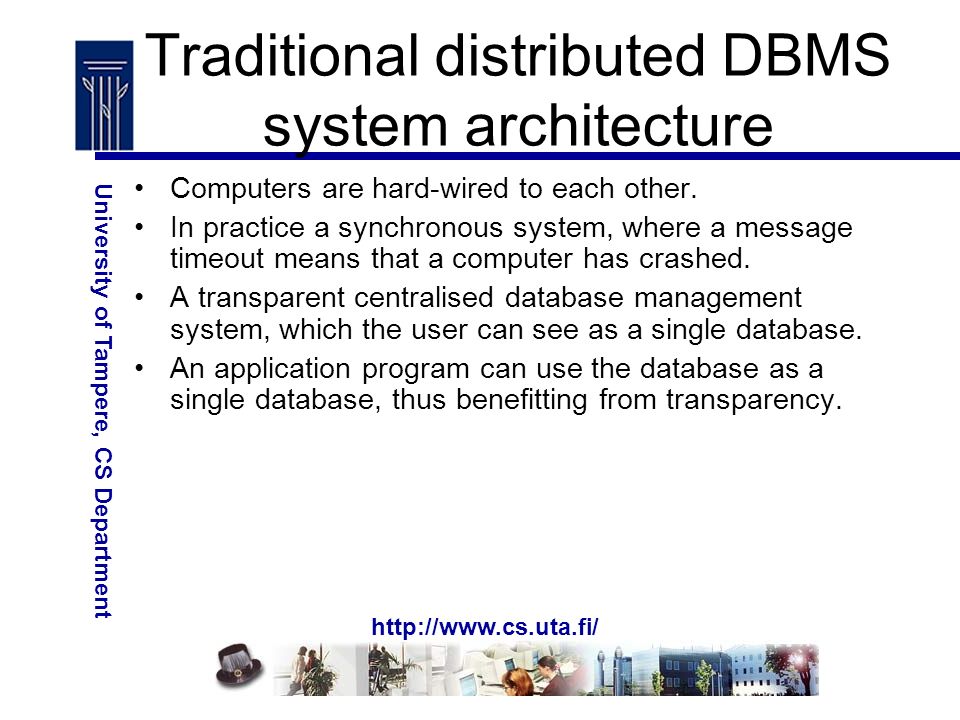

http://www.cs.uta.fi/ University of Tampere, CS Department Traditional distributed DBMS system architecture Computers are hard-wired to each other. In practice a synchronous system, where a message timeout means that a computer has crashed. A transparent centralised database management system, which the user can see as a single database. An application program can use the database as a single database, thus benefitting from transparency.
18
http://www.cs.uta.fi/ University of Tampere, CS Department Main transactional services Distributed locking is needed, if replicated data is needed for exclusive (write) access. Distributed commit is needed to control the fate of the transaction in a controlled manner. Barrier synchronisation can be used to guarantee a consistent view of the world.
19

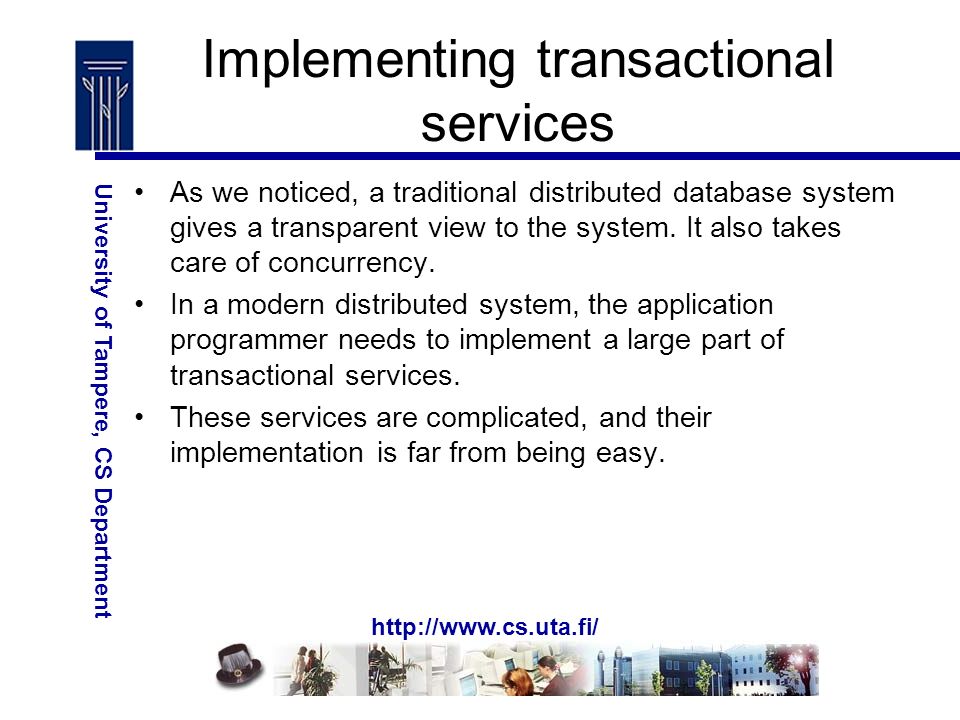

http://www.cs.uta.fi/ University of Tampere, CS Department Implementing transactional services As we noticed, a traditional distributed database system gives a transparent view to the system. It also takes care of concurrency. In a modern distributed system, the application programmer needs to implement a large part of transactional services. These services are complicated, and their implementation is far from being easy.
20

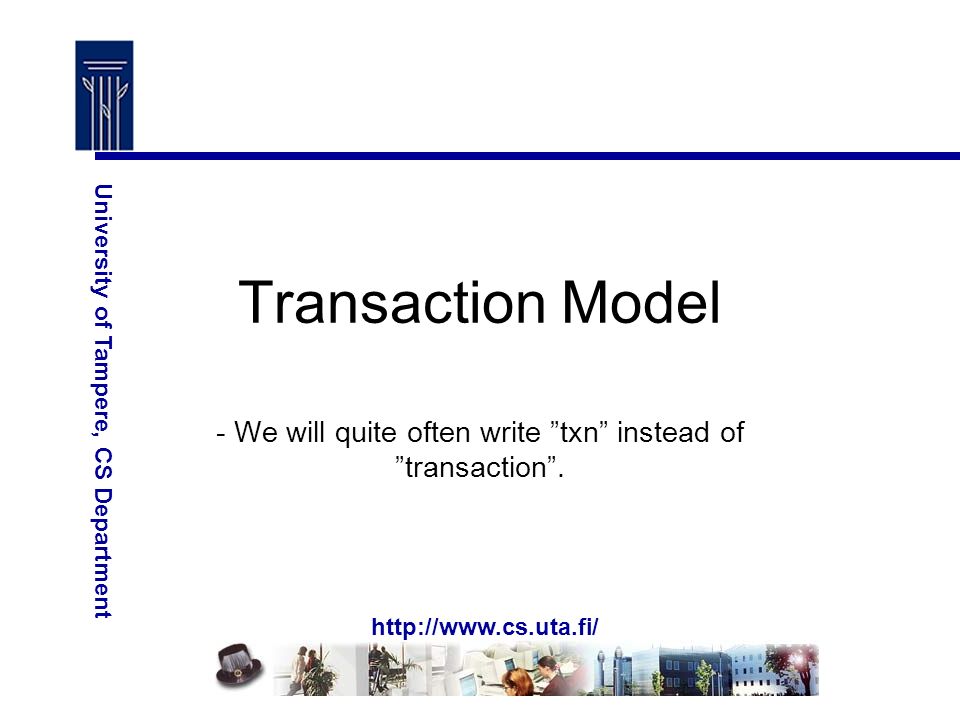

http://www.cs.uta.fi/ University of Tampere, CS Department Transaction Model - We will quite often write ”txn” instead of ”transaction”.
21

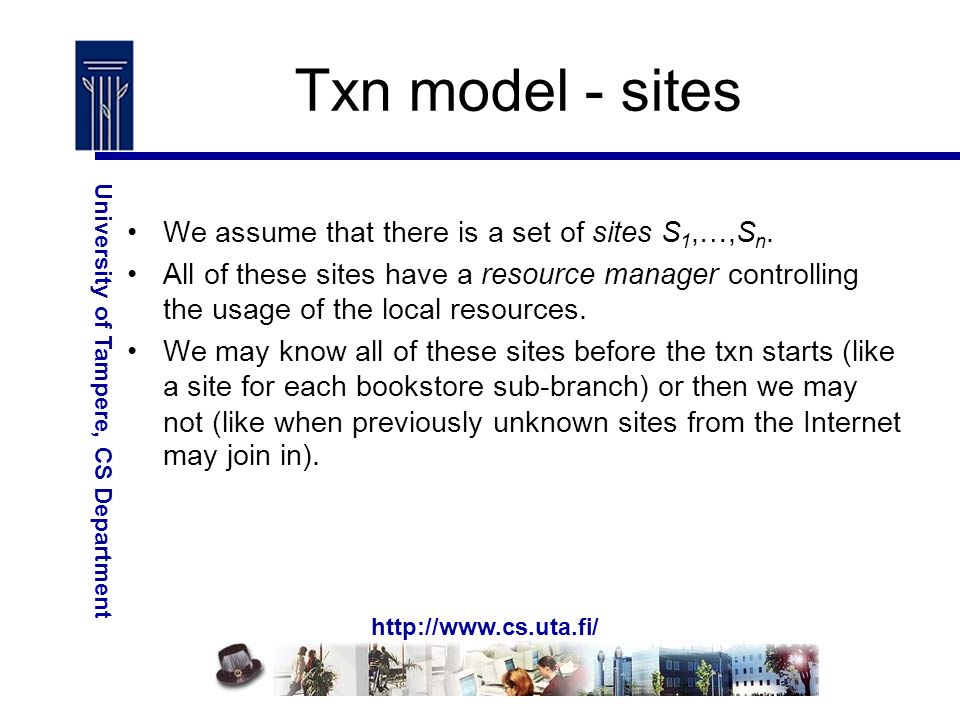

http://www.cs.uta.fi/ University of Tampere, CS Department Txn model - sites We assume that there is a set of sites S 1,…,S n. All of these sites have a resource manager controlling the usage of the local resources. We may know all of these sites before the txn starts (like a site for each bookstore sub-branch) or then we may not (like when previously unknown sites from the Internet may join in).
22

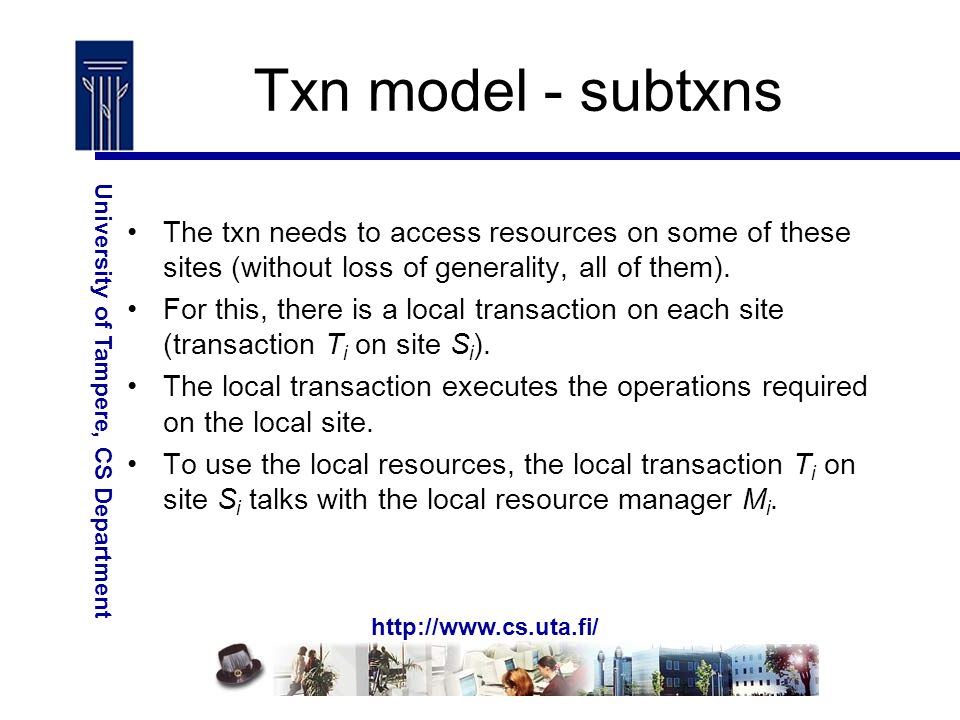

http://www.cs.uta.fi/ University of Tampere, CS Department Txn model - subtxns The txn needs to access resources on some of these sites (without loss of generality, all of them). For this, there is a local transaction on each site (transaction T i on site S i ). The local transaction executes the operations required on the local site. To use the local resources, the local transaction T i on site S i talks with the local resource manager M i.
23

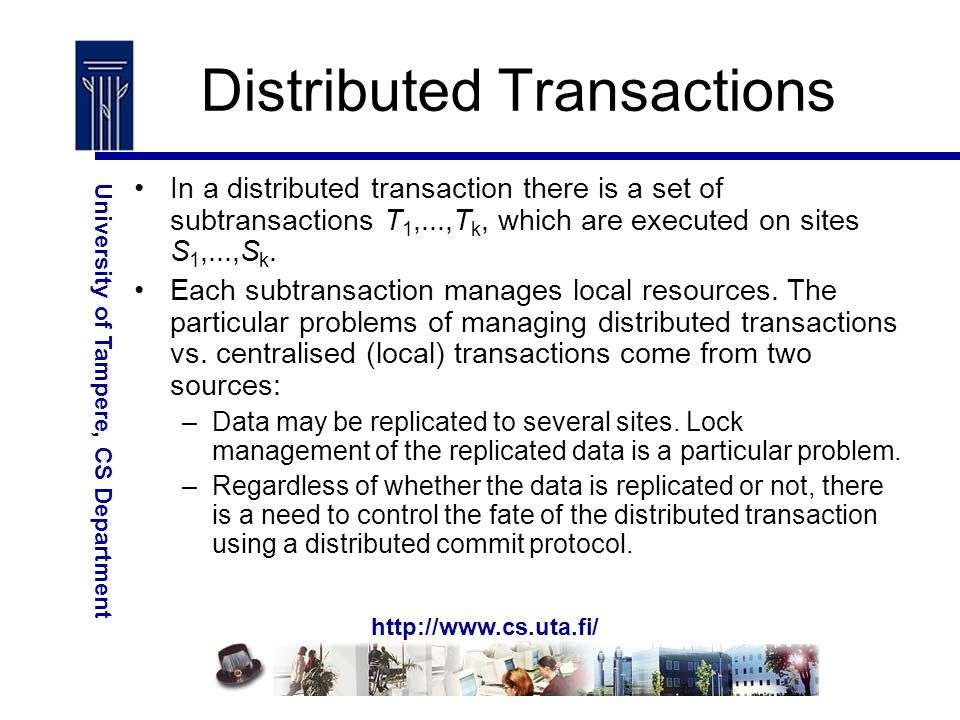

http://www.cs.uta.fi/ University of Tampere, CS Department Distributed Transactions In a distributed transaction there is a set of subtransactions T 1,...,T k, which are executed on sites S 1,...,S k. Each subtransaction manages local resources. The particular problems of managing distributed transactions vs. centralised (local) transactions come from two sources: –Data may be replicated to several sites. Lock management of the replicated data is a particular problem. –Regardless of whether the data is replicated or not, there is a need to control the fate of the distributed transaction using a distributed commit protocol.
24

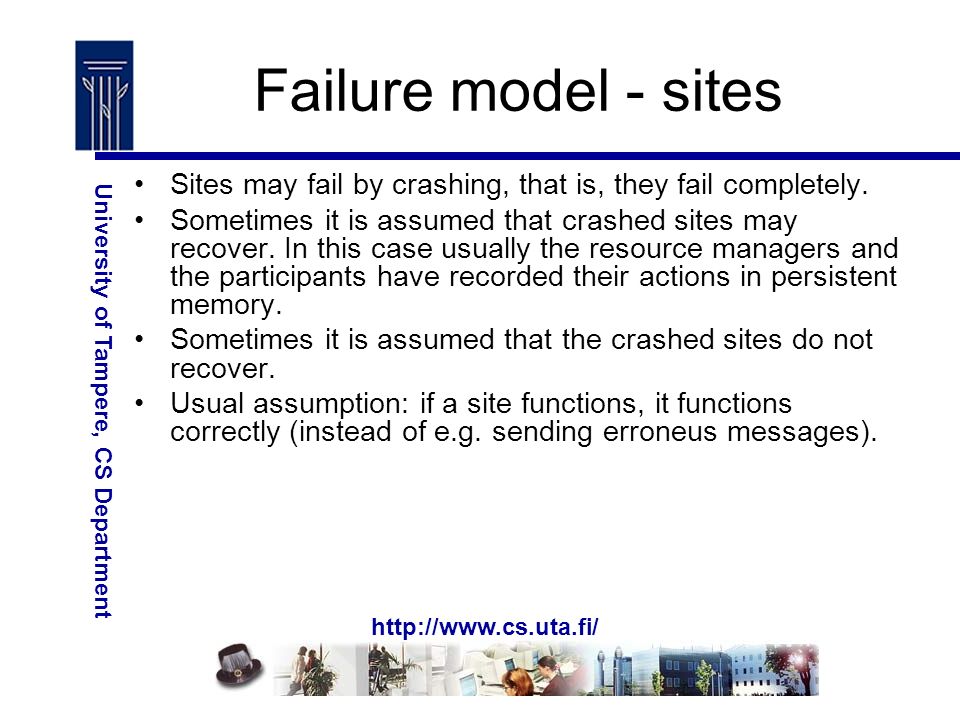

http://www.cs.uta.fi/ University of Tampere, CS Department Failure model - sites Sites may fail by crashing, that is, they fail completely. Sometimes it is assumed that crashed sites may recover. In this case usually the resource managers and the participants have recorded their actions in persistent memory. Sometimes it is assumed that the crashed sites do not recover. Usual assumption: if a site functions, it functions correctly (instead of e.g. sending erroneus messages).
25

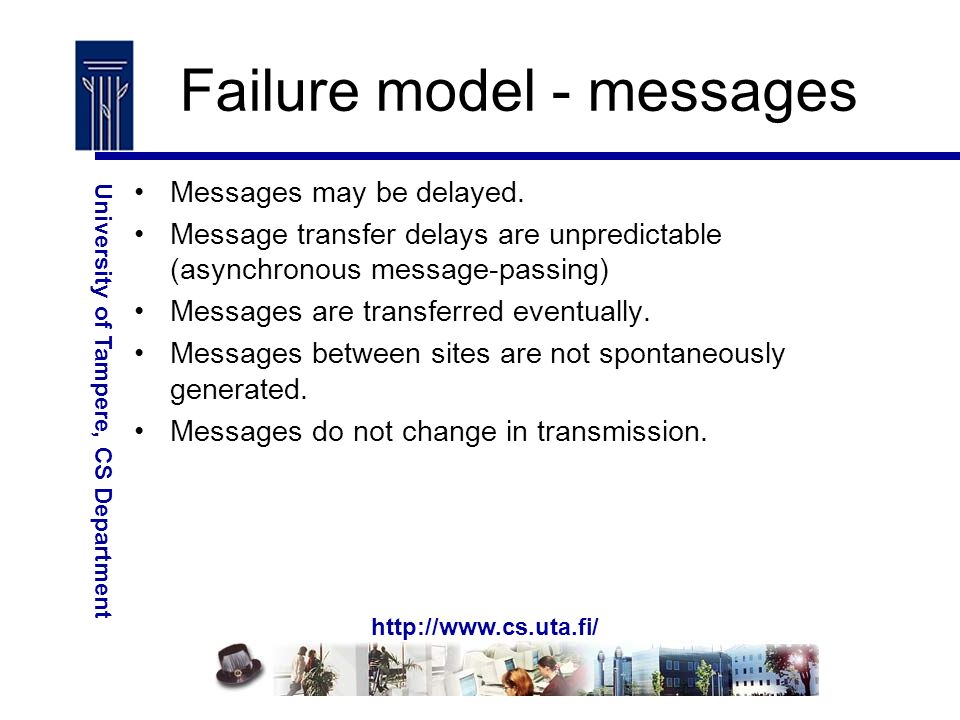

http://www.cs.uta.fi/ University of Tampere, CS Department Failure model - messages Messages may be delayed. Message transfer delays are unpredictable (asynchronous message-passing) Messages are transferred eventually. Messages between sites are not spontaneously generated. Messages do not change in transmission.
26

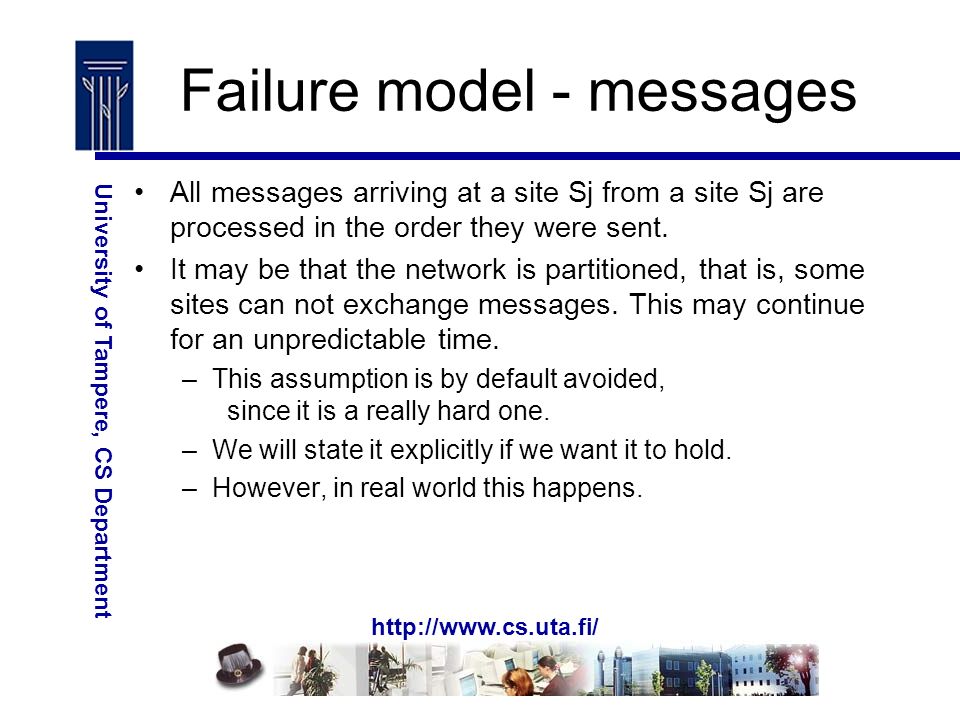

http://www.cs.uta.fi/ University of Tampere, CS Department Failure model - messages All messages arriving at a site Sj from a site Sj are processed in the order they were sent. It may be that the network is partitioned, that is, some sites can not exchange messages. This may continue for an unpredictable time. –This assumption is by default avoided, since it is a really hard one. –We will state it explicitly if we want it to hold. –However, in real world this happens.
27

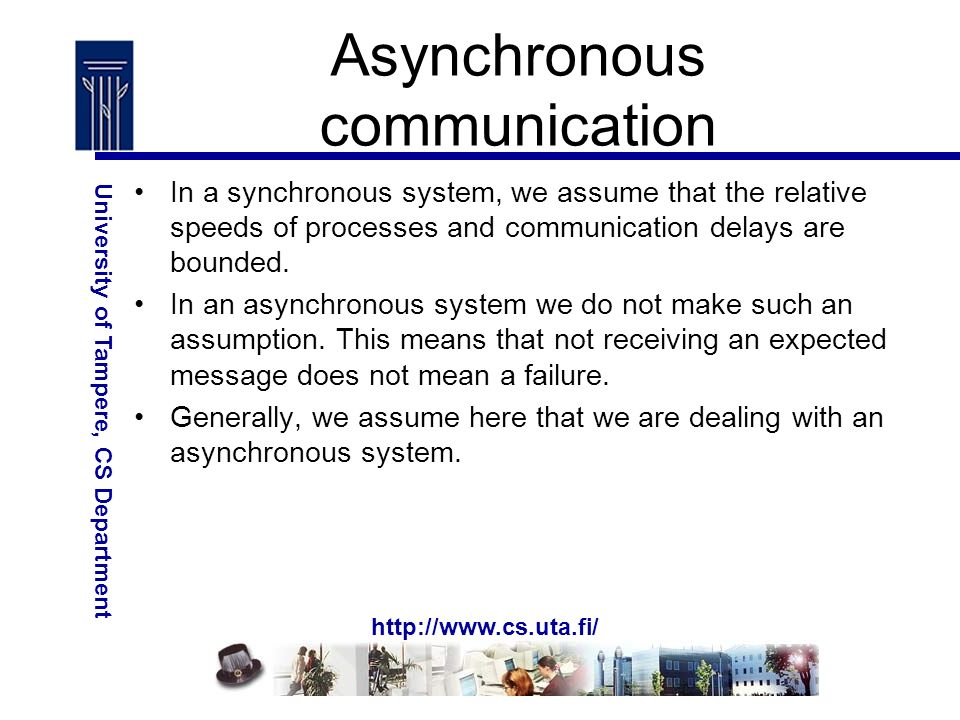

http://www.cs.uta.fi/ University of Tampere, CS Department Asynchronous communication In a synchronous system, we assume that the relative speeds of processes and communication delays are bounded. In an asynchronous system we do not make such an assumption. This means that not receiving an expected message does not mean a failure. Generally, we assume here that we are dealing with an asynchronous system.
28

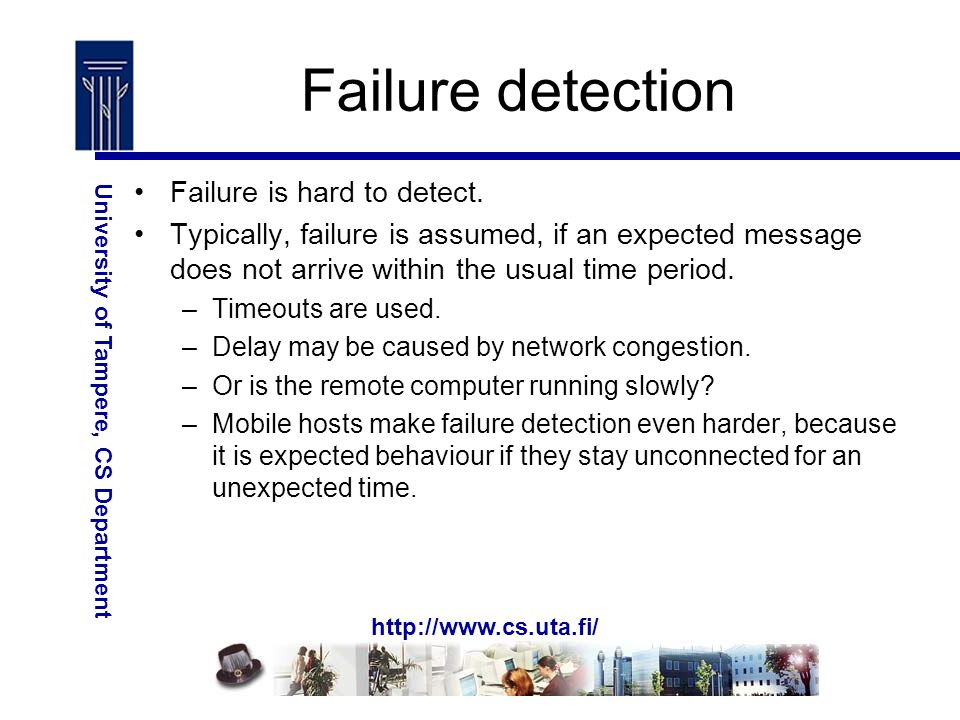

http://www.cs.uta.fi/ University of Tampere, CS Department Failure detection Failure is hard to detect. Typically, failure is assumed, if an expected message does not arrive within the usual time period. –Timeouts are used. –Delay may be caused by network congestion. –Or is the remote computer running slowly? –Mobile hosts make failure detection even harder, because it is expected behaviour if they stay unconnected for an unexpected time.
29
http://www.cs.uta.fi/ University of Tampere, CS Department Distributed Locking
30
http://www.cs.uta.fi/ University of Tampere, CS Department Mutual Exclusion (Locking) The problem of managing access to a single, indivisible resource (e.g. a data item) that can only support one user (or transaction, or process, or thread, or whatever) at a time.
31
http://www.cs.uta.fi/ University of Tampere, CS Department Desired properties for solutions Safety: Mutual exclusion is never violated. (Only one transaction gets the lock). –This property can not be compromised. Liveness: Each request will be granted (eventually). –This property should not be compromised. Fairness: Access to the resource should happen in the order of requests. –This property is to be discussed later.
32

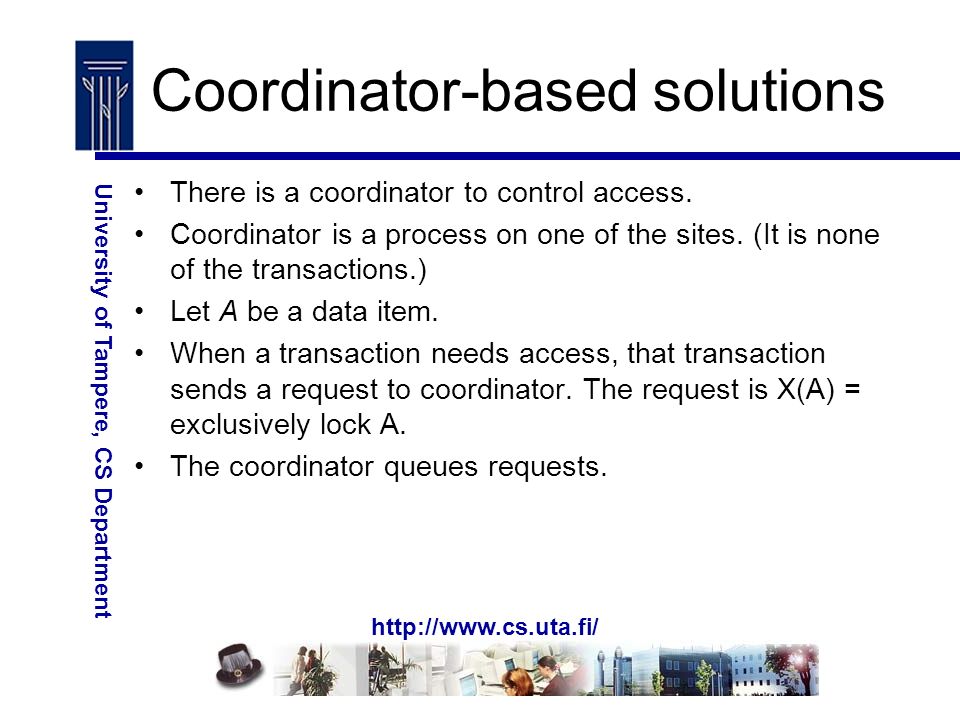

http://www.cs.uta.fi/ University of Tampere, CS Department Coordinator-based solutions There is a coordinator to control access. Coordinator is a process on one of the sites. (It is none of the transactions.) Let A be a data item. When a transaction needs access, that transaction sends a request to coordinator. The request is X(A) = exclusively lock A. The coordinator queues requests.
33
http://www.cs.uta.fi/ University of Tampere, CS Department Coordinator-based solutions When the resource is available, the coordinator sends a grant message to the transaction T first in the queue. We write G(X(A)) = Grant X(A) When T sees the grant message, it may use the resource. When T does need the resource anymore, it sends a release message to the coordinator. R(A) = release A.
34

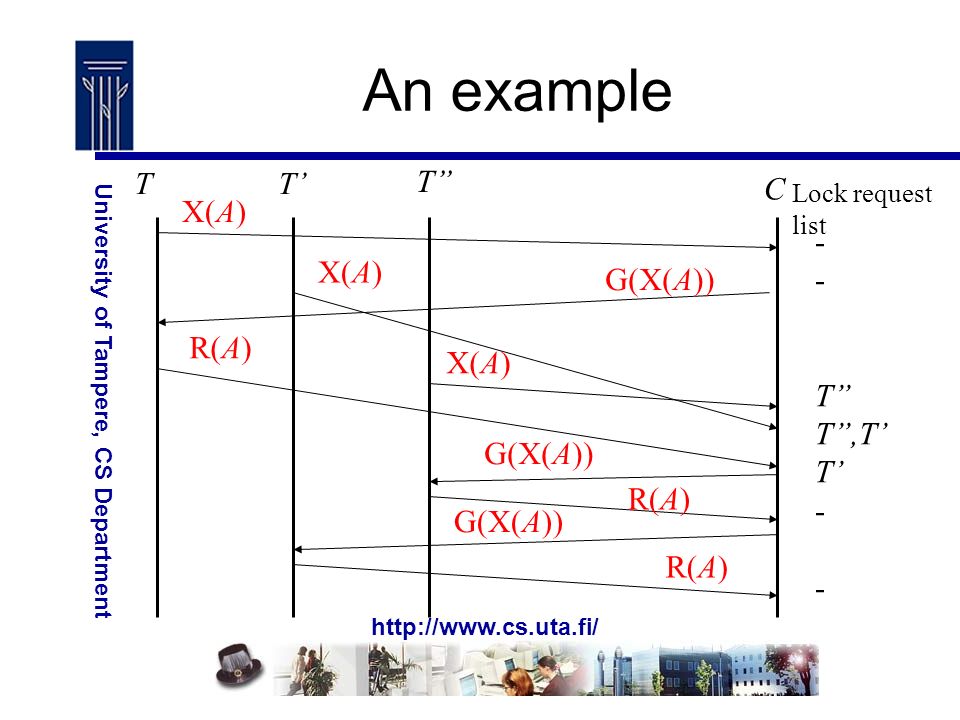

http://www.cs.uta.fi/ University of Tampere, CS Department An example TT’ T’’ X(A) G(X(A)) X(A) C Lock request list - T’’ T’’,T’ T’ - X(A) R(A) G(X(A)) R(A) G(X(A))
35
http://www.cs.uta.fi/ University of Tampere, CS Department Coordinator-based solutions / properties These coordinator-based solutions obviously have the safety and the liveness properties, if the coordinator is correctly implemented. We can argue that they are also fair, since requests are queued. The ordering (and fairness) only takes place at the coordinators site (request arrival, not request departure). More on that later. Since lock management is centralised, different lock types need no special attention.
36

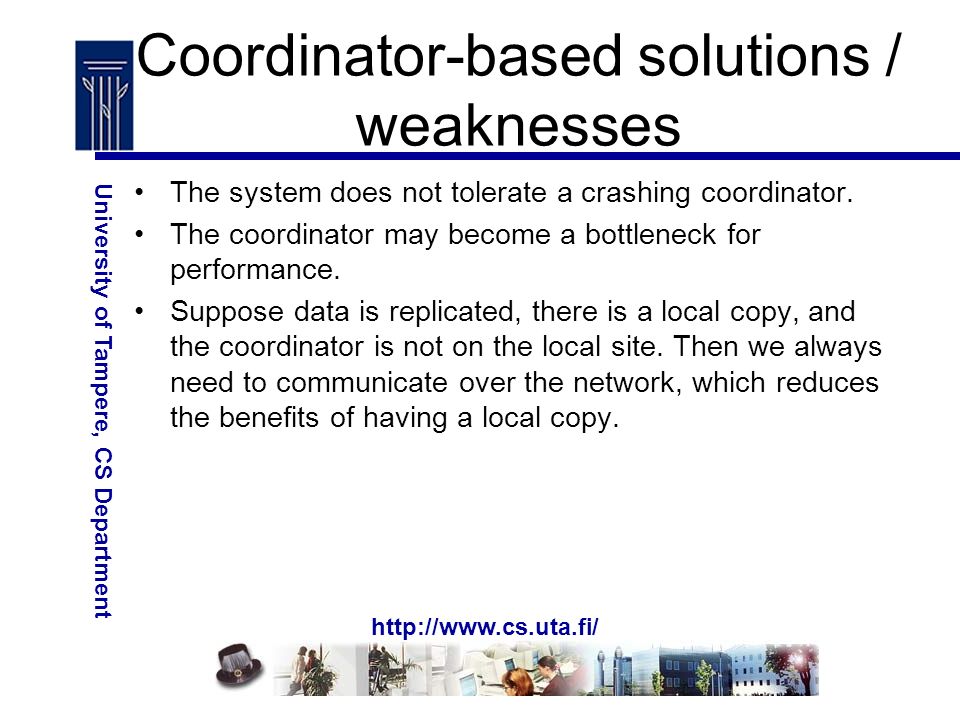

http://www.cs.uta.fi/ University of Tampere, CS Department Coordinator-based solutions / weaknesses The system does not tolerate a crashing coordinator. The coordinator may become a bottleneck for performance. Suppose data is replicated, there is a local copy, and the coordinator is not on the local site. Then we always need to communicate over the network, which reduces the benefits of having a local copy.
37

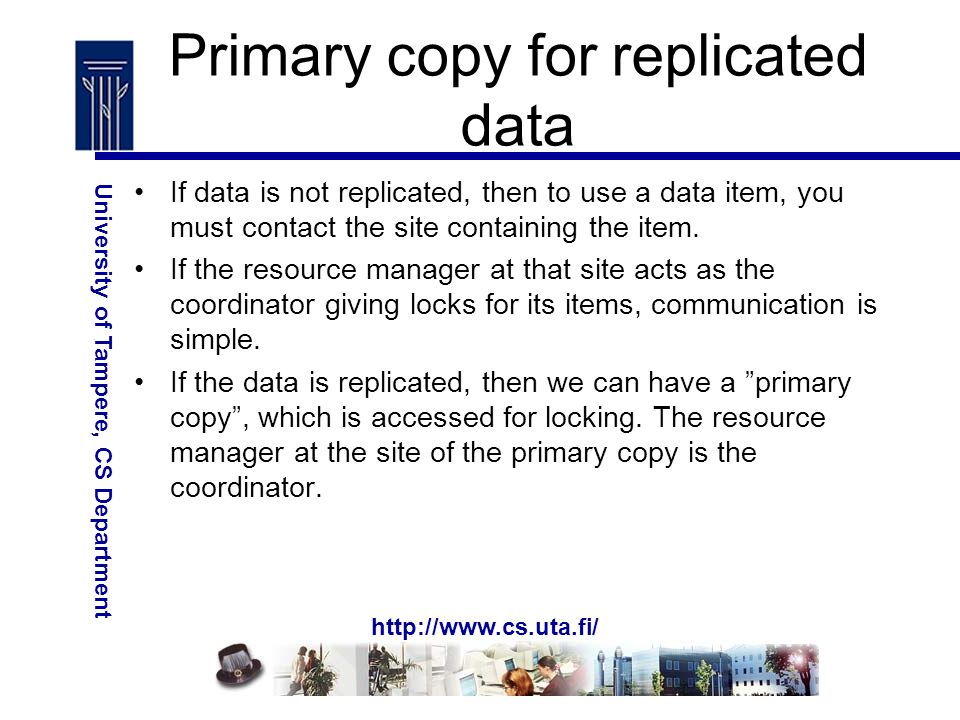

http://www.cs.uta.fi/ University of Tampere, CS Department Primary copy for replicated data If data is not replicated, then to use a data item, you must contact the site containing the item. If the resource manager at that site acts as the coordinator giving locks for its items, communication is simple. If the data is replicated, then we can have a ”primary copy”, which is accessed for locking. The resource manager at the site of the primary copy is the coordinator.
38

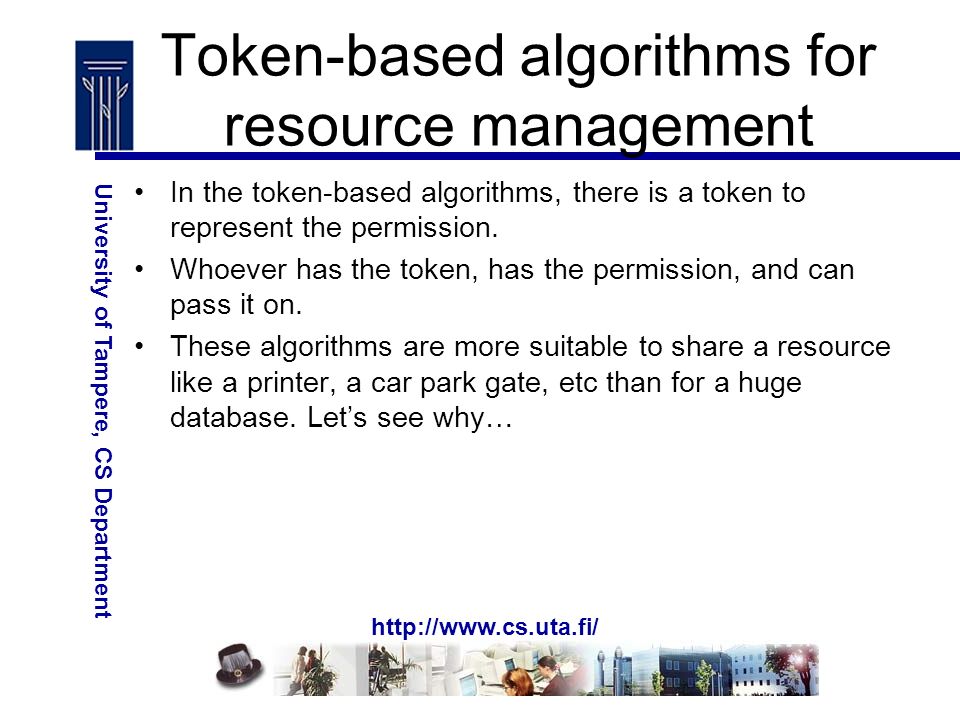

http://www.cs.uta.fi/ University of Tampere, CS Department Token-based algorithms for resource management In the token-based algorithms, there is a token to represent the permission. Whoever has the token, has the permission, and can pass it on. These algorithms are more suitable to share a resource like a printer, a car park gate, etc than for a huge database. Let’s see why…
39

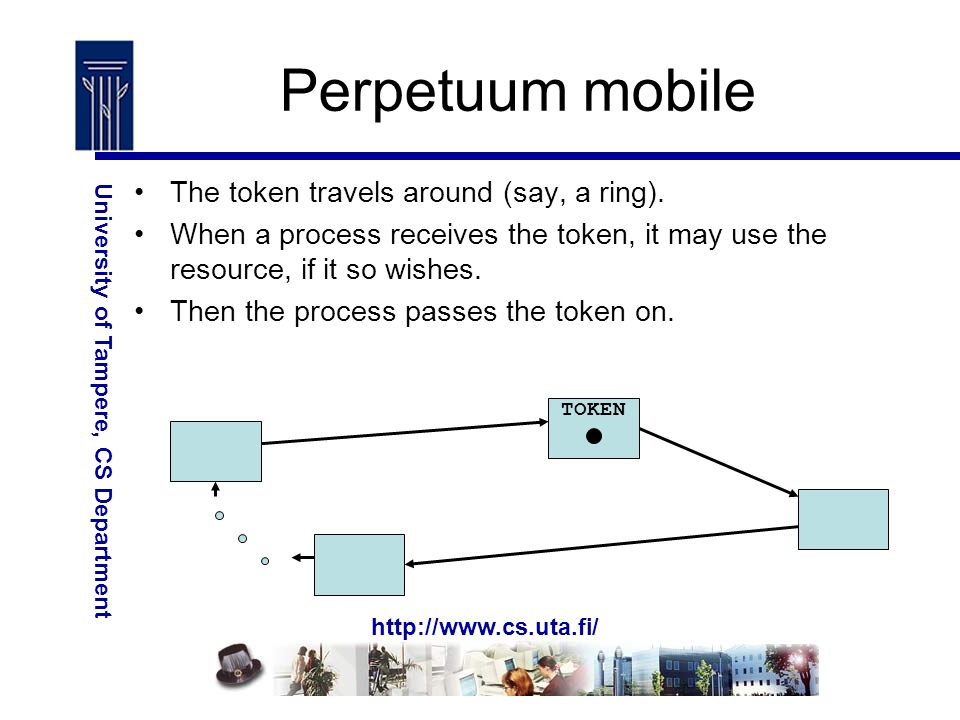

http://www.cs.uta.fi/ University of Tampere, CS Department Perpetuum mobile The token travels around (say, a ring). When a process receives the token, it may use the resource, if it so wishes. Then the process passes the token on. TOKEN
40

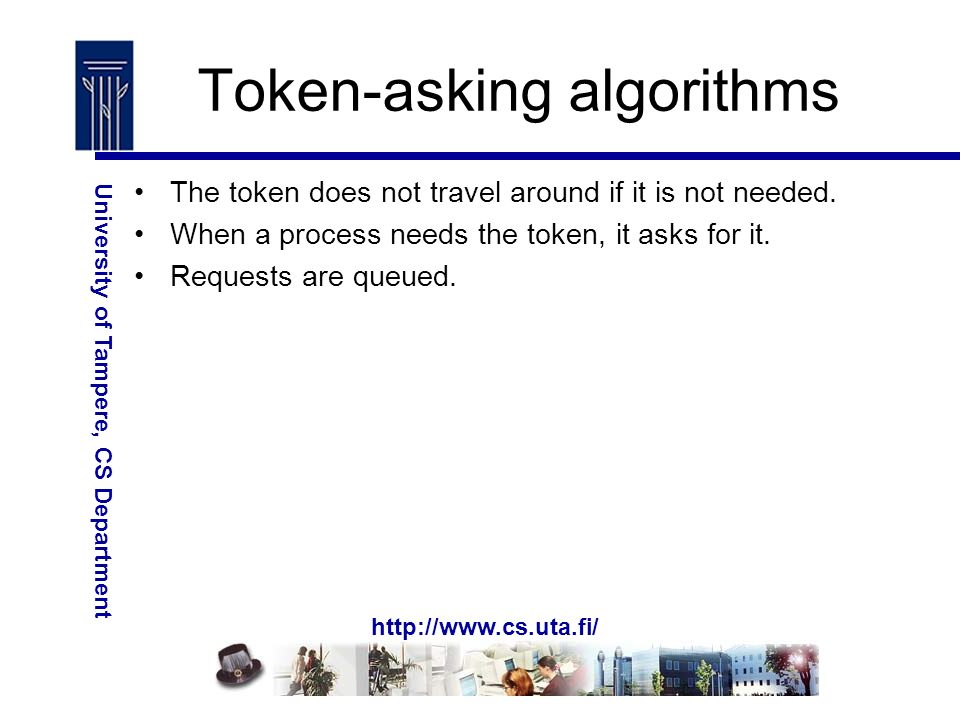

http://www.cs.uta.fi/ University of Tampere, CS Department Token-asking algorithms The token does not travel around if it is not needed. When a process needs the token, it asks for it. Requests are queued.
41

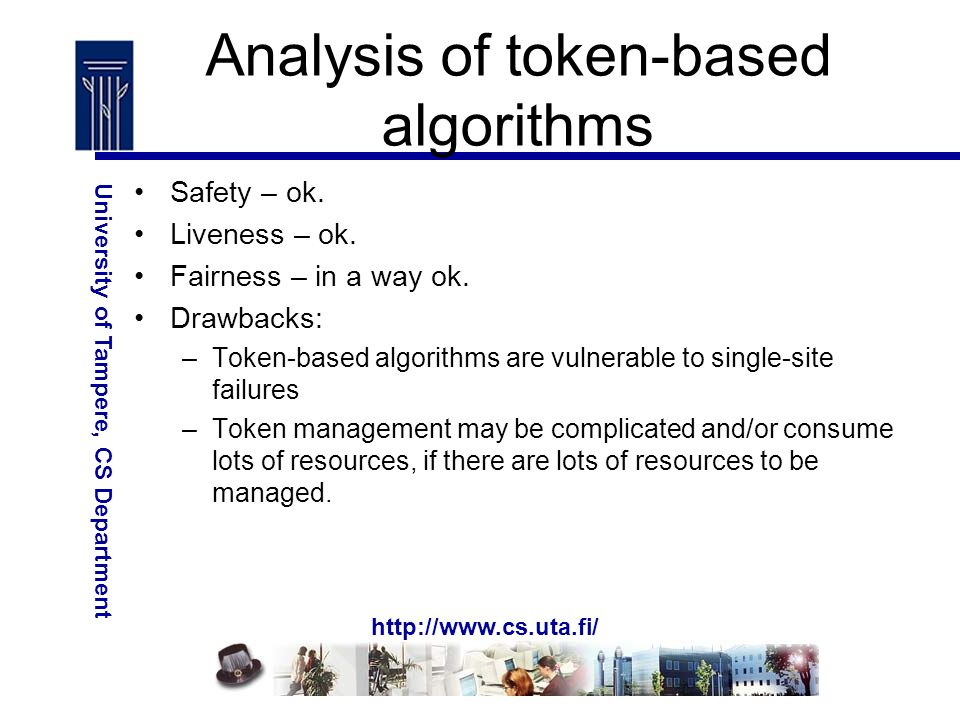

http://www.cs.uta.fi/ University of Tampere, CS Department Analysis of token-based algorithms Safety – ok. Liveness – ok. Fairness – in a way ok. Drawbacks: –Token-based algorithms are vulnerable to single-site failures –Token management may be complicated and/or consume lots of resources, if there are lots of resources to be managed.
42

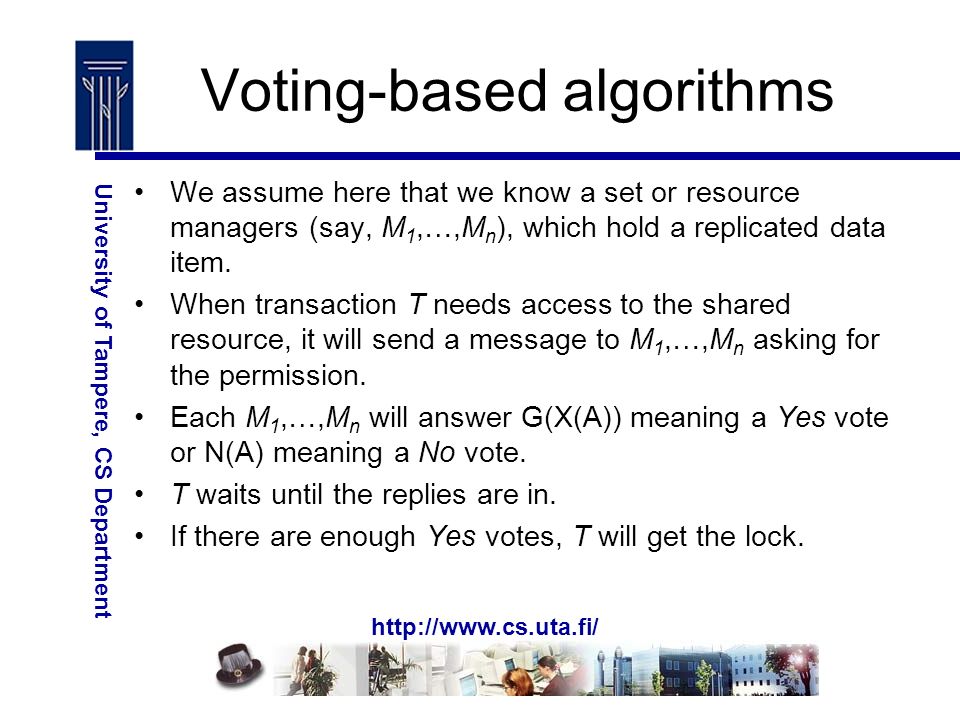

http://www.cs.uta.fi/ University of Tampere, CS Department Voting-based algorithms We assume here that we know a set or resource managers (say, M 1,…,M n ), which hold a replicated data item. When transaction T needs access to the shared resource, it will send a message to M 1,…,M n asking for the permission. Each M 1,…,M n will answer G(X(A)) meaning a Yes vote or N(A) meaning a No vote. T waits until the replies are in. If there are enough Yes votes, T will get the lock.
43
http://www.cs.uta.fi/ University of Tampere, CS Department A voting example T1T1 T2T2 M1M1 X(A) M2M2 GX(A)) X(A) N(A)
44

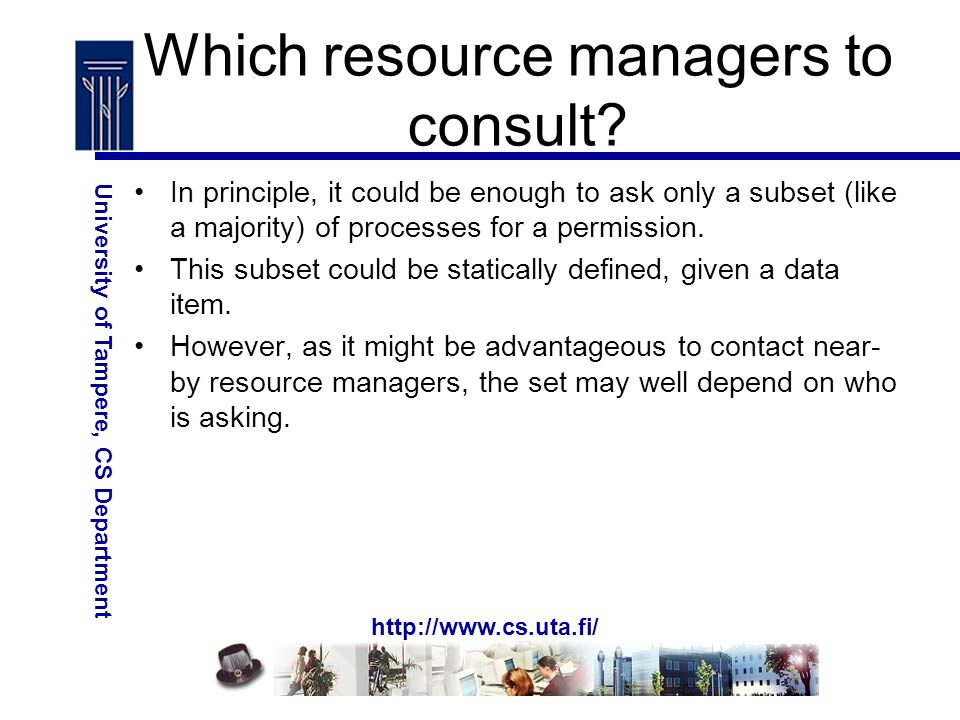

http://www.cs.uta.fi/ University of Tampere, CS Department Which resource managers to consult? In principle, it could be enough to ask only a subset (like a majority) of processes for a permission. This subset could be statically defined, given a data item. However, as it might be advantageous to contact near- by resource managers, the set may well depend on who is asking.
45
http://www.cs.uta.fi/ University of Tampere, CS Department How many processes to ask? Suppose we have n resource managers, and we consult k resource managers for an exclusive lock (write-lock) and m resource managers for a shared lock (read-lock). To avoid two simultaneous exclusive locks, we must have k > n/2. To avoid simultaneously having an exclusive and a shared lock, must have k + m > n. If read-operations dominate, then we may choose m=1 and k=n. Notice that we may choose to consult more resource managers than the above minumum number.
46
http://www.cs.uta.fi/ University of Tampere, CS Department Example Suppose we operate an airline with offices (and resource managers) in Tampere, Santiago de Chile and London. It seems reasonable to replicate timetables and use m=1, k=n, since that information does not change that often. For ticket booking, primary copy may be more appropriate. By statistical analysis we may get to know, where people (geographically) book which flights, to choose the placement of each primary copy.
47
http://www.cs.uta.fi/ University of Tampere, CS Department Who needs to give permission? If we need a permission from all resource managers, then we do not tolerate site failures (all the downsides of having a coordinator plus all the extra effort of contacting all the resource managers). Generally, a majority (of all resource managers) is enough. There are also ways other than simple majority or unanimous vote, but one has to be careful to preserve the mutual exclusion.
48

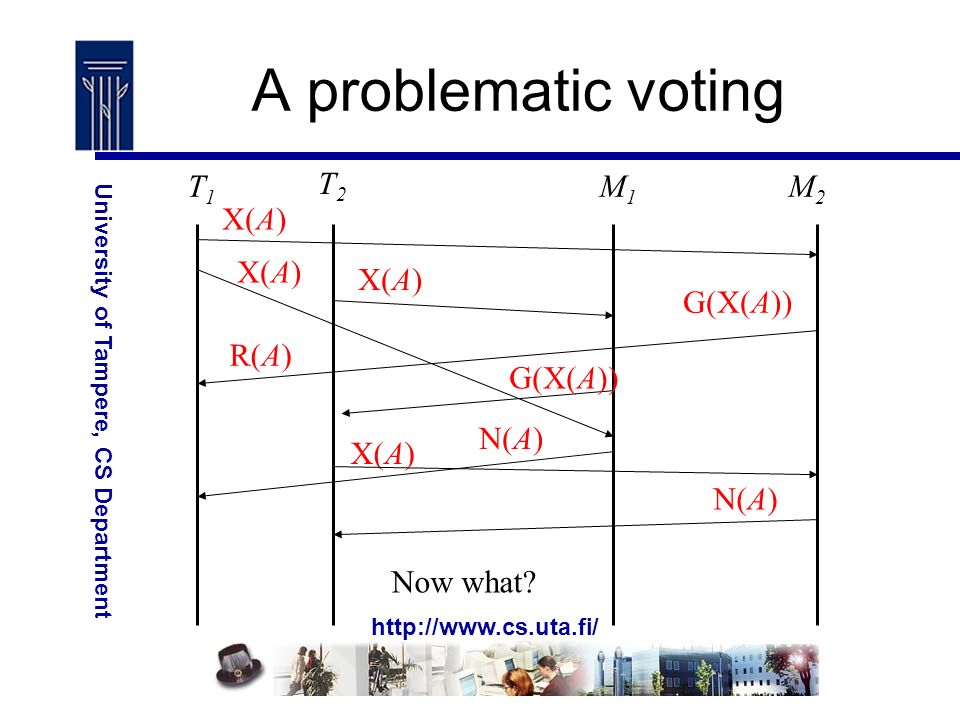

http://www.cs.uta.fi/ University of Tampere, CS Department A problematic voting X(A) R(A) G(X(A)) X(A) Now what? N(A) T1T1 T2T2 M1M1 M2M2
49
http://www.cs.uta.fi/ University of Tampere, CS Department Analysis for voting Safety –Apparently ok, if the numbers are chosen appropriately. Liveness –This far there is nothing to stop the previous slide situation repeating over and over. –Liveness is not guaranteed unless we make some improvements. Fairness –Nothing appears to guarantee fairness at this point. -> Further improvements are necessary.
50

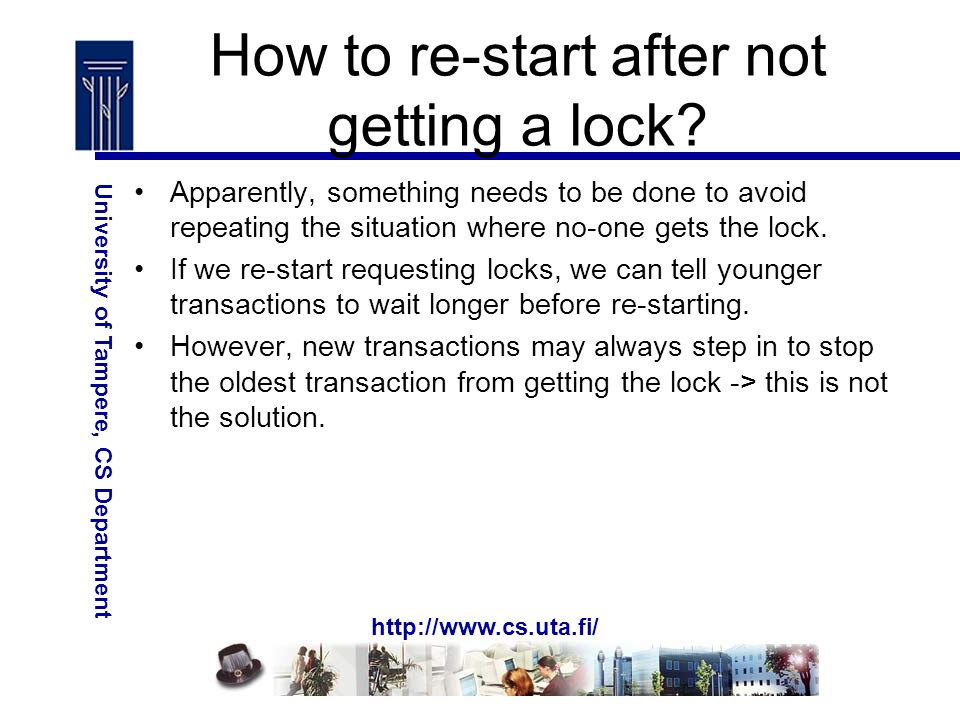

http://www.cs.uta.fi/ University of Tampere, CS Department How to re-start after not getting a lock? Apparently, something needs to be done to avoid repeating the situation where no-one gets the lock. If we re-start requesting locks, we can tell younger transactions to wait longer before re-starting. However, new transactions may always step in to stop the oldest transaction from getting the lock -> this is not the solution.
51

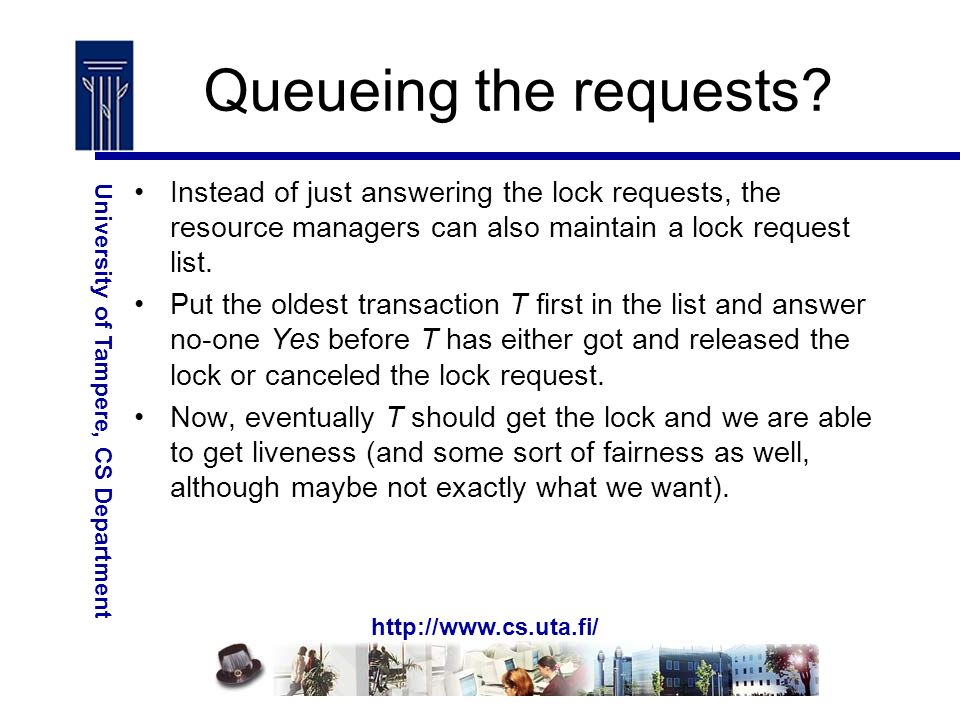

http://www.cs.uta.fi/ University of Tampere, CS Department Queueing the requests? Instead of just answering the lock requests, the resource managers can also maintain a lock request list. Put the oldest transaction T first in the list and answer no-one Yes before T has either got and released the lock or canceled the lock request. Now, eventually T should get the lock and we are able to get liveness (and some sort of fairness as well, although maybe not exactly what we want).
52
http://www.cs.uta.fi/ University of Tampere, CS Department Using timestamps – basic idea: Give each transaction a timestamp Execute the transactions’ reads and writes. If there is a conflict (impossible event compared to serial execution based on timestamps), roll back the younger transaction, which is then free to restart.
53

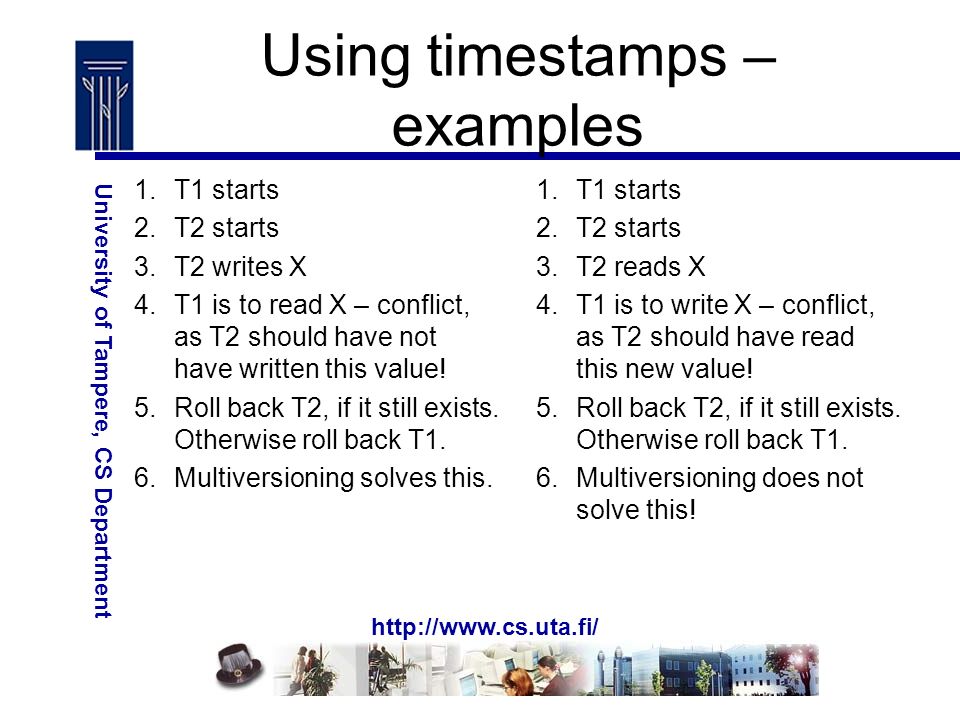

http://www.cs.uta.fi/ University of Tampere, CS Department Using timestamps – examples 1.T1 starts 2.T2 starts 3.T2 writes X 4.T1 is to read X – conflict, as T2 should have not have written this value! 5.Roll back T2, if it still exists. Otherwise roll back T1. 6.Multiversioning solves this. 1.T1 starts 2.T2 starts 3.T2 reads X 4.T1 is to write X – conflict, as T2 should have read this new value! 5.Roll back T2, if it still exists. Otherwise roll back T1. 6.Multiversioning does not solve this!
54

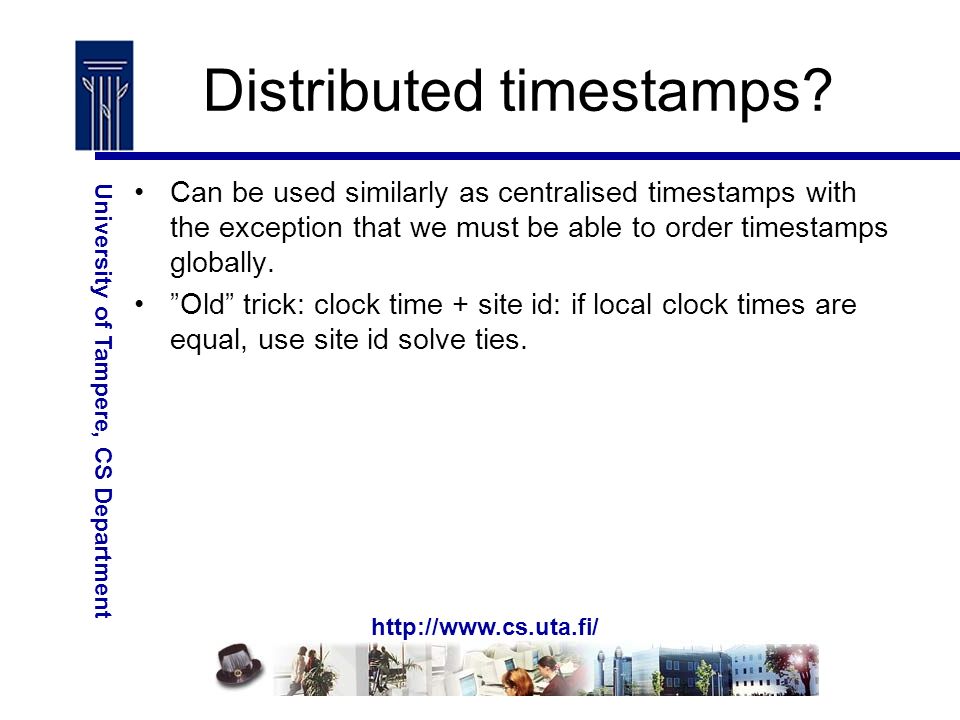

http://www.cs.uta.fi/ University of Tampere, CS Department Distributed timestamps? Can be used similarly as centralised timestamps with the exception that we must be able to order timestamps globally. ”Old” trick: clock time + site id: if local clock times are equal, use site id solve ties.
55

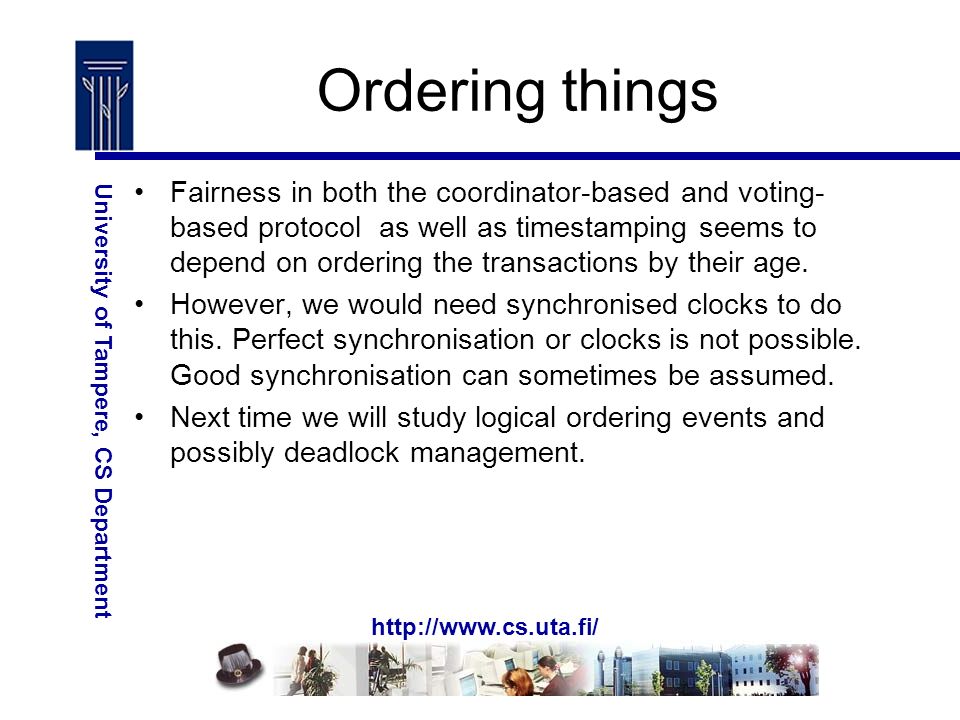

http://www.cs.uta.fi/ University of Tampere, CS Department Ordering things Fairness in both the coordinator-based and voting- based protocol as well as timestamping seems to depend on ordering the transactions by their age. However, we would need synchronised clocks to do this. Perfect synchronisation or clocks is not possible. Good synchronisation can sometimes be assumed. Next time we will study logical ordering events and possibly deadlock management.
56

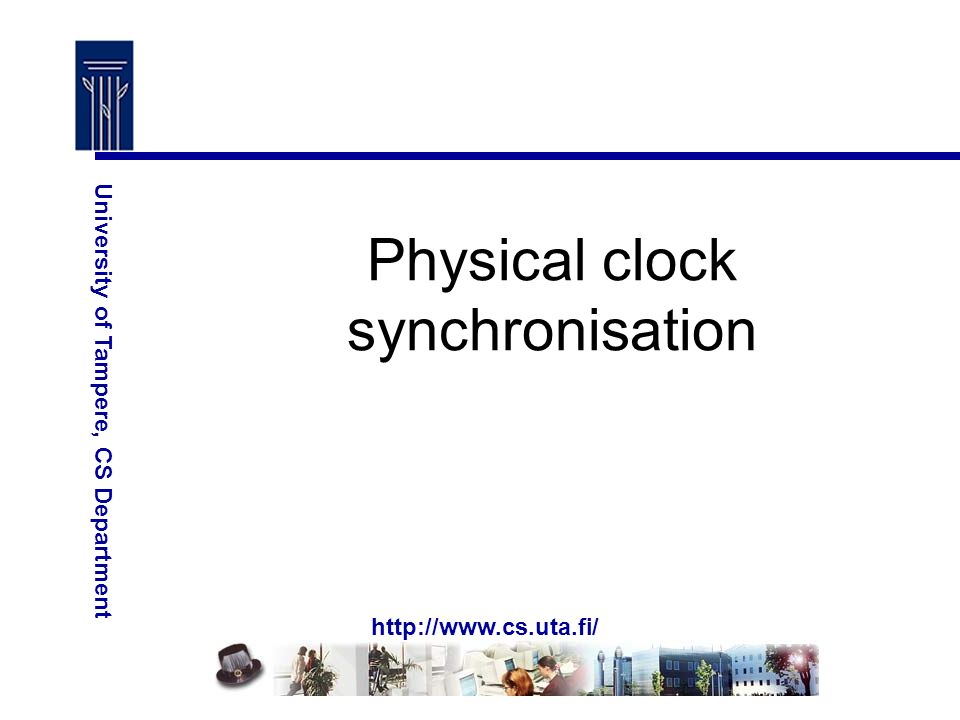

http://www.cs.uta.fi/ University of Tampere, CS Department Physical clock synchronisation
57

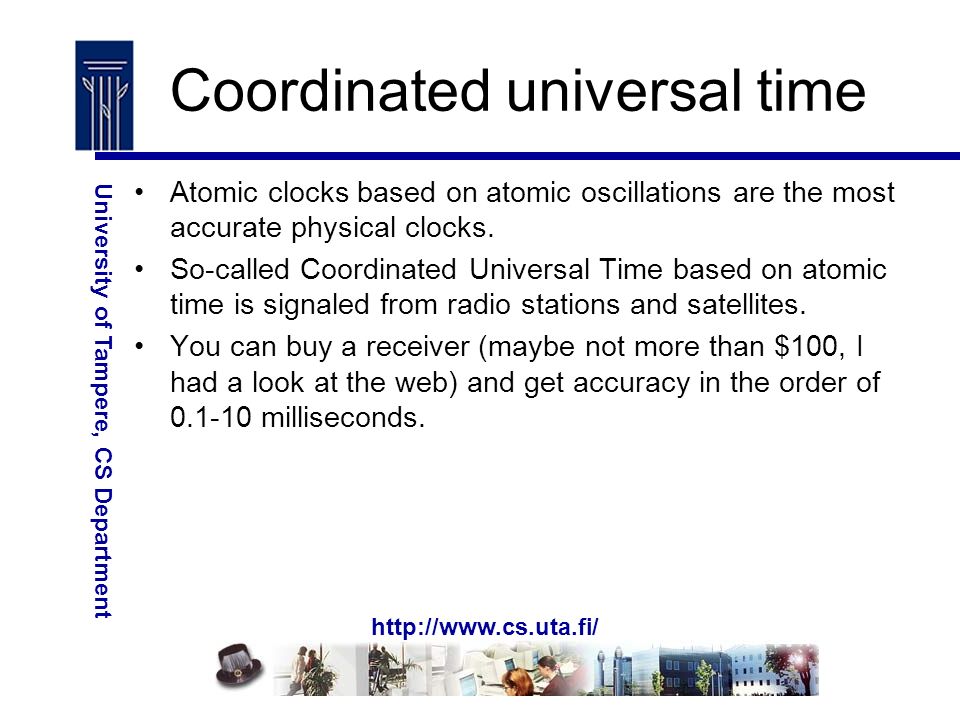

http://www.cs.uta.fi/ University of Tampere, CS Department Coordinated universal time Atomic clocks based on atomic oscillations are the most accurate physical clocks. So-called Coordinated Universal Time based on atomic time is signaled from radio stations and satellites. You can buy a receiver (maybe not more than $100, I had a look at the web) and get accuracy in the order of 0.1-10 milliseconds.
58
http://www.cs.uta.fi/ University of Tampere, CS Department Reasons for and problems in clock synchronisation Different clocks work at different speeds. Therefore, they need to be synchronised at times (continuously). Message delay can not be known, but must be approximated -> perfect synchronisation can not be achieved. Clock skew: difference in simultaneous readings. Clock drift: divergence of clocks because of different clock speeds.
59

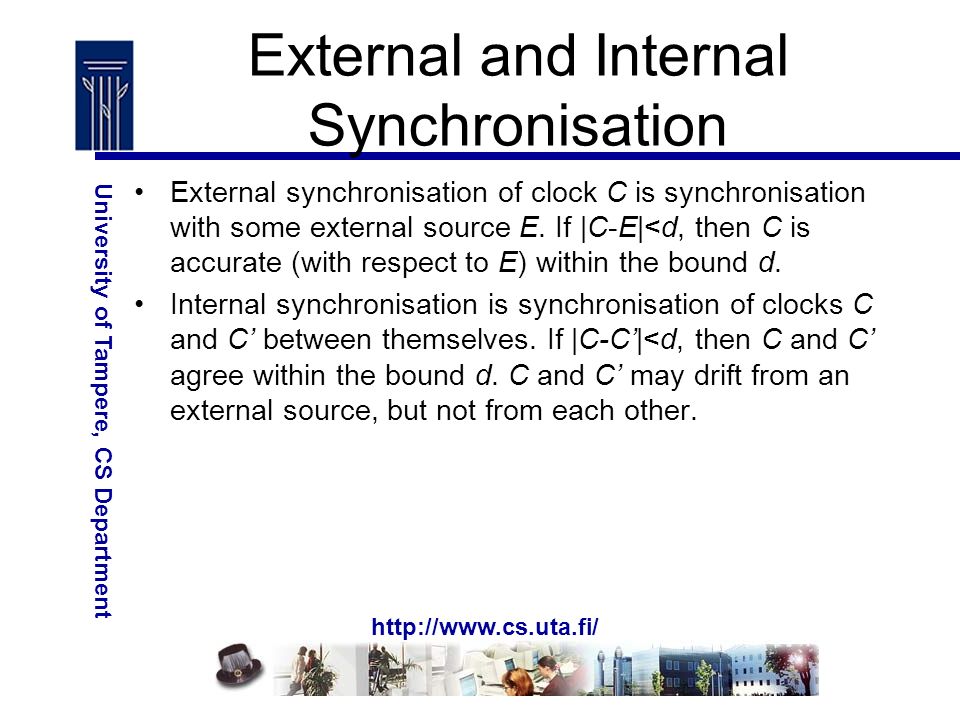

http://www.cs.uta.fi/ University of Tampere, CS Department External and Internal Synchronisation External synchronisation of clock C is synchronisation with some external source E. If |C-E|<d, then C is accurate (with respect to E) within the bound d. Internal synchronisation is synchronisation of clocks C and C’ between themselves. If |C-C’|<d, then C and C’ agree within the bound d. C and C’ may drift from an external source, but not from each other.
60

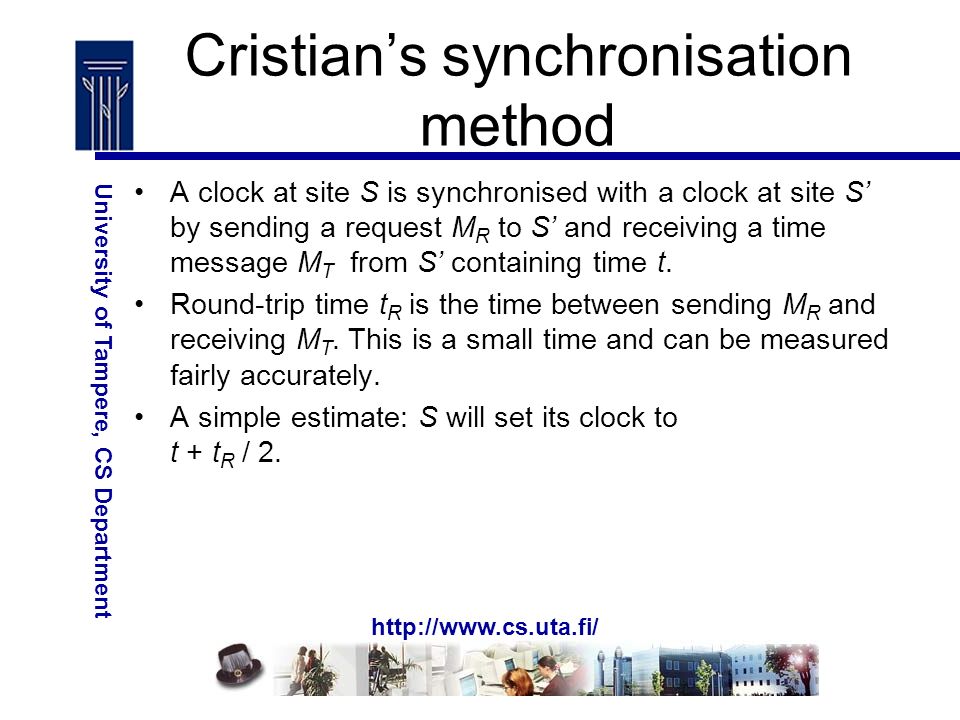

http://www.cs.uta.fi/ University of Tampere, CS Department Cristian’s synchronisation method A clock at site S is synchronised with a clock at site S’ by sending a request M R to S’ and receiving a time message M T from S’ containing time t. Round-trip time t R is the time between sending M R and receiving M T. This is a small time and can be measured fairly accurately. A simple estimate: S will set its clock to t + t R / 2.
61

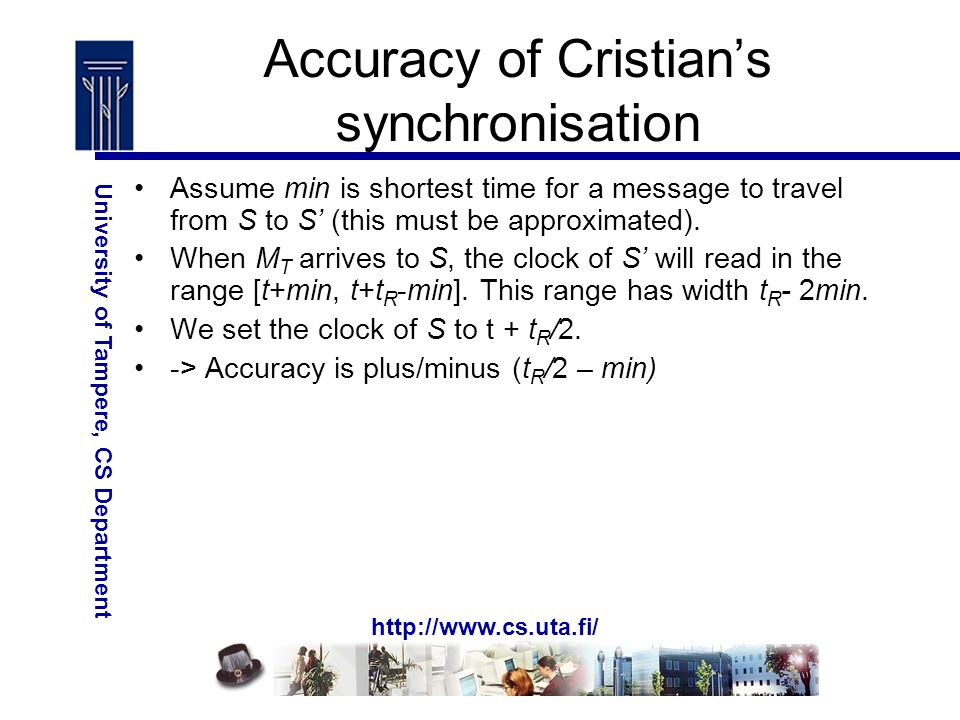

http://www.cs.uta.fi/ University of Tampere, CS Department Accuracy of Cristian’s synchronisation Assume min is shortest time for a message to travel from S to S’ (this must be approximated). When M T arrives to S, the clock of S’ will read in the range [t+min, t+t R -min]. This range has width t R - 2min. We set the clock of S to t + t R /2. -> Accuracy is plus/minus (t R /2 – min)
62

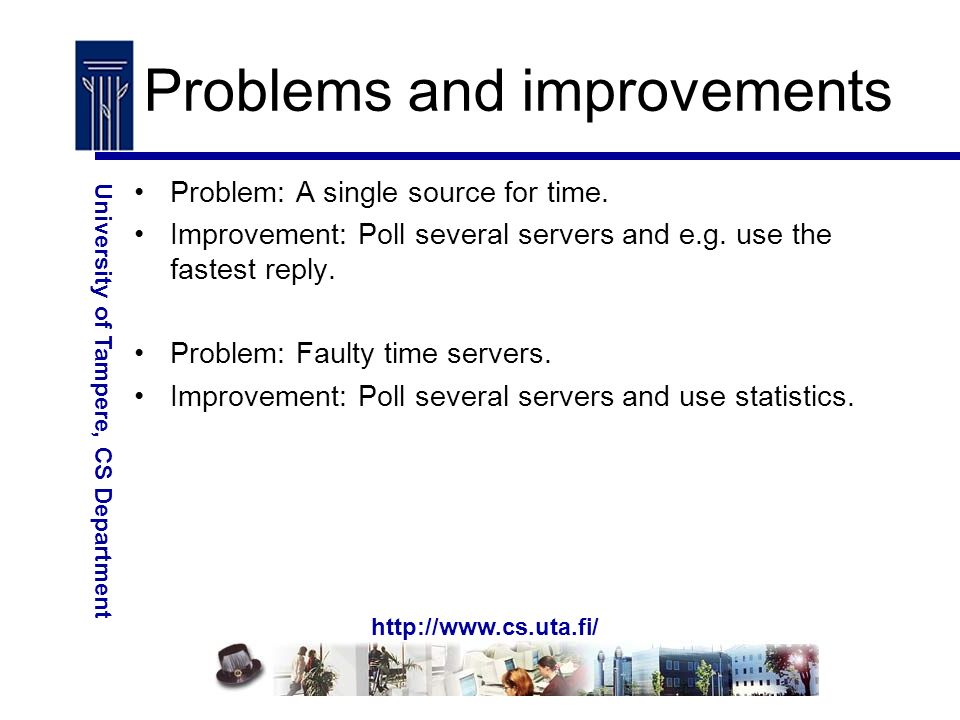

http://www.cs.uta.fi/ University of Tampere, CS Department Problems and improvements Problem: A single source for time. Improvement: Poll several servers and e.g. use the fastest reply. Problem: Faulty time servers. Improvement: Poll several servers and use statistics.
63

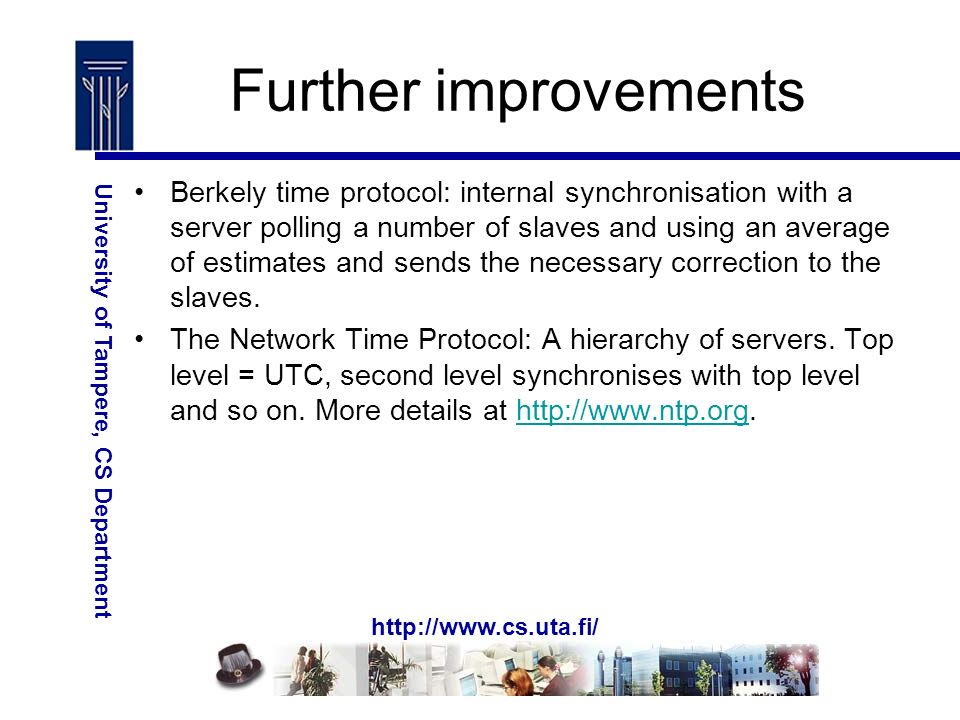

http://www.cs.uta.fi/ University of Tampere, CS Department Further improvements Berkely time protocol: internal synchronisation with a server polling a number of slaves and using an average of estimates and sends the necessary correction to the slaves. The Network Time Protocol: A hierarchy of servers. Top level = UTC, second level synchronises with top level and so on. More details at http://www.ntp.org.http://www.ntp.org
64
http://www.cs.uta.fi/ University of Tampere, CS Department Applications of clocks Clocks are needed in timestamp concurrency control to generate the timestamps! If we are satisfied with clock accuracy (and accept the clock skew) then we can use the physical clock time stamps. If not, then logical ordering of events needs to be used.
65

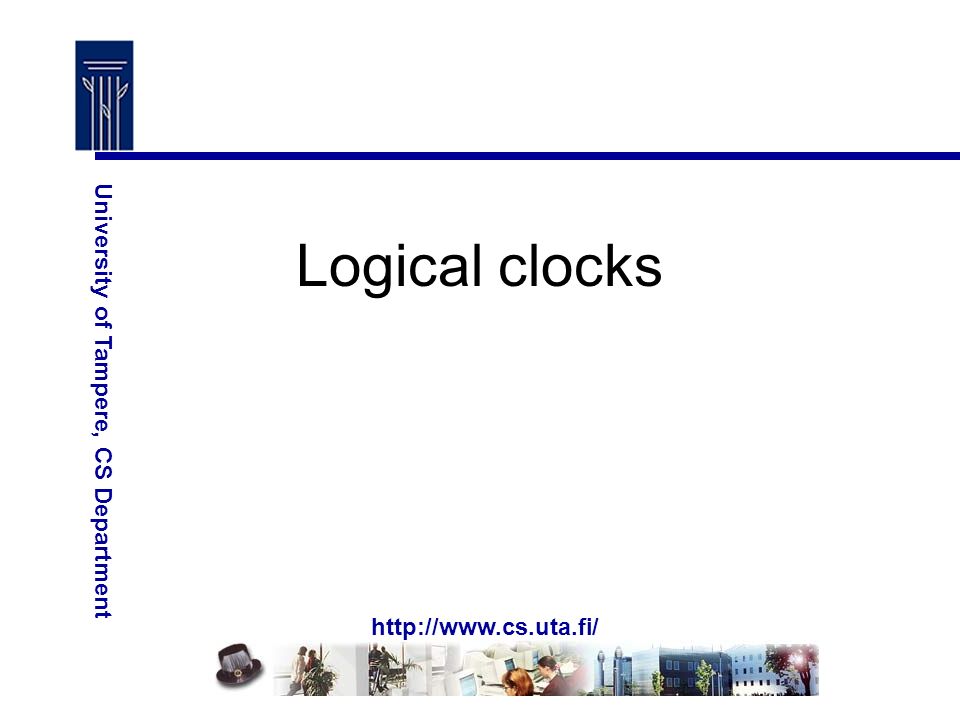

http://www.cs.uta.fi/ University of Tampere, CS Department Logical clocks
66

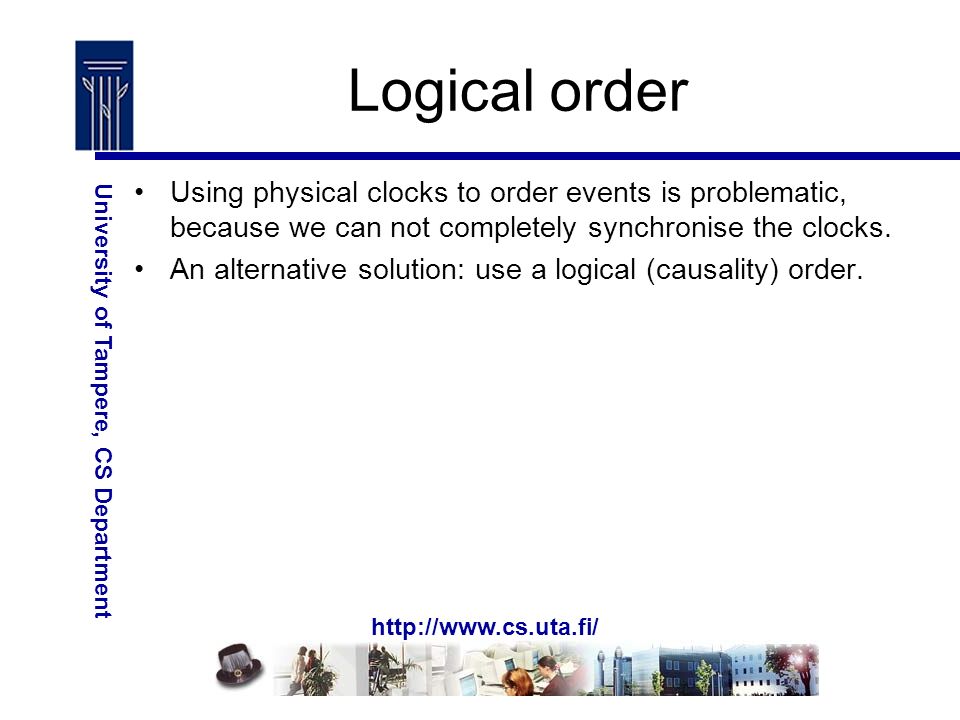

http://www.cs.uta.fi/ University of Tampere, CS Department Logical order Using physical clocks to order events is problematic, because we can not completely synchronise the clocks. An alternative solution: use a logical (causality) order.
67

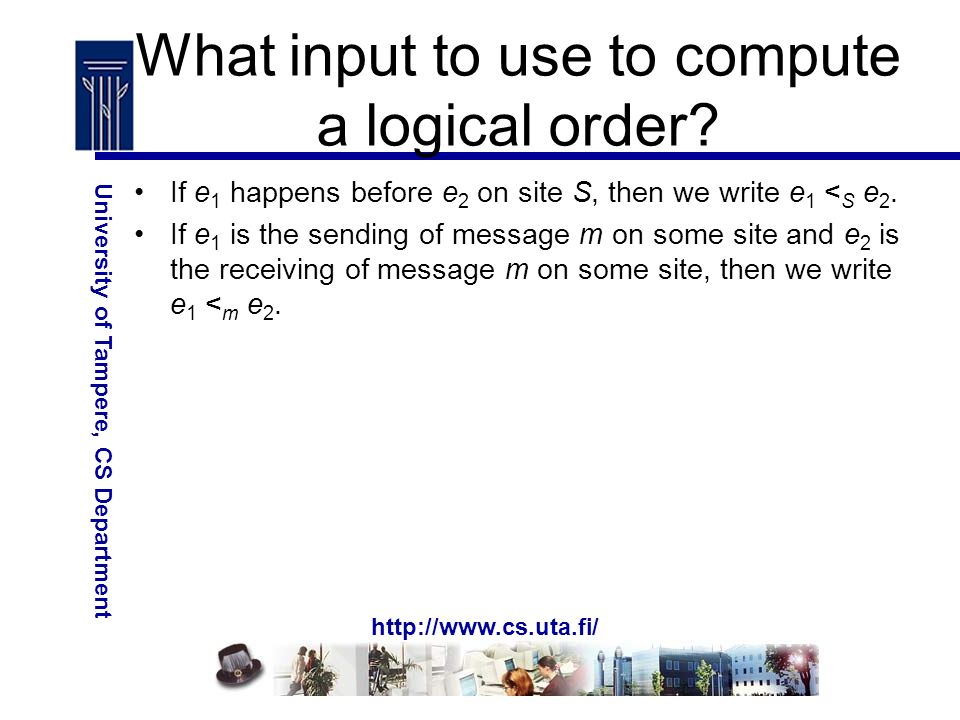

http://www.cs.uta.fi/ University of Tampere, CS Department What input to use to compute a logical order? If e 1 happens before e 2 on site S, then we write e 1 < S e 2. If e 1 is the sending of message m on some site and e 2 is the receiving of message m on some site, then we write e 1 < m e 2.
68

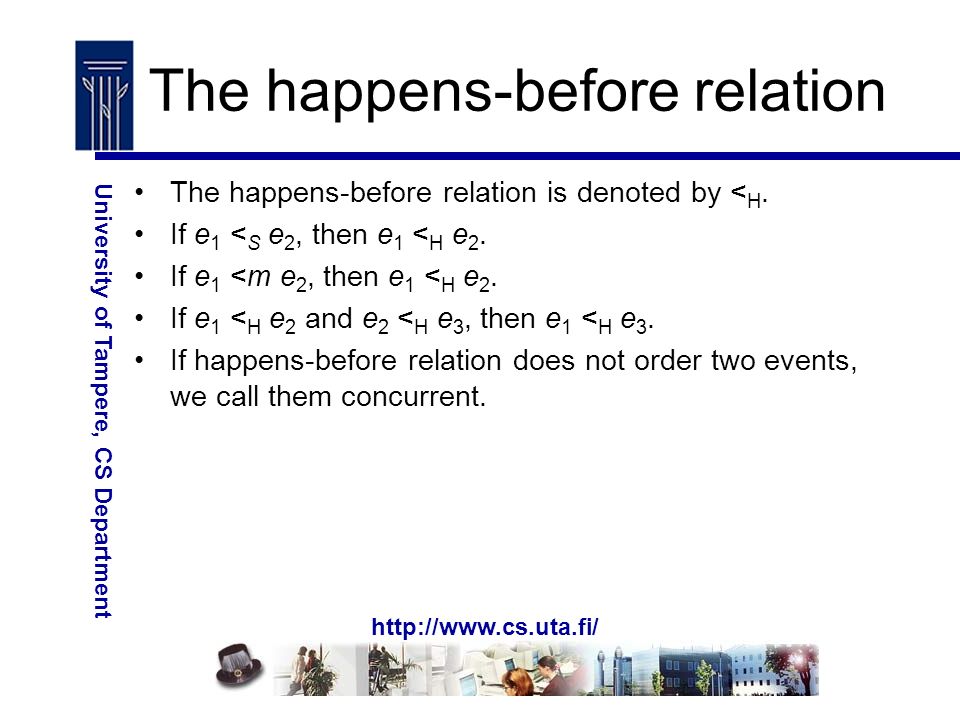

http://www.cs.uta.fi/ University of Tampere, CS Department The happens-before relation The happens-before relation is denoted by < H. If e 1 < S e 2, then e 1 < H e 2. If e 1 <m e 2, then e 1 < H e 2. If e 1 < H e 2 and e 2 < H e 3, then e 1 < H e 3. If happens-before relation does not order two events, we call them concurrent.
69

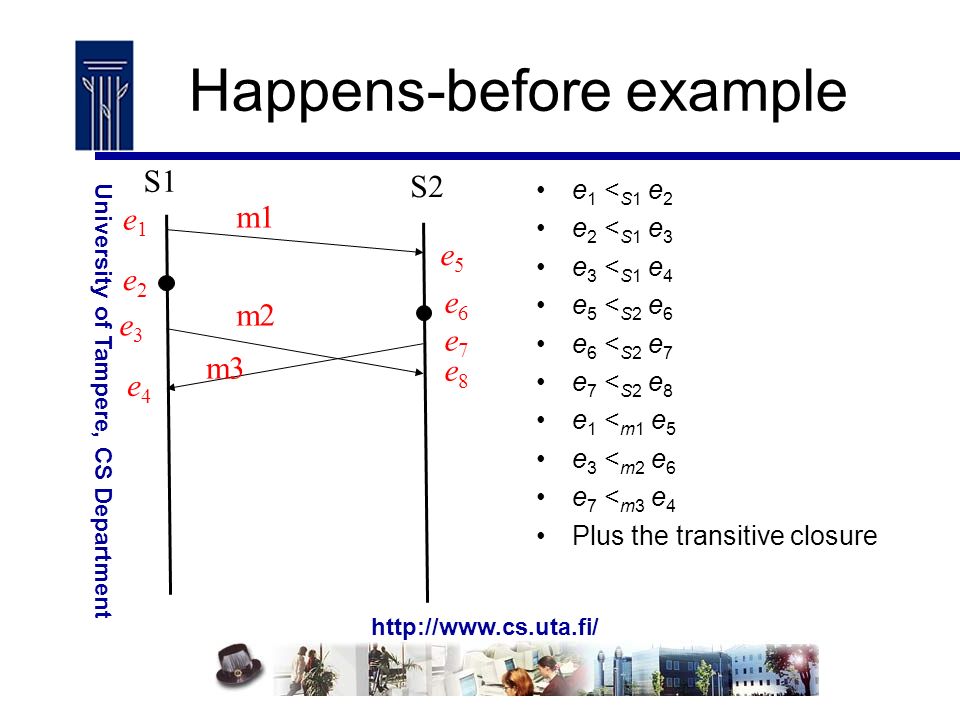

http://www.cs.uta.fi/ University of Tampere, CS Department Happens-before example e 1 < S1 e 2 e 2 < S1 e 3 e 3 < S1 e 4 e 5 < S2 e 6 e 6 < S2 e 7 e 7 < S2 e 8 e 1 < m1 e 5 e 3 < m2 e 6 e 7 < m3 e 4 Plus the transitive closure S1 S2 m1 m3 m2 e1e1 e2e2 e3e3 e4e4 e6e6 e5e5 e7e7 e8e8
70

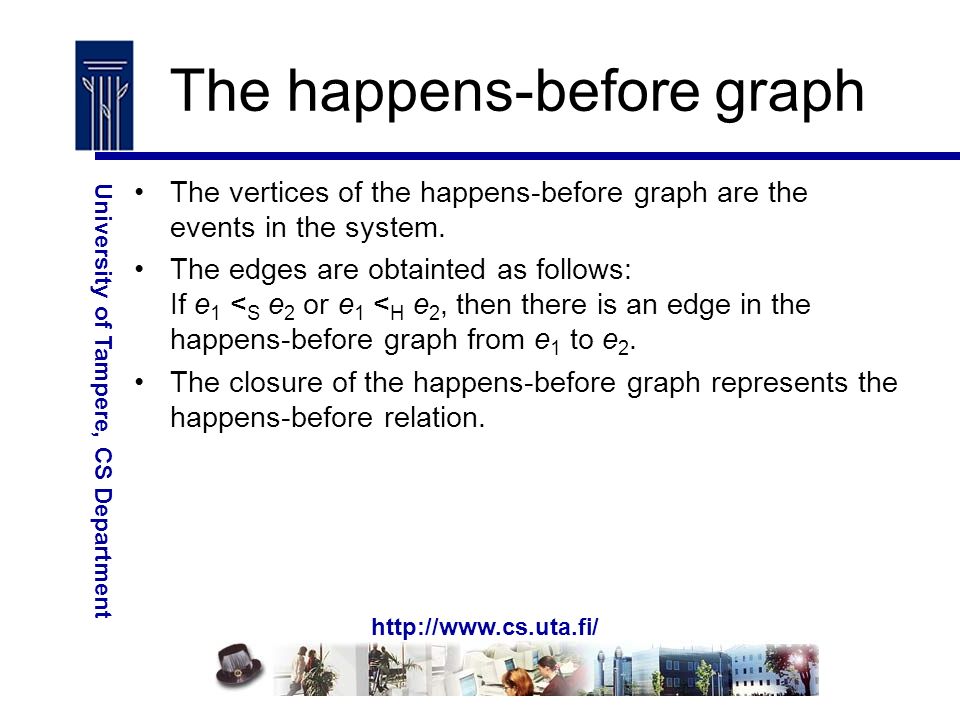

http://www.cs.uta.fi/ University of Tampere, CS Department The happens-before graph The vertices of the happens-before graph are the events in the system. The edges are obtainted as follows: If e 1 < S e 2 or e 1 < H e 2, then there is an edge in the happens-before graph from e 1 to e 2. The closure of the happens-before graph represents the happens-before relation.
71
http://www.cs.uta.fi/ University of Tampere, CS Department Happens-before graph – example The transitive closure represents full information on the logical order e1e1 e2e2 e3e3 e4e4 e6e6 e5e5 e7e7 e8e8 S1 S2 m1 m3 m2 e1e1 e2e2 e3e3 e4e4 e6e6 e5e5 e7e7 e8e8
72

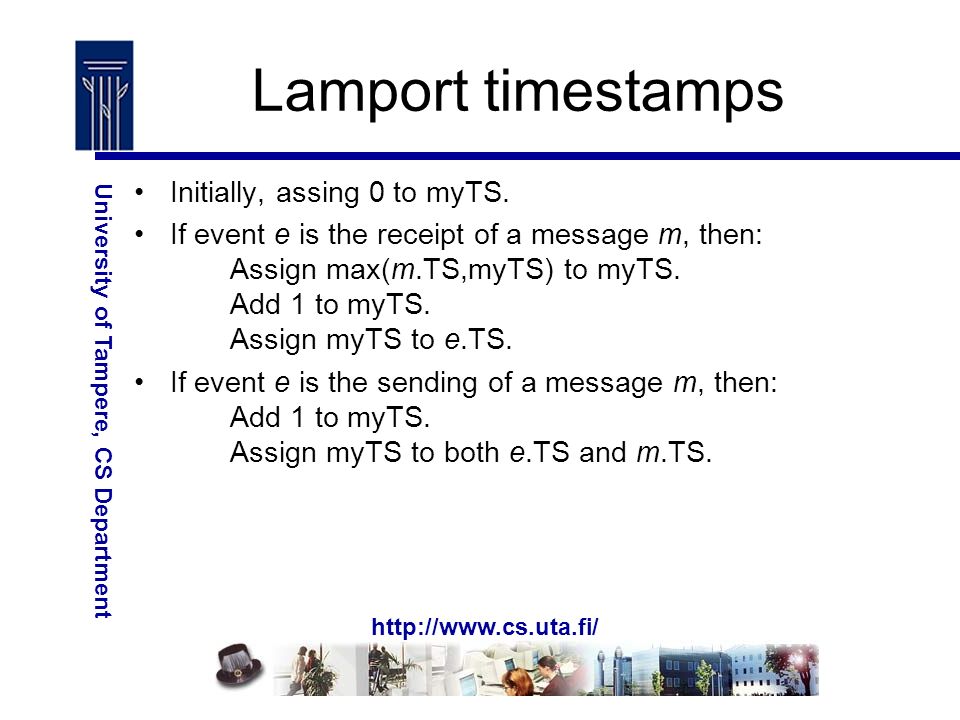

http://www.cs.uta.fi/ University of Tampere, CS Department Lamport timestamps Initially, assing 0 to myTS. If event e is the receipt of a message m, then: Assign max(m.TS,myTS) to myTS. Add 1 to myTS. Assign myTS to e.TS. If event e is the sending of a message m, then: Add 1 to myTS. Assign myTS to both e.TS and m.TS.
73
http://www.cs.uta.fi/ University of Tampere, CS Department Find the logical order of events. TT’ T’’ m1 m3 m2 T’’’ m5 m4 m6 m7 m9 m8
74

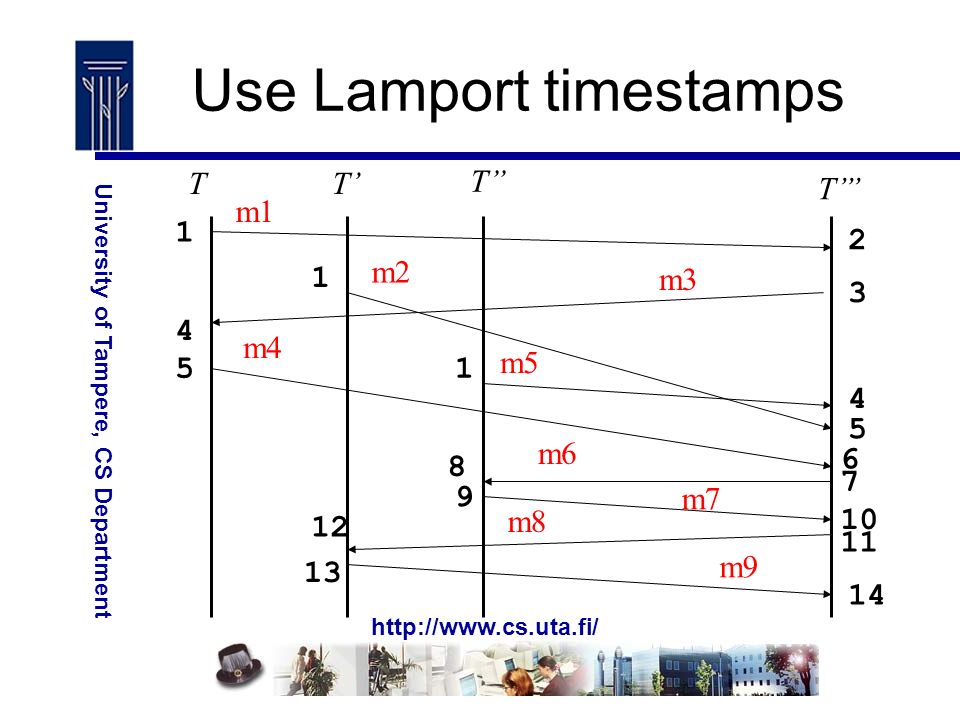

http://www.cs.uta.fi/ University of Tampere, CS Department Use Lamport timestamps TT’ T’’ m1 m3 m2 T’’’ m5 m4 m6 m7 m9 m8 1 1 1 2 4 5 3 4 5 6 7 8 9 10 11 12 13 14
75
http://www.cs.uta.fi/ University of Tampere, CS Department Lamport timestamps - properties Lamport timestamps guarantee that if e< H e', then e.TS < e'.TS - This follows from the definition of happens-before relation by observing the path of events from e to e’. Lamport timestamps do not guarantee that if e.TS < e'.TS, then e < H e' (why?).
76
http://www.cs.uta.fi/ University of Tampere, CS Department Assigning vector timestamps Initially, assign [0,...,0] to myVT. The id of the local site is referred to as ”self”. If event e is the receipt of message m, then: For i=1,...,M, assign max(m.VT[i],myVT[i]) to myVT[i]. Add 1 to myVT[self]. Assign myVT to e.VT. If event e is the sending of m, then: Add 1 to myVT[self]. Assign myVT to both e.VT and m.VT.
77

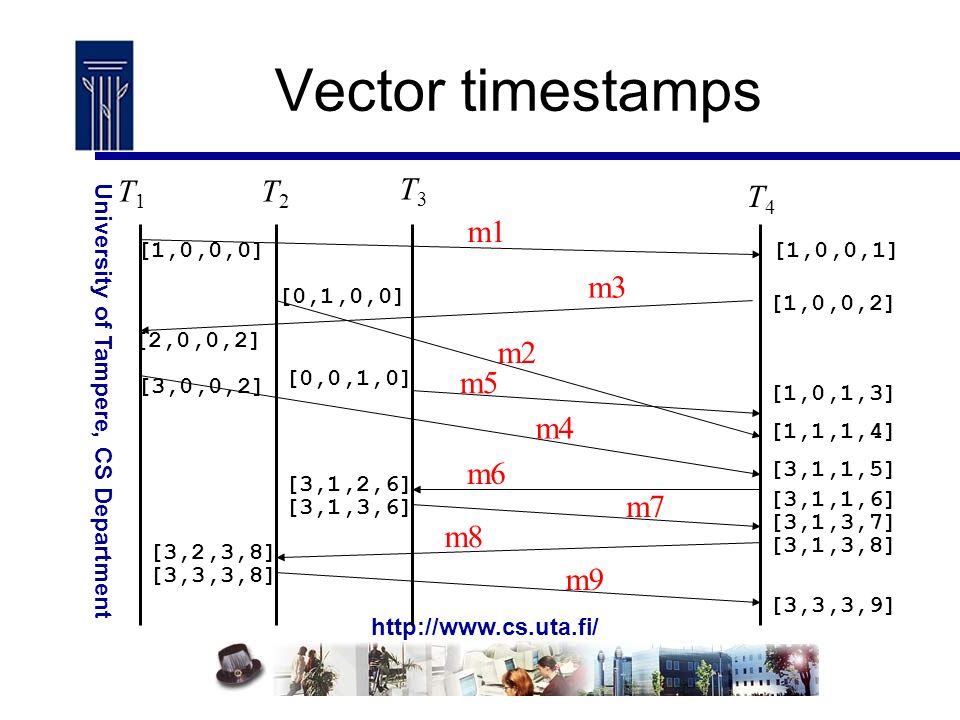

http://www.cs.uta.fi/ University of Tampere, CS Department Vector timestamps T1T1 T2T2 T3T3 m1 m3 m2 T4T4 m5 m4 m6 m7 m9 m8 [1,0,0,0] [0,1,0,0] [1,0,0,1] [1,0,0,2] [2,0,0,2] [3,0,0,2] [0,0,1,0] [1,0,1,3] [1,1,1,4] [3,1,1,5] [3,1,1,6] [3,1,3,7] [3,1,3,8] [3,3,3,9] [3,1,2,6] [3,1,3,6] [3,2,3,8] [3,3,3,8]
78

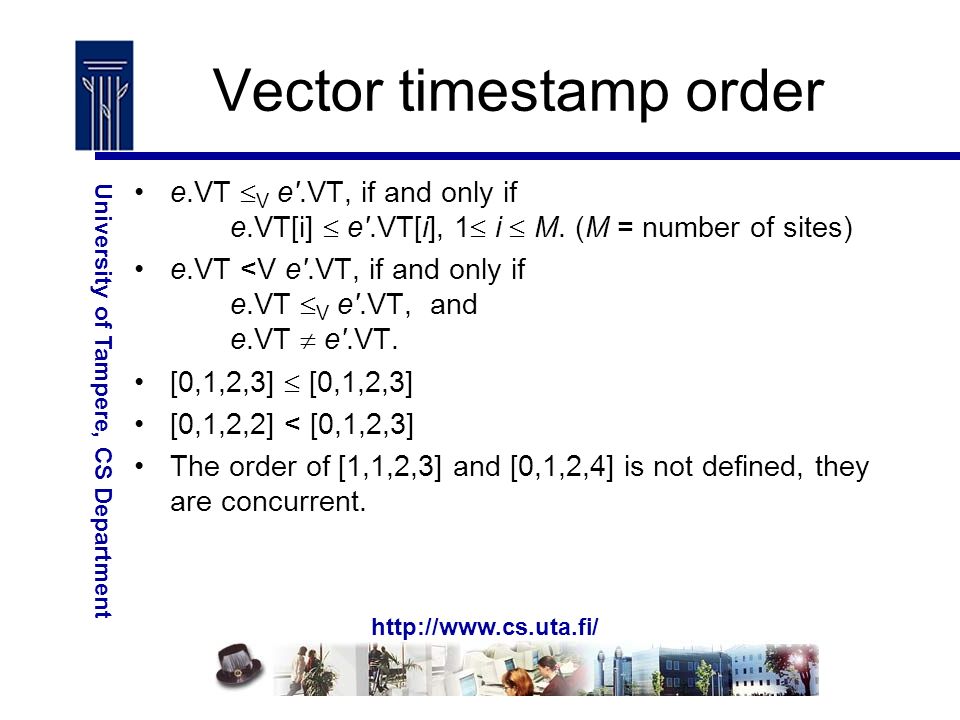

http://www.cs.uta.fi/ University of Tampere, CS Department Vector timestamp order e.VT V e'.VT, if and only if e.VT[i] e'.VT[i], 1 i M. (M = number of sites) e.VT <V e'.VT, if and only if e.VT V e'.VT, and e.VT e'.VT. [0,1,2,3] [0,1,2,3] [0,1,2,2] < [0,1,2,3] The order of [1,1,2,3] and [0,1,2,4] is not defined, they are concurrent.
79

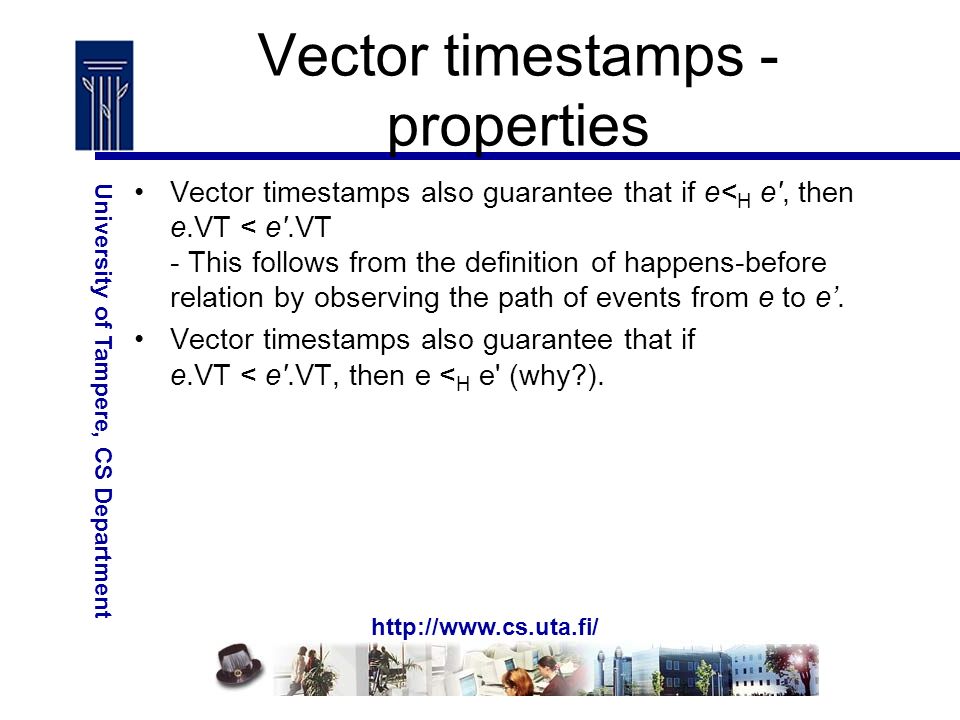

http://www.cs.uta.fi/ University of Tampere, CS Department Vector timestamps - properties Vector timestamps also guarantee that if e< H e', then e.VT < e'.VT - This follows from the definition of happens-before relation by observing the path of events from e to e’. Vector timestamps also guarantee that if e.VT < e'.VT, then e < H e' (why?).
