1. 1 MySQL Using Databases with PHP or Perl Scripts:

2. Objectives Advantages of using databases to store Web data How to prepare a MySQL database for use with Perl How to store, retrieve, and update data in a MySQL database

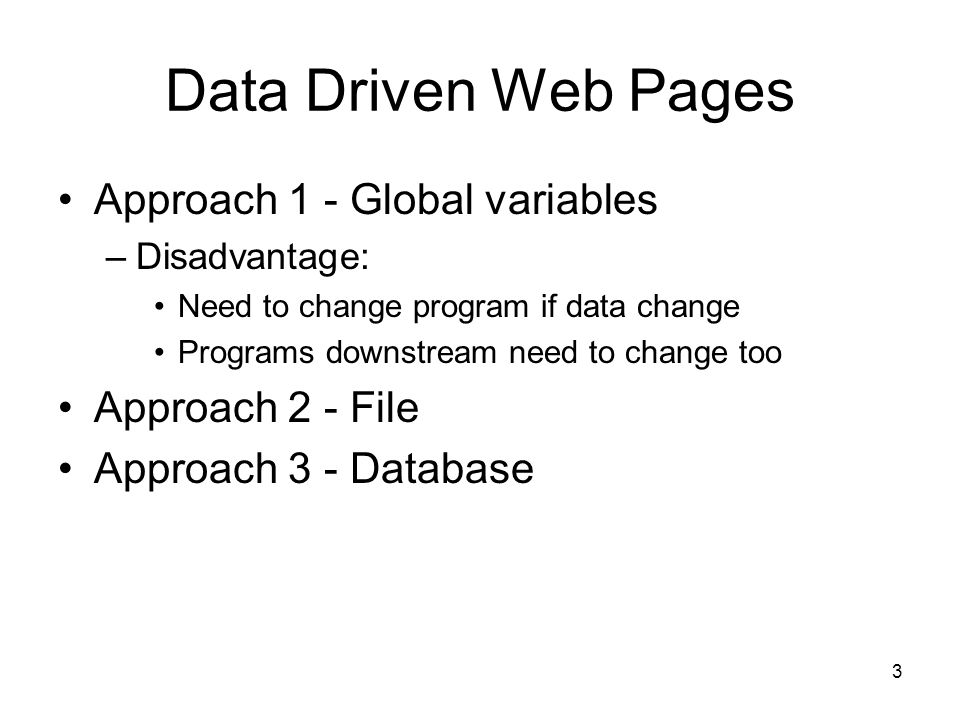

3. 3 Data Driven Web Pages Approach 1 - Global variables –Disadvantage: Need to change program if data change Programs downstream need to change too Approach 2 - File Approach 3 - Database

4. 4 To store data between executions of scripts: You may use files: –store customer data Login and password –store page hit counts –remember end-user preferences –store product inventory –Consumer survey Simple data structure

5. 5 What is a database? A set of data organized into one or more computer files. Text file: A type of database –Using files for product inventory –A file, password.txt, to keep passwords Generally the term is reserved for more formal database systems like Access, Oracle or MySQL.

6. 6 Advantages of Scripts Accessing Databases Over Scripts Using Files Faster access –DB performs the search (random access) vs. Sequential search - a line at a time in file Better concurrent access Easier changes to data and scripts –Need not know data file format Increased security –Perl scripts using files require access permissions set for all –DB uses separate ID and password to access WHH

7. 7 Comparison: file vs Database FileDatabase AccesssequentialRandom Acc ContentsLong stringKeys, values MethodParseSQL Update fieldcumbersomesimple Suitable 1:Small filesLarge files Suitable 2:Simple dataComplex data Suitable 3:Few dataMany data

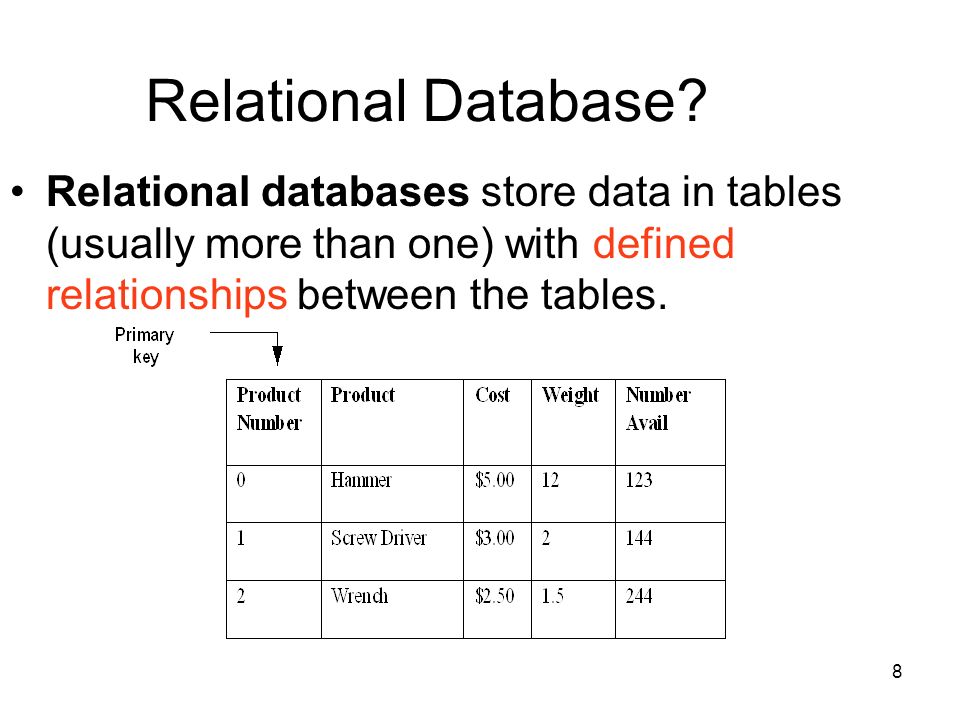

8. 8 Relational Database? Relational databases store data in tables (usually more than one) with defined relationships between the tables.

9. 9 Relational Database Model Database: collection of tables Table: collection of similar records Record: collection of values: Faculty table LastNameFirstNameBdgRoom BriscoeGarryHS218 FurcyDavidHS220 GeorgievGeorgeHS217 HuenWingHS221 NapsThomasHS216 YackelJonathanHS229

10. 10 Relationship in Sample Database Courses NumInstructorTimeBdgRoom 221 Georgiev 9:10HS237 221Yackel12:40HS212 221Yackel1:50HS212 243Perrie9:10HS208 300Naps11:30C243 321Huen8:00HS456 346Huen10:20HS367 262Naps11:30C44 431Perrie1:50HS367 LastnameFirstnameBdgRoom BriscoeGarryHS218 GeorgievGeorgeHS217 HuenWingHS215 NapsThomasHS216 PerrieAndrewHS221 YackelJonathanHS220 Faculty

11. 11 Structured Query Language (SQL) Language for extracting/modifying data Every table has a name Every field/column has a name SHOW tables; SELECT * FROM Faculty;

12. 12 SQL Select Statement Queries a database (read-only access) Returns a set of records What are first names of faculty? SELECT Firstname FROM Faculty; What classrooms are courses in? SELECT Num, Bdg, Room FROM Courses;

13. 13 where clause: focus the query When does comp sci 310 meet? SELECT Time FROM Courses WHERE Num = 310; What is Huen's teaching schedule? SELECT Num, Time FROM Courses WHERE Instructor = ‘Huen‘;

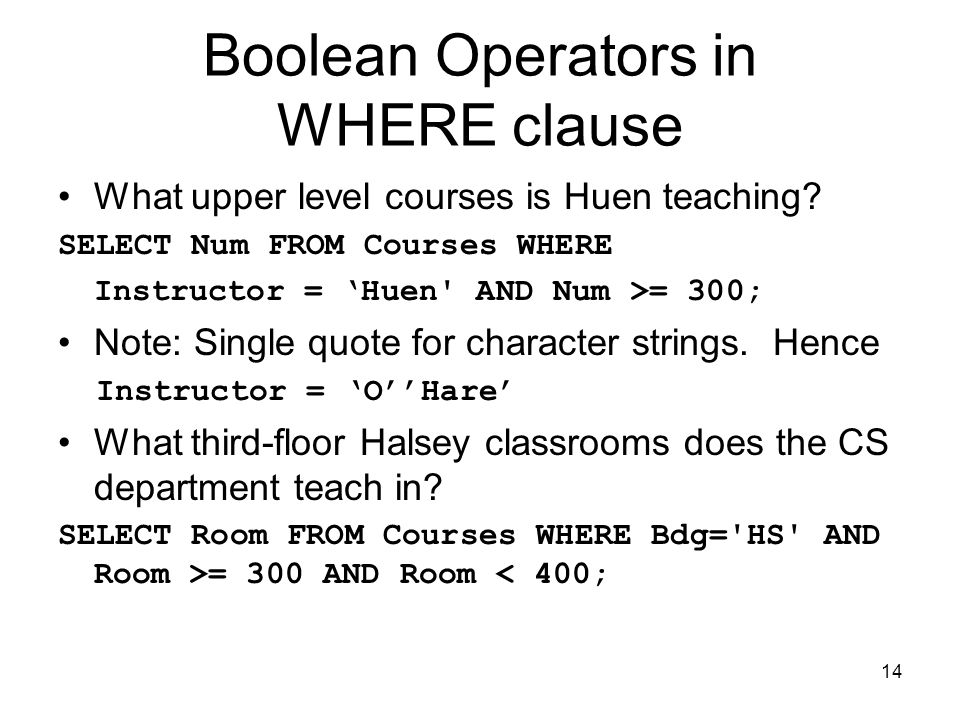

14. 14 Boolean Operators in WHERE clause What upper level courses is Huen teaching? SELECT Num FROM Courses WHERE Instructor = ‘Huen' AND Num >= 300; Note: Single quote for character strings. Hence Instructor = ‘O’’Hare’ What third-floor Halsey classrooms does the CS department teach in? SELECT Room FROM Courses WHERE Bdg='HS' AND Room >= 300 AND Room < 400;

15. 15 Queries over Multiple Tables If two tables appear in FROM clause, DBMS generates cartesian product Use WHERE clause to " join " tables What are instructors’ first names for each course? SELECT Num, Firstname FROM Courses, Faculty WHERE Courses.Instructor = Faculty.Lastname

16. 16 Duplicate Records Do not remove duplicates (default) SELECT ALL Instructor FROM Courses; SELECT Instructor FROM Courses; Explicitly remove duplicates SELECT DISTINCT Instructor FROM Courses;

17. 17 Tuple Variables Who shares classrooms with Huen? Need to use the courses table twice. SELECT DISTINCT Instructor FROM Courses, Courses WHERE Bdg = Bdg AND Room = Room AND Instructor = ‘Huen’; Help, I'm confused! (…and so is the DBMS)

18. 18 Tuple Variables We must differentiate between two uses of the same table SELECT DISTINCT x.instructor FROM Courses x, Courses y WHERE x.Bdg = y.Bdg AND x.Room = y.Room AND y.Instructor = ‘Huen’;

19. 19 Counting Count the number of courses SELECT COUNT(*) FROM Courses Count the number of courses in Halsey SELECT COUNT(*) FROM Courses WHERE Bdg = ‘HS’; Count the number of rooms used SELECT COUNT(DISTINCT Room) FROM Courses;

20. 20 GROUP BY Criteria for grouping records How many times is each room used? SELECT Room, COUNT(*) FROM Courses GROUP BY Room; How many courses is each room used for? SELECT Room, COUNT( DISTINCT Num) FROM Courses GROUP BY Room;

21. 21 ORDER BY Criteria for ordering (sorting) records Get the faculty members in descending order of last name SELECT LastName, FirstName FROM Faculty ORDER BY LastName DESC; Multiple fields can be sorted too SELECT LastName, FirstName FROM Faculty ORDER BY LastName, FirstName;

22. 22 Other Aggregate Functions MAX MIN SUM All used similar to COUNT What is the lowest numbered course? SELECT MIN(Num) FROM Courses;

23. 23 Create a table CREATE TABLE Faculty( Lastname VARCHAR(10) NOT NULL PRIMARY KEY, Firstname VARCHAR(12), Bdg VARCHAR(10), room INT );

24. 24 Insert a row INSERT INTO Faculty VALUES (‘Huen’, ‘Wing’, ‘HS’, 221); Better practice: More verbose and specific to avoid data mismatch INSERT INTO Faculty (FirstName, LastName, Bdg, Room) VALUES (‘Wing’, ‘Huen’, ‘HS’, 221);

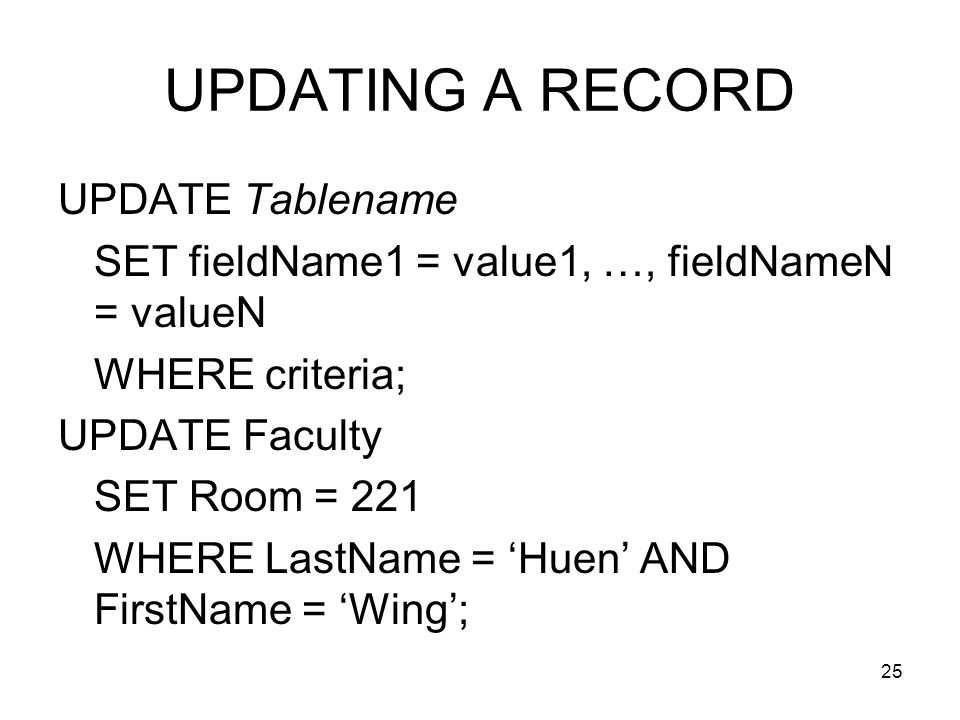

25. 25 UPDATING A RECORD UPDATE Tablename SET fieldName1 = value1, …, fieldNameN = valueN WHERE criteria; UPDATE Faculty SET Room = 221 WHERE LastName = ‘Huen’ AND FirstName = ‘Wing’;

26. 26 DELETE FROM statement DELETE FROM TableName WHERE criteria DELETE FROM Faculty WHERE LastName = ‘Wing’ AND FirstName = ‘Huen’

27. PHP PHP DB functions 27

28. 1. From MySQL Console 28 Enter password: Welcome to the MySQL monitor. Commands end with ; or \g. Your MySQL connection id is 6 Server version: 5.1.36-community-log MySQL Community Server (GPL) Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. mysql>

29. 1. PHP to connect to MySQL MySQL must be running Need username and password –username = "cs346“ –password = "cs346_password“ SYNTAX: mysql_connect(“host", “username", “password") mysql_connect("localhost", "cs346", "cs346_password") 29

30. 30 <?php $connection = mysql_connect("localhost", "cs346", "cs346_password") or die(mysql_error()); if ($connection) { $msg = "Connection to MySQL successful!"; } ?> MySQL Connection

31. Successful connection 31

32. Username or password does not match 32

33. 2. List DB- From MySQL Console 33 mysql> show databases; +--------------------+ | Database | +--------------------+ | information_schema | | books | | cs346 | | mailinglist | | mysql | | products | +--------------------+ 6 rows in set (0.02 sec) mysql>

34. 2. PHP listing databases 34

35. Some useful functions mysql_list_dbs() - used to list the databases on a MySQL server mysql_num_rows() - returns the number of rows in a result set mysql_tablename() - Though the name implies tablename only, it extracts names of tables, or databases from a result set 35

36. 36 <?php $connection = @mysql_connect("localhost", "cs346", "cs346_password") or die(mysql_error()); $dbs = @mysql_list_dbs($connection)or die(mysql_error()); $db_list =" "; $i =0; while ($i < mysql_num_rows($dbs)){ $db_names[$i] = mysql_tablename($dbs,$i); /* mysql_tablename(list_as_table, row_index) */ $db_list.= " $db_names[$i] "; // concatentation $i++; } $db_list.=" "; ?>

37. 37 MySQL Databases Databases on localhost :

38. 3. Show tables - from MySQL Console 38 mysql> use books; Database changed mysql> show tables; +-----------------+ | Tables_in_books | +-----------------+ | authorisbn | | authors | | titles | +-----------------+ 3 rows in set (0.13 sec)

39. 39 mysql> use cs346; Database changed mysql> show tables; +-----------------+ | Tables_in_cs346 | +-----------------+ | movies | +-----------------+ 1 row in set (0.28 sec) mysql>

40. 3. List tables - PHP MySQL Console: –use ; –Show tables; –One DB at a time PHP: –mysql_list_tables function –Use nested while loops –See 11-2db_listtables.php 40

41. 41

42. 42

43. 43

44. 4. Create database – from MySQL Console 44 mysql> create database testDB; Query OK, 1 row affected (0.19 sec) mysql> show databases; +--------------------+ | Database | +--------------------+ | information_schema | | books | | cs346 | | mailinglist | | mysql | | products | | testdb | +--------------------+ 7 rows in set (0.01 sec) mysql>

45. 5. Drop database – from MySQL console 45 mysql> drop database testdb; Query OK, 0 rows affected (0.27 sec) mysql> show databases; +--------------------+ | Database | +--------------------+ | information_schema | | books | | cs346 | | mailinglist | | mysql | | products | +--------------------+ 6 rows in set (0.00 sec) mysql>

46. 4. PHP to create DB $sql_string = “create database testDB2”; $connection = @mysql_connect("localhost",“username", “password") or die(mysql_error()); mysql_query($sql_string,$connection) or die(mysql_error()); 46

47. What happened? 47

48. Perhaps cs346 has no permission to create 48 mysql> select user, select_priv, insert_priv, create_priv from user; +-------+-------------+-------------+-------------+ | user | select_priv | insert_priv | create_priv | +-------+-------------+-------------+-------------+ | root | Y | Y | Y | | huen | Y | Y | Y | | cs346 | Y | Y | N | +-------+-------------+-------------+-------------+ 4 rows in set (0.00 sec)

49. Admin needs to grant permissions 49 mysql> GRANT CREATE on *.* TO 'cs346'@localhost; Query OK, 0 rows affected (0.00 sec) mysql> select user, select_priv, insert_priv, create_priv from user; +-------+-------------+-------------+-------------+ | user | select_priv | insert_priv | create_priv | +-------+-------------+-------------+-------------+ | root | Y | Y | Y | | huen | Y | Y | Y | | cs346 | Y | Y | Y | +-------+-------------+-------------+-------------+ 4 rows in set (0.00 sec) mysql>

50. Now test again 50

51. Run 11-2db_listdb.php 51

52. 5. PHP to drop DB $sql_string = “drop database testDB2”; $connection = @mysql_connect("localhost",“username", “password") or die(mysql_error()); mysql_query($sql_string,$connection) or die(mysql_error()); 52

53. Run 11-5db_dropdb.php 53

54. Admin to grant cs346 limited drop permissions 54 mysql> GRANT DROP ON testdb2.* TO 'cs346'@localhost; Query OK, 0 rows affected (0.08 sec) mysql> select user, drop_priv from user; +-------+-----------+ | user | drop_priv | +-------+-----------+ | root | Y | | huen | Y | | cs346 | N | +-------+-----------+ 4 rows in set (0.00 sec) Note still drop_priv == N

55. Run 11-5db_dropdb.php again 55

56. Run 11-2db_listdb.php 56

57. Create tables And insert values 57

58. First create a DB with db_createdb.php 58

59. List DB 59

60. From Admin Create table my_music –Specify the fields and type Insert values into the table –Either interactively or –By batch – use source command 60

61. Use PHP 12-1show_createtable.html – form to enter –table name –number of attributes –Call PHP script to show field definitions 12-1do_showfielddef.php - form to enter –Field name –Field type –Field length 12-1do_createtable.php 61

62. 12-1show_createtable.html 62

63. 12-1do_showfielddef.php 63

64. On clicking the submit 64

65. Confirm table my_music in 2 ways From Admin –Show databases; –Use testdb1; –Show tables; –Describe my_music From PHP: –11-3db_listtables.php –Use mysql_query($sql,$connection) where $sql = ‘describe my_music’ 65

66. 66 mysql> use testdb1; Database changed mysql> show tables; +-------------------+ | Tables_in_testdb1 | +-------------------+ | my_music | +-------------------+ 1 row in set (0.00 sec) mysql> describe my_music;

67. 67 mysql> describe my_music; +-----------+--------------+------+-----+---------+-------+ | Field | Type | Null | Key | Default | Extra | +-----------+--------------+------+-----+---------+-------+ | id | int(5) | YES | | NULL | | | format | char(2) | YES | | NULL | | | title | varchar(150) | YES | | NULL | | | artist_fn | varchar(100) | YES | | NULL | | | artist_ln | varchar(100) | YES | | NULL | | | rec_label | varchar(50) | YES | | NULL | | | my_notes | text | YES | | NULL | | | date_acq | date | YES | | NULL | | +-----------+--------------+------+-----+---------+-------+ 8 rows in set (0.00 sec) mysql>

68. 68

69. Insert values Locally (Admin) and remotely (PHP) 69

70. PHP to add record 13-1show_addrecord.html –Use a form to enter the field values –Submit the info to a PHP script 13-1do_addrecord.php 70

71. 71

72. 72

73. 73

74. 74

75. Check From MySQL Console mysql> select id, title, date_acq from my_music; +------+-----------------------------------+------------+ | id | title | date_acq | +------+-----------------------------------+------------+ | 1 | Pomp and Circumstance March No. 1 | 2005-06-19 | | 2 | The Four Seasons: Vivaldi | 2006-07-20 | +------+-----------------------------------+------------+ 2 rows in set (0.00 sec) mysql> PHP script: –mysql_query($sql,$connection)or die(mysql_error()); 75

76. Displaying Data in DB --- really it is via Select query 76

77. Display Info in DB Html for selecting by id, artist, date, etc. Different PHP scripts to send query 77

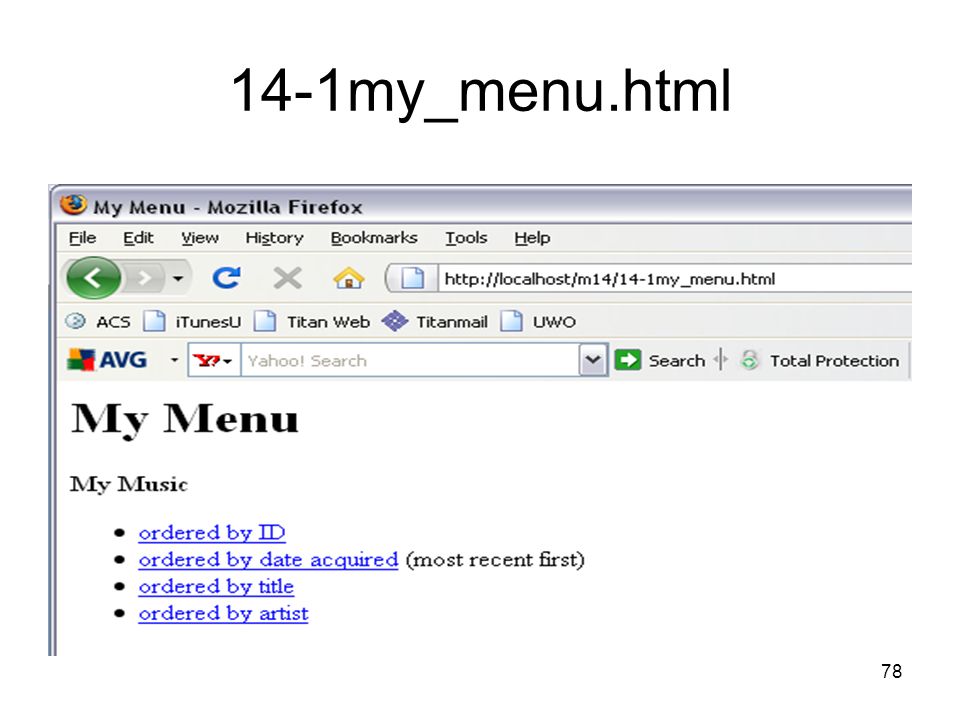

78. 14-1my_menu.html 78

79. Ordered by ID 79

80. Ordered by Date Acquired 80

81. Ordered by Title 81

82. Ordered by Artist 82

83. Perl Perl DB functions 83

84. 84 Some DB entry aid db_accessU.cgi, interactive GUI –One SQL statement at a time Create a script to enter multiple SQL statements in a batch My @sql = ( ‘DROP TABLE ingredient;’ ‘CREATE TABLE ingredient ( id VARCHAR(32) NOT NULL PRIMARY KEY, amt INTEGER UNSIGNED);’ “INSERT INTO ingredient VALUES(‘flour’,1);” )

85. 85 Connect, query, disconnect Both db_accessU.cgi and a batch script need to –‘Connect’ to a database by logging in with username and password –‘prepare’ a query –‘execute’ the query –‘fetch a row’ from the specified table –‘disconnect’ from the database

86. 86 Perl Database Interface DBI Use DBI –Object-oriented interface Driver Handle –Encapsulates the driver for the database Database handle –Encapsulates a specific connection to a database; can send SQL statements to a database Statement handle –Encapsulates specific SQL statements and the results returned from them

87. 87 Connection to DB use DBI;# load DBI.pm use DBD::mysql;# Load the DB Driver If( $db_handle = DBI -> connect (“DBI:mysql:$dbName:$opt_host”, “username”, “password”) ) { # print success

88. 88 prepare and execute query # prepare the query if( $stmt_handle = $db_handle -> prepare($sqlstmt) ) print ‘Success’; # execute the query if( $stmt_handle -> execute()) print “Success”;

89. 89 Fetch a row from table While ( @row = $stmt_handle -> fetchrow_array()) {# process the row }

90. 90 Disconnect from DB $db_handle -> disconnect();
