1. Lauren Casulli

2. Which boat hull is the most efficient at different water speeds?

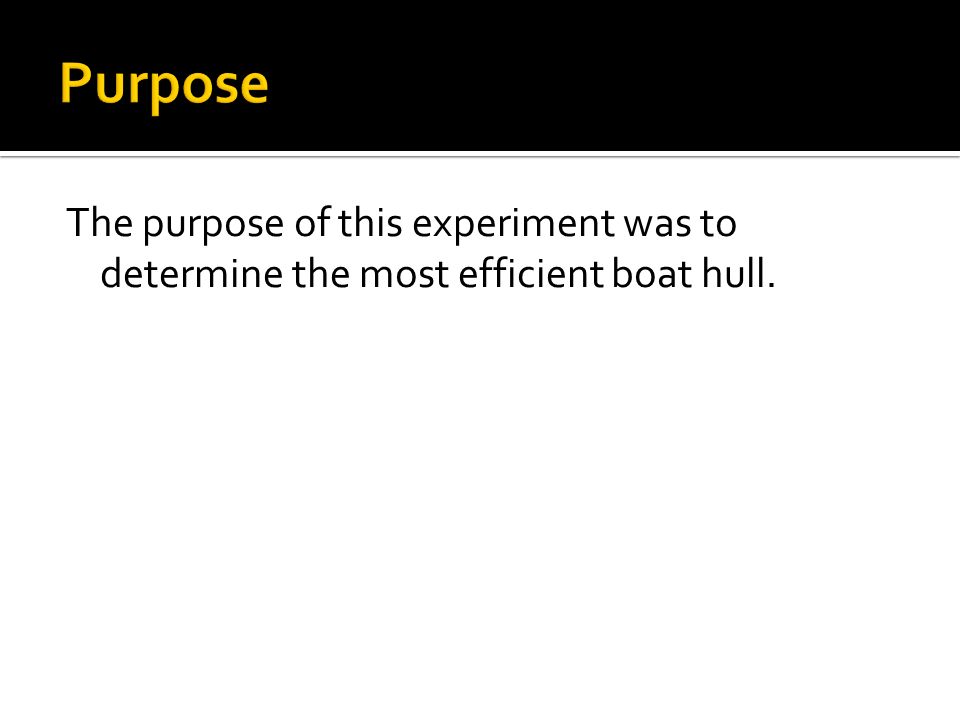

3. The purpose of this experiment was to determine the most efficient boat hull.

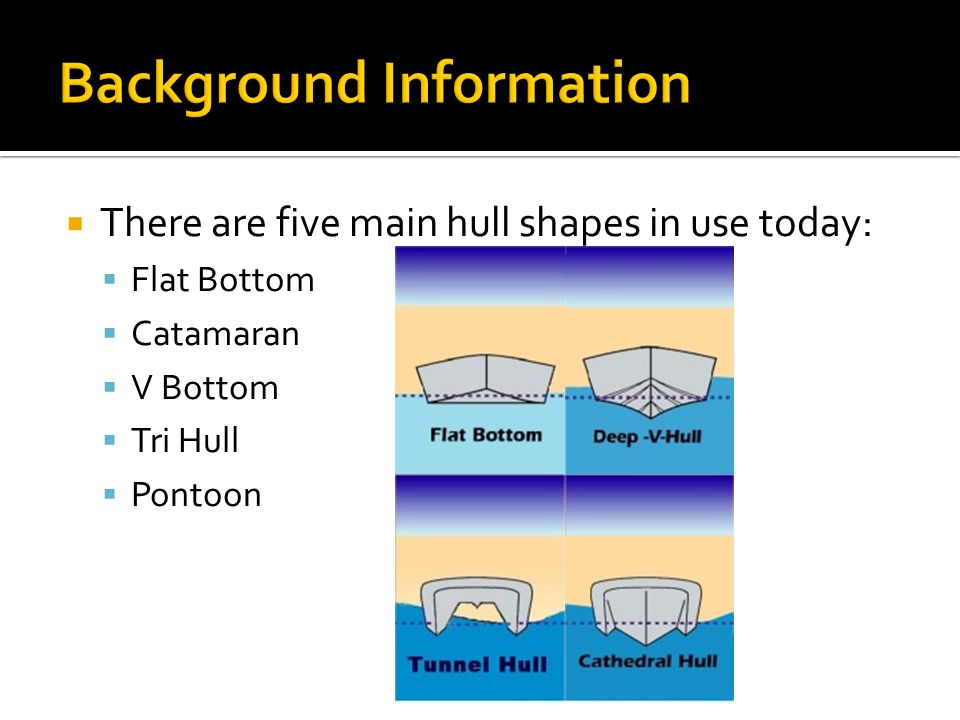

4.  There are five main hull shapes in use today:  Flat Bottom  Catamaran  V Bottom  Tri Hull  Pontoon

5. The most efficient boat hull at any speed is the tri-hull because the air tunnels reduce drag.

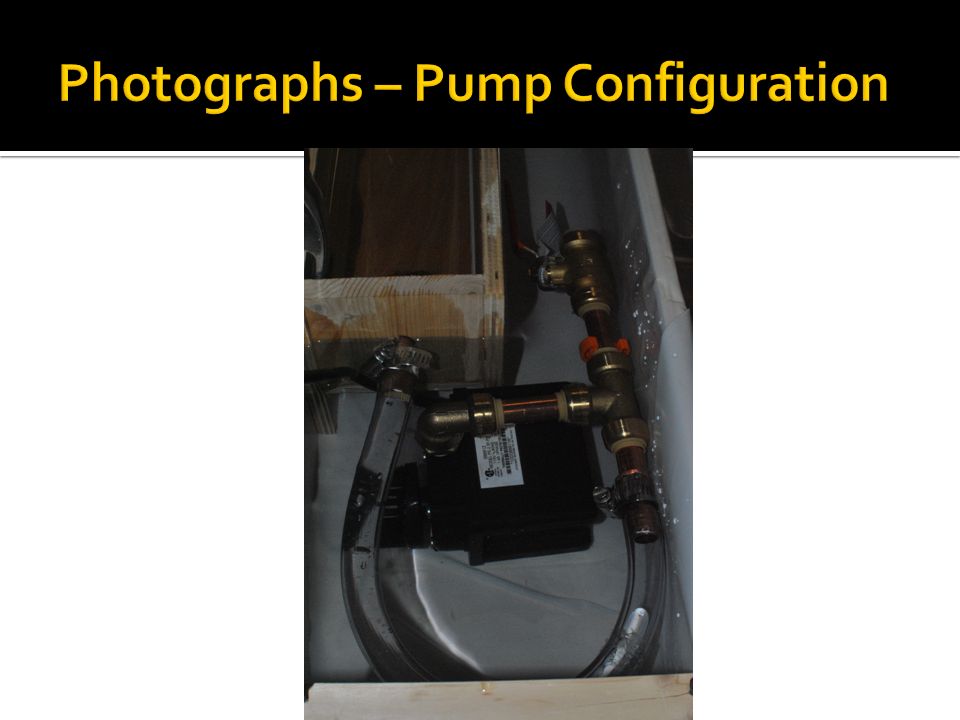

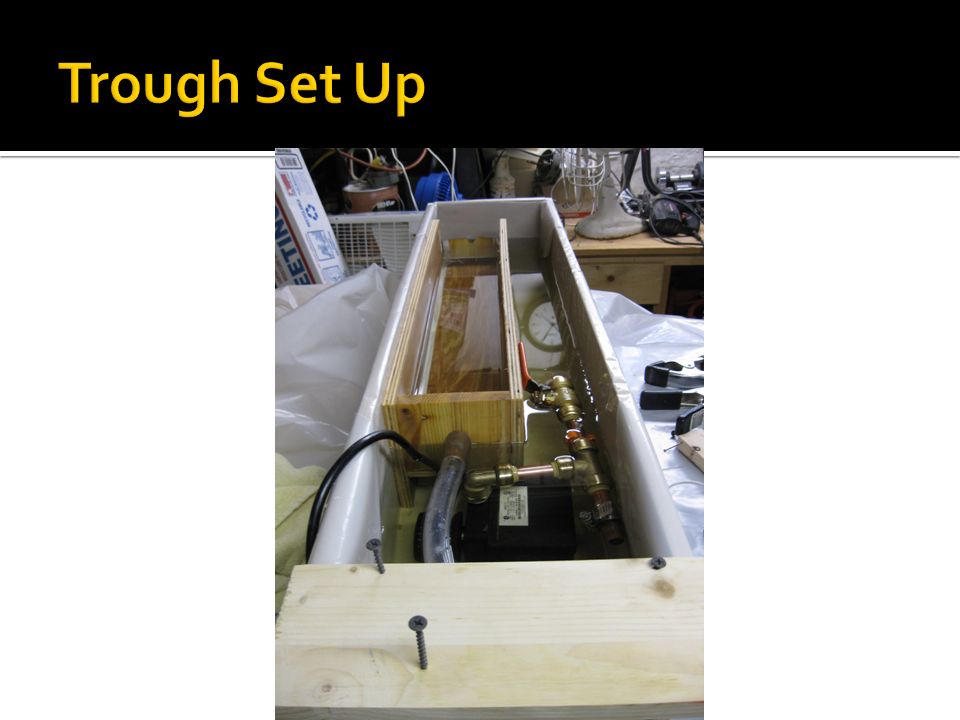

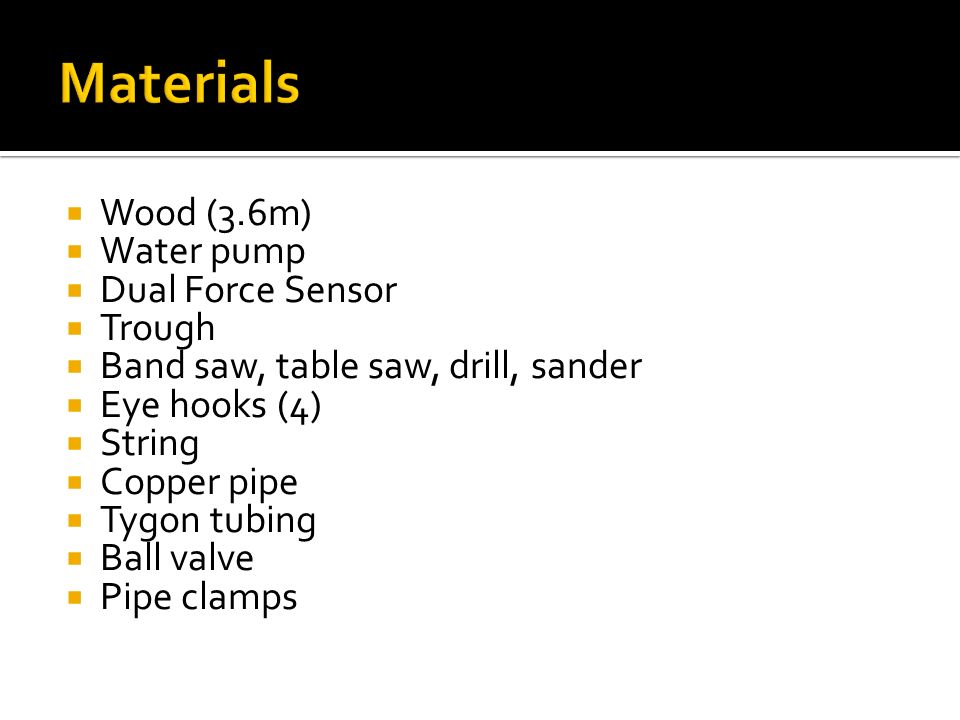

6.  Wood (3.6m)  Water pump  Dual Force Sensor  Trough  Band saw, table saw, drill, sander  Eye hooks (4)  String  Copper pipe  Tygon tubing  Ball valve  Pipe clamps

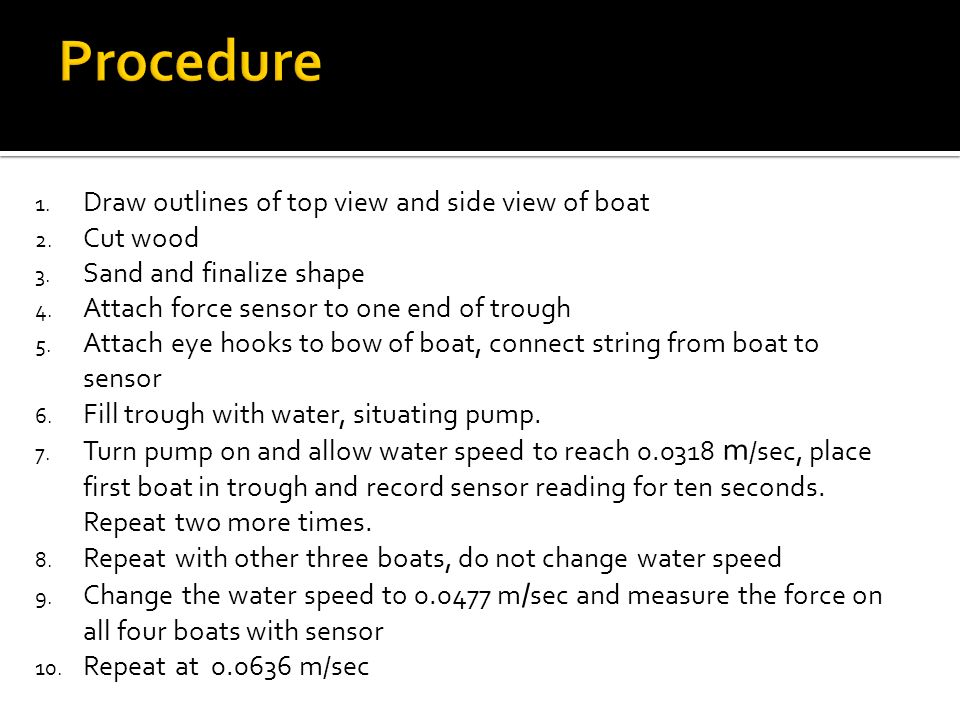

7. 1. Draw outlines of top view and side view of boat 2. Cut wood 3. Sand and finalize shape 4. Attach force sensor to one end of trough 5. Attach eye hooks to bow of boat, connect string from boat to sensor 6. Fill trough with water, situating pump. 7. Turn pump on and allow water speed to reach 0.0318 m /sec, place first boat in trough and record sensor reading for ten seconds. Repeat two more times. 8. Repeat with other three boats, do not change water speed 9. Change the water speed to 0.0477 m / sec and measure the force on all four boats with sensor 10. Repeat at 0.0636 m/sec

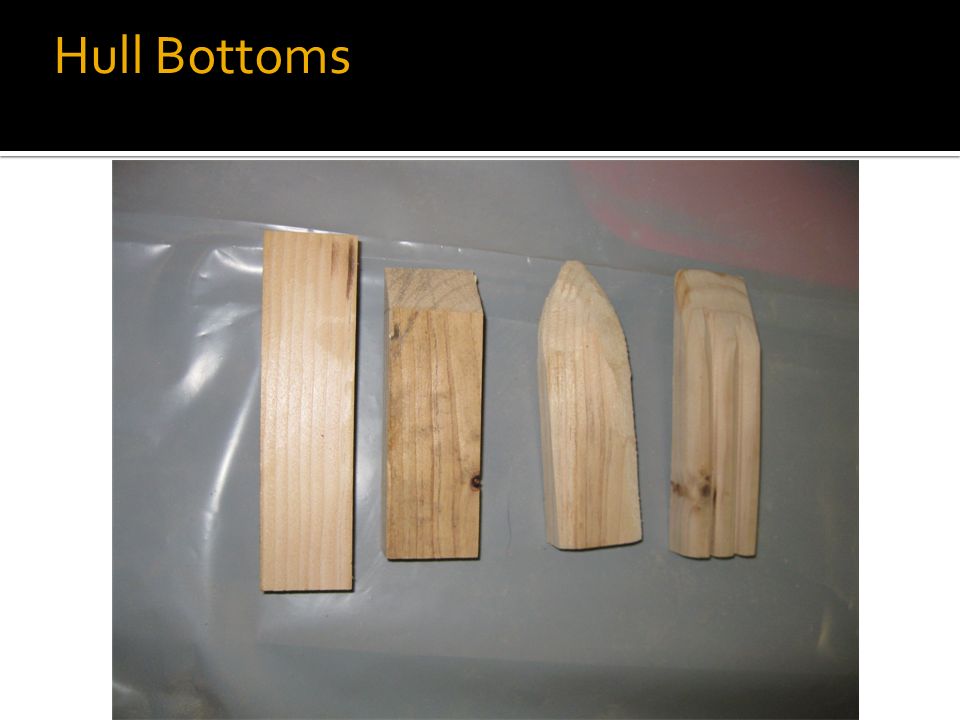

10. Hull Bottoms

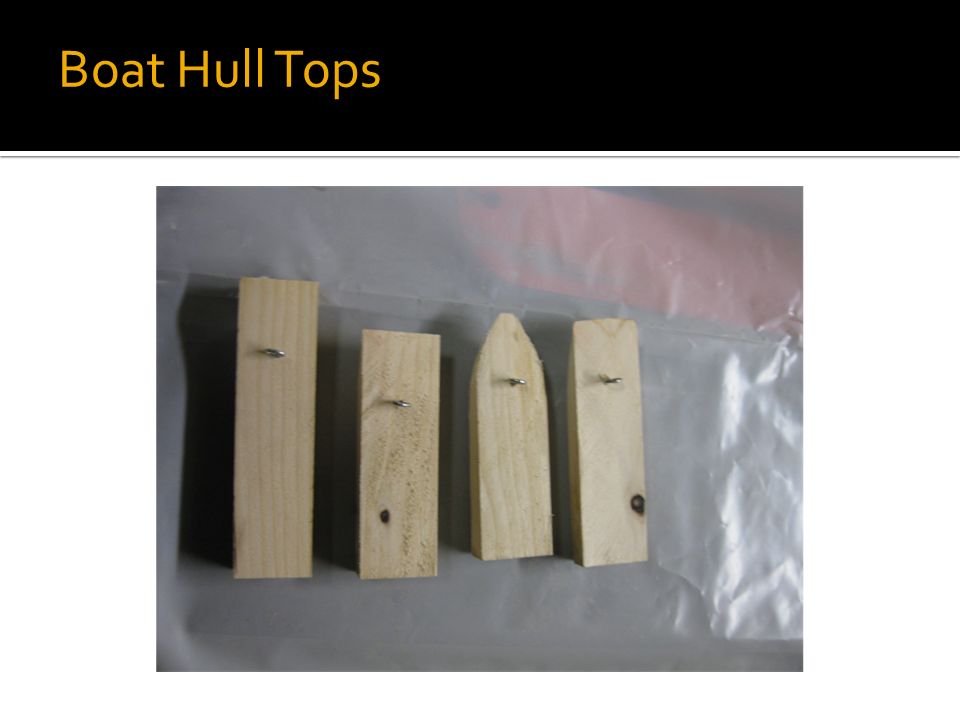

11. Boat Hull Tops

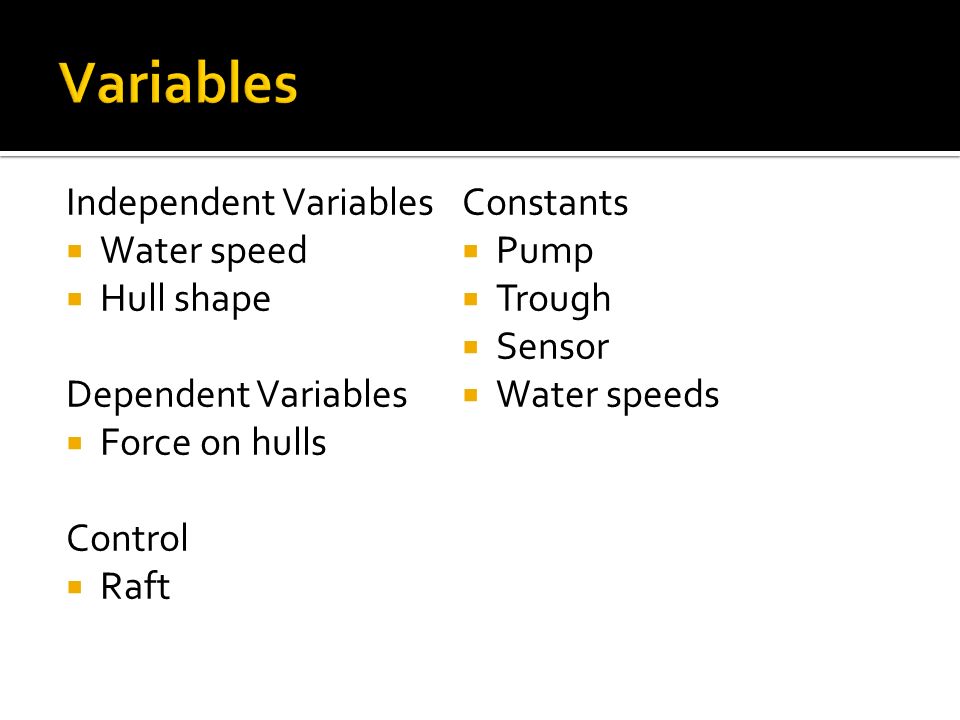

12. Independent Variables  Water speed  Hull shape Dependent Variables  Force on hulls Control  Raft Constants  Pump  Trough  Sensor  Water speeds

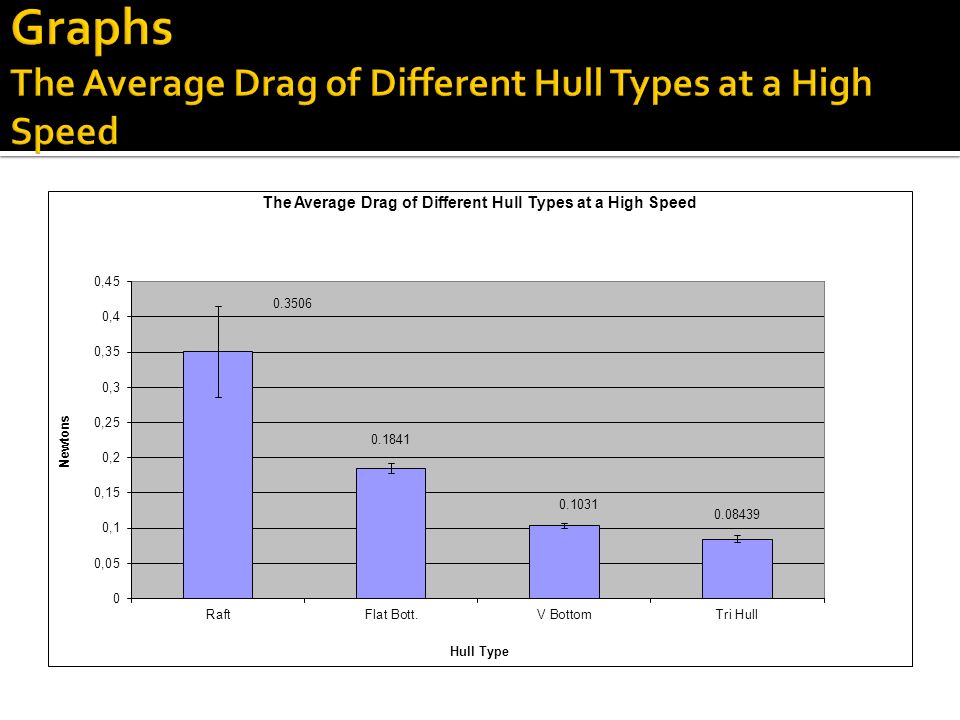

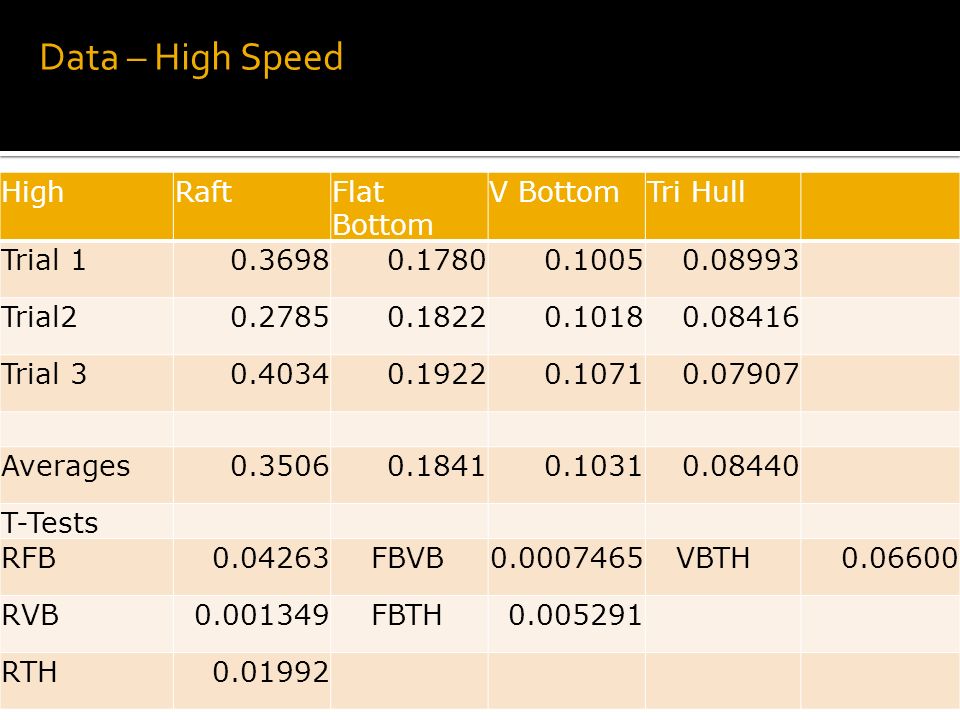

16. HighRaftFlat Bottom V BottomTri Hull Trial 10.36980.17800.10050.08993 Trial20.27850.18220.10180.08416 Trial 30.40340.19220.10710.07907 Averages0.35060.18410.10310.08440 T-Tests RFB0.04263 FBVB0.0007465 VBTH0.06600 RVB0.001349 FBTH0.005291 RTH0.01992 Data – High Speed

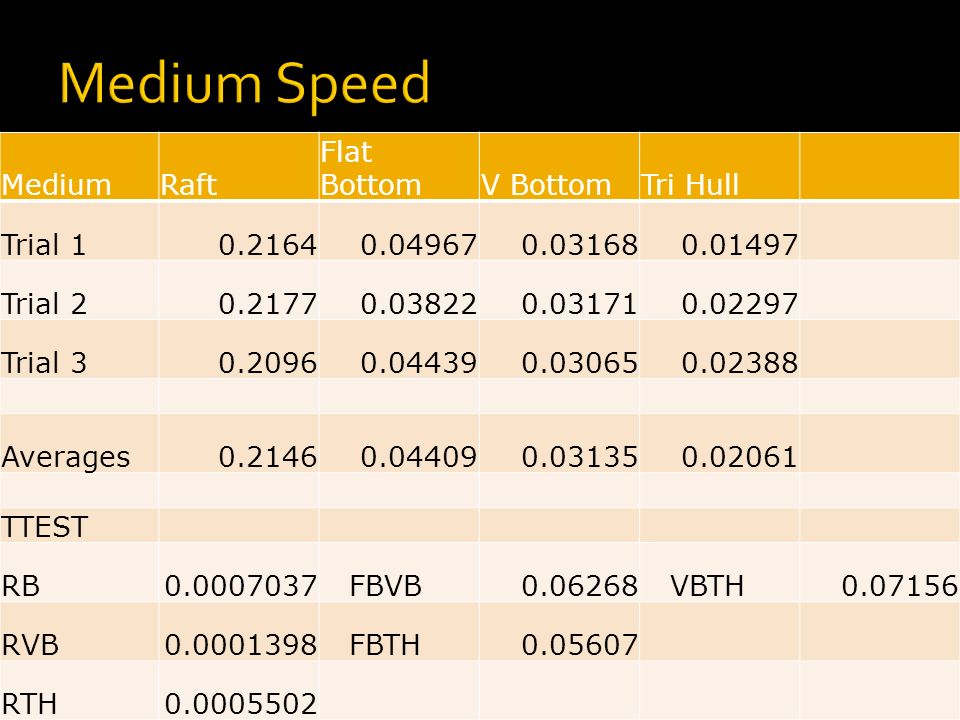

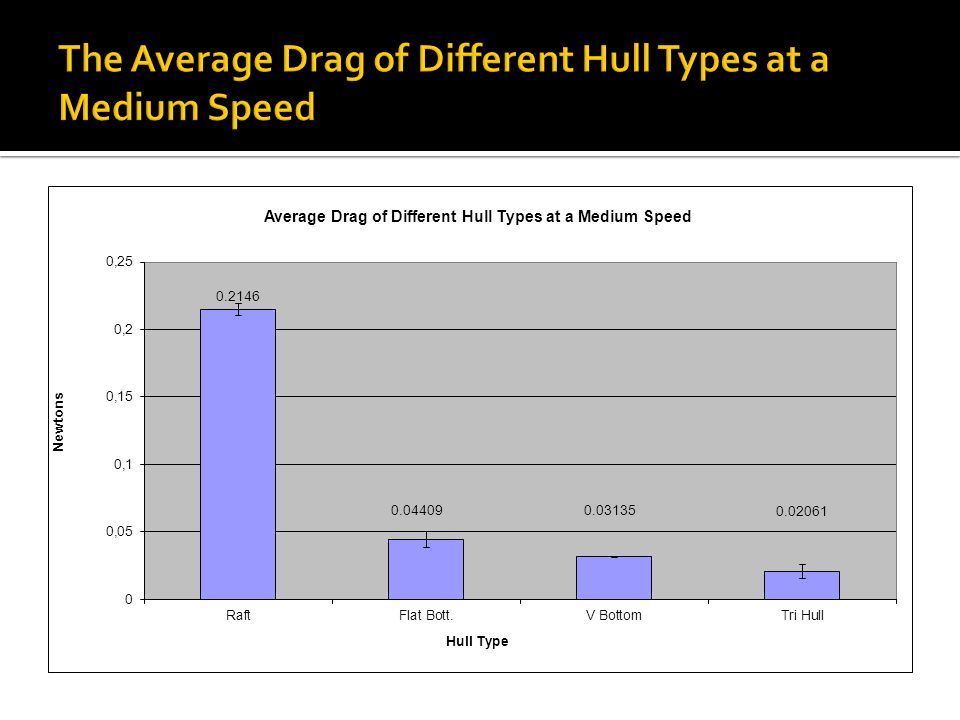

17. MediumRaft Flat BottomV BottomTri Hull Trial 10.21640.049670.031680.01497 Trial 20.21770.038220.031710.02297 Trial 30.20960.044390.030650.02388 Averages0.21460.044090.031350.02061 TTEST RB0.0007037 FBVB0.06268 VBTH0.07156 RVB0.0001398 FBTH0.05607 RTH0.0005502

18. SlowRaftFlat BottomV BottomTri Hull Trial 10.15800.020000.022160.0005921 Trial 20.15230.030060.023370.003039 Trial 30.13750.029630.022230.001069 Averages0.14930.026560.022590.001567 T-Tests RFB0.03970 FBVB0.3252 VBTH0.0002997 RVB0.03557 FBTH0.01257 RTH0.02857

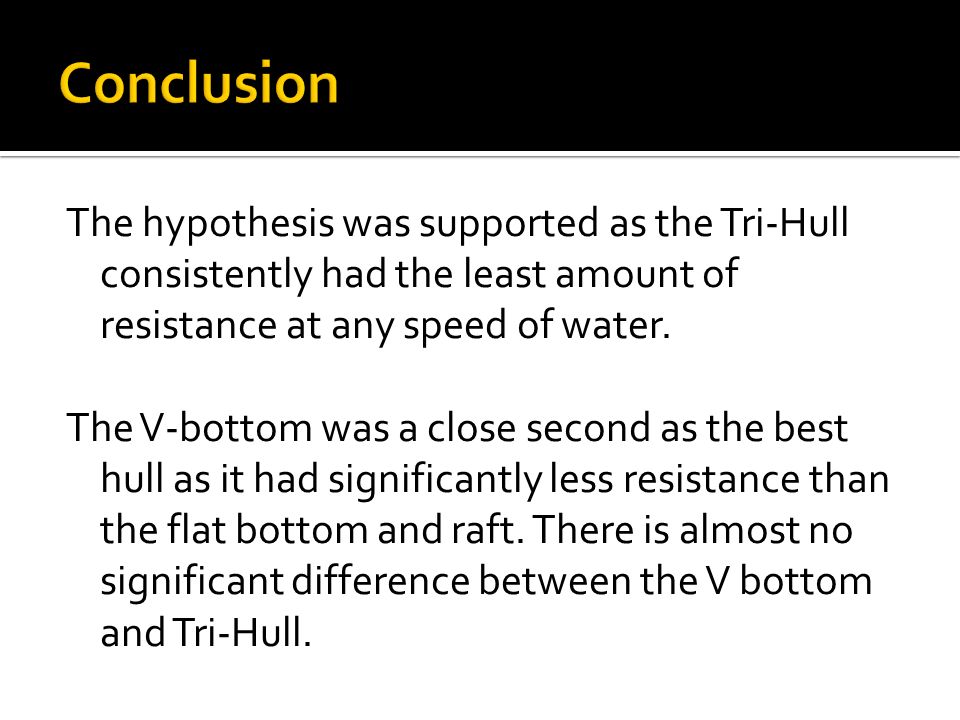

19. The hypothesis was supported as the Tri-Hull consistently had the least amount of resistance at any speed of water. The V-bottom was a close second as the best hull as it had significantly less resistance than the flat bottom and raft. There is almost no significant difference between the V bottom and Tri-Hull.

20. This experiment was significant because it contributed to the idea that one boat hull is the most efficient at any speed of water. But this experiment did not take into account the activity being performed, such as a war-ship versus a fishing boat, as well as the sea state.

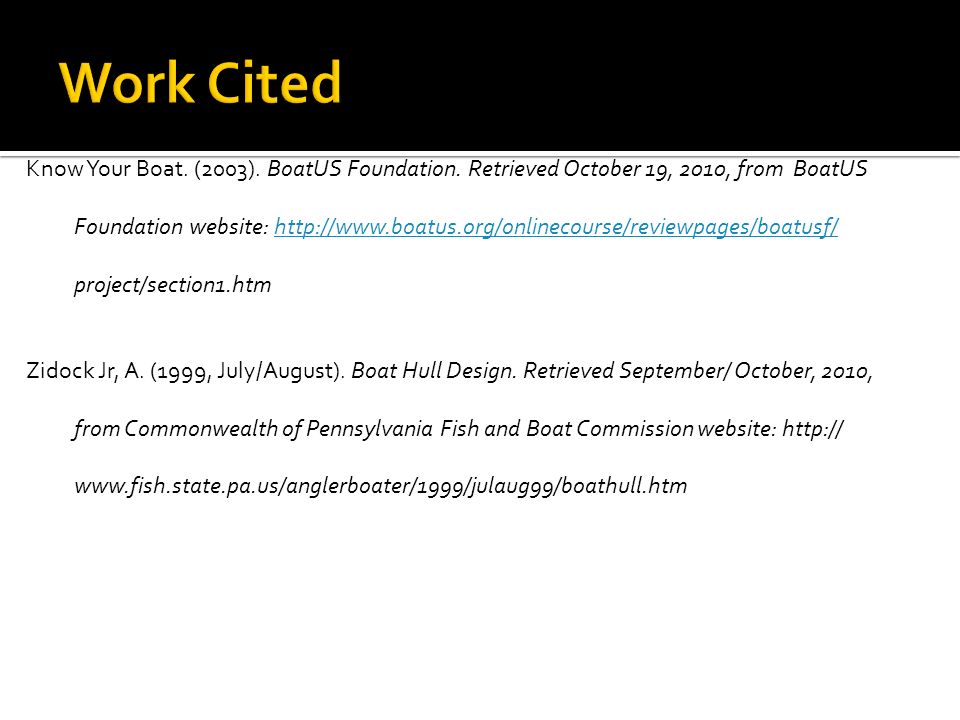

21. Know Your Boat. (2003). BoatUS Foundation. Retrieved October 19, 2010, from BoatUS Foundation website: http://www.boatus.org/onlinecourse/reviewpages/boatusf/http://www.boatus.org/onlinecourse/reviewpages/boatusf/ project/section1.htm Zidock Jr, A. (1999, July/August). Boat Hull Design. Retrieved September/ October, 2010, from Commonwealth of Pennsylvania Fish and Boat Commission website: http:// www.fish.state.pa.us/anglerboater/1999/julaug99/boathull.htm
